Overview
The LonGi 575W Solar Panel, part of the Hi-MO 6 Explorer (V2) series (Model: LR5-72HTH), is designed to deliver exceptional performance for the distribution market. It offers a power output ranging from 565W to 585W and boasts a maximum efficiency of 22.6%. With a 25-year linear power warranty, this panel is built to provide reliable, long-term energy generation with a modern design that ensures optimal performance.
Product Features
High Efficiency
- Maximum Module Efficiency: Reaches up to 22.6%, making this panel ideal for high-output applications.
- Power Tolerance: Features a power tolerance of 0~3%, ensuring reliable performance in a variety of environmental conditions.
Long-Term Reliability
- Low Power Degradation: With less than 1.5% degradation in the first year and a 0.40% degradation rate from year 2 to 25, this panel ensures consistent energy output over its lifetime.
- High-Quality Build: The anodized aluminum alloy frame and tempered glass guarantee the module’s longevity, even in harsh conditions.
Parameters
Mechanical Parameters
Parameter | Value |
---|---|
Cell Orientation | 144 cells (6x24) |
Dimensions | 2278 x 1134 x 30 mm |
Weight | 27.1 kg |
Glass | Single glass, 3.2mm coated tempered |
Frame | Anodized aluminum alloy frame |
Junction Box | IP68, with three diodes |
Output Cable | 4mm², ±400 to ±1400mm customizable |
Connector | EVO2 |
Electrical Characteristics (STC)
Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
---|---|---|---|---|---|---|
LR5-72HTH-565M | 565 | 48.60 | 14.01 | 43.61 | 12.96 | 21.9 |
LR5-72HTH-570M | 570 | 48.80 | 14.11 | 43.76 | 13.03 | 22.1 |
LR5-72HTH-575M | 575 | 49.00 | 14.14 | 44.07 | 13.10 | 22.3 |
LR5-72HTH-580M | 580 | 49.20 | 14.20 | 44.17 | 13.17 | 22.5 |
LR5-72HTH-585M | 585 | 49.40 | 14.25 | 44.31 | 13.24 | 22.6 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C to +85°C |
Power Output Tolerance | 0 ~ +3% |
Maximum System Voltage | 1500V DC (IEC/UL) |
Fuse Rating | 25A |
Temperature Coefficient | Isc: +0.05%/°C, Voc: -0.30%/°C, Pmax: -0.29%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 15-Year Warranty for Materials and Processing
- 25-Year Linear Power Warranty
Packaging
- 36 pieces per pallet
- 180 pcs per 20' container
- 720 pcs per 40'HC container
Application
The LonGi 575W Solar Panel is a versatile solution for the distribution market. With a modern design and high efficiency, it is ideal for residential and commercial projects, providing reliable power output and long-term durability for various energy needs.

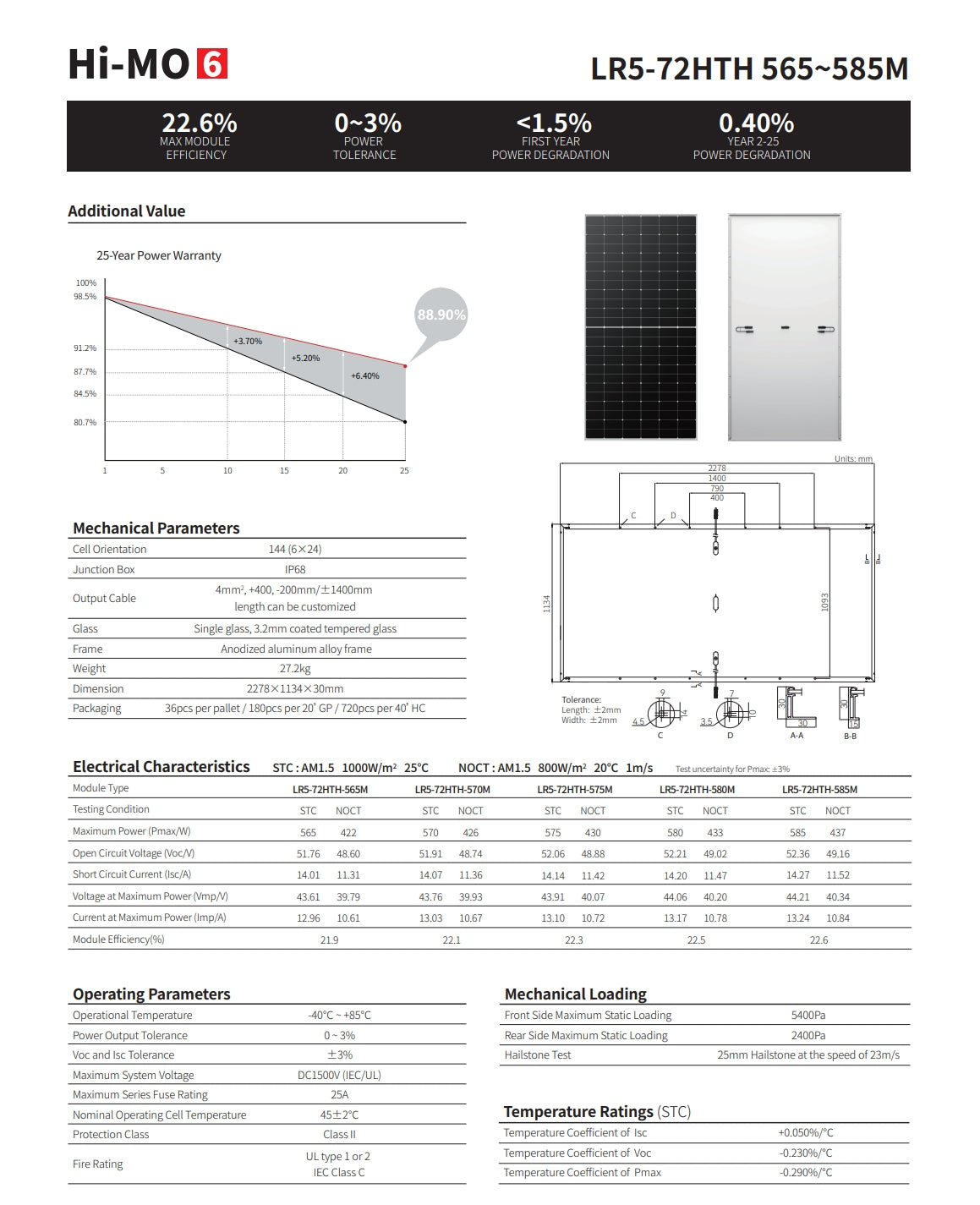

LonGi 575W Datasheet

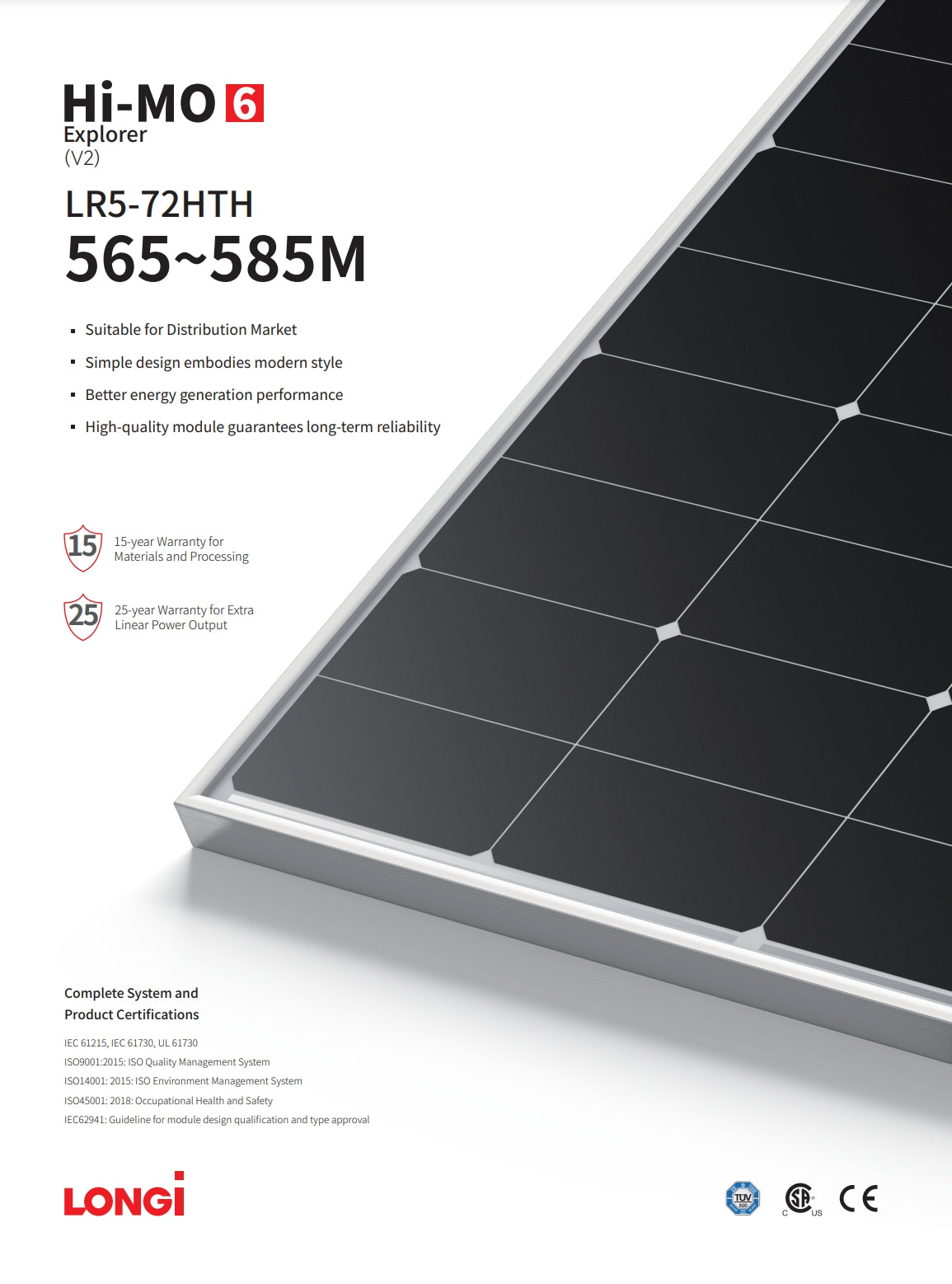

Longi 575W Solar Panel (LR5-72HTH, 565-585M) Product Image. The product features a simple design that embodies modern style, with high-quality modules ensuring long-term reliability. It comes with a 15-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output. The product also has complete system and product certifications from IEC 61215, IEC 61730, UL 61730 s09001.2015, ISO Quality Management System SO14001:2015, ISO Environment Management System S045001:2018, and Occupational Health Safety IEC62941: Guideline for module design qualification and type approval.
LonGi 575W Solar Panel (LR5-72HTH 565~585M) features a maximum module power of 575W, with an efficiency tolerance of ±0.40%. The module has a first-year year power degradation rate of ≤2.25% and a 25-year power warranty. The product has a mechanical parameter of 144 cells with an anodized aluminum alloy frame. It also features IP68 junction box and output cable length that can be customized.

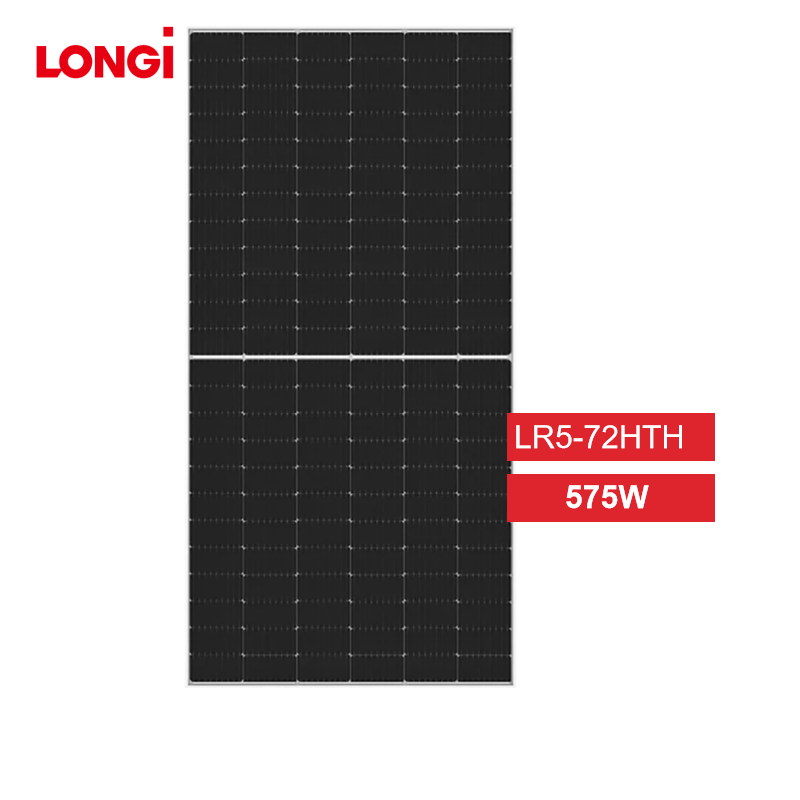

LonGi 575W Solar Panel (LR5-72HTH) with power output range of 565~585M.
