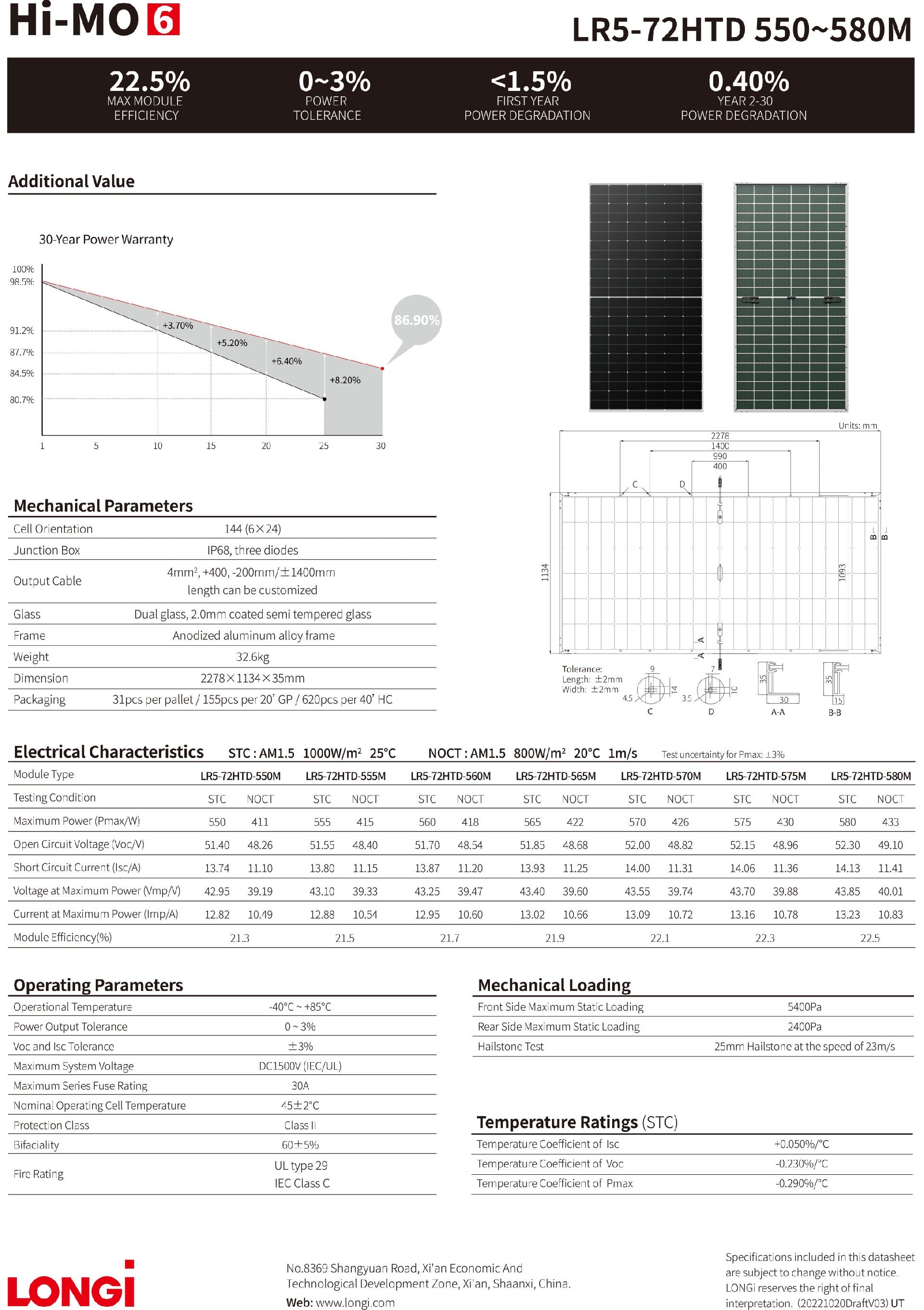

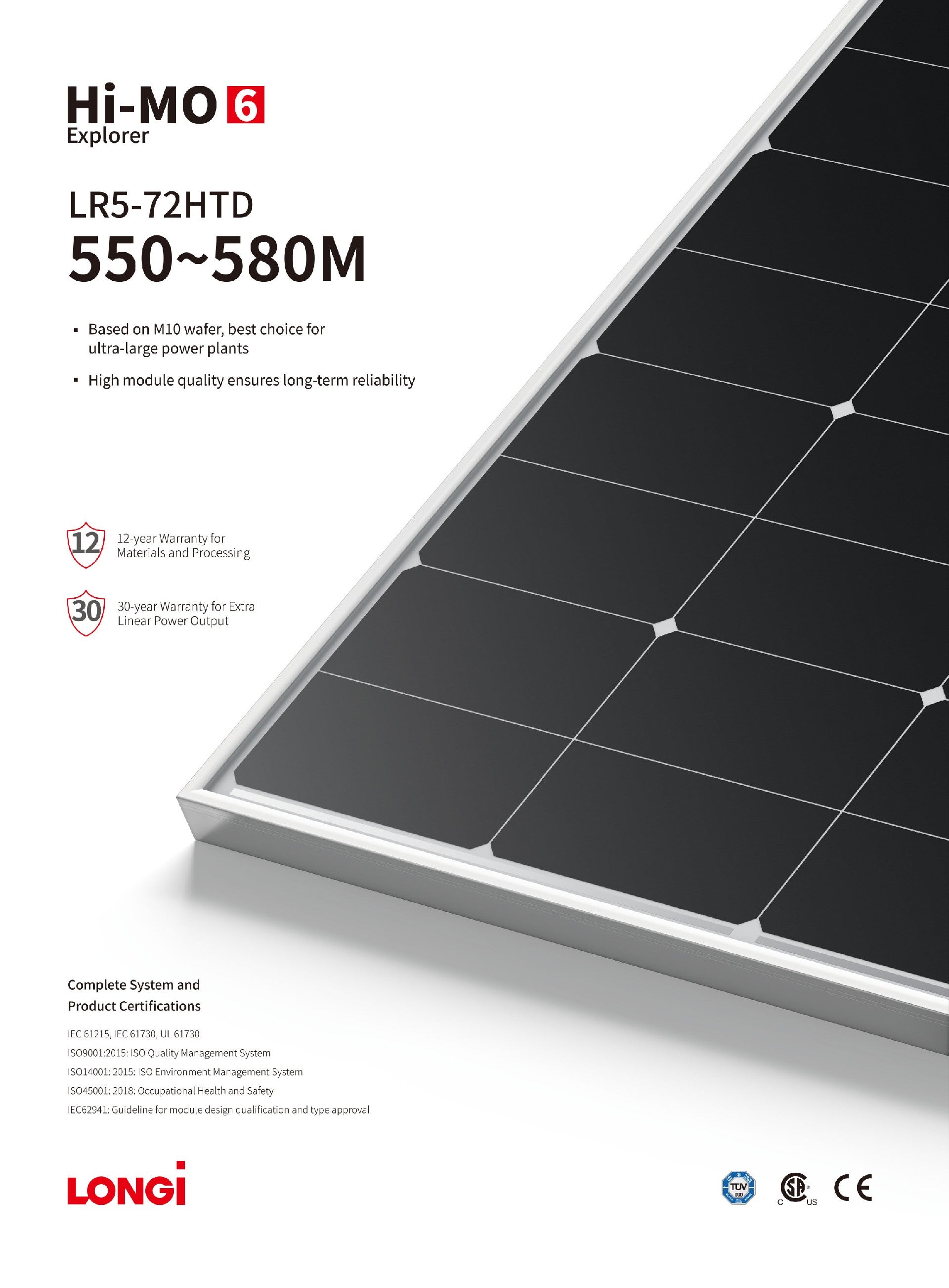

LONGi Hi-MO 6 Explorer LR5-72HTD 550~580M Solar Panel - Product Description
The LONGi Hi-MO 6 Explorer LR5-72HTD 550~580M solar panel is designed for ultra-large power plants, delivering high performance and reliability. With a maximum module efficiency of 22.5% and power output up to 580W, it ensures optimal energy production. Key features include advanced M10 wafer technology, dual glass construction, and Hot 2.0 technology for enhanced reliability and PID resistance. The panel is built to withstand high mechanical loads, with a front side maximum static load of 5400Pa and a rear side maximum static load of 2400Pa. It comes with a 12-year warranty for materials and processing and a 30-year linear power output warranty, maintaining 86.90% power output after 30 years. Certified by IEC, UL, and ISO standards, this solar panel is ideal for residential, commercial, and large-scale power plant applications.
LONGI 580 Watt Solar Panel SPECIFICATIONS
- Brand Name: LONGi
- Model Number: Hi-MO 6 Explorer LR5-72HTD 550~580M
- Power Range: 550-580W
- Maximum Efficiency: 22.5%
- Power Tolerance: 0~3%
- First Year Power Degradation: <1.5%
- Annual Power Degradation (Years 2-30): 0.40%
- Warranty: 12-year warranty for materials and processing, 30-year warranty for extra linear power output
LONGI 580 Watt Solar Panel Key Features
- Based on M10 Wafer: Best choice for ultra-large power plants
- High Module Quality: Ensures long-term reliability
-
Mechanical Parameters:
- Cell Orientation: 144 cells (6×24)
- Junction Box: IP68, three diodes
- Output Cable: 4mm², +400, -200mm / ±1400mm length (can be customized)
- Glass: Dual glass, 2.0mm coated semi-tempered glass
- Frame: Anodized aluminum alloy frame
- Weight: 32.6 kg
- Dimensions: 2278×1134×35mm
- Packaging: 31pcs per pallet, 155pcs per 20' GP, 620pcs per 40' HC
LONGI 580W Solar Panel, M1O Wafer-Based, High-Quality & Reliable, 12-Year Warranty on Materials & Processing, 30-Year Warranty on Power Output. Certified by IFC, UL, ISO, OHSAS, and IEC standards.
Electrical Characteristics (STC & NOCT)
| Specification | LR5-72HTD-550M | LR5-72HTD-555M | LR5-72HTD-560M | LR5-72HTD-565M | LR5-72HTD-570M | LR5-72HTD-575M | LR5-72HTD-580M |
|---|---|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | STC: 550, NOCT: 415 | STC: 555, NOCT: 418 | STC: 560, NOCT: 422 | STC: 565, NOCT: 570 | STC: 570, NOCT: 426 | STC: 575, NOCT: 430 | STC: 580, NOCT: 433 |
| Open Circuit Voltage (Voc) [V] | STC: 51.40, NOCT: 48.26 | STC: 51.55, NOCT: 48.40 | STC: 51.70, NOCT: 48.54 | STC: 51.85, NOCT: 48.68 | STC: 52.00, NOCT: 48.82 | STC: 52.15, NOCT: 48.96 | STC: 52.30, NOCT: 49.10 |
| Short Circuit Current (Isc) [A] | STC: 13.74, NOCT: 11.30 | STC: 13.80, NOCT: 11.35 | STC: 13.87, NOCT: 11.42 | STC: 13.93, NOCT: 11.42 | STC: 14.00, NOCT: 11.33 | STC: 14.06, NOCT: 11.36 | STC: 14.13, NOCT: 11.41 |
| Voltage at Maximum Power (Vmp) [V] | STC: 42.95, NOCT: 39.19 | STC: 43.10, NOCT: 39.33 | STC: 43.25, NOCT: 39.47 | STC: 43.40, NOCT: 39.60 | STC: 43.55, NOCT: 39.74 | STC: 43.70, NOCT: 39.88 | STC: 43.85, NOCT: 40.01 |
| Current at Maximum Power (Imp) [A] | STC: 12.82, NOCT: 10.49 | STC: 12.88, NOCT: 10.54 | STC: 12.95, NOCT: 10.60 | STC: 13.02, NOCT: 10.66 | STC: 13.09, NOCT: 10.72 | STC: 13.16, NOCT: 10.78 | STC: 13.23, NOCT: 10.83 |
| Module Efficiency (%) | 21.3 | 21.5 | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 |
Operating Parameters
- Operational Temperature: -40°C ~ +85°C
- Power Output Tolerance: 0 ~ +3%
- Voltage and Current Tolerance: ±3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Maximum Series Fuse Rating: 30A
- Nominal Operating Cell Temperature (NOCT): 45±2°C
- Protection Class: Class II
- Bifaciality: 60-91%
- Fire Rating: UL Type 29, IEC Class C
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings (STC)
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.230%/°C
- Temperature Coefficient of Pmax: -0.290%/°C
Certifications and Memberships
- Certifications: IEC 61215, IEC 61730, UL 61730
- Management Systems: ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety)
- Guideline: IEC62941 (Guideline for module design qualification and type approval)
Additional Value
-
30-Year Power Warranty:
- Degradation: 1st Year: <1.5%, Annual: 0.40%
- Power Output after 30 Years: 86.90%
- Increased Performance: +8.20% after 30 years
The LONGi Hi-MO 6 Explorer LR5-72HTD 550~580M solar panel is designed to deliver high performance and reliability for ultra-large power plants. It combines advanced technologies, superior mechanical properties, and comprehensive certifications, making it an ideal choice for long-term solar energy solutions.
