Overview

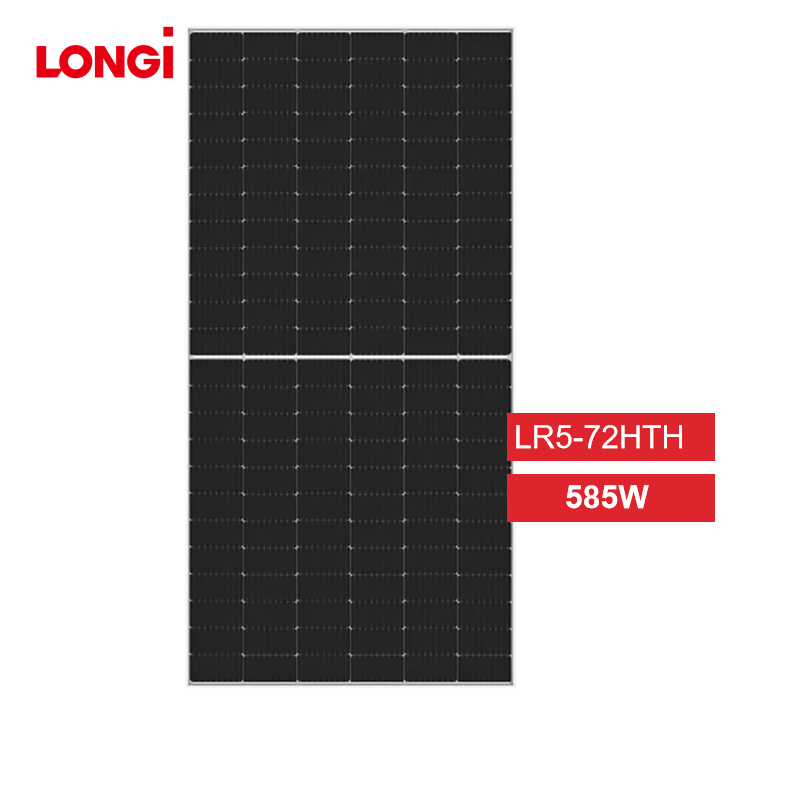

The LonGi 585W Solar Panel, part of the Hi-MO 6 Scientist series (Model: LR5-72HTH), offers outstanding performance with a power range from 585W to 600W. Engineered for optimal energy generation, this panel delivers high efficiency up to 23.2% and is backed by a robust 25-year linear power warranty. With superior build quality and enhanced energy generation capabilities, it is ideal for both residential and commercial applications.
Product Features
High Efficiency
- Maximum Module Efficiency: Up to 23.2%, enabling superior energy output in various environments.
- Power Tolerance: A tolerance range of 0~3% ensures consistent power output.
Long-Term Performance
- Low Degradation Rate: Power degradation remains less than 1.5% in the first year, followed by a 0.4% annual degradation up to 25 years.
- Reliable Output: Optimized for the best energy generation with long-term stability.
Parameters
Mechanical Parameters
Parameter | Value |
---|---|
Cell Orientation | 144 cells (6x24) |
Dimensions | 2278 x 1134 x 35 mm |
Weight | 27.5 kg |
Glass | Single glass, 3.2mm coated tempered |
Frame | Anodized aluminum alloy frame |
Junction Box | IP68, with three diodes |
Output Cable | 4mm², ±400 to ±1400mm customizable |
Connector | EVO2 |
Electrical Characteristics (STC)
Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
---|---|---|---|---|---|---|
LR5-72HTH-585M | 585 | 49.16 | 14.33 | 44.30 | 13.24 | 22.6 |
LR5-72HTH-590M | 590 | 49.40 | 14.40 | 44.36 | 13.31 | 22.8 |
LR5-72HTH-595M | 595 | 49.44 | 14.46 | 44.51 | 13.34 | 23.0 |
LR5-72HTH-600M | 600 | 49.52 | 14.55 | 44.75 | 13.40 | 23.2 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C to +85°C |
Power Output Tolerance | 0 ~ +3% |
Maximum System Voltage | 1500V DC (IEC/UL) |
Fuse Rating | 25A |
Temperature Coefficient | Isc: +0.05%/°C, Voc: -0.30%/°C, Pmax: -0.29%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 15-Year Warranty for Materials and Processing
- 25-Year Linear Power Warranty
Packaging
- 31 pieces per pallet
- 155 pcs per 20' container
- 620 pcs per 40'HC container
Application
The LonGi 585W Solar Panel is designed for the distribution market, combining cutting-edge energy generation capabilities with long-term reliability. This panel is ideal for both residential and commercial projects that require high efficiency and dependable performance over time.

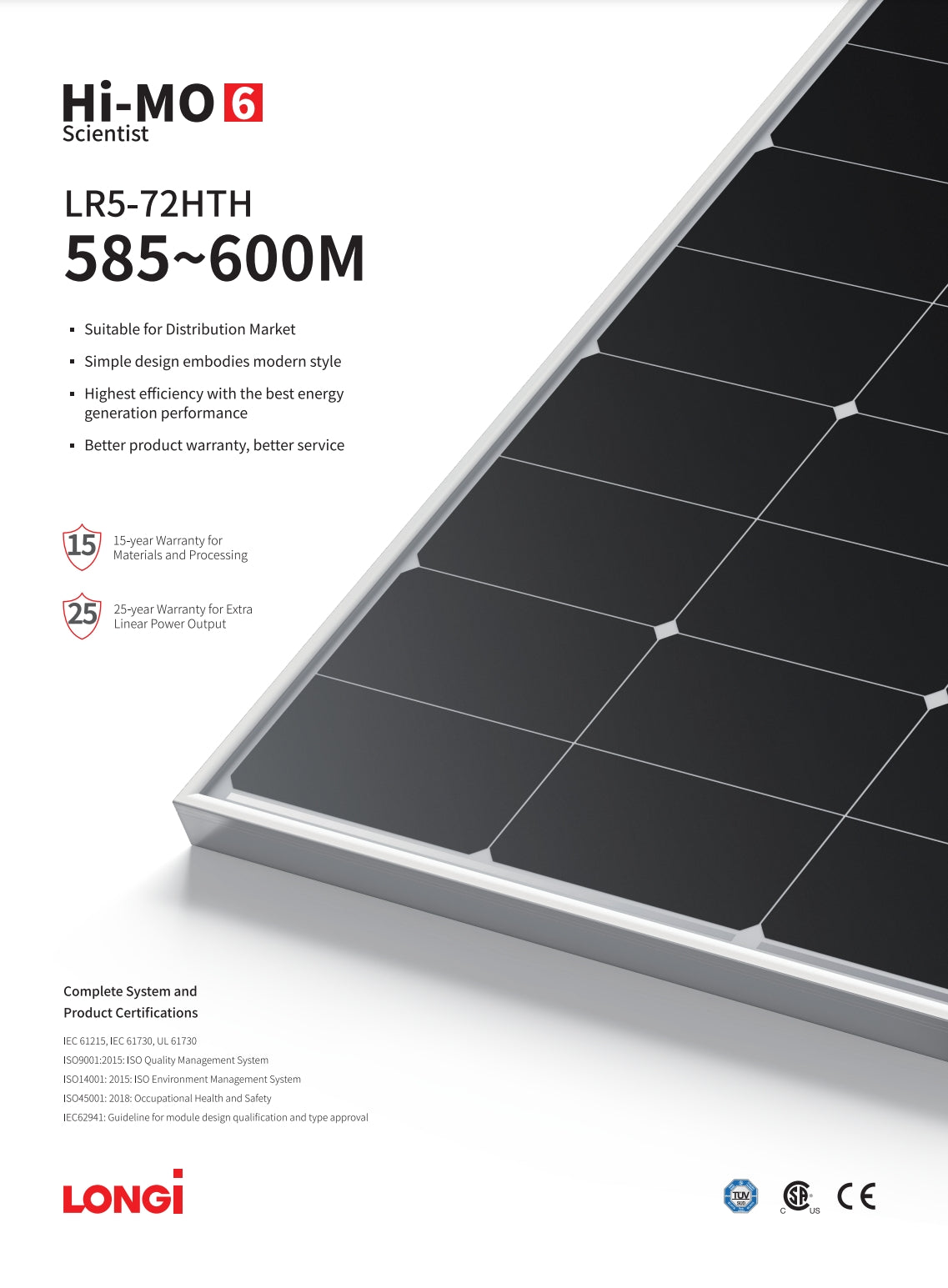

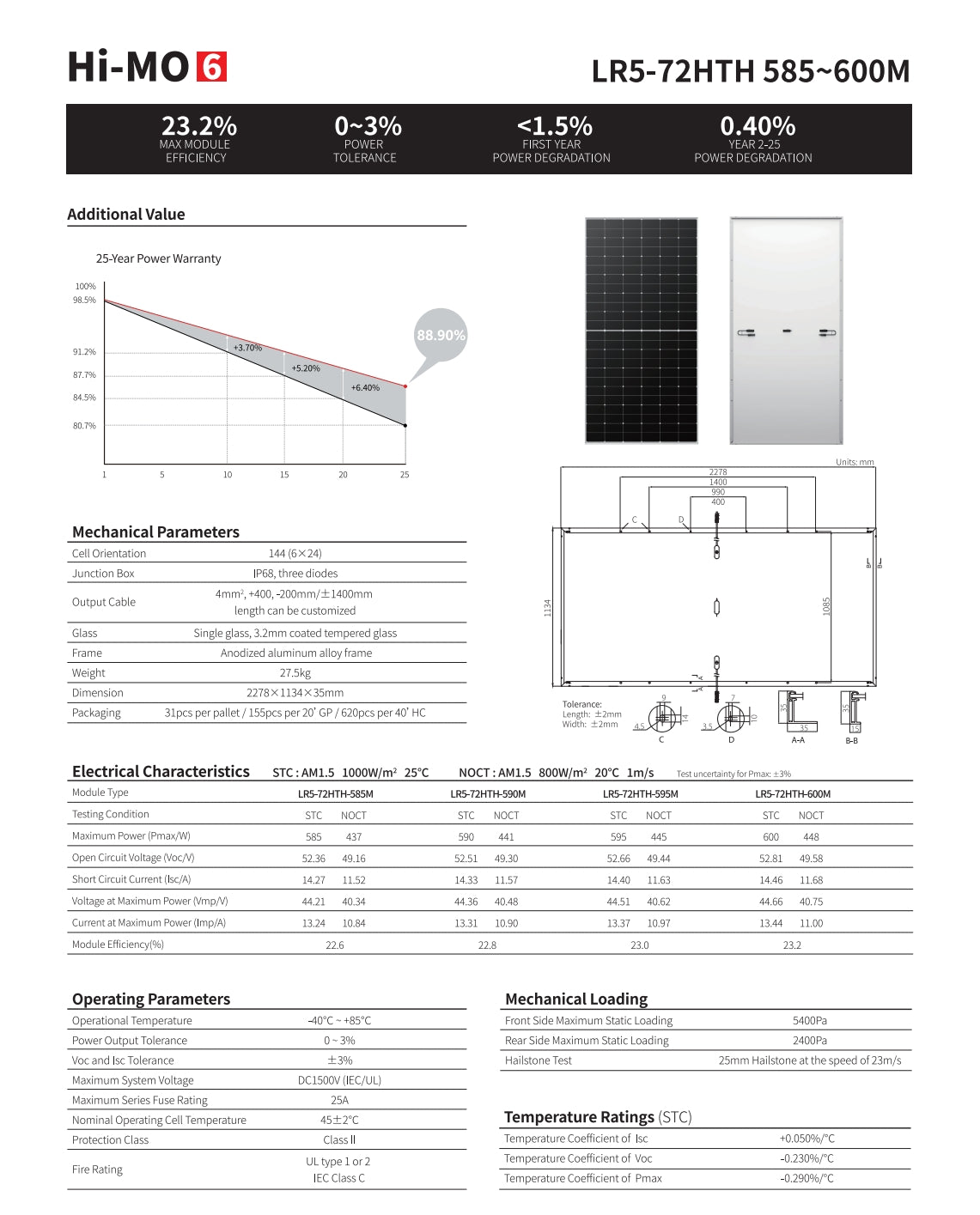

LonGi 585W Datasheet
The Longi 585W Solar Panel (LR5-72HTH, 585~600M) product image features a simple design embodying modern style. It boasts high efficiency with excellent energy generation performance. The product comes with a comprehensive warranty, including 15-year warranty for materials and processing, and 25-year warranty for extra linear power output. Additionally, the system and product certifications include IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO Environment Management System, ISO 45001:2018, and Occupational Health and Safety.
LonGi LRS-72HTH Solar Panel (585W-600M) Product Features: * Maximum Power: 585-600W * Efficiency: 23.2% * Operating Temperature: -40°C to +85°C * Mechanical Loading: Front side maximum static loading 5400N, rear side maximum static loading 2400N * Voc and Isc Tolerance: ±3% * Hailstone Test: 25mm hailstone at the speed of 23m/s * Maximum System Voltage: DC up to 1000V (IEC 61215-1) * Maximum Series Fuse Rating: 254A * Nominal Operating Cell Temperature: 45°C
