Overview

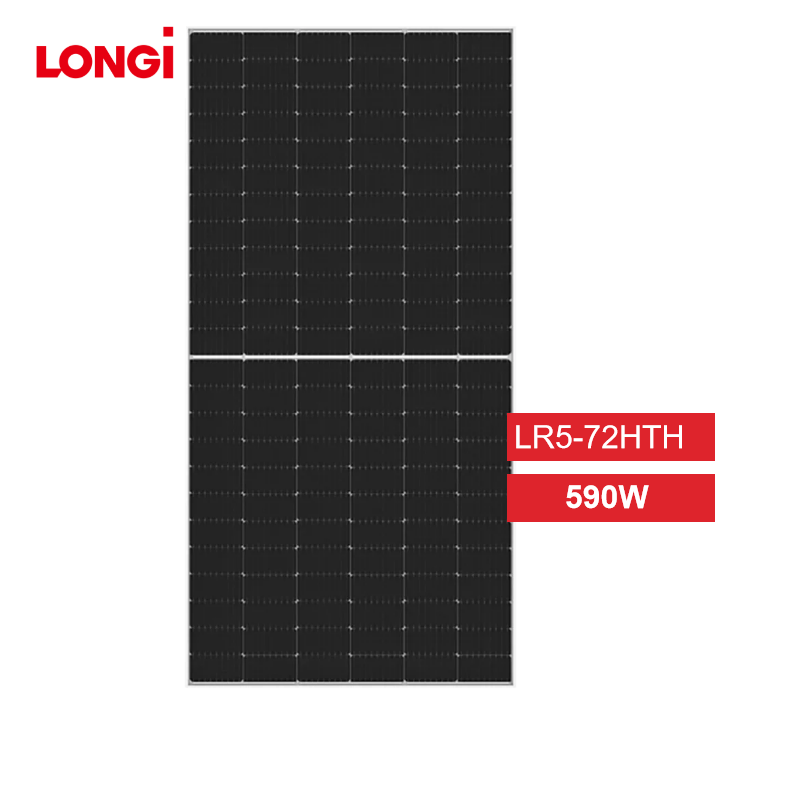

The LonGi 590W Solar Panel, part of the Hi-MO 6 Scientist series (Model: LR5-72HTH), is designed to deliver the highest efficiency and outstanding performance. With a power range from 590W to 600W, this panel offers exceptional energy generation, featuring up to 23.2% module efficiency. Backed by a 25-year linear power warranty, this panel guarantees long-term durability and energy output for a variety of energy needs, making it a suitable solution for distribution markets.
Product Features
High Efficiency
- Maximum Module Efficiency: Reaches up to 23.2%, ensuring maximum energy production with the best energy conversion technology.
- Power Tolerance: A power tolerance range of 0~3% ensures reliable performance under various environmental conditions.
Long-Term Performance
- Low Degradation: Power degradation remains less than 1.5% in the first year, with a 0.40% degradation rate from year 2 to 25, ensuring long-term performance.
- Built for Reliability: The high-quality anodized aluminum frame and coated tempered glass ensure that the module performs optimally in all weather conditions.
Parameters
Mechanical Parameters
| Parameter | Value |
|---|---|
| Cell Orientation | 144 cells (6x24) |
| Dimensions | 2278 x 1134 x 35 mm |
| Weight | 27.5 kg |
| Glass | Single glass, 3.2mm coated tempered |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, with three diodes |
| Output Cable | 4mm², ±400 to ±1400mm customizable |
| Connector | EVO2 |
Electrical Characteristics (STC)
| Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
|---|---|---|---|---|---|---|
| LR5-72HTH-585M | 585 | 49.16 | 14.33 | 44.30 | 13.24 | 22.6 |
| LR5-72HTH-590M | 590 | 49.40 | 14.40 | 44.36 | 13.31 | 22.8 |
| LR5-72HTH-595M | 595 | 49.44 | 14.46 | 44.51 | 13.34 | 23.0 |
| LR5-72HTH-600M | 600 | 49.52 | 14.55 | 44.75 | 13.40 | 23.2 |
Operating Parameters
| Parameter | Value |
|---|---|
| Operational Temperature | -40°C to +85°C |
| Power Output Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500V DC (IEC/UL) |
| Fuse Rating | 25A |
| Temperature Coefficient | Isc: +0.05%/°C, Voc: -0.30%/°C, Pmax: -0.29%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 15-Year Warranty for Materials and Processing
- 25-Year Linear Power Warranty
Packaging
- 31 pieces per pallet
- 155 pcs per 20' container
- 620 pcs per 40'HC container
Application
The LonGi 590W Solar Panel is ideal for distribution markets, combining high energy generation efficiency with long-term reliability. This panel is suitable for residential and commercial projects, ensuring consistent and dependable performance across various applications.

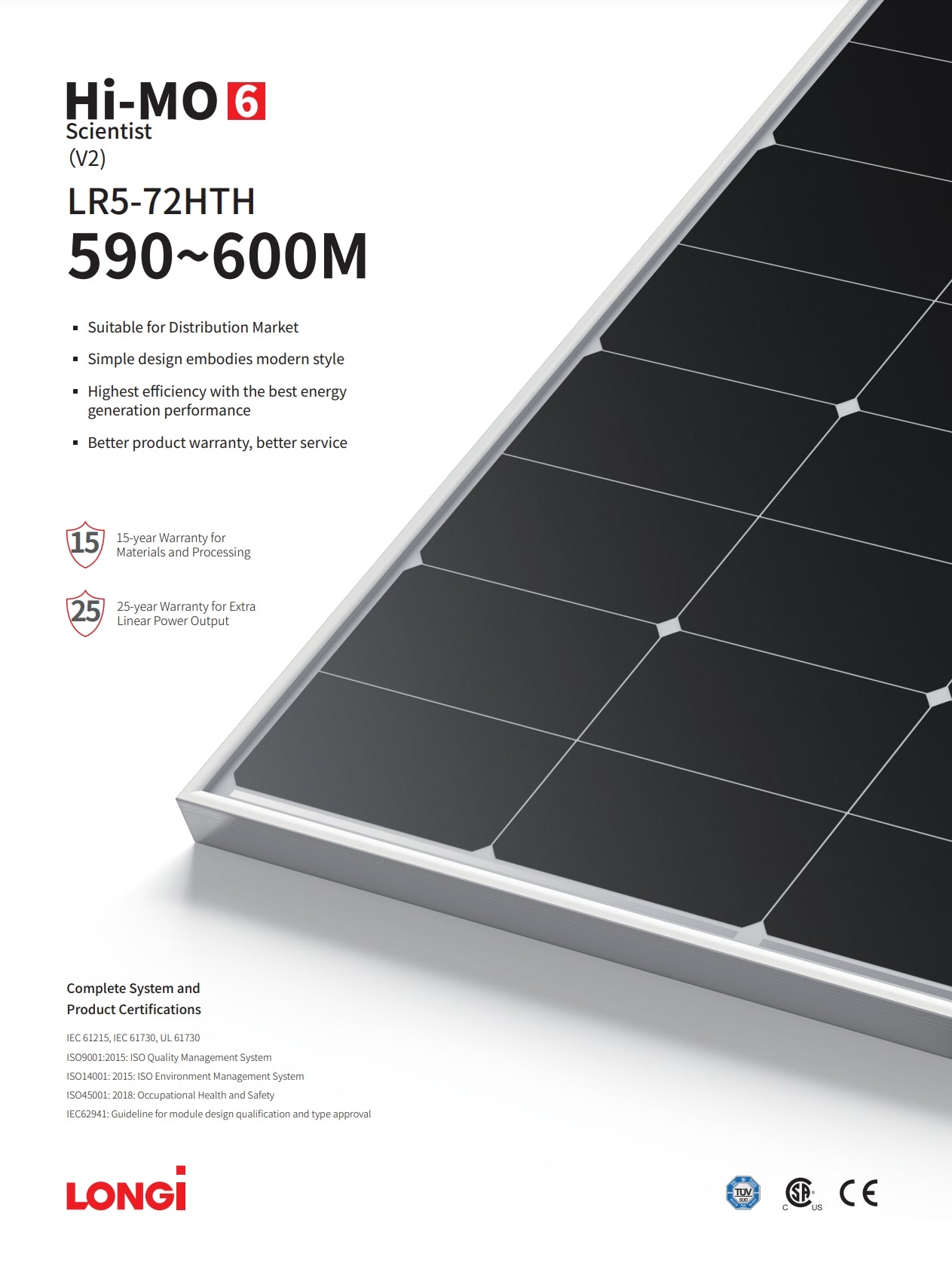

Longi 590W Solar Panel (LR5-72HTH, 590-600M): Suitable for Distribution Market. Simple design embodies modern style. Highest efficiency with the best energy generation performance. Better product warranty; better service. 15-year warranty for materials and processing. 25-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730. ISO 9001:2015 (ISO Quality Management System). ISO 14001:2015 (ISO Environment Management System). ISO 45001:2018 (Occupational Health and Safety). IEC 62941 (Guideline for module design qualification and type approval). LONGi @ C.

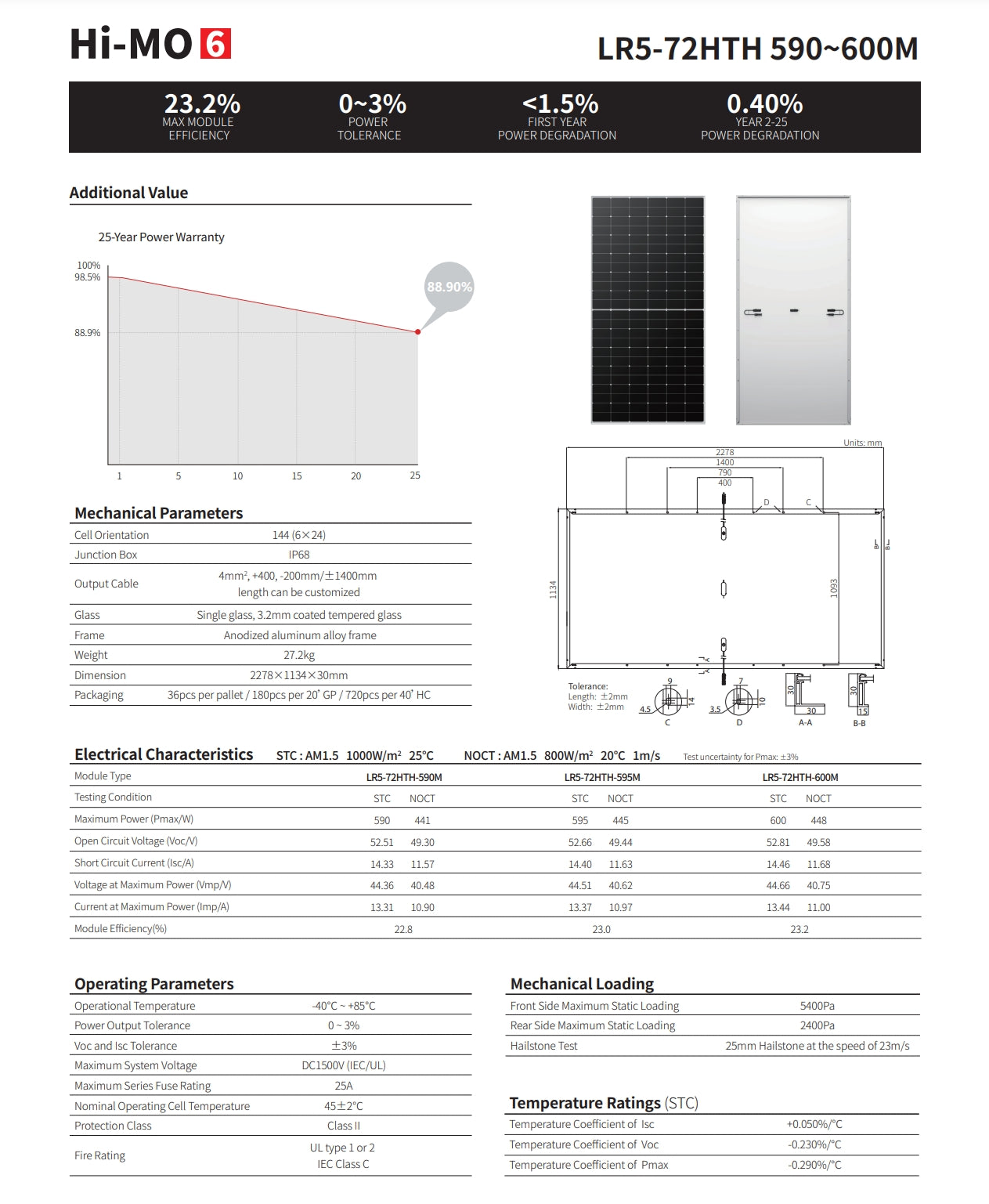

LonGi 590W Solar Panel LR5-72HTH 590~600M, 23.2% Efficiency, 25-Year Power Warranty, MAX MODULE POWER: FIRST YEAR 590W, 2-YEAR 580W, ADDITIONAL VALUE: 98.5%, LOO Mechanical Parameters: Cell Orientation: 144 (6x24), Junction Box: IPG8, 4mm, Output Cable Length: Can be customized, Glass: Single glass, 3.2mm coated tempered glass, Frame: Anodized aluminum alloy frame, Weight: 27.2kg, Dimension: 2278x1134x30mm, Electrical Characteristics: STC: AM1.5, 258C, NOCT: AM1.5, 80W/m^2, 20*C, Imls Testing Condition: STC, NOCT, STC, Maximum Power (Pmax): 590W, 441W, 595W, 445W, 600W, 448W, Open Circuit Voltage (Voc): 52.51V, 49.30V, 52.66V, 49.44V, 52.81V, 49.58V, Short Circuit Current (Isc): 14.33A, 11.57A, 14.40A, 11.63A, 14.46A, 11.68A, Voltage at Maximum Power (Vmp): 44.36V, 40.48V, 44.51V, 40.62V, 44.66V, 40.75V, Current at Maximum Power (Imp): 13.31A, 10.90A, 13.37A, 10.97A, 13.44A, 11.00A, Module Efficiency (%): 22.8%, 23.0%, 23.2%, Operating Parameters: Mechanical Loading: Operational Temperature -20~85*C, Front Side Maximum Static Loading: 5400Pa, Power Output Tolerance: 0~3%, Rear Side Maximum Static Loading: 2400Pa, Voc Sc Tolerance: 1300, Hailstone Test: 25mm hailstone at the speed of 23m/s, Maximum System Voltage (DC): IEC/UL, 1000V, Maximum Series Fuse Rating: 254A, Nominal Operating Cell Temperature: 45°C, Temperature Ratings (STC), Protection Class: Class II, Temperature Coefficient of Isc: +0.050%/°C, UL Type: 1 or 2, Temperature Coefficient of Voc: 0.2309/°C, Fire Rating: IEC Class C, Temperature Coefficient of Pmax: 0.29090/°C
