Overview
The Longi 595W Solar Panel (Hi-Mo 7 Bifacial, LR7-72HGD 585~620M) is a high-performance module designed for utility power plants. Featuring an impressive 23.0% maximum module efficiency, this panel offers 0-3% power tolerance, ensuring stable and reliable energy production. It also delivers excellent bifacial energy yield, with the advanced HPDC cell technology ensuring superior power output even in challenging environments. Additionally, the panel's robust design includes dual glass with 2.0mm semi-tempered glass, ensuring long-term durability. Operating temperatures range from -40°C to 85°C, making it suitable for a variety of climates.
Key Features
- High Efficiency: The Longi 595W Solar Panel boasts a 23.0% maximum module efficiency, optimized for large utility-scale power plants.
- Bifacial Technology: The advanced bifacial design improves energy yield with rear side power gains, contributing up to 25% extra energy output in favorable conditions.
- Durable Design: Constructed with dual 2.0mm semi-tempered glass and anodized aluminum alloy frame, it ensures a long lifecycle even under harsh conditions.
- Low Power Degradation: Power degradation is kept under 1% in the first year, ensuring stable long-term performance with 0.4% annual degradation for 30 years.
- Temperature Coefficient: The panel's excellent temperature coefficient allows stable performance even in high temperatures, with a coefficient of -0.290%/°C for power output (Pmax).
LonGi 595W Datasheet
Electrical Characteristics
Power Output | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Rear Gain (%) |
---|---|---|---|---|---|
595W | 52.27 | 14.33 | 44.00 | 13.55 | 10% |
610W | 52.53 | 14.75 | 44.12 | 13.86 | 15% |
626W | 52.43 | 16.05 | 44.33 | 15.03 | 20% |
640W | 52.34 | 17.10 | 44.33 | 17.10 | 25% |
Operating Parameters
- Operational Temperature: -40°C to 85°C
- Maximum System Voltage: DC 1500V
- Nominal Operating Cell Temperature (NOCT): 45±2°C
- Protection Class: Class II
- Maximum Series Fuse Rating: 30A
- Fire Rating: UL Type 2, IEC Class C
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at 23 m/s
Temperature Ratings
Coefficient | Value |
---|---|
Temperature Coefficient of Isc | +0.045%/°C |
Temperature Coefficient of Voc | -0.230%/°C |
Temperature Coefficient of Pmax | -0.290%/°C |
Packaging
- Packaging: 36 panels per pallet, 180pcs per 20’ GP, 720pcs per 40’ HC container
- Weight: 33.5kg per panel
- Dimension: 2382mm x 1134mm x 30mm
Certifications & Warranty
The Longi 595W Solar Panel comes with comprehensive certifications including IEC 61215, IEC 61730, UL 61730, ISO 9001, ISO 14001, and ISO 45001, ensuring top-notch quality standards. It also offers a 12-year warranty for materials and processing, and a 30-year warranty for extra linear power output.
Applications
The Longi 595W Solar Panel is an ideal solution for utility-scale power plants, offering high energy yields and exceptional durability in various climates and conditions. Its bifacial technology enhances efficiency, making it suitable for maximizing energy output even in challenging environments.

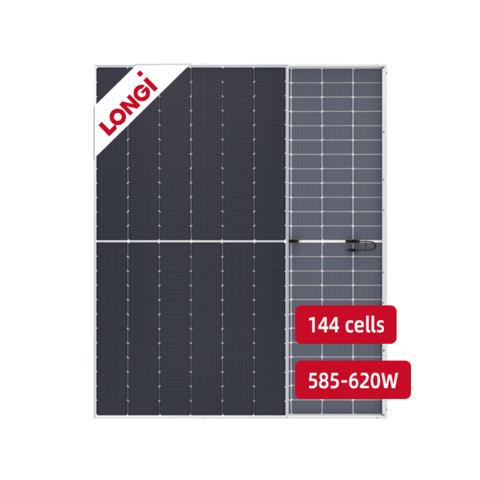

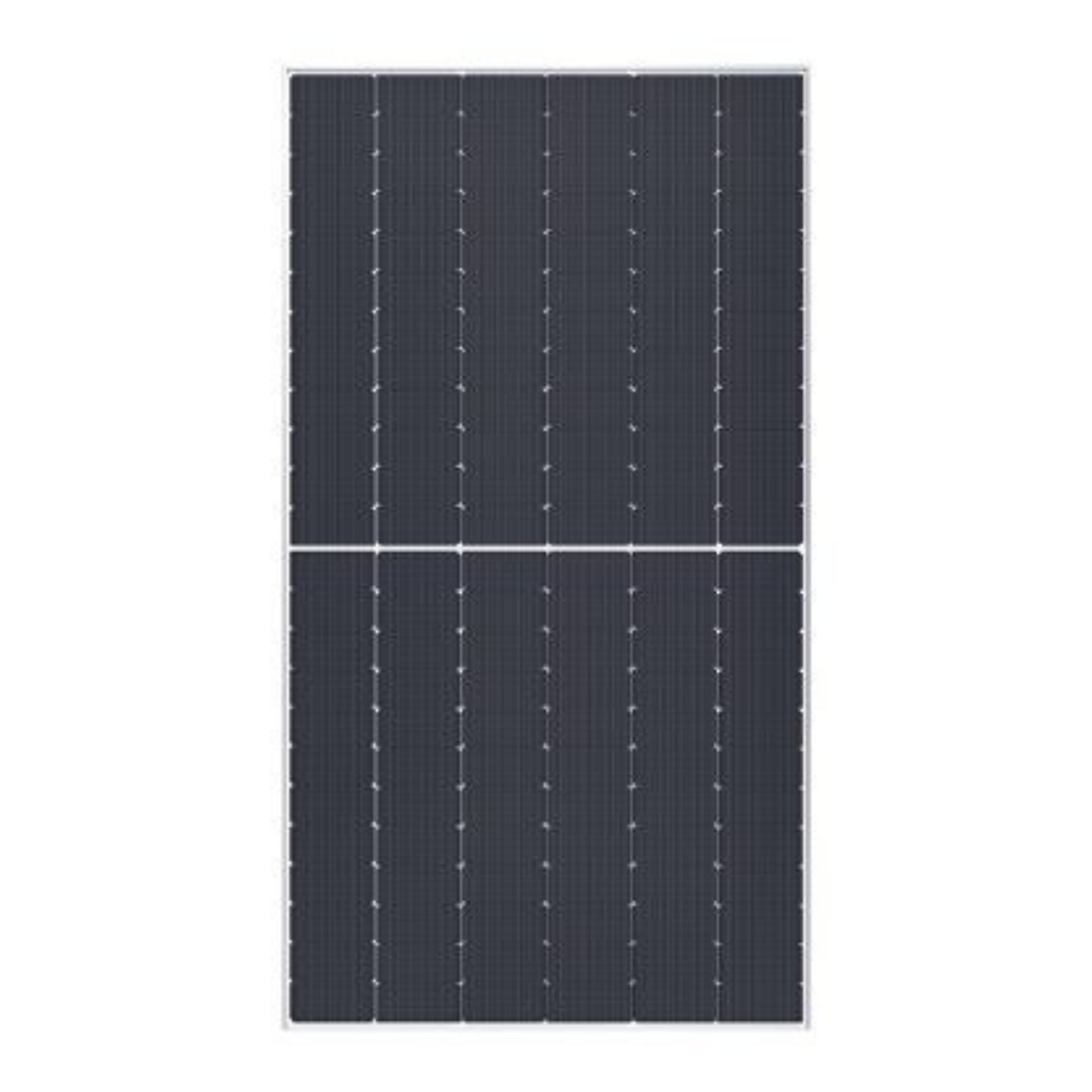

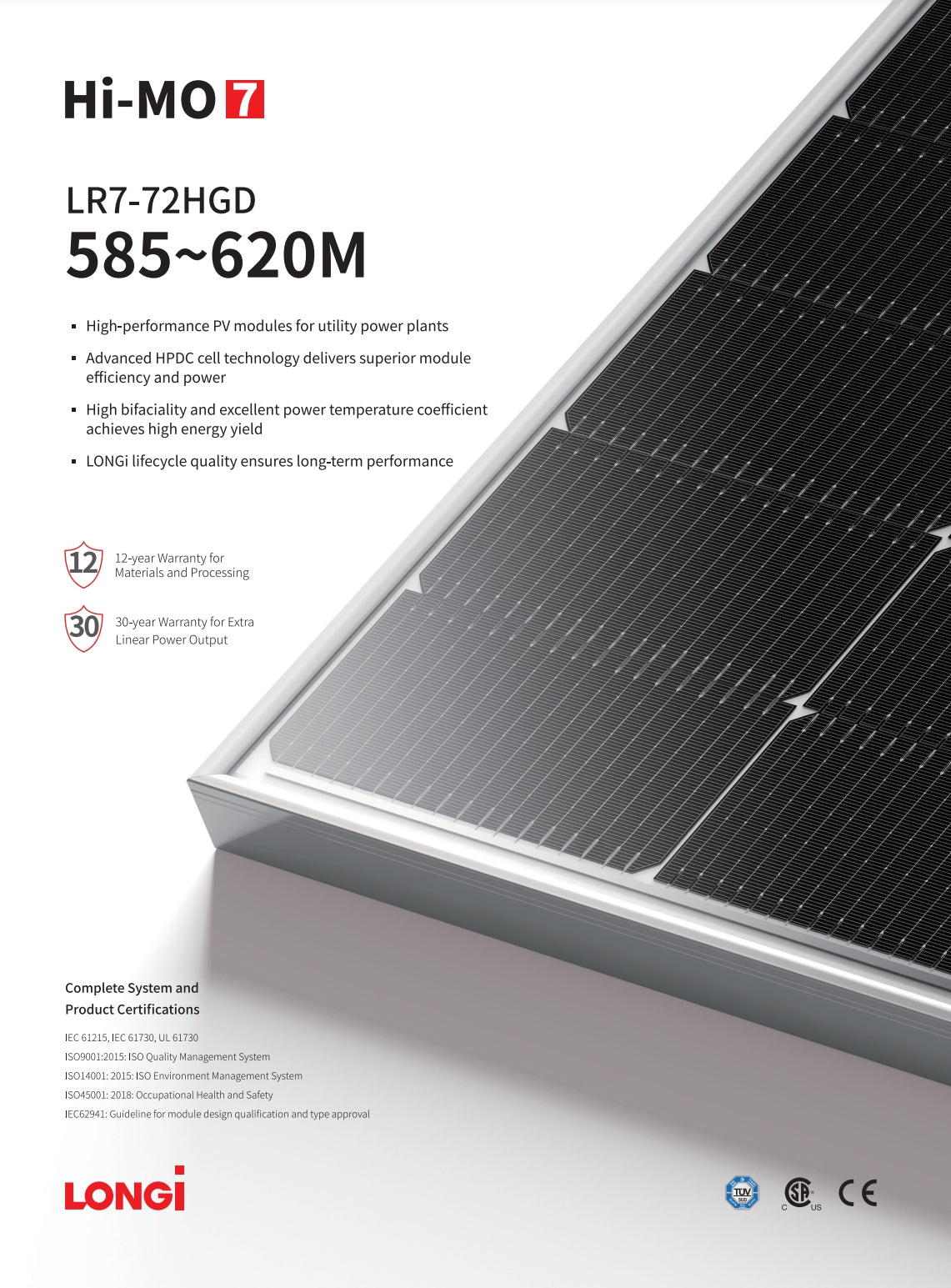

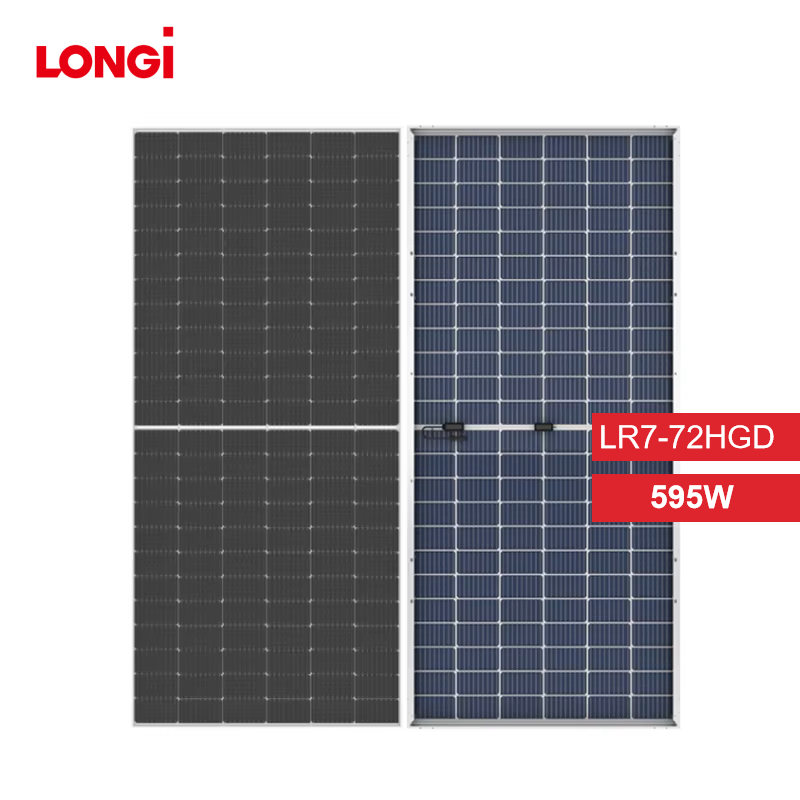

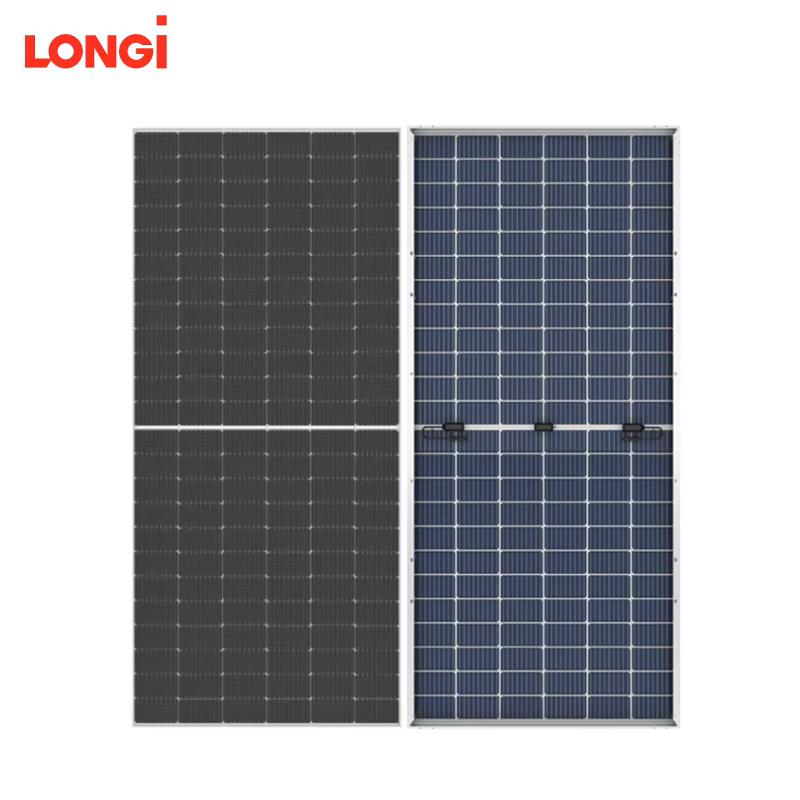

LONGi 595W Solar Panel (Hi-Mo 7 Bifacial, LR7-72HGD, 585-620M) product image. This high-performance PV module is designed for utility power plants. The HPDC cell technology delivers superior module efficiency and power. The bifaciality and excellent power temperature coefficient achieve high energy yield. LONGi lifecycle quality ensures long-term performance. The product comes with a 12-year warranty for materials processing and a 30-year warranty for extra linear power output. It also has complete system and product certifications, including IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and IEC 62941.
LonGi 595W Solar Panel (Hi-Mo 7 Bifacial, LR7-72HGD 585~620M) Product Features: • Hi-Mo 7 bifacial technology • Maximum power: 595W • Operating temperature range: -40°C to +85°C • Front side maximum static loading: 540 Pa • Rear side maximum static loading: 2400 Pa • Voc and Isc tolerance: ±137n • Hailstone test: 25mm hailstones at a speed of 73m/s • Maximum system voltage: DC 1000V (IEC/UL) • Maximum series fuse rating: 30A • Nominal operating cell temperature: 45°C • Protection class: IP68 • Temperature coefficient of Isc: -10.04 ppm/°C • UL type: 29 • Fire rating: IEC Class €
