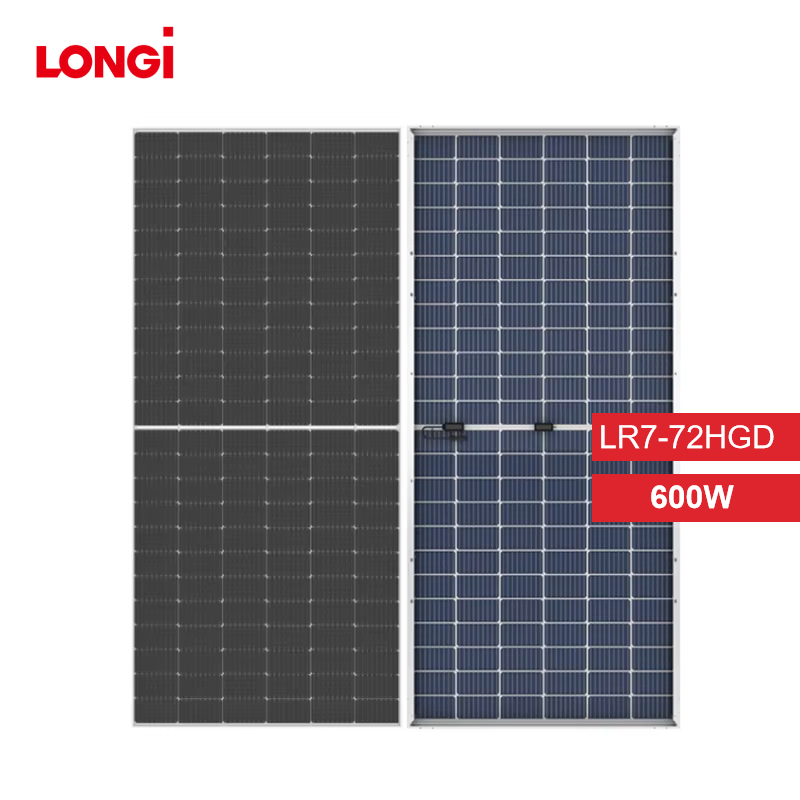

LonGi 600W Solar Panel Overview
The Longi 600W Solar Panel (LR7-72HGD 585~620M) is a high-performance bifacial solar module designed specifically for utility power plants. With a power range between 585W and 620W, this panel integrates advanced HPDC cell technology, achieving a maximum efficiency of 23.0%. Its bifacial design enables enhanced energy output with rear side power gain of up to 25%. Built with dual glass and an anodized aluminum frame, it guarantees durability and resilience under diverse environmental conditions. This product offers long-term reliability with its 12-year materials warranty and an impressive 30-year linear power output warranty.
LonGi Solar 600W Key Features
- Power Output: Up to 600W
- Efficiency: Max 23.0% module efficiency
- Bifacial Power Gain: Rear-side gain of up to 25%
- Advanced HPDC Cell Technology: Improves power output and performance
- Durable Design: Dual glass and anodized aluminum frame for structural integrity
- Extended Warranty: 12-year for materials and 30-year linear power output warranty
LonGi 600W Datasheet
Electrical Characteristics
Model Type | Testing Condition | Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
---|---|---|---|---|---|---|---|
LR7-72HGD-585M | STC | 585 | 51.89 | 14.95 | 43.79 | 13.36 | 21.7 |
LR7-72HGD-600M | STC | 600 | 52.40 | 15.17 | 44.01 | 13.63 | 22.0 |
LR7-72HGD-615M | STC | 615 | 52.73 | 15.30 | 44.17 | 13.86 | 22.4 |
LR7-72HGD-620M | STC | 620 | 53.22 | 15.42 | 44.23 | 13.93 | 23.0 |
Electrical Characteristics with Different Rear Side Power Gain
Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Power Gain (%) |
---|---|---|---|---|---|
635W | 52.33 | 15.30 | 44.23 | 14.36 | 5% |
660W | 52.33 | 16.03 | 44.23 | 15.05 | 10% |
696W | 52.43 | 16.76 | 44.33 | 15.73 | 15% |
726W | 52.43 | 17.49 | 44.33 | 16.41 | 20% |
752W | 52.43 | 18.22 | 44.33 | 17.10 | 25% |
Temperature Ratings
Parameter | Value |
---|---|
Temperature Coefficient of Isc | +0.045%/°C |
Temperature Coefficient of Voc | -0.290%/°C |
Temperature Coefficient of Pmax | -0.340%/°C |
Operating Parameters
- Operating Temperature: -40°C ~ +85°C
- Nominal Operating Cell Temperature: 45±2°C
- Protection Class: Class II
- Fire Rating: UL Type 29 / IEC Class C
Mechanical Parameters
- Dimensions: 2382 x 1134 x 30mm
- Weight: 33.5kg
- Cell Orientation: 144 cells (6 x 24)
- Glass: Dual glass, 2.0mm semi-tempered
- Frame: Anodized aluminum alloy
- Junction Box: IP68, with three diodes
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Health & Safety)
- IEC 62941 (Module design qualification)
Packaging
- Packaging: 36 pcs per pallet
- Container Load (20' GP): 180 pcs
- Container Load (40' HC): 720 pcs
Warranty
- Material Warranty: 12 years
- Power Output Warranty: 30 years linear power output warranty
The Longi 600W Solar Panel (LR7-72HGD 585~620M) offers high efficiency and durability, making it a reliable choice for utility power plants. Its bifacial design with rear side power gain ensures enhanced energy yield, while its robust construction guarantees long-term performance in all environments. With advanced cell technology and an extended warranty, this solar panel is an excellent investment for large-scale solar projects.
LonGi 600 Watt Solar Panel Details

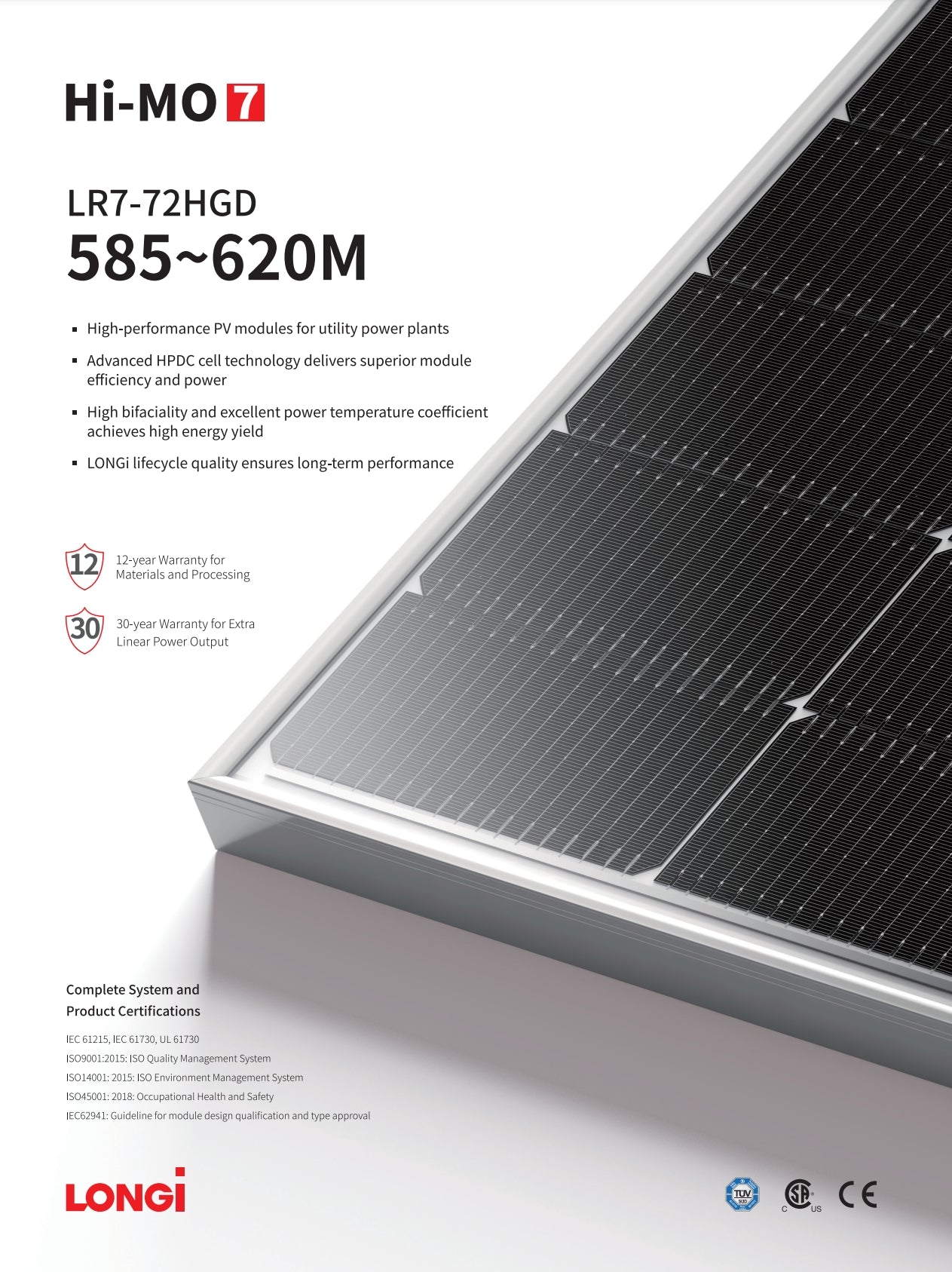

LONGi LR7-72HGD Solar Panel. High-performance PV modules for utility power plants. Advanced HPDC cell technology delivers superior module efficiency and power. High bifaciality and excellent power temperature coefficient achieve high energy yield. LONGi lifecycle quality ensures long-term performance. 12-year warranty for materials and processing, 30-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2018.

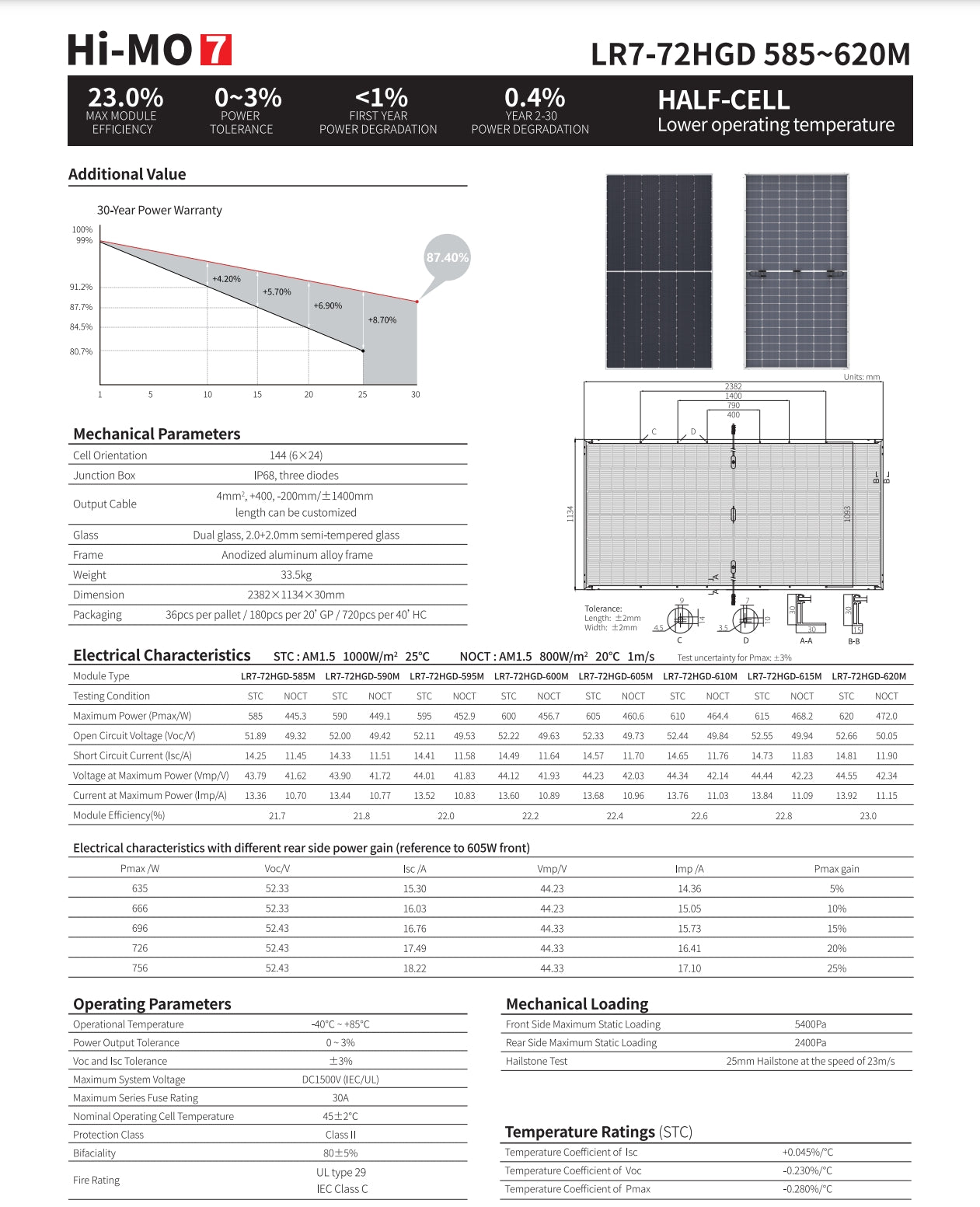

LonGi LR7-72HGD 585-620M Bifacial Solar Panel Product Image LR7-72HGD-585~620M, Bifacial Hi-MO LR7-72HGD 585-620M 23.0% 0~3% <10 0.4% HALF-CELL MAX MODULE POWER FIRST YEAR 2-30 EFFICIENCY TOLERANCE POWER DEGRADATION 30-Year Power Warranty CDS6 9996 78744096 +4,20%
