LonGi 610W Solar Panel (Hi-MO7, LR7-72HGD, Bifacial)

LonGi 610W Solar Panel (Hi-MO7, LR7-72HGD, Bifacial)

Regular price $10,500.00 USD
Regular price Sale price $10,500.00 USD
Sale Sold out
Shipping calculated at checkout.

3 orders in last 30 days

Quantity
View full details

LonGi 610W Solar Panel Overview

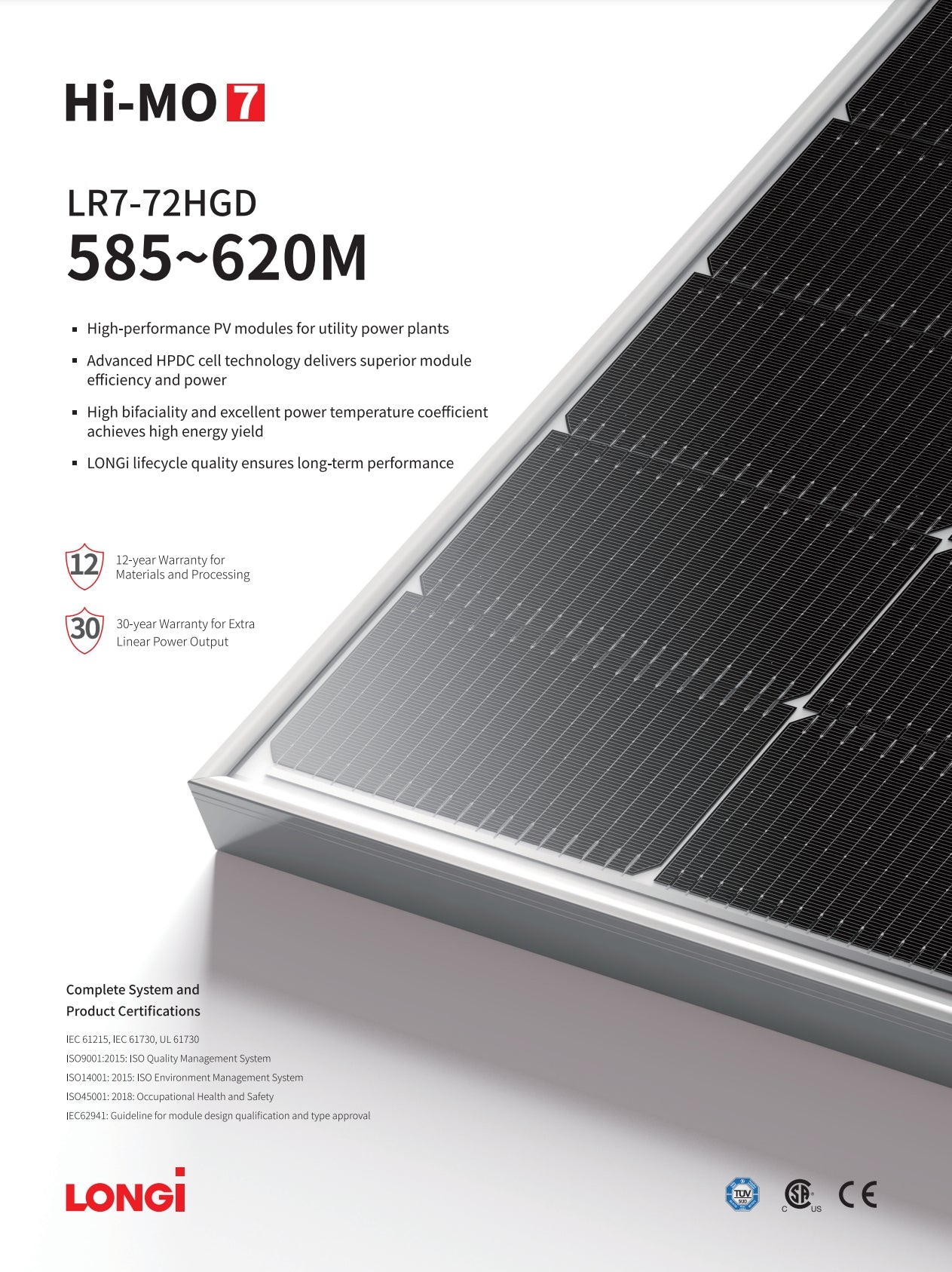

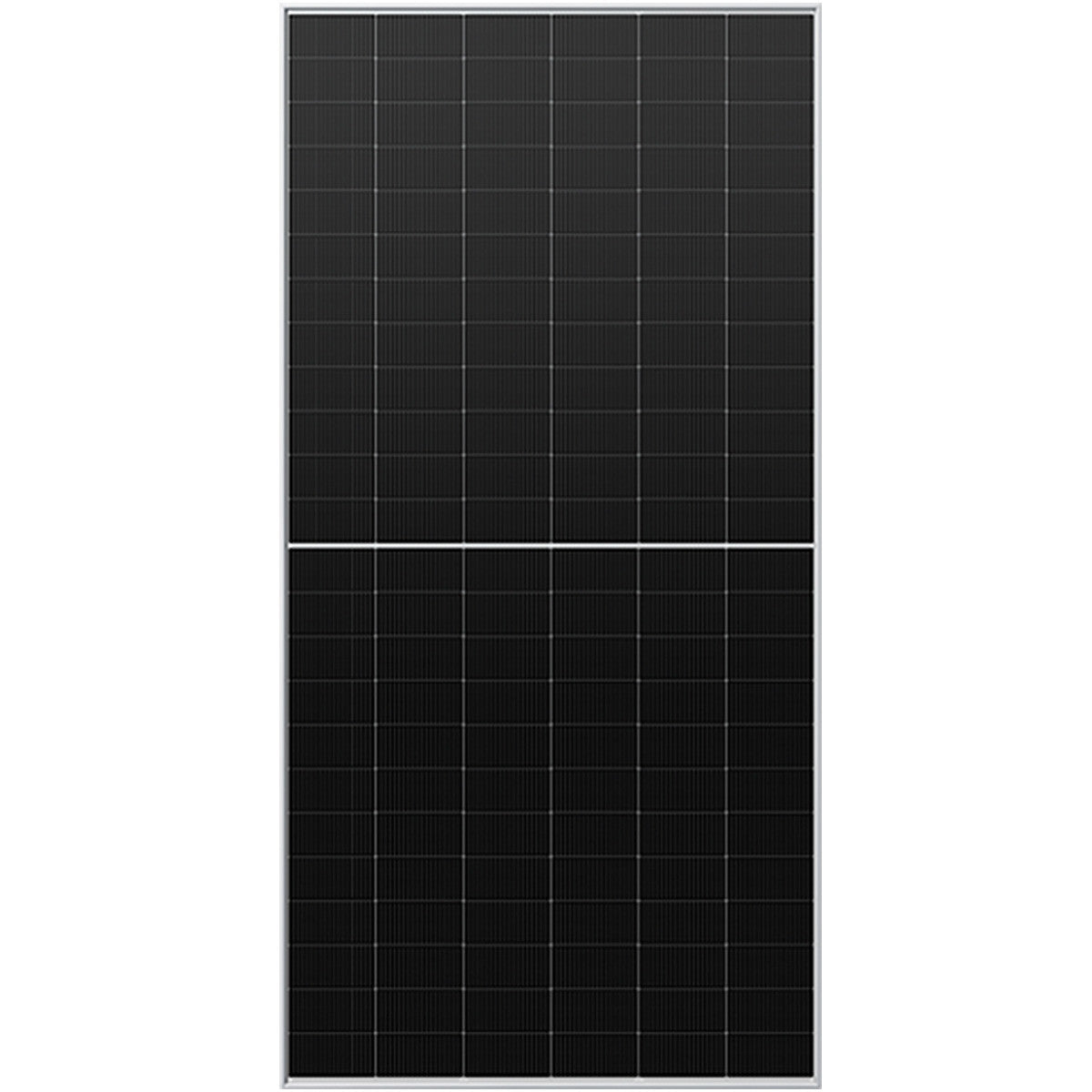

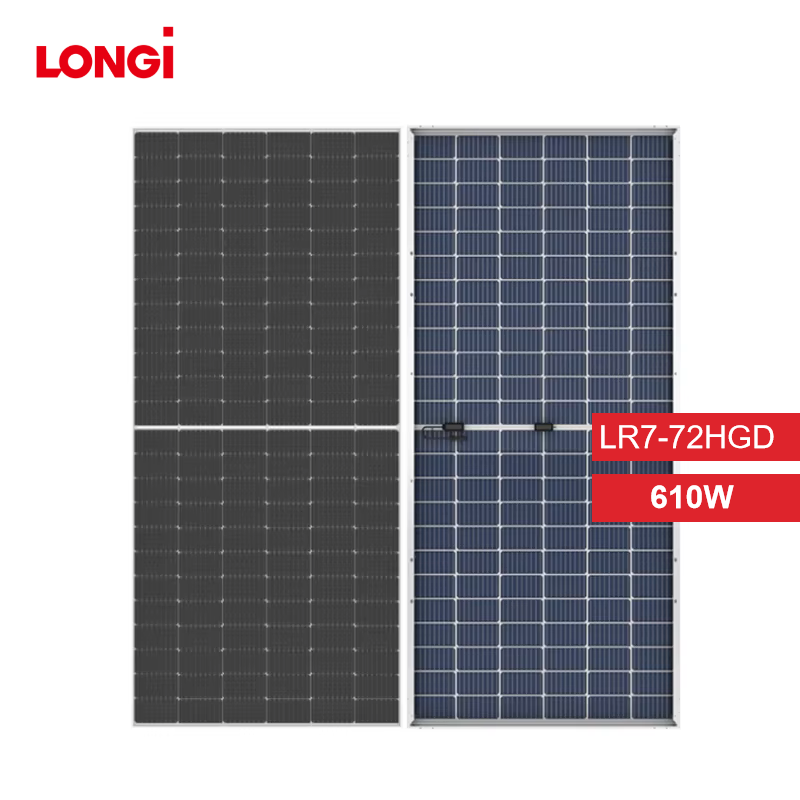

The LonGi 610W Solar Panel (Hi-MO7, LR7-72HGD, Bifacial) is a high-performance solar module designed for utility-scale power plants. It features advanced HPDC cell technology, a bifacial design for increased energy capture, and superior power temperature coefficient performance. With a maximum efficiency of 23.0%, this panel ensures reliable power output in various environmental conditions. Its dual glass construction and anodized aluminum alloy frame provide exceptional durability, while a long-term warranty further guarantees its reliable performance.

LonGi Solar 610W Key Features

  • Power Range: 585W to 620W.
  • Efficiency: Maximum efficiency of 23.0% for high energy yield.

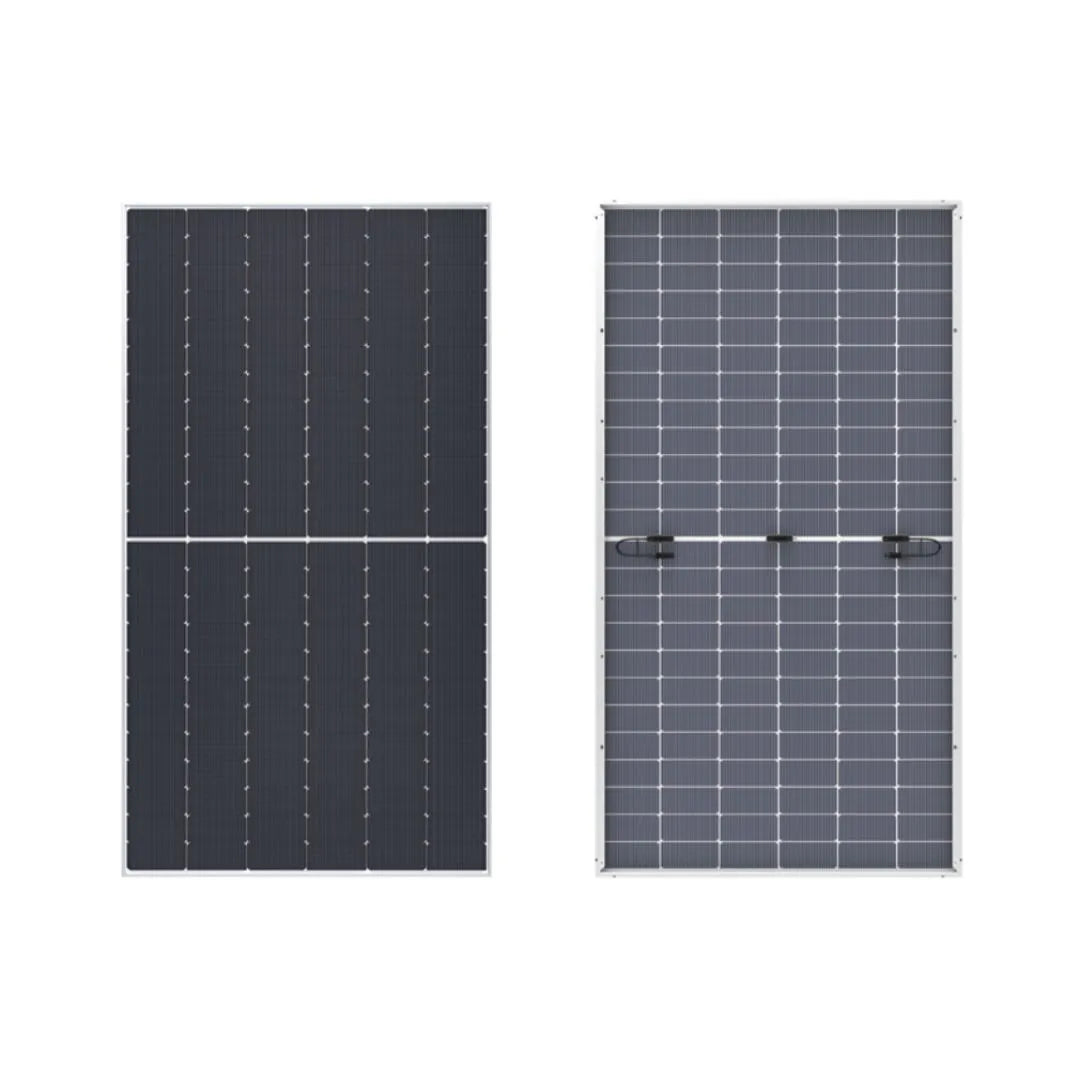

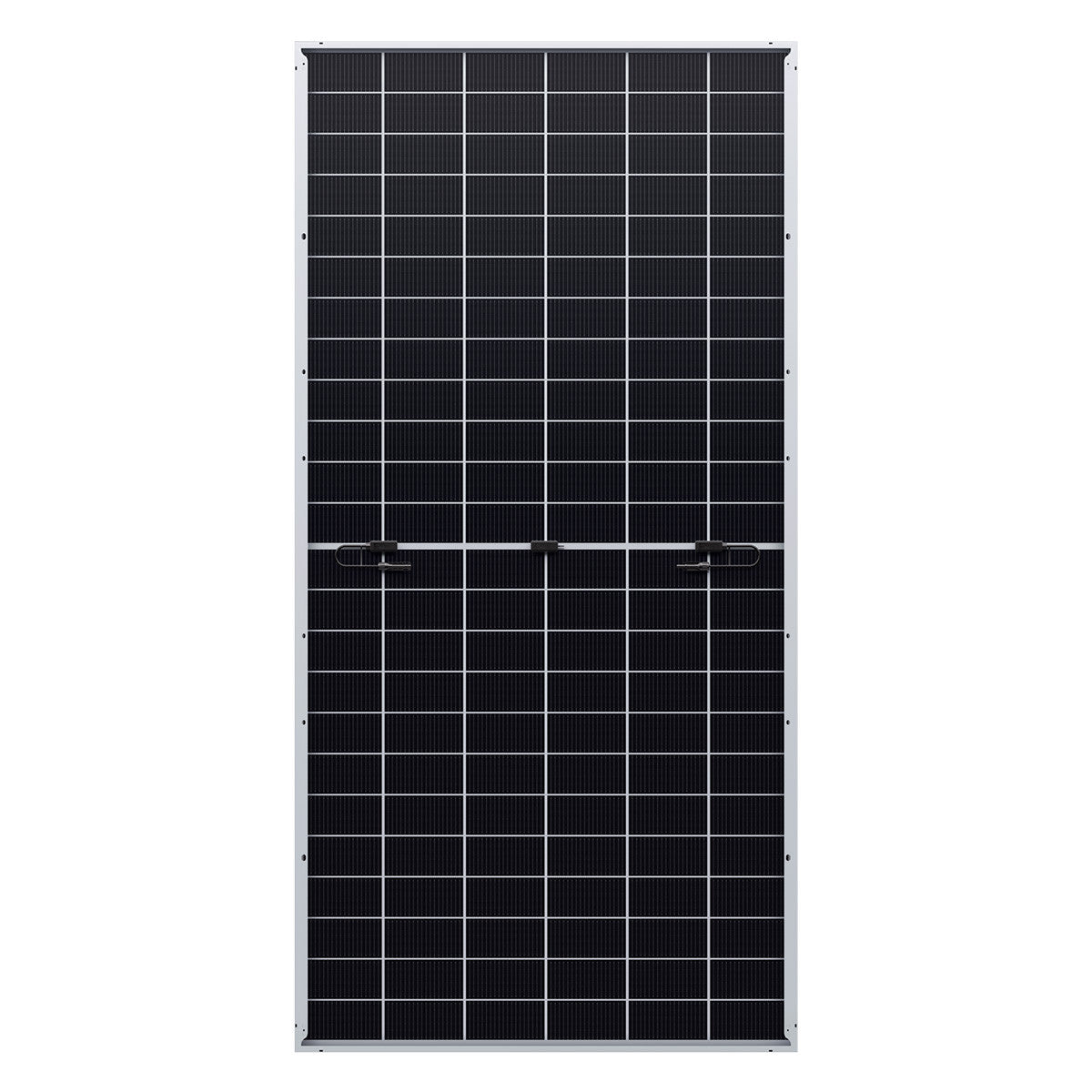

  • Bifacial Design: Enhanced power generation by capturing sunlight from both sides.
  • HPDC Cell Technology: High Precision Dual Cell technology offers superior efficiency.
  • Durability: Dual glass design with an anodized aluminum frame ensures robustness.

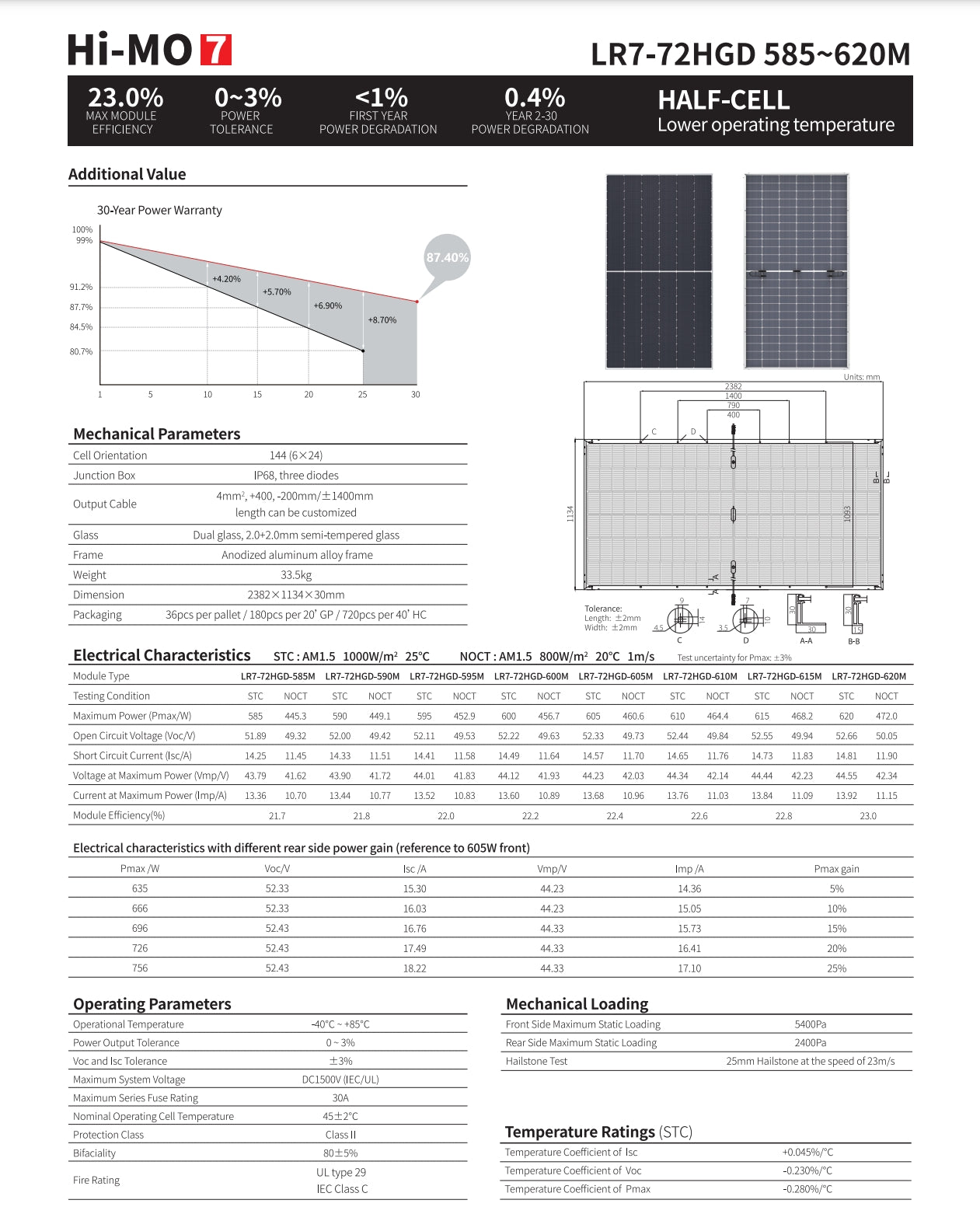

LonGi 610W Datasheet

Mechanical Parameters

Parameter Details
Cell Orientation 144 cells (6 x 24 layout)
Junction Box IP68, three diodes
Output Cable 4mm², +400mm, -200mm/+1400mm
Glass Dual glass, 2.0+2.0mm semi-tempered glass
Frame Anodized aluminum alloy frame
Weight 33.5kg
Dimensions 2382mm x 1134mm x 30mm
Packaging 36 pcs per pallet, 180 pcs per 20’ GP, 720 pcs per 40’ HC

Electrical Characteristics

Parameter STC (AM1.5, 1000W/m², 25°C) NOCT (AM1.5, 800W/m², 20°C, 1m/s)
Maximum Power (Pmax) 610W 471W
Open Circuit Voltage (Voc) 52.81V 49.32V
Short Circuit Current (Isc) 14.66A 11.75A
Voltage at Maximum Power (Vmp) 44.46V 41.44V
Current at Maximum Power (Imp) 13.74A 11.39A
Module Efficiency (%) 23.0% N/A

Electrical Characteristics with Rear-Side Power Gain

Pmax Gain (%) Pmax (W) Voc (V) Isc (A) Vmp (V) Imp (A)
5% 635W 53.23V 15.30A 44.23V 14.36A
10% 670W 53.23V 16.03A 44.23V 15.05A
15% 705W 53.23V 16.76A 44.23V 15.73A
20% 740W 53.23V 17.49A 44.23V 16.41A
25% 775W 53.23V 18.22A 44.23V 17.10A

Operating Parameters

  • Operating Temperature: -40°C to +85°C
  • Power Output Tolerance: 0~+3%
  • Voc and Isc Tolerance: ±3%
  • Bifaciality: 80±5%
  • Fire Rating: IEC Class C

Temperature Ratings

Parameter Temperature Coefficient
Temperature Coefficient of Isc +0.045%/°C
Temperature Coefficient of Voc -0.290%/°C
Temperature Coefficient of Pmax -0.350%/°C

Mechanical Loading

  • Front Side Maximum Static Loading: 5400Pa
  • Rear Side Maximum Static Loading: 2400Pa
  • Hailstone Test: 25mm hailstone at 23m/s

Certifications

  • IEC 61215, IEC 61730, UL 61730
  • ISO 9001:2015 (Quality Management System)
  • ISO 14001:2015 (Environment Management System)
  • ISO 45001:2018 (Occupational Health and Safety)
  • IEC 62941 (Module Design Qualification and Type Approval)

Packaging

Packaging Type Quantity
Per Pallet 36 pcs
Per 20' GP Container 180 pcs
Per 40' HC Container 720 pcs

Warranty

  • 12-year Warranty for Materials and Processing.
  • 30-year Warranty for Extra Linear Power Output, ensuring reliable performance over time.

LonGi 610 Watt Solar Panel Details

LonGi 610W Solar Panel, The LonGi Solar 610W has a power range of 585W to 620W.

LONGI 610W Solar Panel features high-performance PV modules for utility power plants, with advanced cell technology and excellent energy yield.

LONGI 610W Solar Panel (Hi-Mo7, LR7-72HGD, Bifacial) - High-performance PV modules for utility power plants. Advanced HPDC cell technology delivers superior module efficiency and power. High bifaciality and excellent power temperature coefficient achieve high energy yield. LONGi lifecycle quality ensures long-term performance. 12-year warranty for materials and processing. 30-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730, ISO 9001:2015 (ISO Quality Management System), ISO 14001:2015 (ISO Environment Management System), OHSAS 18001:2007 (Occupational Health and Safety).
