Longi 625W Solar Panel Overview
The LonGi Hi-Mo X6 Max Bifacial LR7-72HTDR 625W Solar Panel is designed for superior energy performance, combining cutting-edge HPDC cell technology with advanced bifaciality. With its ultra-low power degradation and moisture-resistant encapsulation, this solar panel delivers consistent and reliable energy generation throughout its lifecycle. The 625W output and high efficiency of 23.1% ensure that this panel is a top choice for utility-scale power plants and demanding environments.
LonGi Solar 625W Key Features
- Power Output: 600W to 625W, suitable for high-demand energy needs.
- Efficiency: Maximum module efficiency of 23.1%, ensuring optimal performance in various conditions.
- Degradation Protection: Superior resistance to humidity and heat with less than 1% power degradation in the first year.
- Durable Design: Dual-glass encapsulation and anodized aluminum frame for long-term durability.
- Temperature Coefficient: Excellent low temperature coefficient, ensuring high energy yield even under extreme temperature variations.
- Certifications: IEC 61215, IEC 61730, UL 61730 certifications ensure safety and international quality standards.

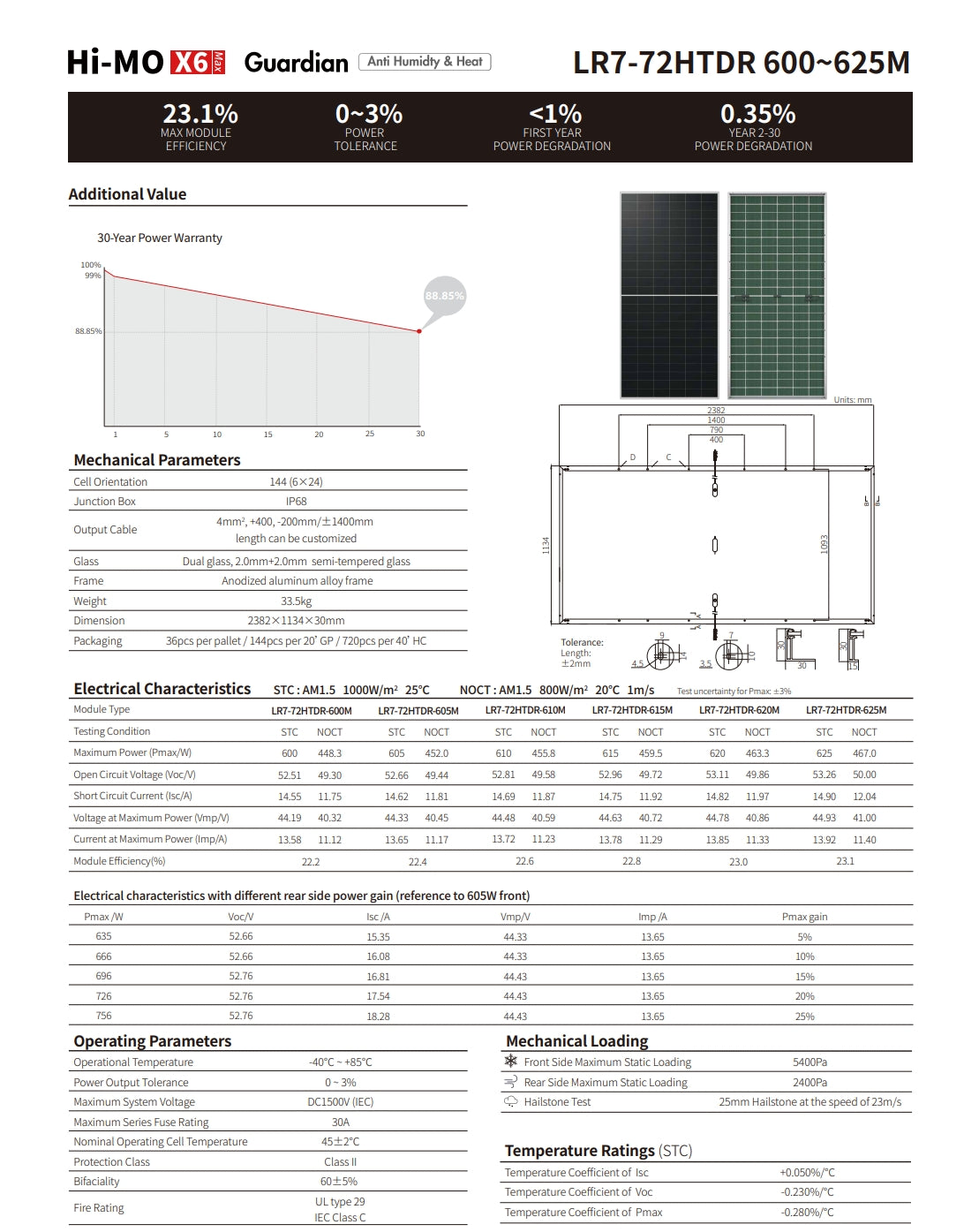

LonGi 625W Datasheet
Mechanical Parameters
- Cell Orientation: 144 cells (6x24)
- Junction Box: IP68, three diodes
- Output Cable: 4mm², +400, -200mm/±1400mm (customizable)
- Glass: Dual glass, 2.0mm+2.0mm semi-tempered glass
- Frame: Anodized aluminum alloy
- Weight: 33.5 kg
- Dimensions: 2382mm x 1134mm x 30mm
-
Packaging:
- 36 pcs per pallet
- 144 pcs per 20’ GP container
- 720 pcs per 40' HC container
Electrical Characteristics
Testing Condition: STC, AM1.5, 1000W/m², 25°C
- Maximum Power (Pmax/W): 600W - 625W
- Open Circuit Voltage (Voc/V): 52.66V - 52.82V
- Short Circuit Current (Isc/A): 14.55A - 14.71A
- Voltage at Maximum Power (Vmp/V): 43.32V - 44.58V
- Current at Maximum Power (Imp/A): 13.65A - 13.85A
- Module Efficiency: 22.2% - 23.1%
Rear Side Power Gain (Compared to 605W Front Panel)
- Gain range: 5% to 25% with Pmax gains up to 151W.
Operating Parameters
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: DC1500V (IEC/UL)
- Maximum Series Fuse Rating: 30A
- Nominal Operating Cell Temperature (NOCT): 45°C ± 2°C
- Bifaciality: 60% ± 5%
Mechanical Loading
- Front Side Maximum Static Loading: 5400 Pa
- Rear Side Maximum Static Loading: 2400 Pa
- Hailstone Test: Tested with 25mm hailstones at a speed of 23 m/s.
Temperature Ratings (STC)
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.230%/°C
- Temperature Coefficient of Pmax: -0.280%/°C
Certifications
-
Safety and Standards:
- IEC 61215, IEC 61730, UL 61730
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health & Safety)
- IEC 62941: Guidelines for Module Design and Type Approval
Application
The Longi Hi-Mo X6 Max Bifacial LR7-72HTDR 625W solar panel is highly versatile, making it ideal for use in:
- Utility-Scale Power Plants: Large-scale solar installations for consistent, long-term energy supply.
- Commercial Projects: Perfect for powering factories, warehouses, and office complexes with large energy requirements.
- Solar Farms: Excellent choice for both ground-mounted and rooftop solar farms.
- High Humidity or Temperature Environments: Thanks to its anti-humidity and heat degradation features, this solar panel thrives in challenging weather conditions, including tropical climates.

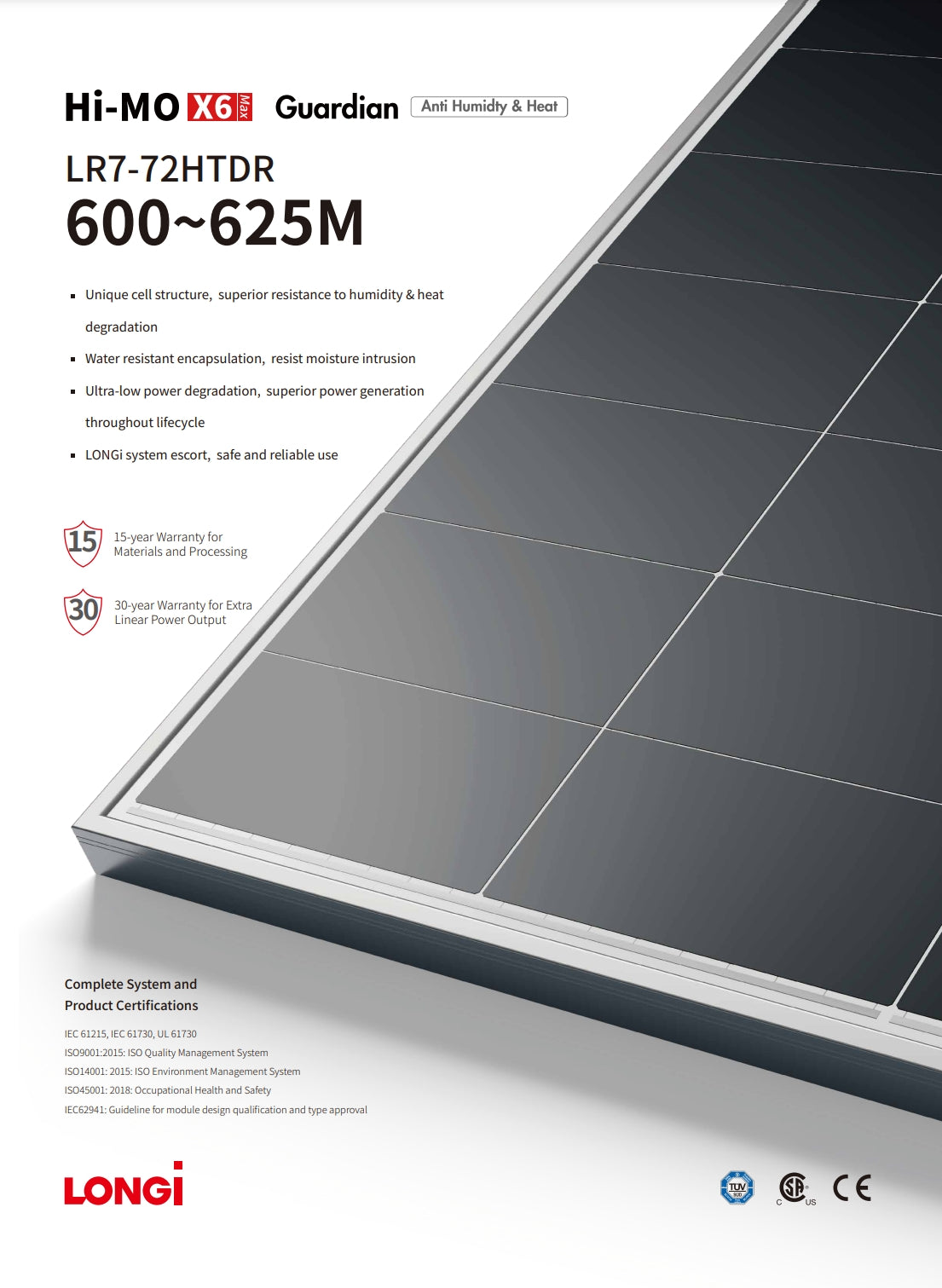

Longi 625W Solar Panel (Hi-Mo X6 Max Bifacial LR7-72HTDR 600-625M) features unique cell structure, superior resistance to humidity and heat degradation. The water-resistant encapsulation prevents moisture intrusion. This results in ultra-low power degradation and superior power generation throughout the lifecycle. The Longi system ensures safe and reliable use. The product comes with a 15-year warranty for materials and processing, and a 30-year warranty for extra linear power output. Complete system and product certifications include IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:.2018, and Occupational Health and Safety IEC62941.
LonGi 625W Solar Panel (Hi-Mo X6 Max Bifacial LR7-72HTDR, 600~625M).
