LonGi 630W Solar Panel (Hi-Mo X6 Max Scientist LR7-72HTH 620~630M)

LonGi 630W Solar Panel (Hi-Mo X6 Max Scientist LR7-72HTH 620~630M)

Regular price $10,540.00 USD
Regular price Sale price $10,540.00 USD
Sale Sold out
Shipping calculated at checkout.

3 orders in last 30 days

Quantity
View full details

LonGi 630W Solar Panel Overview

The LonGi 630W Solar Panel (Hi-Mo X6 Max Scientist LR7-72HTH 620~630M) is a top-tier solar module designed for superior performance, efficiency, and durability. This module integrates advanced cell technologies, offering a maximum power output of 630W and a maximum efficiency of 23.3%, making it ideal for large-scale utility applications. The bifacial design allows it to capture sunlight from both sides, improving overall energy yield. Its superior construction, coupled with LONGi’s stringent quality assurance, ensures long-term reliability and consistent performance.

LonGi Solar 630W Key Features:

  • High Efficiency: Achieves a maximum efficiency of 23.3%, ensuring optimal energy output.
  • Power Range: Capable of delivering power in the range of 620W to 630W, making it ideal for high-energy demands.
  • Low Power Degradation: <1% power degradation in the first year, and only 0.40% degradation from years 2-25, ensuring long-term stable energy generation.
  • Durable Design: Features anodized aluminum alloy frames and 3.2mm tempered glass, providing enhanced durability and resistance to environmental elements.
  • Bifacial Technology: Utilizes advanced bifacial technology, increasing energy yield by capturing light from both the front and rear sides of the panel.

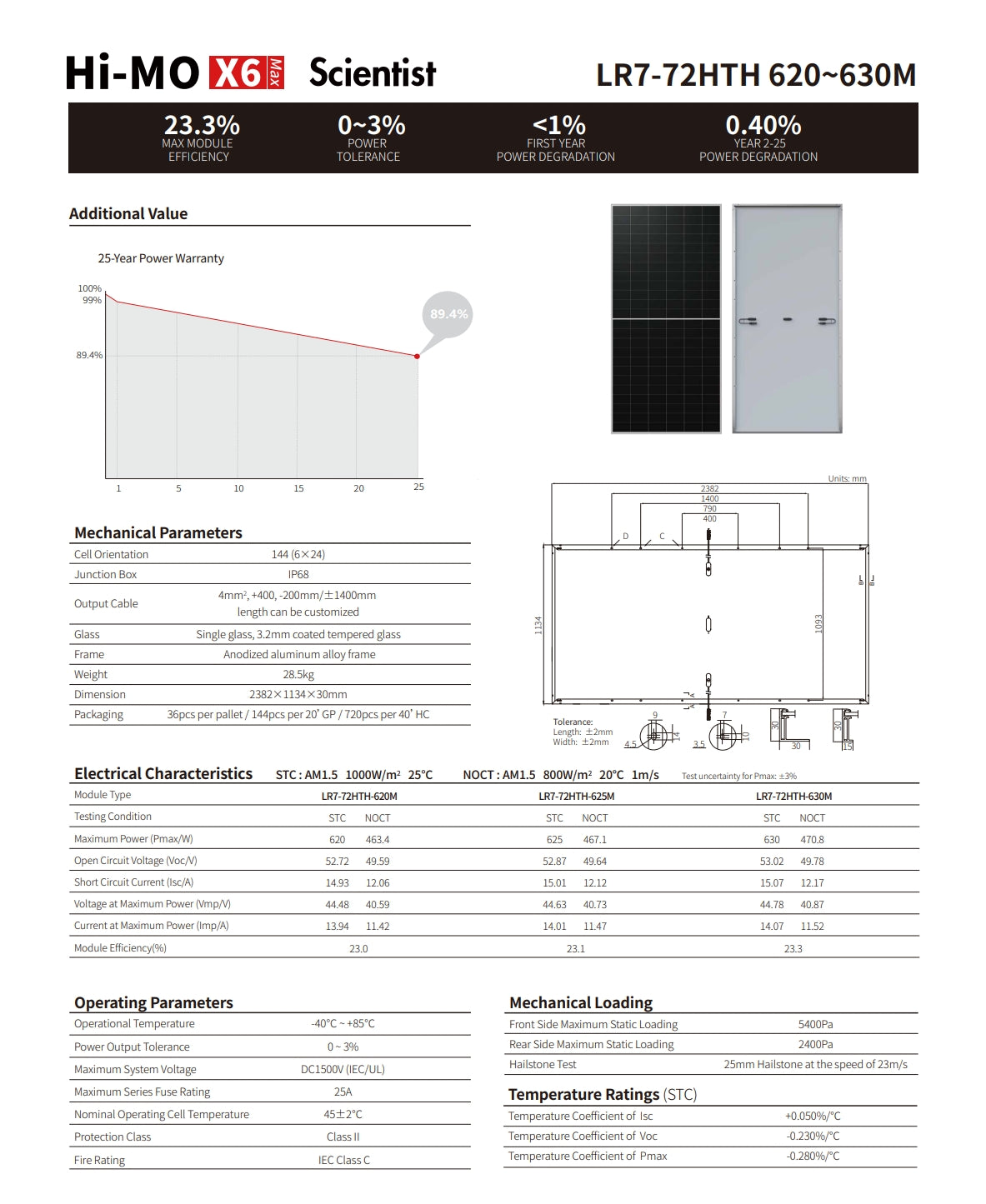

LonGi 630W Datasheet

Mechanical Parameters:

  • Cell Orientation: 144 (6x24) half-cut cells
  • Junction Box: IP68-rated with three diodes
  • Output Cable: 4mm², +400, -200mm, ±1400mm (customizable length)
  • Glass: Single glass, 3.2mm coated tempered glass
  • Frame: Anodized aluminum alloy frame
  • Weight: 28.5kg
  • Dimensions: 2382mm x 1134mm x 30mm
  • Packaging:
    • 36 panels per pallet
    • 144 panels per 20' GP container
    • 720 panels per 40' HC container

Electrical Characteristics:

Parameter LR7-72HTH-620M LR7-72HTH-625M LR7-72HTH-630M
Max Power (Pmax) (W) 620 625 630
Max Power Voltage (Vmp) (V) 44.48 44.63 44.78
Max Power Current (Imp) (A) 13.94 14.01 14.07
Open Circuit Voltage (Voc) (V) 52.72 52.87 53.02
Short Circuit Current (Isc) (A) 12.06 12.12 12.17
Module Efficiency (%) 23.0 23.1 23.3

Temperature Ratings (STC):

  • Temperature Coefficient of Isc: +0.050%/°C
  • Temperature Coefficient of Voc: -0.235%/°C
  • Temperature Coefficient of Pmax: -0.280%/°C
  • Nominal Operating Cell Temperature (NOCT): 45±2°C

Operating Parameters:

  • Operating Temperature Range: -40°C to +85°C
  • Maximum System Voltage: 1500V DC (IEC/UL)
  • Fire Rating: IEC Class C
  • Protection Class: Class II
  • Bifaciality: 70±5%

Certifications:

  • IEC 61215, IEC 61730, UL 61730
  • ISO9001:2015: Quality Management System
  • ISO14001:2015: Environmental Management System
  • ISO45001:2018: Occupational Health and Safety
  • IEC 62941: Guideline for module design qualification and type approval

Mechanical Loading:

  • Front Side Maximum Static Loading: 5400Pa
  • Rear Side Maximum Static Loading: 2400Pa
  • Hailstone Test: 25mm hailstone at 23m/s

Packaging:

  • Pallet: 36 panels per pallet
  • 20' GP Container: 144 panels
  • 40' HC Container: 720 panels

Warranty:

  • 15-Year Warranty for materials and processing
  • 25-Year Warranty for extra linear power output

Applications:

The LonGi 630W Solar Panel is versatile, making it suitable for:

  • Utility-Scale Solar Farms: Its high efficiency and bifacial design make it perfect for large-scale solar energy generation.
  • Commercial Rooftop Installations: Providing high energy output for commercial and industrial purposes.
  • Ground-Mounted Solar Systems: Ideal for areas with high sun exposure to maximize energy yield.
  • Off-Grid Solar Systems: Perfect for rural and remote locations requiring reliable energy.
  • Agriculture: Can be used for solar-powered irrigation systems and other agricultural energy needs.

This LonGi 630 Watt solar panel ensures a sustainable energy solution with minimal degradation over its lifetime, providing superior energy output and return on investment.

LonGi 630 Watt Solar Panel Details

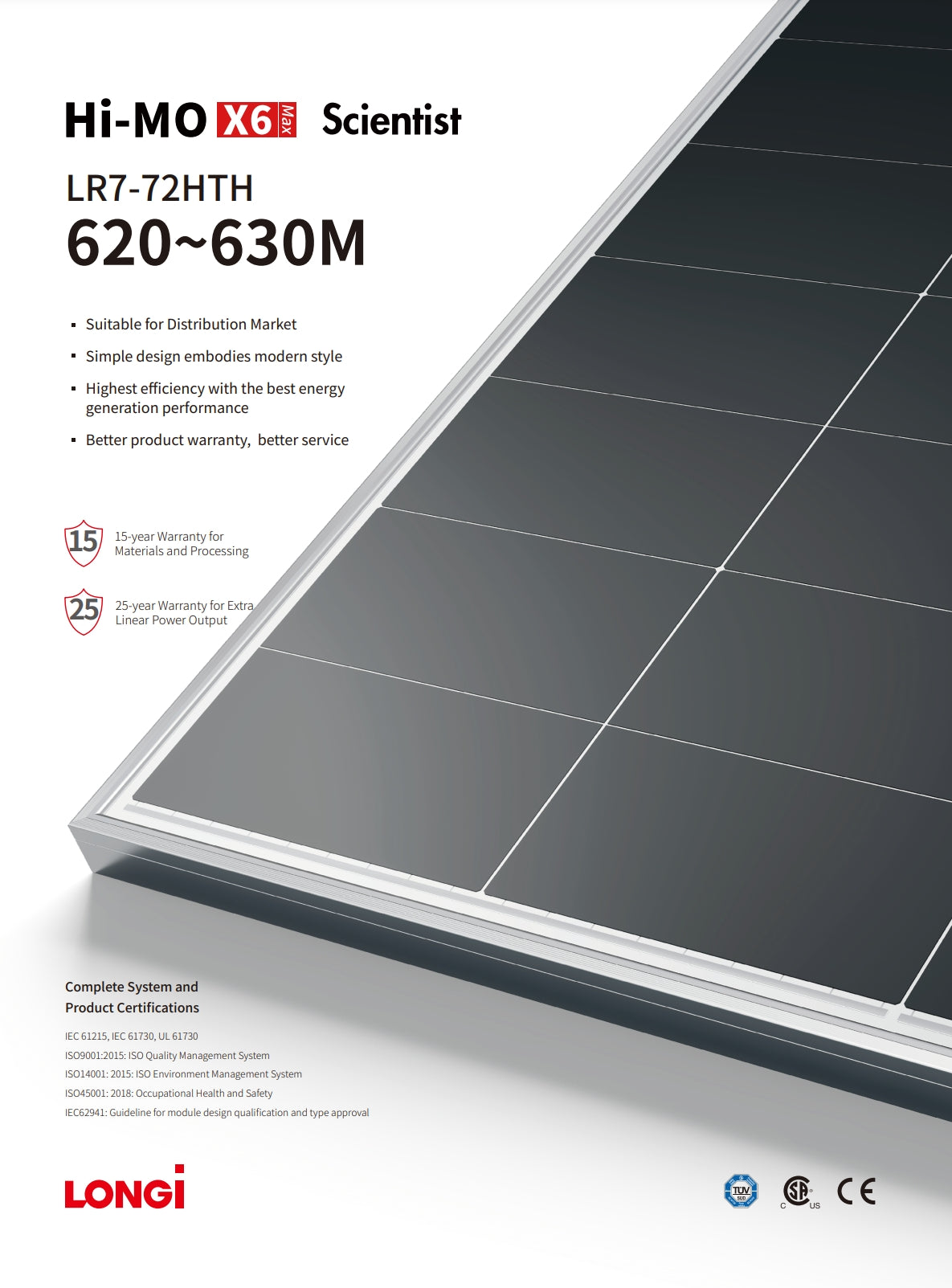

LonGi 630W Solar Panel introduces high-performance energy generation for distribution market with modern style and comprehensive warranty.

Introducing the LonGi 630W Solar Panel, Hi-Mo X6 Max Scientist LR7-72HTH with an efficiency rate of 620-630M. Designed for the distribution market, this panel embodies modern style and high-performance energy generation. Backed by a comprehensive warranty package, including 15 years for materials and processing, and 25 years for extra linear power output. The product meets rigorous standards, certified by IEC 61215, IEC 61730, UL 61730, ISO9001:2015, ISO14001:2015, S045001:2018, and Occupational Health and Safety. LonGi @ C€ design.

LonGi 630W Solar Panel features Hi-Mo X6 Max Scientist LR7-72HTH technology with a maximum power output of 620-630M.

LonGi 630W Solar Panel features Hi-Mo X6 Max Scientist LR7-72HTH technology with a maximum power output of 620~630M. The module efficiency is 23.3%. It has a temperature coefficient of Isc at +0.0509%/°C, Voc at 0.23096%/°C, and Pmax at -0.2809%/°C per 20' testing loading voltage.

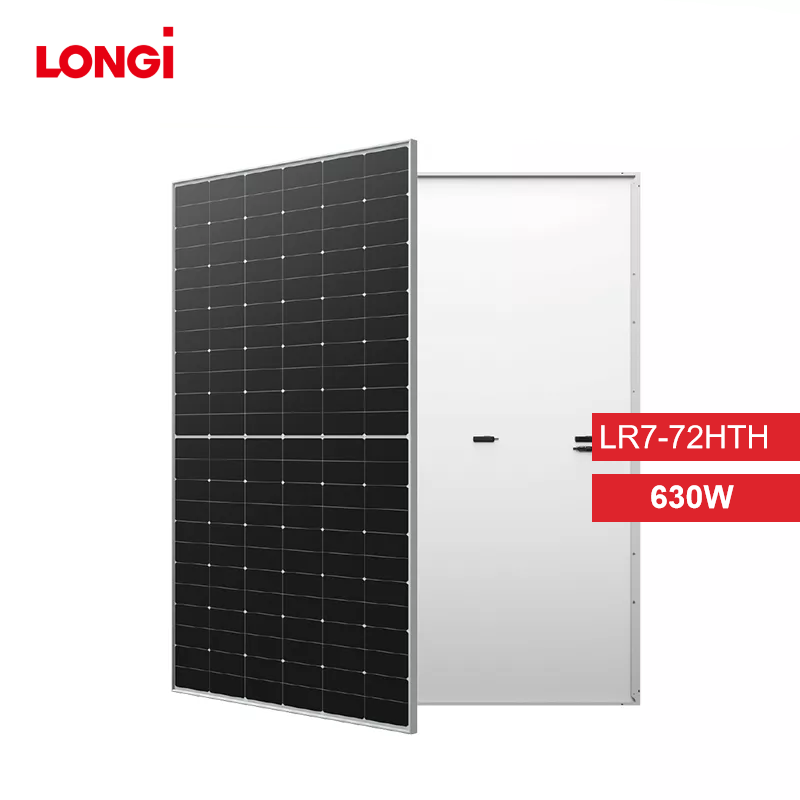

LonGi 630W Solar Panel, Solar-powered irrigation systems and other agricultural energy needs can utilize agriculture.

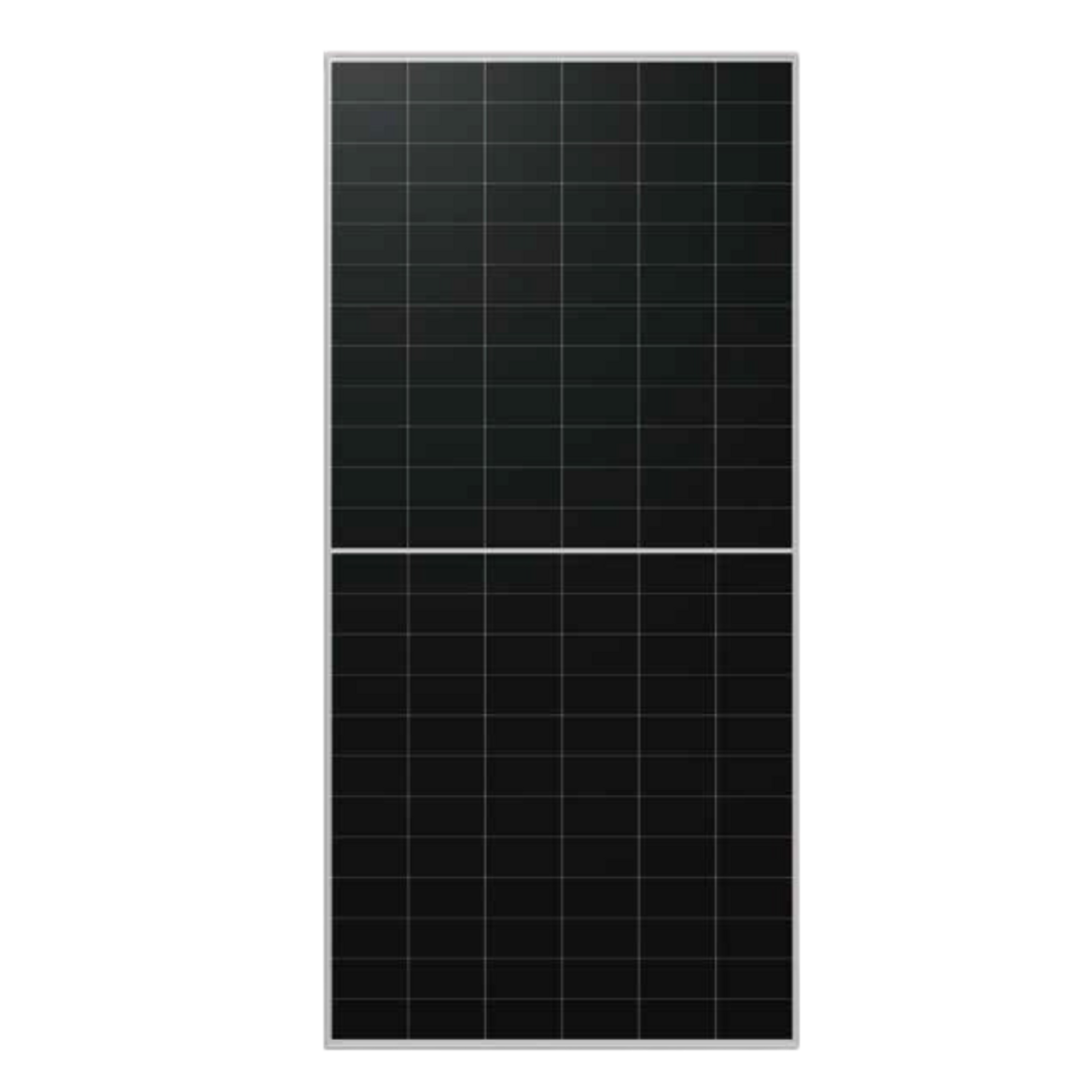

LonGi 630W Solar Panel, The LonGi Solar 630W has high efficiency, achieving 23.3% for optimal energy output.

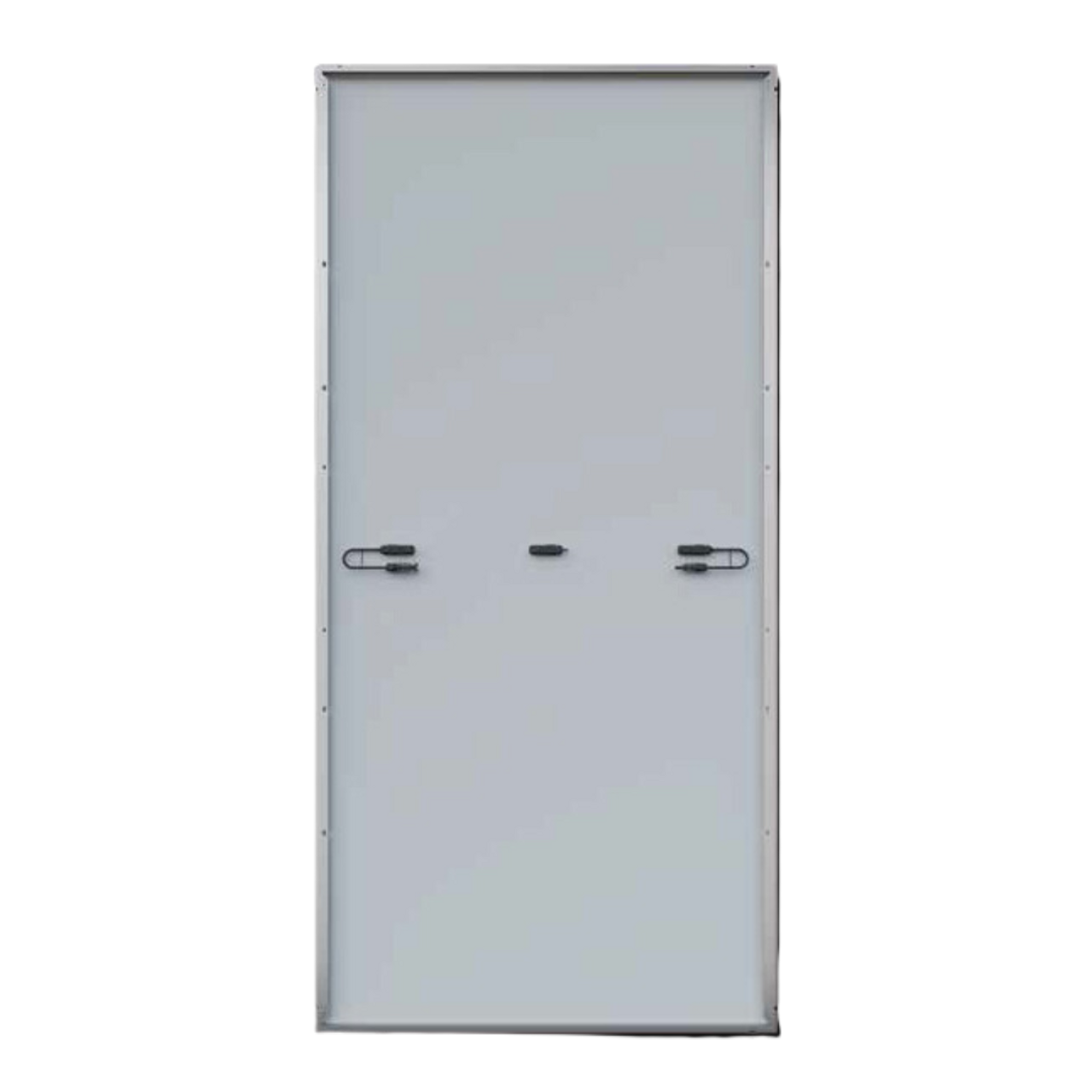

LonGi 630W Solar Panel, Commercial rooftop installations provide high-energy output for commercial and industrial use.
