LonGi 655W Solar Panel (Bifacial LR7-72HYD-655M)

LonGi 655W Solar Panel (Bifacial LR7-72HYD-655M)

Regular price $10,750.00 USD
Regular price Sale price $10,750.00 USD
Sale Sold out
Shipping calculated at checkout.

4 orders in last 30 days

Quantity
View full details

LonGi 655W Solar Panel Overview

The LonGi 655W Solar Panel (Bifacial LR7-72HYD-655M) is a high-performance solar module engineered for utility-scale power generation. With 655W of power output, 24.4% module efficiency, and advanced BC-Cell technology, this panel ensures exceptional energy production with dual-glass protection and low operating temperatures. Designed for durability and long-term use, the LonGi 655 Watt Solar Panel offers superior performance even in challenging environments, making it a perfect fit for large-scale solar installations.

LonGi Solar 655W Key Features:

  • High Power Output: The LonGi 655W Solar Panel delivers 655W of power, ensuring high energy yields for utility projects.
  • High Efficiency: Achieves up to 24.4% module efficiency, maximizing energy generation.
  • BC-Cell Technology: Reduces operating temperatures and enhances power output for sustained high performance.
  • Low Power Degradation: Only 0.35% annual power degradation after the first year, ensuring 88.85% power retention at year 30.
  • Dual-Glass Durability: Built with 2.0mm semi-tempered glass, providing enhanced strength and protection in various weather conditions.

LonGi 655W Datasheet

Mechanical Parameters:

  • Cell Orientation: 144 cells (6 x 24 configuration)
  • Junction Box: IP68, three diodes for increased protection
  • Output Cable: 4mm², +400, -200mm, customizable to ±1400mm
  • Glass: Dual-glass design with 2.0mm semi-tempered glass
  • Frame: Anodized aluminum alloy frame for high durability
  • Weight: 33.5kg
  • Dimensions: 2382mm x 1134mm x 30mm
  • Packaging: 36 panels per pallet / 144 panels per 20’ GP / 720 panels per 40’ HC

Electrical Characteristics:

  • Maximum Power (Pmax): 655W
  • Open Circuit Voltage (Voc): 53.00V
  • Short Circuit Current (Isc): 14.85A
  • Voltage at Maximum Power (Vmp): 44.46V
  • Current at Maximum Power (Imp): 14.42A
  • Module Efficiency: 24.4%

Operating Parameters:

  • Operating Temperature: -40°C to +85°C
  • Maximum System Voltage: 1500V DC
  • Nominal Operating Cell Temperature: 45°C ± 2°C
  • Protection Class: Class II
  • Fire Rating: UL Type 29, IEC Class C
  • Bifaciality: 70-95%

Mechanical Loading:

  • Front Side Maximum Static Loading: 5400Pa
  • Rear Side Maximum Static Loading: 2400Pa
  • Hailstone Test: Resistant to 25mm hailstones at a speed of 23m/s

Temperature Ratings (STC):

  • Temperature Coefficient of Isc: +0.050%/°C
  • Temperature Coefficient of Voc: -0.200%/°C
  • Temperature Coefficient of Pmax: -0.260%/°C

Certifications:

The LonGi Solar 655W Panel meets the following international standards and certifications, ensuring high-quality production and long-term reliability:

  • IEC 61215, IEC 61730, UL 61730
  • ISO 9001:2015: Quality Management System
  • ISO 14001:2015: Environmental Management System
  • ISO 45001:2018: Occupational Health and Safety
  • IEC 62941: Guidelines for module design qualification and type approval

Application:

The LonGi 655 Watt Solar Panel is ideal for utility-scale solar projects and large commercial installations. Its bifacial design allows it to capture sunlight from both sides, significantly increasing energy generation. This panel is highly recommended for regions with high solar irradiation and diverse environmental conditions, ensuring consistent and reliable power production.

Warranty:

  • 12-Year Warranty for materials and processing, covering manufacturing defects.
  • 30-Year Warranty for extra linear power output, ensuring long-term reliable energy production.

The LonGi 655W Solar Panel offers unmatched durability, superior efficiency, and high energy yields, making it a valuable choice for large-scale solar power projects. The panel’s bifacial design and robust construction ensure long-term performance, reducing maintenance costs and increasing overall returns. Whether for utility-scale farms or commercial solar installations, the LonGi 655 Watt Solar Panel delivers top-tier performance and value.

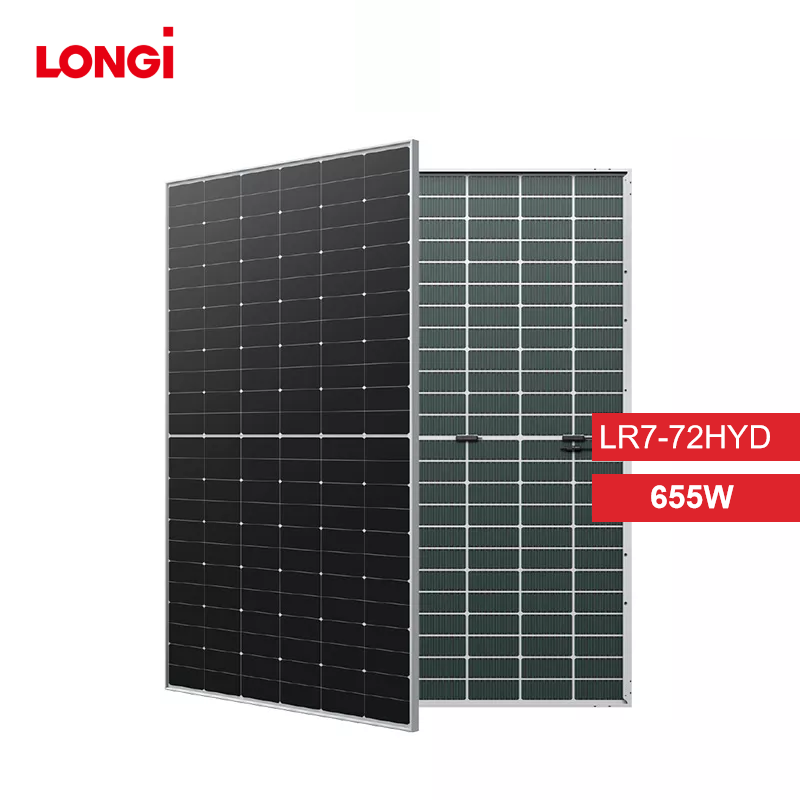

The LonGi 655W Solar Panel features high-performance mechanical and electrical characteristics, with certifications from international standards.

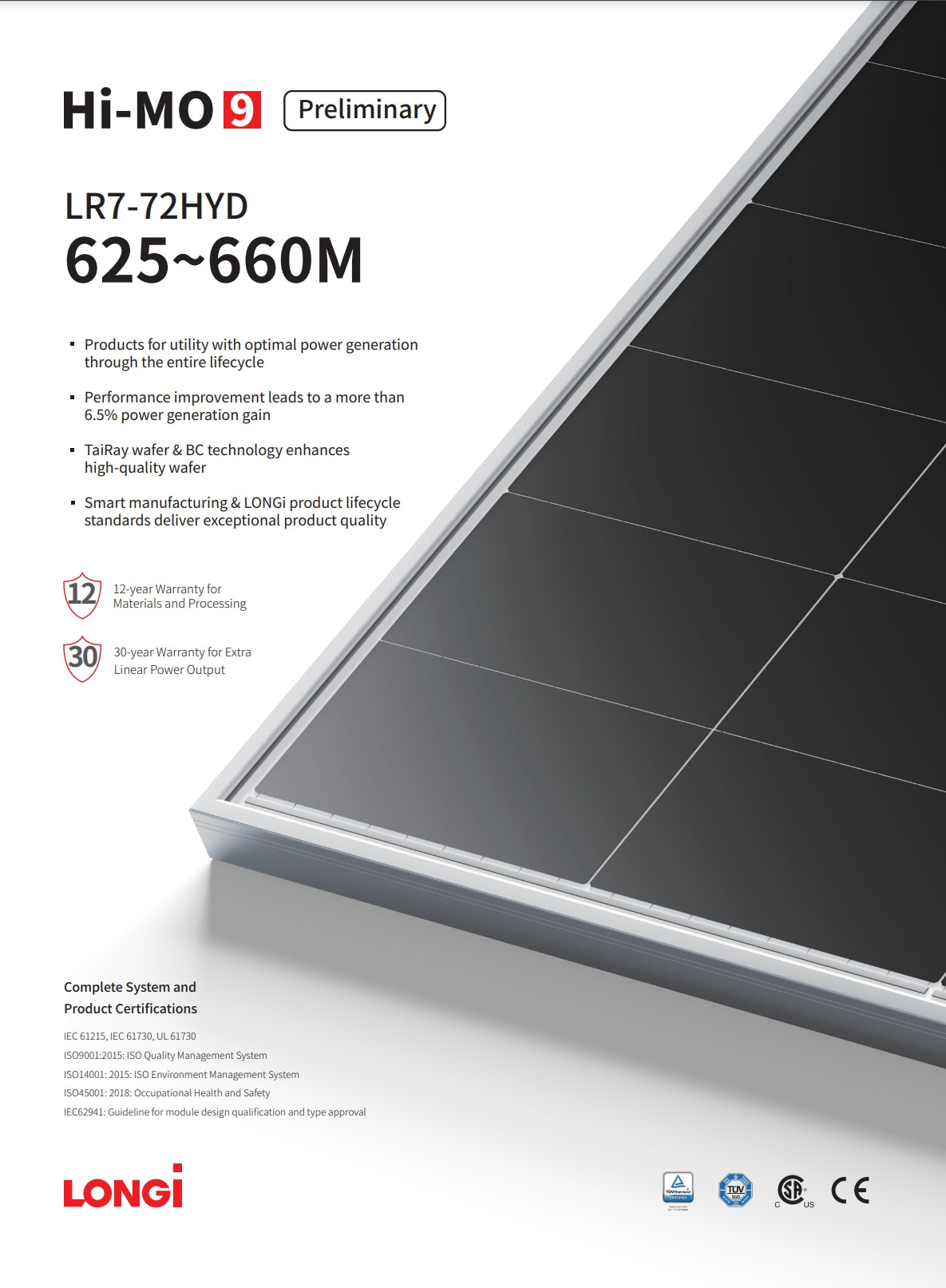

LONGi 655W Solar Panel features optimal power generation, high-quality wafers, and long warranties for materials and processing.

LONGi 655W Solar Panel (Bifacial LR7-72HYD-655M) product image. This preliminary product features optimal power generation throughout its lifecycle, resulting in over 6.5% improved power output. The TaiRay wafer and BC technology ensure high-quality wafers through smart manufacturing and LONGi strict product quality standards. The product comes with a 12-year warranty for materials and processing, as well as a 30-year warranty for extra linear power output. Complete system and product certifications include IEC 61215, IEC 61730, UL 61730, ISO9001:2015, ISO14001:2015, and ISO45001:2018.

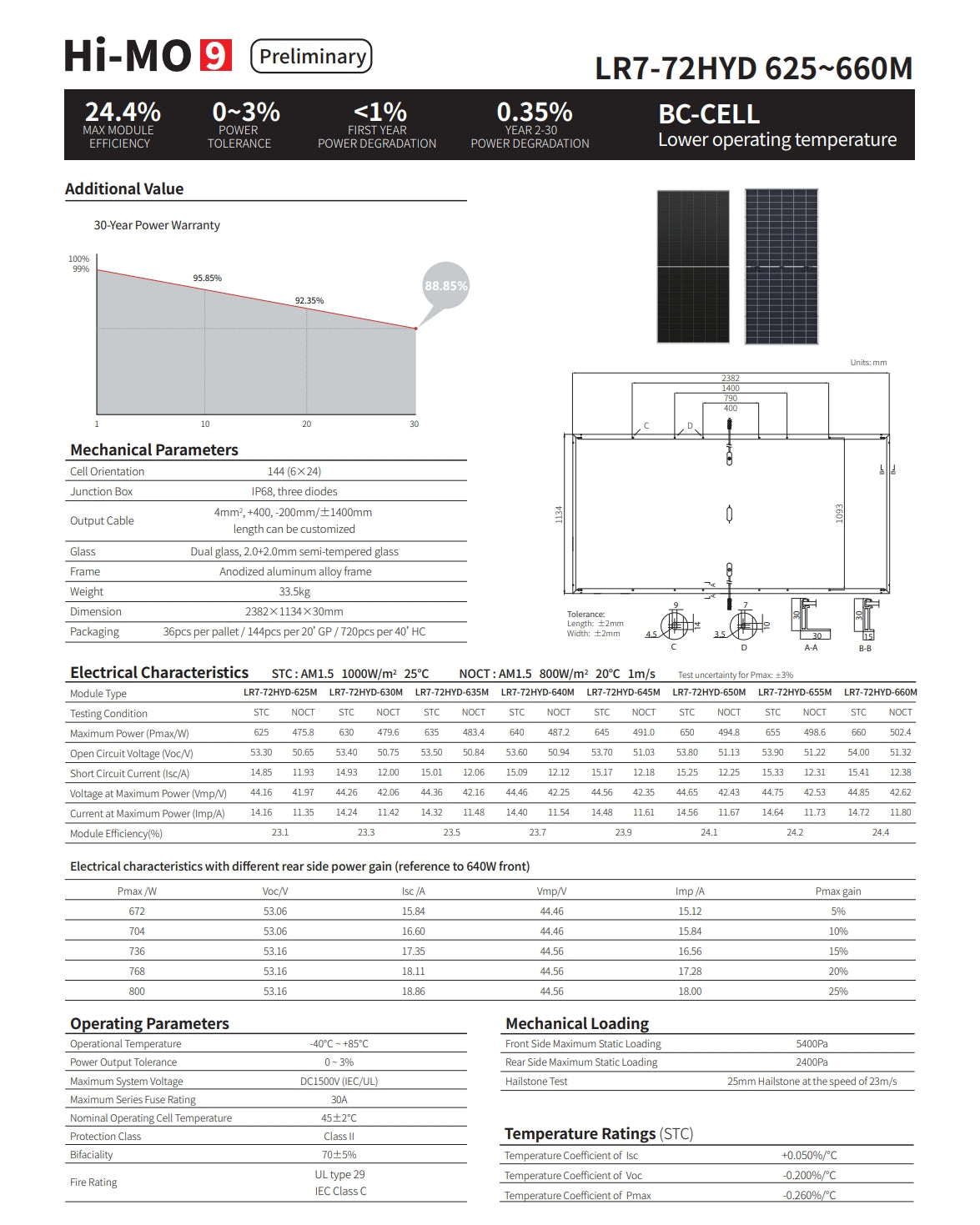

The LonGi 655W solar panel features high-efficiency bifacial design, maximum power output of 655W, and long-term reliability with a 30-year warranty.

LonGi 655W Solar Panel (Bifacial LR7-72HYD-655M) Product Description: The LonGi 655W solar panel features a high-efficiency bifacial design with a maximum power output of 655W. It has a tolerance of ±3% and an efficiency of 24.40%. The module is designed for long-term reliability, with a 30-year power warranty and a temperature range of -40°C to +85°C.
