LonGi 670W Solar Panel Overview
The LonGi 670W Solar Panel (LR7-72HVH-670M) delivers unparalleled efficiency and durability, making it ideal for large-scale solar installations. Powered by advanced BC-Cell technology, this solar panel is engineered for maximum energy production with lower power degradation over time. With a power output of 670W and a module efficiency of up to 24.8%, this model ensures reliable performance for industrial and commercial projects.
LonGi Solar 670W Key Features
- Maximum Energy Output: With a power output of up to 670W, the LonGi 670W Solar Panel provides excellent energy generation, making it a top choice for large solar systems.
- BC-Cell Technology: This innovative technology ensures lower operating temperatures, optimizing performance and increasing the panel's lifespan.
- Durability: Built to withstand extreme conditions, the LonGi 670W Solar Panel can handle front static loads up to 5400Pa and rear static loads up to 2400Pa, while passing hailstone tests at speeds of 23m/s.
- Long-Term Performance: With less than 1% power degradation in the first year and 0.35% annual degradation thereafter, the panel maintains 88.85% output by the 30th year.
- Smart Manufacturing: LonGi's commitment to quality ensures each panel is produced with the highest manufacturing standards, guaranteeing long-lasting performance.
Warranty
- 15-year warranty for materials and processing
- 30-year linear power output warranty, ensuring long-term reliability and consistent energy production
Certifications
This panel is certified to meet global standards for quality, safety, and environmental management:
- IEC 61215, IEC 61730, UL 61730: Ensuring the highest quality standards
- ISO 9001: Quality Management System
- ISO 14001: Environmental Management System
- ISO 45001: Occupational Health and Safety Management
- IEC 62941: Module design qualification and type approval

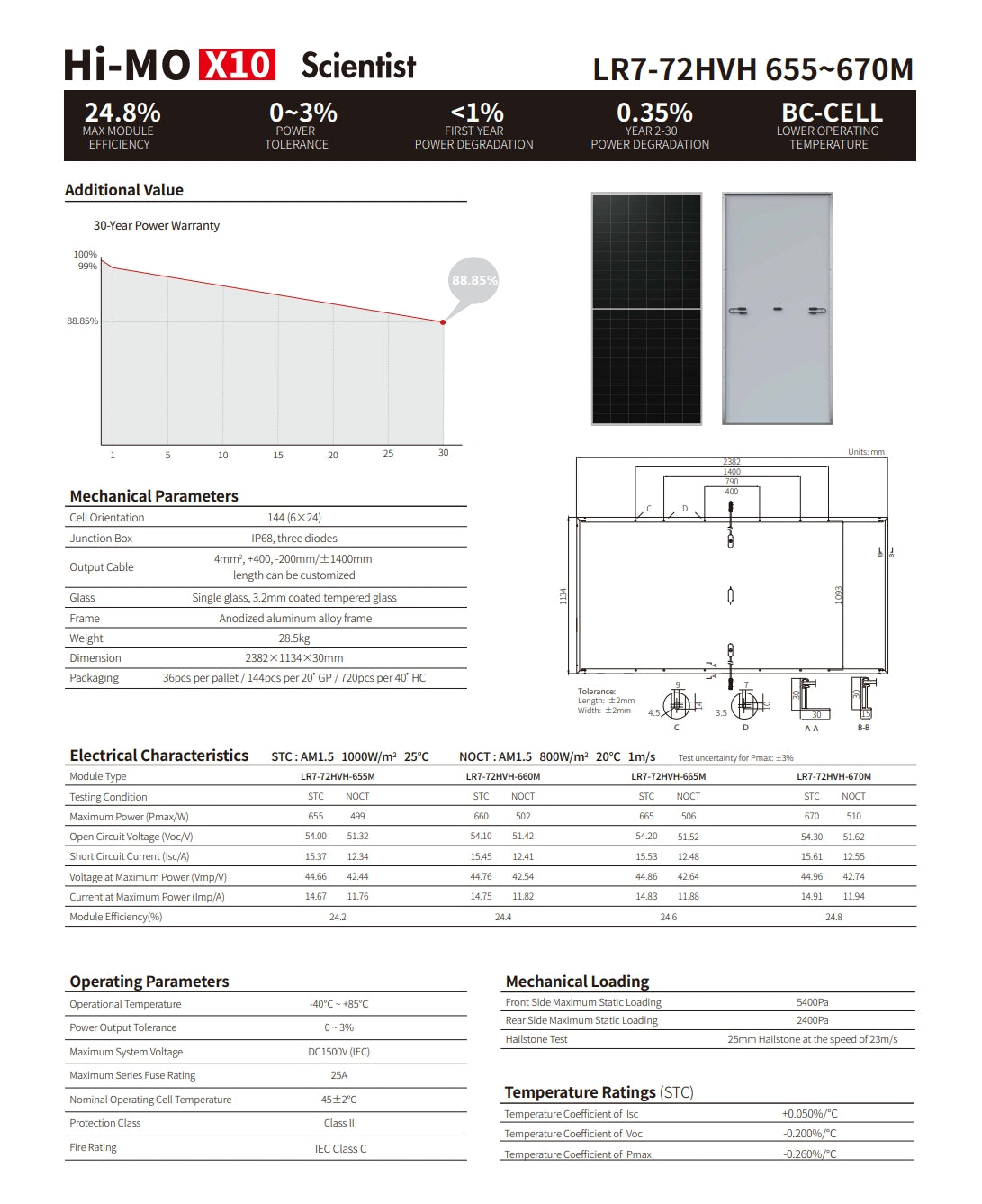

LonGi 670W Datasheet
Mechanical Parameters
| Parameter | Details |
|---|---|
| Cell Orientation | 144 cells (6x24 configuration) |
| Junction Box | IP68, with three diodes |
| Glass | 3.2mm single glass with anti-reflective coating |
| Frame | Anodized aluminum alloy |
| Dimensions | 2382mm x 1134mm x 30mm |
| Weight | 28.5kg |
| Packaging | 36 pcs per pallet / 144 pcs per 20' GP / 720 pcs per 40' HC |
Electrical Characteristics (STC: AM1.5, 1000W/m², 25°C; NOCT: AM1.5, 800W/m², 20°C)
| Module Type | LR7-72HVH-655M | LR7-72HVH-660M | LR7-72HVH-670M |
|---|---|---|---|
| Max Power (Pmax/W) | 655W | 660W | 670W |
| Open Circuit Voltage (Voc) | 54.60V | 55.00V | 55.10V |
| Short Circuit Current (Isc) | 15.37A | 15.43A | 15.55A |
| Voltage at Max Power (Vmp) | 46.46V | 46.58V | 47.19V |
| Current at Max Power (Imp) | 14.66A | 14.75A | 14.91A |
| Module Efficiency (%) | 24.2% | 24.4% | 24.8% |
Operating Parameters
| Parameter | Details |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Power Output Tolerance | 0 ~ 3% |
| Max System Voltage | 1500V (IEC certified) |
| Max Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45 ± 2°C |
| Protection Class | Class II |
Mechanical Loading
| Loading Parameter | Details |
|---|---|
| Front Side Maximum Static Load | 5400Pa |
| Rear Side Maximum Static Load | 2400Pa |
| Hailstone Test | Withstands hailstones at 23m/s speed |
Temperature Ratings (STC)
| Coefficient | Value |
|---|---|
| Temperature Coefficient of Isc | +0.050%/°C |
| Temperature Coefficient of Voc | -0.200%/°C |
| Temperature Coefficient of Pmax | -0.260%/°C |
The LonGi 670 Watt Solar Panel combines advanced technology and robust design, providing exceptional energy efficiency and durability. Its superior performance under diverse environmental conditions and strong warranty make it the ideal choice for long-term solar investments.
LonGi 670 Watt Solar Panel Details

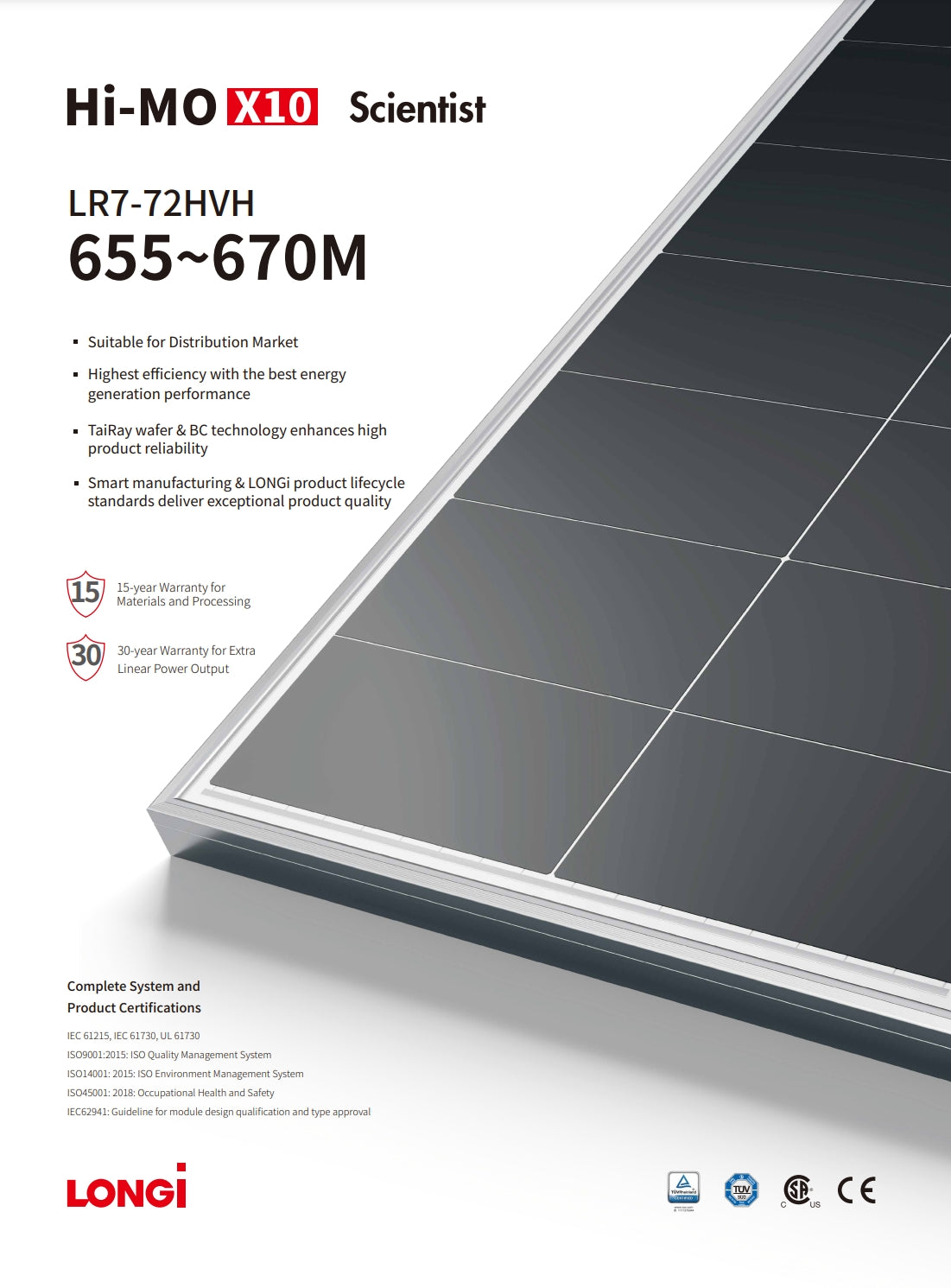

The LonGi 670W Solar Panel (Hi-MO X10 LR7-72HVH-670M) features a high-efficiency wafer and backsheet technology for enhanced product reliability. With smart manufacturing and Longi product lifecycle standards, this solar panel delivers exceptional quality. It comes with a 15-year warranty for materials and processing, as well as a 30-year warranty for extra linear power output. The system is fully certified to IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, and ISO 14001:2015. Additionally, the product meets guidelines for module design, qualification, and type approval according to IEC 62941.
LonGi 670W Solar Panel (Hi-MO X10 LR7-72HVH-670M) Product Features: • Power: 655~670W • Efficiency: 24.8% • Operating Temperature: 0~40°C • Maximum System Voltage: 1000V DC (IEC) • Nominal Operating Cell Temperature: 45°C • Fire Rating: IEC Class C • Protection Class: II • Hailstone Test: 25mm hailstones at 23m/s Mechanical Parameters: • Frame: Anodized aluminum alloy frame • Glass: Single glass, 3.2mm coated tempered glass • Dimensions: 2382x1134x30mm • Weight: 28.5kg • Packaging: 36pcs per pallet, or 144pcs per 20' GP container Electrical Characteristics: • STC (Standard Test Conditions): AML.5 100W/m² at 25°C • NOCT (Nominal Operating Cell Temperature): AMI.5 800W/m² at 20°C • Imls (Impulse Lightning Surge): ±3 kV • Module Type: LRT-TZH-VH-655M, LRT-TZH-VH-660M, LRT-TZH-VH-665M, or LRT-TZH-VH-670M
MOREGO largest authorized distributor of branded solar panels presents LonGi 670W Solar Panel Hi-MO X10 LR7-72HVH-670M.

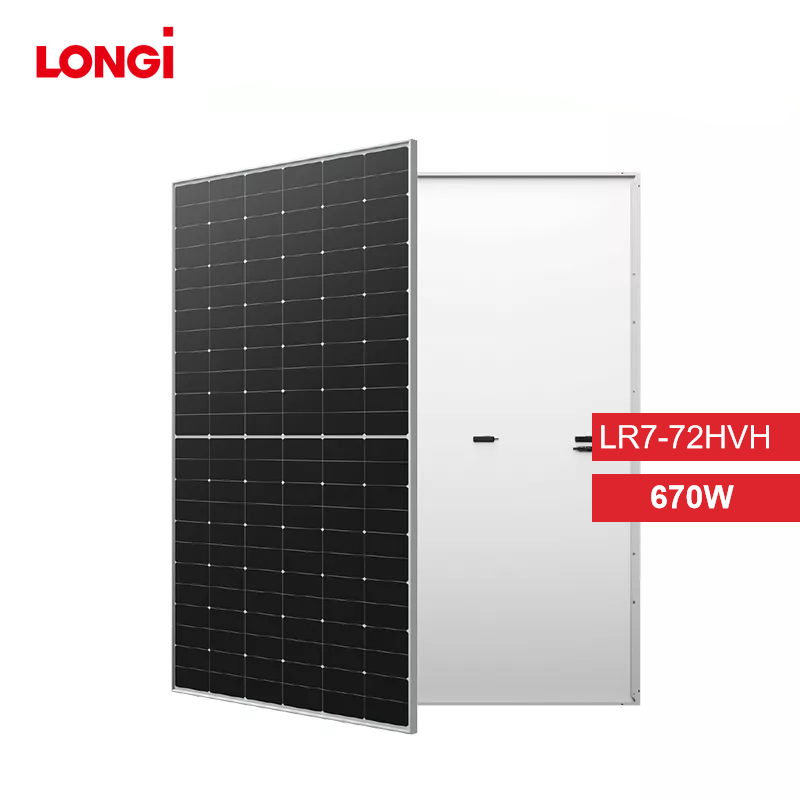

Solar Panel Front
There is no Busbar on the front, and the appearance of pure black on the front makes your roof more beautiful.

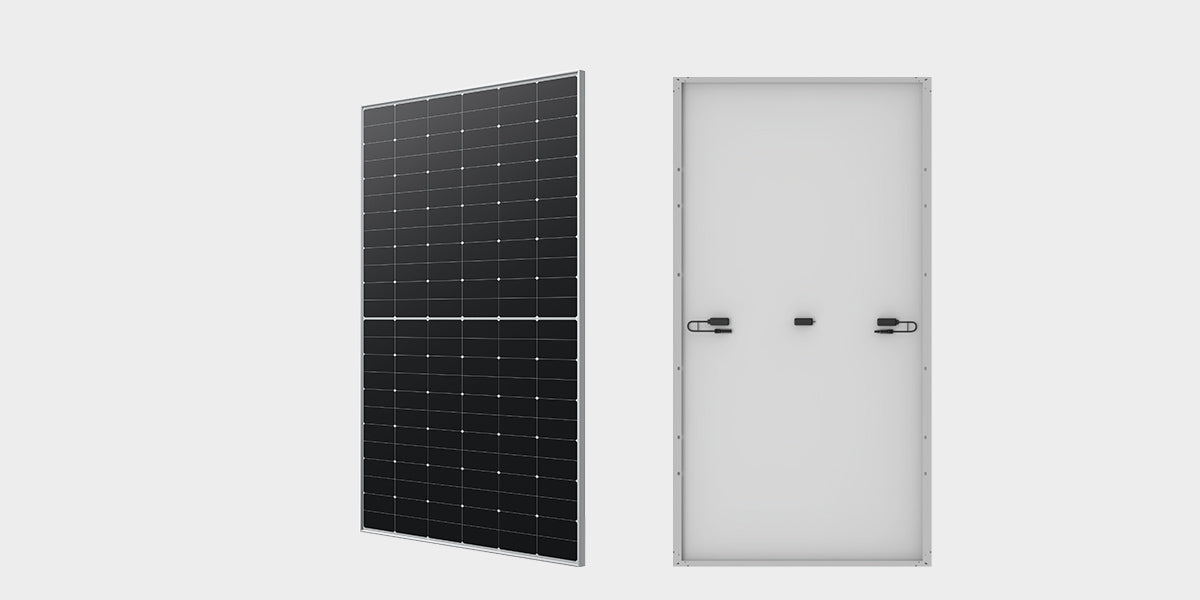

LonGi 670W Solar Panel (Hi-MO X10 LR7-72HVH-670M) - High-Efficiency Monocrystalline Solar Module with 120 Cell Module for Home and Commercial Use
Not only makes the color of the roof more beautiful, but also does not affect the efficiency and power generation.
The Longi 670W Solar Panel is a high-performance product from LONGi, one of China largest authorized distributors of branded solar panels. This module features Hi-MO X10 technology and has an impressive maximum power output of 670 watts. With its robust design and reliable performance, this solar panel is suitable for various applications.
In the background of each solar panel, there is a label pasted by the original factory, which clearly marks the voltage, current, certification logo and other information.
The LonGi 670W Solar Panel features Hi-MO X10 technology and a LR7-72HVH-670M design, offering high-efficiency energy conversion.

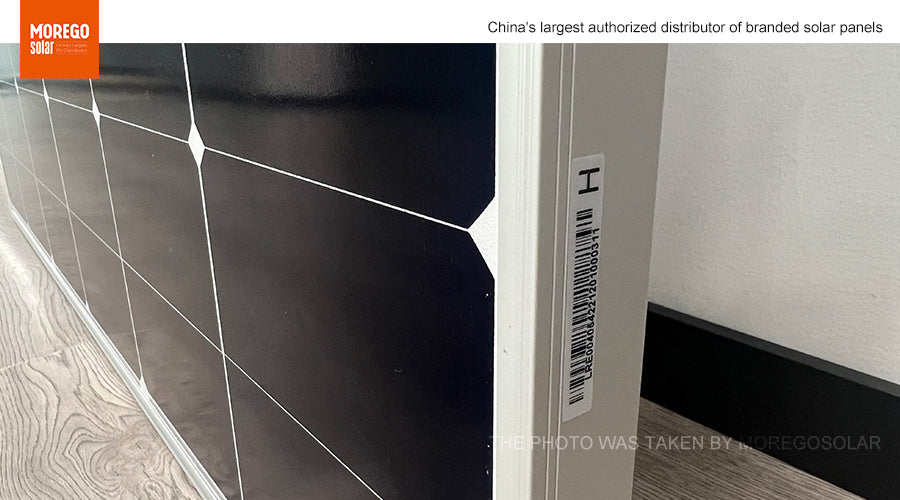

Barcode is posted on the Frame of each solar panel. You can use the barcode to check the authenticity and Grade of the solar panel on the LONGI official website.
LonGi 670W Solar Panel, Hi-MO X10, LR7-72HVH-670M: High-efficiency solar panel with 9BB cells and high-power output. Ideal for residential and commercial applications.

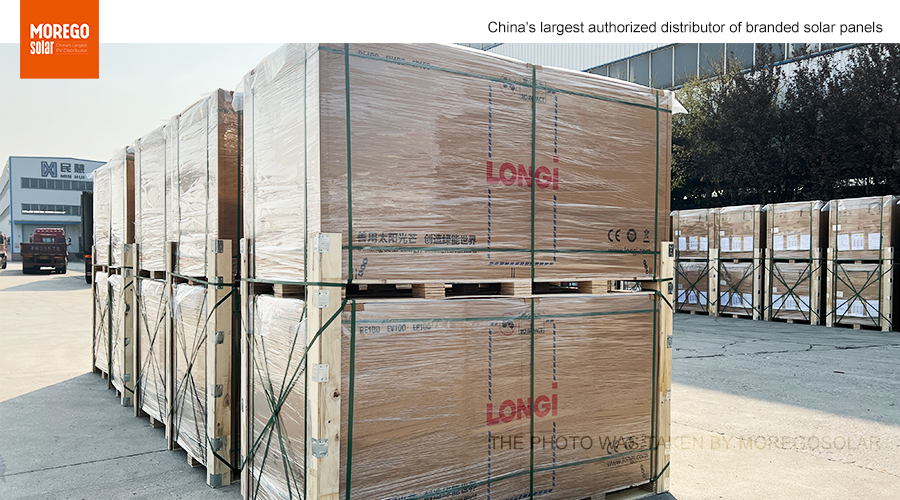

The factory will update the packaging style at any time, please use the latest version.
LonGi 670W Solar Panel features Hi-MO X10 technology and LR7-72HVH-670M specifications, offering high efficiency and reliable performance.

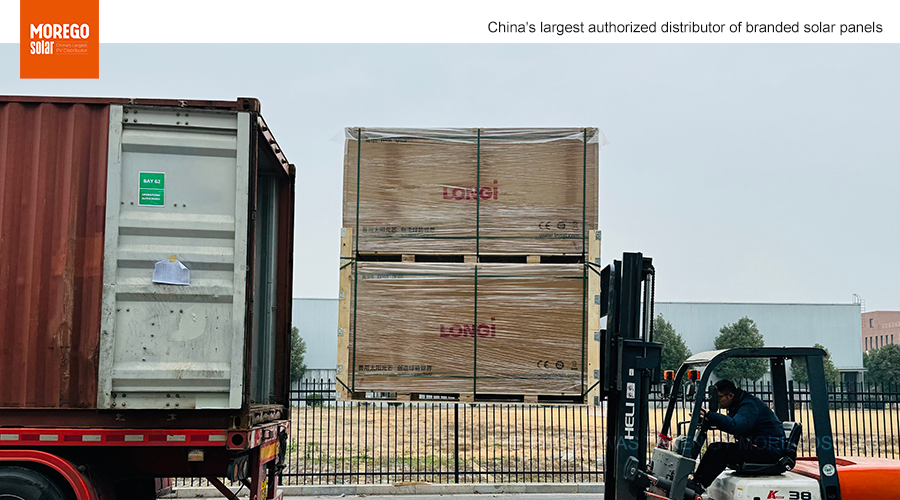

This is loading 40 'HQ containers, usually 2 pallets stacked up and down into the container.
