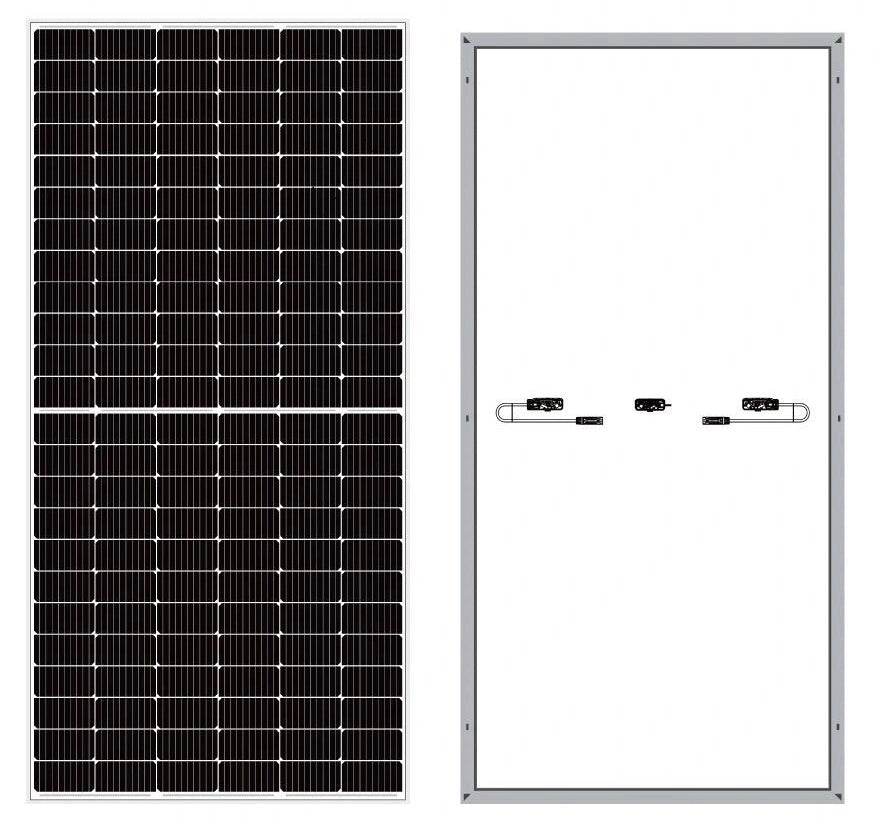

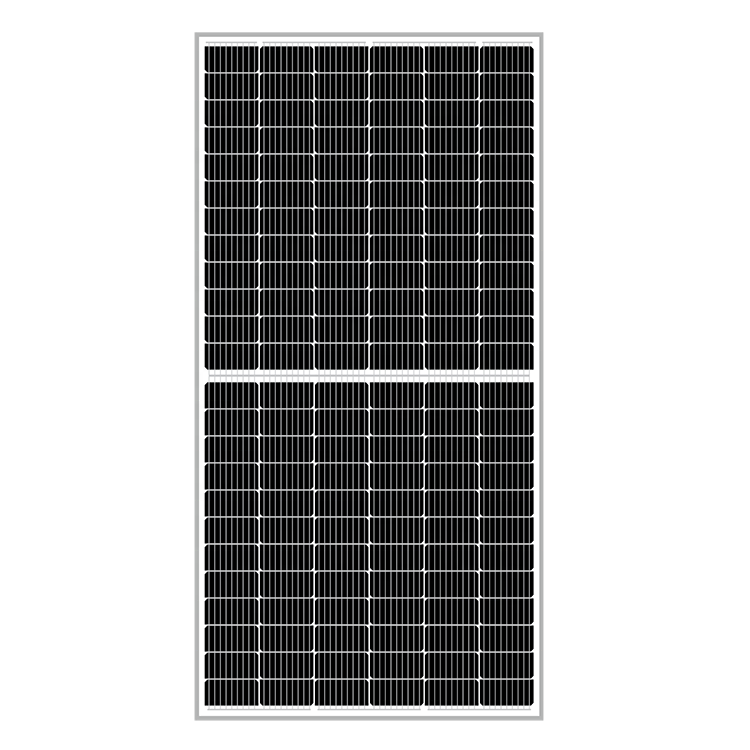

LVTOPSUN 550W Solar Panel Overview
The LVTOPSUN 550W Solar Panel is engineered for maximum energy output with superior efficiency, integrating advanced features that make it ideal for both residential and commercial installations. With a high module efficiency of up to 21.2%, this panel utilizes high-quality mono 182x182mm cells and an MBB half-cut cell design to deliver peak power of 550W, ensuring consistent performance even in low-light conditions. Certified to withstand up to 5400Pa snow loads and 2400Pa wind loads, it is a durable and reliable choice for any environment.
LVTOPSUN 550W Solar Panel Key Features
- Brand: LVTOPSUN
- Model Number: LVTS-144M(182)
- Type: Monocrystalline (MONO)
- Certificate: CE, TUV, ISO, CQC, CNAS
- Cell Efficiency: 21.3%
- Solar Cell: 182×182mm
This panel comes equipped with several innovative features that enhance its performance:
- IP68 Junction Box & Connector: Ensures high levels of waterproofing and resistance to harsh environments.
- Anti-PID Resistant: Proven resistance to PID (Potential Induced Degradation) with extensive testing at 96 hours (85°C/85% RH).
- MBB Half-Cut Cell Technology: Advanced circuit design for lower internal current, reducing Rs loss.
- Significantly Lower Hot Spot Temperature: Special circuit design to minimize hot spots, enhancing safety and longevity.
- Lower LCOE (Levelized Cost of Electricity): Optimized for better returns on investment with higher efficiency and durability.
- Strength and Durability: Certified to withstand 5400Pa snow loads and 2400Pa wind loads, ensuring reliable performance even in extreme conditions.

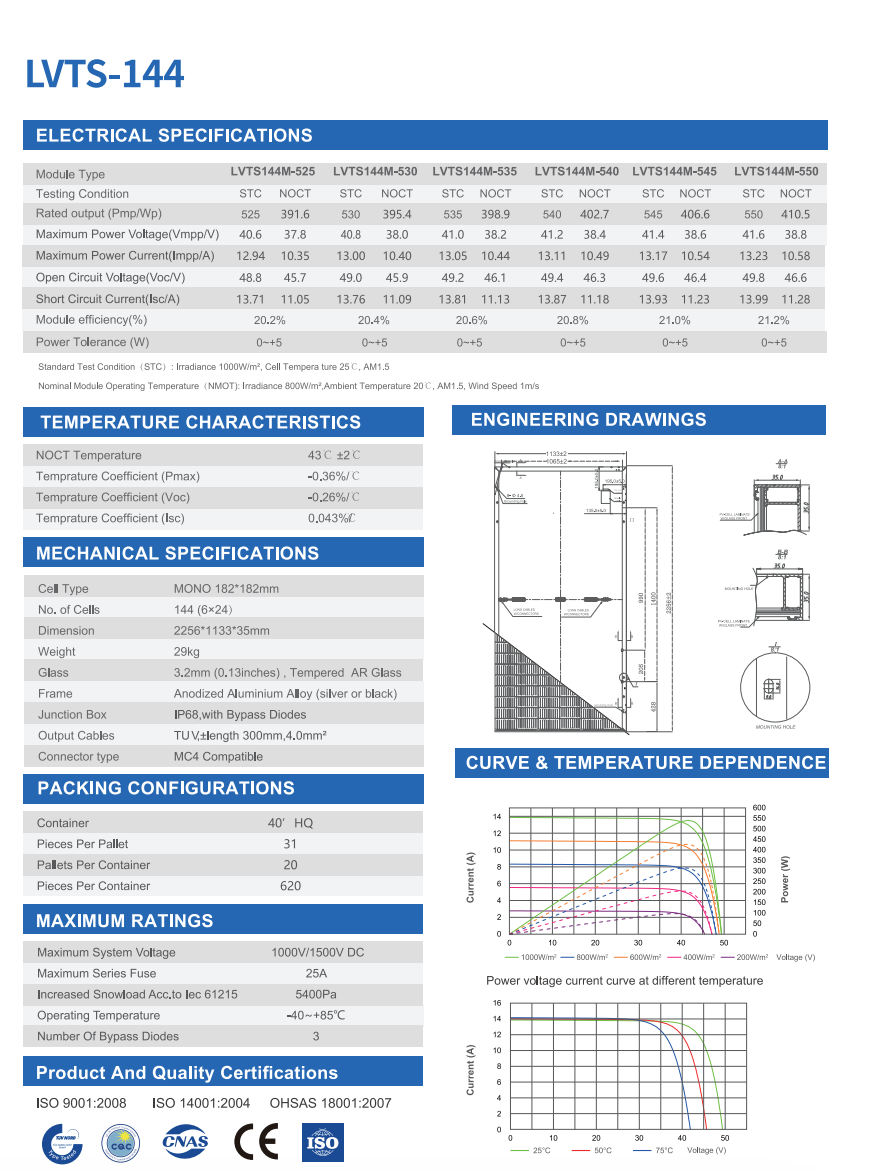

LVTOPSUN 550W Solar Panel Datasheet
Electrical Specifications
| Module Type | LVTS144M-525 | LVTS144M-530 | LVTS144M-535 | LVTS144M-540 | LVTS144M-545 | LVTS144M-550 |
|---|---|---|---|---|---|---|
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Rated Output (Pmp/Wp) | 525 | 391.6 | 530 | 395.4 | 535 | 398.9 |
| Max Power Voltage (Vmpp/V) | 40.6 | 37.8 | 40.8 | 38.0 | 41.0 | 38.2 |
| Max Power Current (Impp/A) | 12.94 | 13.00 | 13.05 | 10.40 | 13.10 | 10.45 |
| Open Circuit Voltage (Voc/V) | 48.8 | 45.7 | 49.0 | 45.9 | 49.2 | 46.1 |
| Short Circuit Current (Isc/A) | 13.71 | 11.05 | 13.76 | 11.09 | 13.81 | 11.13 |
| Module Efficiency (%) | 20.2% | 20.4% | 20.6% | 20.8% | 21.0% | 21.2% |
| Power Tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 |
Temperature Characteristics
- NOCT Temperature: 43°C ± 2°C
- Temperature Coefficient (Pmax): -0.36%/°C
- Temperature Coefficient (Voc): -0.26%/°C
- Temperature Coefficient (Isc): 0.043%/°C
Mechanical Specifications
- Cell Type: MONO 182×182mm
- Number of Cells: 144 (6×24)
- Dimensions: 2256×1133×35mm
- Weight: 29kg
- Glass: 3.2mm Tempered AR Glass
- Frame: Anodized Aluminum Alloy (Silver or Black)
- Junction Box: IP68, with Bypass Diodes
- Output Cables: TÜV 4.0mm², Length 300mm
- Connector Type: MC4 Compatible
Packing Configurations
- Container: 40' HQ
- Pieces per Pallet: 31
- Pallets per Container: 20
- Pieces per Container: 620
Maximum Ratings
- Maximum System Voltage: 1000V/1500V DC
- Maximum Series Fuse: 25A
- Increased Snow Load: 5400Pa (According to IEC 61215)
- Operating Temperature: -40°C ~ +85°C
- Number of Bypass Diodes: 3
Product and Quality Certifications
- ISO 9001:2008
- ISO 14001:2004
- OHSAS 18001:2007
The LVTOPSUN 550W solar panel offers an ideal combination of efficiency, durability, and reliability. With its high module efficiency, robust design, and advanced technology, this panel is perfect for maximizing energy production in both large-scale commercial and residential projects.
