LVTOPSUN LV48100 Overview
The LVTOPSUN LV48100 48V 100AH LifePO4 Battery is a powerful and scalable energy storage solution with a nominal capacity of 100Ah and 4.8kWh of energy. It delivers a maximum discharge power of 4800W and a maximum charge power of 2400W, making it highly efficient for demanding energy storage applications. With a cycle life of 6000 cycles at 90% depth of discharge (DOD), this battery is built for long-term use and durability. Additionally, it is scalable up to 15 batteries in parallel, allowing for a total energy capacity of 72kWh. The operating temperature range of -20°C to 60°C, along with its IP20 rating, ensures reliable performance in a variety of conditions. Whether for residential, commercial, or industrial use, this battery supports seamless integration with mainstream inverters, making it a highly flexible energy storage solution.
LVTOPSUN 48V 100AH LifePO4 Battery Key Features
- Economic & Affordable: Offers a cost-effective energy storage option, balancing performance and price.
- More Usable Energy: Achieves 90% depth of discharge, providing efficient energy usage.
- High Efficiency: Capable of full-time 1C discharge for maximum energy output and system efficiency.
- High Expandability: Scalable from 4.8kWh to 72kWh, making it ideal for small to large installations.
- Flexible Installation: Supports both rack-mounted and wall-mounted installation options for versatile setups.
- Perfect Compatibility: Designed for easy integration with most mainstream inverter brands, enhancing system flexibility.
LVTOPSUN LV48100 Specifications
| Model | LV48100 |
|---|---|
| Performance | |
| Nominal Voltage | 48 Vdc |
| Nominal Capacity | 100 Ah |
| Battery Energy | 4.8 kWh |
| Charge Voltage | 52.2 - 52.65 Vdc |
| Discharge Voltage | 42.75 - 52.65 Vdc |
| Max Charge Current | 50 A |
| Max Charge Power | 2400 W |
| Max Discharge Current | 100 A |
| Max Discharge Power | 4800 W |
| Short Circuit Current | 350 A |
| Communication | |
| Display | SOC status indicator, LED indicator |
| Communication | RS232, RS485, CAN |
| General Specification | |
| Dimensions (W×D×H) | 440 × 500 × 132 mm |
| Weight | 40.5 kg |
| Installation | Rack mounted or wall mounted |
| Working Temperature | -20°C to 60°C |
| Storage Temperature | ≤25°C, 12 months; ≤35°C, 6 months; ≤45°C, 3 months |
| Operating/Storage Humidity | ≤ 95%RH |
| Max Operating Altitude | ≤ 2000 m |
| IP Rating | IP20 |
| Cell Technology | LifePO₄, Lithium Iron Phosphate |
| Cycle Life | 6000 Cycles @ 90% DOD / 25°C / 0.5C, 60% EOL |
| Warranty | 5 years |
| Scalability | Max 15 batteries in parallel |
| Ordering and Deliverable Part | LV48100 battery (cable/wall mount included) |
LVTOPSUN LV48100 Description
The LVTOPSUN LV48100 48V 100AH LifePO4 battery is designed to meet the high-performance demands of today's energy storage systems. With 100Ah nominal capacity and 4.8kWh of energy, this battery provides robust power storage for both residential and commercial setups. The battery supports flexible expansion, allowing up to 15 units in parallel for total energy storage of 72kWh. Built for durability, it boasts a 6000 cycle life at 90% depth of discharge, offering excellent long-term value.
Designed for efficiency, the LV48100 supports high discharge power of 4800W and charge power of 2400W, making it a suitable choice for high-demand environments. Its IP20 rating and ability to operate in temperatures as low as -20°C and as high as 60°C ensure reliable performance even in challenging conditions.
The battery is fully compatible with mainstream inverter brands, and its rack-mounted or wall-mounted installation options provide flexibility for various setups. With its 5-year warranty and 90% usable energy, the LV48100 ensures high-efficiency energy storage that you can count on for years to come.

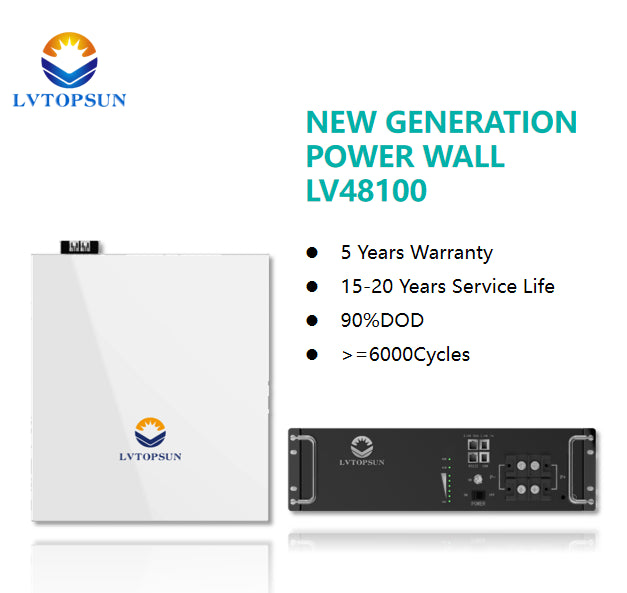

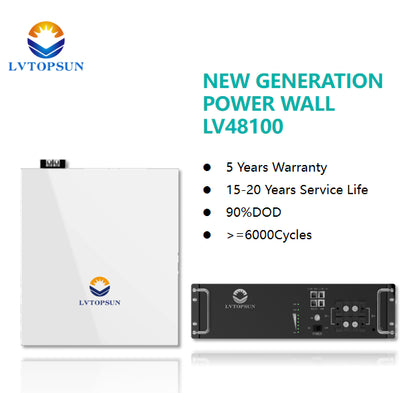

LVTOPSUN New Generation Power Wall LV48100, 48V, 100AH LiFePO4 Battery. Features 5-year warranty and 15-20 year service life with 90% depth of discharge. Supports up to 600 charge cycles. LVTOPSUN brand guarantees reliability and performance.

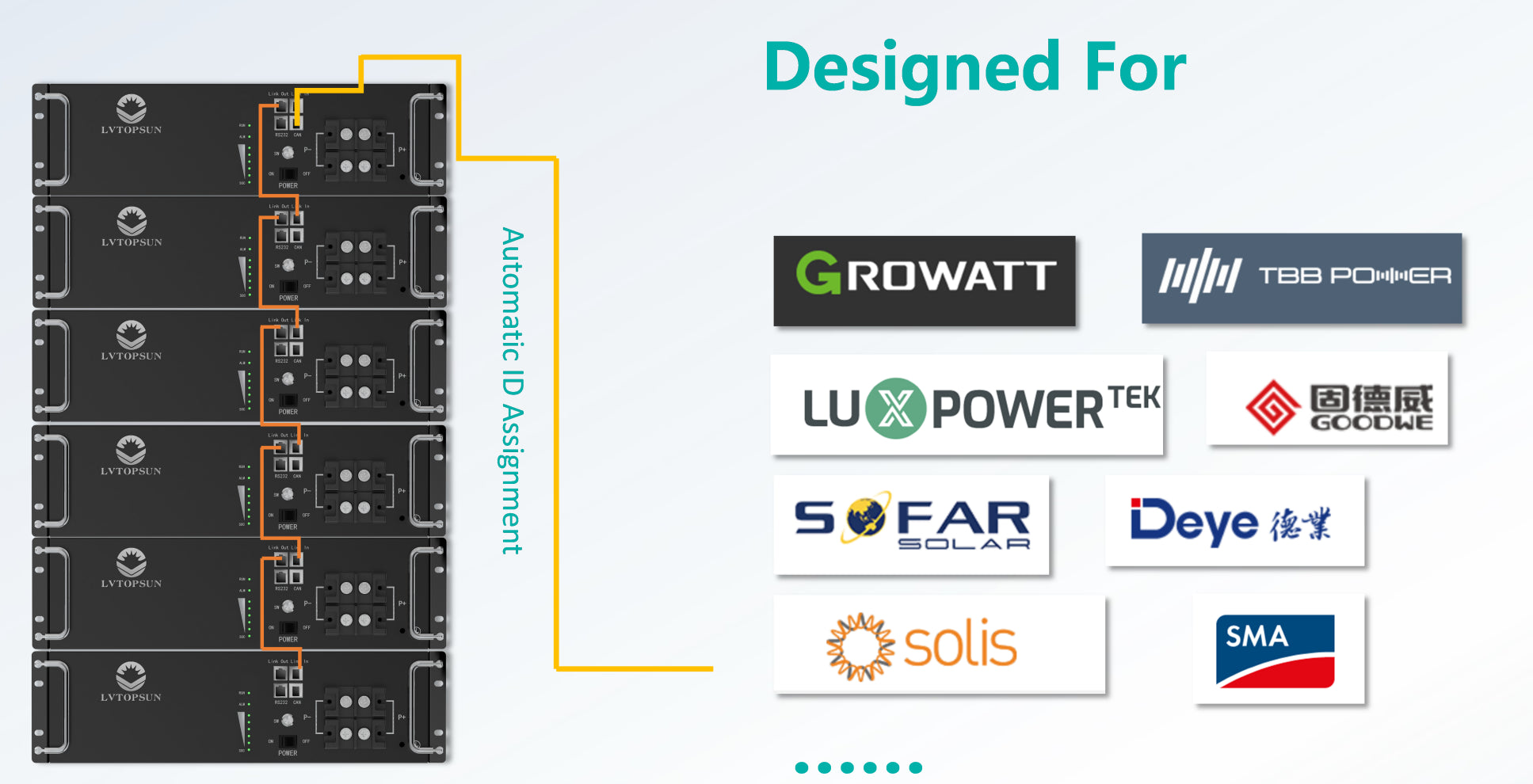

LVTOPSUN LV48100 48V 100AH LifePO4 Battery designed for various solar panel systems including LVTOPSUN, GROWATT, POWIER, Poler, and others.
