Overview

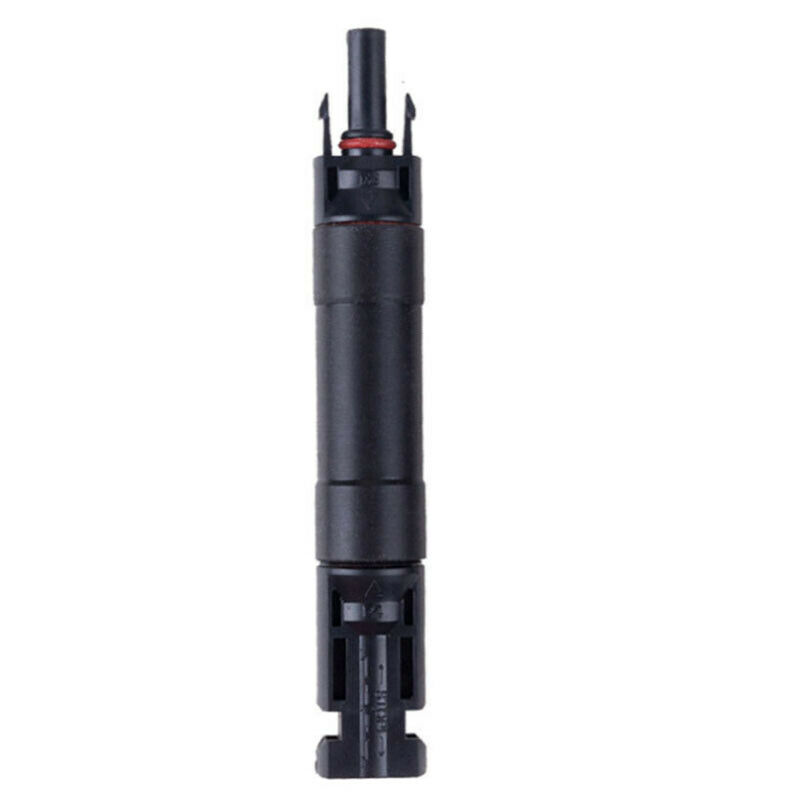

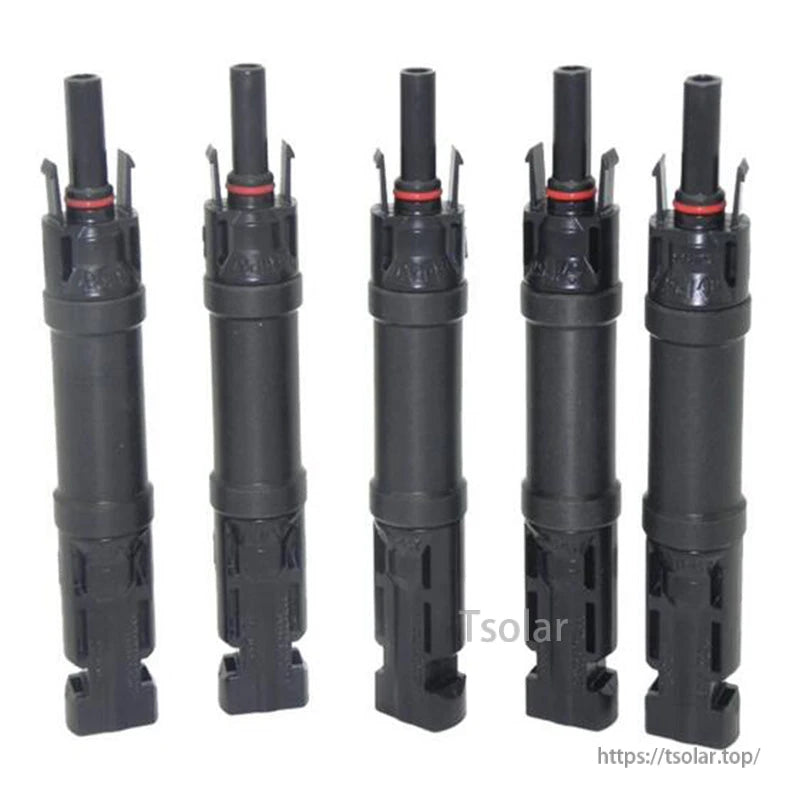

The SA7 MC4 photovoltaic in-line fuse cable connector set (male & female) is designed for photovoltaic solar panel connections and is compatible with MC4 connectors. It supports fast, reliable connection for PV arrays, with a waterproof and dustproof structure and a self-locking mechanism for stable coupling and easy opening/closing.
For product selection or compatibility questions, contact support at https://tsolar.top/ or email service@tsolar.top.
Key Features
- MC4-compatible photovoltaic fuse connector (Model: SA7)
- Waterproof and dustproof housing (IP65)
- Anti-aging, UV-resistant shell
- Self-locking male/female heads; opens and closes freely
- Clamping connection method for cable connection

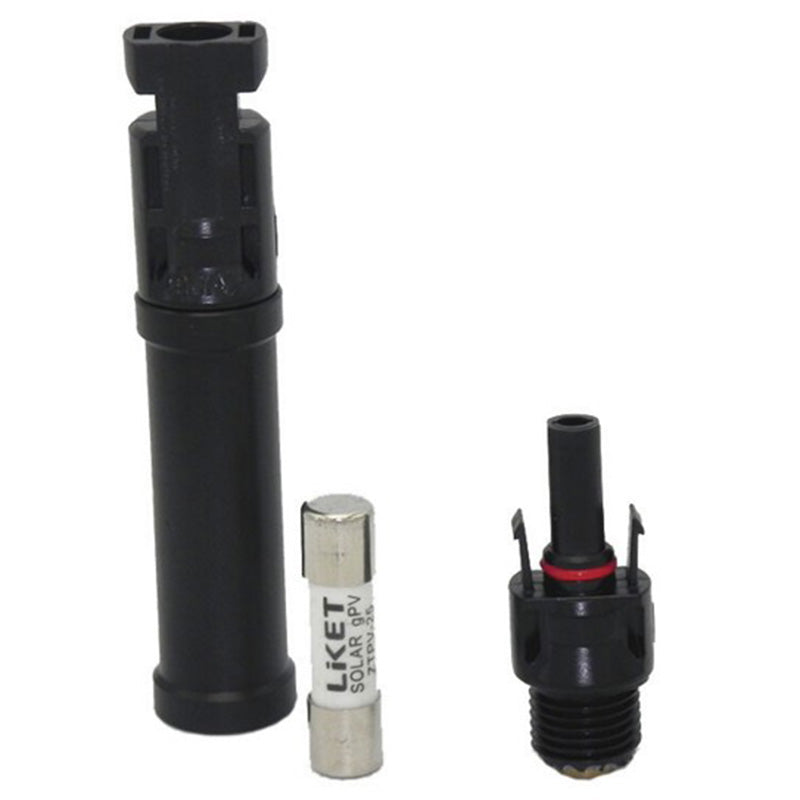

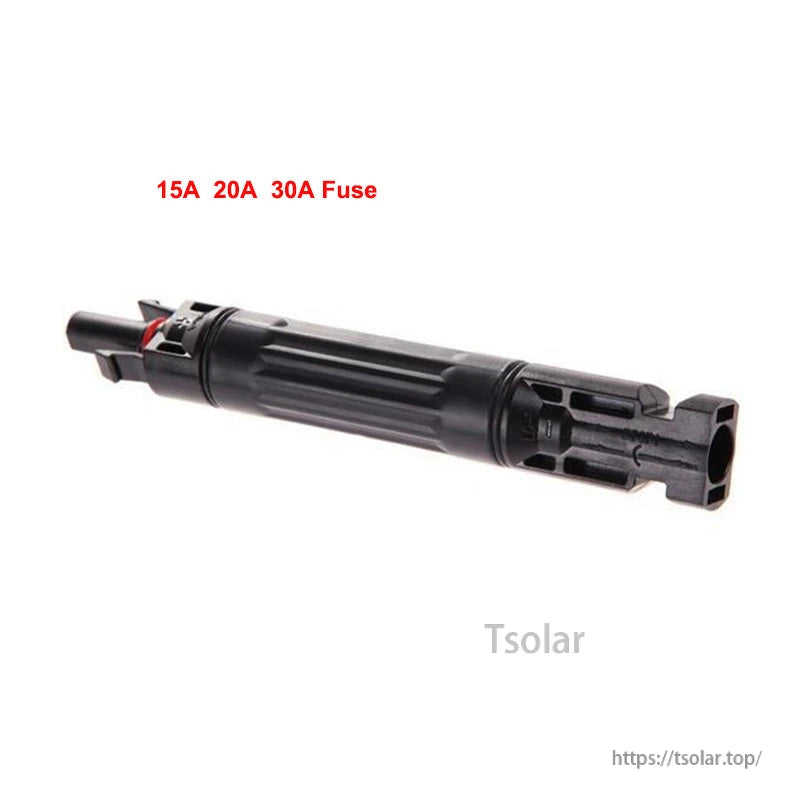

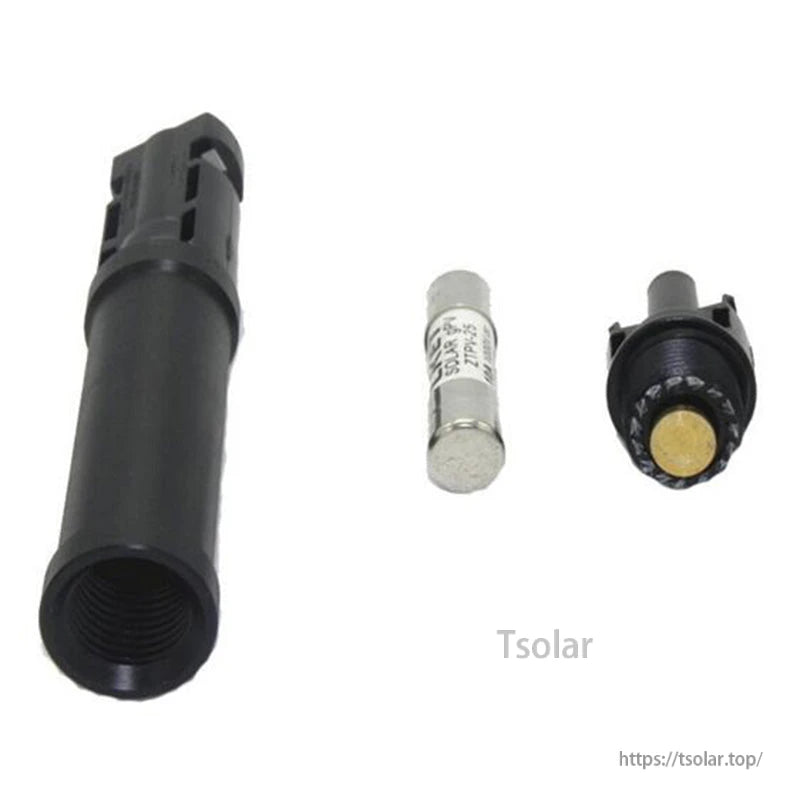

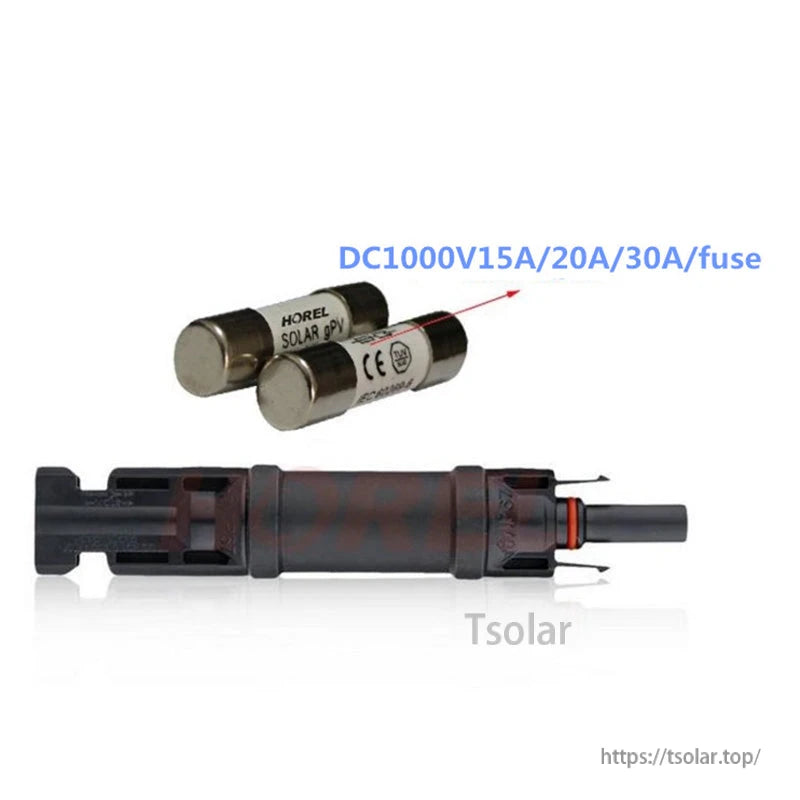

- Fuse rating options referenced: 15A / 20A / 30A
Specifications
| Type | MC4 photovoltaic in-line fuse connector |
| Model | SA7 |
| Maximum operating voltage | 1000V DC |
| Maximum working current | 30A |
| Fuse current | 20A |
| Shell protection class | IP65 |
| Flame retardant grade | UL94-V0 |
| Pollution level | Level 2 |
| Connection resistance | ≤5 mm ohm |
| Connecting wire specification | 1.5~6mm2 |
| Operating temperature | -40 ~ +85 C |
| Safety level | Class II |
| Insertion force | ≤50N |
| Pull out force | ≥50N |
| Diameter of terminal | 4 |
Whats Included
- Male in-line fuse connector x 1
- Female in-line fuse connector x 1
Applications
- Photovoltaic (PV) solar panel cable connections
- PV array wiring requiring an MC4-compatible in-line fuse connector
