Overview

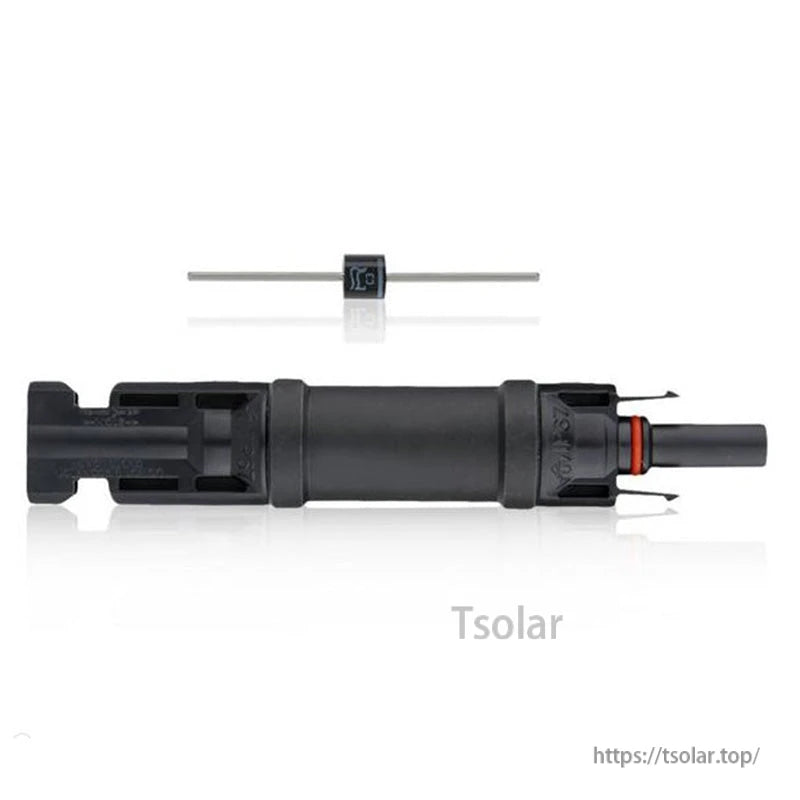

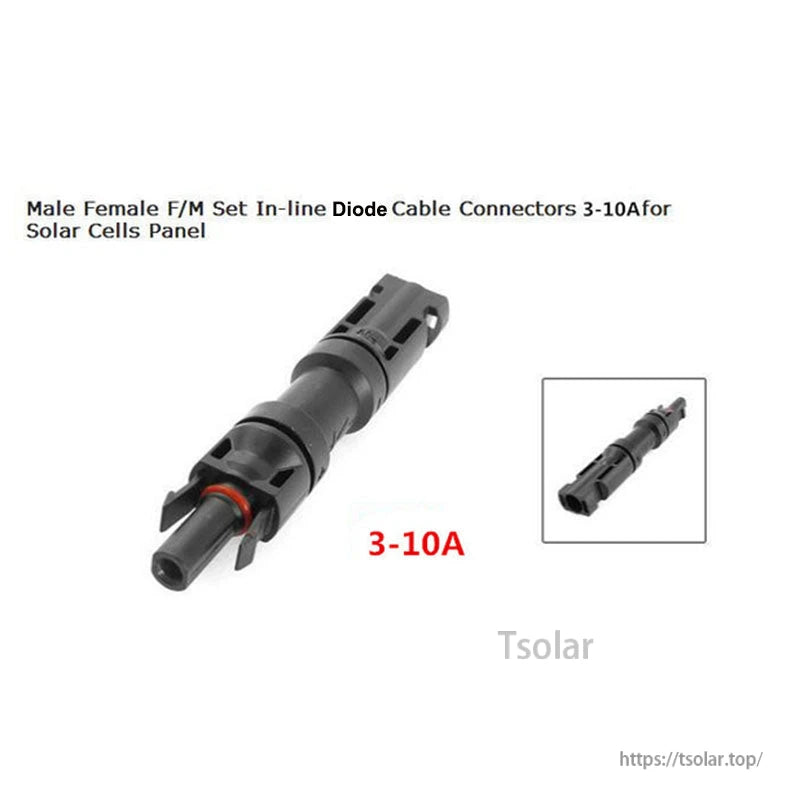

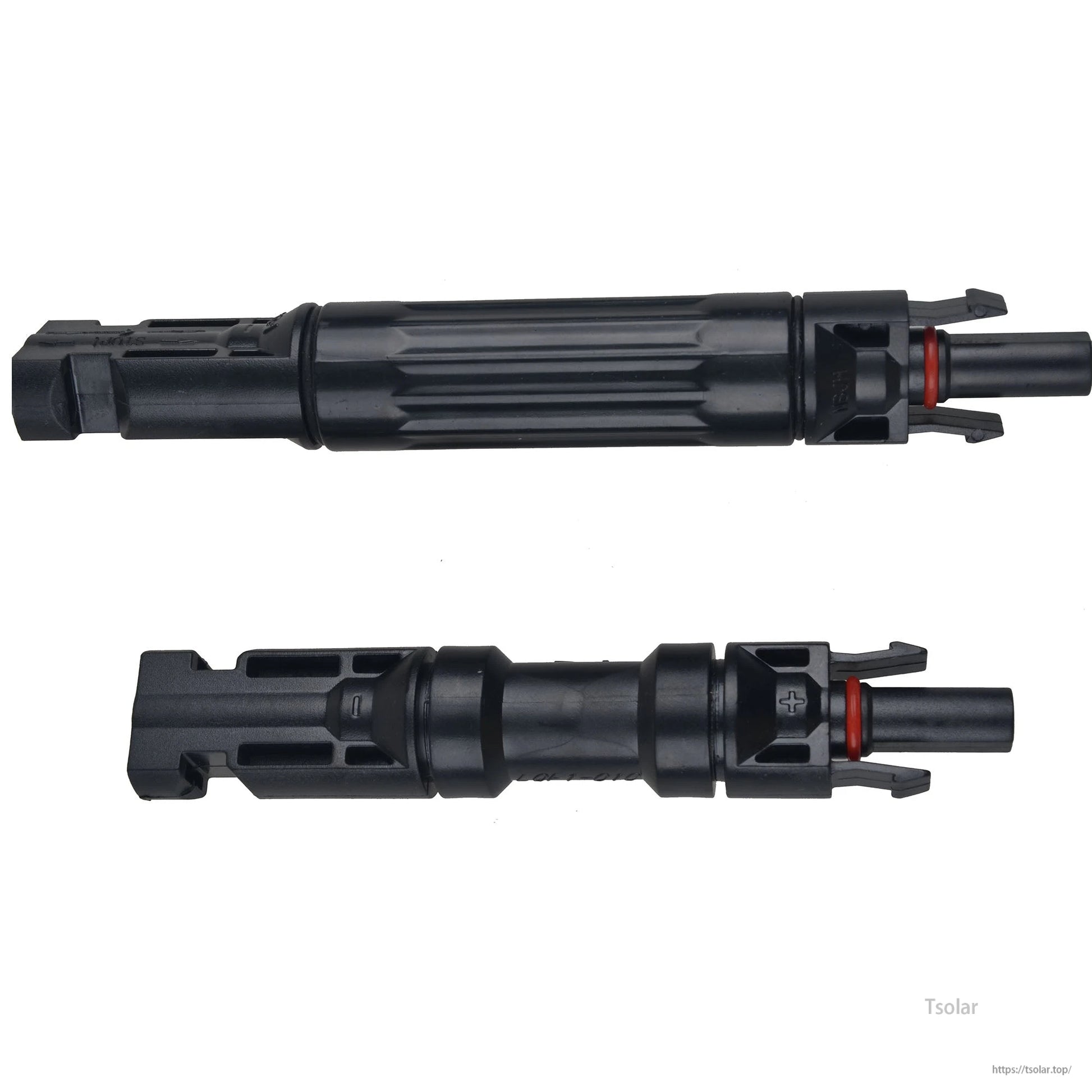

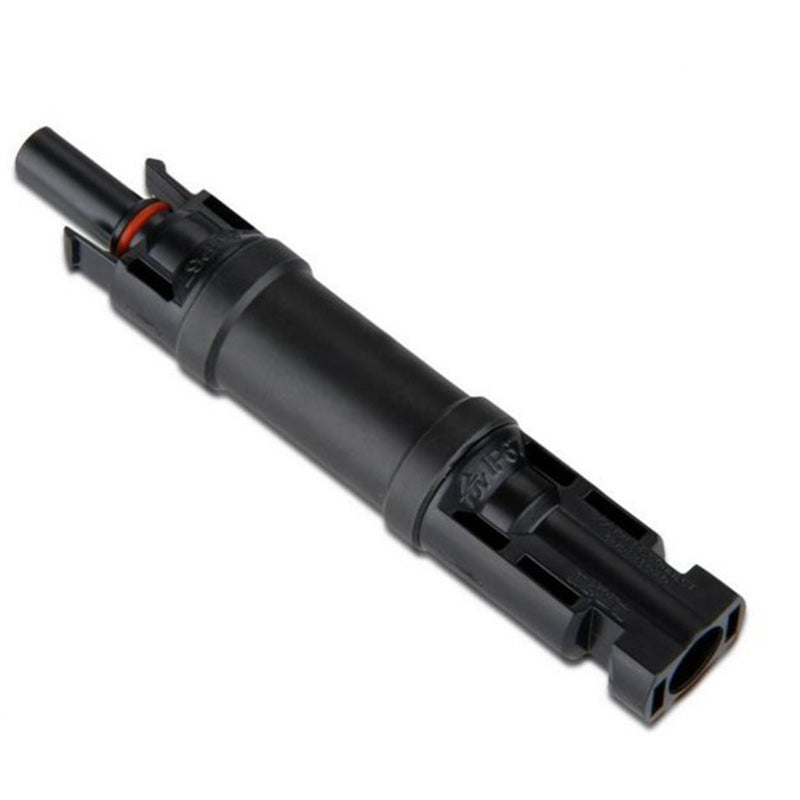

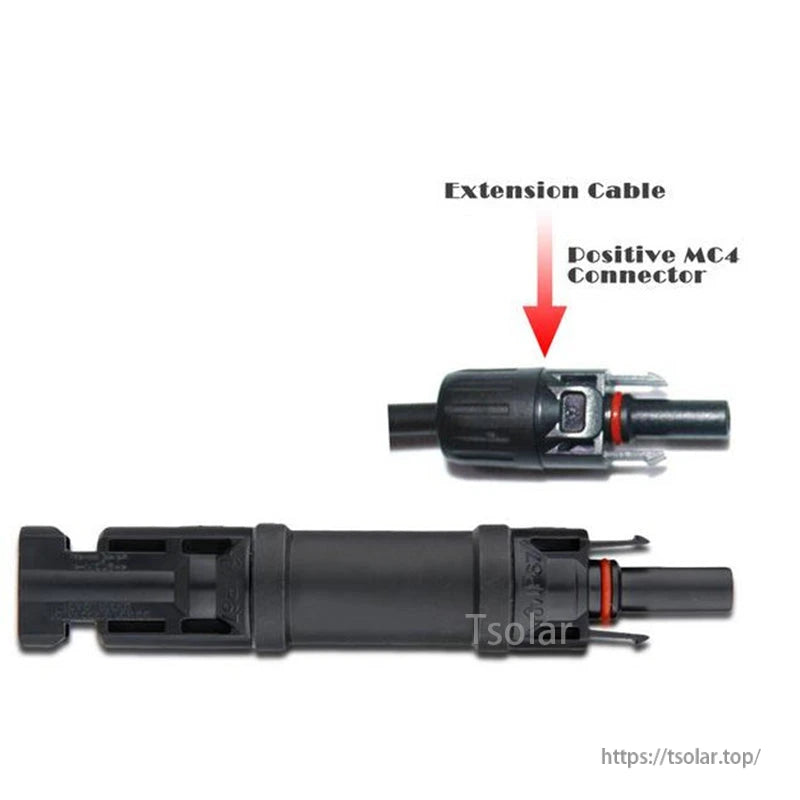

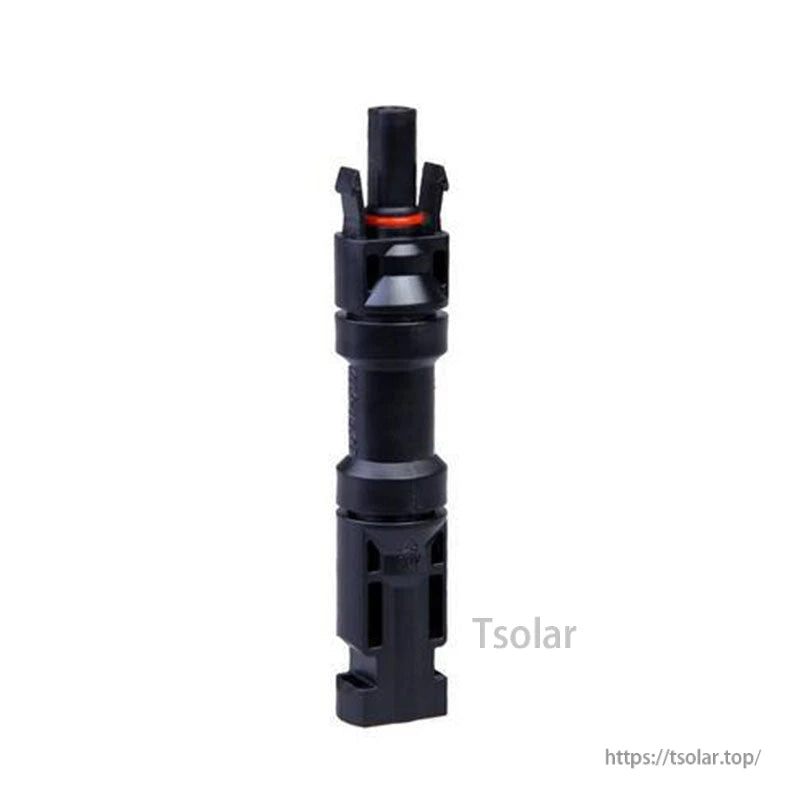

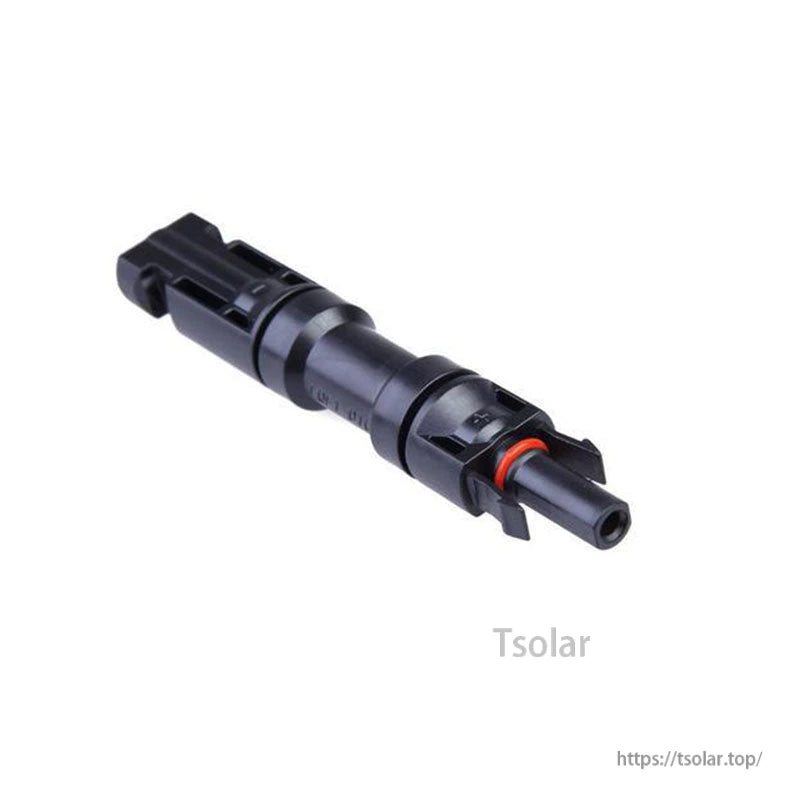

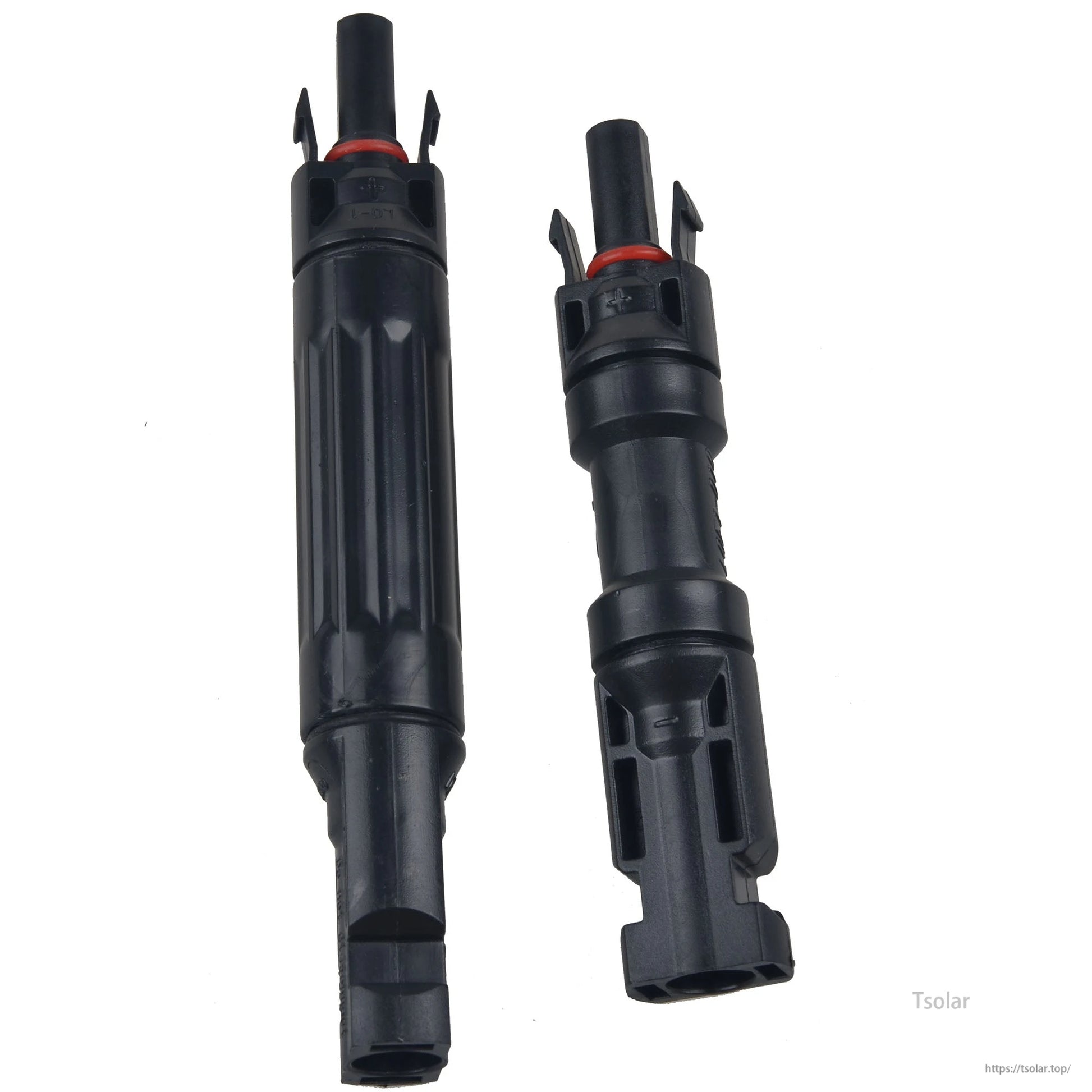

This male to female F/M set in-line diode solar panel cable connector is a solar panel cable connector designed for MC4-style connections, with waterproof protection for outdoor PV wiring. The product title specifies a 15A connector; the technical data lists rated current as 10A (according to the fuse).
Key Features

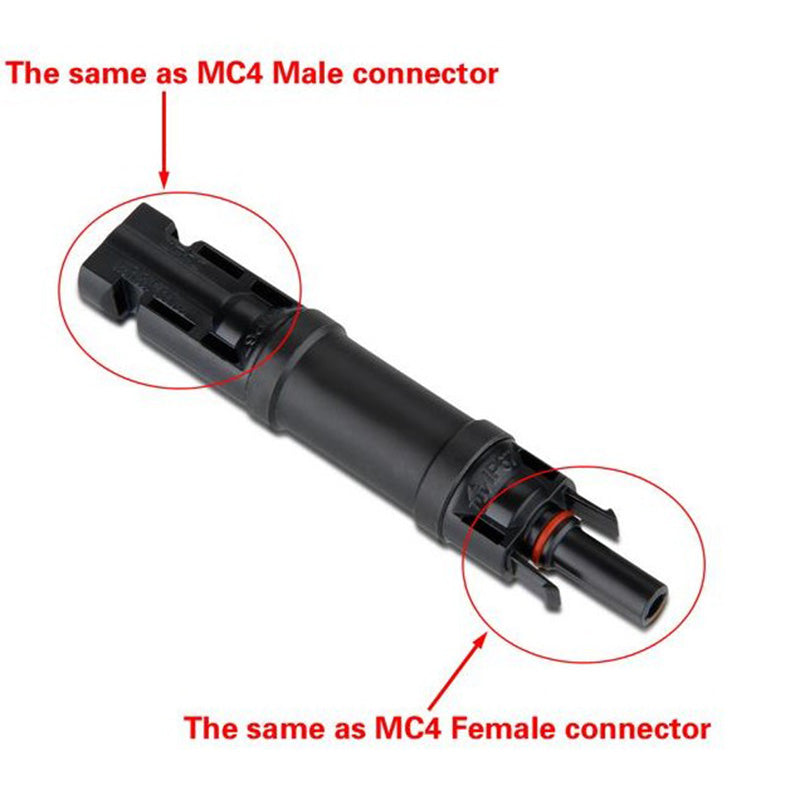

- Use for MC4
- Degree of protection: IP2X/IP67
- Connecting system: crimp connection
- Wide operating temperature range

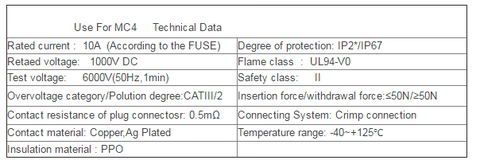

Specifications
| Rated current | 10A (According to the FUSE) |
| Rated voltage | 1000V DC |
| Test voltage | 6000V (50Hz, 1min) |
| Overvoltage category / Pollution degree | CATIII/2 |
| Contact resistance of plug connector | 0.5mΩ |
| Contact material | Copper, Ag Plated |
| Insulation material | PPO |
| Degree of protection | IP2X/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Insertion force / Withdrawal force | ≤50N / ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40~+125°C |
For product selection and compatibility questions, contact service@tsolar.top or visit https://tsolar.top/.
Details
The MC4 in-line diode connector is rated for 10A (per fuse), 1000V DC, and features IP67 protection with a -40 to +125°C operating range.
