Overview

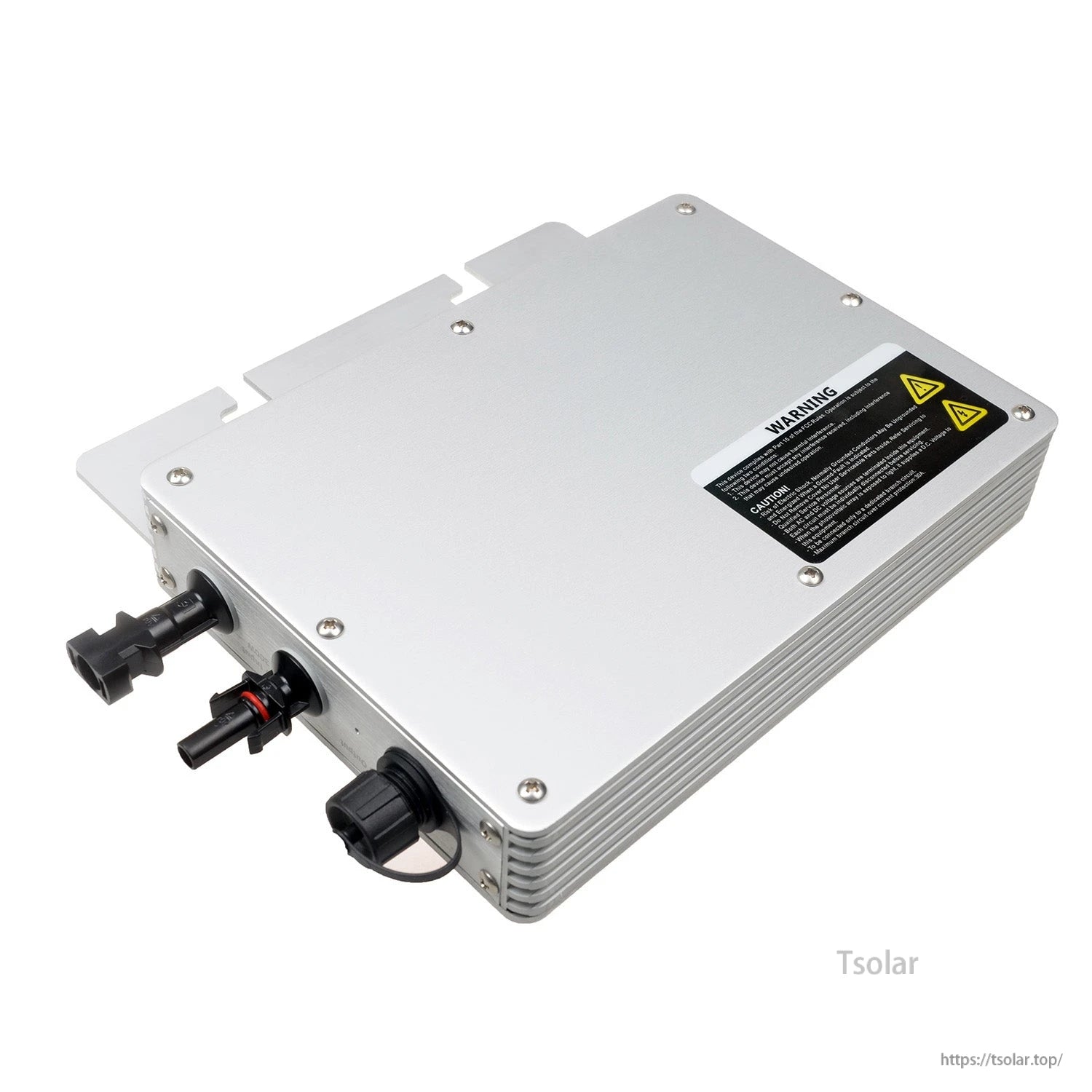

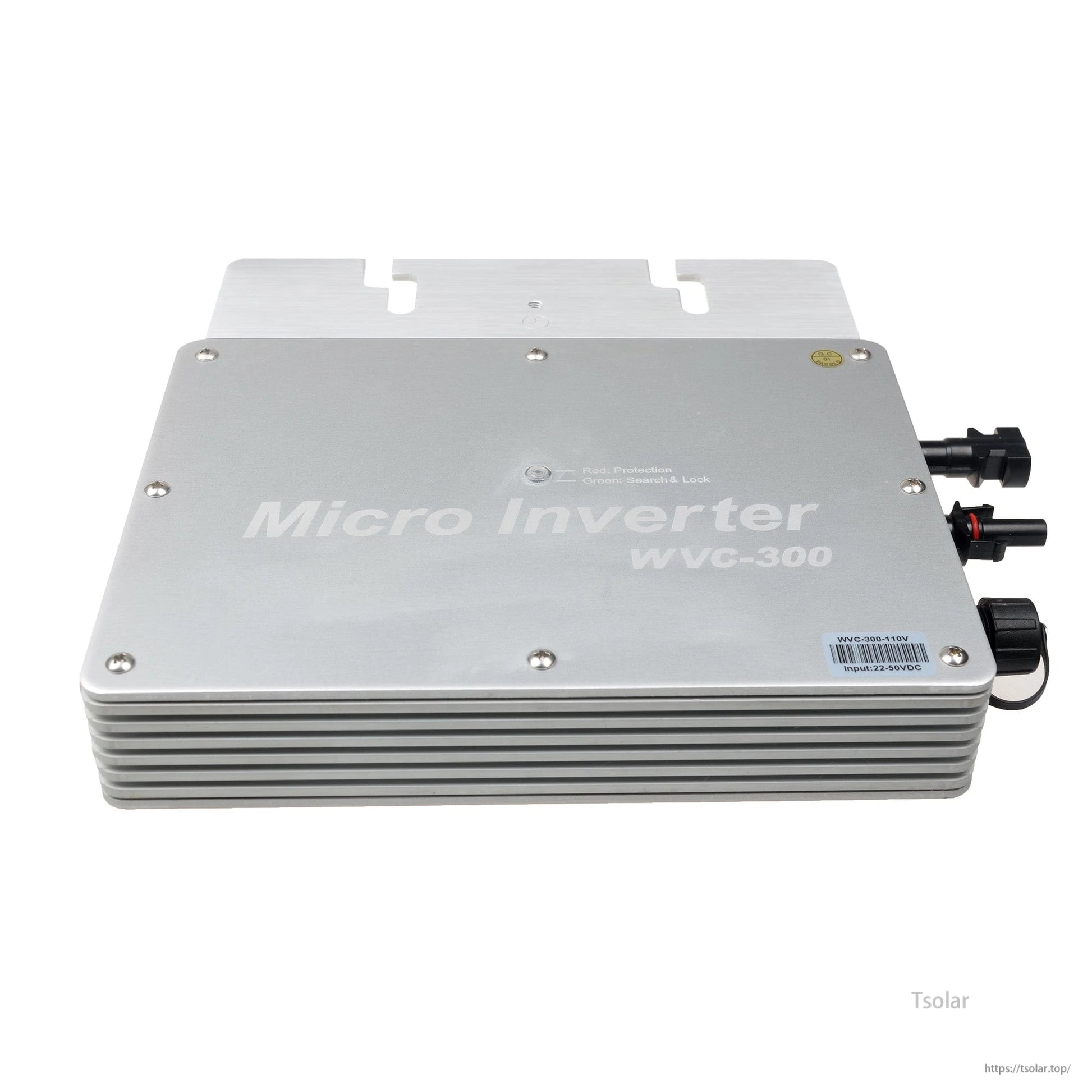

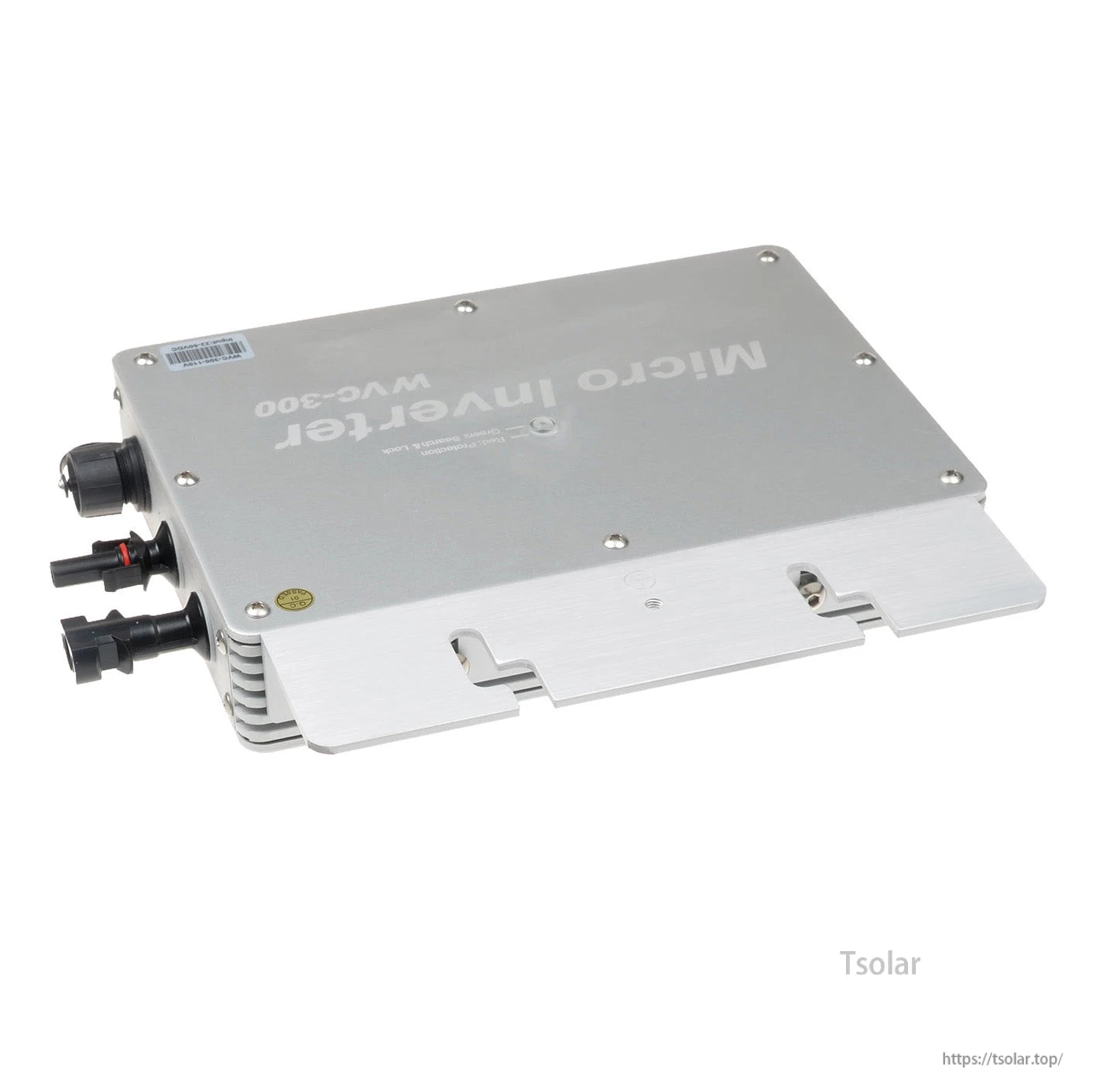

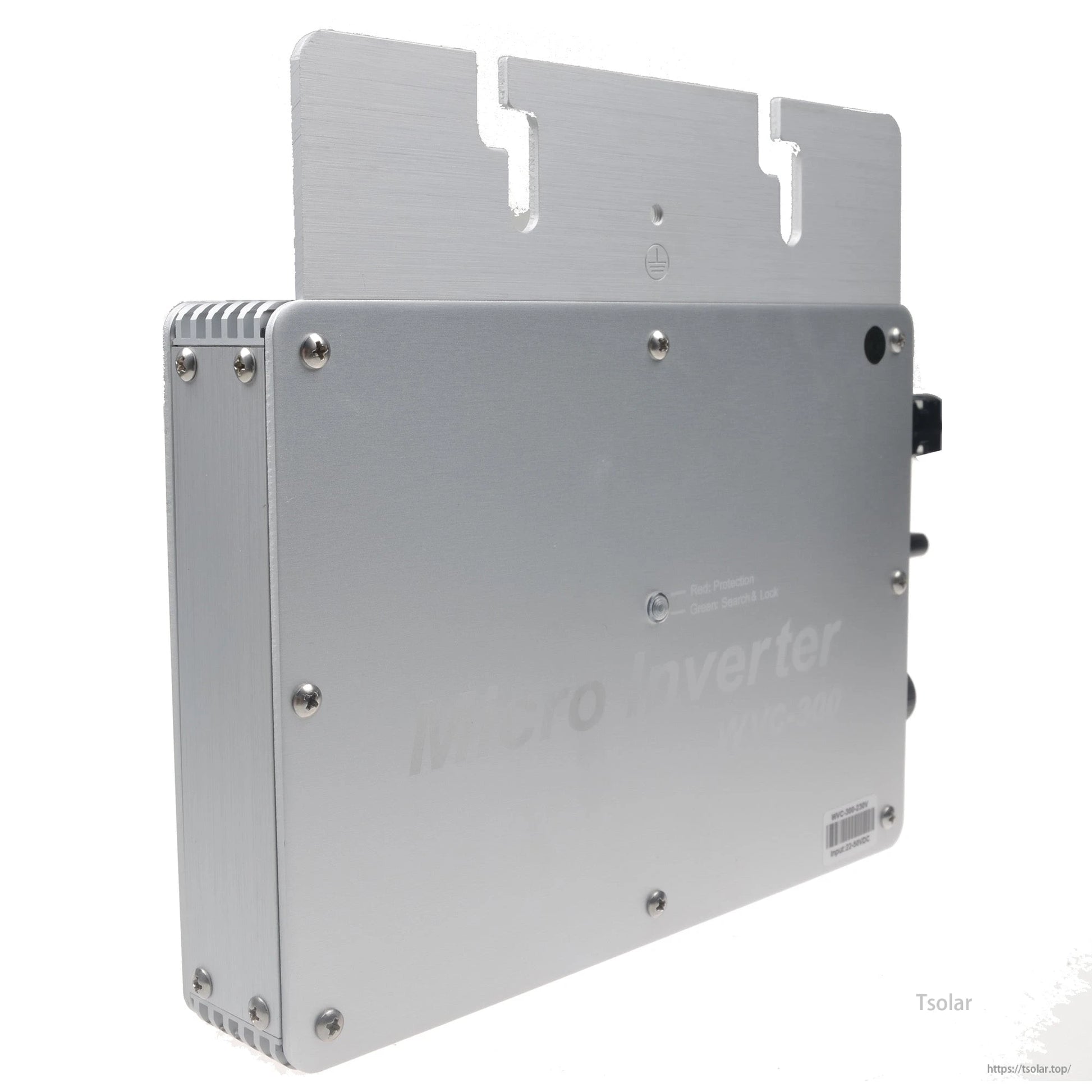

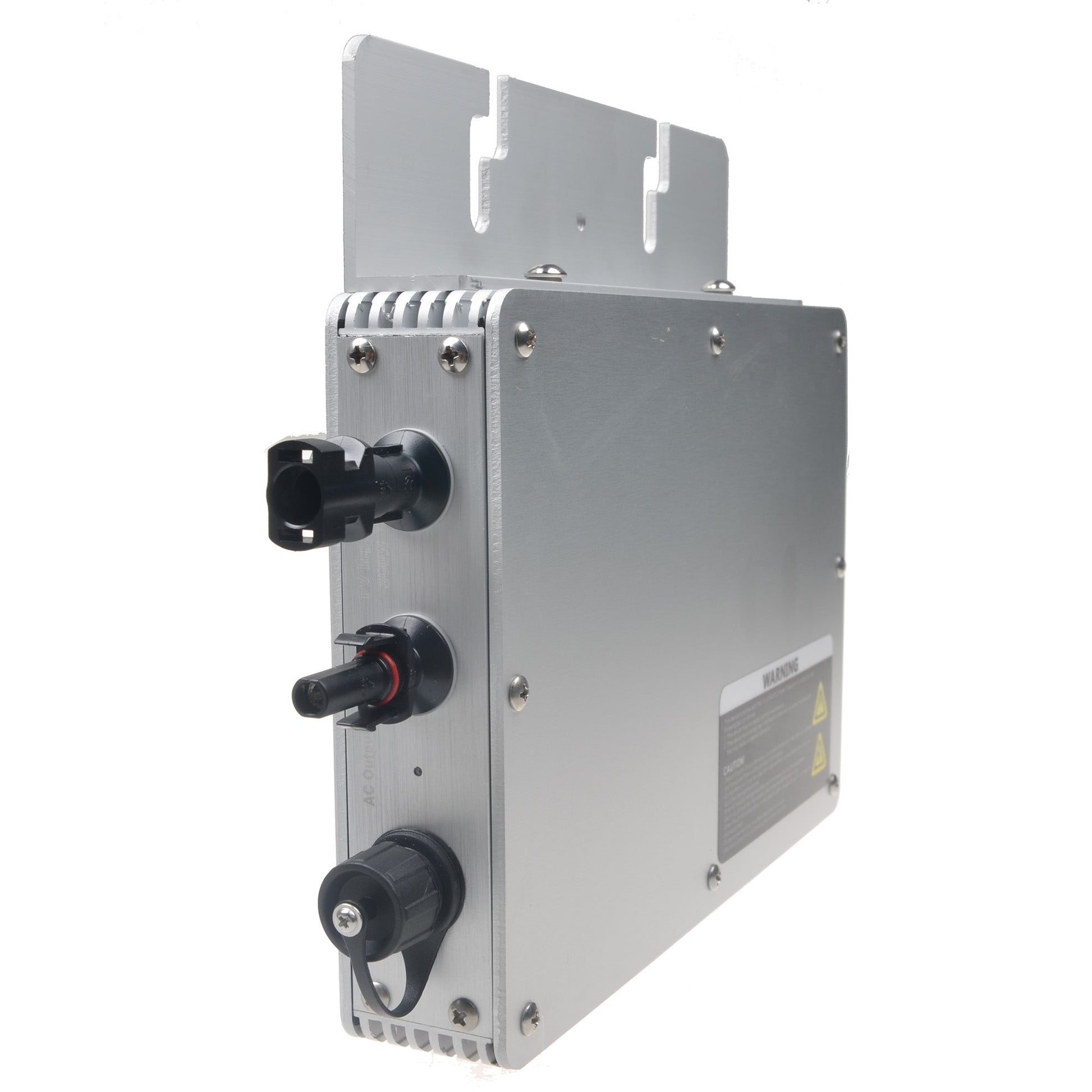

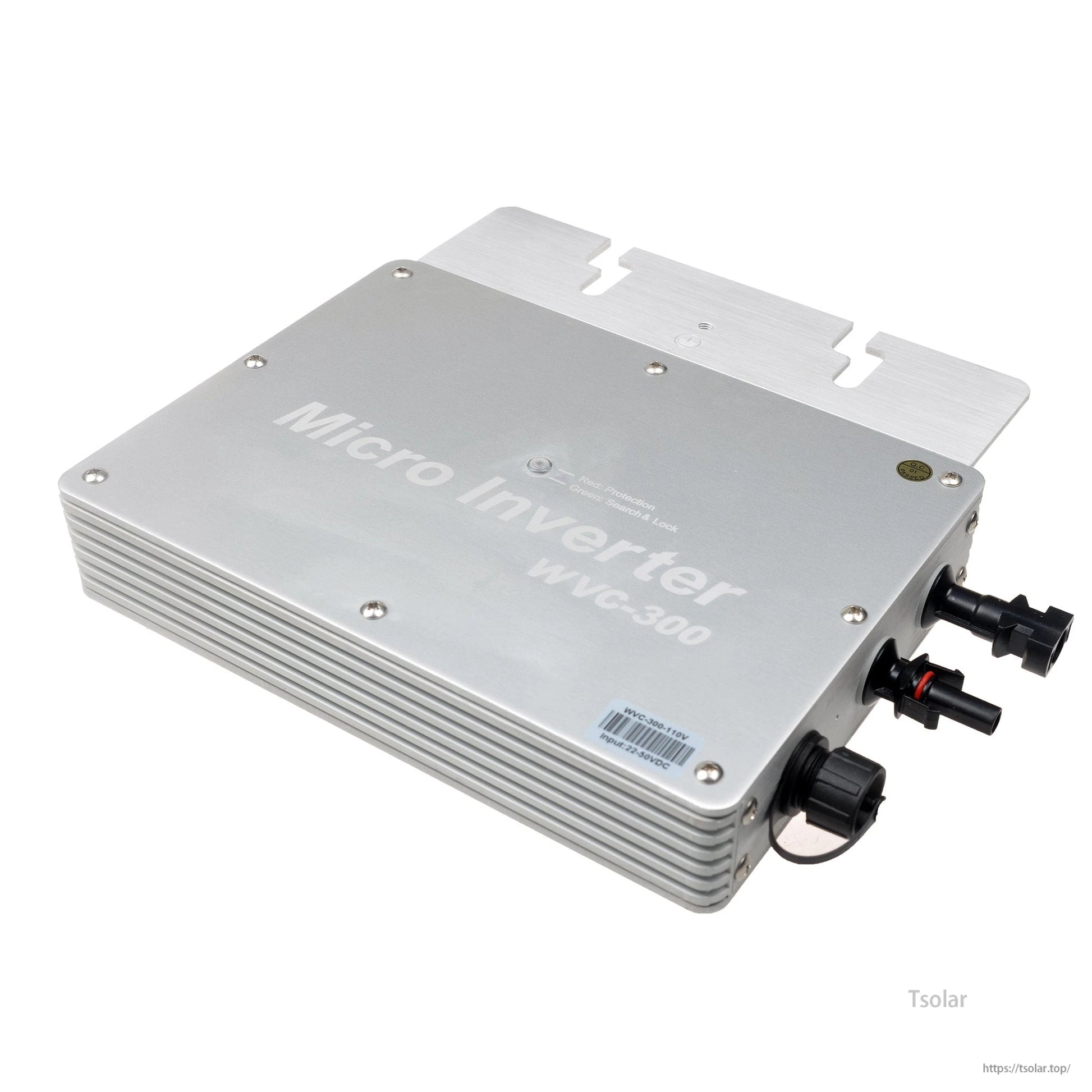

This Grid Tie Inverter is a SolarEpic waterproof MPPT unit rated at 300W (RMS 300W), designed to connect directly to 24V/36V solar panels (battery connection not required). It accepts 22–50VDC PV input and outputs AC 110V or 220V with automatic 50Hz/60Hz operation. The enclosure is rated IP65 and the inverter is CE certified. Note: this inverter does not have a monitoring function.
Key Features
- MPPT (Maximum Power Point Tracking) with Power Automatically Locked (APL) at the maximum power point
- Pure sine wave output (SPWM)
- Wide DC input range: 22–50VDC
- IP65 waterproof design for outdoor-capable installation
- 50Hz/60Hz compatible: frequency range 45Hz–64Hz
- 6-grade power search for low-power conditions (e.g., overcast weather)
- Stacking supported (example provided: 4 × 260W = 1040W; stacking quantity stated as unlimited)
- Protection functions indicated by LED status: islanding protection, over-temperature, over/low AC voltage, over/low DC voltage, fault
Specifications
| Brand | SolarEpic |
| Model | Waterproof Grid Tie Inverter |
| MPN | WG300110227 |
| Type | Grid Tie Inverter |
| System configuration | Grid-Tie |
| MPPT / Charging mode | MPPT (Maximum Power Point Tracking) |
| Rated power | 300W |
| RMS power | 300W |
| PV / DC input voltage | 22–50VDC |
| Recommended PV | Use with 24V/36V solar panel; recommends PV power more than 30W and standard voltage of 36V PV panels; suggestion: PV in parallel |
| AC output (general) | DC22V–50V to AC110V or 220V; 50Hz/60Hz auto |
| AC output range (220VAC) | 180V–262V, 50Hz |
| AC output range (110VAC) | 80V–160V, 60Hz |
| Frequency range | 45Hz–64Hz |
| AC phase shift | < 1% |
| Over-zero protection | 0.2 VAC |
| Modulation synthesis | Half wave and full-bridge modulation synthesis (100Hz / 120Hz) |
| Synthetic way | MOSFET full-bridge |
| High frequency | 50KHz |
| Waveform | Pure sine wave (SPWM); complementary PWM push-pull; enhancement-mode SPWM |
| Waterproof rating | IP65 |
| Certificate | CE |
| Current type | AC/DC |
| Application | Home/Garden |
| Country/Region of manufacture | China |
| Monitoring function | Not included |
| Condition | New |
LED Indicators
- Red light 3 seconds: startup, then enters working condition
- Green flash fast: MPPT searching
- Green flash slow: MPPT + searching
- Red flash slow: MPPT - searching
- Green on 3s / off 0.5s: MPPT locked
- Red steady: islanding protection / over-temperature / over or low AC voltage / over or low DC voltage / fault

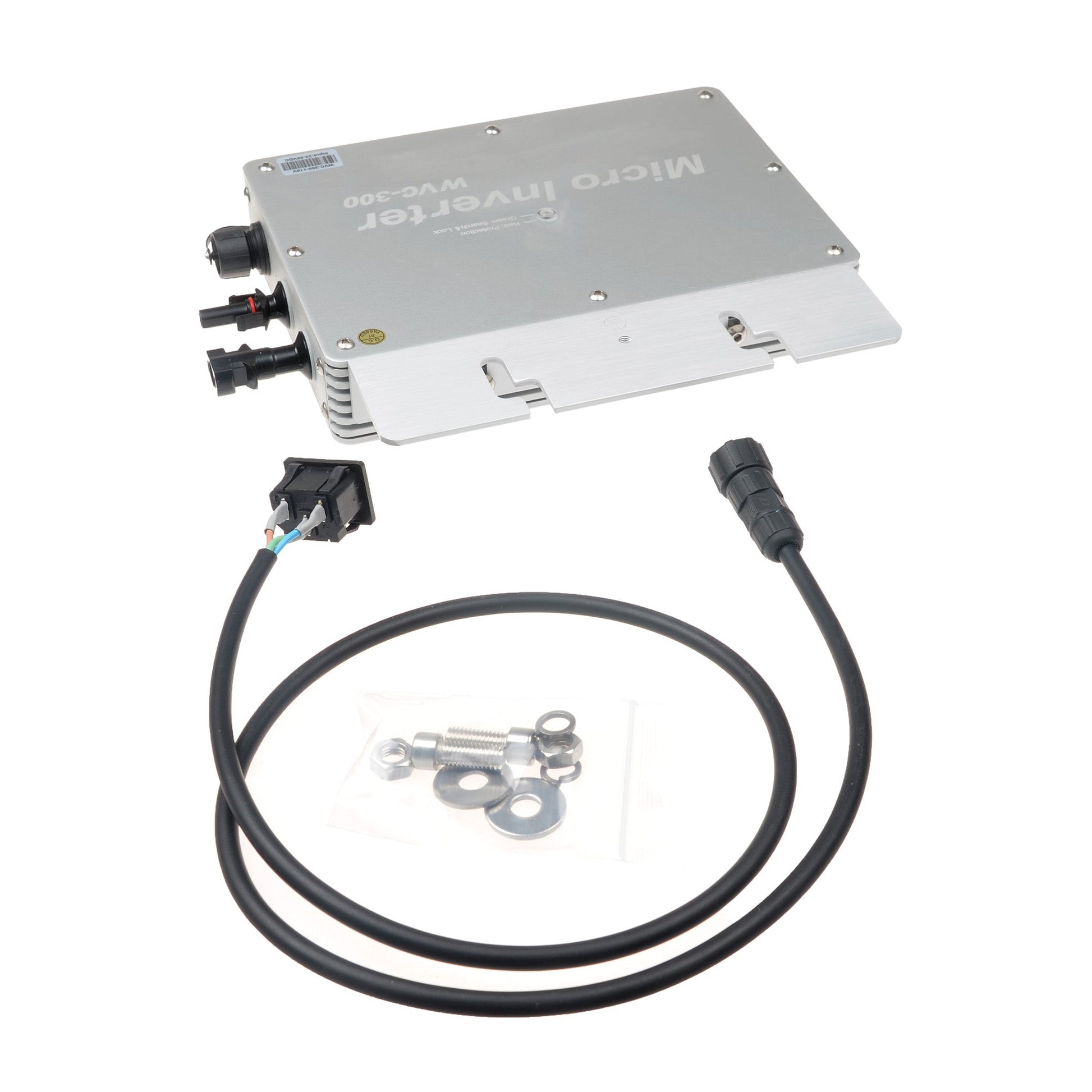

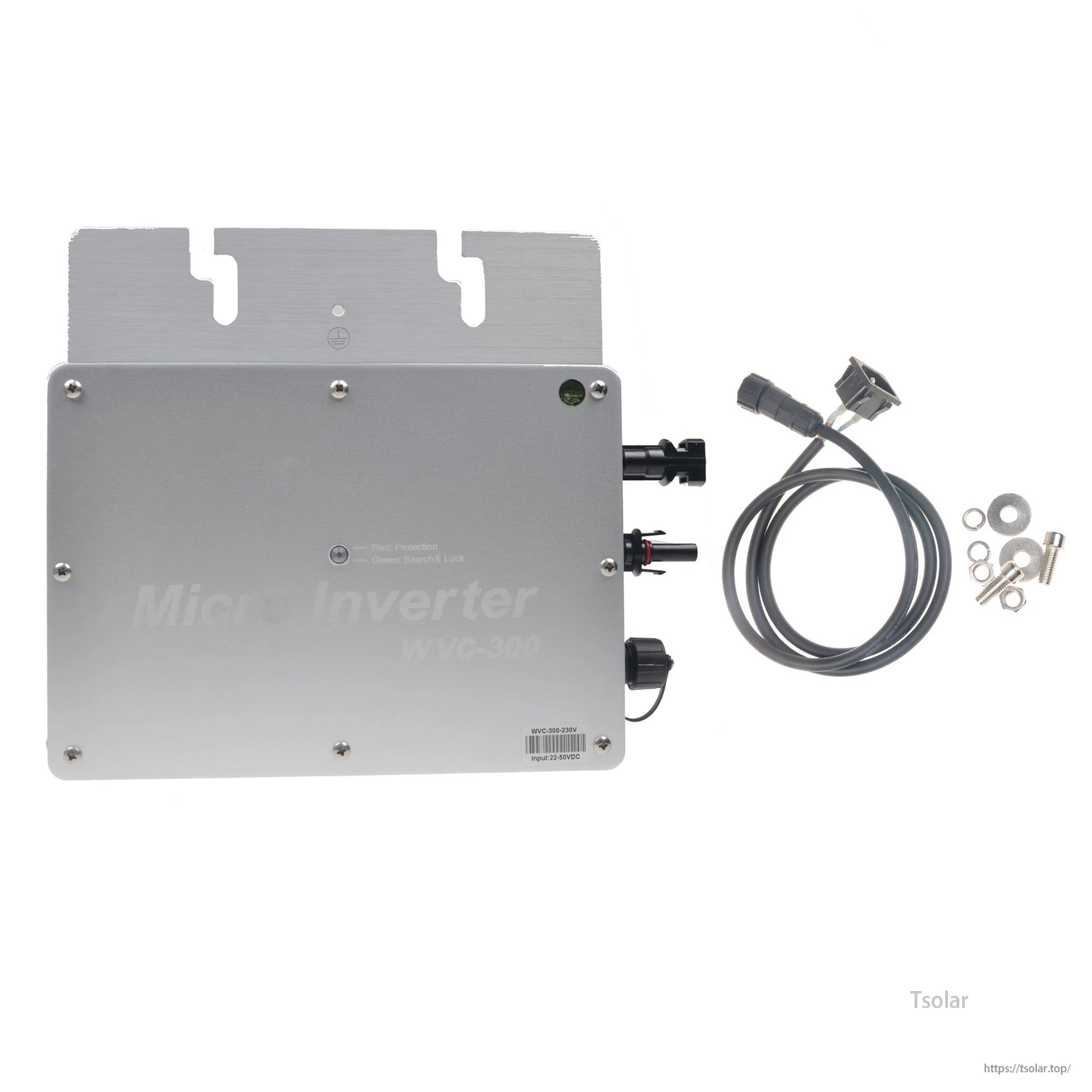

What’s Included

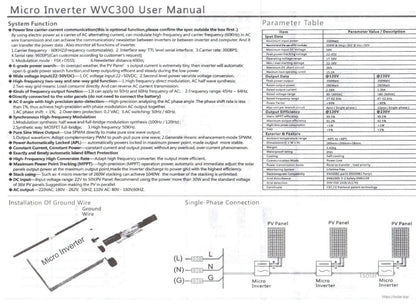

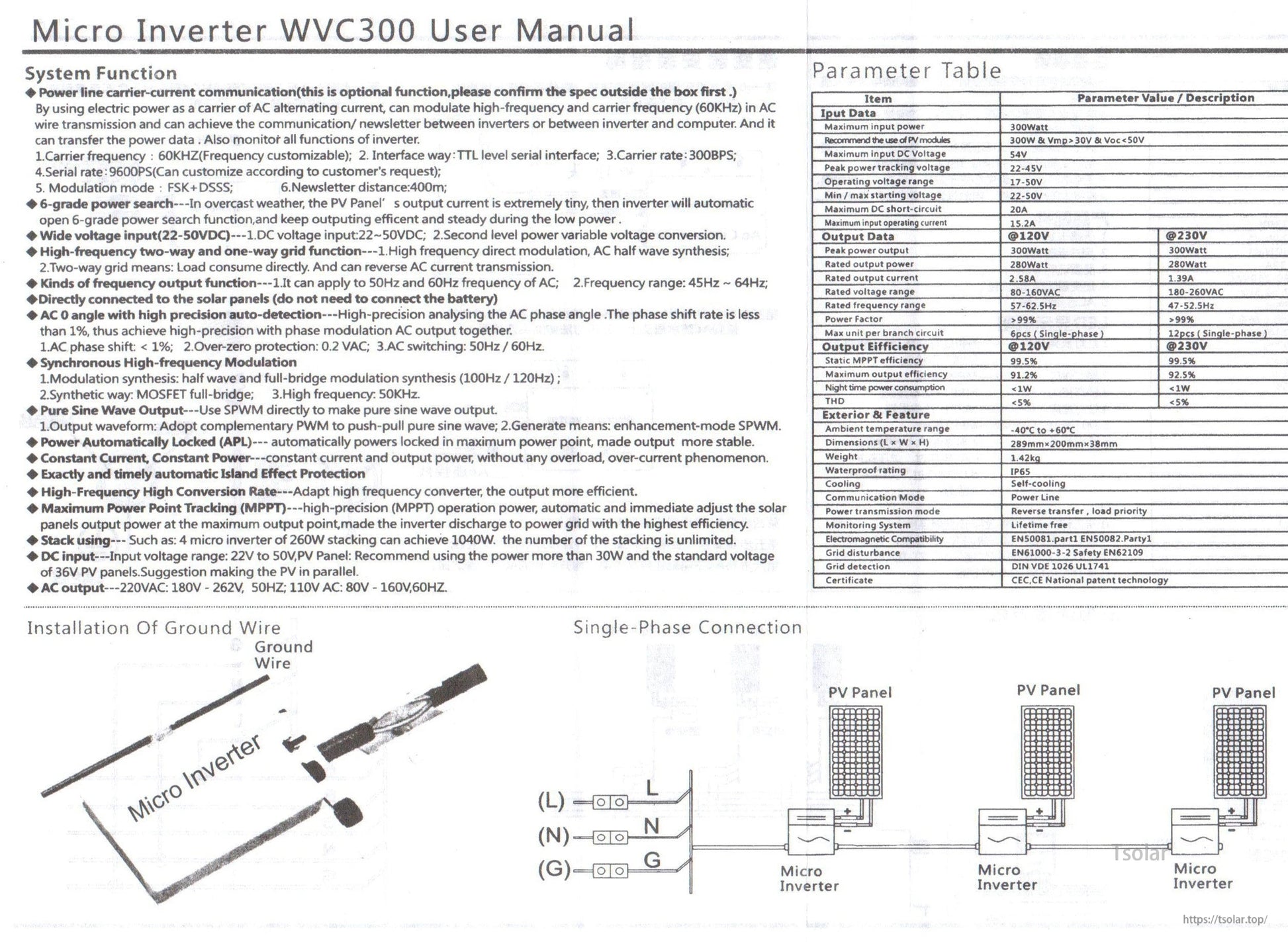

- 1 × User manual
- 1 × 300W inverter
- 1 × AC cable
Applications
- Grid-tie solar PV systems using 24V/36V solar panels
- Home/Garden solar power injection (where permitted and correctly installed)
Installation & Safety Notes
- Designed to connect directly to solar panels; not suggested for use with batteries or wind power.
- Install in a low-humidity, well-ventilated location to reduce overheating risk; keep away from flammable materials.
- Non-professionals should not disassemble; only qualified personnel may repair this product.
- Keep out of reach of children to reduce electric shock risk.
For pre-sales compatibility questions (PV voltage selection, AC output version, and installation checks), contact customer support at https://tsolar.top/ or service@tsolar.top.
