Overview
This MPPT 600W waterproof grid tie inverter is designed to convert DC power to AC power for grid-tie system configuration. It supports a wide DC input range of 22-50VDC and provides pure sine wave AC output for 110V AC or 220VAC systems, with automatic 50Hz/60Hz operation.
Note: This inverter does not have the monitoring function.
Key Features
- MPPT (Maximum Power Point Tracking) with Power Automatically Locked (APL)
- Waterproof rating: IP65
- Pure sine wave output using SPWM
- Wireless communication: 433/462MHz
- 6-grade power search for low-irradiance conditions
- Wide DC input: 22-50VDC; second level power variable voltage conversion
- High-frequency modulation; MOSFET full-bridge; high frequency: 50KHz
- Supports 50Hz and 60Hz; frequency range: 45Hz - 64Hz
- AC phase shift: < 1%; over-zero protection: 0.2 VAC; AC switching: 50Hz / 60Hz
- Protections/status indications: islanding protection, over-temperature protection, over/low AC voltage protection, over/low DC voltage protection, fault indication
Specifications
| Brand | SolarEpic |
| Model | Waterproof Grid Tie Inverter |
| Type | Grid Tie Inverter |
| MPN | WG60010016 |
| Rated Power | 600W |
| Charging Mode | MPPT (Maximum Power Point Tracking) |
| DC Input Voltage | 22V-50VDC |
| Nominal Voltage | 24V |
| AC Output (System) | AC110V or 220V; 50Hz/60Hz auto |
| AC Output Range | 220VAC: 180V - 262V, 50Hz; 110V AC: 80V - 160V, 60Hz |
| Frequency Support | 50Hz / 60Hz; 45Hz - 64Hz range |
| Waveform | Pure sine wave |
| Waterproof Rating | IP65 |
| Certificate | CE |
| Current Type | AC/DC |
| System Configuration | Grid-Tie |
| Energy Type | Solar |
| Country/Region of Manufacture | China |
| Wireless Communication | 433/462MHz |
| High Frequency | 50KHz |
| Modulation Synthesis | Half wave and full-bridge modulation synthesis (100Hz / 120Hz) |
| AC Phase Shift | < 1% |
| Over-zero Protection | 0.2 VAC |
| Application | Home/Garden |
| Resistance Properties | Waterproof |
| Bundle Listing | Yes |
LED Status Indicators
- Red light 3 seconds: device starts, then enters working condition
- Green flash fast: MPPT searching
- Green flash slow: MPPT + searching
- Red flash slow: MPPT - searching
- Green on 3s / off 0.5s: MPPT locked
- Red steady: islanding protection / over-temperature protection / over or low AC voltage protection / over or low DC voltage protection / fault

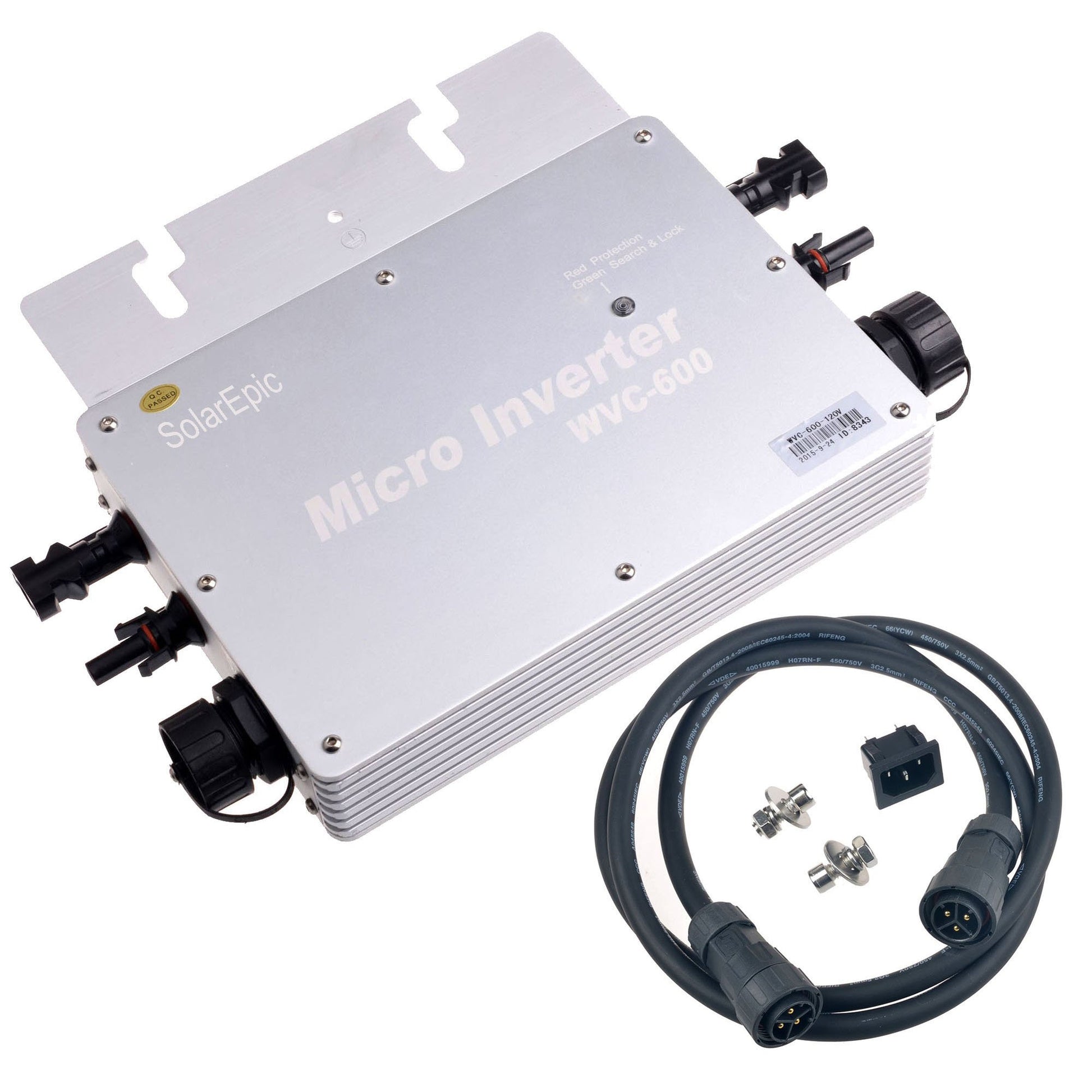

What’s Included
- 1 x User manual
- 1 x 600W inverter

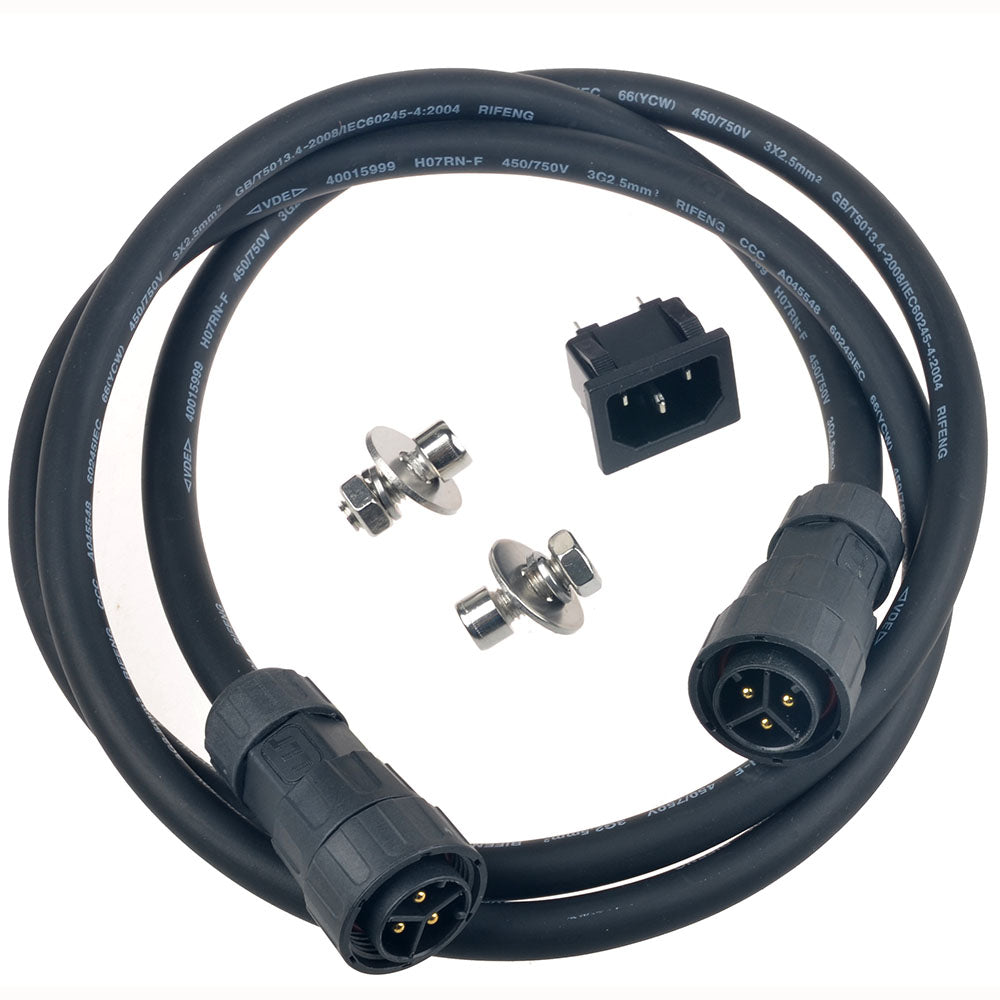

- 1 x AC cable
Applications
- Grid-tie solar power systems (direct connection to solar panels; battery not required)
- DC input power supply sources such as solar panels, battery, or wind generators (DC input)
