Overview

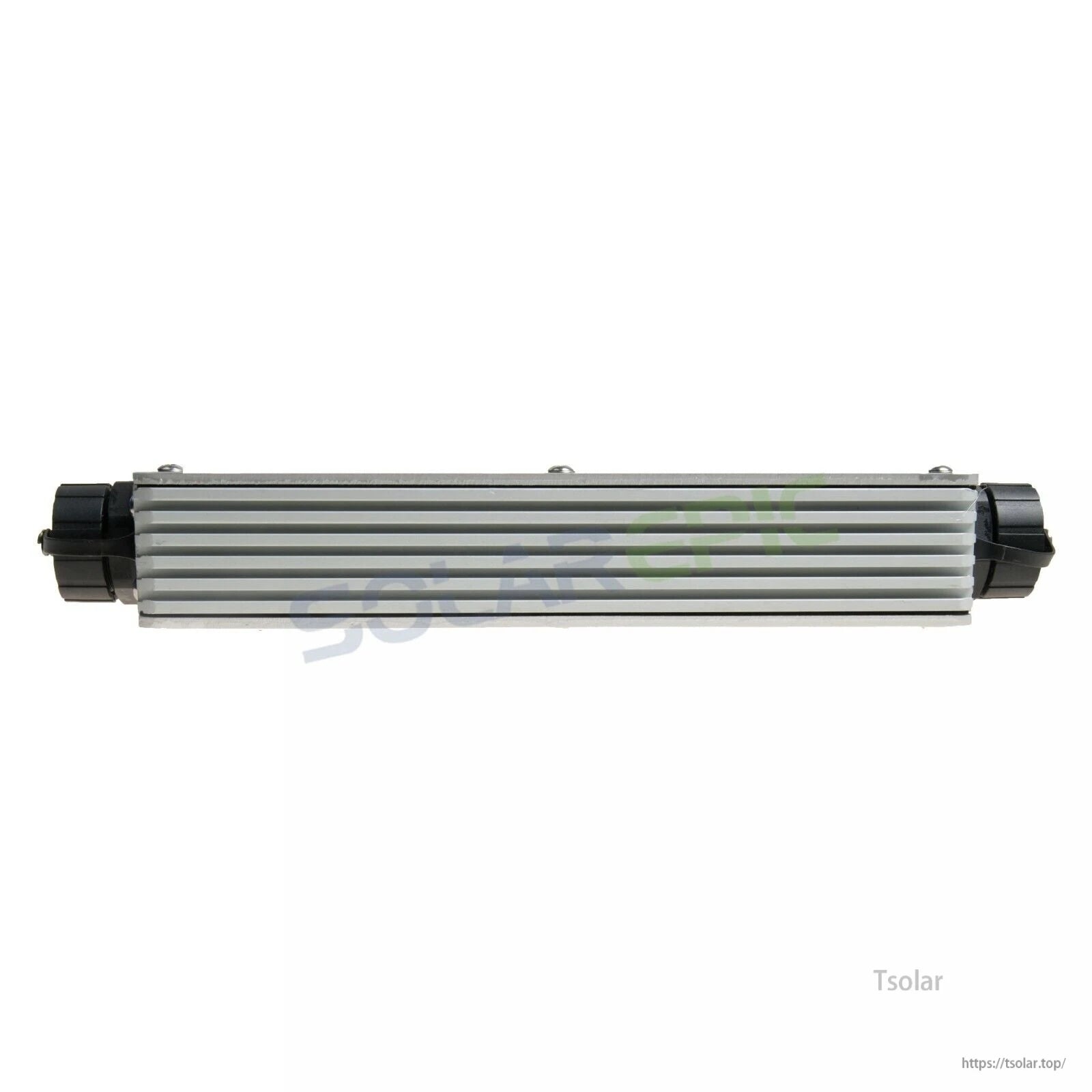

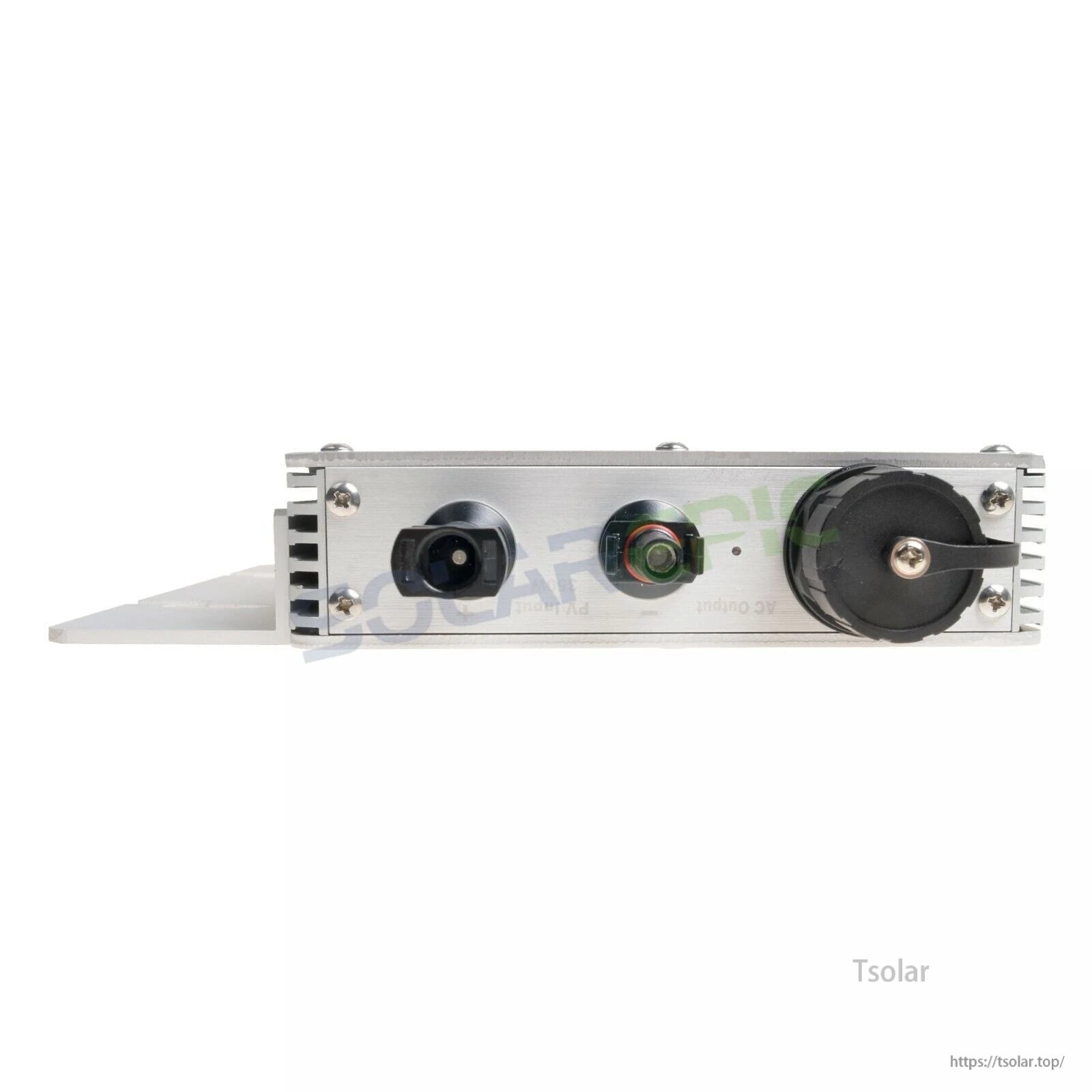

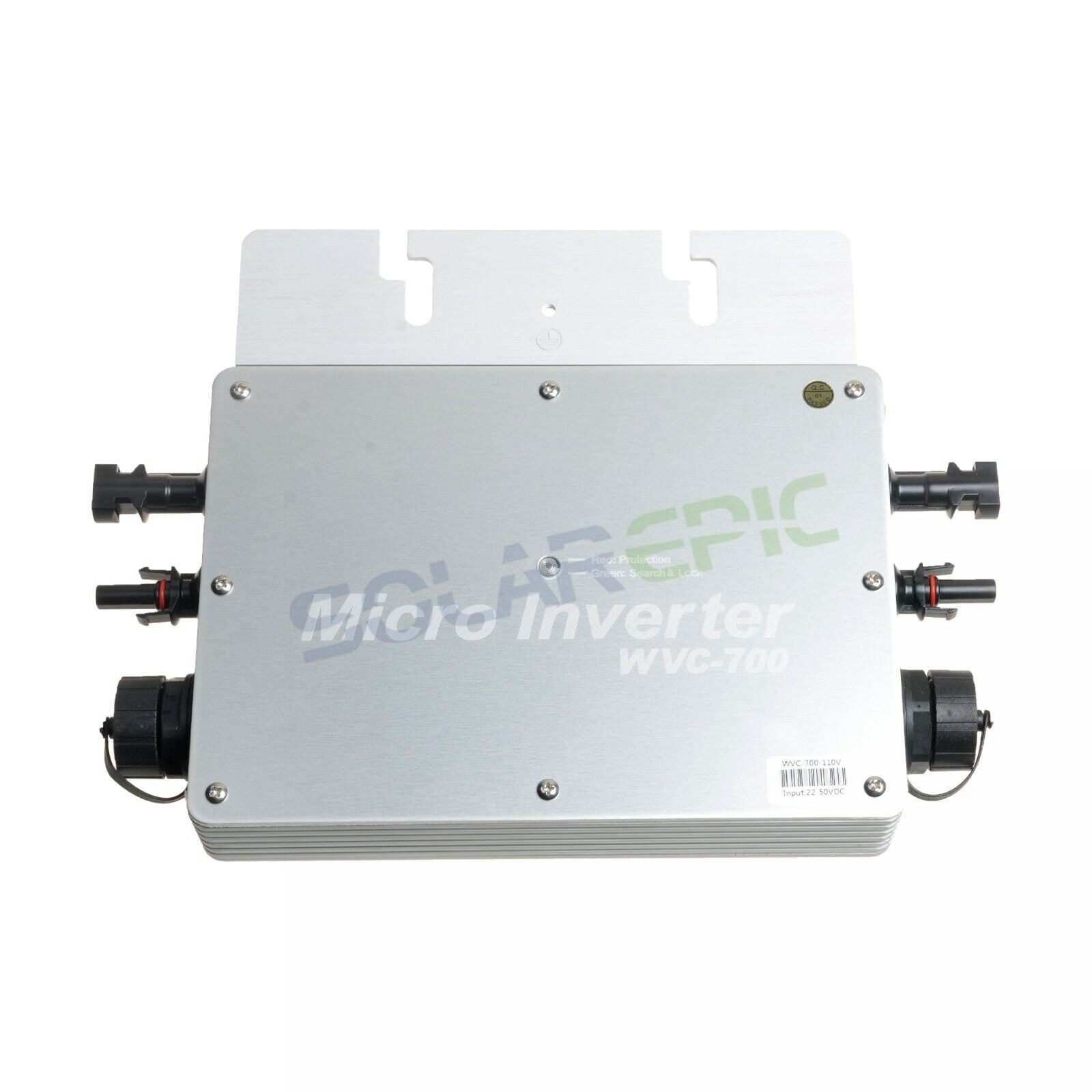

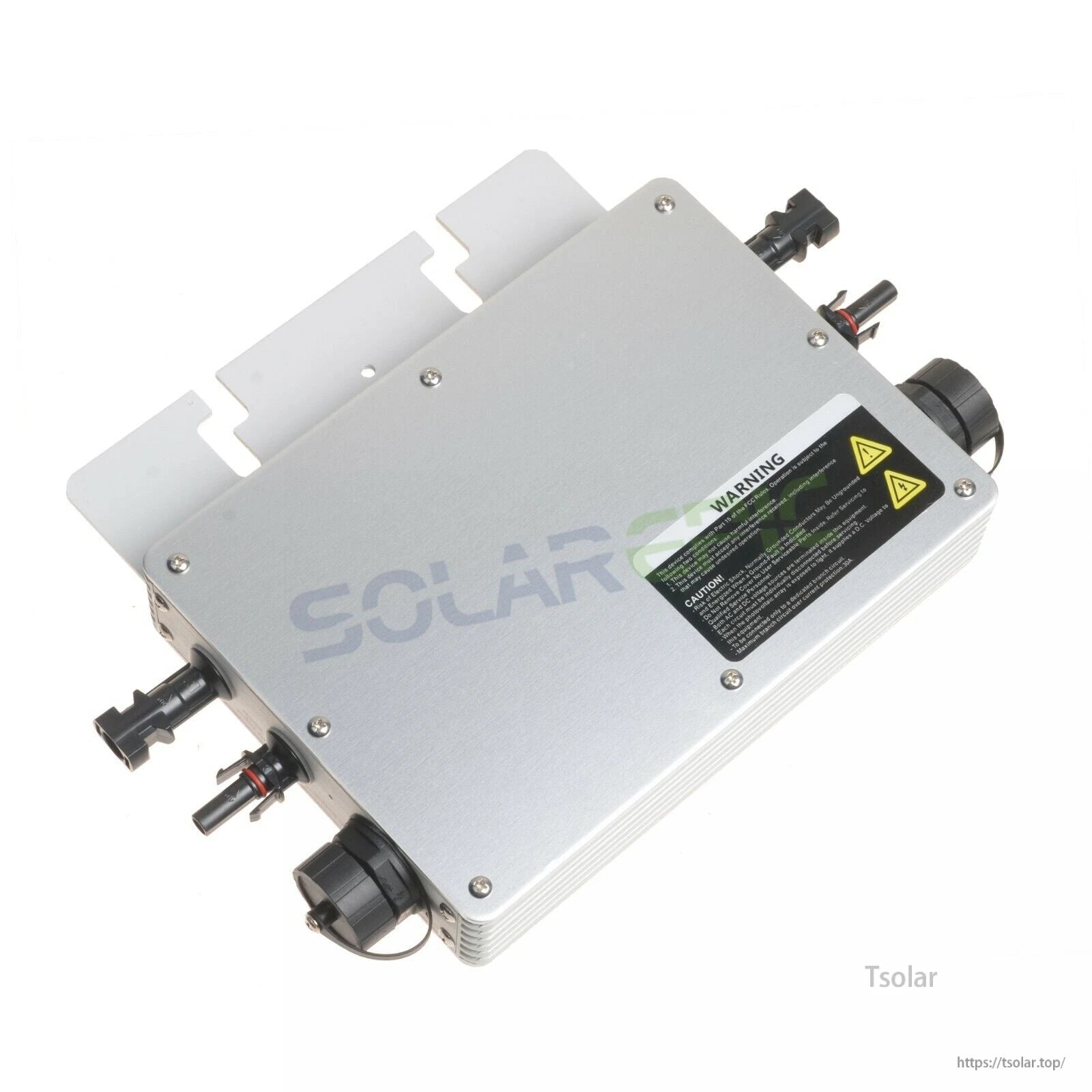

This MPPT 700W waterproof grid tie inverter converts solar PV DC power to AC output with a pure sine wave. It is designed to connect directly to solar panels (no battery required) and supports automatic 50Hz/60Hz operation. Note: this inverter does not have a monitoring function.
Key Features
- MPPT (Maximum Power Point Tracking) with APL (Power Automatically Locked) for stable output at the maximum power point
- Waterproof rating: IP65
- Direct solar panel connection (no battery needed)
- 6-grade power search for low-irradiance conditions
- Pure sine wave output via SPWM (enhancement-mode SPWM); complementary PWM push-pull output waveform
- High-frequency modulation: MOSFET full-bridge; high frequency 50kHz; modulation synthesis 100Hz/120Hz (half wave and full-bridge)
- AC phase-angle auto-detection: AC phase shift < 1%; over-zero protection: 0.2 VAC; AC switching: 50Hz/60Hz
- Constant current / constant power operation
- Automatic islanding protection
- Stacking supported (example provided: 4 units of 260W can reach 1040W); stacking quantity stated as unlimited
Specifications
| Rated power | 700W |
|---|---|
| Waterproof rating | IP65 |
| DC input voltage (wide input) | 22-50VDC |
| Operating voltage range | 17-50V |
| Min / max starting voltage | 22-50V |
| Maximum input DC voltage | 54V |
| Peak power tracking voltage | 22-45V |
| Maximum input power | 2 x 350Watt |
| Recommended PV modules | 2 x 350W & Vmp > 30V & Voc < 50V |
| Maximum DC short-circuit | 40A |
| Maximum input operating current | 30A |
| AC output (nominal) | 110V or 220V; 50Hz/60Hz auto |
| Frequency range (stated) | 45Hz-64Hz |
| AC output range (stated) | 220VAC: 180V-262V, 50Hz; 110V AC: 80V-160V, 60Hz |

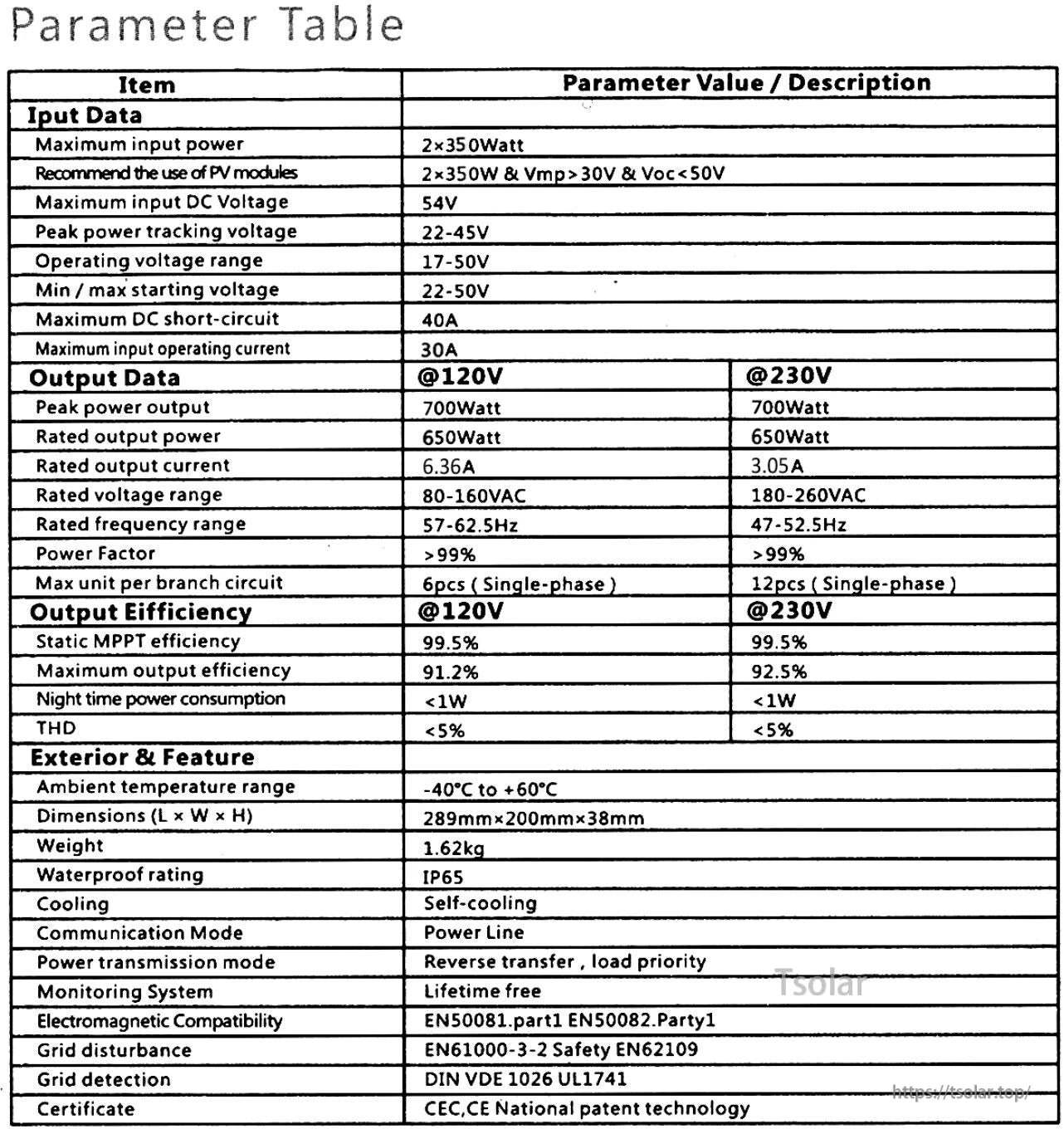

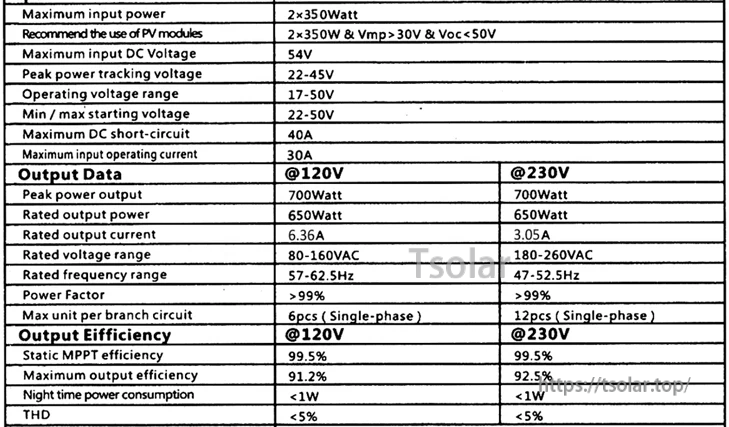

Output Data
| Parameter | @120V | @230V |
|---|---|---|
| Peak power output | 700Watt | 700Watt |
| Rated output power | 650Watt | 650Watt |
| Rated output current | 6.36A | 3.05A |
| Rated voltage range | 80-160VAC | 180-260VAC |
| Rated frequency range | 57-62.5Hz | 47-52.5Hz |
| Power factor | > 99% | > 99% |
| Max unit per branch circuit | 6pcs (Single-phase) | 12pcs (Single-phase) |
Output Efficiency
| Parameter | @120V | @230V |
|---|---|---|
| Static MPPT efficiency | 99.5% | 99.5% |
| Maximum output efficiency | 91.2% | 92.5% |
| Night time power consumption | < 1W | < 1W |
| THD | < 5% | < 5% |

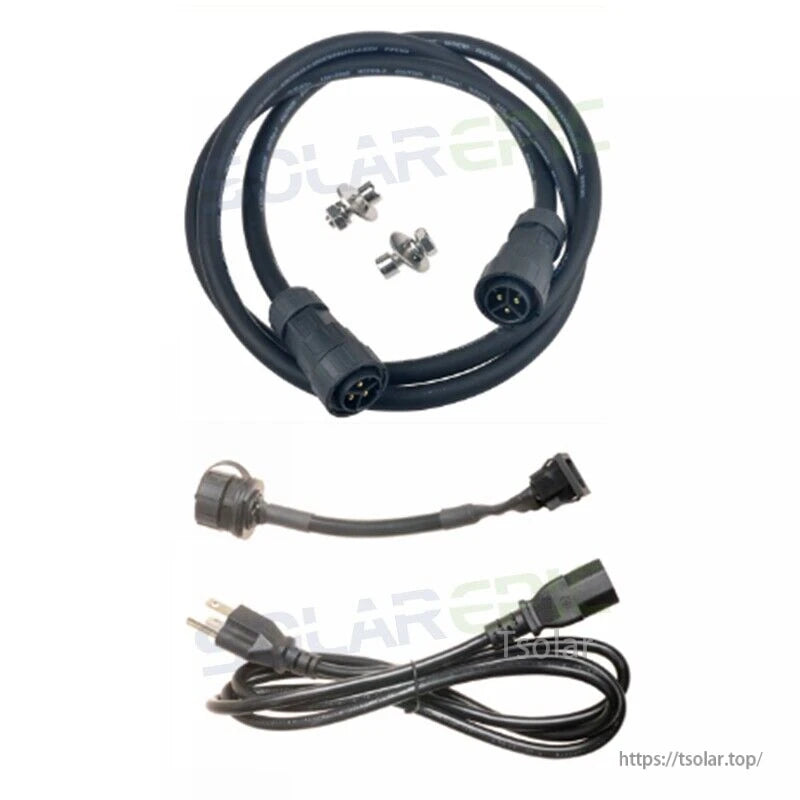

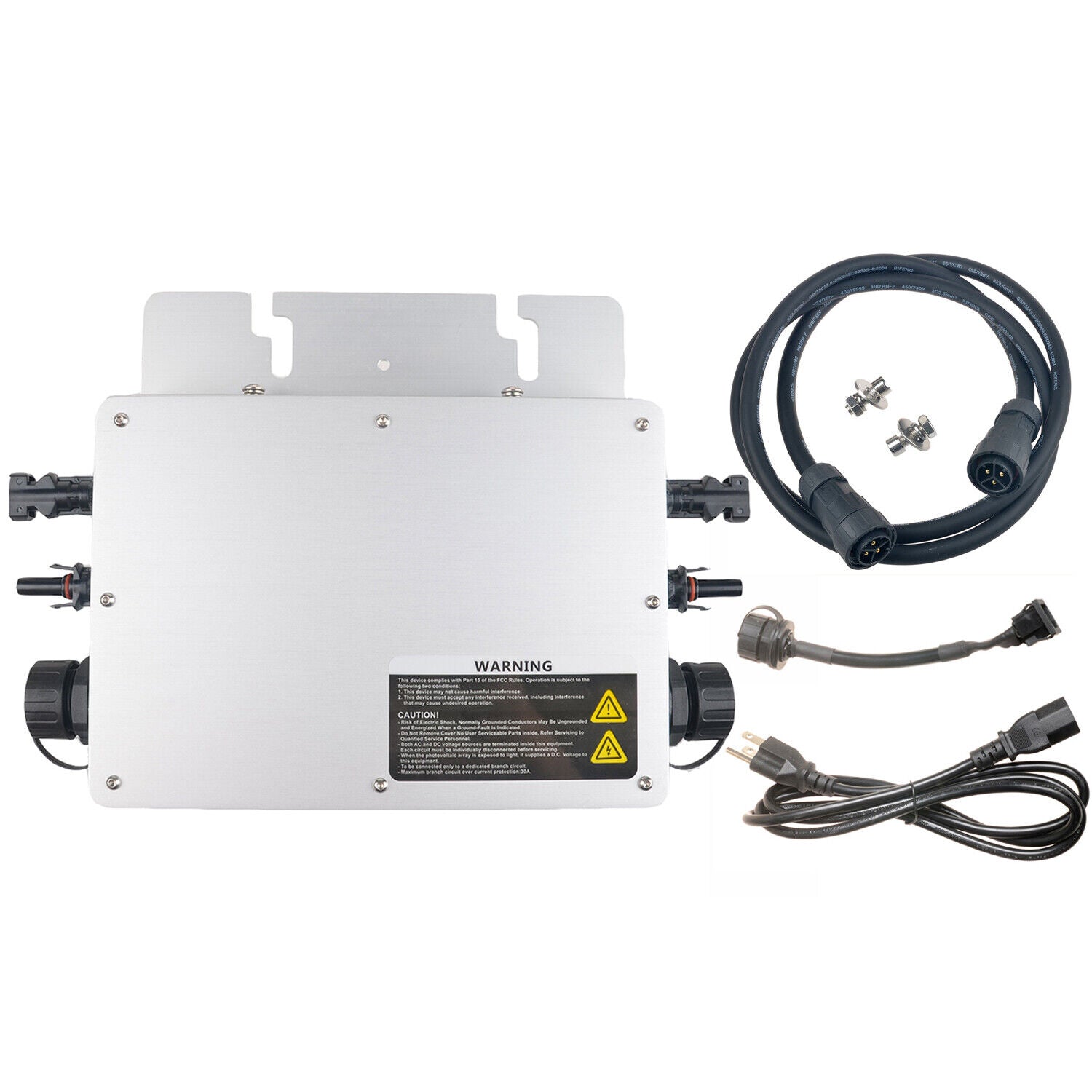

What’s Included
- 1 x User manual
- 1 x 700W inverter

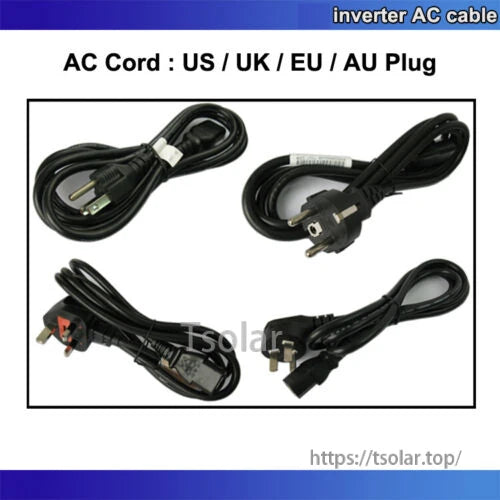

- 1 x AC cable
Applications
- Grid-tie solar PV systems using 24V/36V solar panels
- Small PV installations requiring MPPT and pure sine wave grid-tie conversion
For compatibility checks (PV module voltage/current matching, grid voltage selection, and wiring questions), contact https://tsolar.top/ or service@tsolar.top.
Details
The 700W MPPT grid-tie inverter lists 2×350W PV input support, a 54V max DC input, and 120V/230V single-phase output ranges.
