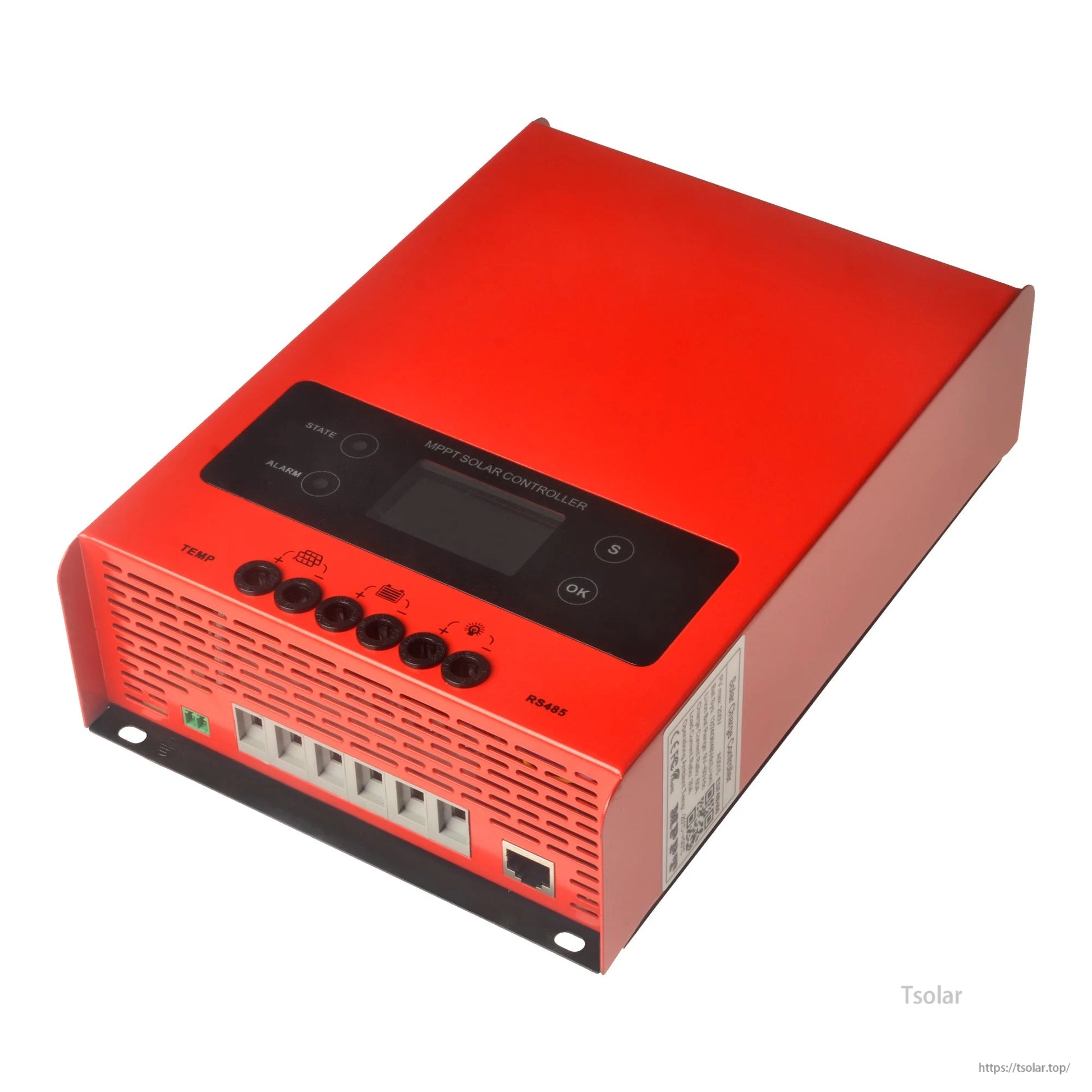

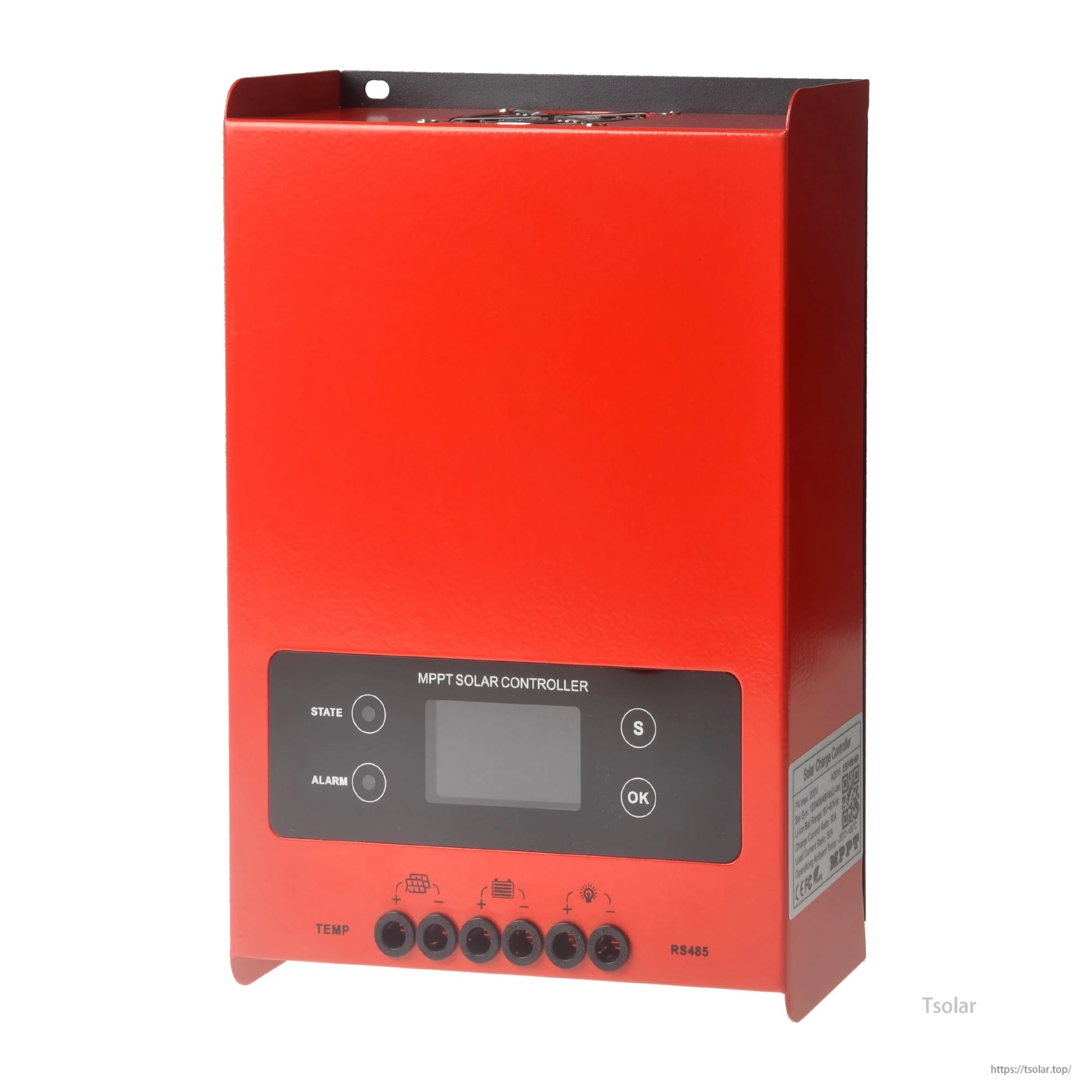

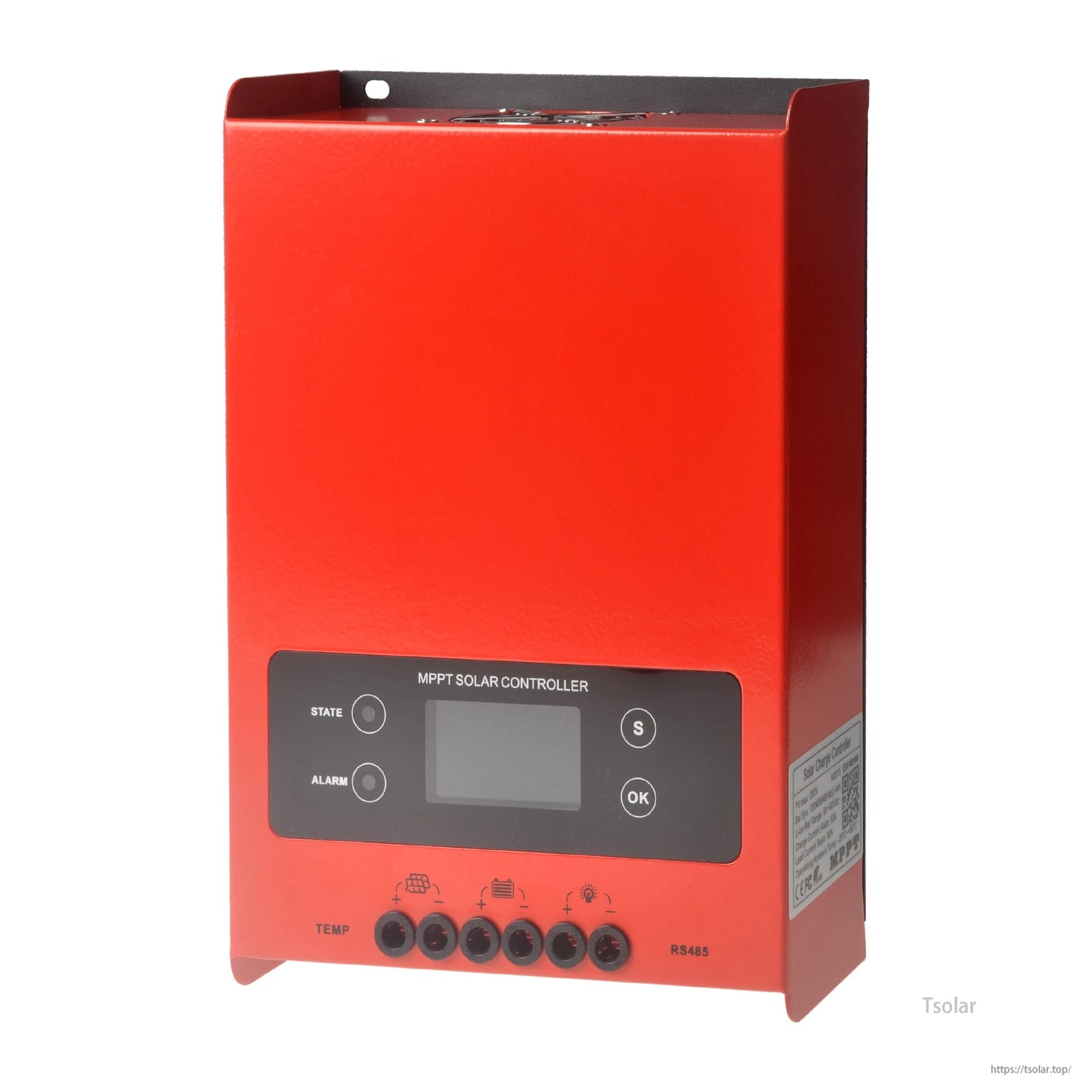

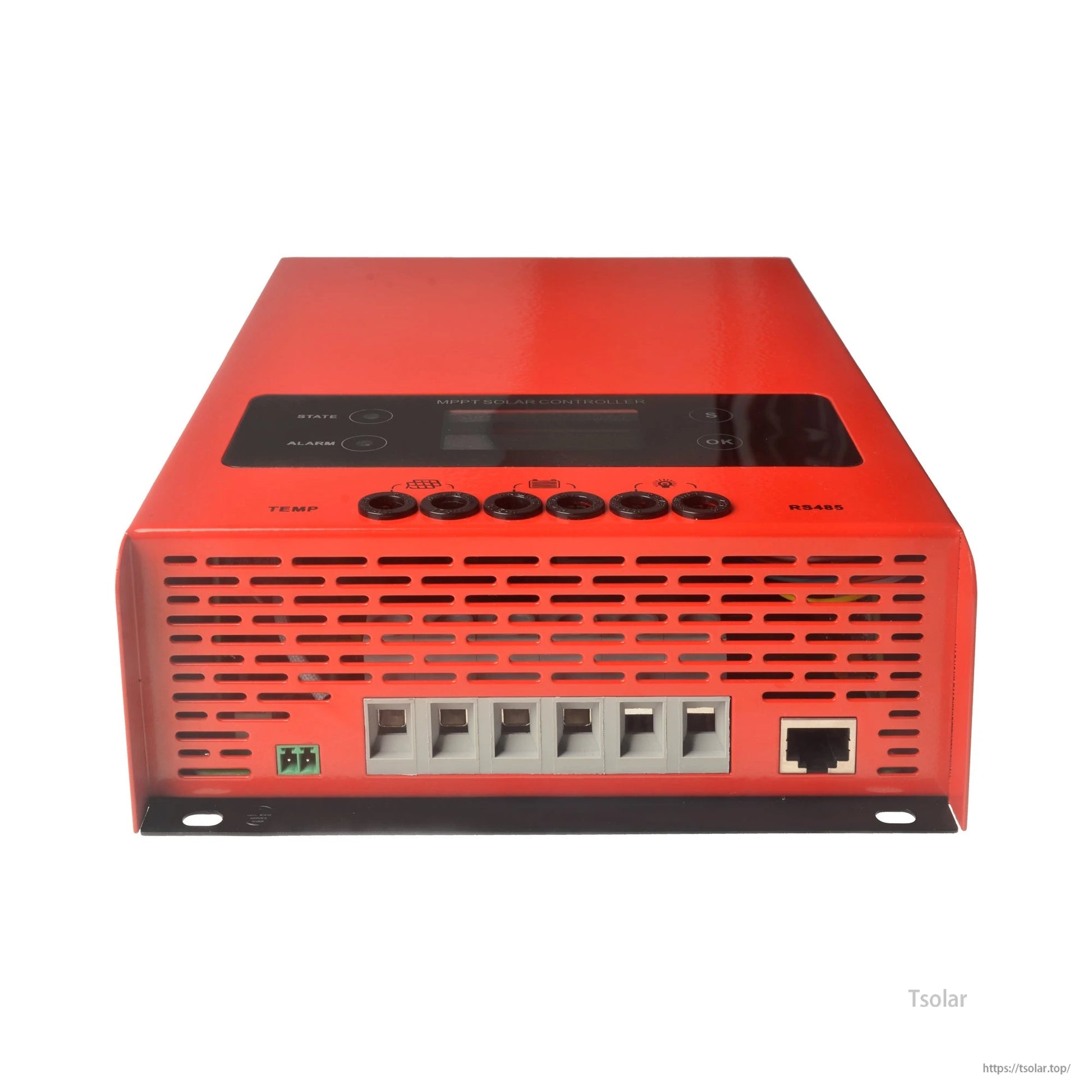

  • ESMART ESF48H60 MPPT solar charge controller with front LCD panel, buttons, vented red case, and RS485 port

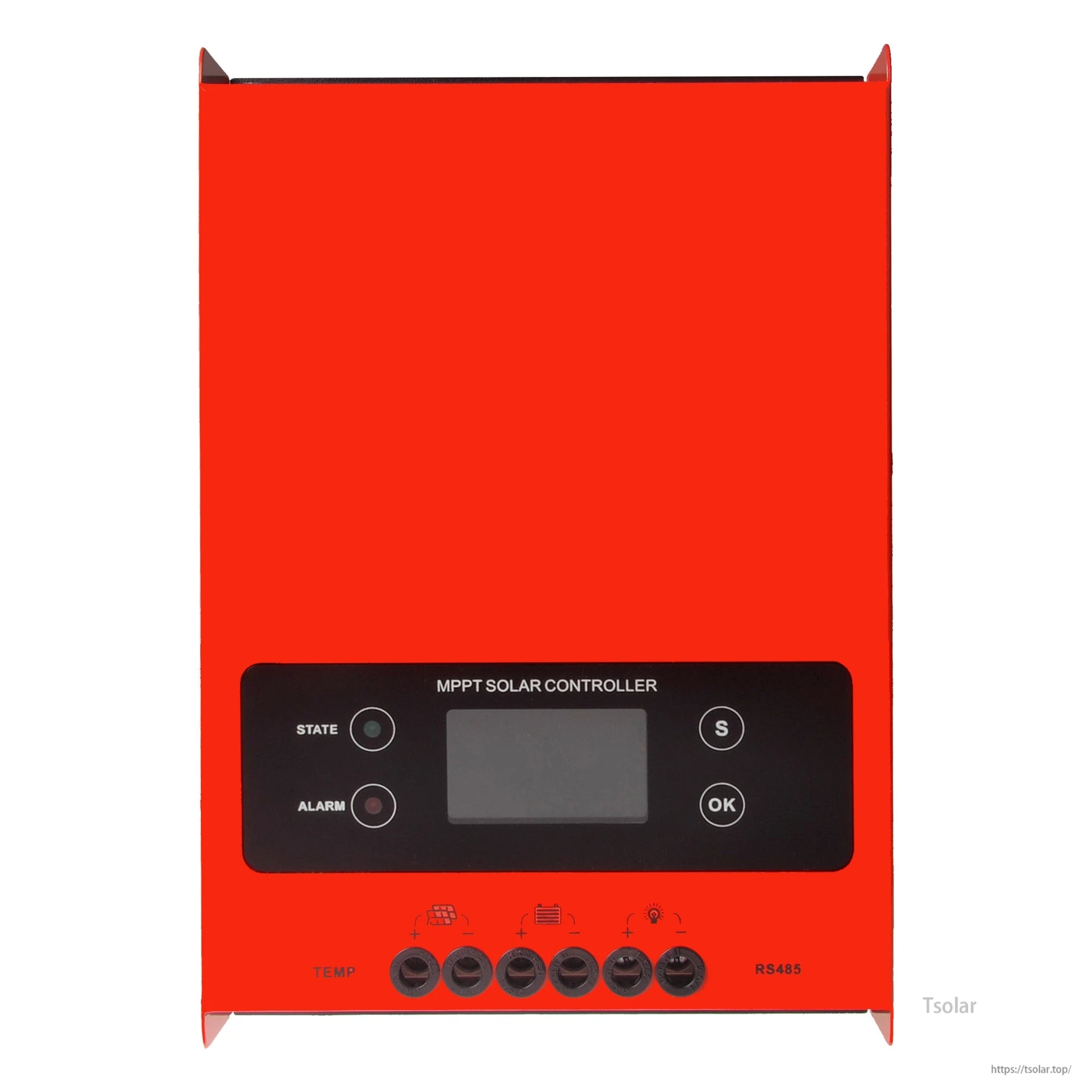

  • ESMART ESF48H60 MPPT Solar Charge Controller, ESMART MPPT solar charge controller with front LCD screen, OK and S buttons, and RS485 port on red housing

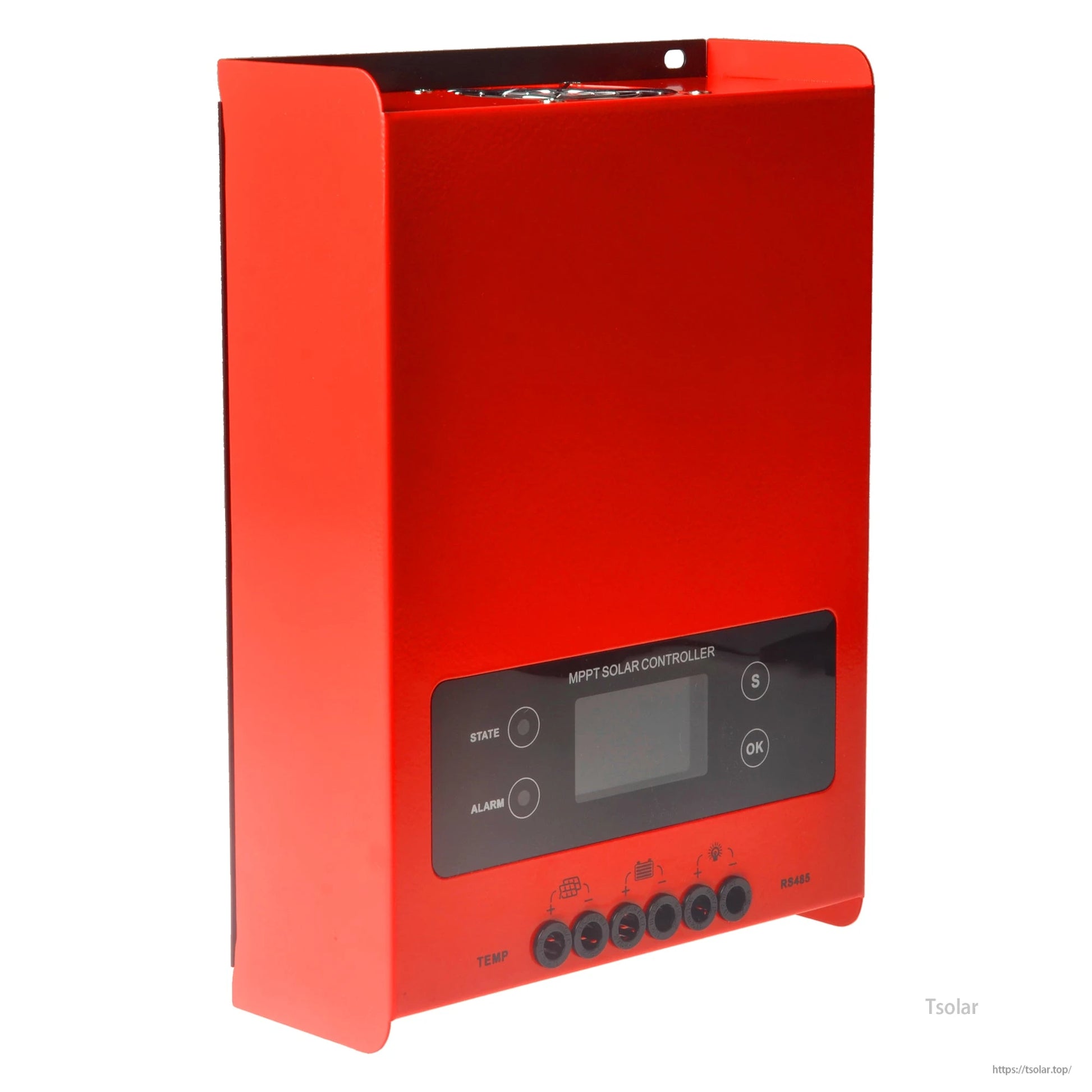

  • ESMART ESF48H60 MPPT solar charge controller with red metal enclosure, LCD display, buttons, and bottom terminals

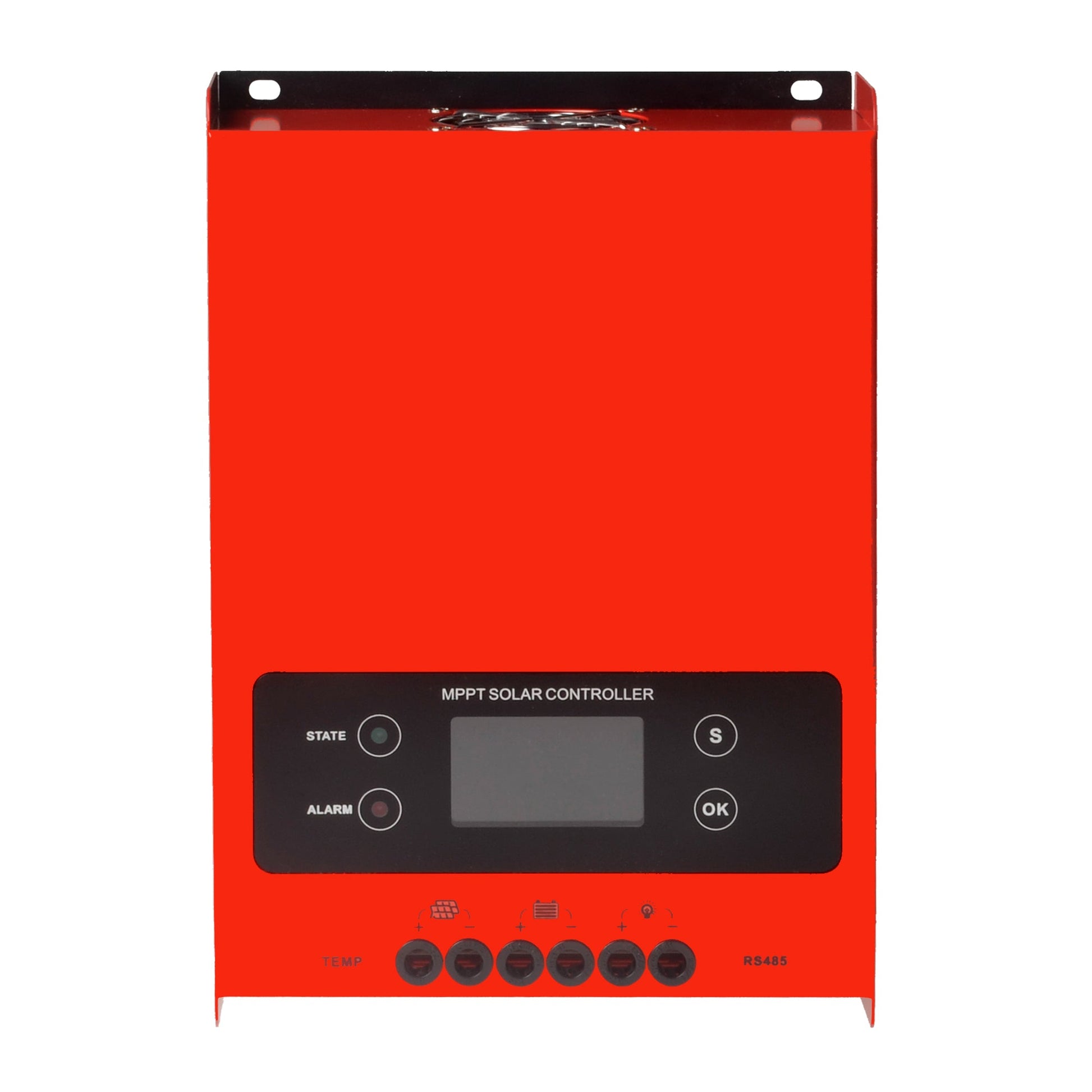

  • ESMART ESF48H60 MPPT Solar Charge Controller, Red ESMART MPPT solar charge controller with front LCD display, control buttons, and RS485 port

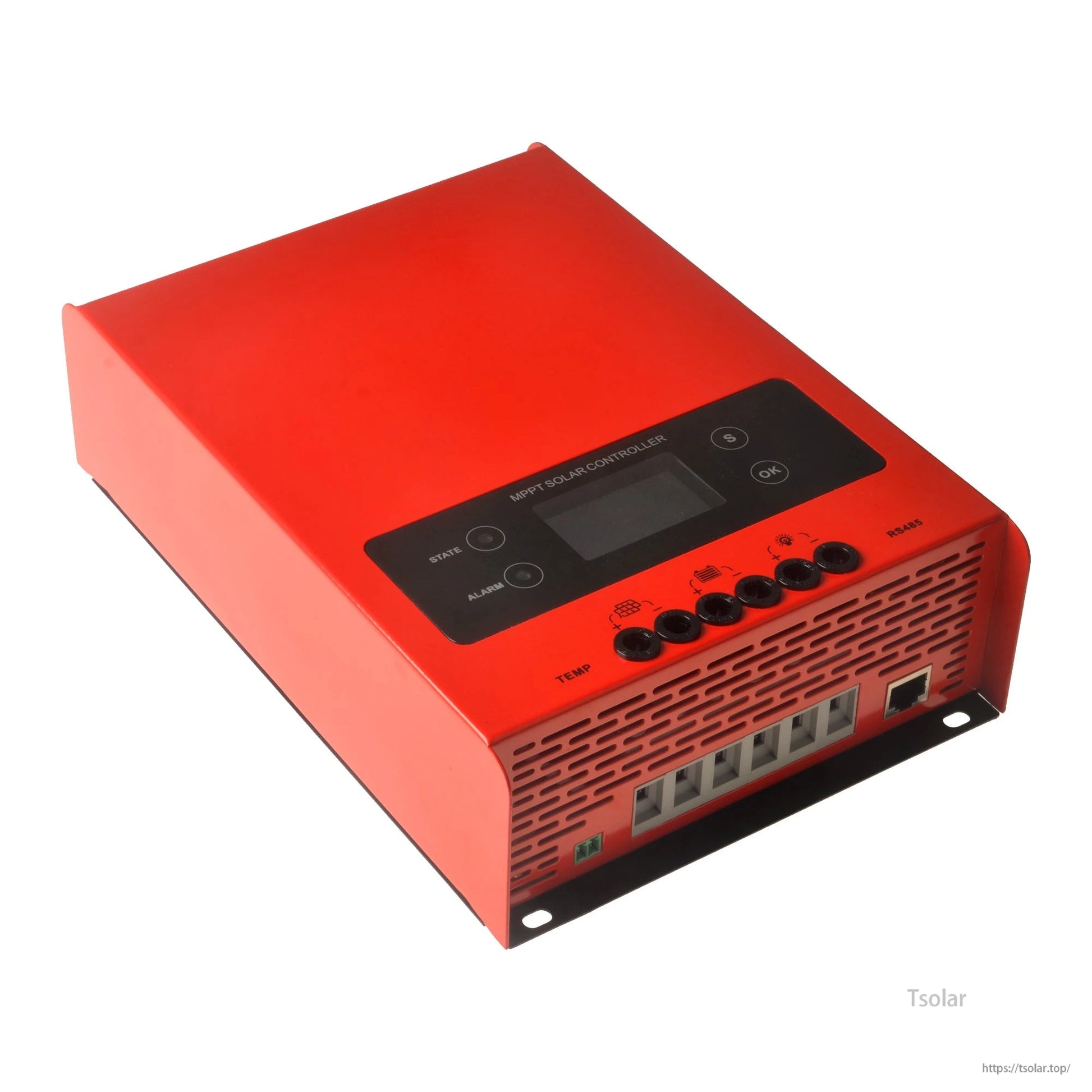

  • ESMART ESF48H60 MPPT Solar Charge Controller, ESMART MPPT solar charge controller in red metal case with LCD screen, control buttons, and front wiring terminals
  • ESMART ESF48H60 MPPT Solar Charge Controller, ESMART MPPT solar charge controller in red metal case with LCD display, control buttons, and front terminal ports

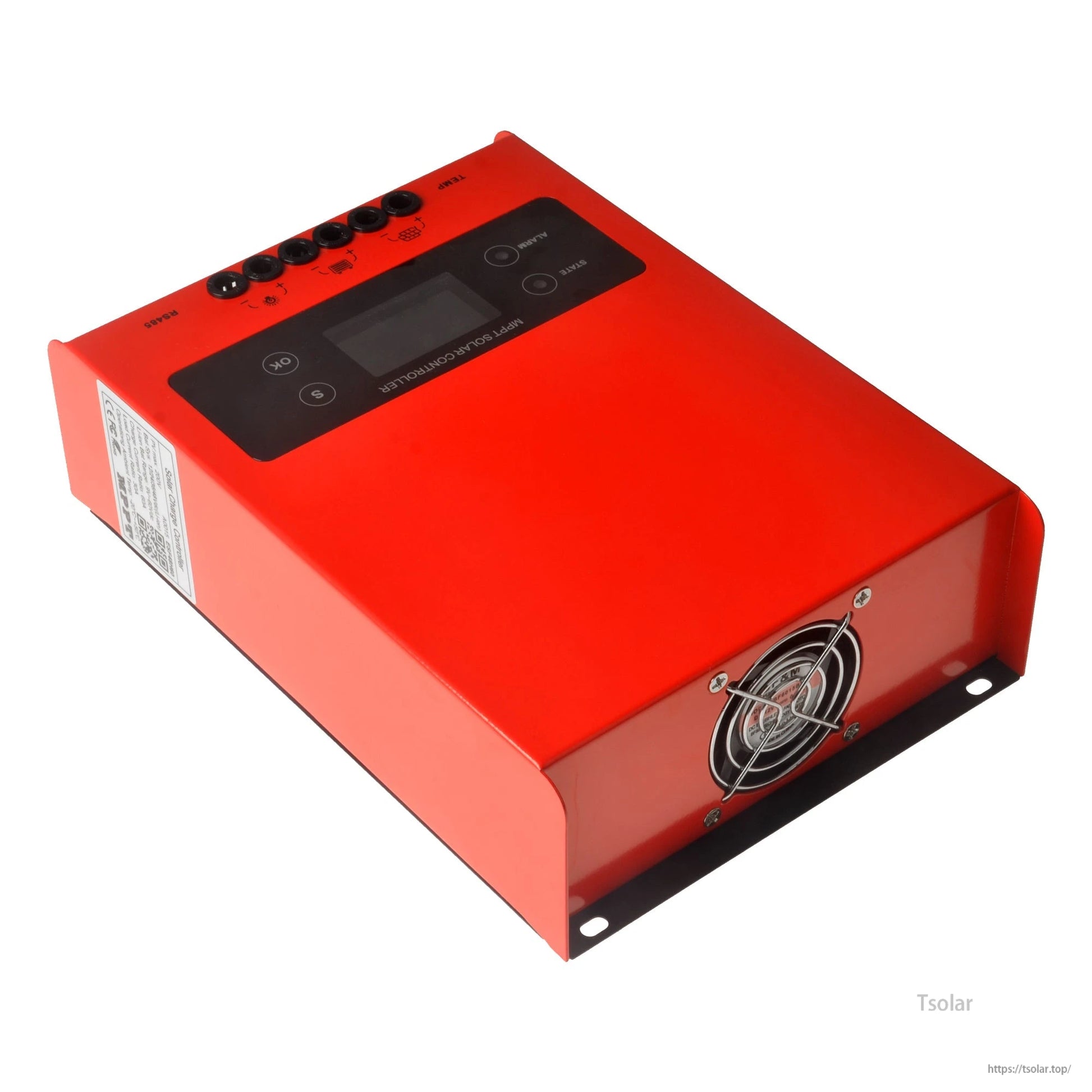

  • ESMART ESF48H60 MPPT solar charge controller in red metal case with LCD display, control buttons, terminals, and cooling fan

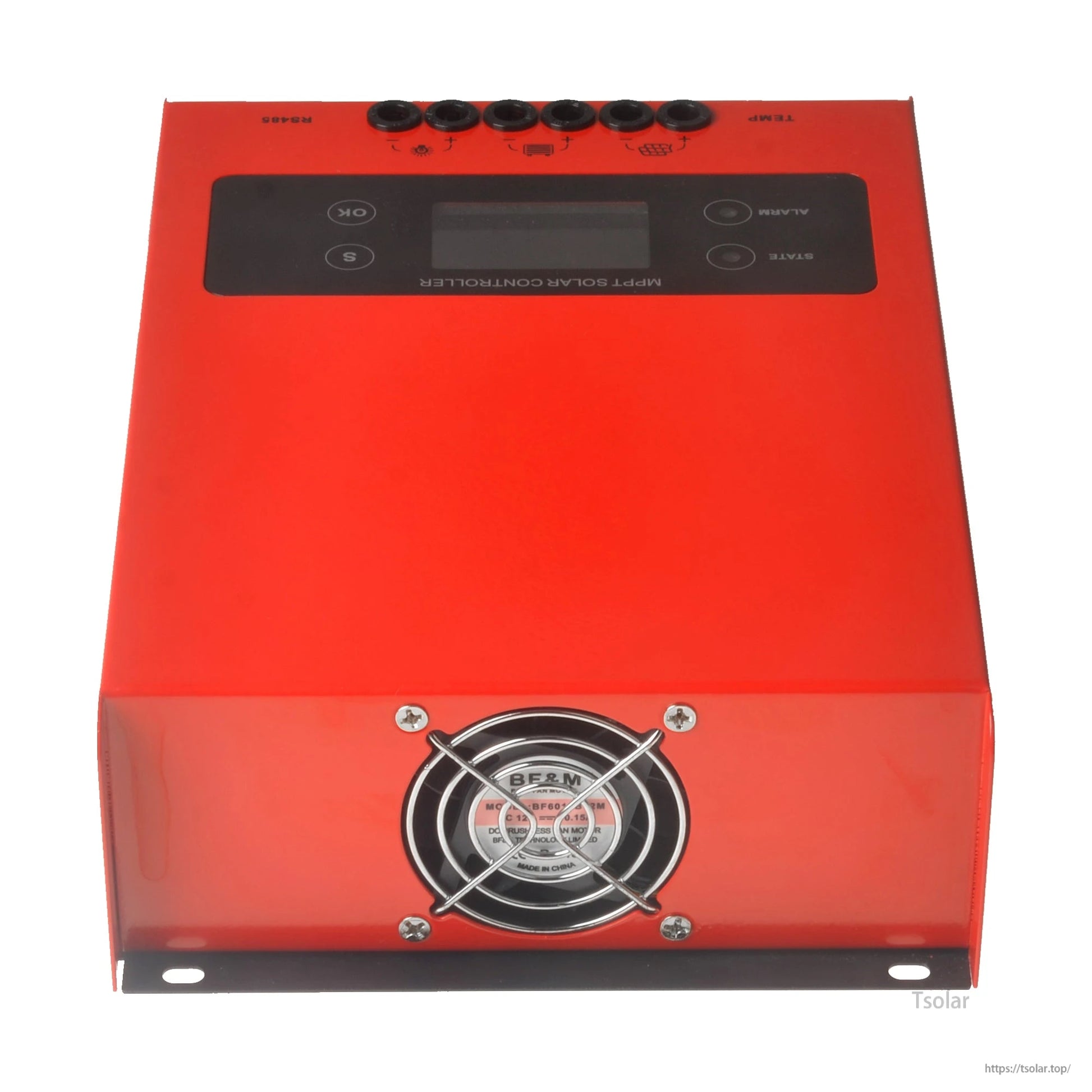

  • ESMART ESF48H60 MPPT solar charge controller in red housing with LCD control panel, top terminals, and cooling fan

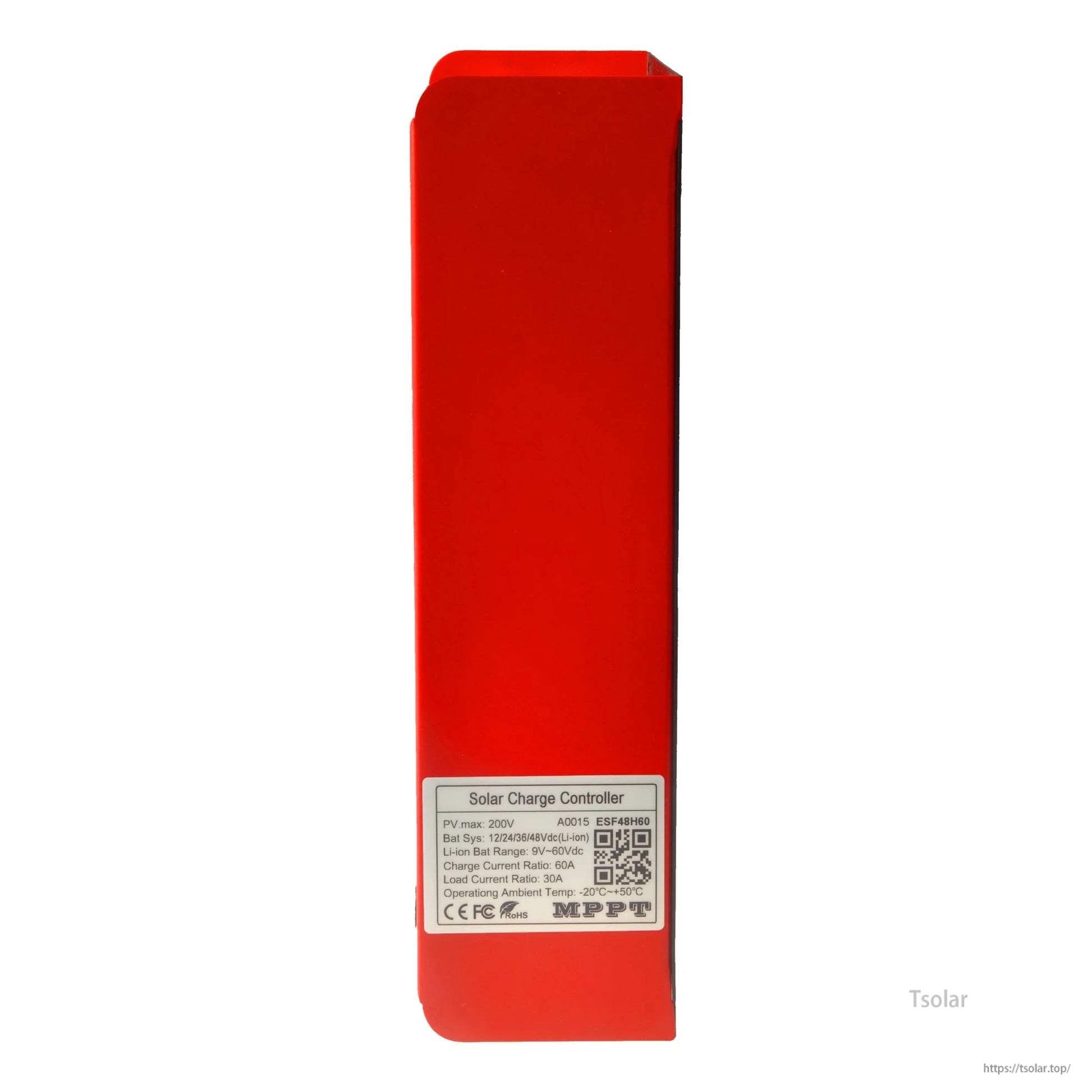

  • ESMART ESF48H60 MPPT solar charge controller in red housing with spec label showing 200V PV max and 60A rating

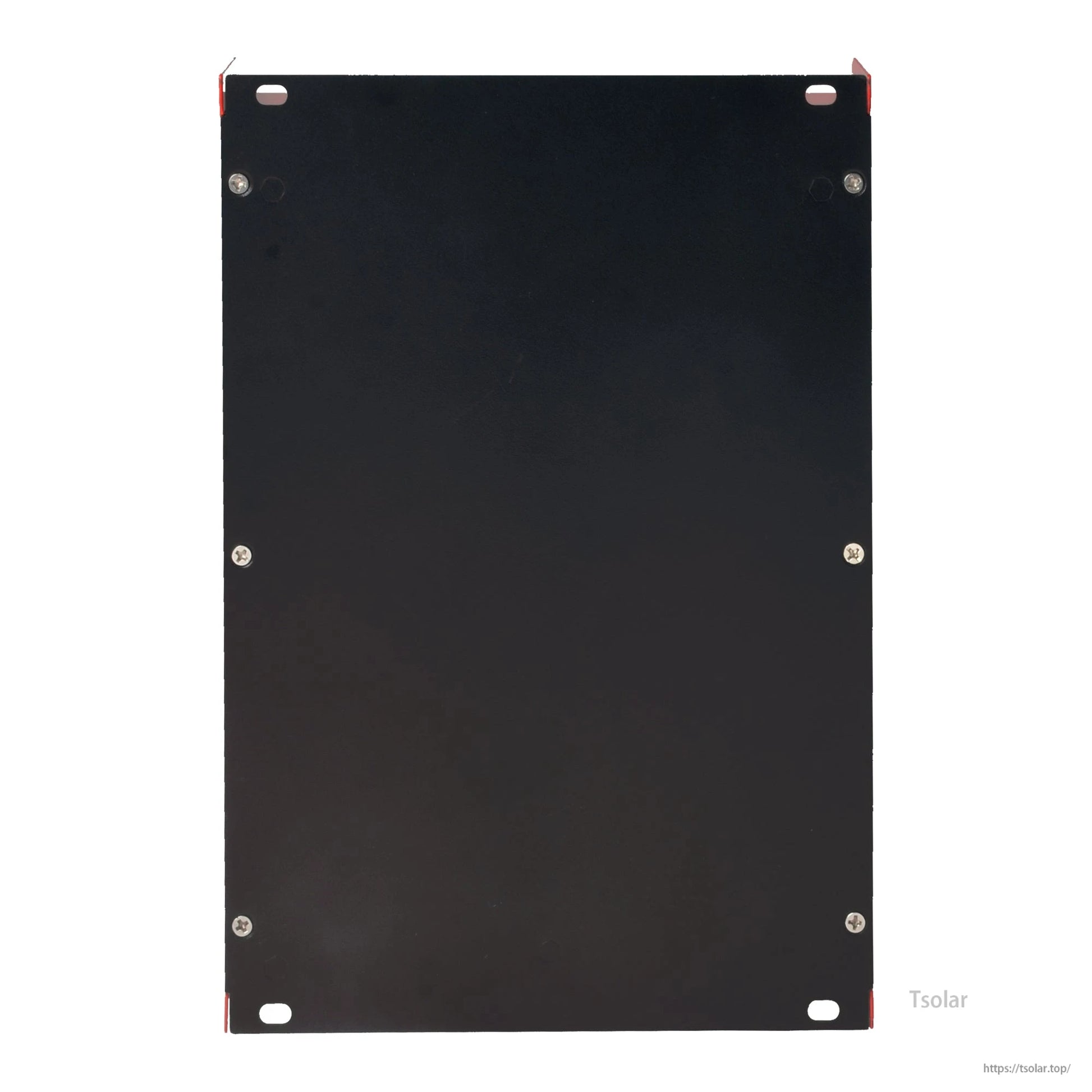

  • Black metal rear panel with corner mounting slots for ESMART ESF48H60 MPPT solar charge controller
1 12

SolarEpic

ESMART ESF48H60 MPPT Solar Charge Controller 60A 200V PV, Negative Ground, RS485, LCD Display

ESMART ESF48H60 MPPT Solar Charge Controller 60A 200V PV, Negative Ground, RS485, LCD Display

$189.00 USD
$189.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Overview

The ESMART ESF48H60 MPPT solar charge controller (4th generation) is designed to harvest energy from PV solar panels and charge batteries using continuous Maximum Power Point Tracking (MPPT). It supports lead-acid and Li-ion battery systems and provides negative-ground system operation with communication and monitoring expansion options.

Key Features

  • MPPT efficiency: ≥99.5%
  • High tracking efficiency: 99.5%
  • Charges lead-acid and Li-ion batteries; supports charging over-discharged Li-ion
  • Good performance at sunrise and under low/variable solar insulation levels
  • Protection against voltage overcharge damage caused by battery BMS disconnection
  • Built-in electronic protection against surge, short-circuit, over-current, and reverse polarity conditions
  • RS485 communication via 8-pin RJ45 interface; supports external Bluetooth and WiFi module expansion for app/cloud monitoring and host computer monitoring
  • Fan cooling

Specifications

Model ESF48H60
Controller type Controller with Maximum Power Point Tracking (MPPT)
MPPT efficiency ≥99.5%
No-load static loss 1W~1.2W
System voltage Auto
Cooling method Fan cooling
PV maximum open circuit voltage (VOC) 200Vdc
Start charging voltage point 3V higher than battery voltage
Input low voltage protection point 2V higher than the current battery voltage
Input overvoltage protection point 200Vdc
Rated input power (12V system) 780W
Rated input power (24V system) 1560W
Rated input power (36V system) 2340W
Rated input power (48V system) 3120W
Applicable battery type Lead-acid battery / Li-ion battery
Lithium battery activation function Optional
Charge rated current 60A
Charging method Lead-acid: fast charge, equal charge, floating charge; Li-ion: fast charge, equal charge
Load voltage Same battery voltage
Rated load current 30A
Load control method Normally open and normally closed mode/dual period control mode/light control mode/light control-fixed time control mode
Display method High-definition LCD segment code backlight display
Communication method 8-pin RJ45 interface/RS485; supports host computer monitoring; supports external Bluetooth and WiFi module expansion; supports external monitoring header
Protective function Input and output over-voltage protection, anti-reverse connection protection, battery drop protection, etc.
Working temperature -20C~+50C
Storage temperature -40C~+75C
IP protection class IP21
Maximum wire size 20mm²
Net weight 1962.7g
Product size 240*166*65 mm
Packaging size 299*203*70 mm

Applications

  • Household power station system
  • Communication base station
  • RV power supply
  • Solar monitoring systems

Monitoring & Connectivity Notes

  • Supports APP remote monitoring with optional WiFi module or Bluetooth module
  • Supports upper computer monitoring via RS485 (RJ45)
  • System wiring reference indicates connections for PV solar panels, battery, DC output, and temperature sensor (air circuit breakers shown in the reference diagram)

For product selection, wiring guidance, and technical support, contact https://tsolar.top/ or service@tsolar.top.

Details

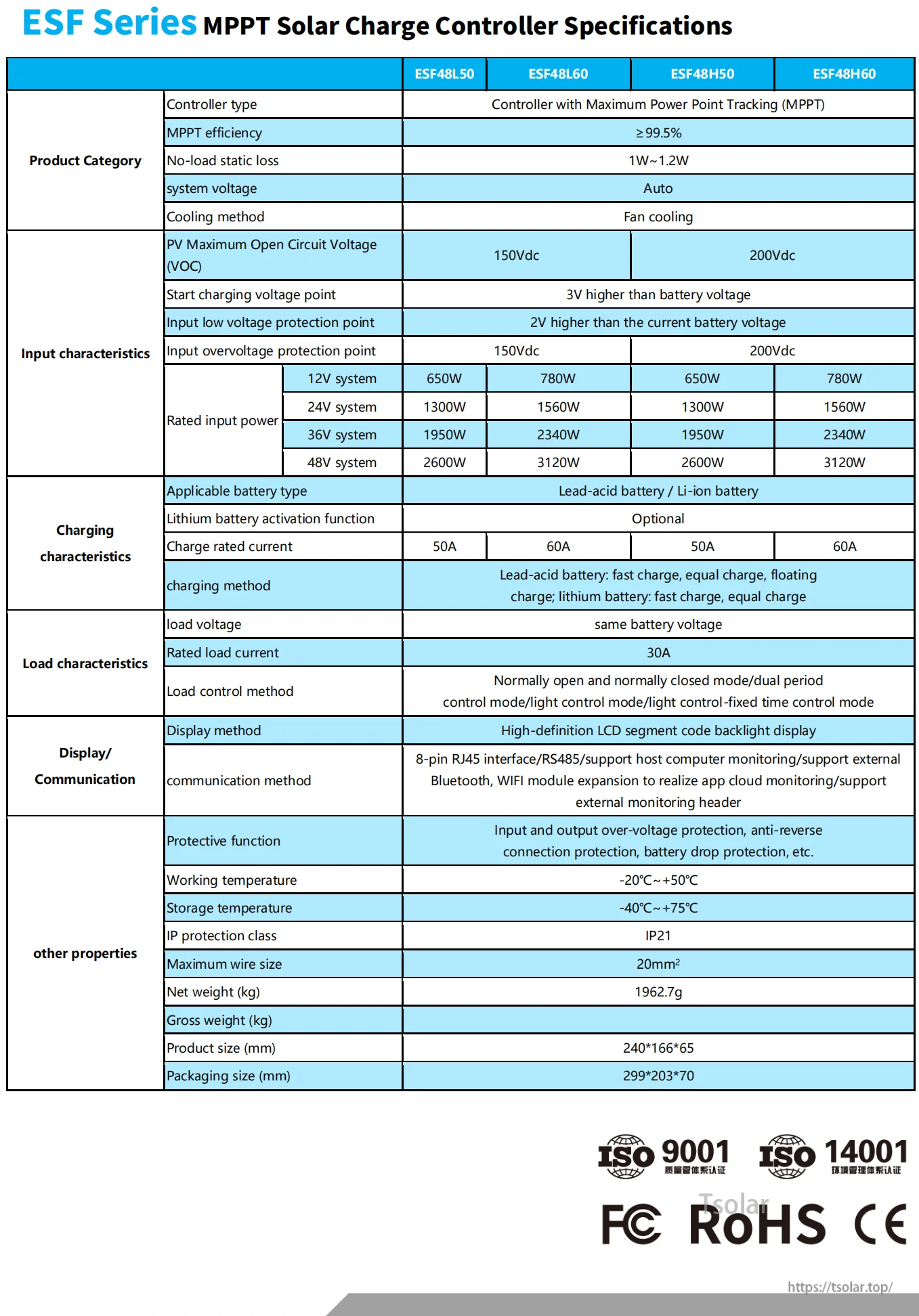

ESMART 4 Generation MPPT Solar Charge Controller 60A 200V PV Solar Panel Controller Negative Ground W [ESF48H60]

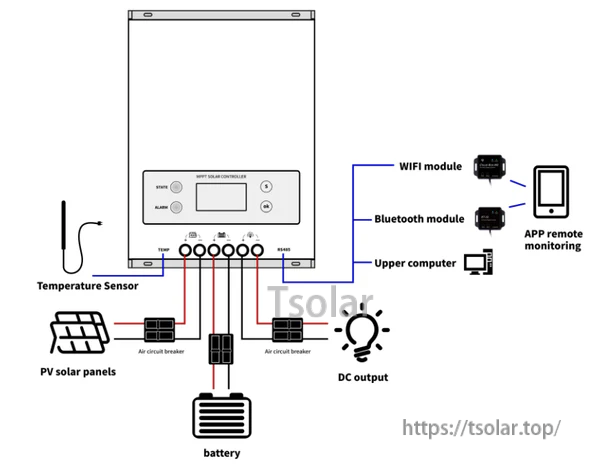

The ESMART ESF48H60 MPPT solar charge controller wiring layout connects PV panels, battery, and DC output with optional temperature sensor and WiFi/Bluetooth monitoring modules.

ESMART 4 Generation MPPT Solar Charge Controller 60A 200V PV Solar Panel Controller Negative Ground W [ESF48H60]

ESMART ESF48H60 MPPT solar charge control supports setups ranging from household solar power to base stations, RV power, and solar monitoring systems.

ESMART 4 Generation MPPT Solar Charge Controller 60A 200V PV Solar Panel Controller Negative Ground W [ESF48H60]

ESMART ESF Series MPPT controllers list 12–48V auto system voltage, up to 99% MPPT tracking efficiency, and 50A/60A charging options.
