Overview

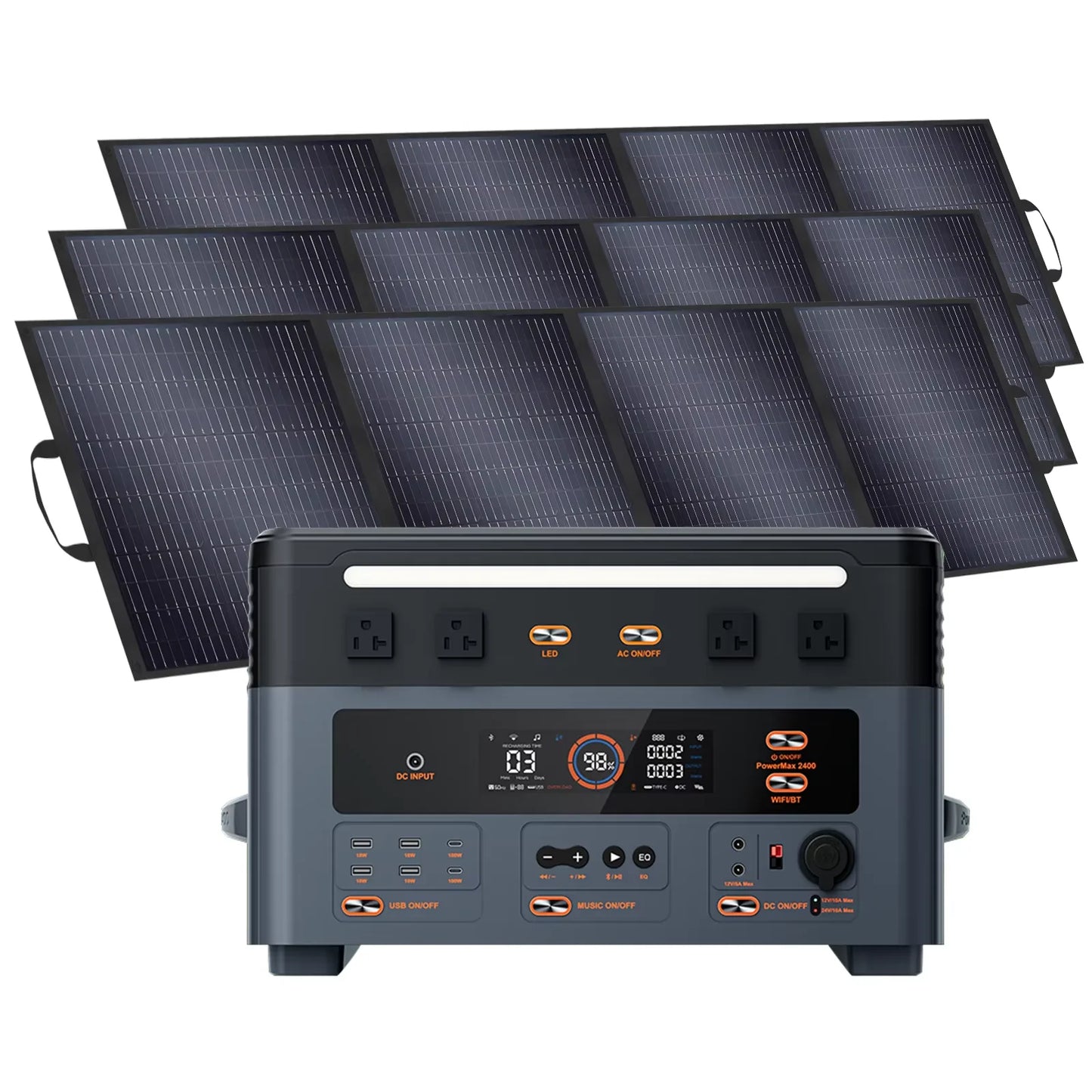

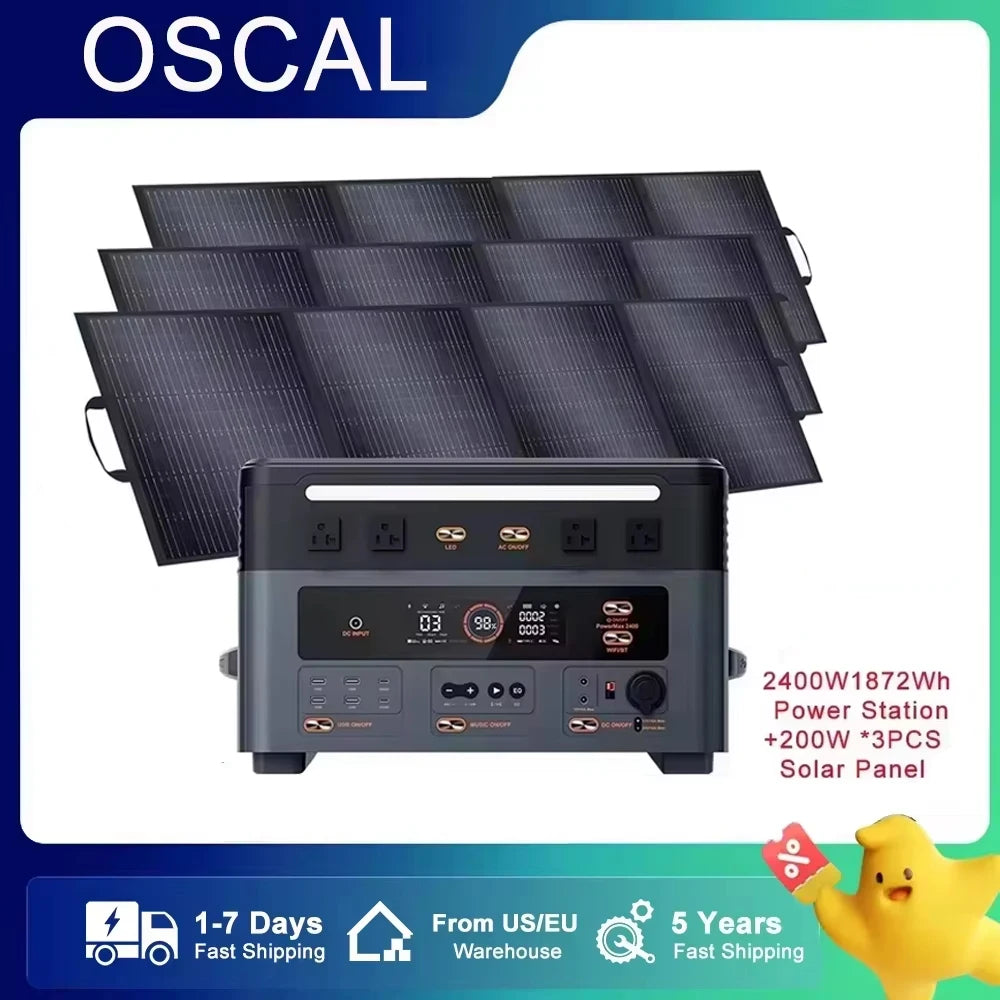

The OSCAL PowerMax 2400 Solar Generator + Solar Panels bundle pairs a high-capacity LiFePO4 portable power station with three 200W foldable solar panels (total 600W). Designed for solar power storage, home backup, camping, and mobile work, it delivers up to 2400W output (4800W surge) with pure sine wave AC and versatile DC/USB ports. Rugged ABS+PC construction, fast charging, and smart app control support reliable off-grid and emergency power.
Key Features
- 1872Wh LiFePO4 battery with 2400W output, 4800W surge; pure sine wave inverter
- Four AC outlets; extensive DC/USB including USB-C 100W and dual 15W wireless charging pads
- UPS functionality with fast switchover (5–8 ms stated); pass-through charging
- Rapid recharge: AC fast charging from 1.5–1.6 hours (up to 1400W Max; AC Charging Input listed 2000W–2500W)
- Solar charging up to 800W Max (Solar Charging Input listed 500W–1000W); EV station and generator charging supported
- Durable ABS+PC build; withstands vertical drops up to 0.8m; helps resist solid particle ingress and vertical water splashes
- Wide operating temperature range: -4°C to 113°C (claimed); battery life 3500+ cycles to 80% capacity
- Smart remote control via OSCAL app over Wi‑Fi/Bluetooth; display screen included

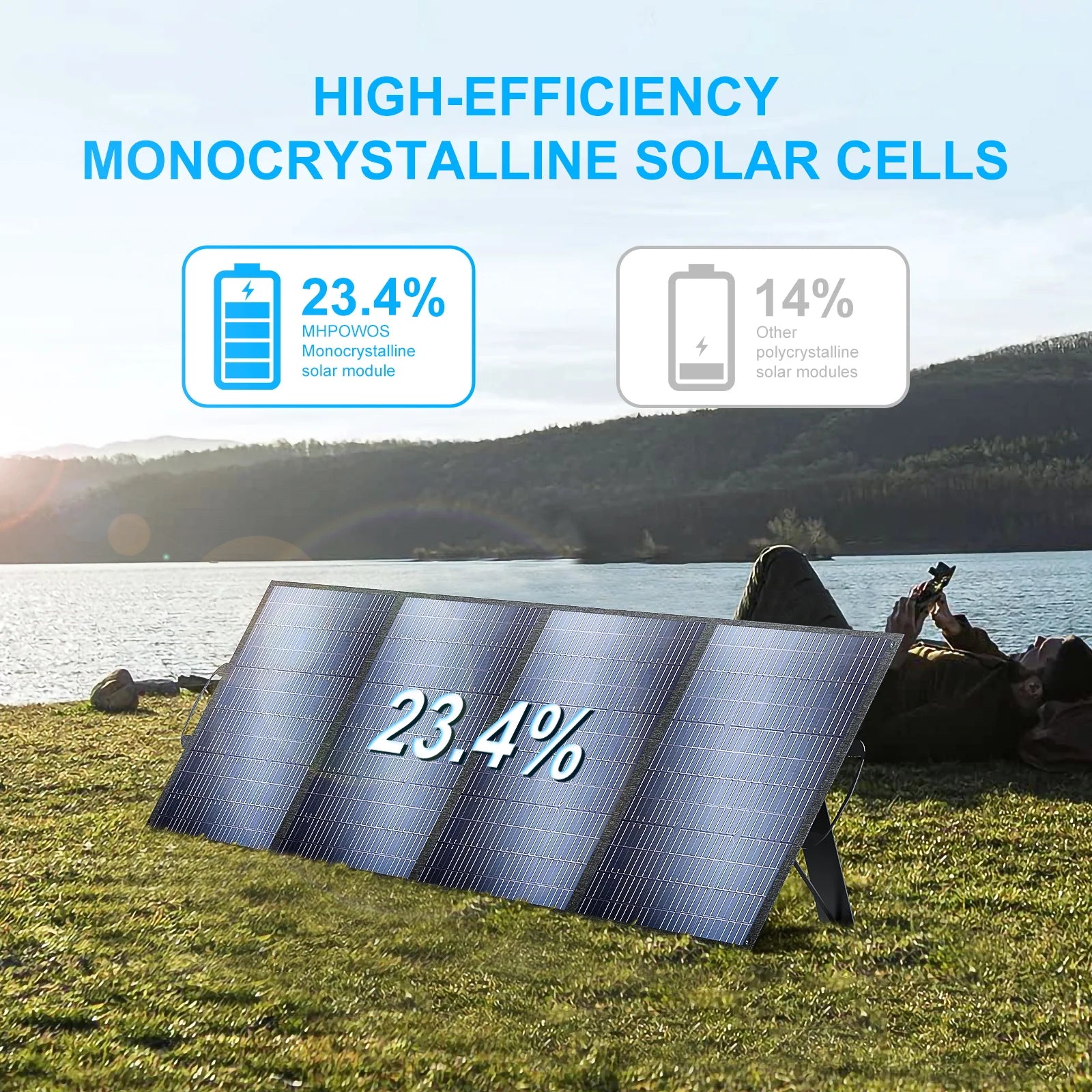

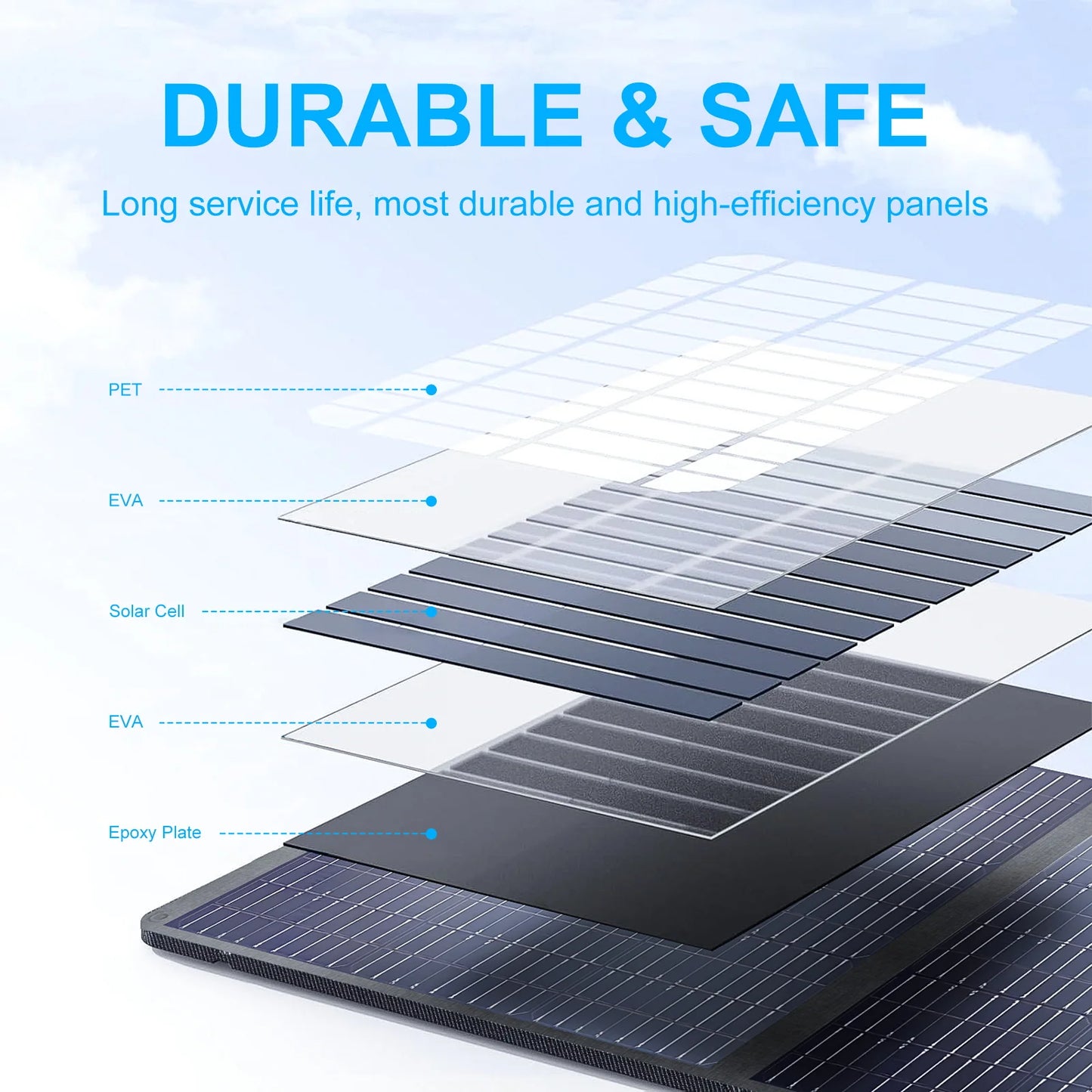

- Three 200W foldable solar panels with ETFE, monocrystalline cells, up to 23.4% efficiency
- Series/parallel support (up to three panels); MC4 connectivity
Specifications
Power Station (PowerMax 2400)
| Brand | OSCAL |
|---|---|
| Model Number | powermax 2400+T200*3 |
| Application | Solar Power Storage |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 1872Wh |
| Life Cycles | 3500+ cycles to 80% original capacity |
| Scalability | 1872Wh–20592Wh (PowerMax 2400 + up to 10×BP2400) |
| Management System | BMS |
| Inverter Type | Pure Sine Wave |
| Rated Output Power | 2400W |
| Surge Power | 4800W |
| AC Outlets | 4 × 2400W Max |
| USB-A Ports | 4 × 18W |
| USB-C Ports | 2 × 100W Max |
| DC5521 Ports | 2 × 60W |
| Car Cigarette Lighter Port | 1 × 240W Max |
| Anderson Connector | 1 × 240W Max |
| Wireless Charging Pads | 2 × 15W |
| Bi-Directional Inverter | Supports DC/AC; 120V/240V dual voltage output (stated) |
| Pass-through Charging | Yes |
| UPS Switching Time | 5–8 ms (feature); 0.01s (spec listing) |
| AC Charging Input | 2000W – 2500W |
| AC Fast Charging | 1.6 Hours (Full Charge); 1400w (Max); Pair with PM200 for 1,500W Max. |
| Fast Charging (general) | Up to 1.5 hours via AC/solar/EV station/generator (stated) |
| Solar Charging | 2.8 Hours (Full Charge); 800W (Max) |
| Solar Charging Input | 500W – 1000W |
| Car Outlet Charging | 12/24V (120W/240W): 24V ≈ 9 hours; 12V ≈ 18 hours (Full Charge) |
| Operating Temperature | -4'F to 113°F (-20^C–45'℃) |
| Storage Temperature | -14-113℃ (-10’C–45℃℃) |
| Ruggedness | ABS+PC; withstands vertical drops up to 0.8m; five LED light modes; Morse code signaling (stated) |
| Connection | Wi‑Fi (listing); Wi‑Fi/Bluetooth via OSCAL app (feature) |
| Display Screen | Yes |
| Dimensions (L × W × H) | 47 × 29 × 32.6 cm / 18.5 × 11.4 × 12.8 in |
| Size (listing) | 58 × 37 × 41 cm |
| Weight | Approx. 25.5Kg / 53.8lbs |
| Net Weight (listing) | 10 KG – 30 KG |
| Origin | Mainland China |
| Replacement Battery | Yes |
| Set Type | Charger Sets |
| Bundle | Bundle 2 |
| Hign-concerned Chemical | None |
| Warranty | 3 Years |
| Certifications | Europe: CE/LVD(EN62368-1), CE/EMC(EN55032/35), RED (ETSI EN 303 417; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62479), ROHS (EU). Japan: PSE/METI. America: FCCID DOE CEC FCC (Part 15C) JL (as listed). |
200W Solar Panels (3 × T200)

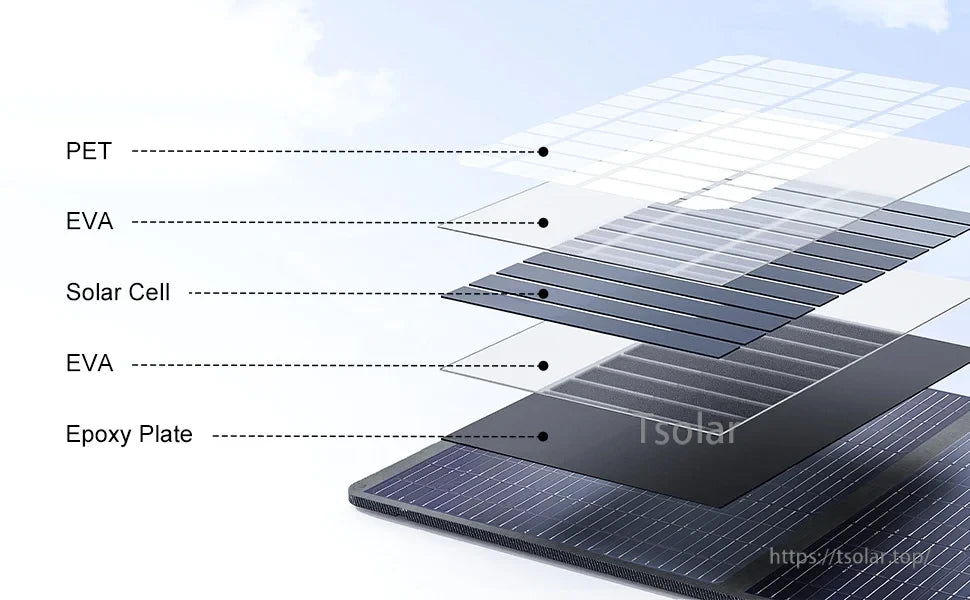

| Panel Type | Monocrystalline with ETFE film |
|---|---|
| Rated Power | 200W (Pm) per panel; total 600W (3 panels) |

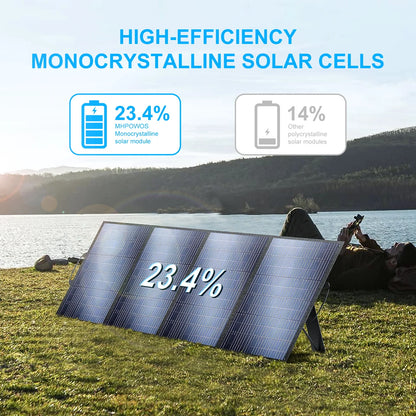

| Conversion Efficiency | Up to 23.4% |
| Unfolded Size (per panel) | 58 × 172 × 3 cm / 22.8 × 67.7 × 11.8 inches |
| Weight (per panel) | 6.1kg / 13.5lbs |
| Output Voltage (Max) | 18V |
| Output Current (Max) | 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Operating Temperature | -10℃ to 65℃ (optimal +25℃) |
| Connectivity | MC4; supports series or parallel connection (up to three panels) |
| Warranty | 5 years (panel) |
What’s Included
- Solar panel × 3
- MC4 charging cable × 3
Applications
- Emergency home backup; energy storage supply
- Camping, hiking, campervan, outdoor work
- Home portable power supply; solar panel charging
Details

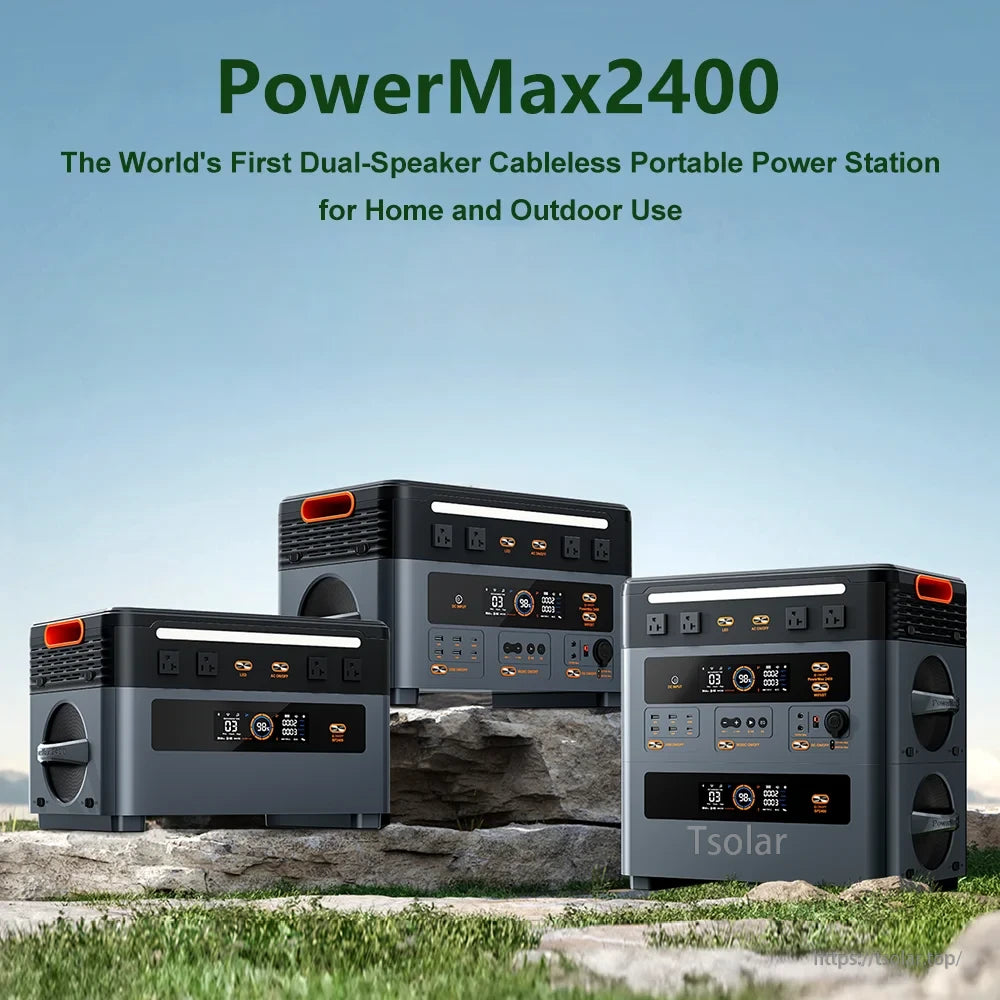

PowerMax2400 portable power station with dual speakers, cableless design for home and outdoor use.

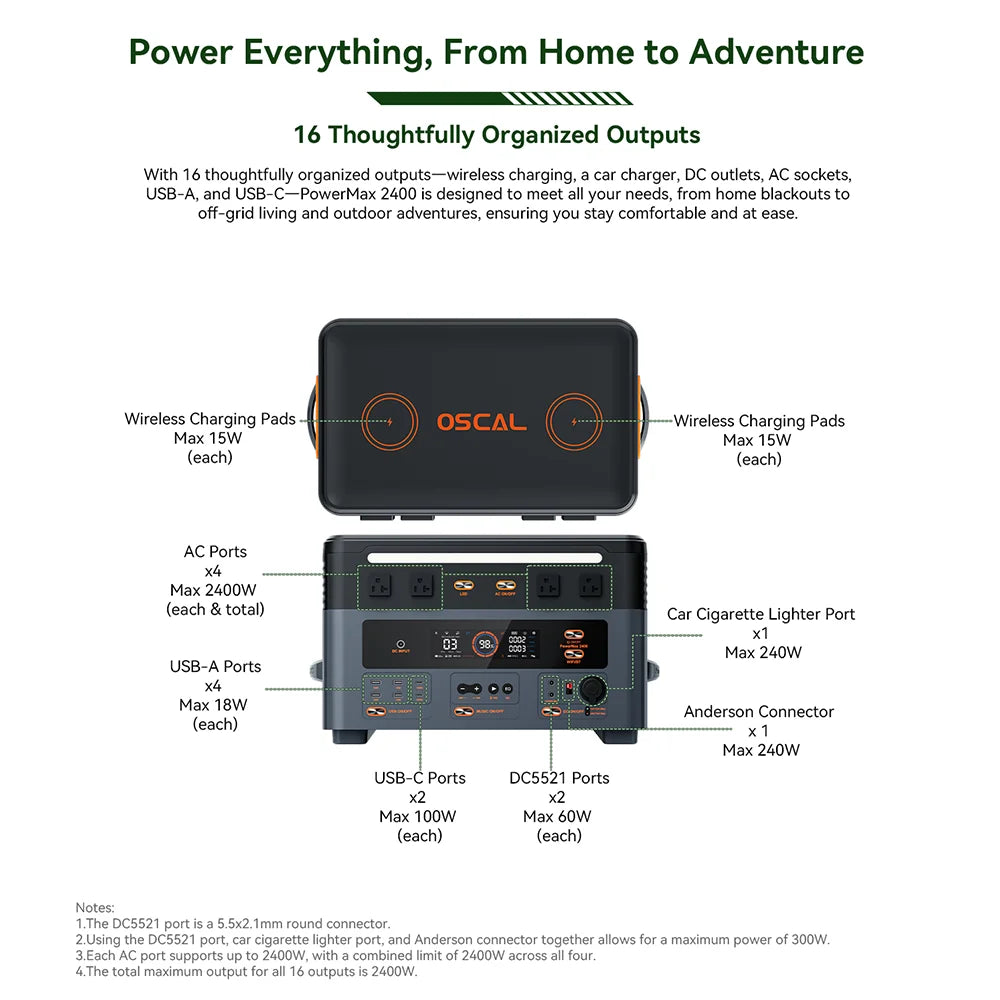

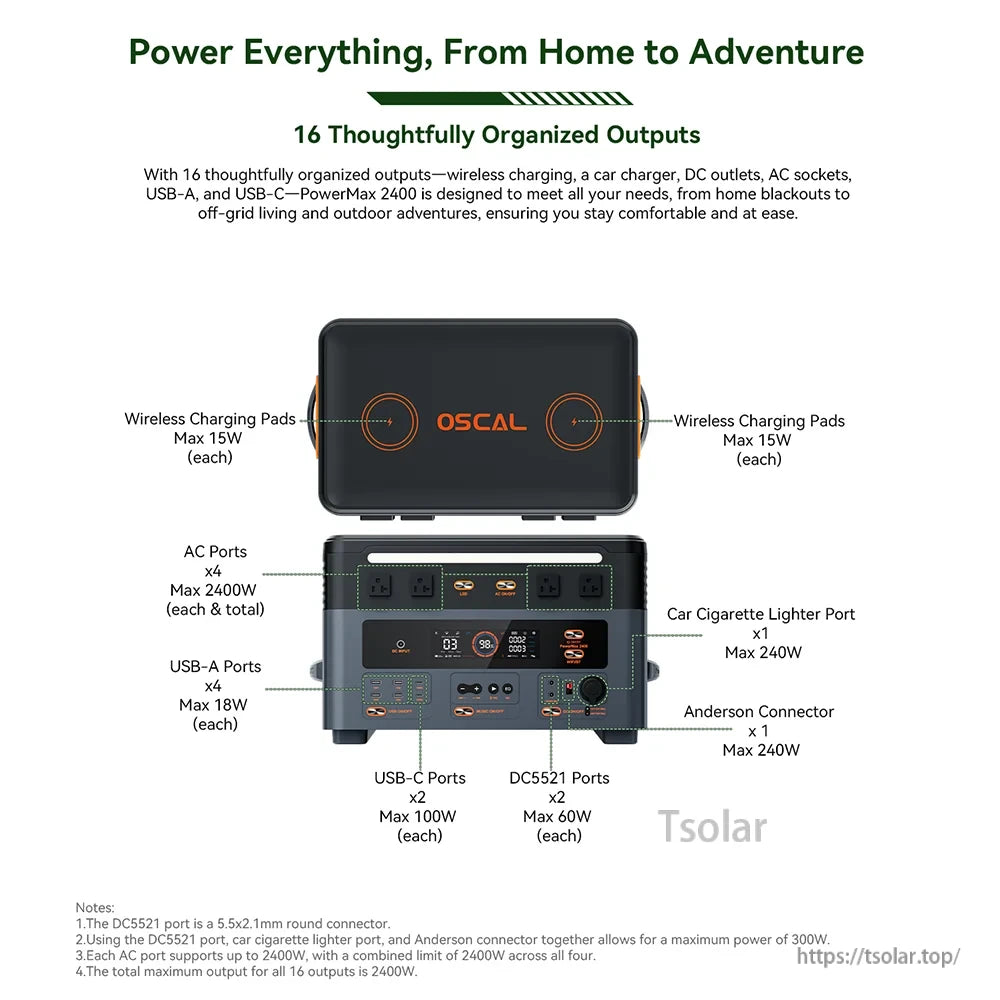

OSCAL PowerMax 2400 offers 16 outputs: wireless charging, AC, USB-A, USB-C, DC, car charger, and Anderson connector. With 2400W max output, it’s perfect for home and outdoor power needs.

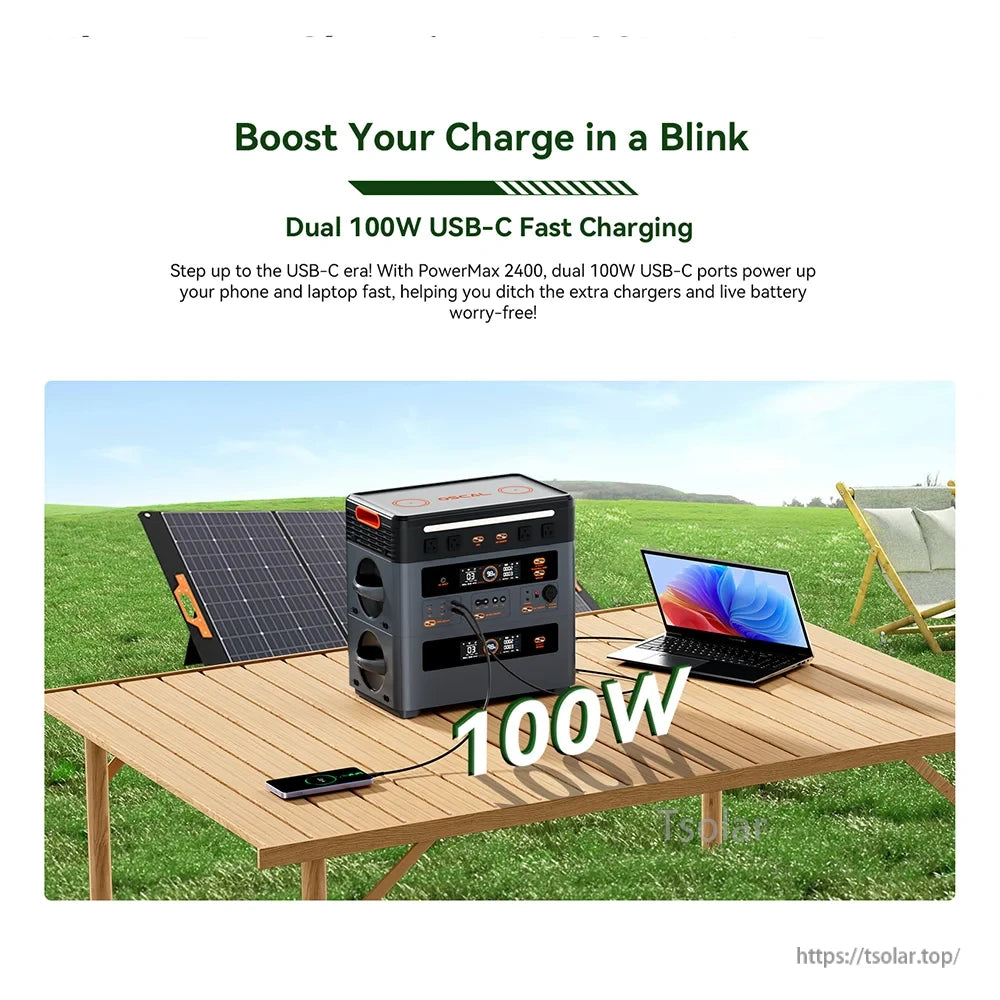

Boost Your Charge in a Blink. Dual 100W USB-C Fast Charging. PowerMax 2400 charges phone and laptop quickly, eliminating extra chargers and battery worries.

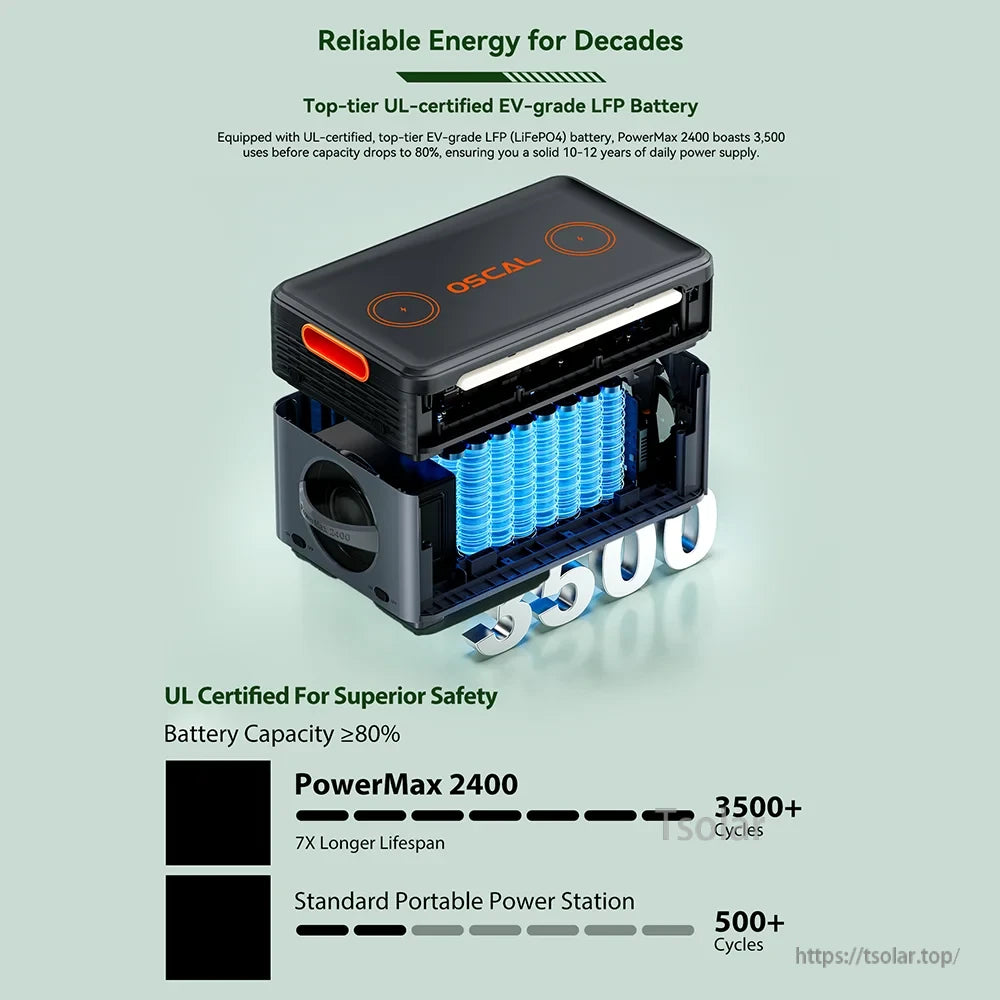

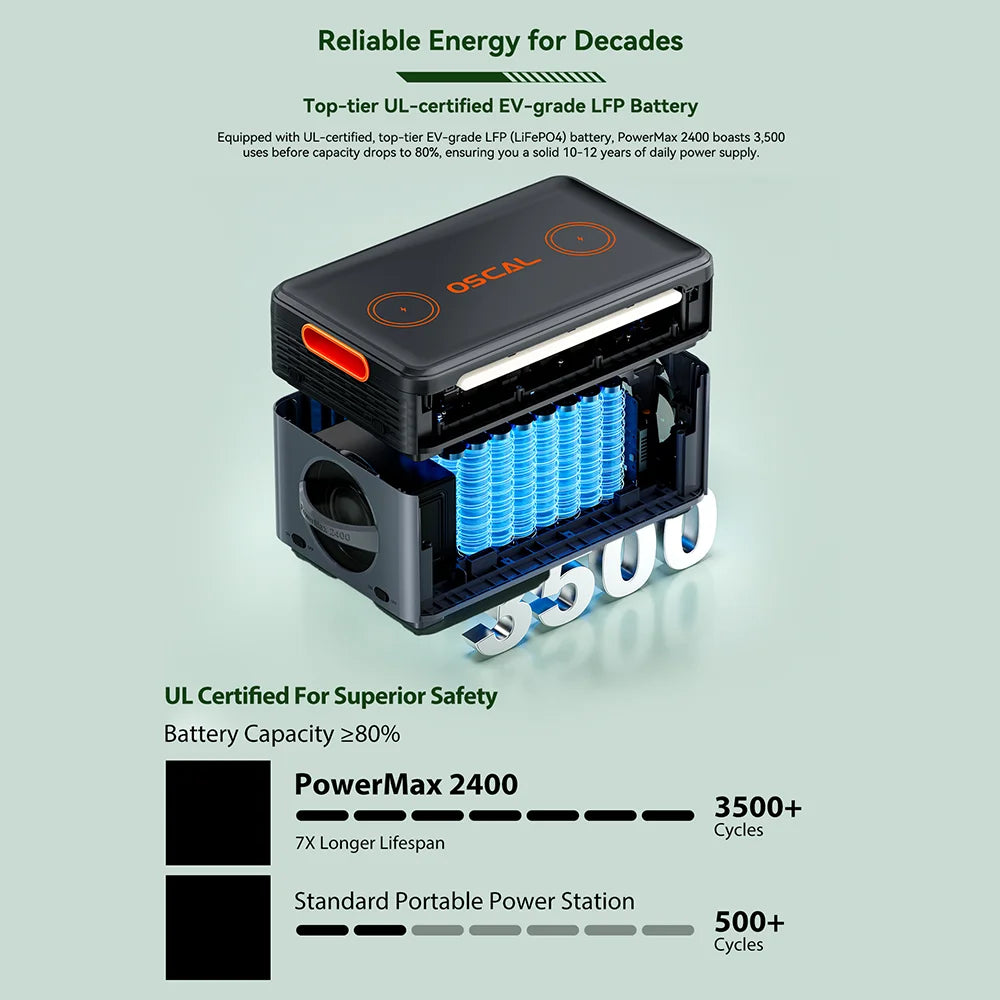

OSCAL PowerMax 2400 uses a UL-certified EV-grade LFP battery built for long-term reliability. With over 3,500 cycles to 80% capacity, it delivers 10–12 years of daily use—7 times longer than typical portable stations. It retains ≥80% capacity throughout its lifespan, ensuring consistent performance. Engineered for safety and durability, it integrates advanced technology with robust construction. The internal design features blue cylindrical cells and cooling components, enhancing efficiency and longevity. Ideal for sustained power needs, it outperforms standard models in cycle life and resilience, making it a dependable choice for extended energy solutions.

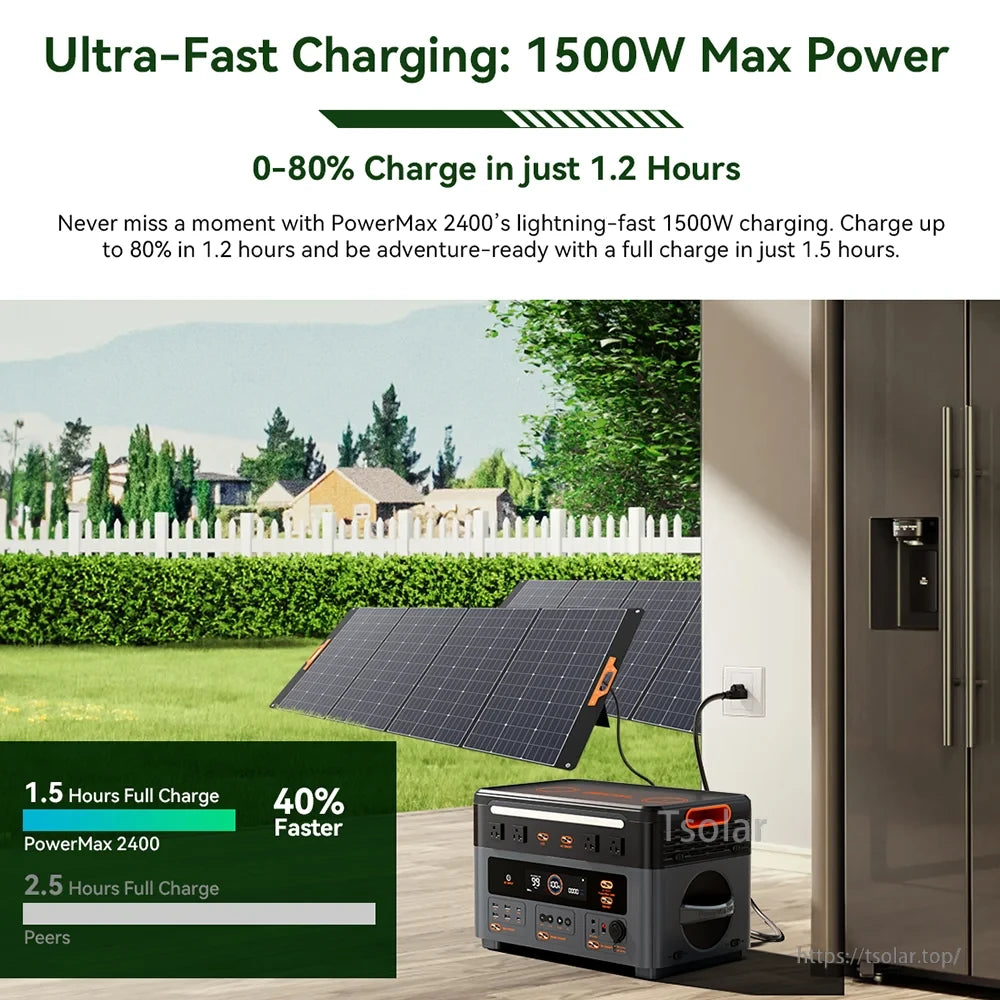

Ultra-fast charging: 1500W max power. 0-80% charge in 1.2 hours, full charge in 1.5 hours. PowerMax 2400 charges 40% faster than peers, with 1.5-hour full charge versus 2.5 hours.

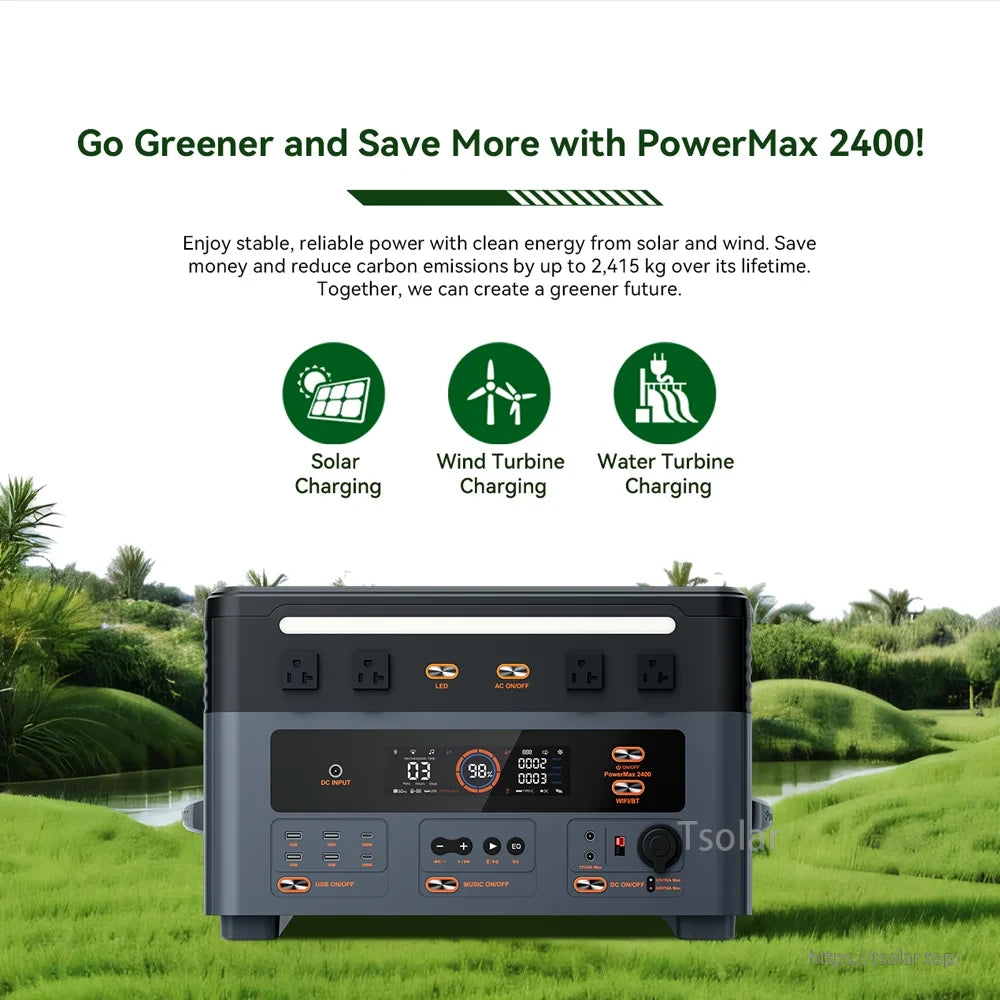

PowerMax 2400 delivers reliable power through solar, wind, and water turbine charging. Go greener, save money, and reduce carbon emissions by up to 2,415 kg—efficient, sustainable energy for a cleaner future.

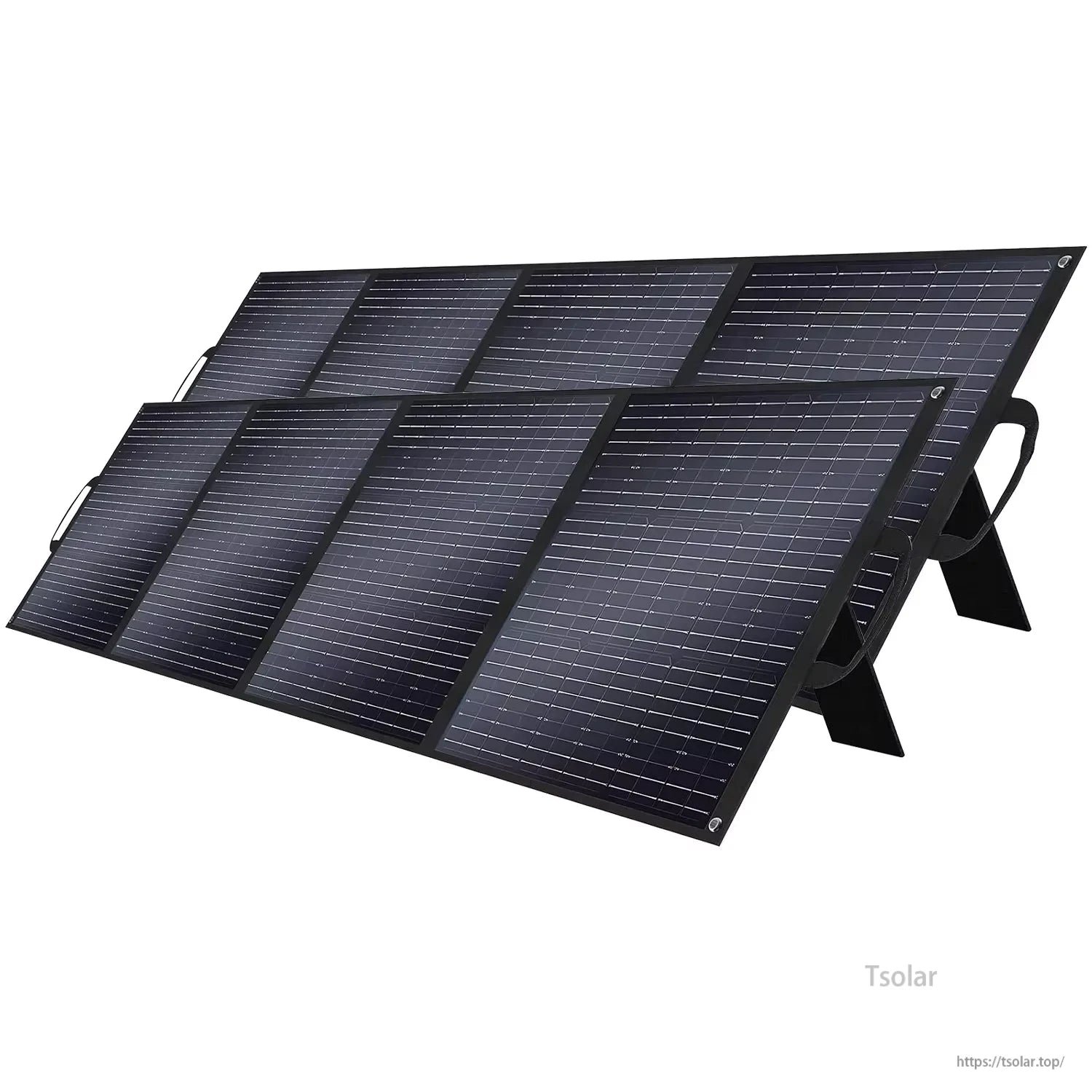

Foldable 200W solar panel, portable and easy to carry for outdoor use. (16 words)

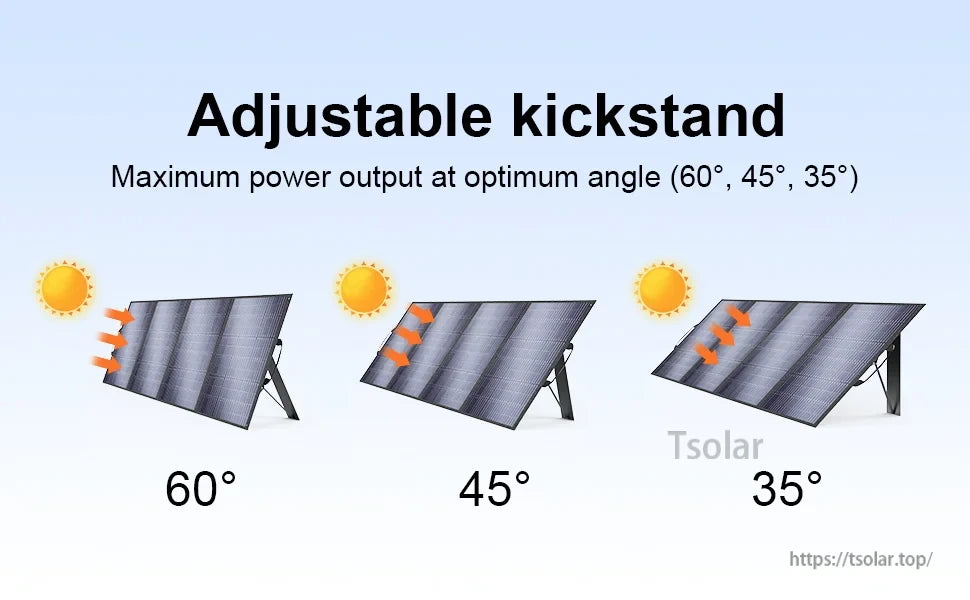

Adjustable kickstand optimizes solar panel efficiency at 60°, 45°, and 35° angles for maximum power output in sunlight.

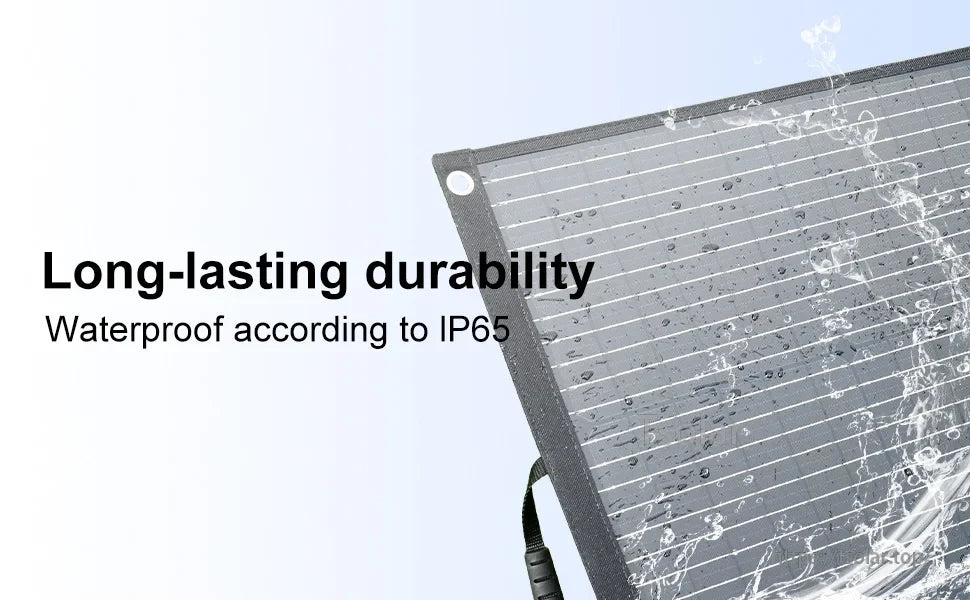

Long-lasting durability, waterproof IP65 solar panel

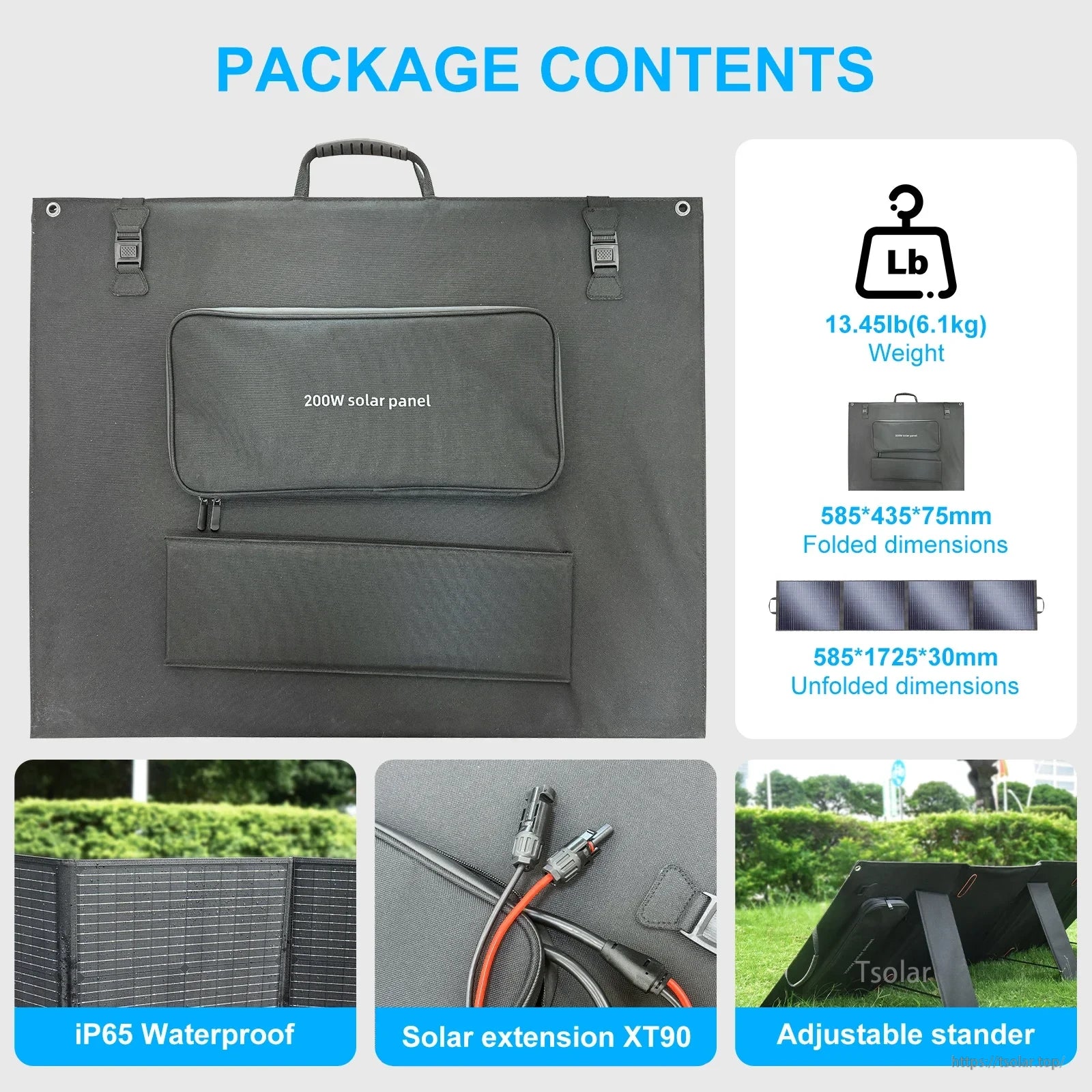

200W solar panel, 13.45lb, IP65 waterproof, XT90 connector, adjustable stand, with folded and unfolded dimensions included.
