Overview

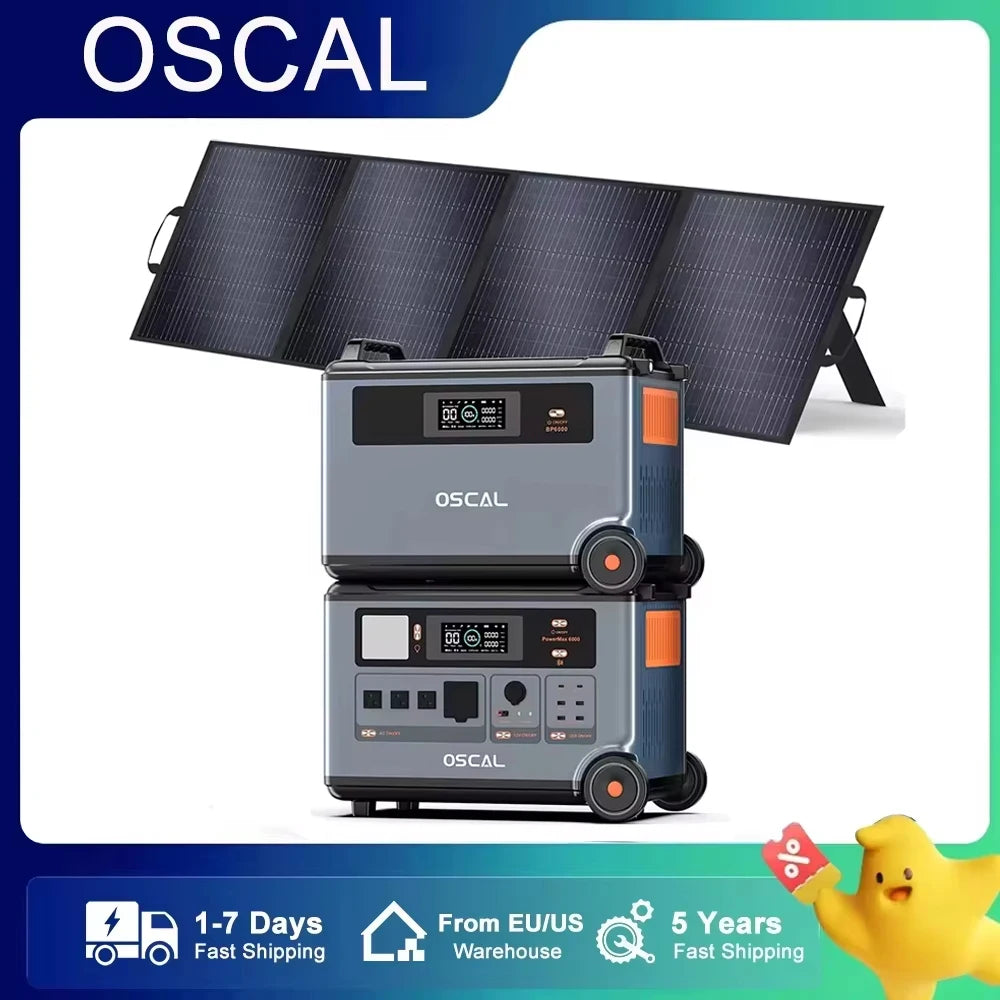

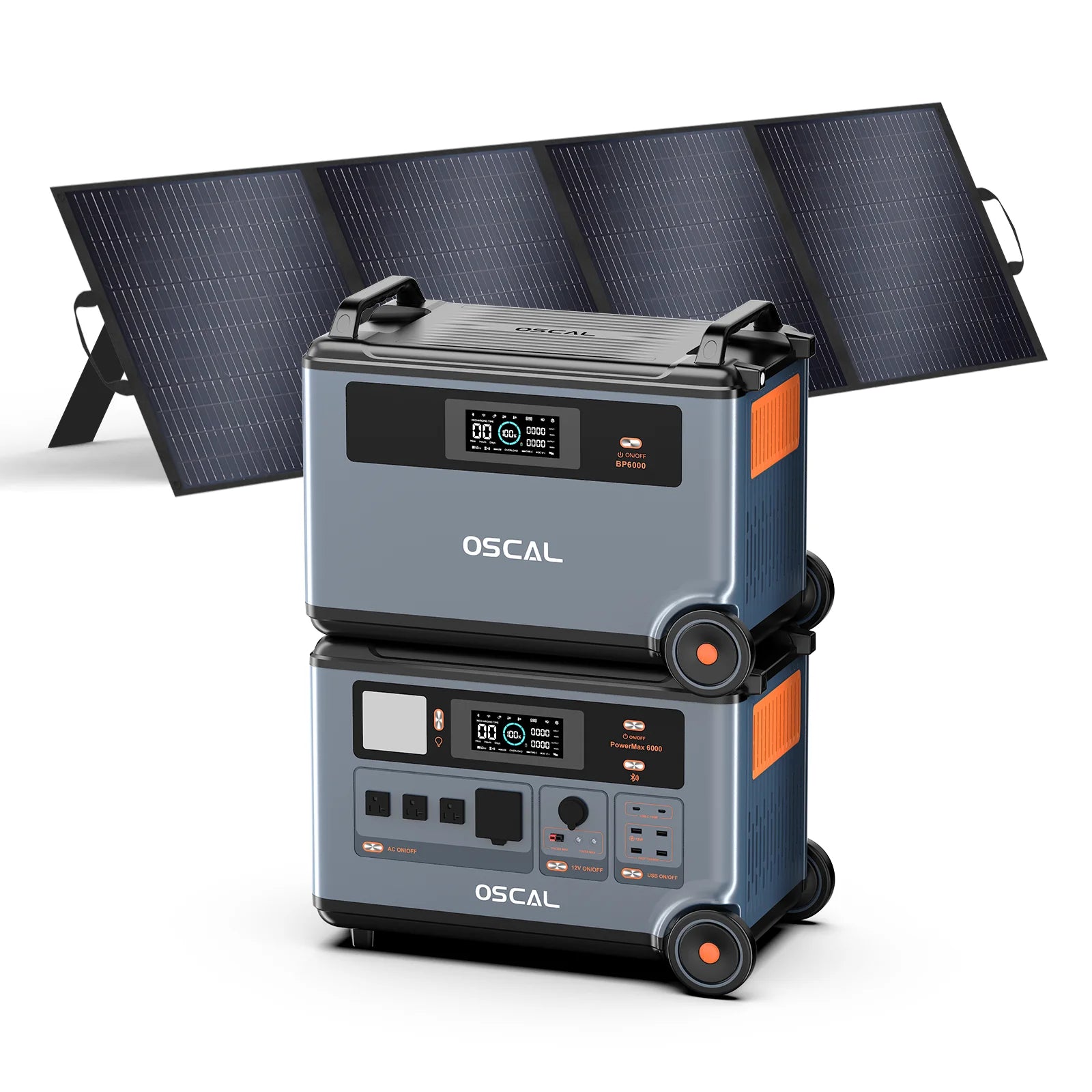

This Solar Generator + Solar Panel bundle combines the OSCAL PowerMax 6000 portable power station with the BP3600 expansion battery and a 200W foldable solar panel to deliver up to 7,200Wh of system energy (PowerMax 6000 3,600Wh + BP3600 3,600Wh). The system provides 6,000W total output (9,000W surge) via a pure sine wave inverter, fast multi-source charging, and robust LiFePO4 cells for home energy backup and off-grid use. Certified to CE and UL standards.
Key Features
- Expandable capacity: 3,600Wh PowerMax 6000 plus 3,600Wh BP3600 expansion battery (total 7,200Wh).
- High output: 6,000W total output, 9,000W surge, pure sine wave with 4 AC outlets.
- Versatile DC and USB: 2x PD 100W USB-C, 3x PD 18W USB-A, 1x PD 12W USB-A, 120W car socket, 12V/25A Anderson (378W), 2x 12V/3A DC5521.
- Fast charging: AC input up to 2200W, solar input up to 2400W, and combined AC+solar up to 3000W; rapid recharge times in favorable conditions.
- Mobility and safety: Industrial wheels, extendable handle, 5-level LED lamp, and T1 chip with integrated BMS for load/voltage/charging/temperature monitoring.
- Durable design: Splash- and dust-proof construction; compact form factor.
- 200W solar panel: ETFE + monocrystalline design with up to 23.4% conversion efficiency; foldable, lightweight, and series/parallel capable (up to three panels).
Specifications
| General | |
|---|---|
| Brand | OSCAL |
| Model Number | PowerMax 6000+ BP3600 T200 |
| Application | Home Energy |
| Certification | CE, UL |
| Origin | Mainland China |
| Set Type | Charger Sets |
| Bundle | Bundle 2 |
| Type | LiFePO4 |
| Battery Core manufacturer | Other |
| Battery Number | 1 |
| Replacement Battery | No |
| Connection | Other |
| Display screen | No |
| Hign-concerned Chemical | None |
| Power Station (PowerMax 6000) | |
| Battery Capacity | 3,600Wh |
| Lifecycle | 3500+ Cycles to 80% of Original Capacity |
| Management System | T1 Chip integrated with BMS |
| Monitoring | Load / Voltage / Charging / Temperature monitoring |
| Inverter Type | Pure Sine Wave |
| Total Output Power | 6,000W |
| Surge Power | 9,000W |
| AC Outlets | 4 x AC Outlets (Total 6000W) |
| USB Ports | 2x PD 100W USB Type-C; 3x PD 18W USB Type-A; 1x PD 12W USB Type-A |
| Cigarette Lighter Socket | 1 x 120W (Car Outlet) |
| DC Outputs | 1 x 12V/25A (Anderson 378W); 2 x 12V/3A DC5521 (5.5mm) |
| LED Light | 5-level LED lamp |
| Discharging Temperature | -20℃ to 55℃ (-4°F to 131°F) |
| Product Size (L x W x H) | 59 x 35 x 44.1 cm |
| Product Weight | 46 kg |
| Package Size (L x W x H) | 66 x 40.5 x 52.5 cm |
| Package Weight | 51 kg |
| Additional Size Listing | 66*40.5*52.5cm |
| Additional Net Weight Listing | > 50Kg |
| Charging | |
| AC Charging Input (listing) | > 3000W |
| AC Input | up 2200W |
| Solar Charging Input (listing) | 2000W - 2500W |
| Solar Input | up 2400W Max. |
| Car Input | up 240W from Cigarette Lighter Port |
| AC Charging Time | 1.96 hours |
| Solar Charging Time | 1.5 hours (Prime sunshine) |
| AC + Solar Charging | Max 3000W Supported; 1.44 hours |
| Car Charging Time | 15 hours |
| Expansion Battery (BP3600) | |
| Battery Pack | 3600WH |
| Solar Panel (200W) | |
| Rated Power (Pm) | 200W |
| Cell / Surface | Monocrystalline silicon with ETFE film |
| Conversion Efficiency | Up to 23.4% |
| Unfolded Size | 58 x 172 x 3 cm / 22.8*67.7*11.8 inches |
| Weight | 6.1kg / 13.5lbs |
| Max Output Voltage / Current | 18V (max) / 11.1A (max) |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Ambient Operating Temperature | -10℃ to 65℃ (optimal +25℃) |
| Connection | Series or parallel (up to three panels) |
| Warranty | Five-year warranty |
What’s Included
PowerMax6000+BP3600 T200 US
- 1 x Oscal PowerMax 6000 US
- 1 x Battery pack BP3600
- 1 x AC Charge Cable
- 1 x Solar Charging Cable
- 1 x Car Charging Cable
- 1 x User Manual
- Solar panel*1
- MC4 charging cable*1
PowerMax6000+BP3600 EU
- 1 x Oscal PowerMax 6000 EU
- 1 x Battery pack BP3600
- 1 x AC Charge Cable
- 1 x Solar Charging Cable
- 1 x Car Charging Cable
- 1 x User Manual
- Solar panel*1
- MC4 charging cable*1
Applications
- Home energy backup and emergency power
- Camping, hiking, and outdoor activities
- Disaster prevention and off-grid scenarios
Details

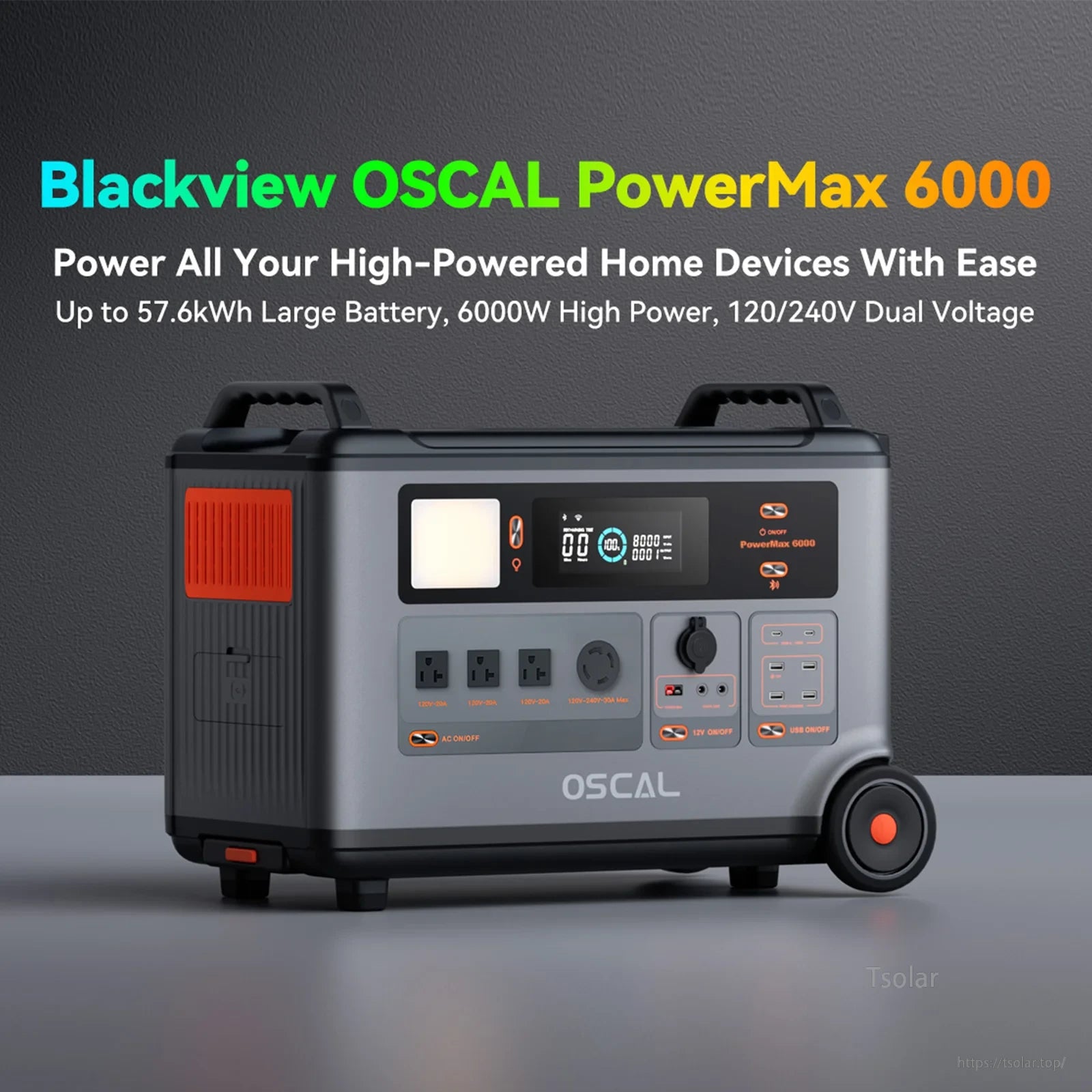

6000W portable power station with 57.6kWh battery, dual 120/240V output, AC outlets, USB ports, 12V socket, and digital display for reliable home device backup. Compact, efficient, and ideal for emergency power needs. (43 words)
OSCAL PowerMax 6000 portable power station features a rugged design, digital display, multiple outlets, and wheels for easy transport. (28 words)

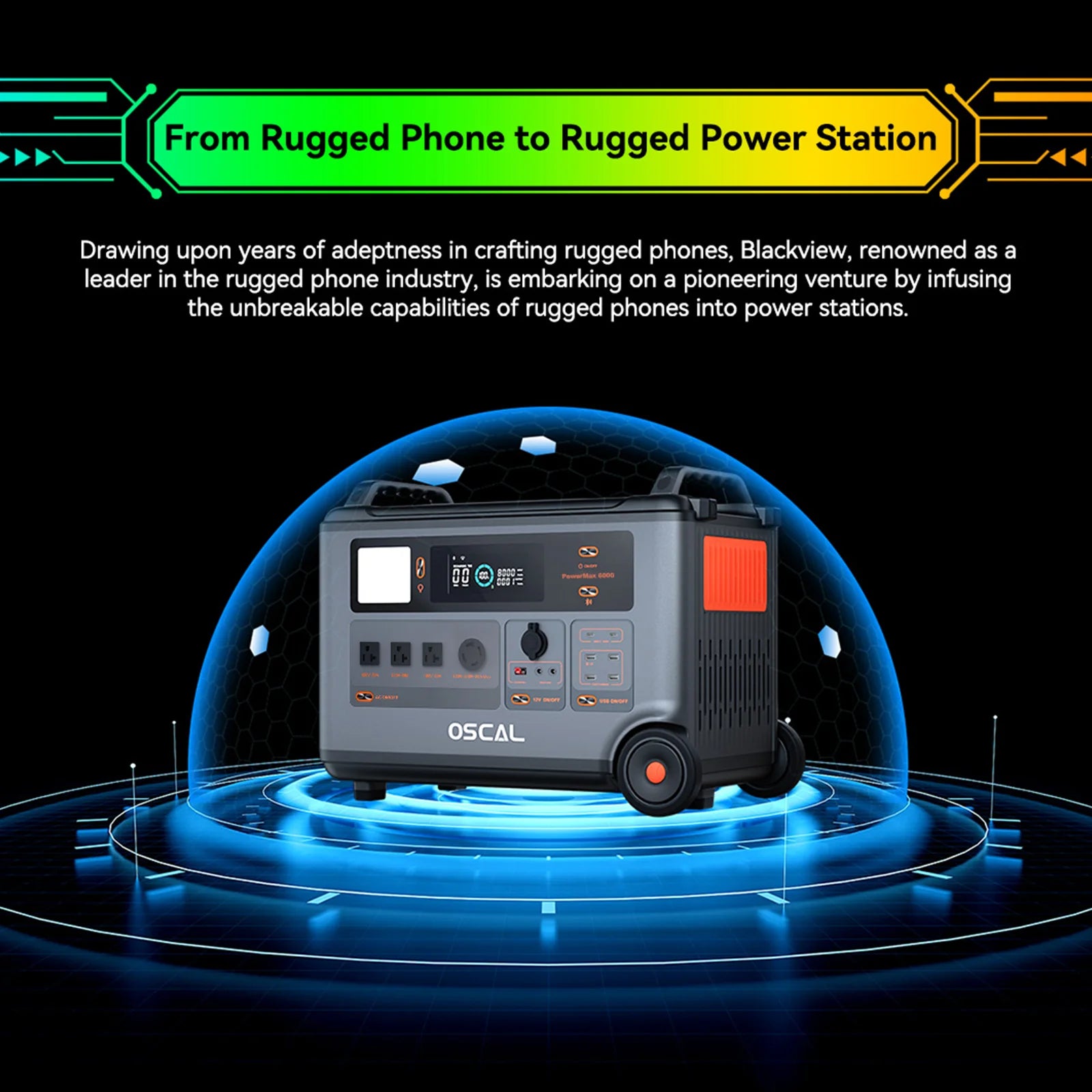

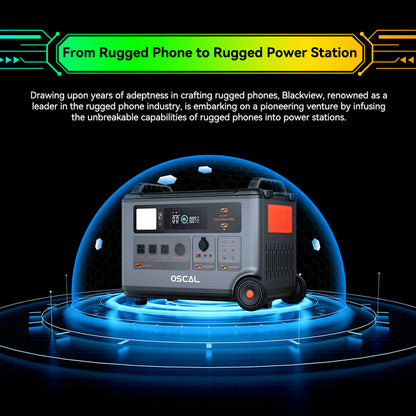

OSCAL PowerMax 6000 is built with a 0.8M drop-proof, splash-proof, and dust-proof design, enduring falls and harsh elements, ideal for reliable outdoor use.
The OSCAL PowerMax Solar Generator offers 5 LED light modes: Dim, Bright, Breathing Light, Flashing, and SOS. It supports Morse code signaling for emergency communication. The device provides home illumination during power outages and enables emergency signaling in the wild. Its versatile lighting functions assist in low visibility conditions, facilitating distress calls through varied brightness and flash patterns. Designed for both lighting and critical communication needs, it enhances safety in emergencies.

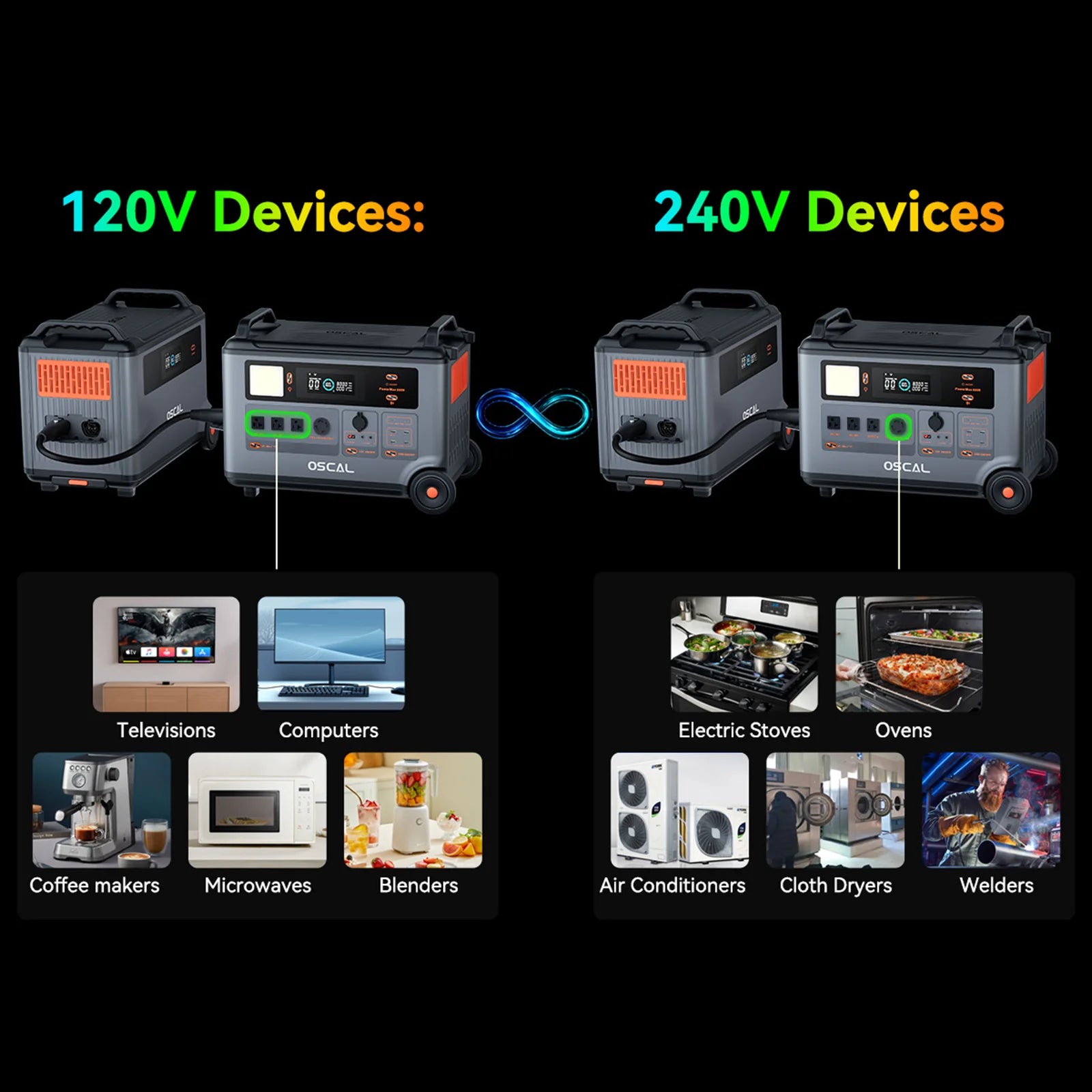

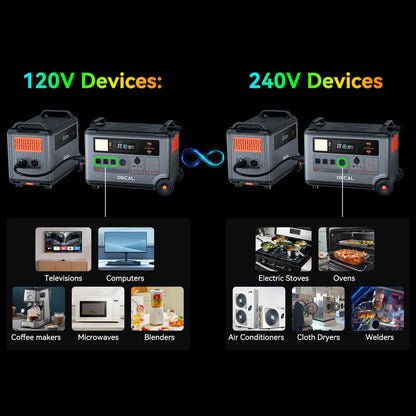

OSCAL PowerMax Solar Generator supports 120V devices like TVs, computers, coffee makers, microwaves, blenders and 240V devices including stoves, ovens, ACs, dryers, welders.
OSCAL PowerMax 6000 operates reliably from -20°C to 55°C, excelling in Arctic and desert environments with 10°C better performance than competitors and enhanced safety protections. (39 words)
EV-grade LFP batteries deliver exceptional safety and durability. PowerMax 6000 uses advanced LiFePO4 chemistry, providing over 3,500 charge cycles—equivalent to nearly 25 years with alternate-day use (tested to 80% capacity retention). A transparent design reveals internal components, highlighting engineering integrity and long-term reliability. Built for performance and resilience, it ensures stable power output in diverse conditions. Ideal for demanding applications, this battery combines cutting-edge technology with proven longevity, making it a trusted choice for sustainable energy solutions. Safety, transparency, and endurance define its core advantages.

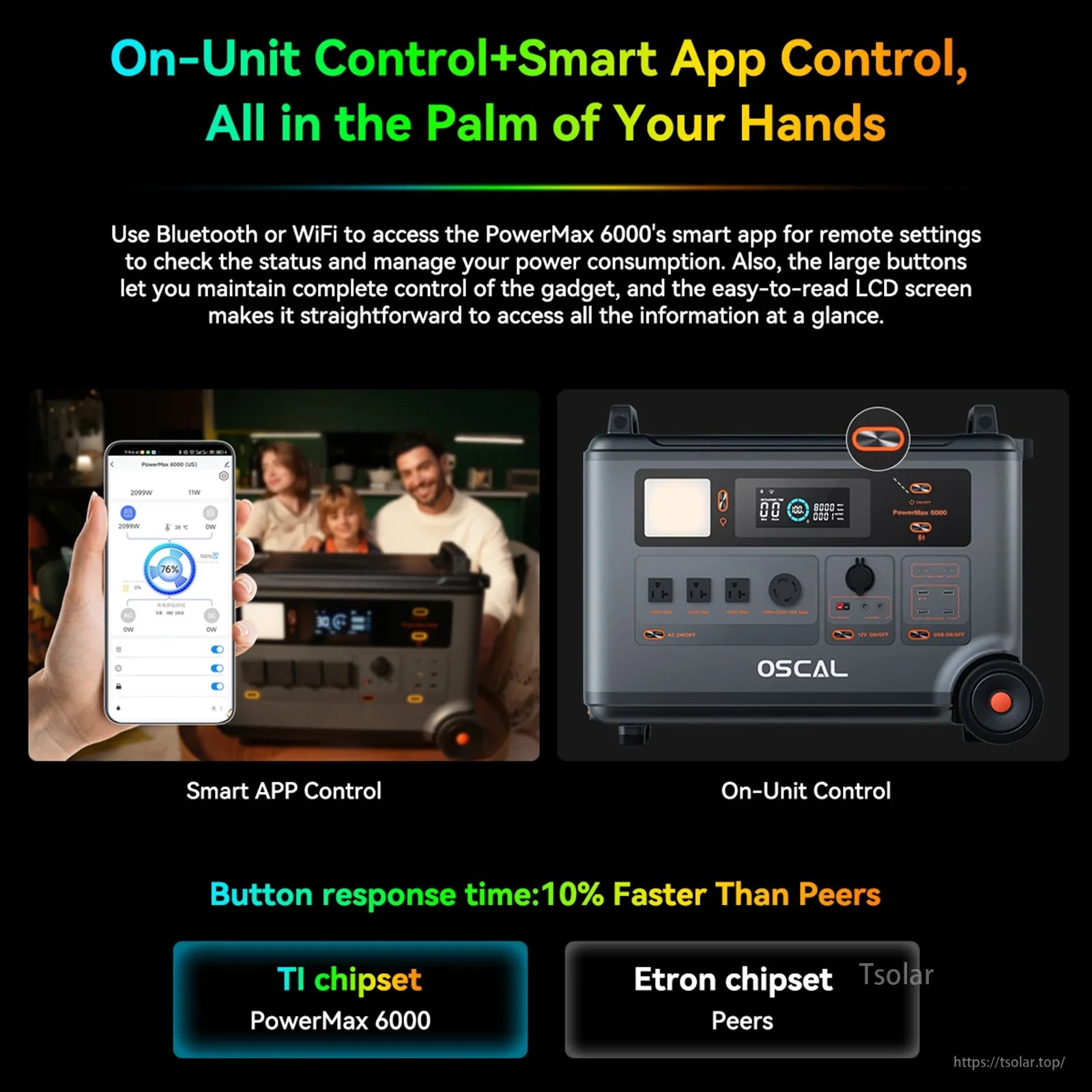

OSCAL PowerMax 6000 solar generator enables smart app and on-unit control via Bluetooth or WiFi, remote monitoring, power management, responsive LCD, and a TI chipset for faster performance compared to Etron-based models.
Foldable 200W solar panel, portable and easy to carry for outdoor use.
Monocrystalline solar cells with 23.4% efficiency for portable outdoor power.
