Overview

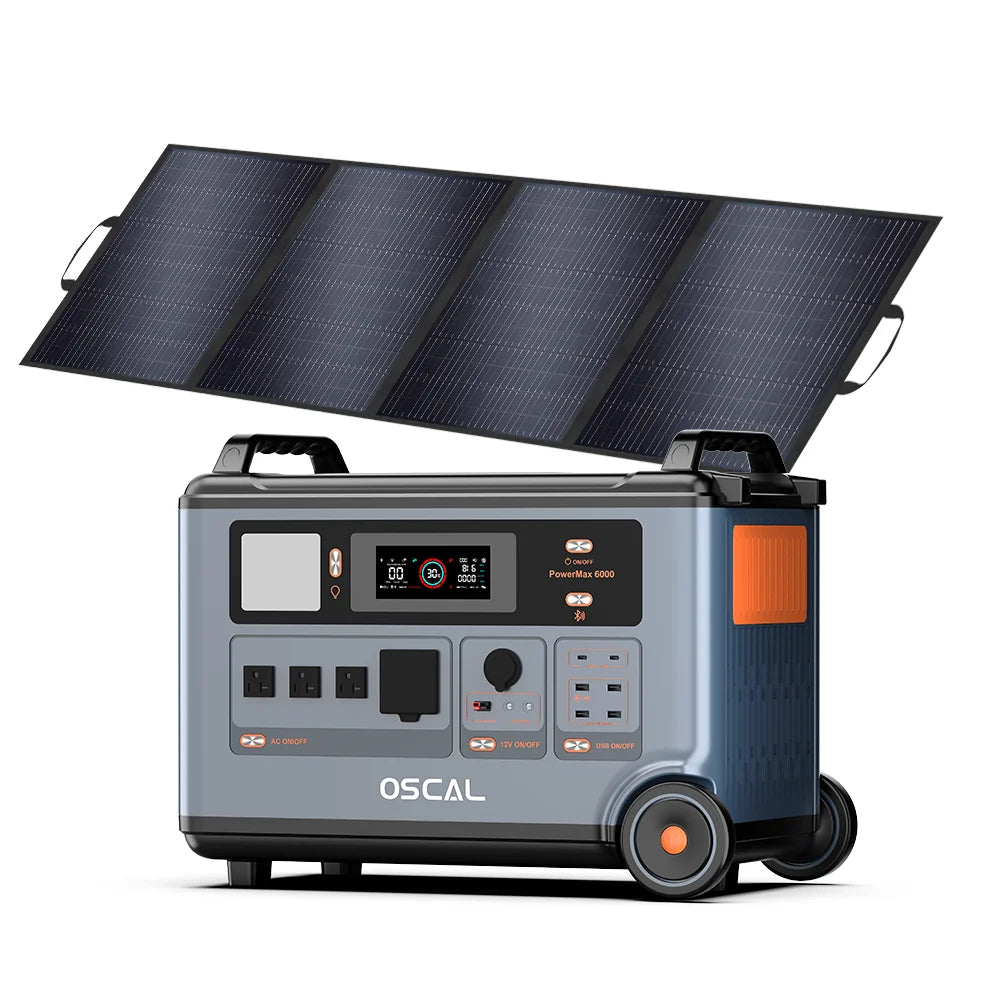

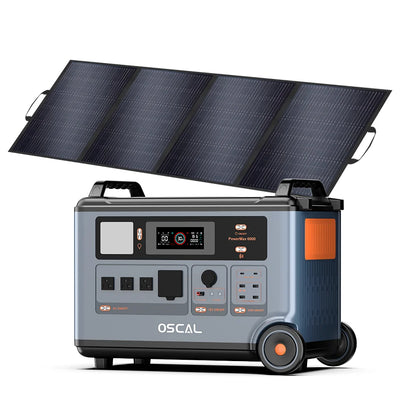

The OSCAL PowerMax 6000 Portable Power Station + Solar Panel bundle combines a 3,600Wh LiFePO4 power station with a 400W solar panel kit for off‑grid backup, camping, and solar power storage. It delivers up to 6,000W pure sine wave AC output with 9,000W surge and supports 120V/240V dual voltage output (US standard only). A T1 chip integrated with BMS provides load/voltage, charging, and temperature monitoring. The foldable solar panel features monocrystalline cells with ETFE film and up to 23.4% conversion efficiency.
Key Features
- 3,600Wh LiFePO4 battery; 3500+ cycles to 80% capacity
- Total AC output power 6,000W (pure sine wave); 9,000W surge
- 120V/240V dual voltage output = US Standard Only
- Fast recharge: AC input up to 2200W; solar input up to 2400W; car input up to 240W
- Combined AC + solar up to 3000W; AC 1.96h, solar 1.5h (prime sun), AC+solar 1.44h
- Versatile ports: 4× AC, 2× USB‑C PD 100W, 3× USB‑A PD 18W, 1× USB‑A 12W, 12V/25A Anderson, 2× DC5521, 12V/120W car socket
- Integrated 5‑level LED lamp, display screen, rugged wheeled design with extendable handle
- 400W solar panel (ETFE + monocrystalline), up to 23.4% efficiency; foldable 4‑panel design
Specifications
General
| Brand | OSCAL |
| Model Number | PowerMax 6000 EU/US+400w |
| Type | Rugged Power Station; LiFePO4 |
| Application | Solar Power Storage |
| Bundle | Bundle 1 |
| Set Type | Charger Sets |
| Display screen | Yes |
| Certification | CE, weee, UL |
| Origin | Mainland China |
| Battery Number | 1 |
| Battery Core manufacturer | Other |
| Replacement Battery | No |
| Connection | Other |
| Hign-concerned Chemical | None |
| Color | Gray |
Environmental Conditions
| Storage Temperature | -10℃ to 45℃ (14°F to 113°F) |
| Charging Temperature | 0℃ to 50℃ (32°F to 122°F) |
| Discharging Temperature | -20℃ to 55℃ (-4°F to 131°F) |
Battery & Management
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 3,600Wh |
| Lifecycle | 3500+ cycles to 80% of original capacity |
| Shelf‑Life | Recharge to above 50% every 3 months |
| Management System | T1 Chip integrated with BMS; load/voltage monitoring; charging monitoring; temperature monitoring |
Charging (Input)
| AC Charging Input (general) | 2000W – 2500W |
| Solar Charging Input (general) | 2000W – 2500W |
| AC Input (max) | up 2200W |
| Solar Input (max) | up 2400W |
| Car Input | up 240W from Cigarette Lighter Port |
| AC Charging Time | 1.96 hours |
| Solar Charging Time | 1.5 hours (Prime sunshine) |
| AC + Solar (max) | 3000W supported; 1.44 hours |
| Car Charging Time | 15 hours |
Outputs
| Total Output Power | 6,000W |
| Inverter Type | Pure Sine Wave |
| Surge Power | 9,000W |
| AC Outlets | 4 × AC outlets (Total 6000W) |
| USB‑C | 2 × PD 100W (USB Type‑C) |
| USB‑A (PD) | 3 × PD 18W (USB Type‑A) |
| USB‑A | 1 × 12W (USB Type‑A) |
| Car Socket | 1 × Cigarette Lighter 120W |
| DC Outputs | 1 × 12V/25A (Anderson 378W), 2 × 12V/3A DC5521 (5.5mm) |
| LED Light | Yes; 5 level LED lamp |
Dimensions & Weight
| Product Size (L×W×H) | 59 × 35 × 44.1 cm |
| Package Size (L×W×H) | 66 × 40.5 × 52.5 cm |
| Product Weight | 46 kg |
| Package Weight | 51 kg |
| Net Weight (general) | > 50Kg |
Solar Panel (400W) Details
| Max. power (listing) | 400W |
| Rated power (Pm) | 200W (max) |
| Cell & Coating | Monocrystalline silicon with ETFE film |
| Conversion Efficiency | Up to 23.4% |
| Unfolded Size | 785 × 2400 × 30 mm |
| Weight | 12.5 kg |
| Output Voltage (max) | 18V |
| Output Current (max) | 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Operating Temperature | -10℃ to 65℃ |
| Optimal Operating Temperature | +25℃ |
| Series/Parallel | Connectable in series or parallel (up to three panels) |
What’s Included
Power Station Package Contents
- 1 × OSCAL PowerMax 6000
- 1 × AC charge cable
- 1 × Solar charging cable
- 1 × Car charging cable
- 1 × User manual
Solar Panel Package Details
- Solar panel × 1
- MC4 charging cable × 1
Applications
- Home backup and emergency power
- Camping, hiking, and off‑grid travel
- Outdoor work sites and disaster prevention
Details

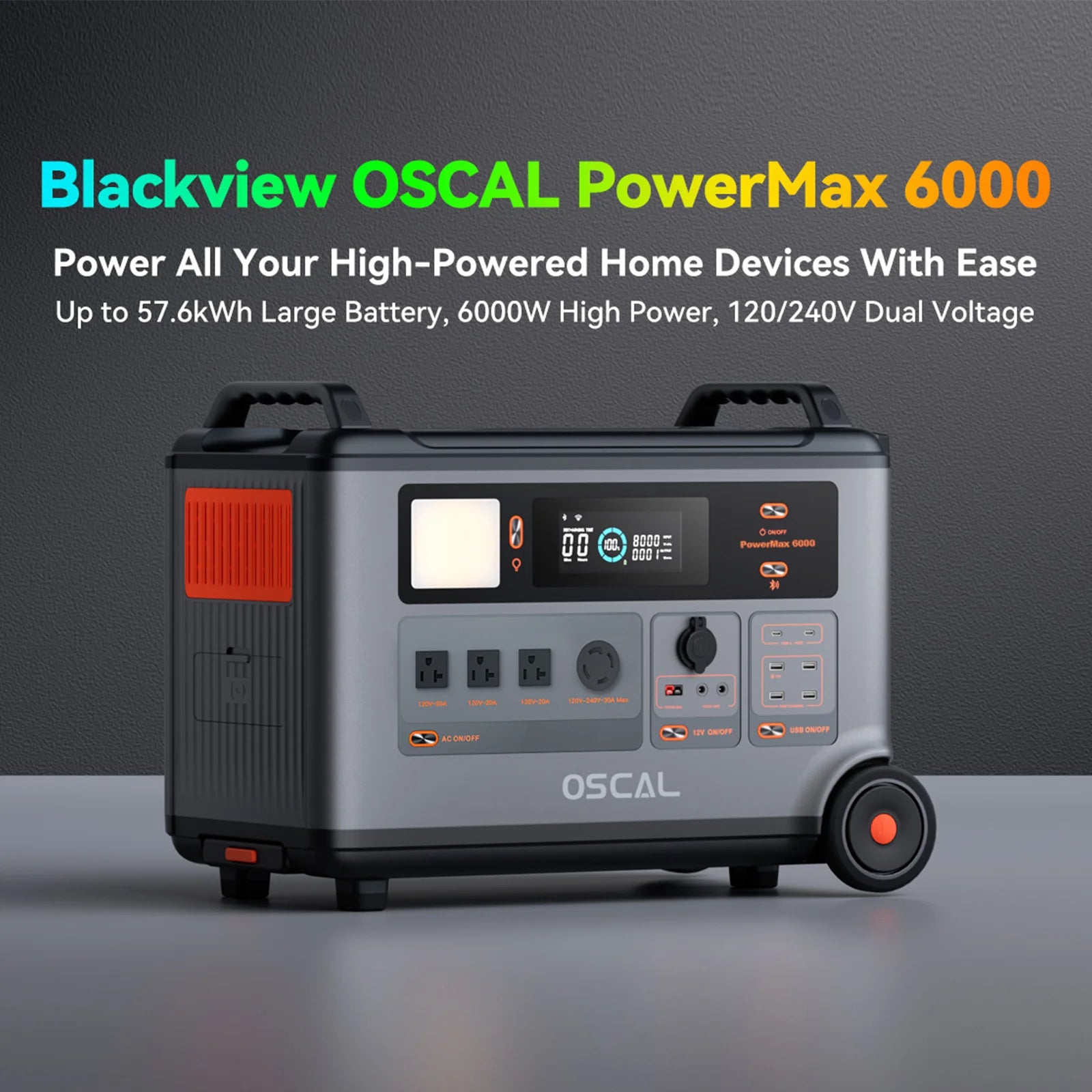

Blackview OSCAL PowerMax 6000 has a 57.6kWh battery, delivers 6000W power, supports 120/240V dual voltage, includes AC, USB, and 12V outlets, digital display, wheels, and efficiently runs high-demand home devices. (43 words)

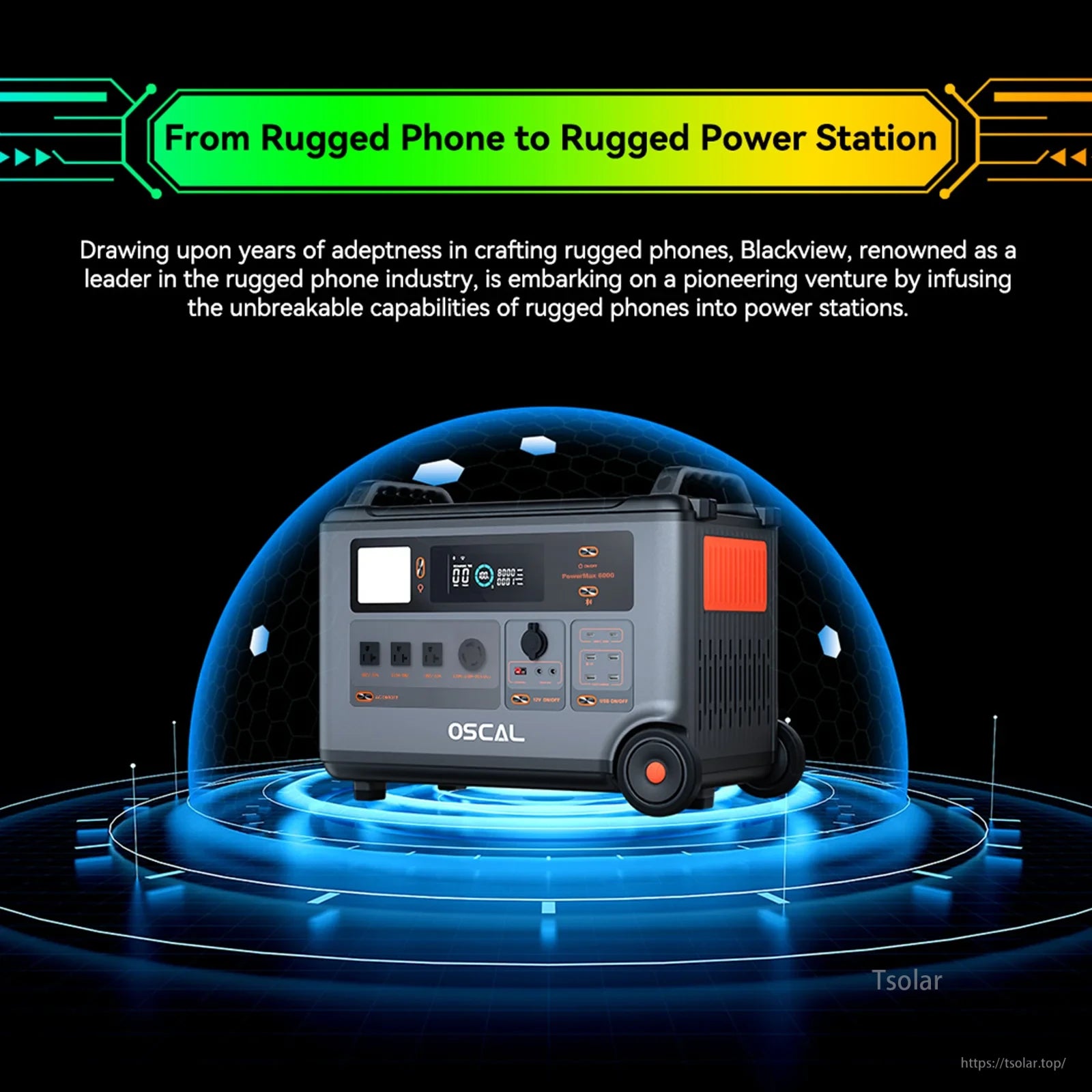

OSCAL PowerMax 6000, a rugged power station by Blackview, combines durability with advanced power solutions for reliable energy on the go.
PowerMax 6000 is drop-proof from 0.8M, splash-proof, and dust-proof, offering durable performance in tough outdoor conditions.
OSCAL PowerMax 6000 provides versatile lighting and emergency communication with five LED modes: Dim, Bright, Breathing Light, Flashing, and SOS. Morse code signaling allows distress calls in low visibility. Ideal for power outages or outdoor emergencies, it supports home illumination and wild communication. The light conveys signals via brightness and flash patterns, effective at night or in harsh conditions.
OSCAL PowerMax 6000 supports 120V devices like TVs, computers, coffee makers, microwaves, blenders and 240V devices including stoves, ovens, ACs, dryers, welders.

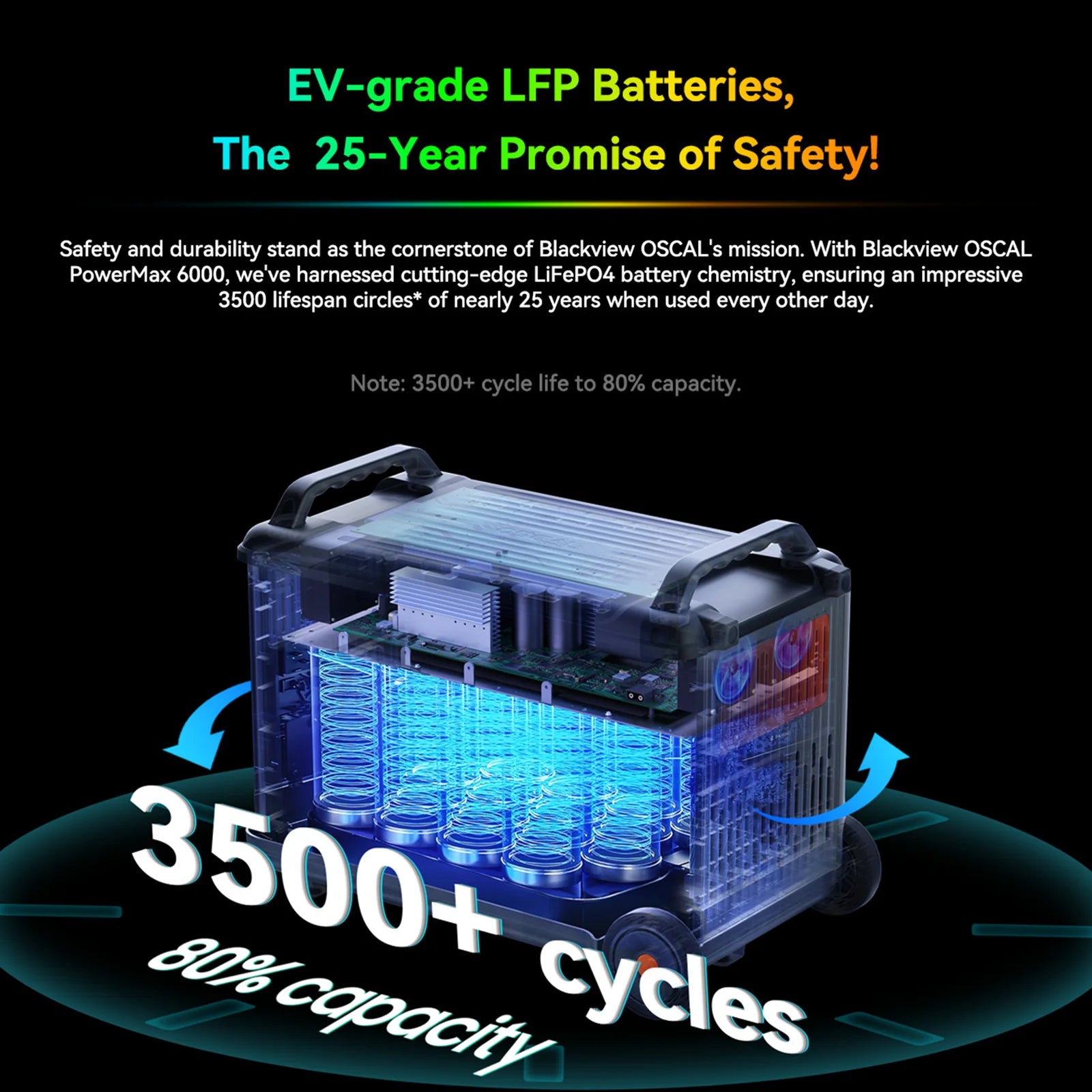

LFP batteries in the Blackview OSCAL PowerMax 6000 use advanced LiFePO4 chemistry, offering over 3,500 lifespan cycles—retaining 80% capacity—and lasting nearly 25 years with bi-daily use. Designed for safety and durability, it features a transparent casing with glowing blue cells, handles, and wheels, emphasizing long-term reliability and performance.
OSCAL PowerMax 6000 operates stably from -20°C to 55°C, offering 10°C better resistance than competitors. It includes high-temperature alerts at 55°C and overload protection at 58°C, ideal for extreme conditions.
OSCAL PowerMax 6000 offers Bluetooth and WiFi control via smart app, remote settings, power monitoring, and a clear LCD. Its TI chipset enables 10% faster button response compared to Etron-based models.

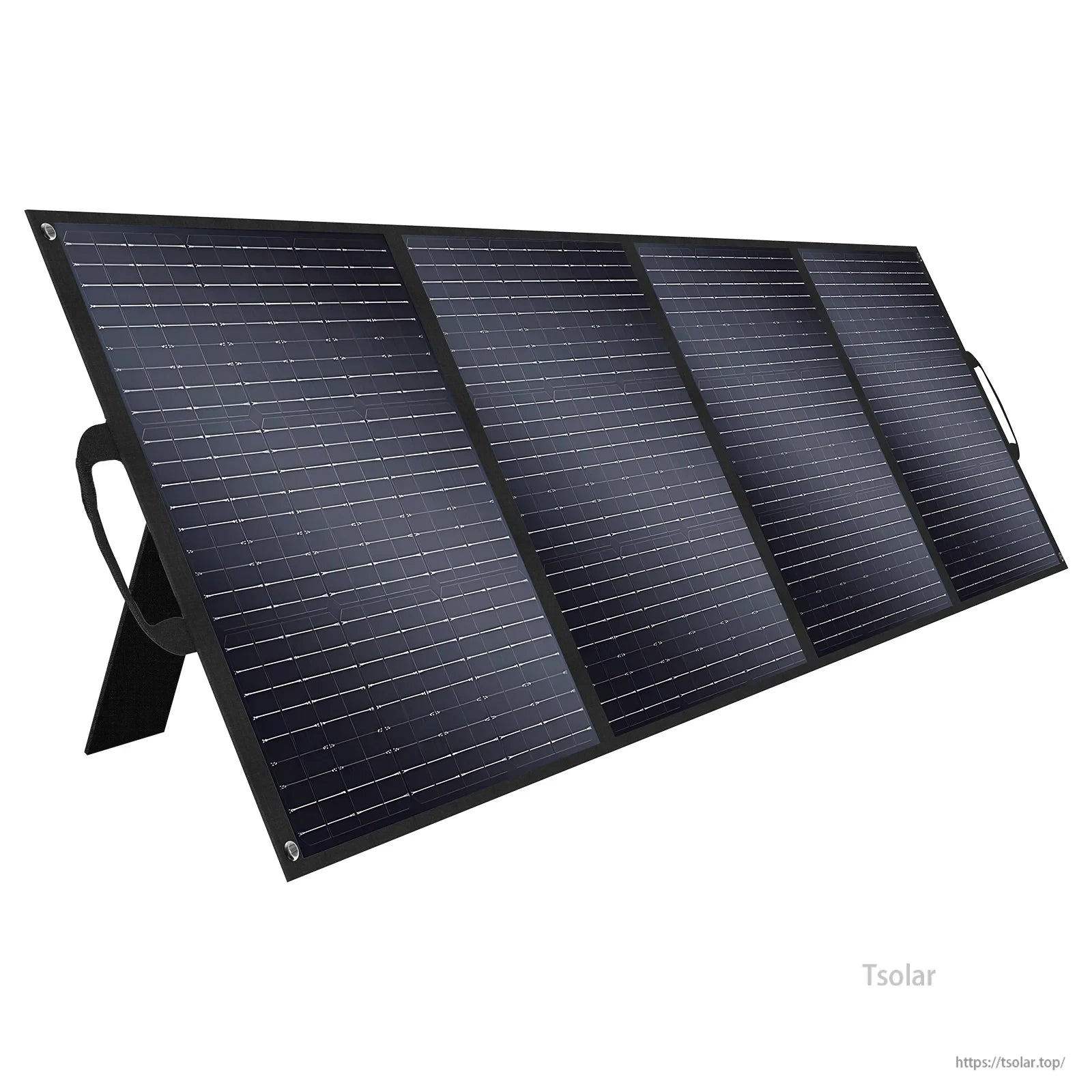

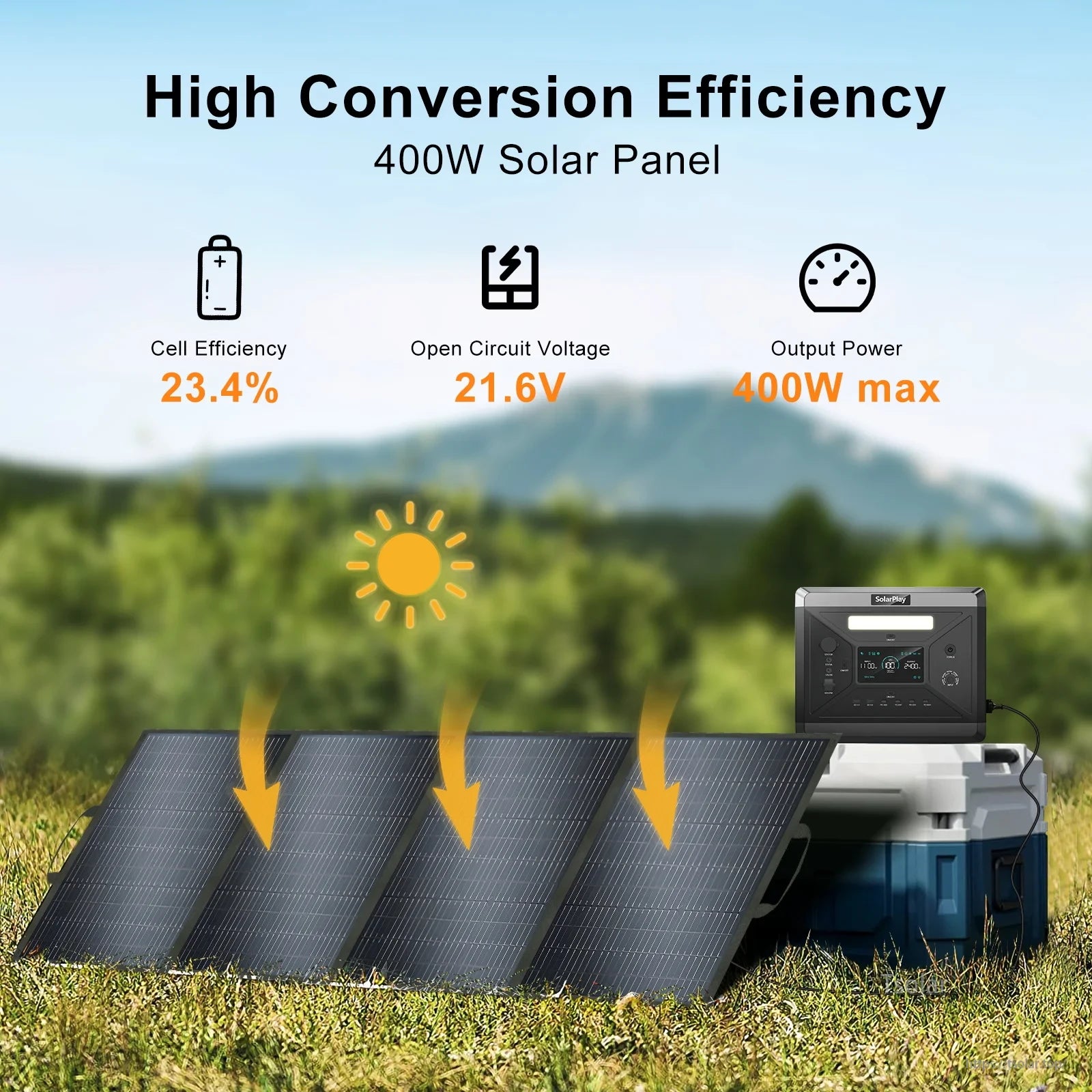

High efficiency 400W solar panel with 23.4% cell efficiency

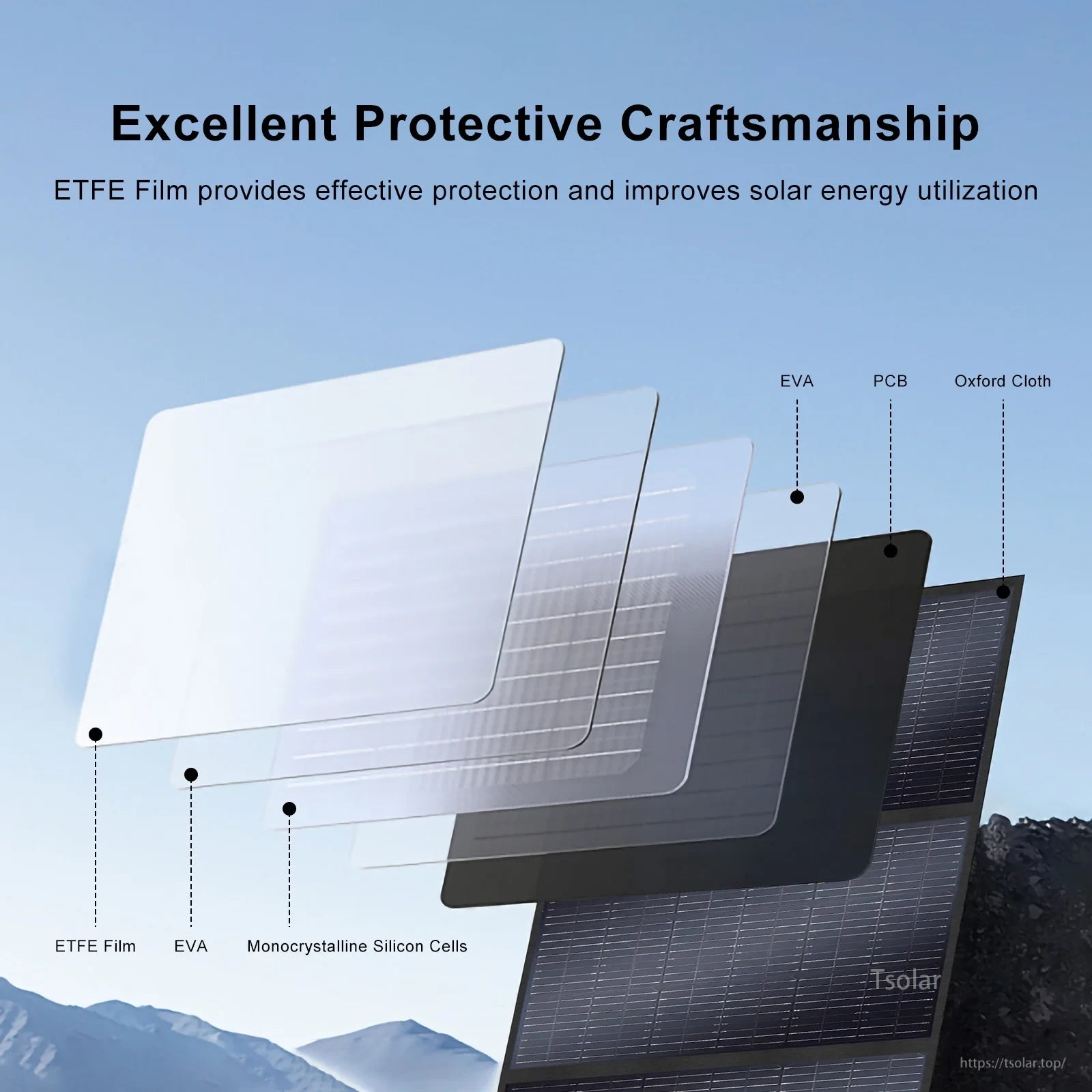

ETFE Film protects and enhances solar energy utilization in solar panel construction.

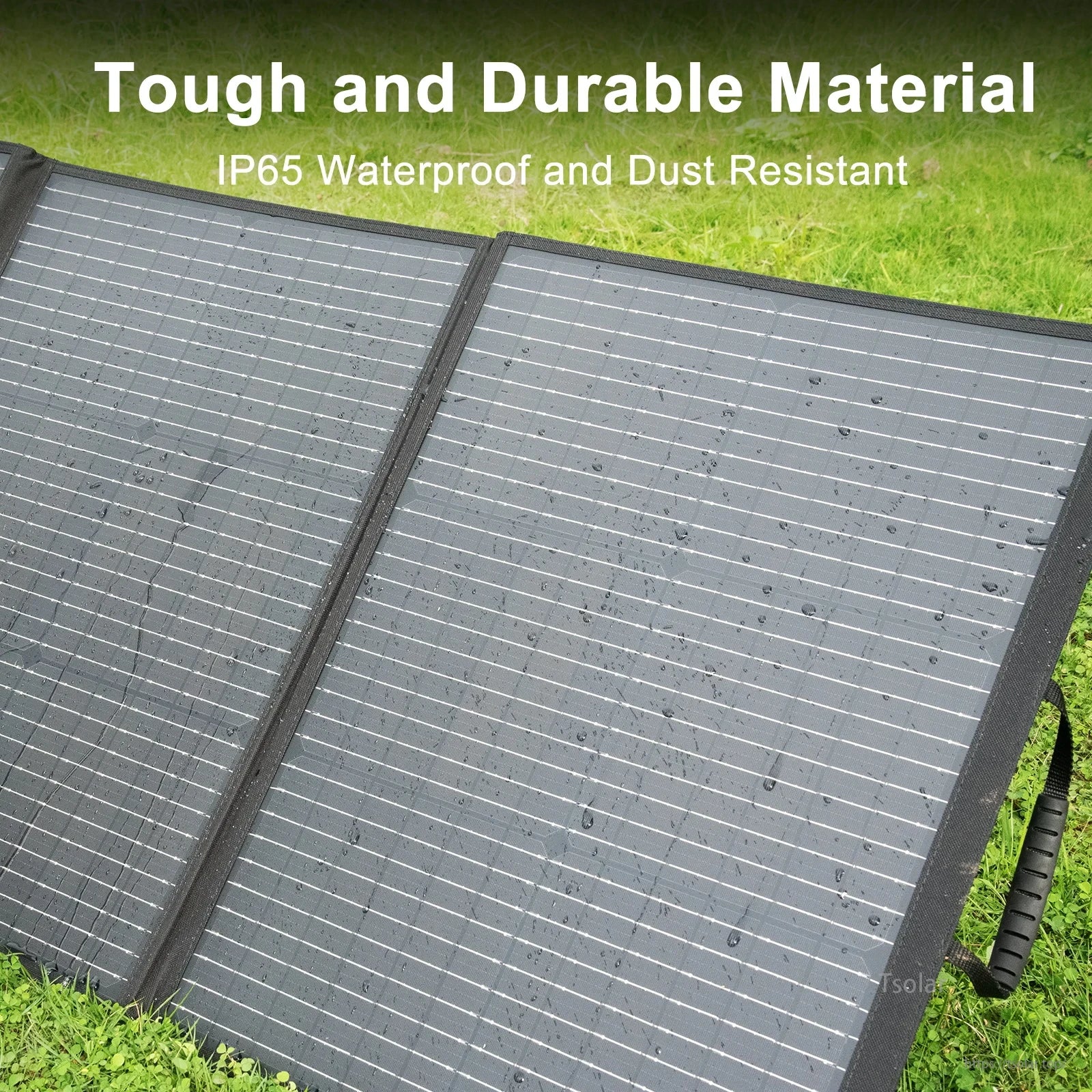

Tough durable material, IP65 waterproof and dust resistant solar panel.

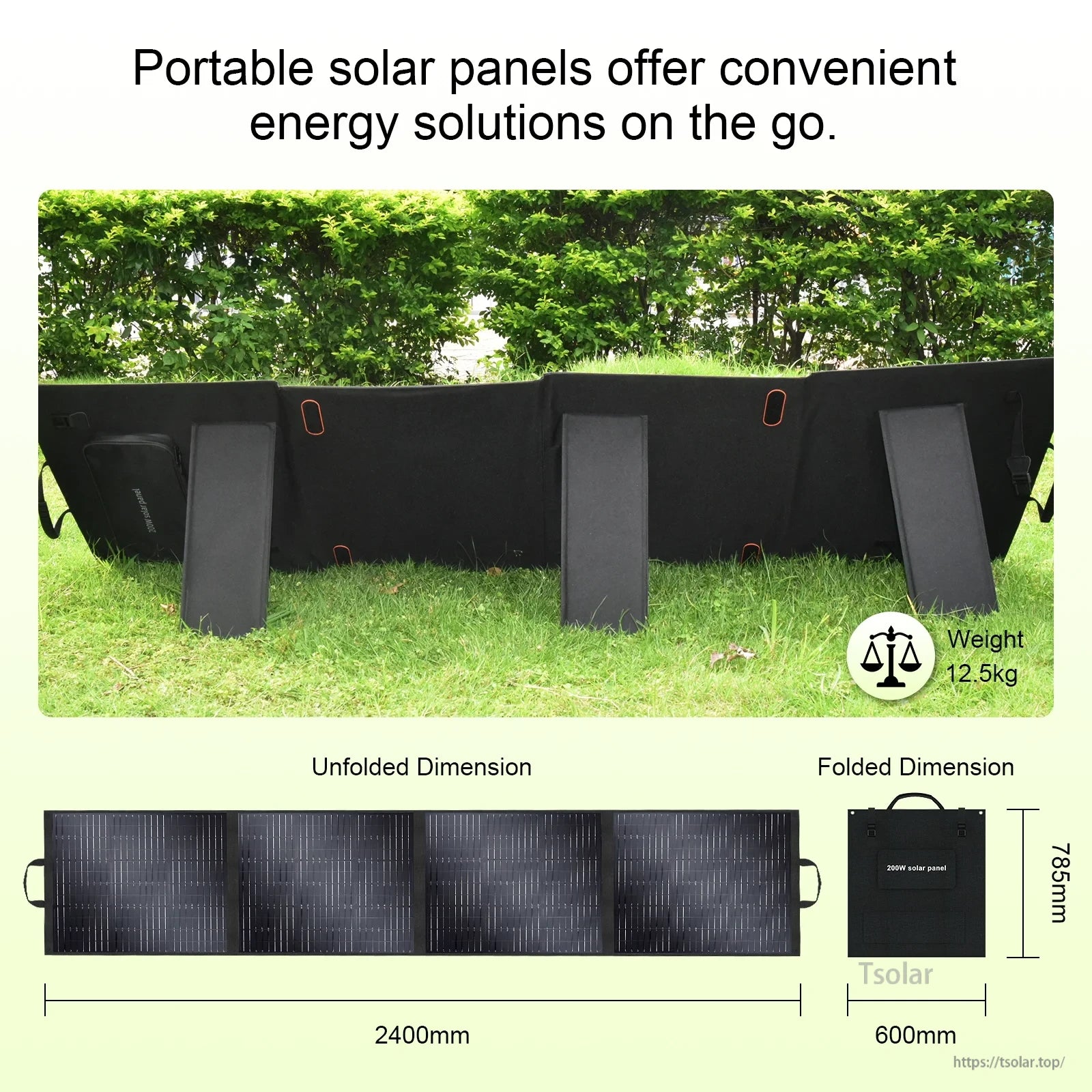

200W portable solar panel, 12.5kg, unfolds to 2400mm, folds to 600x785mm.

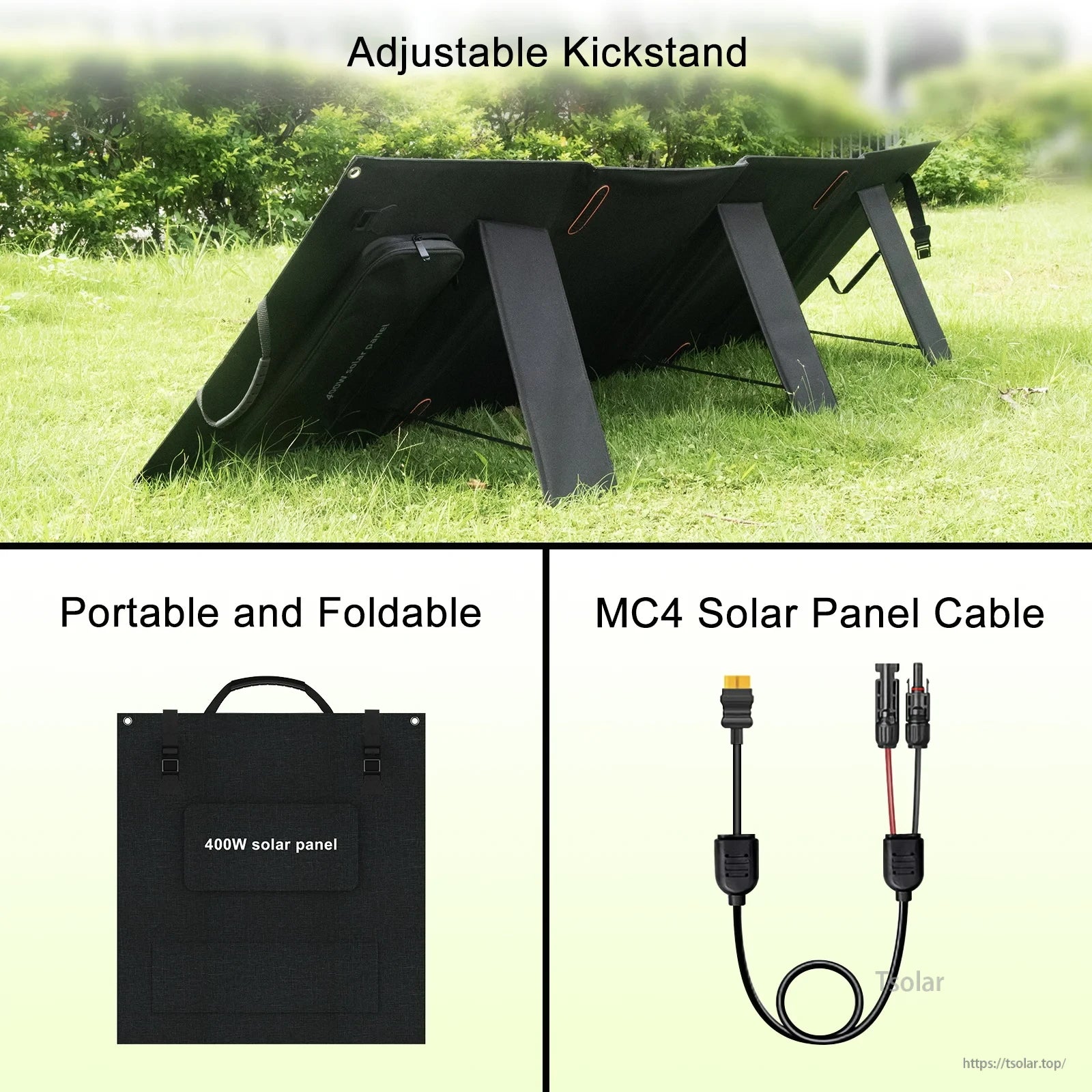

Portable foldable 400W solar panel with adjustable kickstand and MC4 solar cable.
