Overview

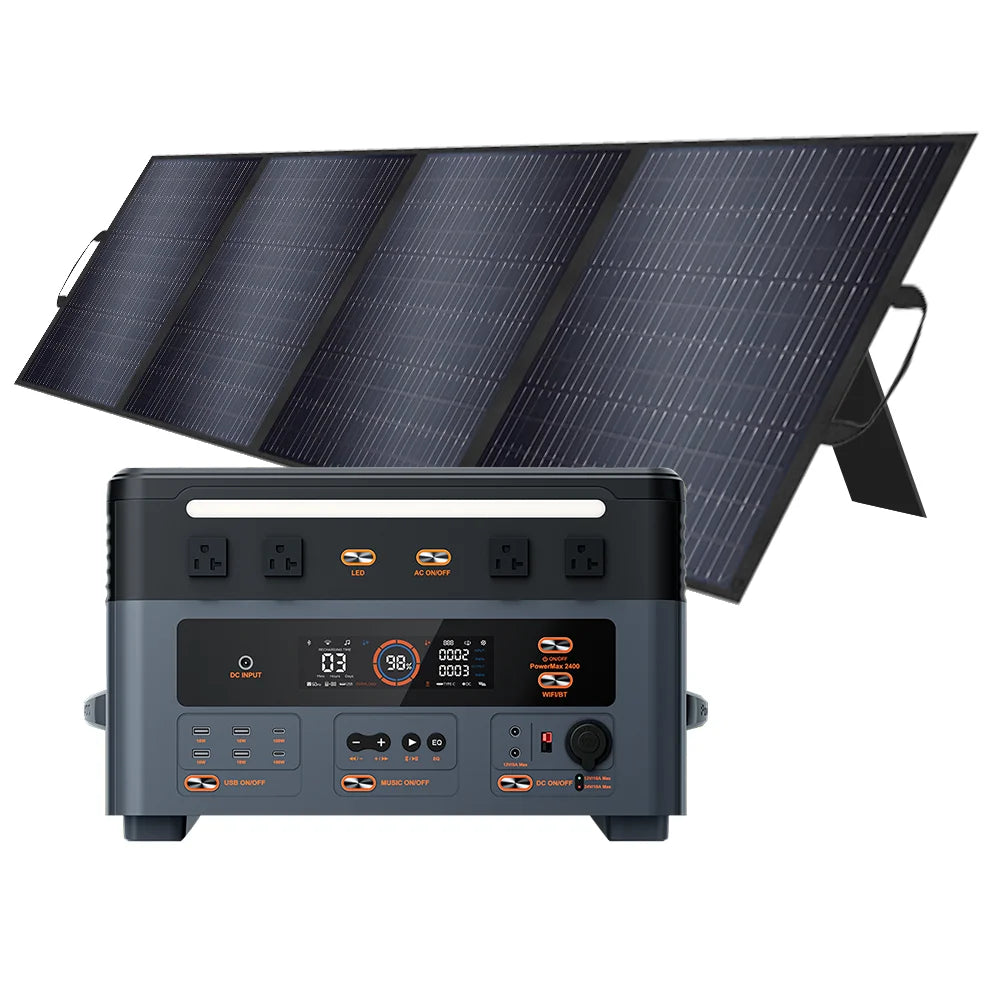

This Portable Power Station + Solar Panel bundle combines the Oscal Blackview PowerMax 2400 with a foldable 200W monocrystalline solar panel to deliver high-capacity off‑grid and backup power. The LiFePO4 battery provides 1872Wh, the pure sine wave inverter supplies 2400W AC output (4800W surge), and up to 16 outlets support diverse devices. Fast AC and solar charging, UPS functionality, rugged construction, and smart app control enable reliable power for home emergencies, camping, job sites, and solar power storage.
Key Features
- 1872Wh LiFePO4 battery with 3500+ cycles to 80% original capacity; advanced BMS management.
- 2400W pure sine wave AC output (4800W surge); supports DC/AC bi-directional inverter and 120V/240V dual voltage output.
- Comprehensive I/O: 4x AC outlets, 4x USB-A (18W), 2x USB-C (100W max), 2x DC5521 (60W), 1x car cigarette lighter (240W max), 1x Anderson (240W max), 2x 15W wireless charging pads.
- Fast recharging: AC fast charging full in 1.6 hours (1400W max); also supports 1.5-hour full charge via AC/EV/generator; solar full in 2.8 hours (800W max). AC charging input 1000W–1500W; solar charging input 500W–1000W.
- UPS backup: automatic switchover advertised at 5–8 ms; specification lists UPS switching time 0.01s.
- Rugged build: ABS+PC construction withstands vertical drops up to 0.8m; helps prevent ingress of solid particles and vertical water splashes. Operates from -4°C to 113°C. Five LED light modes with Morse code signaling.
- Smart remote control: manage via OSCAL app over Wi‑Fi or Bluetooth; monitor usage and execute commands.
- Pass-through charging supported; frequency selectable 50Hz/60Hz; display screen: Yes.
- Expandable system: scalability 1872Wh up to 20592Wh (PowerMax 2400 + up to 10×BP2400).

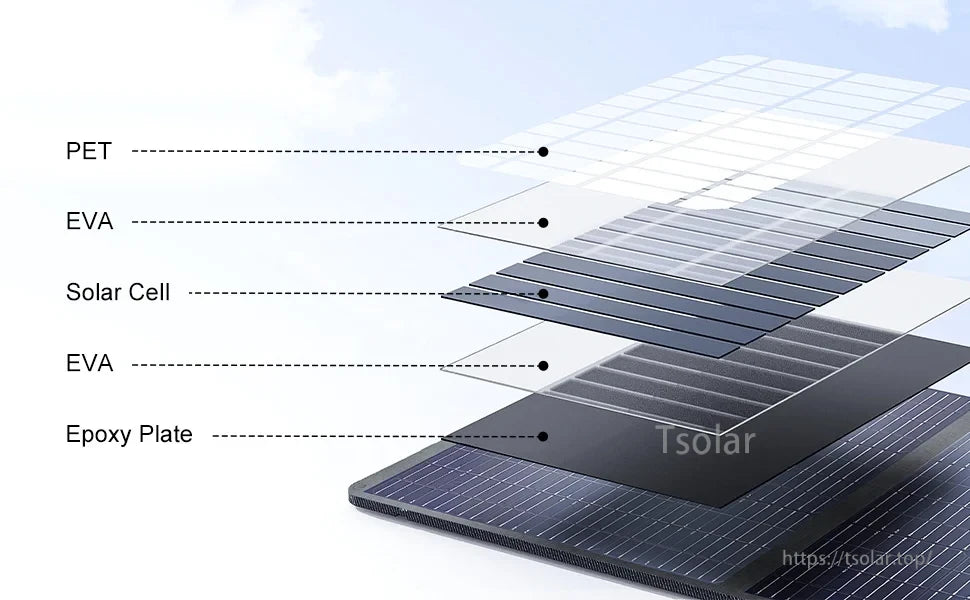

- Included 200W solar panel: ETFE-coated monocrystalline, up to 23.4% efficiency; foldable four-panel design, 58 × 172 × 3 cm unfolded, 6.1kg; up to 18V/11.1A output, Voc 21.6V, Isc 13.3A; -10℃ to 65℃ operating range; 5-year warranty; supports series/parallel (up to three panels).
Specifications
General
| Brand Name | OSCAL |
| Model Number | powermax 2400+T200 |
| Application | Solar Power Storage |
| Product Type | Portable Power Station + Solar Panel |
| Bundle | Bundle 2 |
| Set Type | Charger Sets |
| Origin | Mainland China |
| Battery Core manufacturer | Other |
| Battery Number | 1 |
| Type | LiFePO4 (Lithium Iron Phosphate) |
| Display screen | Yes |
| Features | Power bank powerful |
| Features 1 | With 200w Foldable Solar Panel |
| Features 2 | booster for car start |
| Features 3 | camping equipment |
| Features 4 | 50Hz/60Hz |
| Hign-concerned Chemical | None |
| Replacement Battery | No |
| Size | 58*37*41cm |
| Dimensions (L x W x H) | 47 × 29 × 32.6 cm / 18.5 × 11.4 × 12.8 in |
| Net Weight | 10 KG - 30 KG |
| Weight | Approx. 25.5Kg / 53.8lbs |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Storage Temperature | -14-113℃ (-10’C-45℃℃) |
| Warranty (Power Station) | 3 Years |
| Certification | CE, UL |
| Certifications (Regional) | Europe: CE/LVD (EN62368-1), CE/EMC (EN55032/35), RED (ETSI EN 303 417; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62479), ROHS (EU); Japan: PSE/METI; America: FCC ID/DOE CEC/FCC (Part 15C) |
Battery Info
| Capacity | 1872Wh |
| Scalability | 1872Wh-(20592Wh PowerMax 2400+Up to 10*BP2400) |
| Life Cycles | 3500+ cycles to 80% original capacity |
| Shelf-life | Recharge to 80% every 3–6 months |
| Management System | BMS |
Output
| Rated Power | 2400W |
| Surge Power | 4800W |
| Inverter Type | Pure Sine Wave |
| AC Outlets | 4 × 2400W Max |
| USB-A Ports | 4 × 18W |
| USB-C Ports | 2 × 100W Max |
| DC5521 Ports | 2 × 60W |
| Car Cigarette Lighter Port | 1 × 240W Max |
| Anderson Connector | 1 × 240W Max |
| Wireless Charging Pads | 2 × 15W |
Input
| AC Charging Input | 1000W - 1500W |
| AC Fast Charging | 1.6 Hours (Full Charge); 1400W (Max). Pair with PM200 for 1,500W Max. |
| Solar Charging | 2.8 Hours (Full Charge); 800W (Max) |
| 12/24V Car Outlet | 120W/240W |
| 24V Charge Time | 9 Hours (Full Charge) |
| 12V Charge Time | 18 Hours (Full Charge) |
Functions
| Pass-through Charging | Yes |
| UPS Switching Time | 0.01s |
Solar Panel (200W) Specifications
| Maximum Output | 200W (Pm) |
| Cell Type | Monocrystalline silicon |
| Coating | ETFE film |
| Conversion Efficiency | Up to 23.4% |
| Design | Four foldable panels |
| Unfolded Size | 58 × 172 × 3 cm / 22.8*67.7*11.8 inches |
| Weight | 6.1kg / 13.5lbs |
| Output Voltage (Max) | Up to 18V |
| Output Current (Max) | Up to 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Operating Temperature | -10℃ to 65℃ |
| Optimal Operating Temperature | +25°C |
| Connectivity | Supports series or parallel connection (up to three panels) |
| Warranty (Solar Panel) | 5 Years |
What’s Included
- Solar panel × 1
- MC4 charging cable × 1
Applications
- Home and office backup with UPS for network equipment and sensitive electronics
- Outdoor camping, hiking, and job sites; camping equipment
- Solar power storage and off‑grid use
- Booster for car start (as listed)
Details

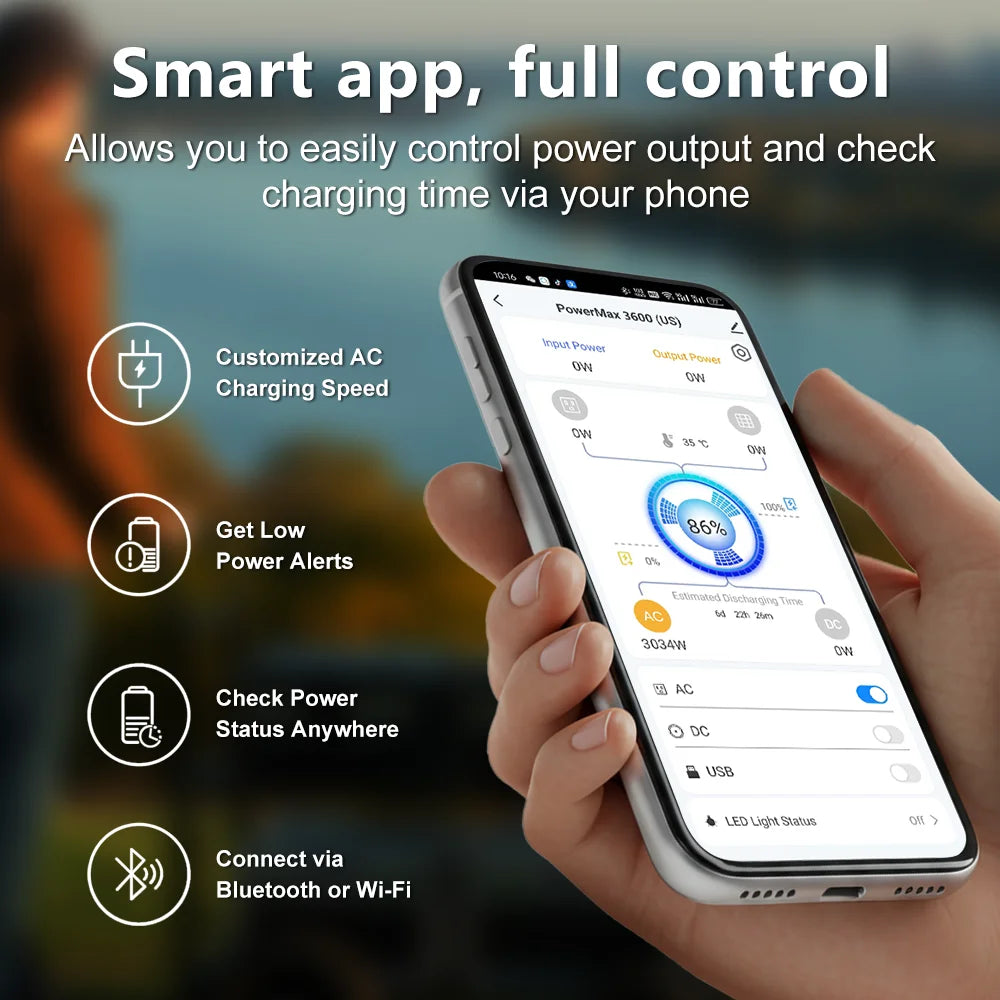

Smart app enables full control over power output and charging time via phone. Features include customized AC charging speed, low power alerts, remote power status monitoring, and connectivity through Bluetooth or Wi-Fi. The app interface displays real-time data such as input/output power, temperature, battery level at 86%, estimated discharging time, and toggles for AC, DC, USB, and LED light status. Users can manage settings seamlessly from their smartphone.

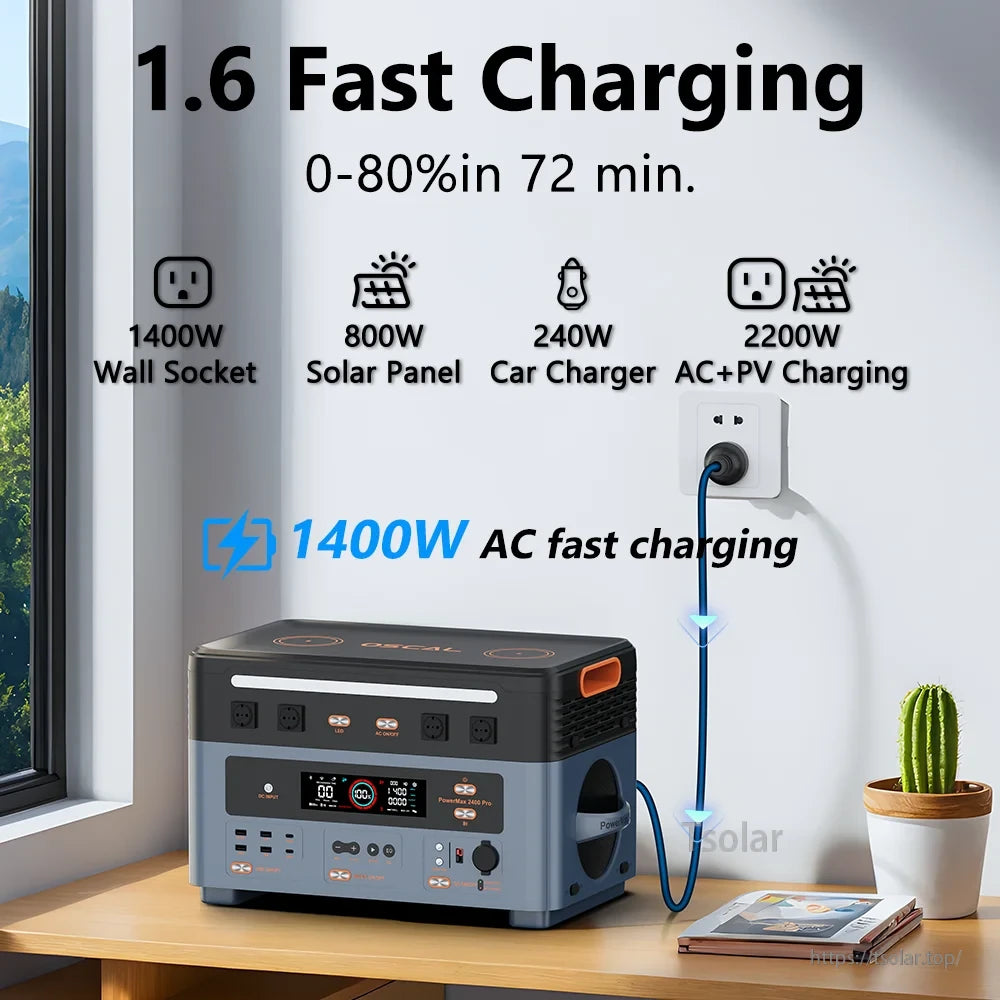

Fast charging 0-80% in 72 min. 1400W wall socket, 800W solar panel, 240W car charger, 2200W AC+PV charging.

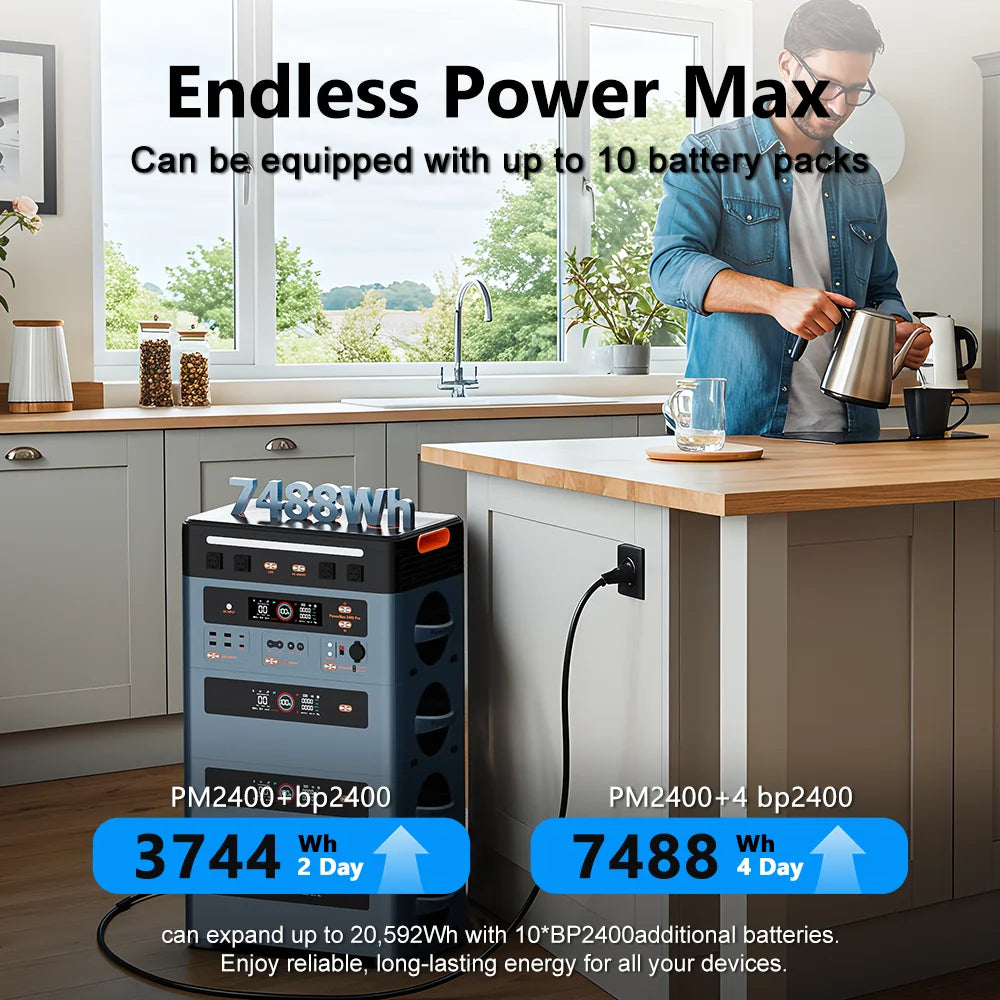

Endless Power Max supports up to 10 battery packs. PM2400 with 1 or 4 BP2400 batteries offers 3744Wh (2-day) or 7488Wh (4-day) capacity. Expandable to 20,592Wh for reliable, long-lasting power.

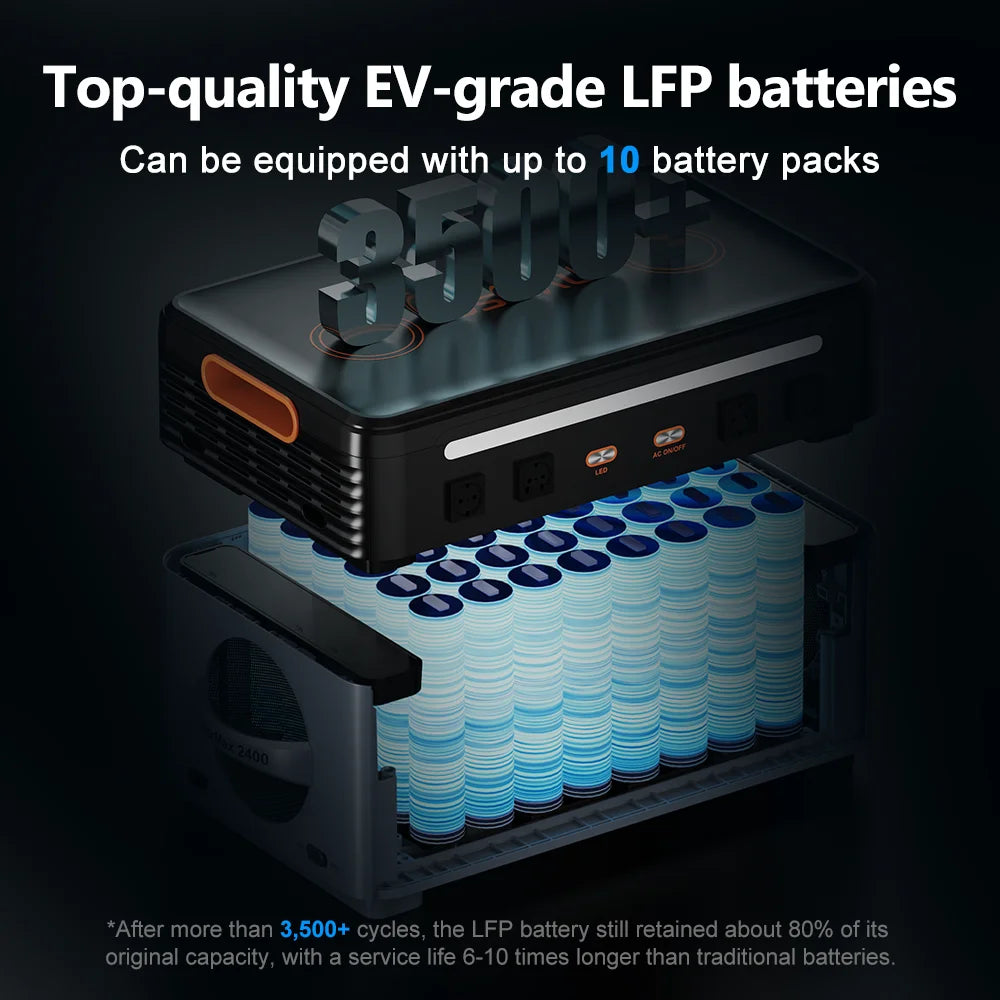

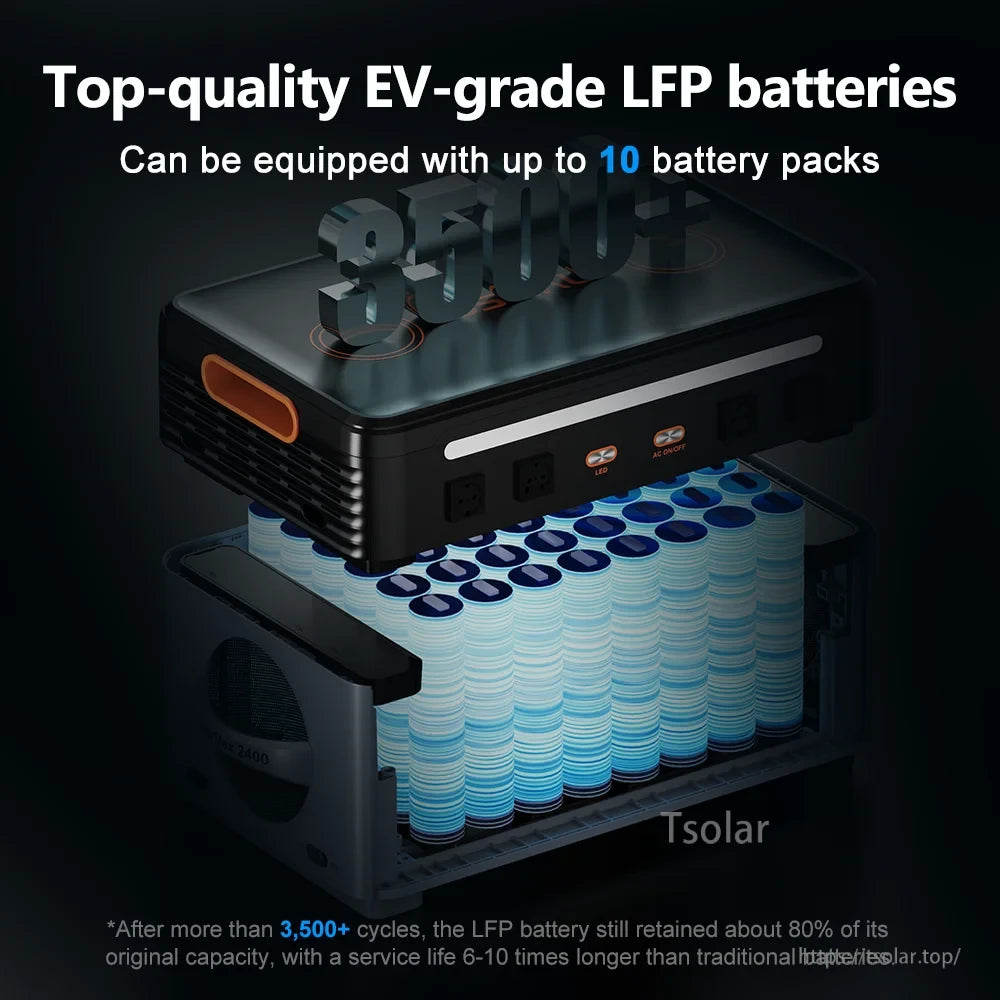

Top-quality EV-grade LFP batteries, up to 10 packs, 3,500+ cycles, 80% capacity retention, 6-10x longer life.

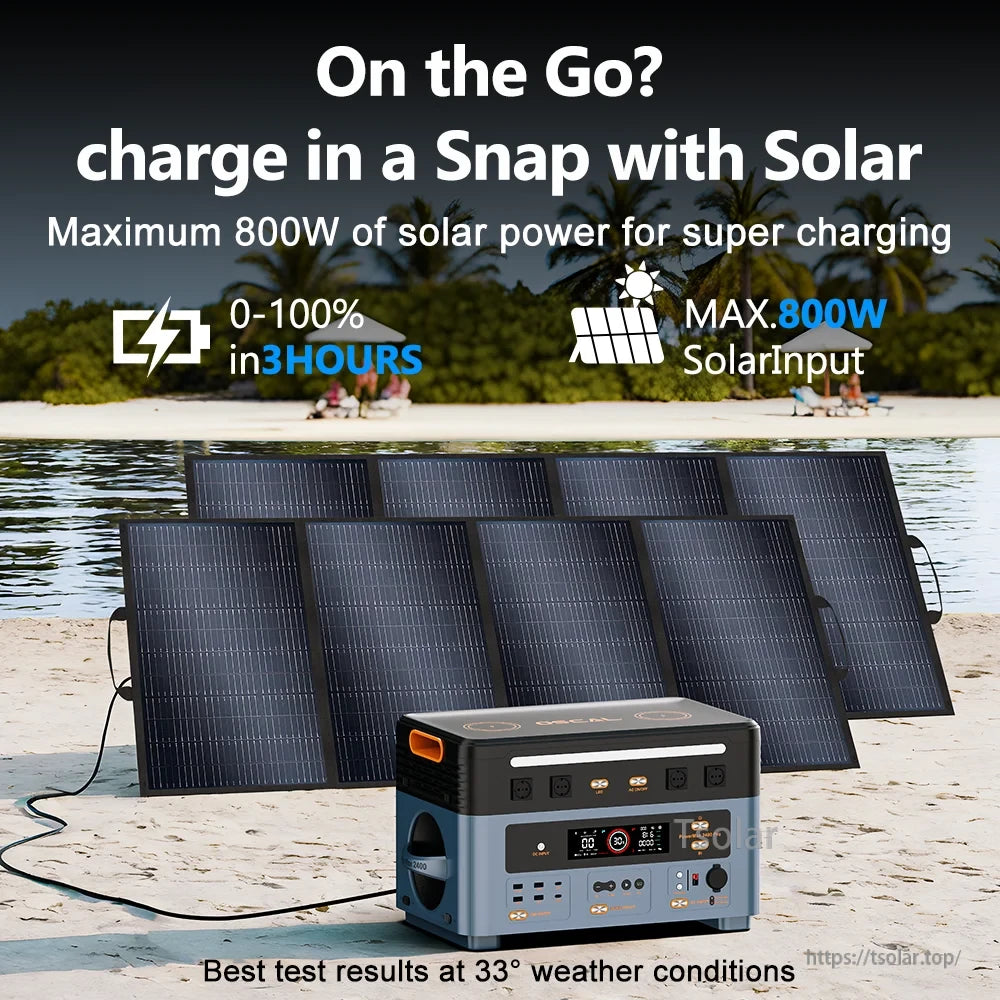

Solar-powered 800W charger reaches 0-100% in 3 hours, ideal for beach use.
Foldable 200W solar panel, portable and easy to carry for outdoor use.

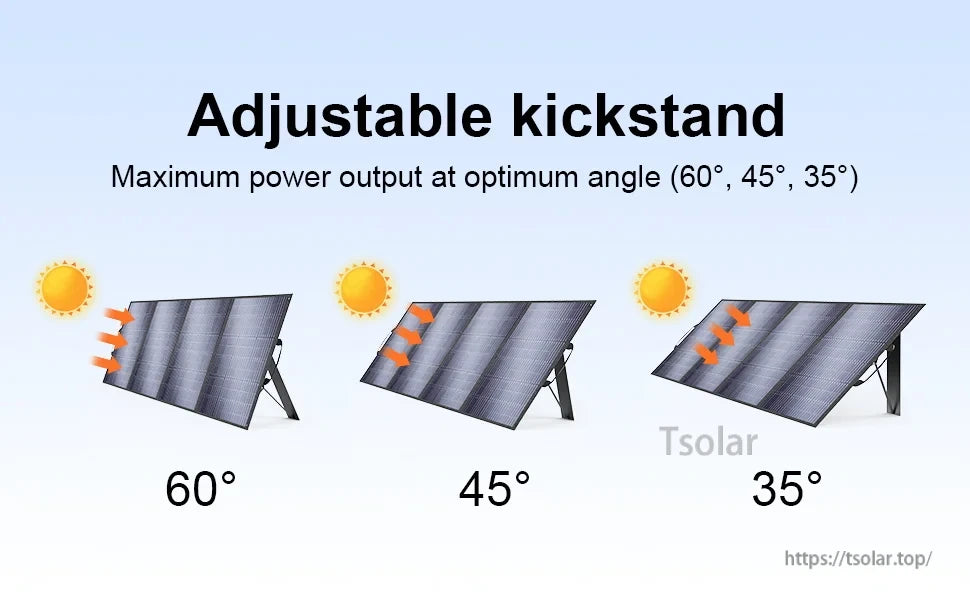

Adjustable kickstand optimizes solar energy capture at 60°, 45°, and 35° angles for maximum power output.

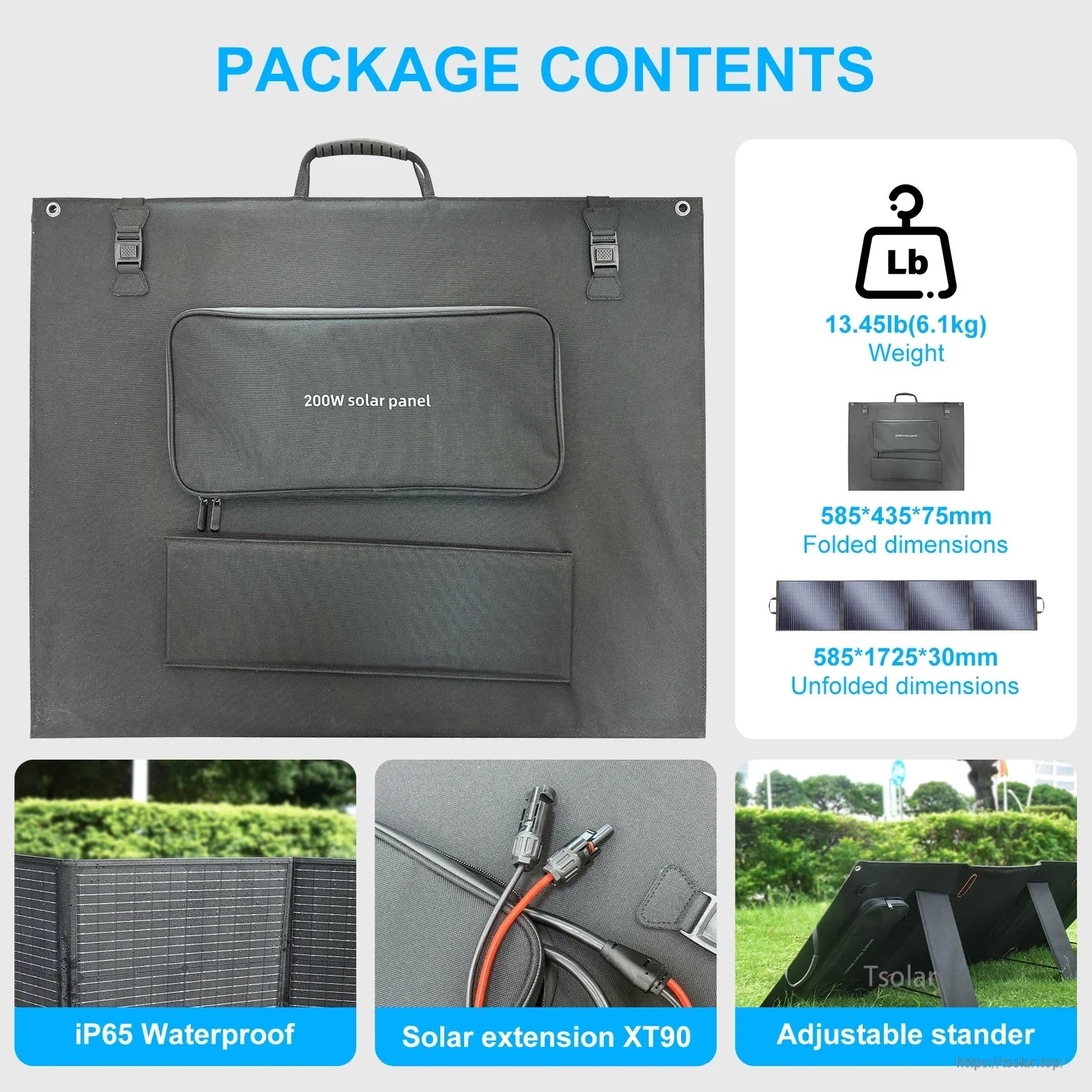

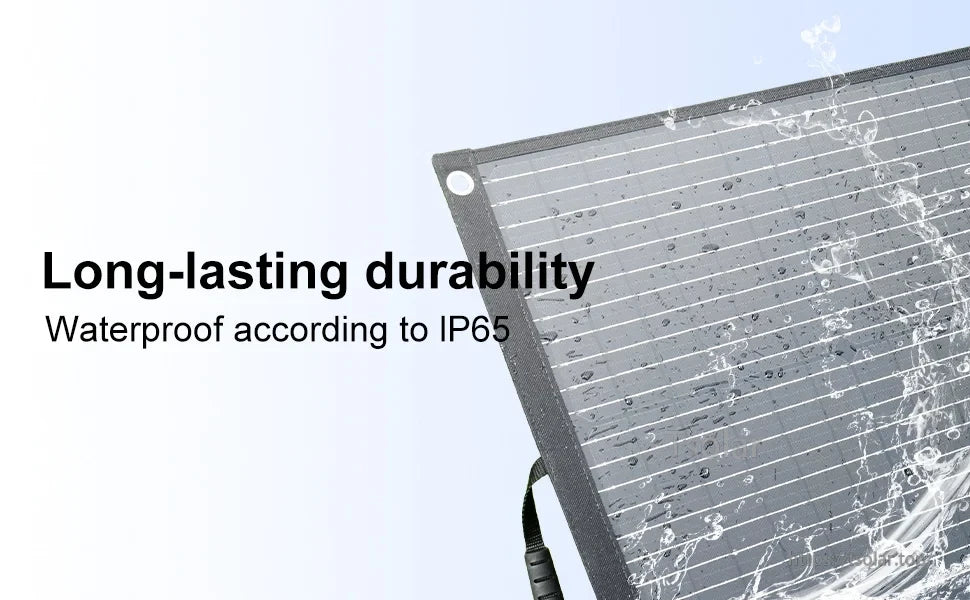

200W solar panel, 13.45lb, IP65 waterproof, XT90 connector, adjustable stand, compact foldable design with specified dimensions.
