Overview

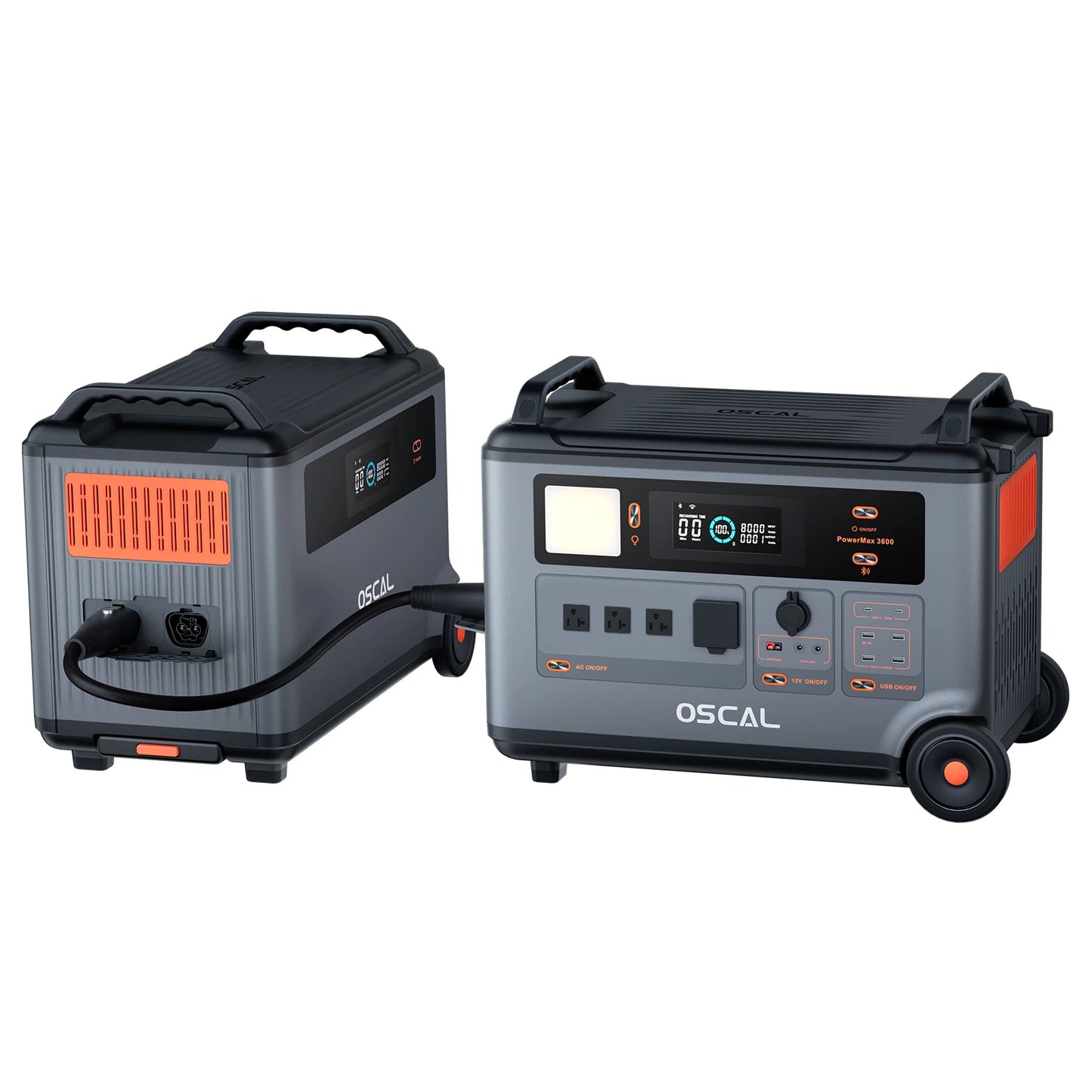

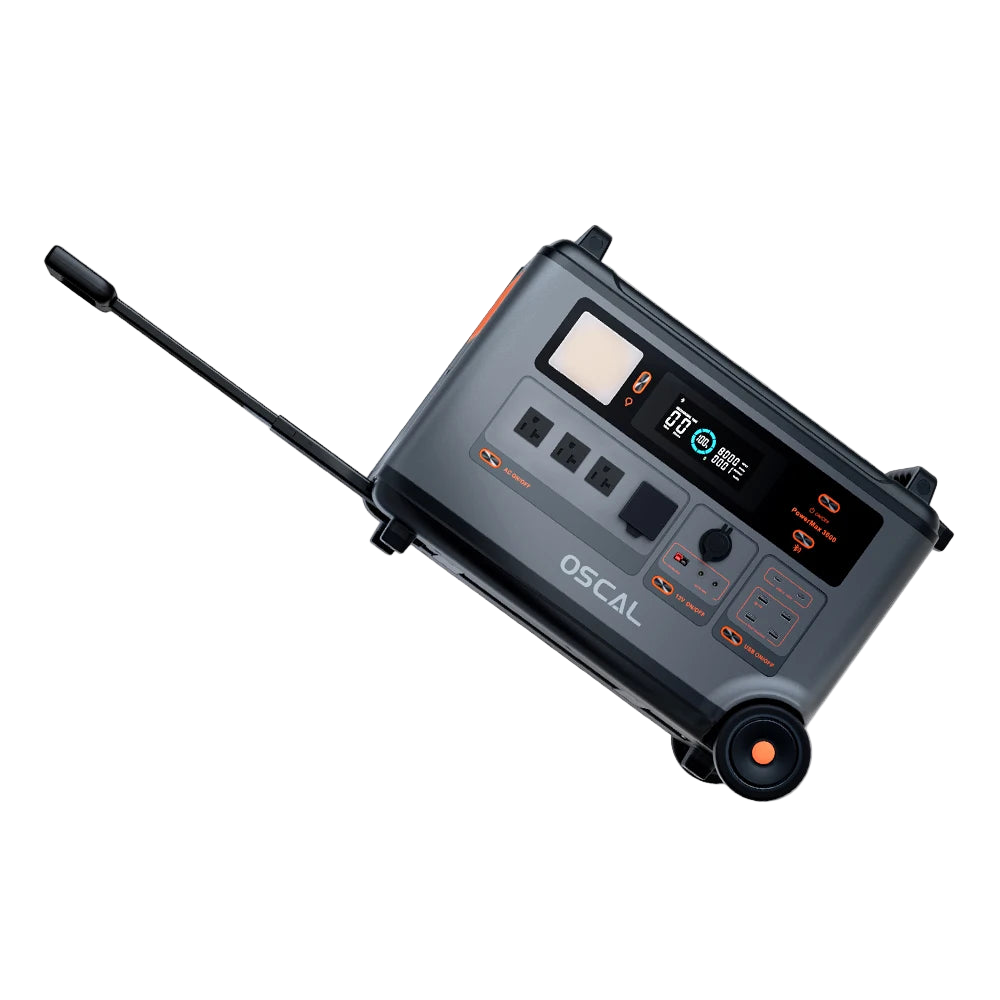

Oscal Blackview PowerMax 3600 Rugged Power Station is a high-capacity LiFePO4 backup and portable power solution designed for solar power storage, off-grid use, and emergency home backup. It delivers a 3600W rated pure sine wave AC output, supports 14 versatile outlets, offers modular battery expansion from 3.6 kWh up to 57.6 kWh (15 packs, 3600 Wh per pack), and features 5 LED lighting modes with Morse code signal capability. The unit integrates a display screen and app control via WiFi and Bluetooth, and it is built with an Anti-UV, UL94V-0 flame-retardant case, 0.8 m vertical drop-proof design, and splash-/dust-proof body.
Key Features
- 3600 Wh LiFePO4 battery with 3500+ life cycles to 80% of original capacity.
- Pure sine wave inverter, 3600W rated output; 7200W surge.
- 14 versatile outlets to power multiple devices: AC, USB-C, USB-A, DC, Anderson, and cigarette lighter.
- Modular expansion up to 57.6 kWh (15 x 3600 Wh battery packs).
- Fast recharging options: AC adapter, solar, car input, and dual charging modes.
- UPS function for uninterrupted power, suited for home backup and sensitive electronics.
- 5 LED light modes plus Morse code signaling for low-visibility or emergency situations.

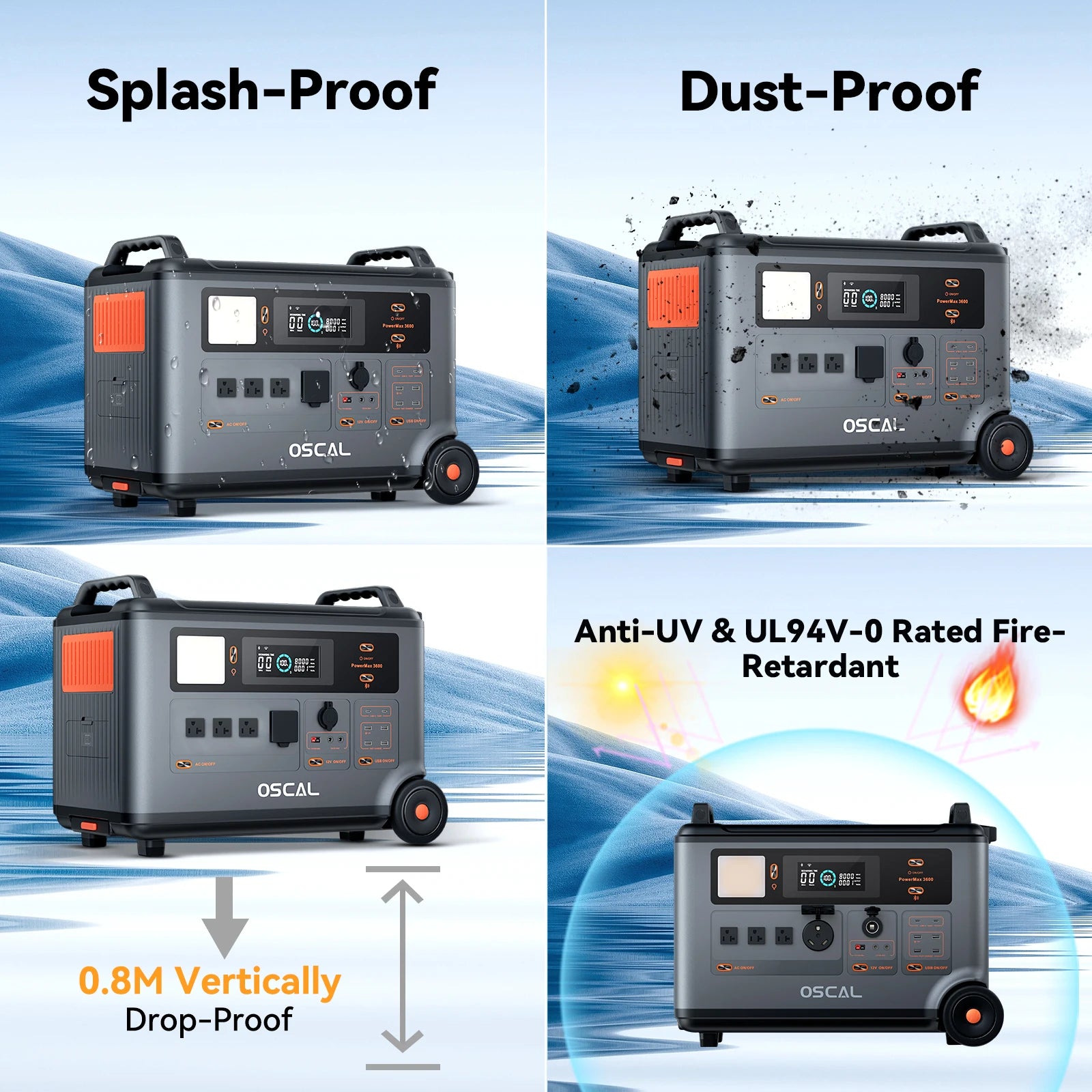

- Rugged construction: Anti-UV housing, UL94V-0 flame-retardant case, 0.8 m vertical drop-proof, splash- and dust-proof body.
- App control via WiFi and Bluetooth; on-device display screen.
- Certified to CE and FCC.
Specifications
| Brand | Oscal |
| Type | Rugged Power Station |
| Model | PowerMax 3600 |
| Color | Grey+Red |
| Nominal Capacity | 3600wh |
| Battery Capacity | 3600 Wh |
| Battery Type | LiFePO4 battery |
| Battery Life Cycles | 3500+ Cycles to 80% of Original Capacity |
| Battery Number | 1 |
| Replacement Battery | No |
| Battery Core manufacturer | Other |
| Inverter Type | Pure Sine Wave |
| AC Output | 4 x 3600W Output (Max) |
| Surge Power | 7200W |
| USB-C Ports | USB-C 100W x2 |
| USB-A Ports | USB-A 12W x1, USB-A 18W x3 |
| DC Output | Anderson 378W x1, DC 5521 36W x2 |
| Cigarette Lighter Port | 120W x1 |
| AC Charging Input | > 3000W |
| AC Adapter Input | 2200W (Max), Recharging Times: 1.96h |
| Solar Charging Input | 1000W - 1500W |
| Solar Input | 1600 W (Max), Recharging Times: 2.25h (With prime sunshine, ideal orientation, and low temperature) |
| Car Input | 120W (Max), Recharging Times: 30h |
| Dual Charging | AC Charging + DC-Solar Charging: 1.2h; AC Charging + DC-Car Charging: 1.86h |
| Charging Temperature | 0-50°C (32°F-122°F). Best under conditions from 0°C to 45°C (32°F-113°F) |
| Discharging Temperature | -20-55° (-4°F-131°F). Best under conditions from -10°C to 45°C (14°F-113°F) |
| Storage Temperature | -10°C-45°C (14°F-113°F) |
| App Control | Yes, Via WiFi and Bluetooth |
| Display screen | Yes |
| Connection | Bluetooth-Compatible |
| Certification | CE, FCC |
| Set Type | Charger Sets |
| Bundle | Bundle 1 |
| Origin | Mainland China |
| Hign-concerned Chemical | None |

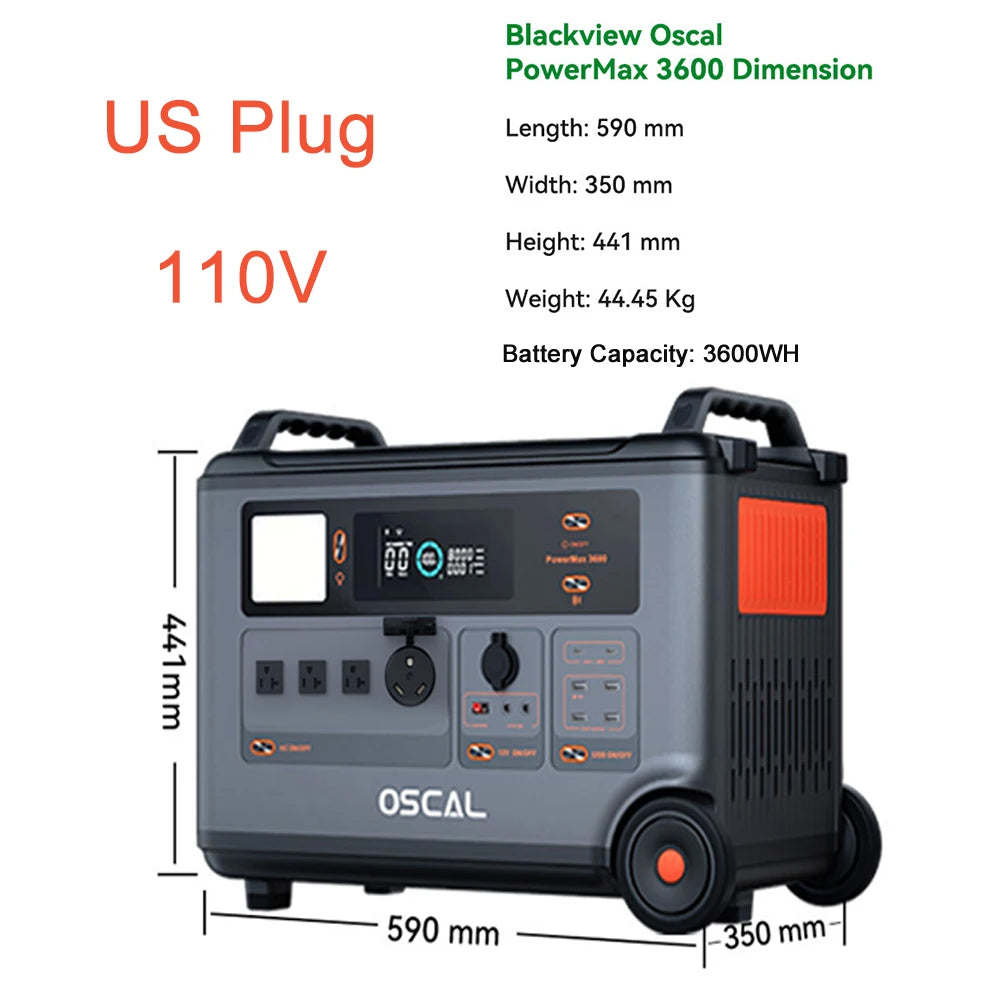

| Product Size (L x W x H) | 59x35x44.1cm |
| Size | L590*W350*H441 mm |
| Product Weight | 44.5kg |
| Net Weight | 30kg - 50kg |
| Package Size (L x W x H) | 66x40.5x52.5cm |
| Package Weight | 47.6kg |
Applications
- Solar Power Storage
- UPS Function for sensitive equipment
- Emergency power supply and Emergency Home Backup
- Camping, Fishing, RV power
Details
3600Wh ultra-large capacity, 1800W fast charging, 14 output ports, LiFePO4 battery with 3500+ cycles, UPS switch in 5ms, app remote control, three-proof function, expandable to 57600Wh.

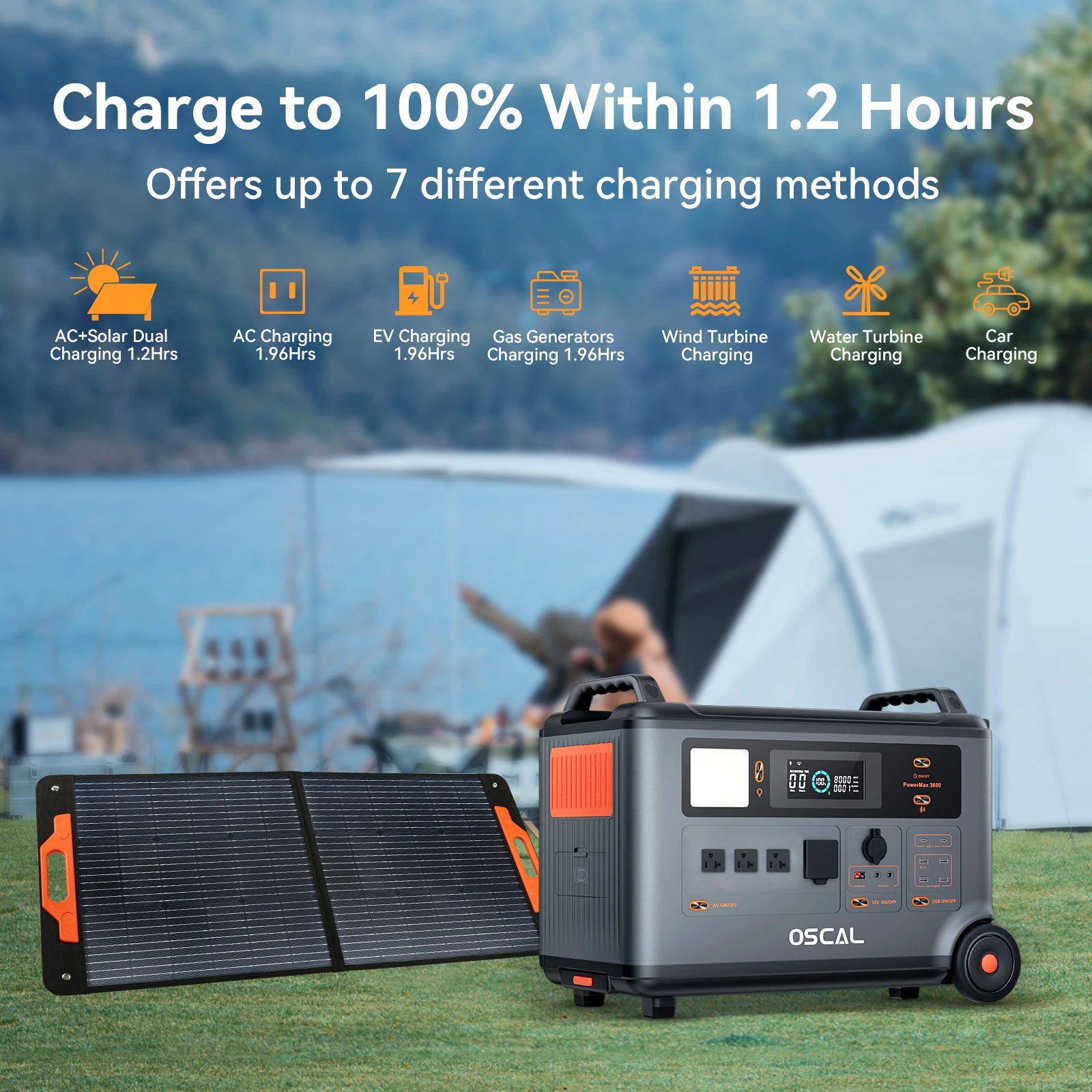

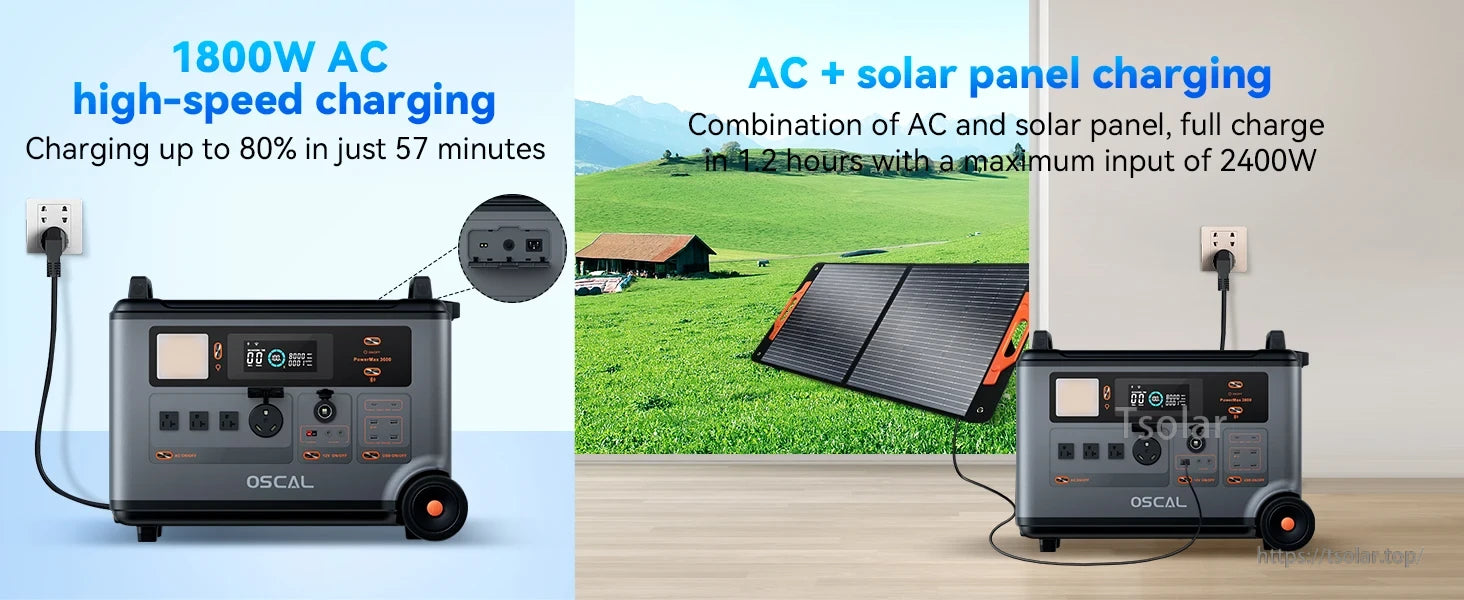

1800W AC fast charging, 80% in 57 mins. AC plus solar charging, full charge in 12 hours with 2400W input. OSCAL power station.
Charge up to 99% of essential devices with the OSCAL PowerMax 3600 portable power station.

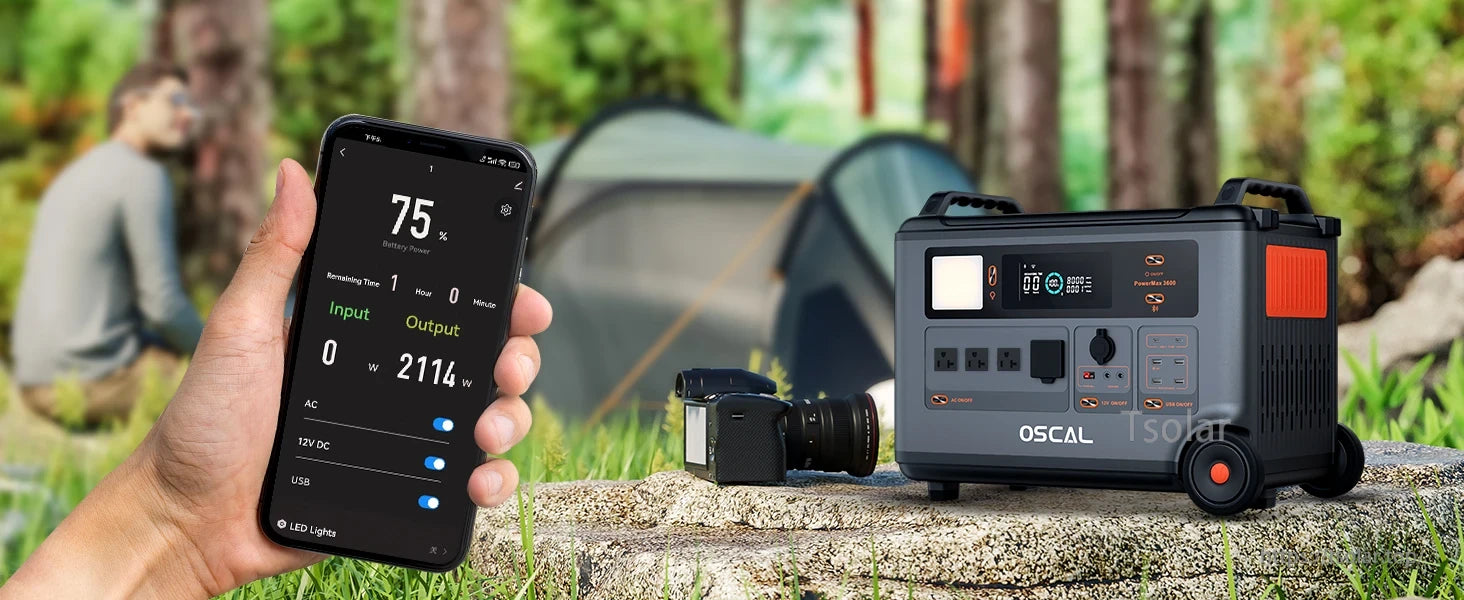

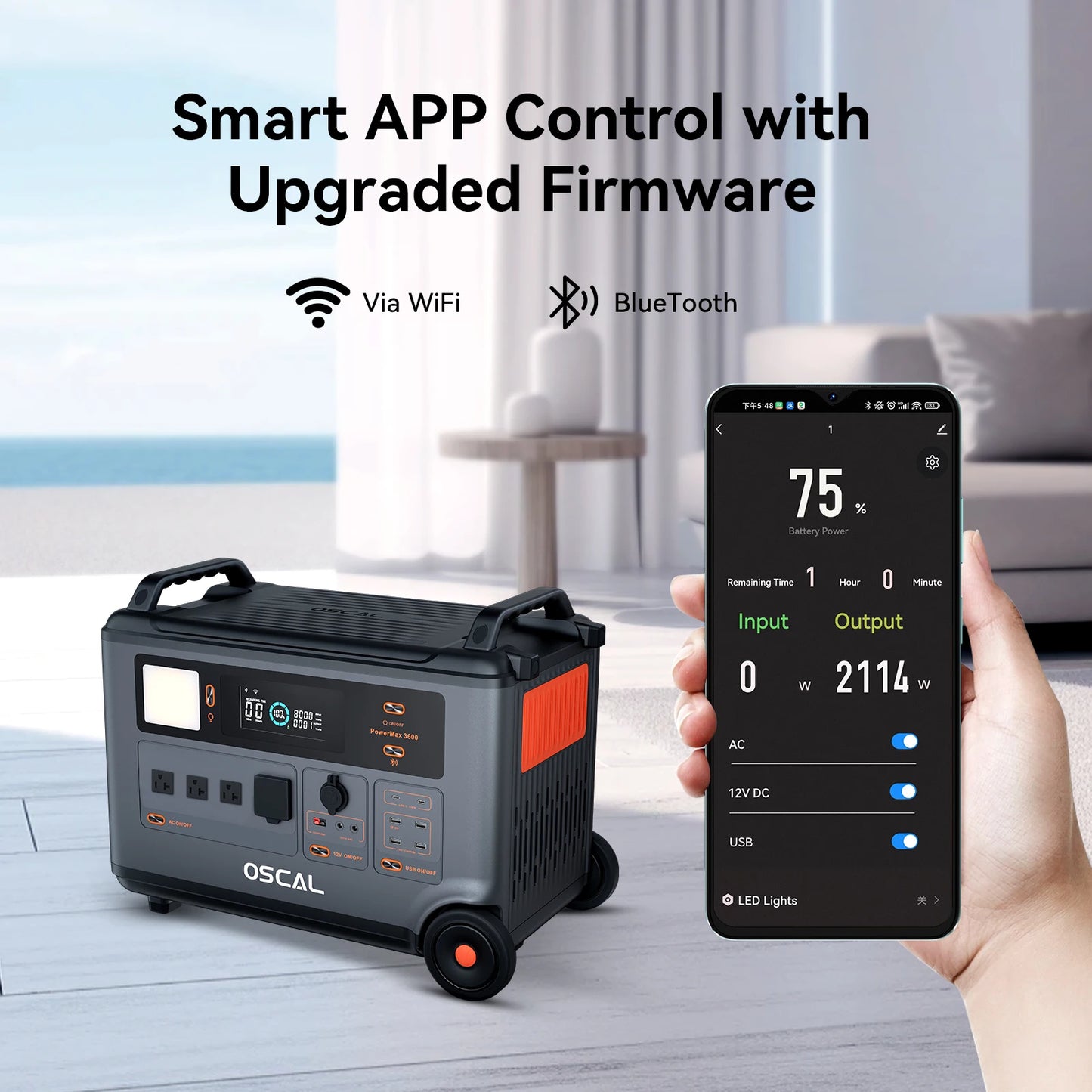

Portable power station, 75% battery, 2114W output, app-controlled, for camping.

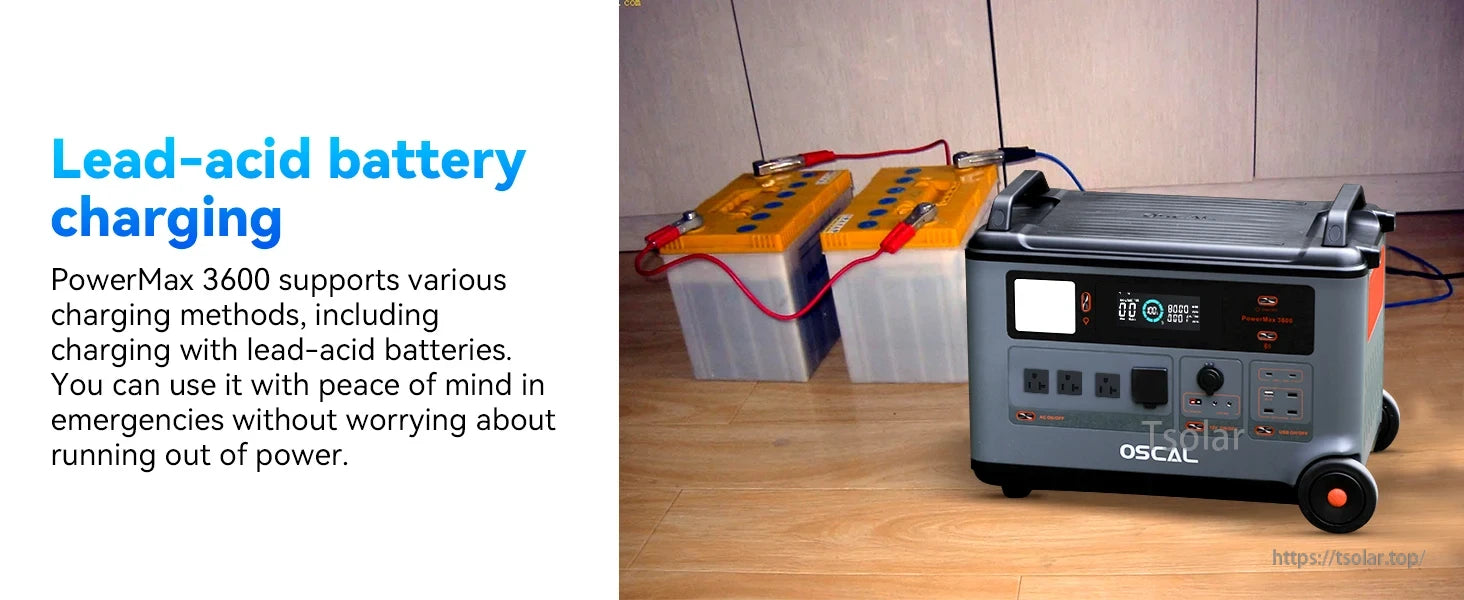

PowerMax 3600 supports lead-acid battery charging, offering reliable power in emergencies with multiple charging methods.
Car charging enables power supply during travel, ensuring convenient use.

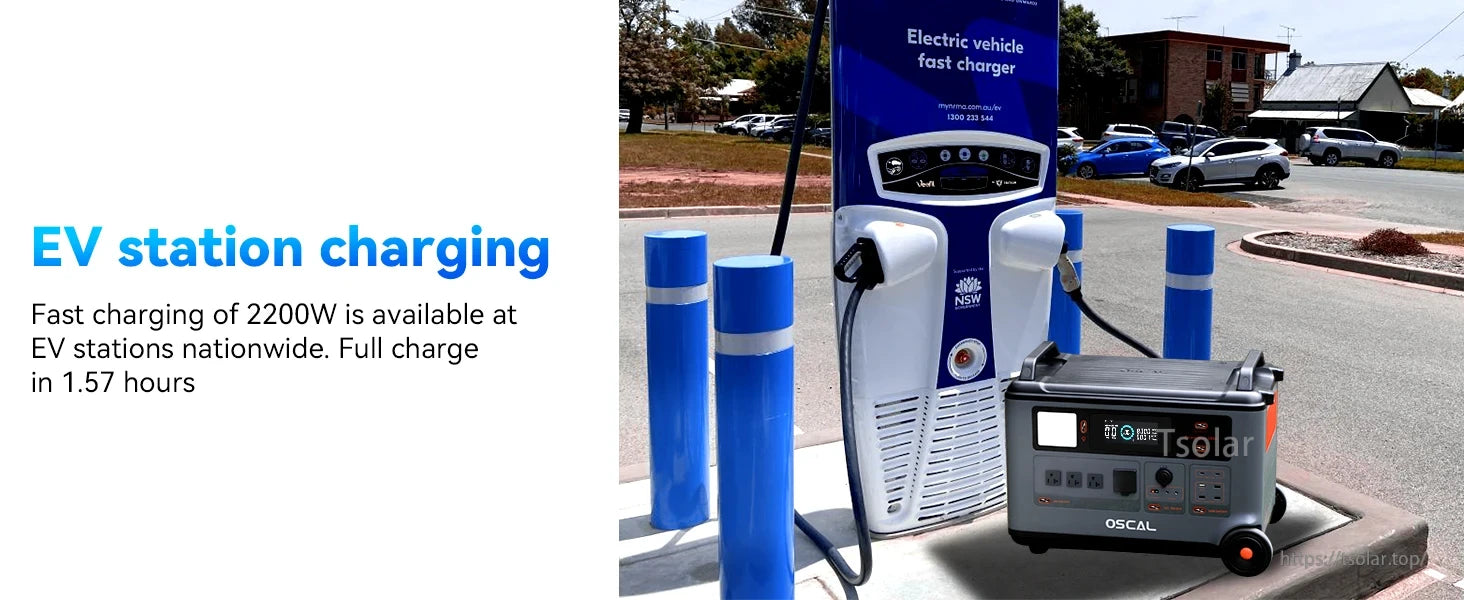

EV fast charger with 2200W output, full charge in 1.57 hours, featuring OSCAL power station.
Smart generator charges PowerMax 3600 with gasoline, fully charging 2200W devices in 1.57 hours.
3.6kWh power station; 36-108km for e-scooters; up to 3 days for RV and camping.
28.8kWh power station supports 256–640km e-motorcycle range and up to 7 days professional work.

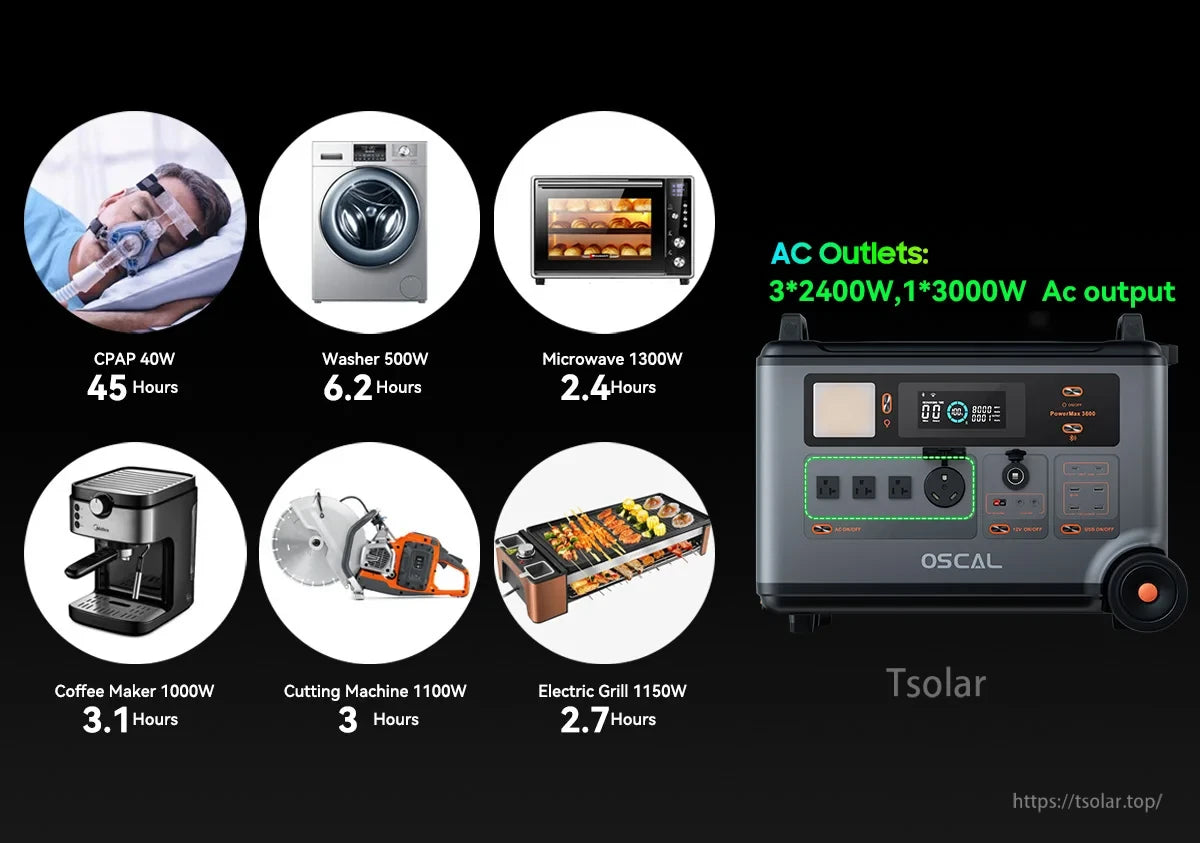

PowerMax 3600 power station supports CPAP, washer, microwave, coffee maker, cutting machine, and electric grill with specified runtime. Features 3×2400W and 1×3000W AC outlets.

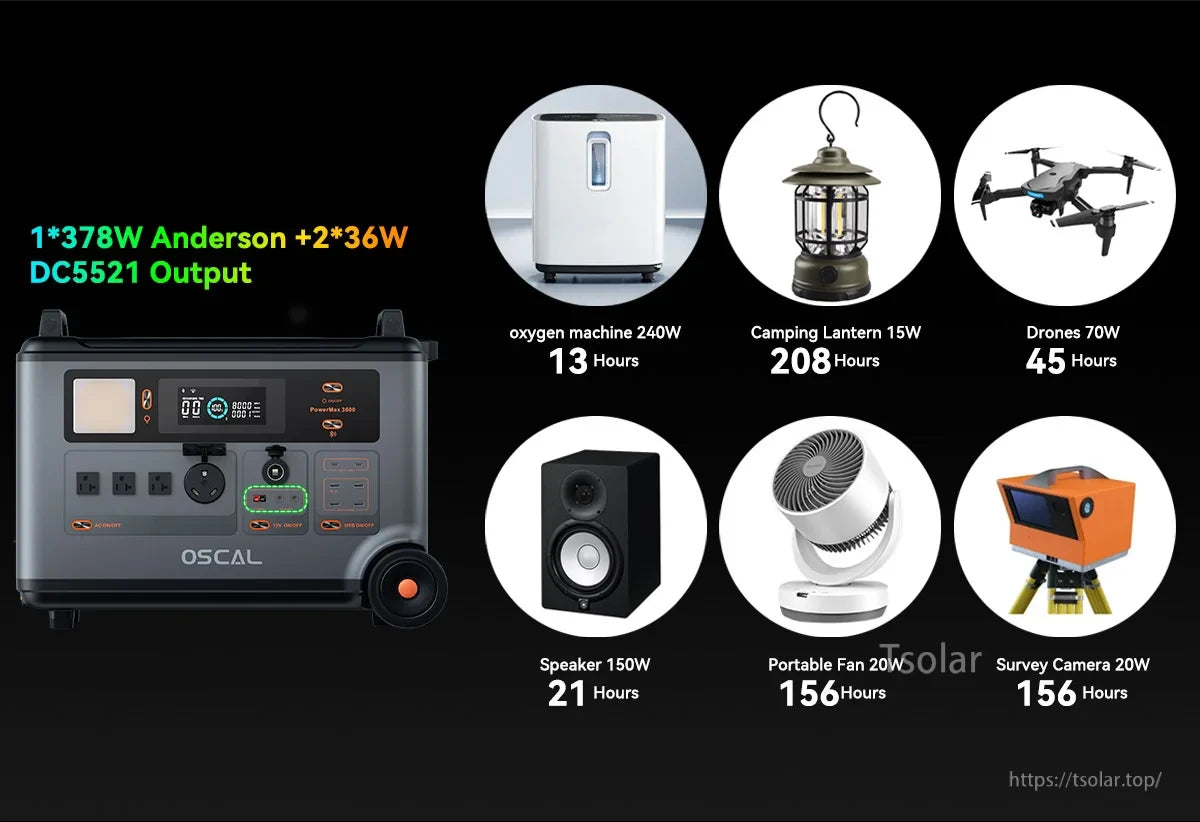

OSCAL PowerMax 3600 power station with 378W Anderson and 2×36W DC5521 outputs. Supports devices: oxygen machine (13h), lantern (208h), drones (45h), speaker (21h), fan (156h), camera (156h).
Oscal PowerMax 3600 power station offers 8020Wh capacity. Supports 160 phone, 52 laptop, 195 camera, 622 smartwatch charges, 12.5 hours projector use, and 62 TV charges. Features 2×100W USB-C, 1×12W USB-A, 3×18W USB-A outputs.

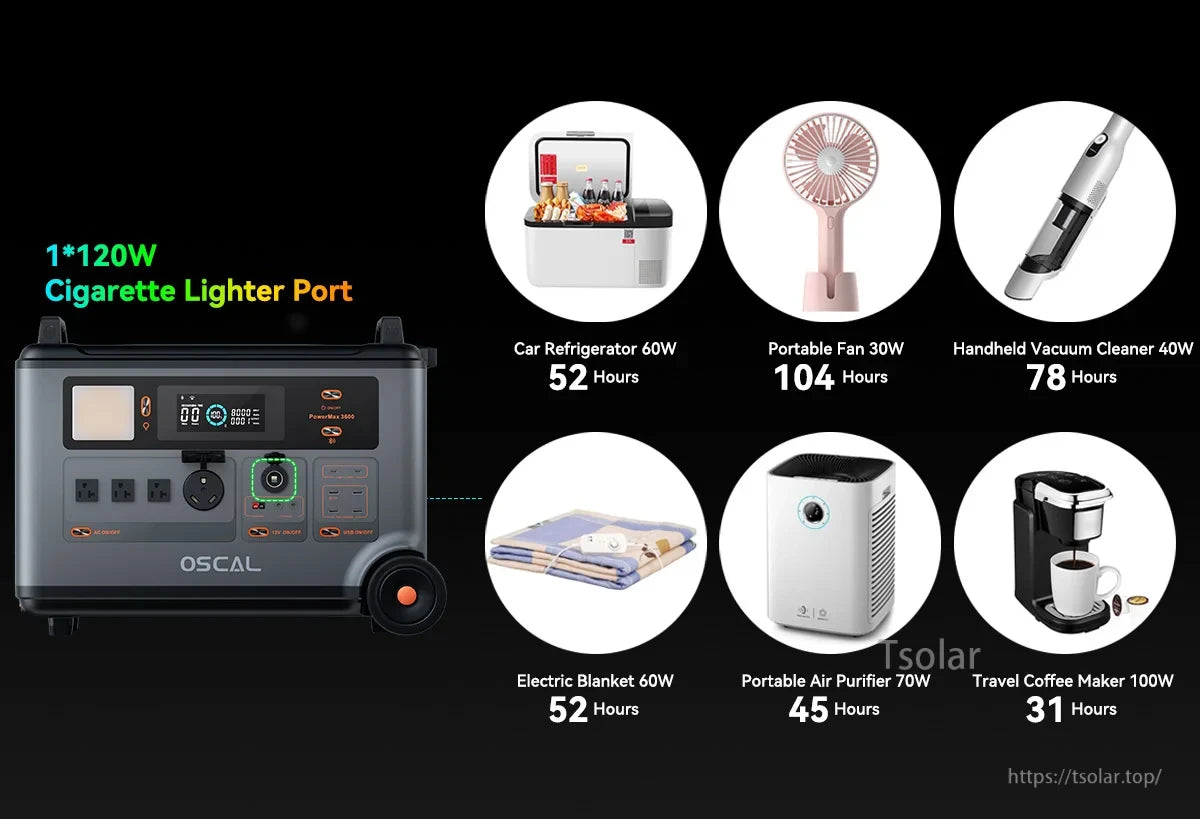

OSCAL PowerMax 3600 has a 120W cigarette lighter port, supporting car fridge (52h), fan (104h), vacuum (78h), blanket (52h), purifier (45h), and coffee maker (31h).
