Overview

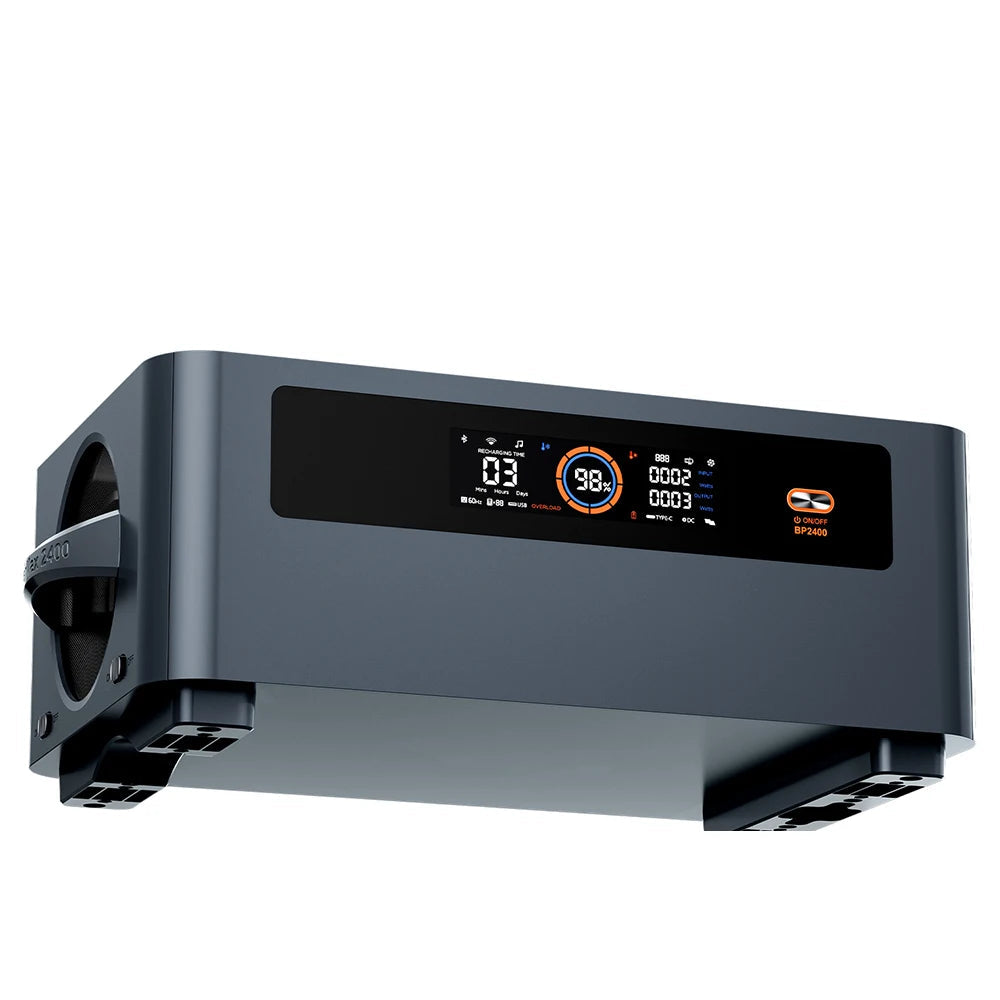

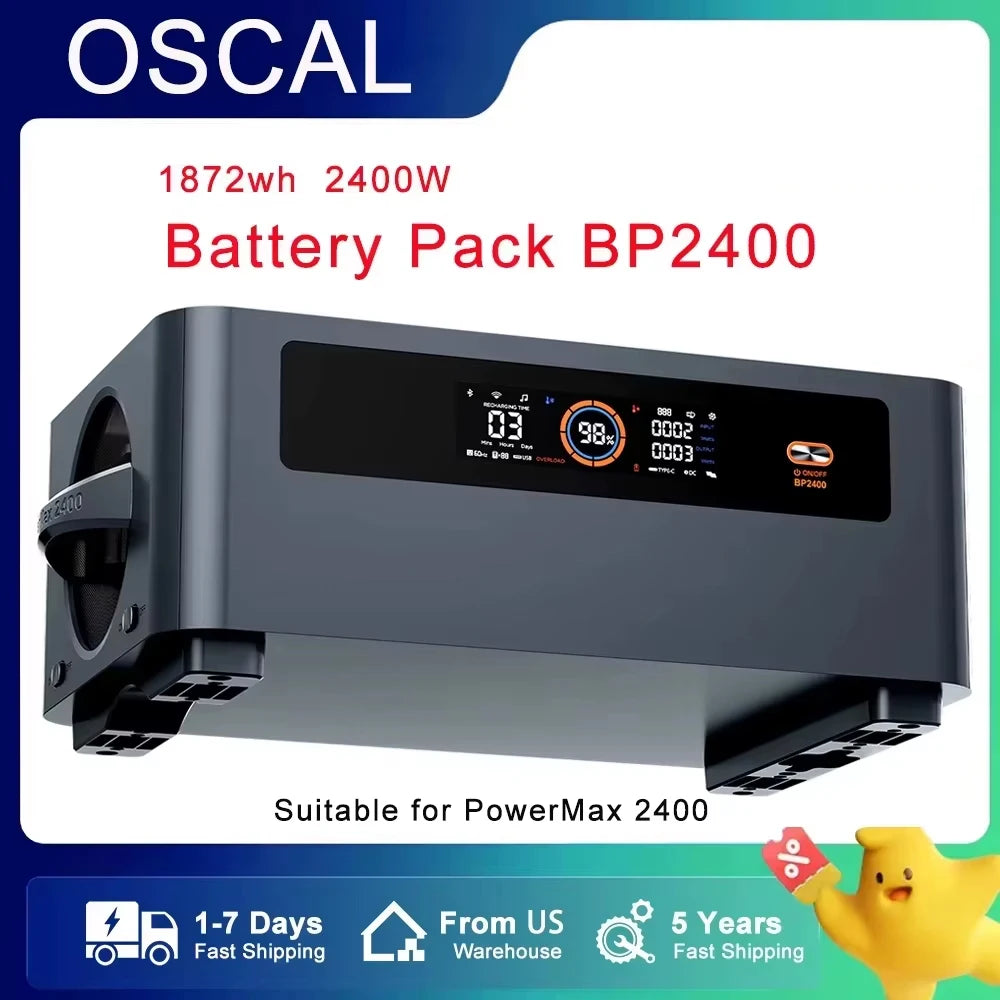

The OSCAL BP2400 is a Backup LiFePO4 Battery designed for reliable home battery backup and UPS use. It delivers up to 2400W output with 1872Wh capacity and LFP (LiFePO4) cell chemistry rated for 3,500+ cycles to 80%+ capacity. The BP2400 Battery Pack is suitable for pairing with PowerMax 2400 powerbank systems and supports both AC and solar charging inputs.
Key Features
- 2400W power pack output for high-demand loads
- 1872Wh capacity, 41.6V nominal
- LiFePO4 (LFP) chemistry with 3,500+ cycle life to 80%+ capacity
- AC charging input 1000W - 1500W; power pack input power 1400W
- Solar charging input 500W - 1000W
- Integrated protections: over voltage, overload, over temperature, short circuit, low temperature, low voltage, and overcurrent
- Operating temperature support for charging, discharging, storage, and optimal use
- Display screen: Yes; Certification: CE
- Compatible with PowerMax 2400 powerbank (suitability as stated)
Specifications
| Brand Name | OSCAL |
| Model Number | BP2400 Battery Pack |
| Type / Cell Chemistry | LiFePO4 (LFP) |
| Nominal Capacity | 1872Wh |
| Voltage | 41.6V |
| Power Pack Output Power | 2400W |
| Power Pack Input Power | 1400W |
| AC Charging Input | 1000W - 1500W |
| Solar Charging Input | 500W - 1000W |
| Cycle Life | 3,500 cycles to 80%+ capacity |
| Protection Types | Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection |
| Display Screen | Yes |
| Optimal Operating Temperature | 20°C-30°C (68°F-86°F) |
| Discharging Temperature | -10°C-45°C (14°F~113°F) |
| Charging Temperature | 0°C-45°C (32°F-113°F) |
| Storage Temperature | -10°C-45°C (14°F-113°) |
| Net Weight (range) | 10 KG - 30 KG |
| Net Weight (approx.) | Approximately 17.9kg |
| Size | 58*37*30.3cm |
| Dimension (L×W×H) | 530x290x195mm (20.86x11.41x7.68in) |
| Battery Number | 1 |
| Set Type | Batteries Only |
| Replacement Battery | No |
| Connection | Other |
| Bundle | Bundle 1 |
| Certification | CE |
| Origin | Mainland China |
| Battery Core Manufacturer | Other |
| Hign-concerned Chemical | None |
| Application | TV |
Applications
- Home battery backup and UPS scenarios
- TV power support (as specified)
- Suitable for pairing with PowerMax 2400 powerbank
Details

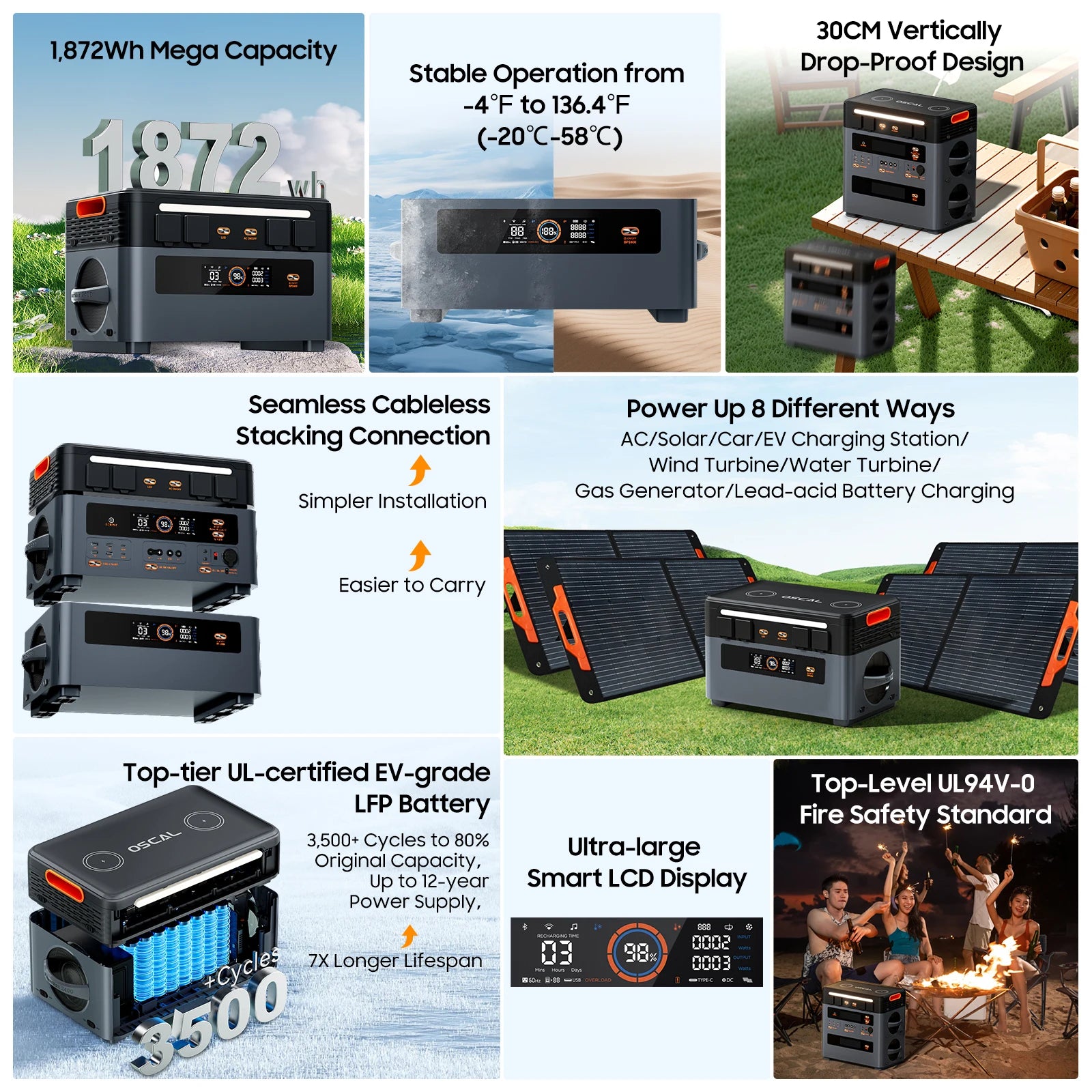

1,872Wh capacity, -4°F to 136.4°F operation, 30cm drop-proof design, cableless stacking, 8 charging methods, UL-certified LFP battery, 3,500+ cycles, smart LCD, UL94V-0 safety.

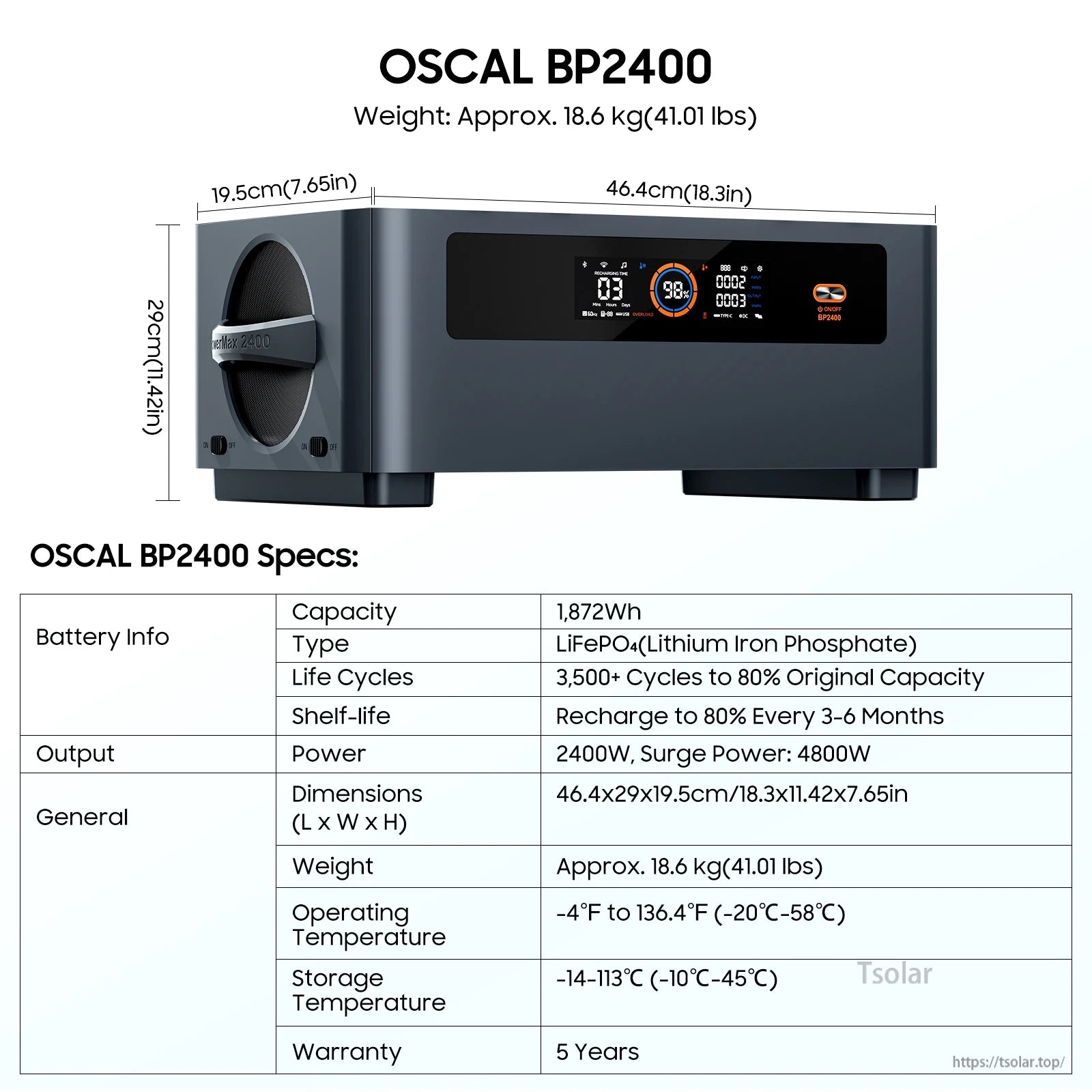

OSCAL BP2400 is a 1,872Wh LiFePO4 battery with 2400W output and 4800W surge. It weighs 18.6kg, measures 46.4x29x19.5cm, operates from -20°C to 58°C, and offers a 5-year warranty.

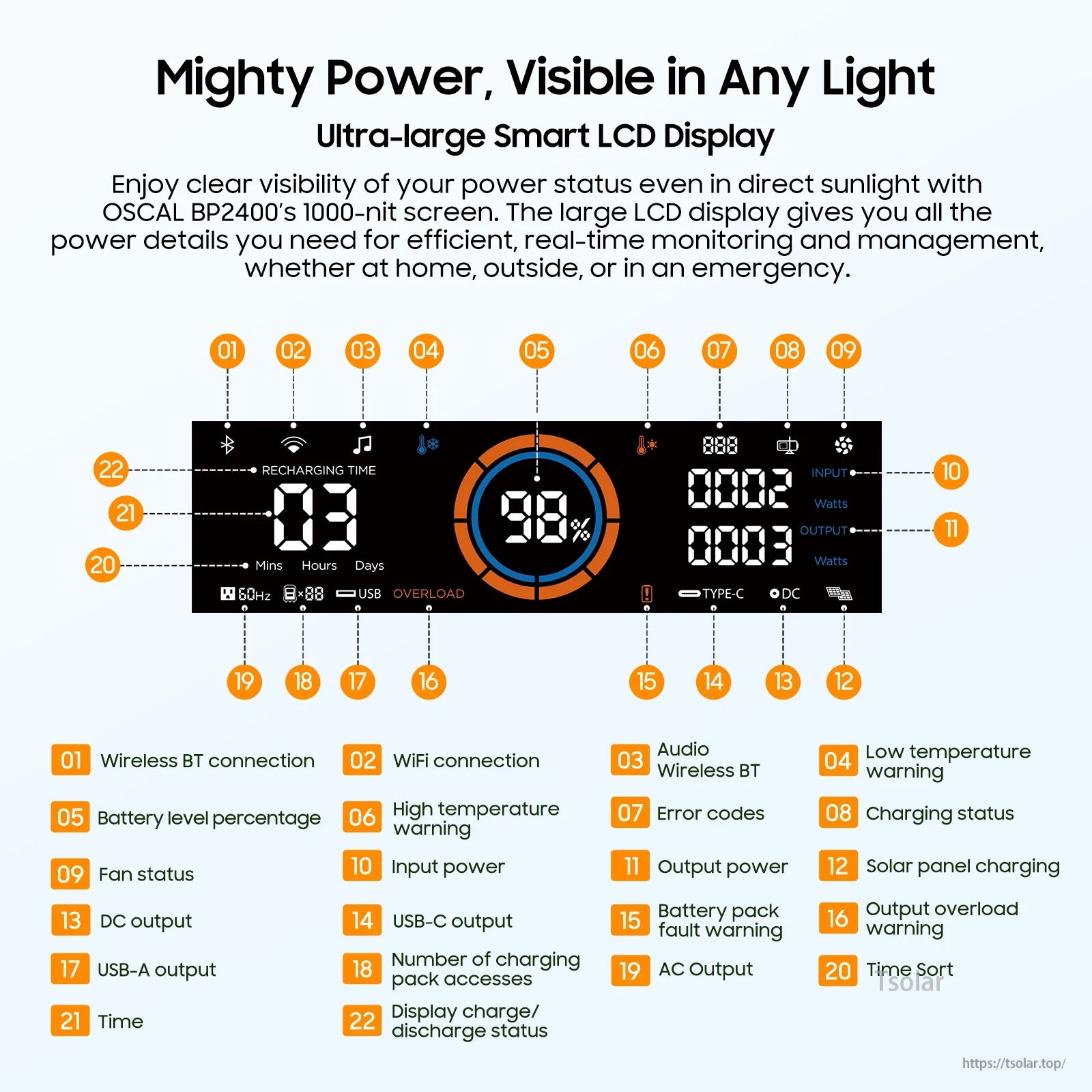

OSCAL BP2400 has a 1000-nit LCD displaying battery level, input/output power, charging status, temperature alerts, and connectivity via BT, WiFi, and multiple ports.

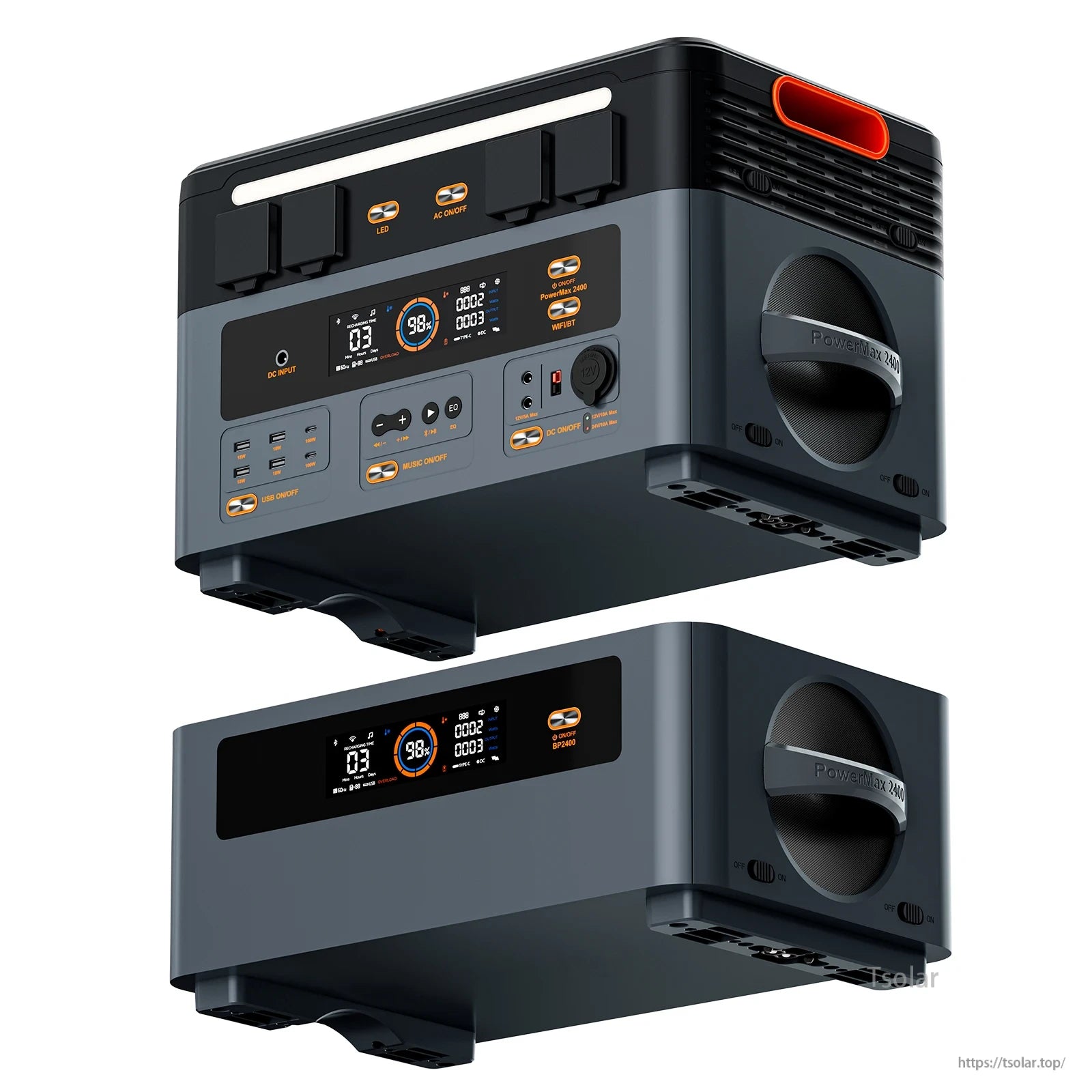

Sleek and compact, the OSCAL BP2400 LiFePO4 Battery includes a digital display showing charge level (98%), time, and status. It offers USB-A, USB-C, AC outlets, and DC input for versatile power output. Controls manage LED, AC, music, and Wi-Fi/BT functions, with mode switching and system control buttons on the front panel. A built-in "PowerMax 2400" speaker delivers audio, while a red top handle ensures easy portability. Real-time data and countdown timers are displayed for user convenience.
OSCAL BP2400 LiFePO4 Battery supports 8 charging methods: AC, solar, car, EV, wind, water, gas generator, and lead-acid battery.

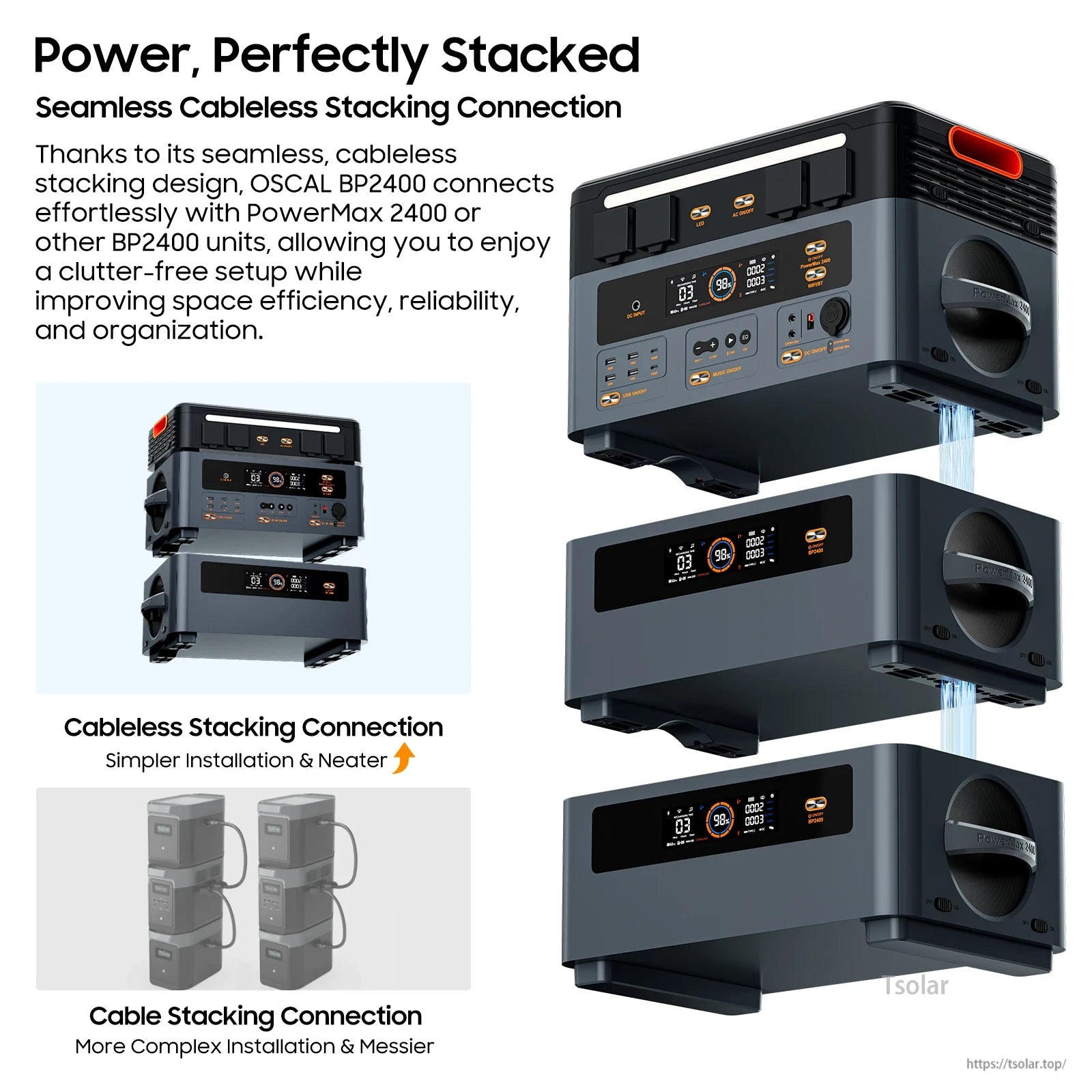

OSCAL BP2400 enables cableless stacking with PowerMax 2400 units for clutter-free, efficient setups. Offers simpler installation, neatness, and better organization compared to traditional cabled connections.
OSCAL BP2400 uses a UL-certified LFP battery with 3,500+ cycles, lasting 7x longer and up to 10–12 years before capacity drops to 80%. Safety certified by UL.

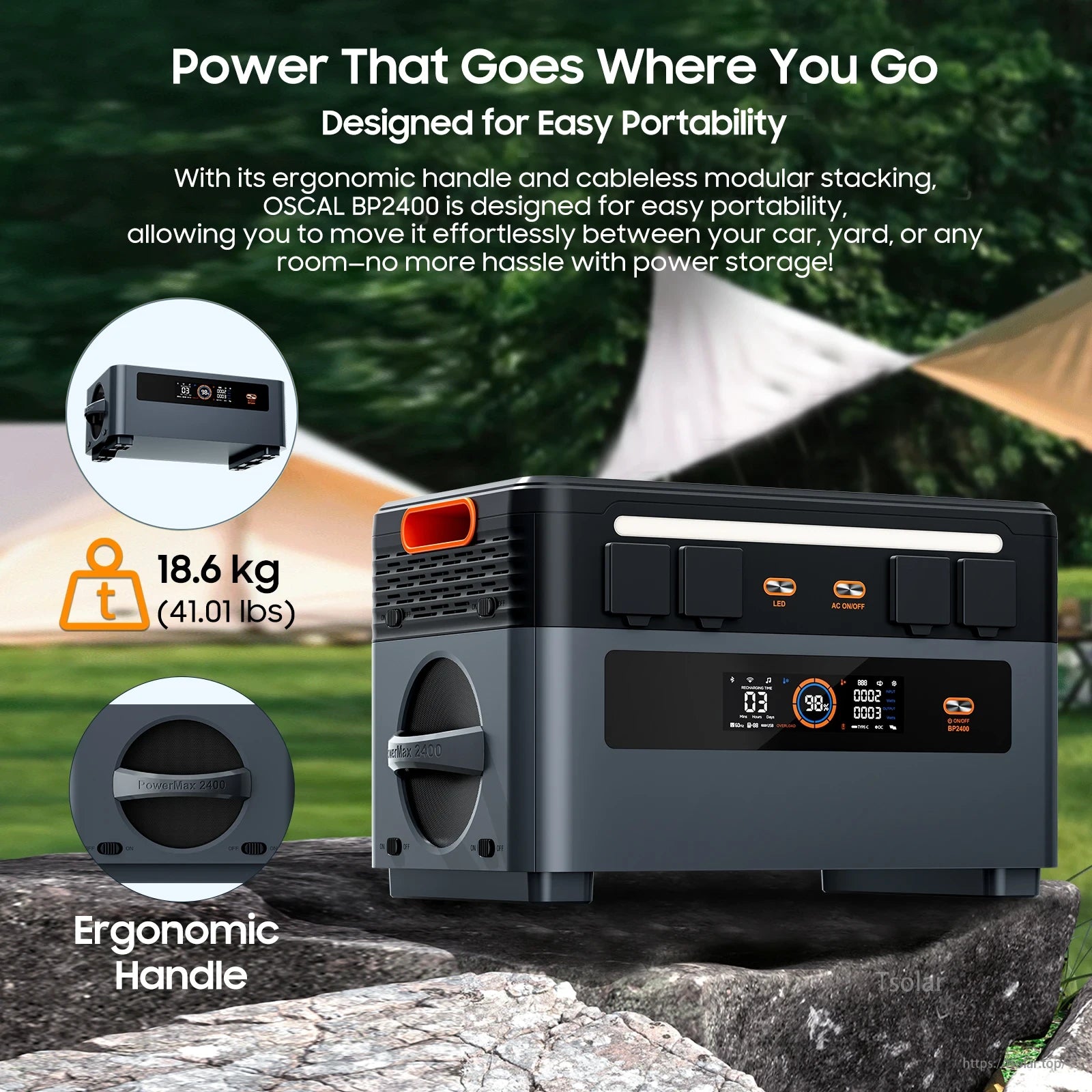

18.6 kg LiFePO4 battery with ergonomic handle and modular design for easy portability. Ideal for outdoor use, featuring LED display and multiple outlets for reliable power. (39 words)
Stable operation from -4°F to 136.4°F (-20°C to 58°C). OSCAL BP2400 delivers reliable power in extreme cold or heat. Features a digital display indicating charge level, recharging time, and input/output watts. Includes USB, Type-C, and AC ports for versatile charging. Supports Bluetooth, Wi-Fi, and music playback. Equipped with an ON/OFF switch labeled BP2400. Designed for uninterrupted performance across environments, it ensures devices stay powered wherever you are. Compact, durable, and efficient—ideal for outdoor adventures, emergencies, or daily use where consistent energy matters most.
1,872Wh capacity in a durable, portable design. Powers devices anywhere. Ideal for adventures and emergencies. Compact yet powerful. OSCAL BP2400 delivers reliable energy on the go.
OSCAL BP2400 LiFePO4 battery, UL94V-0 rated, ensures top safety for outdoor use. Durable design protects in harsh conditions, ideal for camping and barbecues.
