Overview

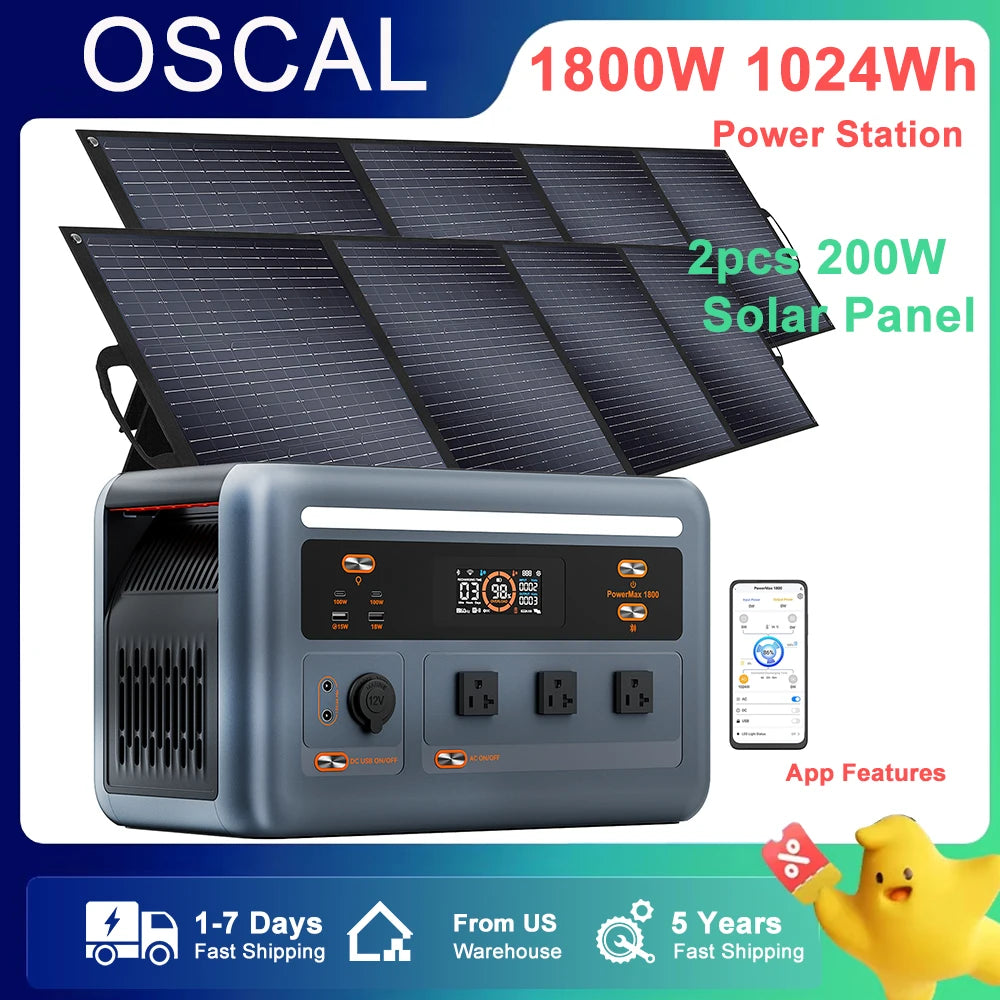

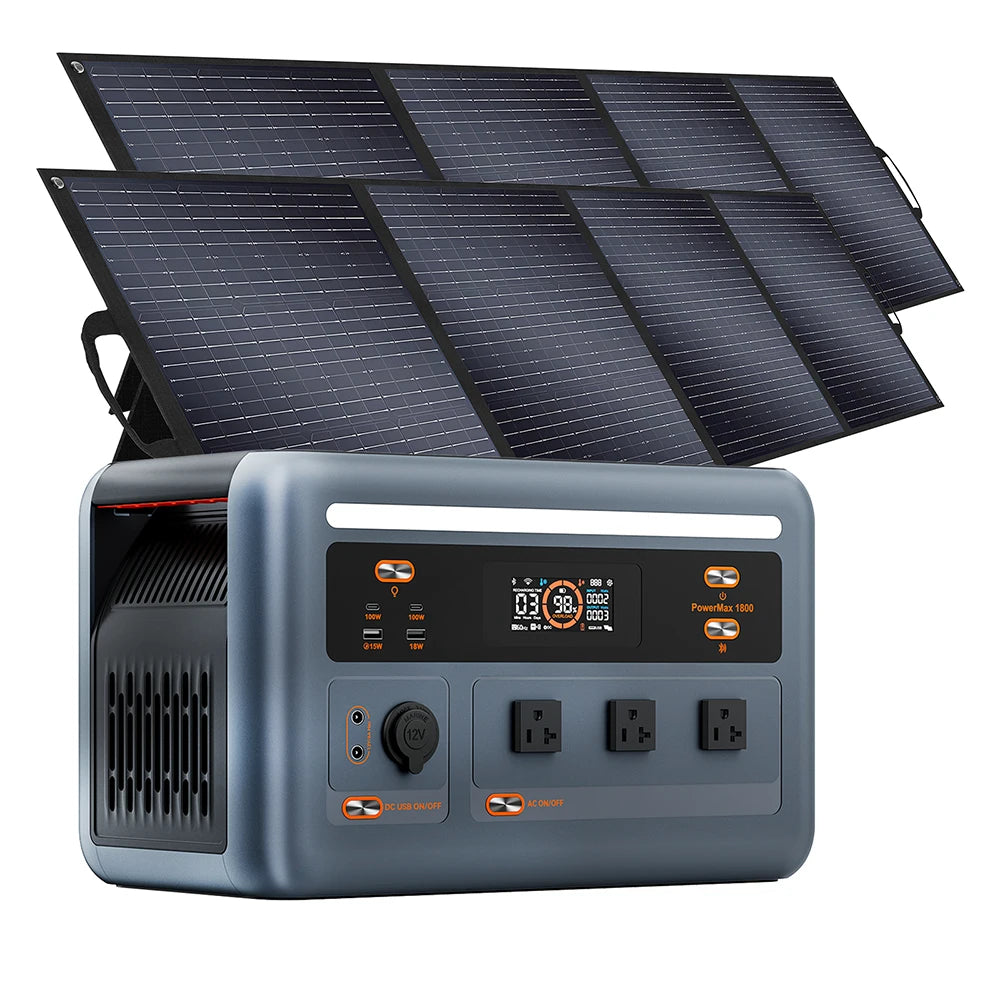

This Portable Power Station + Solar Panels bundle pairs the OSCAL PowerMax1800 with two 200W folding solar panels to deliver off‑grid and backup power for home and outdoor use. The 1024Wh LiFePO4 system supports 1800W pure sine wave AC output (EU/US) and 1500W (JP), offers app control via Wi‑Fi/Bluetooth, and can expand to 2048Wh with the optional BP1800 battery pack. With 11 multi‑function ports, IP54 protection, and a 0.01s UPS feature, it is designed for camping, emergency preparedness, and household backup.
Key Features
• 1024Wh LiFePO4, expandable to 2048Wh
Base capacity 1024Wh; optional BP1800 (1.024kWh) connects to reach 2.048kWh (sold separately). LiFePO4 cells (EVE) with >80% capacity after 3500 cycles.
• 1800W pure sine wave AC output
Three AC outlets deliver up to 1800W total (EU/US) / 1500W (JP), 100V~(JP) / 120V~(US) / 230V~(EU), 50/60Hz.
• 11 multi‑function outputs
AC ×3, USB‑A, USB‑A fast, USB‑C fast ×2 (100W each), vehicle port, DC5521 ×2, plus 15W wireless charging.
• Fast recharging and flexible inputs
Multiple inputs: AC, solar (10–60V, up to 20A, max 800W), vehicle 12/24V. Listing highlights 0–80% in about 1 hour.
• Smart app control
Wi‑Fi 2.4GHz and Bluetooth connectivity for monitoring and control.
• Built for safety and reliability

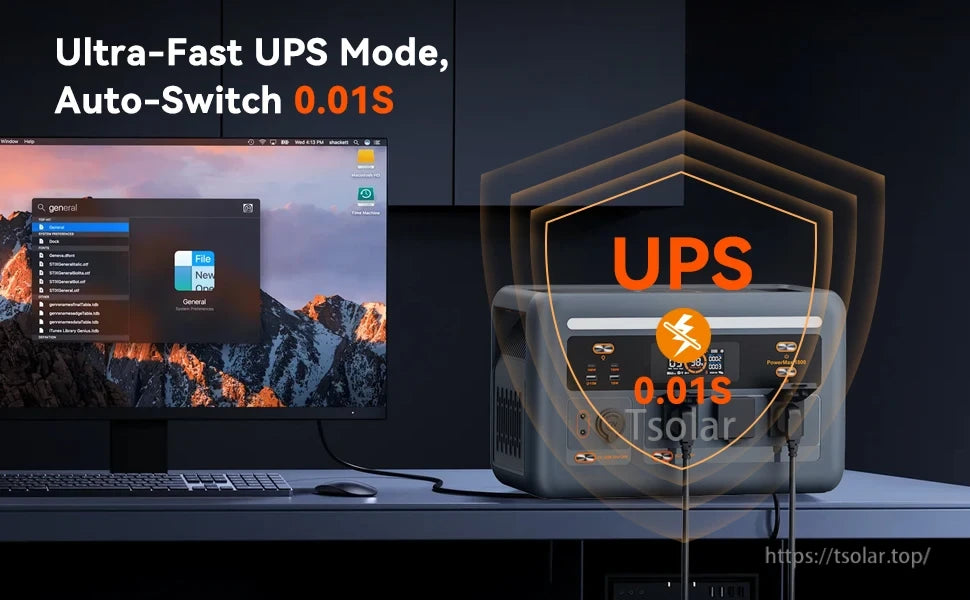

Comprehensive protections (temperature, over/under voltage, overcurrent, short‑circuit, overload, etc.), IP54, and 0.01s UPS backup.
• 2× 200W foldable solar panels
ETFE monocrystalline design, up to 23.4% conversion efficiency. Unfolded size 58 × 172 × 3 cm; approx. 6.1kg per panel. Voc 21.6V, Isc 13.3A, Vmax 18V, Imax 11.1A. Operates from −10℃ to 65℃. Supports series/parallel connections (up to three panels).
• Certification and warranty
CE certification. Listing highlights a 5‑year warranty and European repair center.
Specifications
| Brand | OSCAL |
| Model | powermax1800 with 2pcs 200w (PowerMax1800 + 2×200W panels) |
| Application | Solar Power Storage |
| Certification | CE |
| Origin | Mainland China |
| Set Type / Bundle | Charger Sets / Bundle 2 |
| Display screen | Yes |
| Connection | Bluetooth‑Compatible; Wi‑Fi/Bluetooth 2400–2483.5MHz, max 20dBm |
| Battery Core manufacturer | EVE |
| Battery Number | 1 |
| Battery Type | LFP (LiFePO4) |
| Nominal Capacity | 1024Wh |
| Cycle life | More than 80% capacity remaining after 3500 cycles |
| Protections | High/low‑temperature, overdischarge, overcharge, overload, short‑circuit, overcurrent, overvoltage, undervoltage, excessive voltage difference |
| Basic Dimensions (main unit) | 420 × 238 × 256 mm |
| Net weight (main unit) | Approximately 14.25kg |
| Additional size info (listing) | Size: 50.5 × 31 × 36.5 cm; 58.5 × 172.5 × 3 cm |
| Net Weight (range, listing) | 10 KG – 30 KG |
| Replacement Battery | No |
| Expandable Capacity | BP1800 battery pack 1.024kWh (sold separately); total up to 2.048kWh |
| AC Output | Pure sine wave, AC ×3; 1800W total (EU/US) / 1500W (JP); 100V~(JP) / 120V~(US) / 230V~(EU), 50/60Hz |
| USB‑A | 5V⎓3A, max 15W |
| USB‑A fast | 5V⎓3A, 9V⎓2A, 12V⎓1.5A (CV), max 18W |
| USB‑C fast ×2 | 5/9/12/15⎓3A, 20V⎓5A, max 100W each (200W total) |
| Vehicle charging output | 12V⎓10A, max 120W |
| DC5521 ×2 | 12V⎓6A, total 72W |
| Wireless charging | Max 15W |
| AC input power | Max power 800W, 50Hz/60Hz |
| AC input voltage | 100–120V~15A (US/JP), 200–240V~10A (EU), 50/60Hz |
| Solar charging input | 10–60V, max current 20A, max power 800W |
| Vehicle charging input | 12V/24V⎓8A, max power 192W |
| AC + solar | Max power 800W |
| Operation temperature | Charging 0°C–45°C; Discharging −10°C–45°C; Storage −10°C–45°C (ideally 20°C–30°C) |
| IP/UPS (listing highlights) | IP54; 0.01s UPS backup |
| Warranty (listing highlight) | 5‑year warranty; European repair center |
| AC Charging Input (listing) | 1500W – 2000W |
| Solar Charging Input (listing) | 500W – 1000W |
| Hign‑concerned Chemical | None |
| Solar Panel Max Power (Pm) | 200W (each panel) |
| Solar Panel Conversion Efficiency | Up to 23.4% |

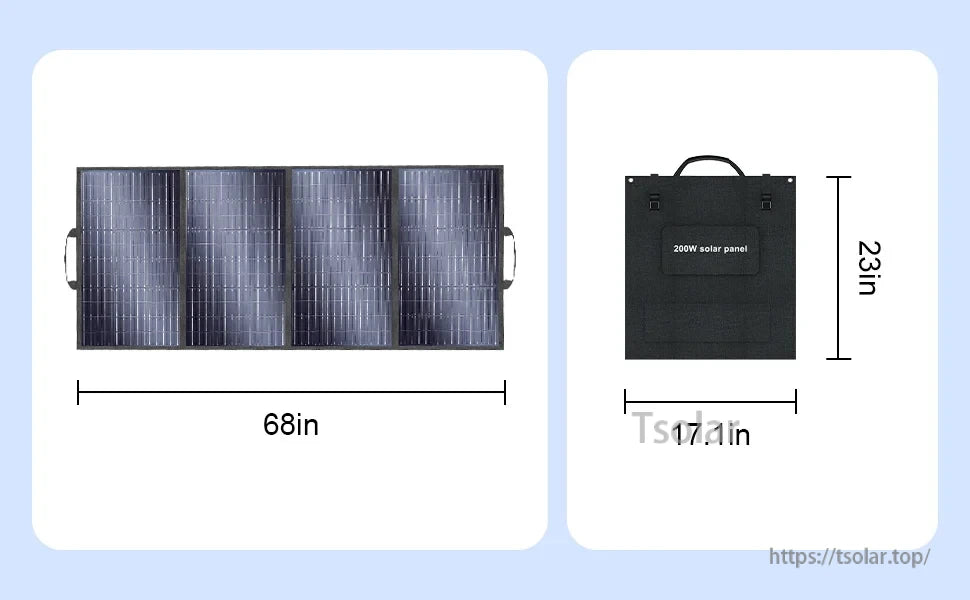

| Solar Panel Unfolded Size | 58 × 172 × 3 cm (22.8 × 67.7 × 11.8 inches) |
| Solar Panel Weight | Approx. 6.1kg / 13.5lbs (per panel) |
| Solar Panel Electrical | Vmax 18V (max), Imax 11.1A (max), Voc 21.6V, Isc 13.3A |
| Solar Panel Operating Temp | −10℃ to 65℃ (optimal +25°C) |
| Series/Parallel Support | Supports series or parallel connection; up to three panels |
What’s Included
- 1 × OSCAL PowerMax1800 Main Unit
- 1 × AC Charging Cable
- 1 × Solar charging cable
- 1 × Car Charging Cable
- 1 × User Manual
- 1 × Warranty Card
- 2 × 200W Solar Panel
- 2 × MC4 charging cable
Applications
- Home backup and UPS support
- Camping, hiking, and outdoor recreation
- Emergency and disaster preparedness
- Mobile workstations and off‑grid power
Details

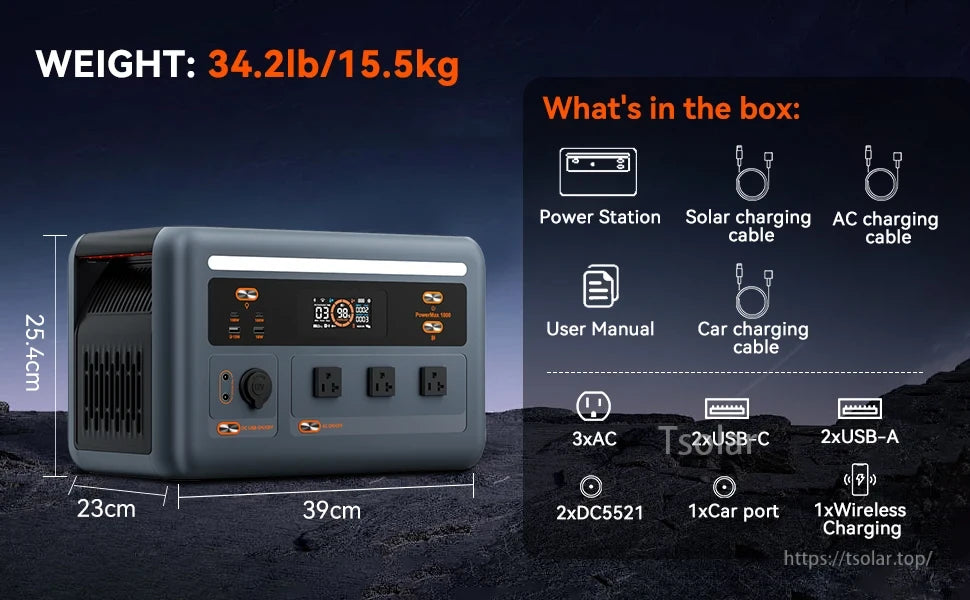

Portable power station weighs 34.2lb (15.5kg), measures 39x23x25.4cm. Features solar, AC, car cables, manual, 3AC, 2USB-C, 2USB-A, 2DC5521, 1 car port, and wireless charging.

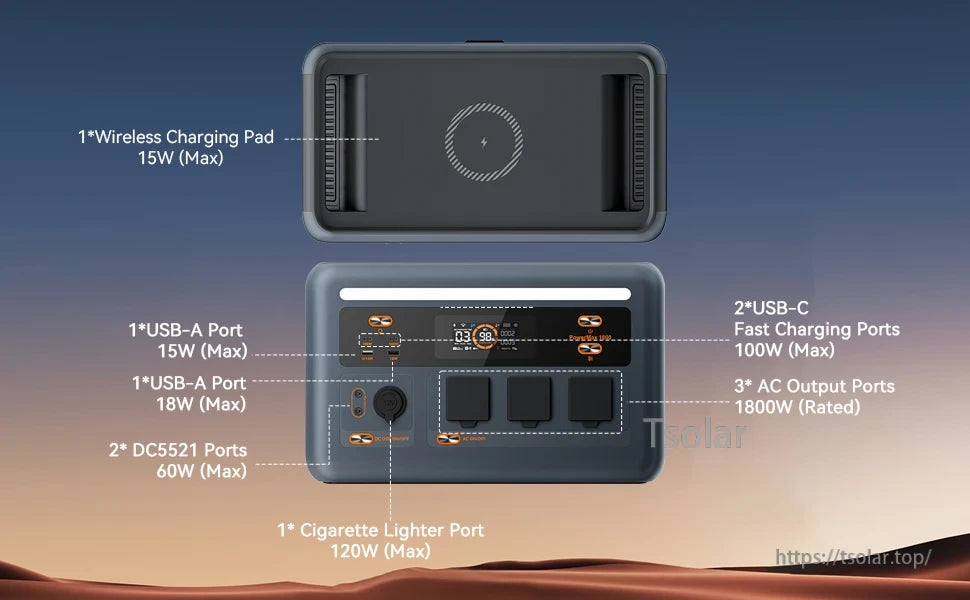

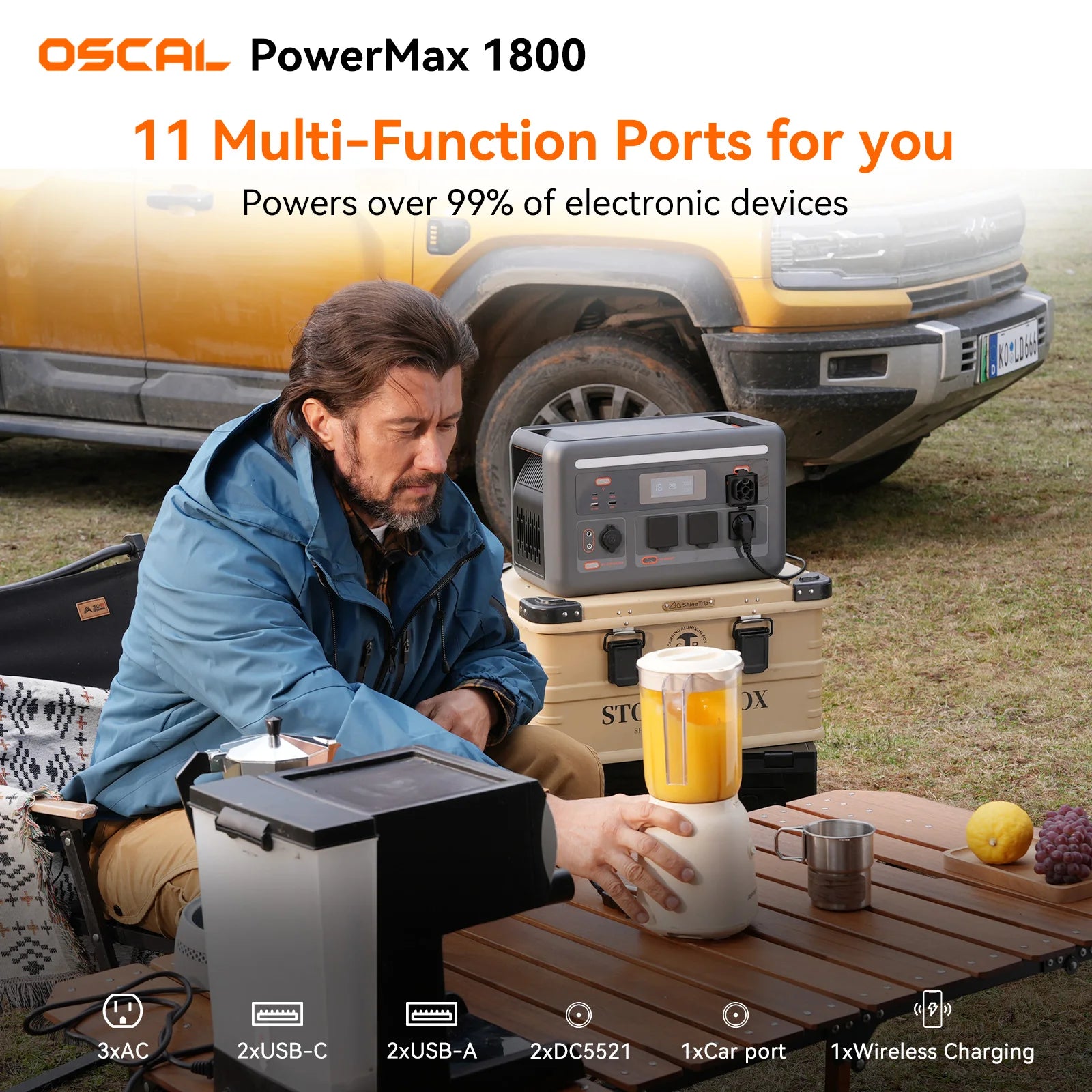

OSCAL PowerMax1800 offers 15W wireless charging, 2 USB-C (100W max), 2 USB-A (15W/18W max), 2 DC5521 (60W max), 3 AC outlets (1800W rated), and 1 cigarette lighter port (120W max).

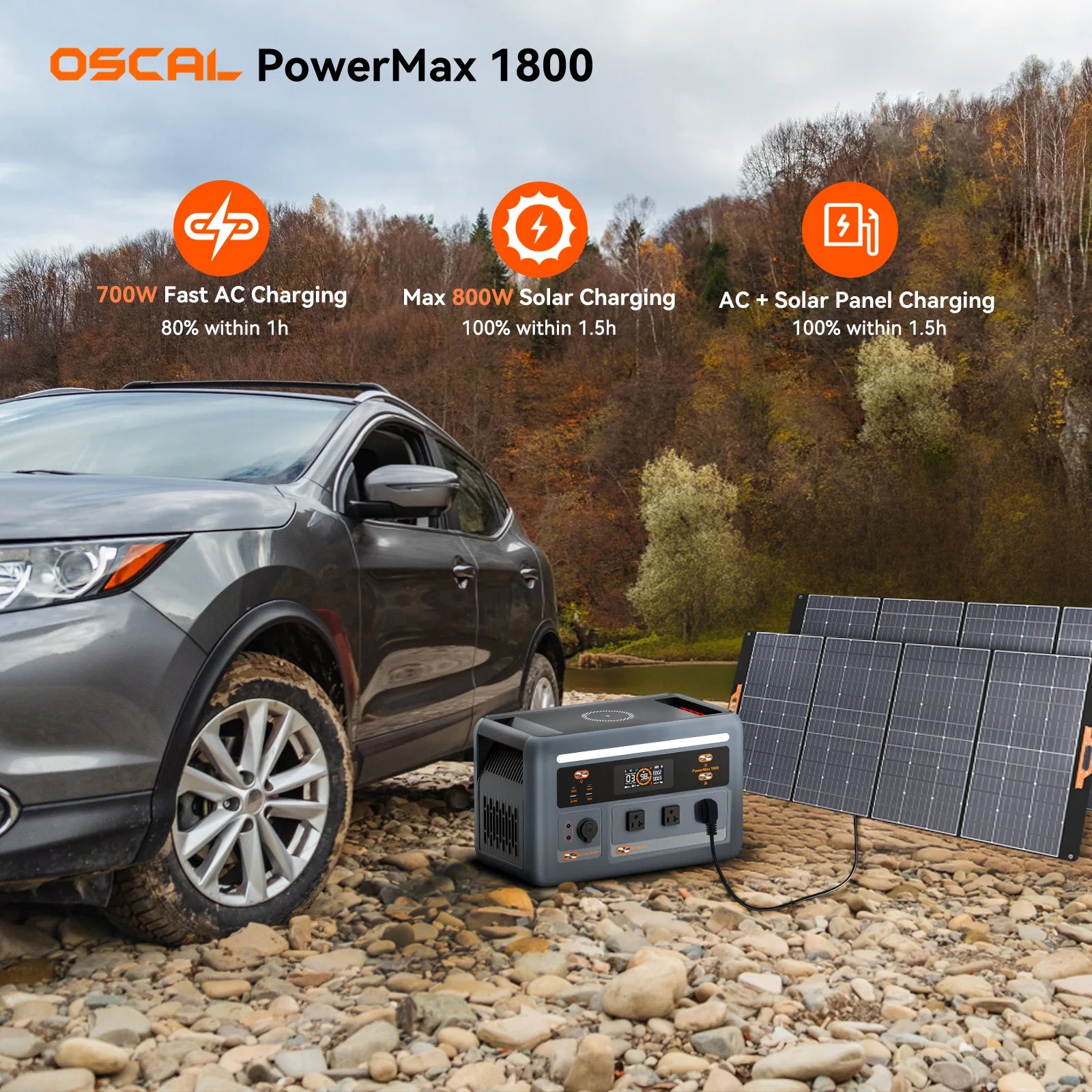

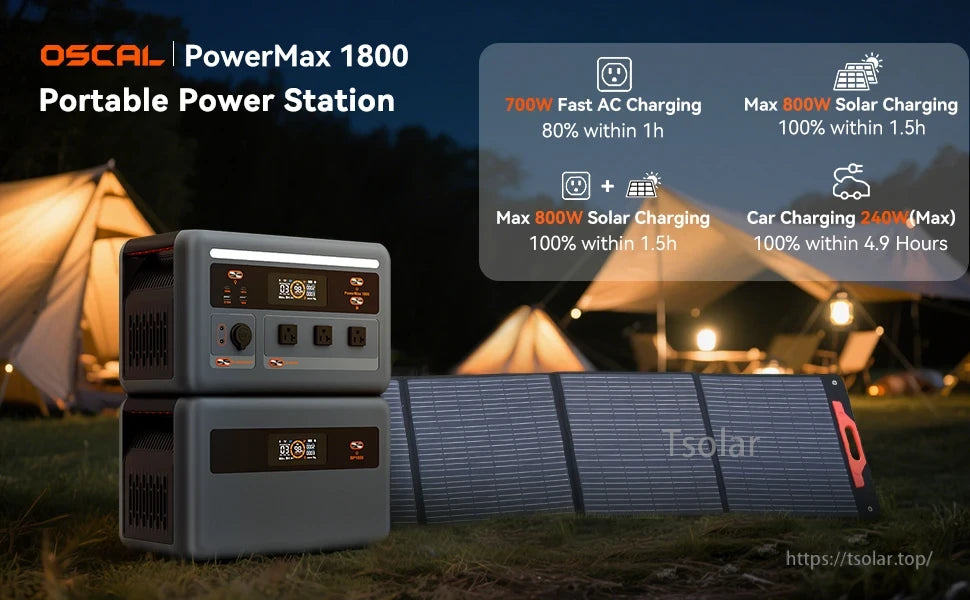

OSCAL PowerMax 1800 delivers 700W AC, 800W solar, and 240W car charging, fully recharging in 1–4.9 hours. Compact, portable, and efficient for versatile power needs on the go.

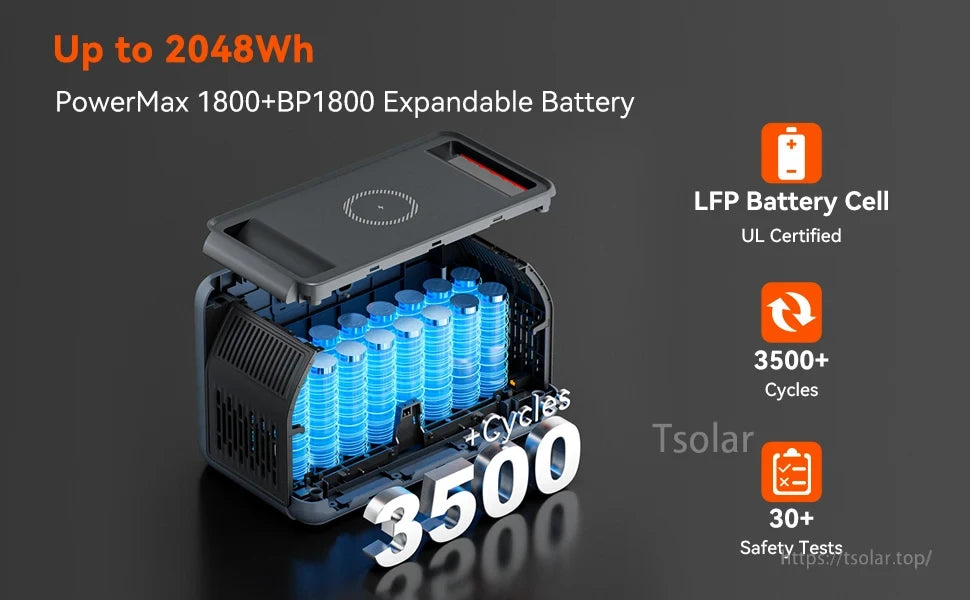

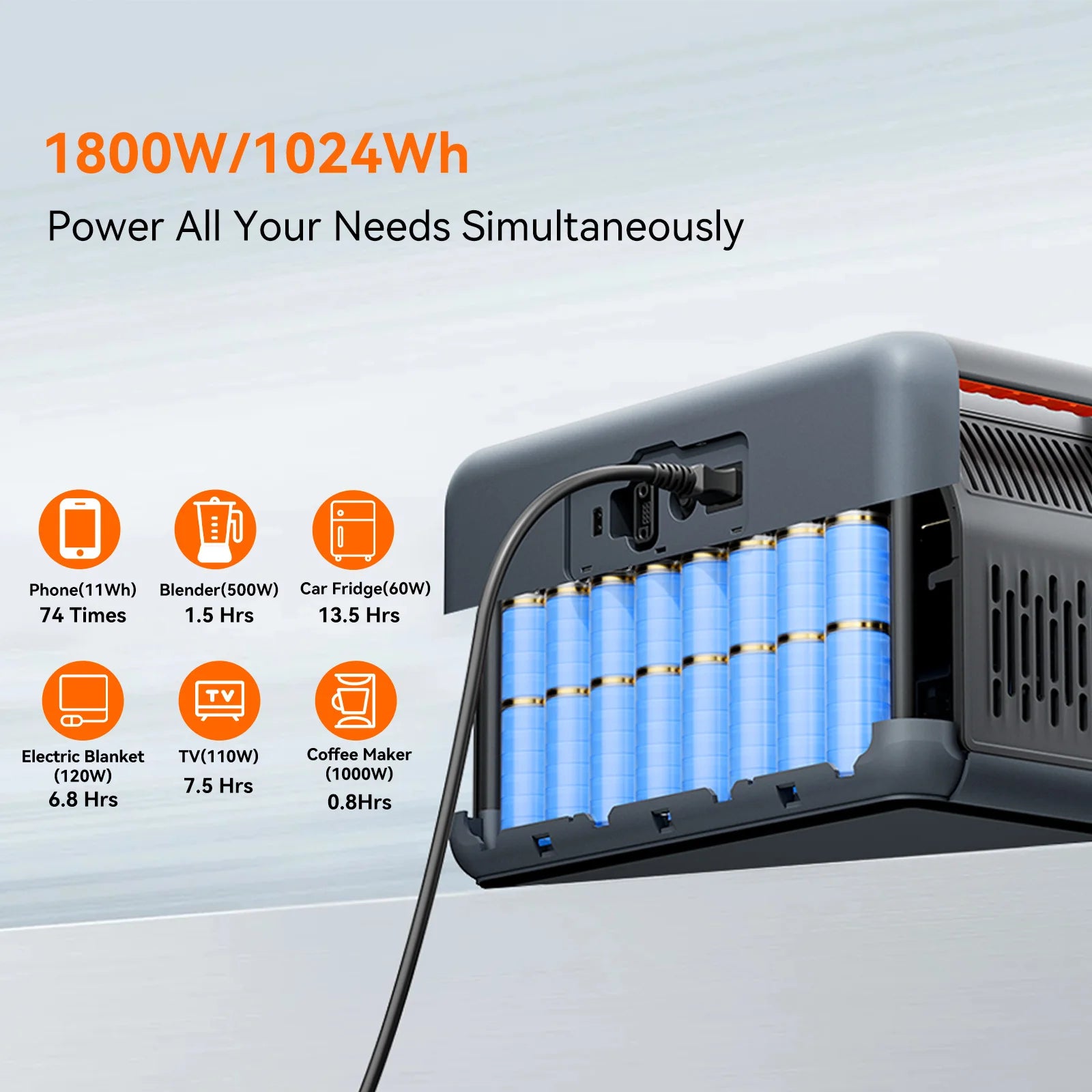

Up to 2048Wh expandable battery, LFP cells, 3500+ cycles, UL certified, 30+ safety tests.

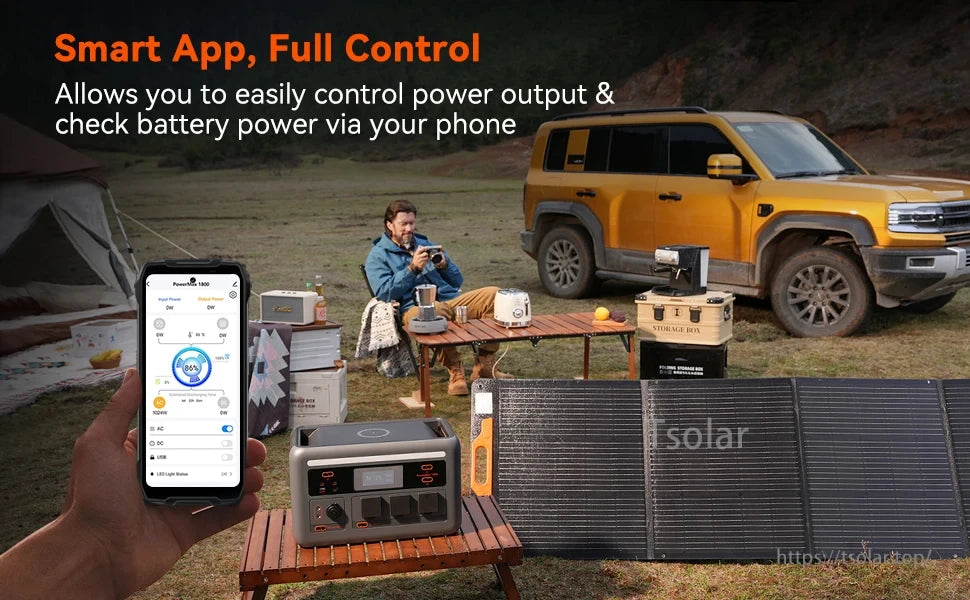

Smart app controls power and battery. Portable station with solar panels for outdoor use. (17 words)

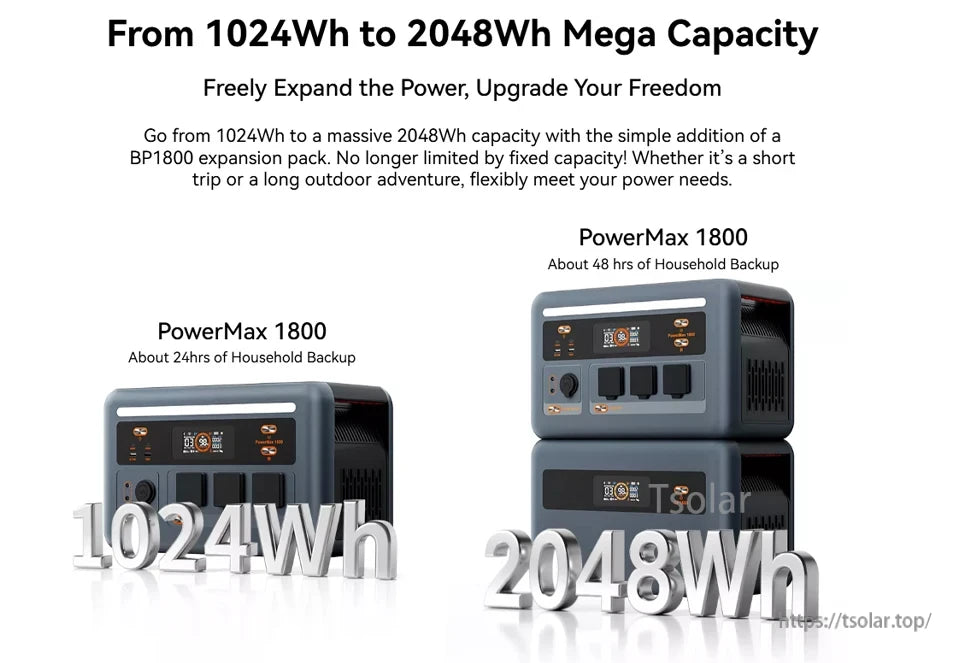

From 1024Wh to 2048Wh Mega Capacity. Freely expand power, upgrade freedom. Add a BP1800 expansion pack to increase capacity from 1024Wh to 2048Wh. No longer limited by fixed capacity. Ideal for short trips or long outdoor adventures, flexibly meeting power needs. PowerMax 1800 offers about 24 hours of household backup at 1024Wh and approximately 48 hours at 2048Wh. Features include digital display, multiple outlets, and compact design. Enhance energy flexibility with scalable storage solutions.

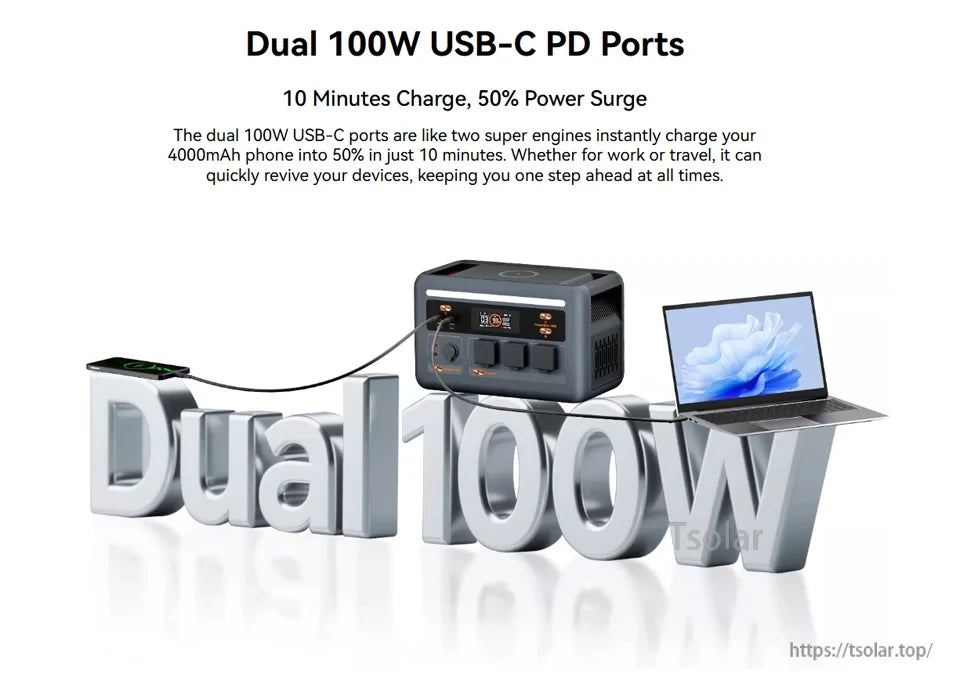

Dual 100W USB-C PD Ports charge devices rapidly. 10 minutes for 50% on 4000mAh phone. Ideal for work or travel, ensuring quick power revival.
1800W continuous, 2400W surge power with pure sine wave output. Runs 99% of household devices like hair dryers and ovens. Compact, reliable, and portable for use anywhere.

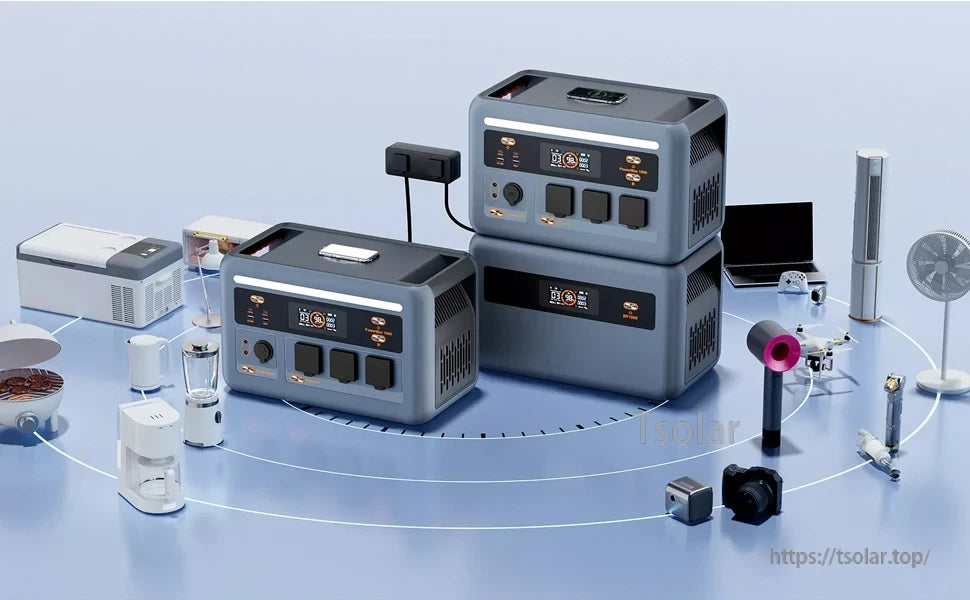

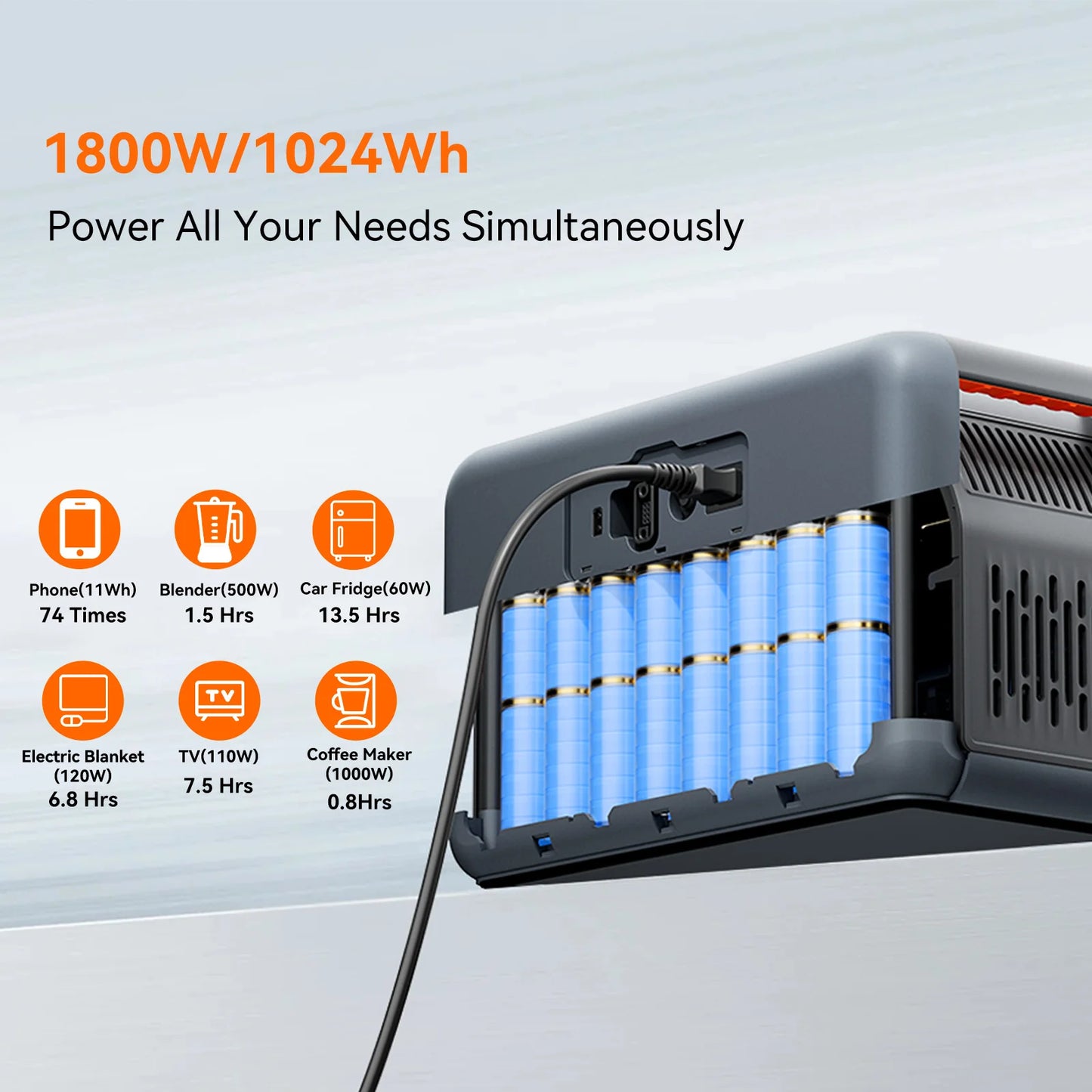

1800W power, 1024Wh capacity. Portable station for camping, road trips, backup, and work. Powers multiple devices with clear runtime details. Perfect for outdoor adventures and emergencies.

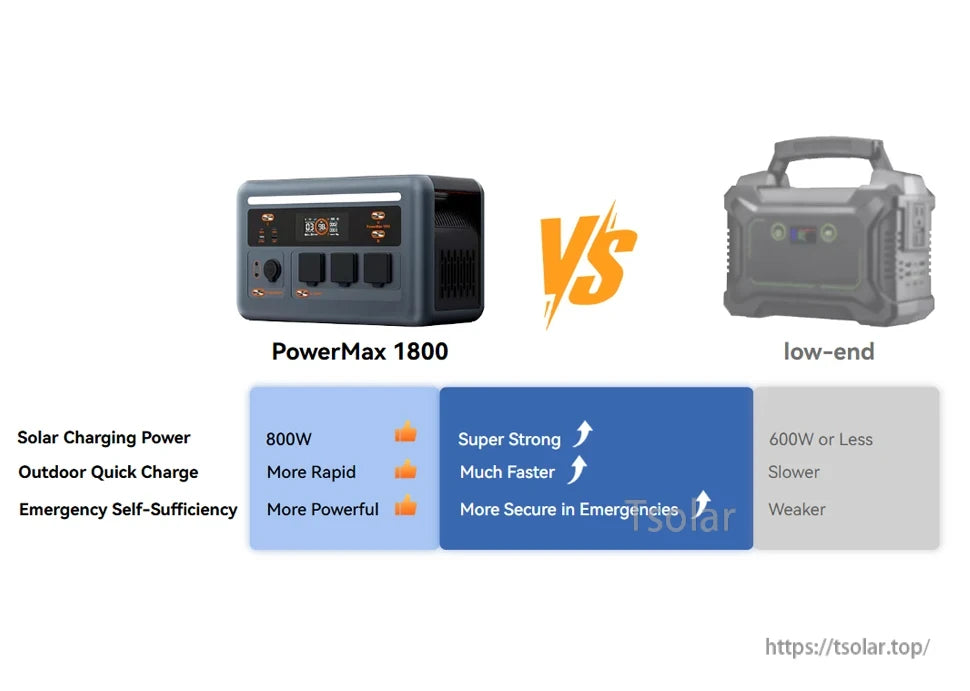

PowerMax 1800 vs low-end: 800W solar, faster charge, stronger emergency power.

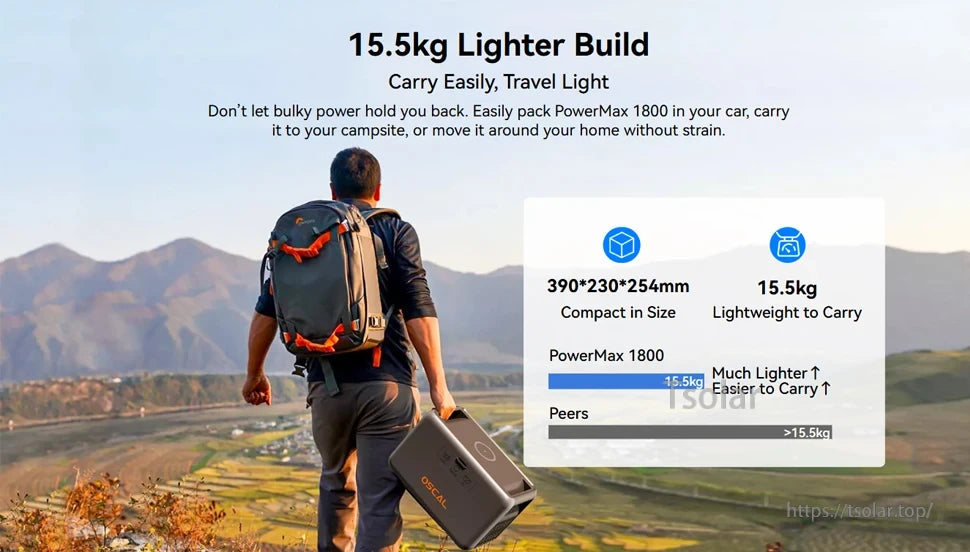

OSCAL PowerMax 1800 weighs 15.5kg, compact at 390*230*254mm, lighter than peers. Easily carryable, ideal for travel, camping, or home use. Designed for convenience and portability.
OSCAL provides a 5-year warranty for the PowerMax1800 Portable Power Station, ensuring long-term protection and peace of mind. A QR code grants access to VIP support, with the card acting as the only warranty proof. Registration takes just two minutes. Committed to high-quality service, OSCAL offers 24-hour professional customer support and comprehensive after-sales coverage. This ensures reliable assistance and maintenance throughout the product’s lifespan, enhancing user confidence and satisfaction.
Foldable 200W solar panel, portable and easy to carry for outdoor use.

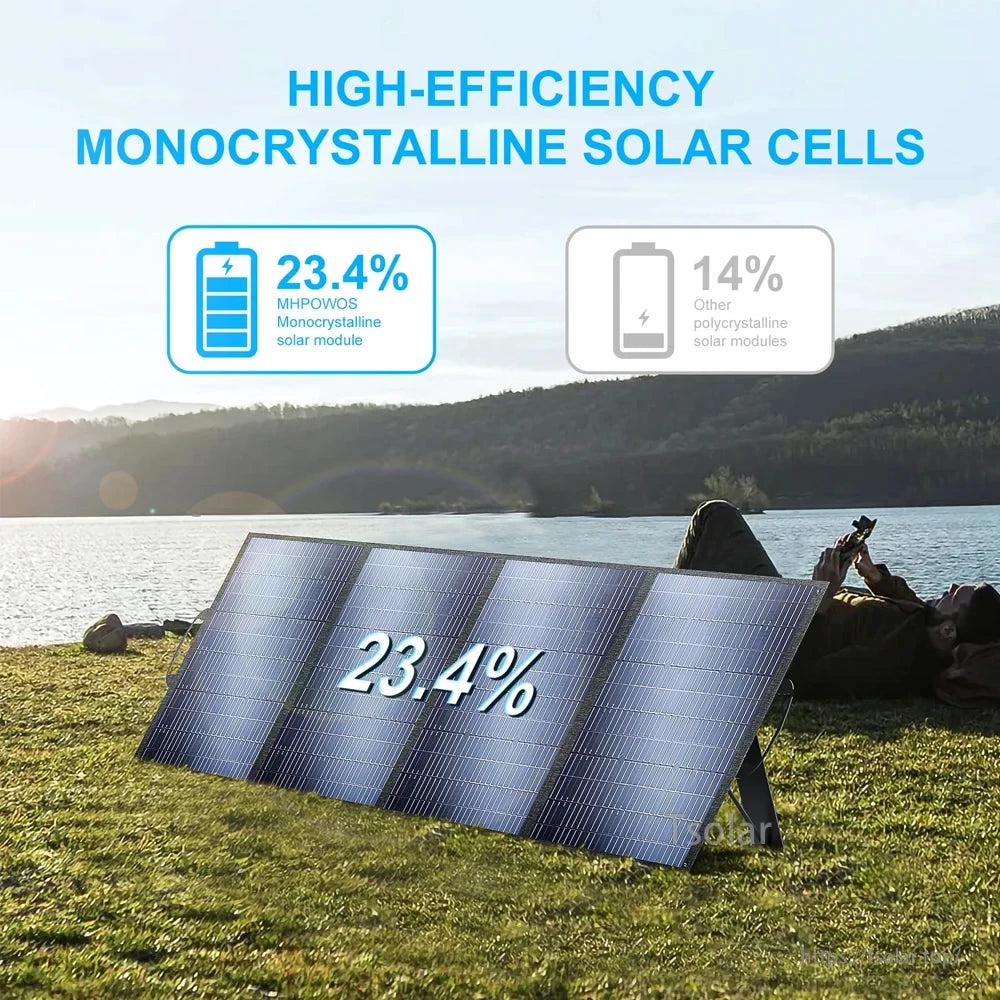

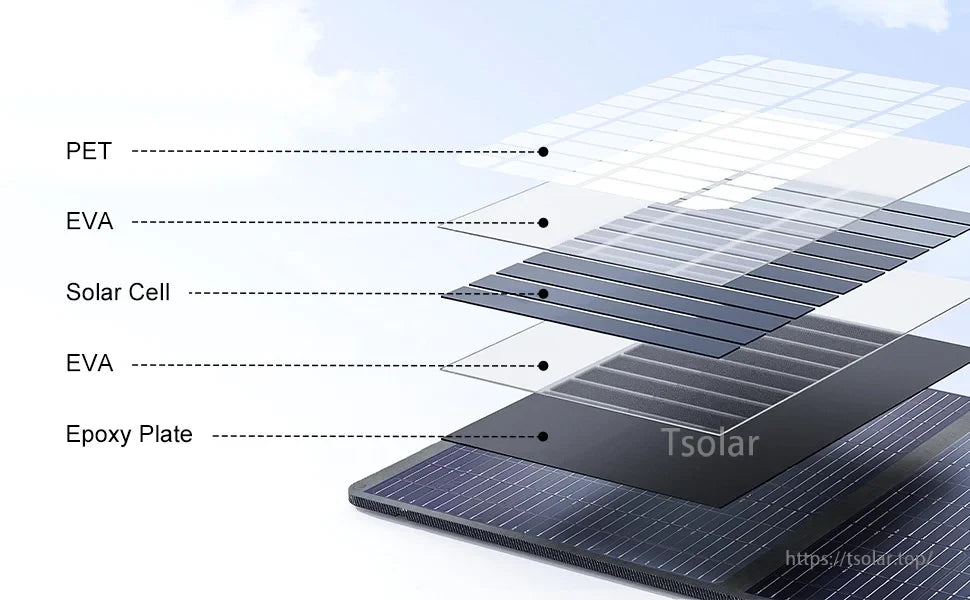

Monocrystalline solar cells with 23.4% efficiency for portable power stations.
