Overview

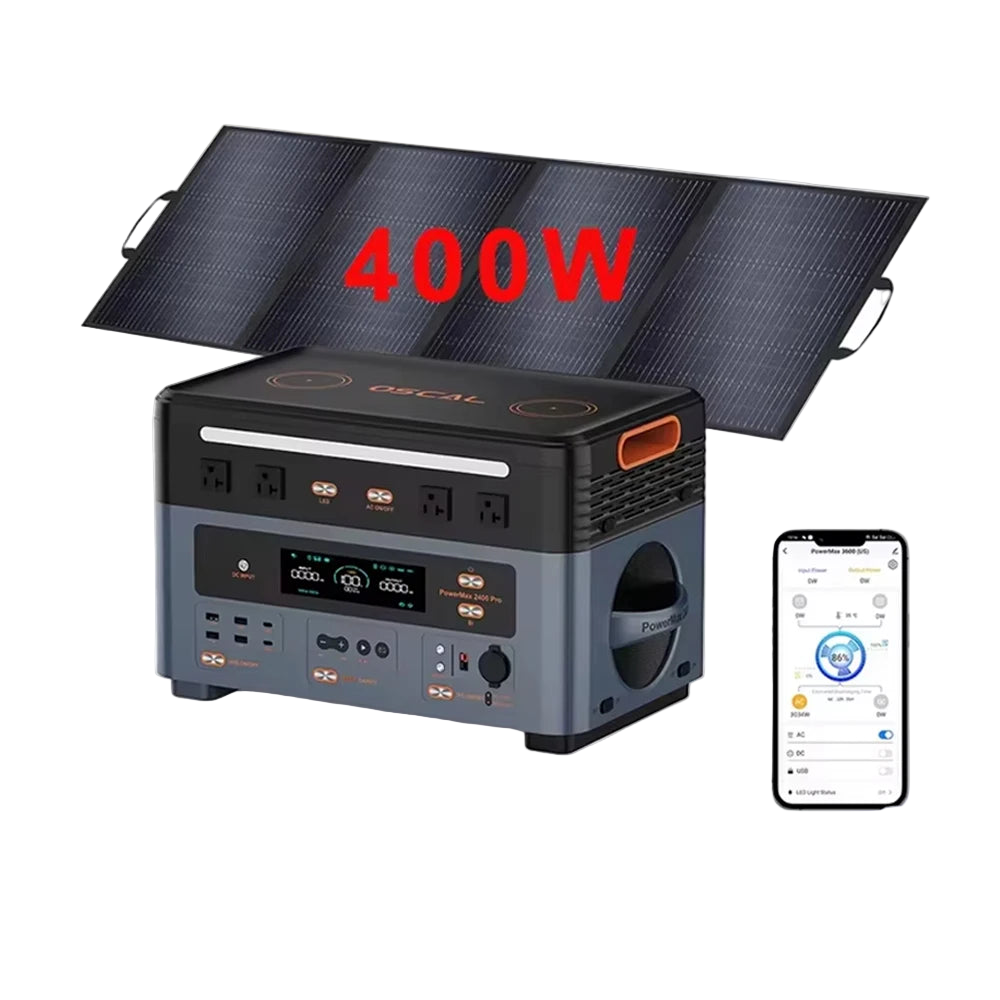

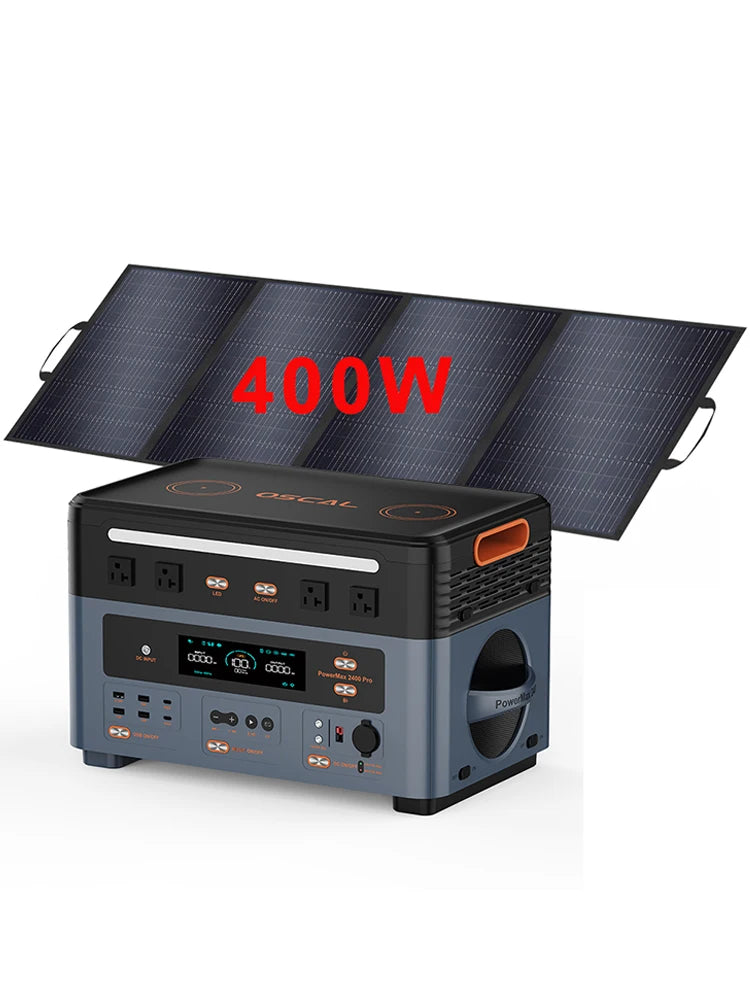

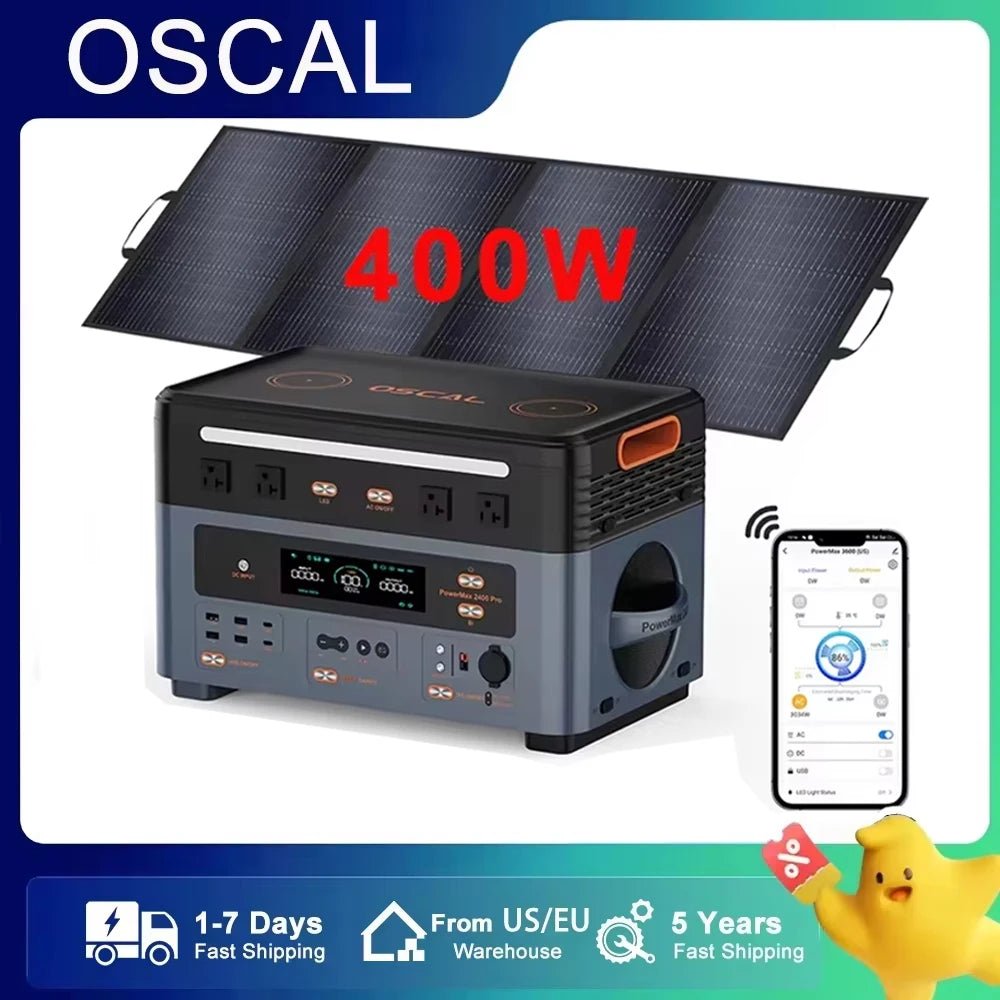

This Portable Power Station + Foldable Solar Panel bundle pairs the OSCAL PowerMax 2400 (model powermax 2400+T400) with a 400W folding solar panel to deliver solar power storage for camping, home backup, and outdoor work. The power station integrates a 1872Wh LiFePO4 battery and a pure sine wave inverter rated 2400W (4800W surge), while the ETFE monocrystalline 400W panel supports fast off‑grid charging.
Key Features
Power Station (PowerMax 2400)
- 1872Wh high-capacity LiFePO4 battery; 3500+ cycles to 80% original capacity; BMS with multi-layer protections.
- 2400W output (4800W surge) pure sine wave; 4× AC outlets; wide device compatibility including 120V/240V dual voltage output via DC/AC bi-directional inverter.
- Total of 14 output sources: 4× USB-A 18W, 2× USB-C up to 100W, 2× DC5521 60W, car cigarette lighter 240W max, Anderson 240W max, and 2× 15W wireless charging pads.
- Fast charging: AC full charge in ~1.6 hours (up to 1400w, pair with PM200 for 1,500W max); solar full charge in ~2.8 hours (800W max); 12/24V car outlet charging supported (120W/240W).
- UPS with fast switchover (5–8 ms) and pass-through charging; listed UPS switching time: 0.01s.
- Rugged ABS+PC construction: withstands vertical drops up to 0.8m; helps prevent ingress of solid particles and vertical water splashes; operating range −4°F to 113°F (−20°C to 45°C). Five LED light modes and Morse code signaling.
- Smart remote control via the OSCAL app over Wi‑Fi or Bluetooth.
Foldable Solar Panel (400W)
- Max output 400W (Pm); dependable power for outdoor activities or home backup.

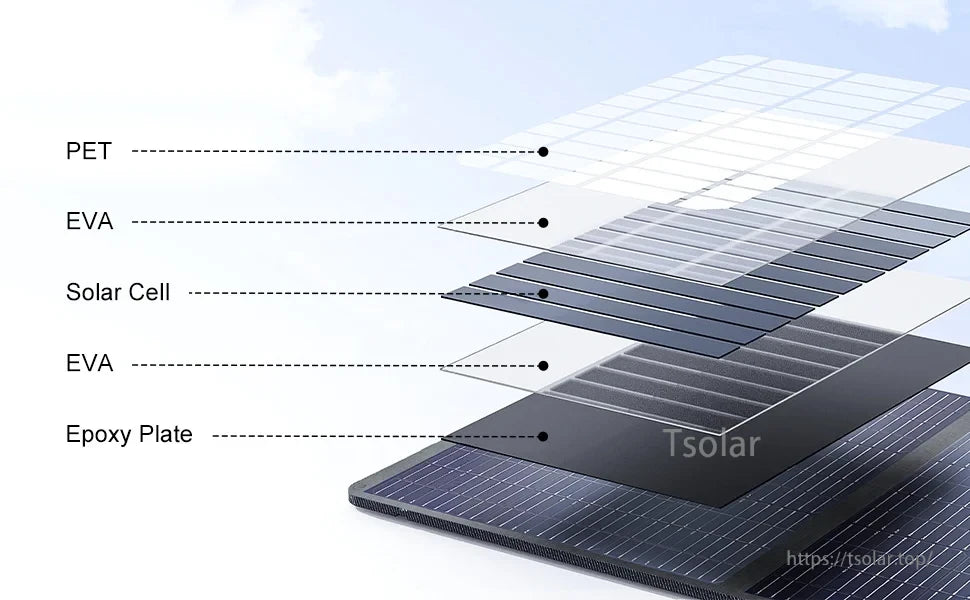

- High conversion efficiency up to 23.4% with ETFE film and monocrystalline silicon for improved light absorption, including low-light conditions.
- Four foldable panels; unfolded size 58 × 172 × 3 cm / 22.8 × 67.7 × 11.8 inches; lightweight at 6.1kg / 13.5lbs.
- Electrical parameters: output voltage up to 18V (max), output current up to 11.1A (max), Voc 21.6V, Isc 13.3A.
- Operating temperature −10℃ to 65℃; optimal operating temperature +25°C; five-year warranty.
- Series or parallel connection supported (up to three panels) to increase voltage or current.
Vendor-listed features
- WITH 400W Solar Panel; solar generator; carpas de camping; booster for car start; Car jump starter device; camping equipment.
Specifications
Power Station (PowerMax 2400)
| Brand Name | OSCAL |
| Model Number | powermax 2400+T400 |
| Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 1872wh |
| Scalability | 1872Wh–20592Wh (PowerMax 2400 + up to 10× BP2400) |
| Life Cycles | 3500+ cycles to 80% original capacity |
| Shelf-life | Recharge to 80% every 3–6 months |
| Management System | BMS |
| Inverter Type | Pure Sine Wave |
| Rated Output Power | 2400W (Surge 4800W) |
| AC Outlets | 4× 2400W Max |
| USB-A Ports | 4× 18W |
| USB-C Ports | 2× 100W Max |
| DC5521 Ports | 2× 60W |
| Car Cigarette Lighter Port | 1× 240W Max |
| Anderson Connector | 1× 240W Max |
| Wireless Charging Pads | 2× 15W |
| Pass-through Charging | Yes |
| UPS Switching Time | 0.01s |
| AC Charging Input | 1000W – 1500W |
| Solar Charging Input | 1000W – 1500W |
| AC Fast Charging | ~1.6 Hours (Full Charge), 1400w (Max); pair with PM200 for 1,500W Max |
| Solar Charging | ~2.8 Hours (Full Charge), 800W (Max) |
| 12/24V Car Outlet Charging | 120W/240W; 24V: ~9 Hours (Full), 12V: ~18 Hours (Full) |
| Operating Temperature | -4'F to 113°F (-20^C–45'℃) |
| Storage Temperature | -14-113℃ (-10’C–45℃℃) |
| Dimensions (L × W × H) | 47 × 29 × 32.6 cm / 18.5 × 11.4 × 12.8 in |
| Size | 58*37*41cm |
| Weight | Approx. 25.5Kg / 53.8lbs |
| Net Weight (range) | 10 KG – 30 KG |
| Display screen | Yes |
| Connection | Other |
| Replacement Battery | No |
| Application | Solar Power Storage |
| Warranty | 3 Years |
| Certifications | Europe: CE/LVD (EN62368-1), CE/EMC (EN55032/35), RED (ETSI EN 303 417; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62479), ROHS (EU); Japan: PSE/METI; America: FCC ID, DOE, CEC, FCC (Part 15C) JL |
| Origin | Mainland China |
| Hign-concerned Chemical | None |
| Bundle | Bundle 2 |
| Set Type | Charger Sets |
Foldable Solar Panel (T400)
| Rated Power | 400W (Pm) |
| Cell & Surface | Monocrystalline silicon with ETFE film |
| Conversion Efficiency | Up to 23.4% |
| Unfolded Size | 58 × 172 × 3 cm / 22.8 × 67.7 × 11.8 inches |
| Weight | 6.1kg / 13.5lbs |
| Output Voltage (max) | 18V |
| Output Current (max) | 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Operating Temperature | -10℃ to 65℃ |
| Optimal Operating Temperature | +25°C |
| Warranty | Five-year warranty |
| Connection Options | Series or parallel (up to three panels) |
What’s Included
- PowerMax 2400 *1
- Solar panel*1
- MC4 charging cable*1
Applications
- Camping, hiking, and camping equipment use
- Home emergency and UPS backup
- Outdoor work sites and solar power storage
- Disaster prevention scenarios
Details

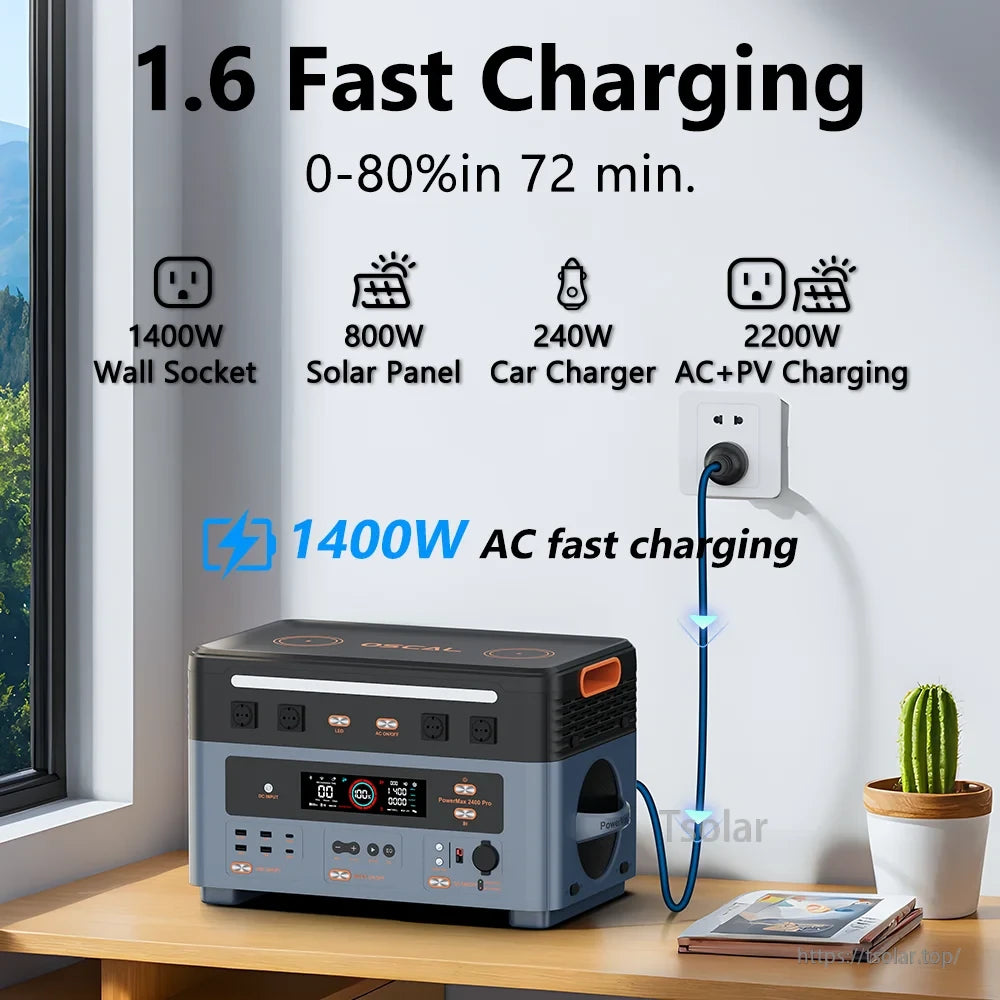

OSCAL Power Station: 1.6 Fast Charging, 0-80% in 72 min, 1400W AC, 800W Solar, 240W Car, 2200W AC+PV.

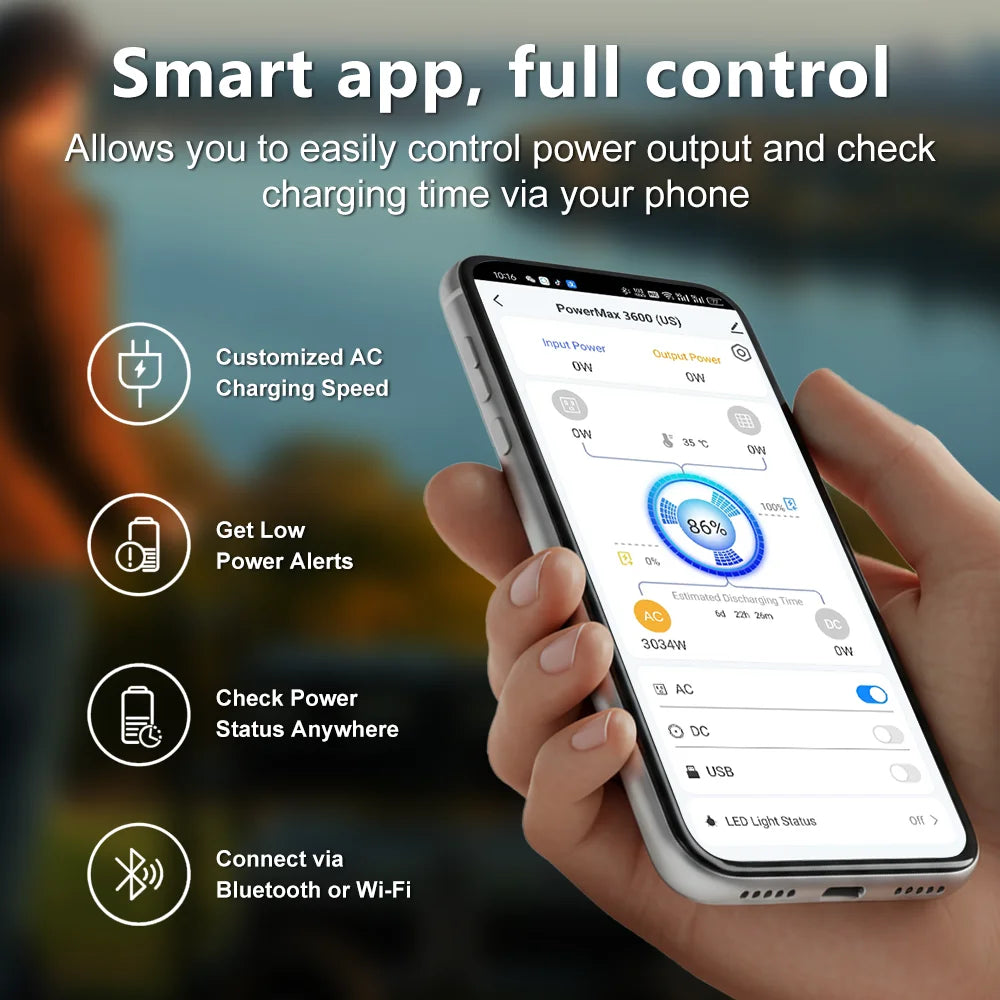

Smart app enables full control of power output and charging time via phone. Features include customized AC charging speed, low power alerts, remote power status monitoring, and connection through Bluetooth or Wi-Fi. The app interface displays real-time data such as input/output power, temperature, battery level, estimated discharging time, and toggles for AC, DC, and USB outputs. LED light status is also accessible. Users can manage the PowerMax 3600 (US) device efficiently from anywhere.
Endless Power Max supports up to 10 battery packs. PM2400 with 1 or 4 bp2400 batteries offers 3744Wh for 2 days or 7488Wh for 4 days. Expandable to 20,592Wh. Reliable, long-lasting energy for all devices.

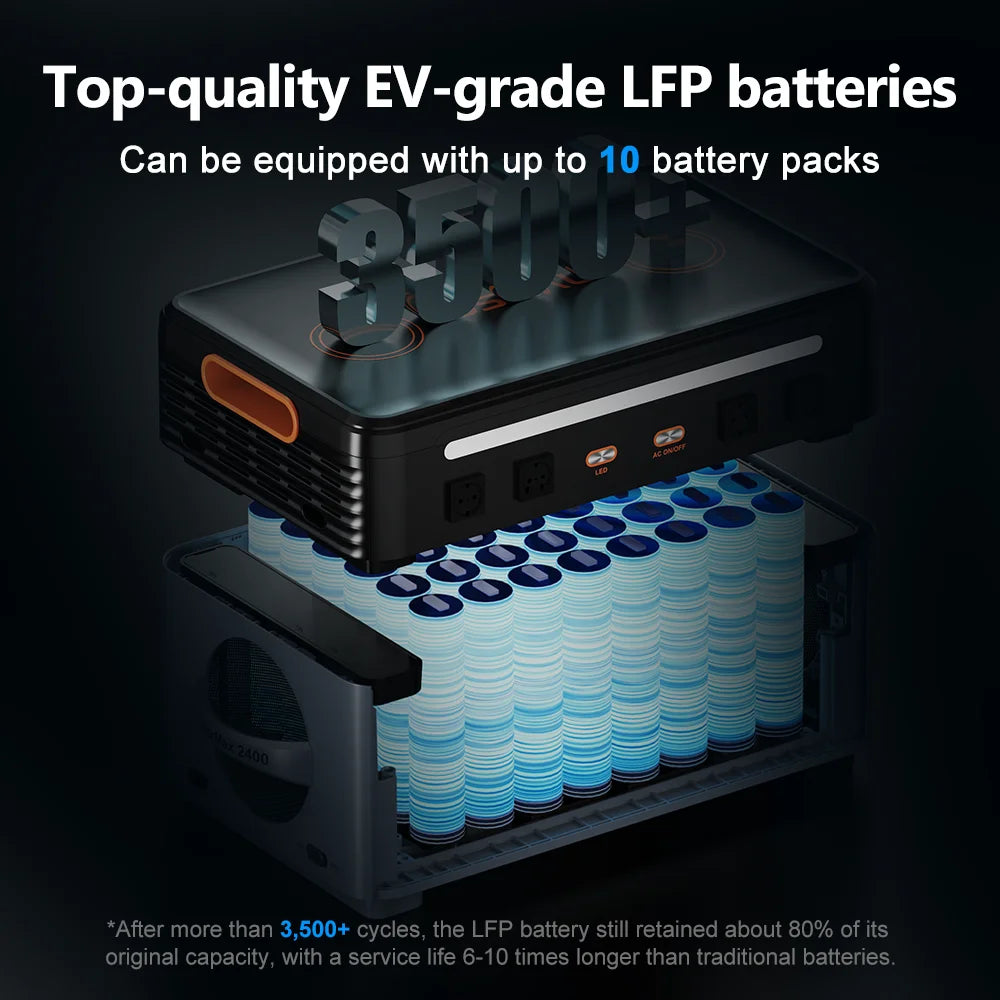

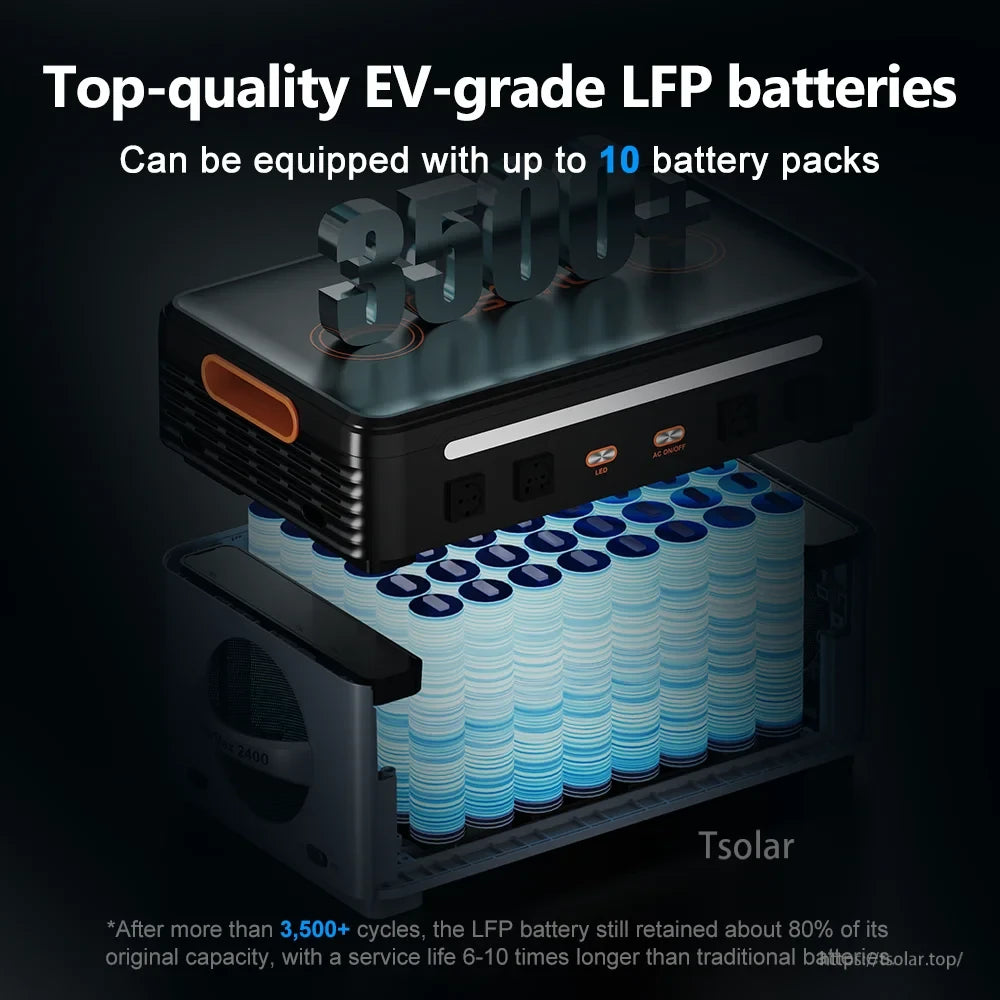

Top-quality EV-grade LFP batteries, up to 10 packs, 3,500+ cycles, 80% capacity retention, 6-10x longer life than traditional batteries.

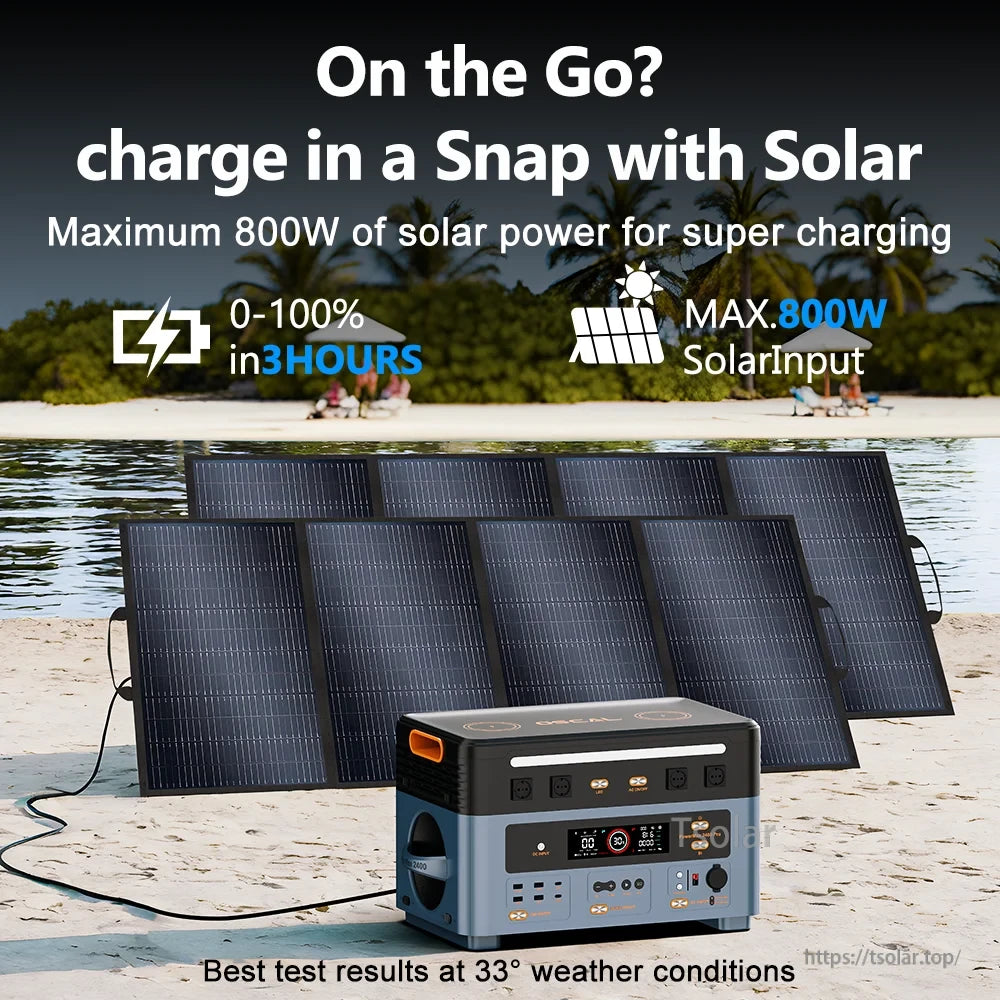

Portable power station: 800W solar input, charges in 3 hours, optimal at 33°C.
Powerful dual speakers, 187 phone charges, 31.2 hours fridge, 18 hours projector. PowerMax 2400 with 25W subwoofer and 10W tweeter delivers deep bass and clear highs.

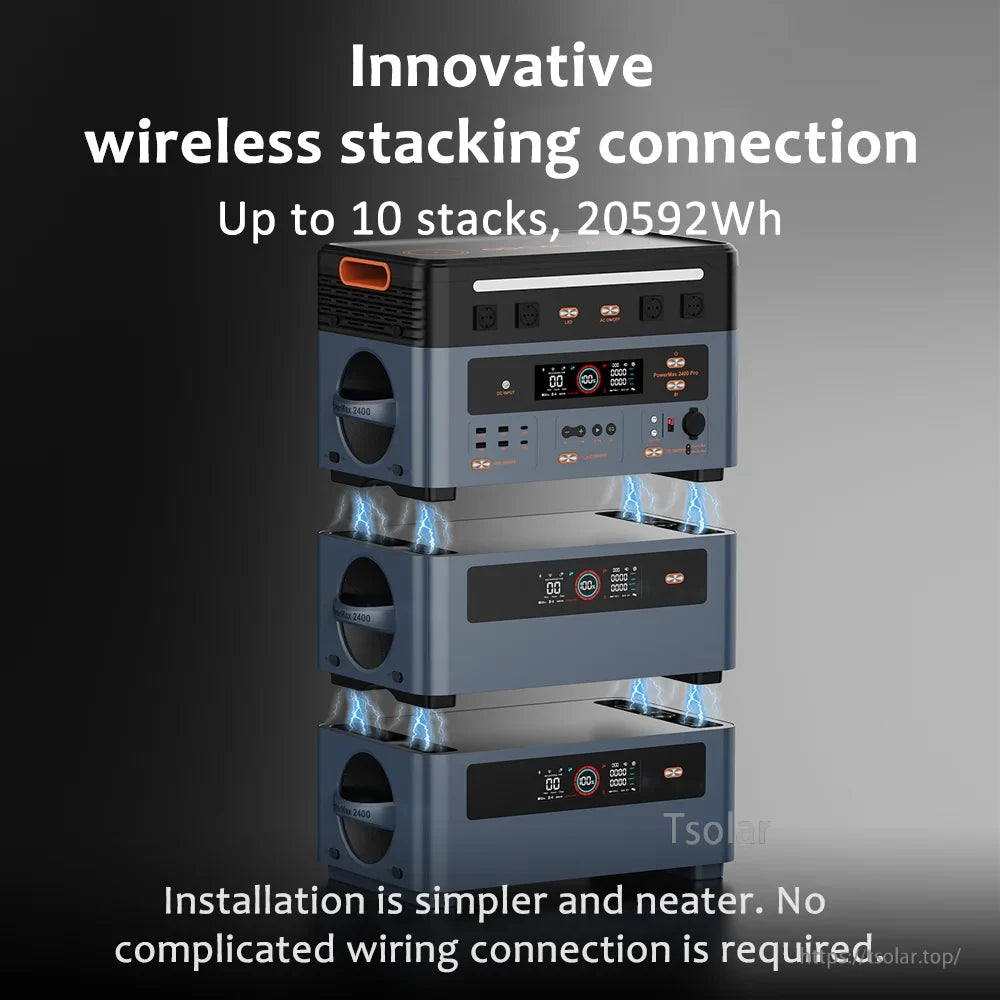

Innovative wireless stacking, up to 10 units, 20592Wh. Simple installation, no wiring needed.
Unlimited expansion, unlimited energy. PM2400*3 + bp2400*9 = 20,592Wh. Expand up to 20,592Wh with 10 BP2400 batteries. Reliable, long-lasting power for all devices.

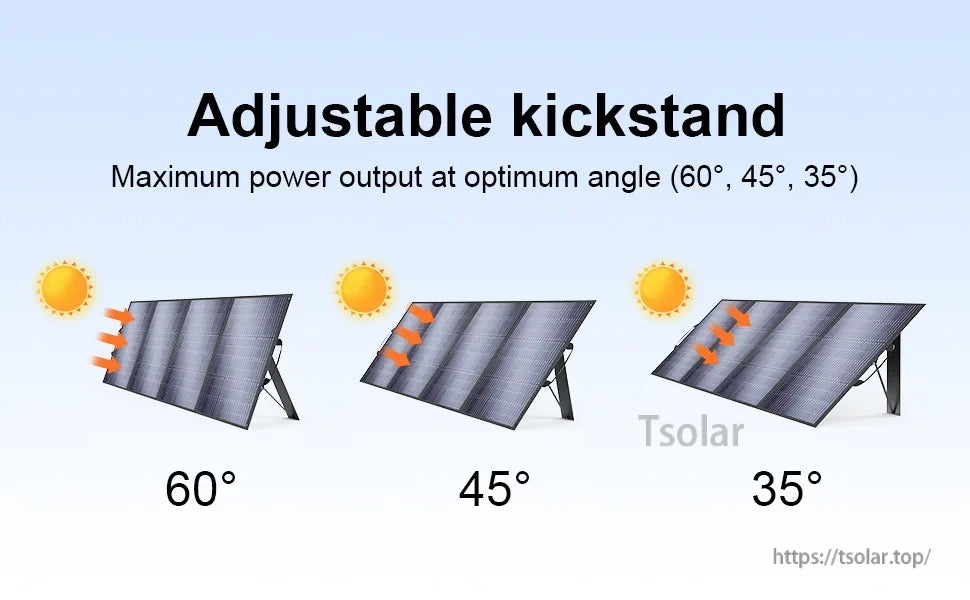

Adjustable kickstand optimizes solar efficiency at 60°, 45°, and 35° angles for maximum power output. (18 words)
