Overview

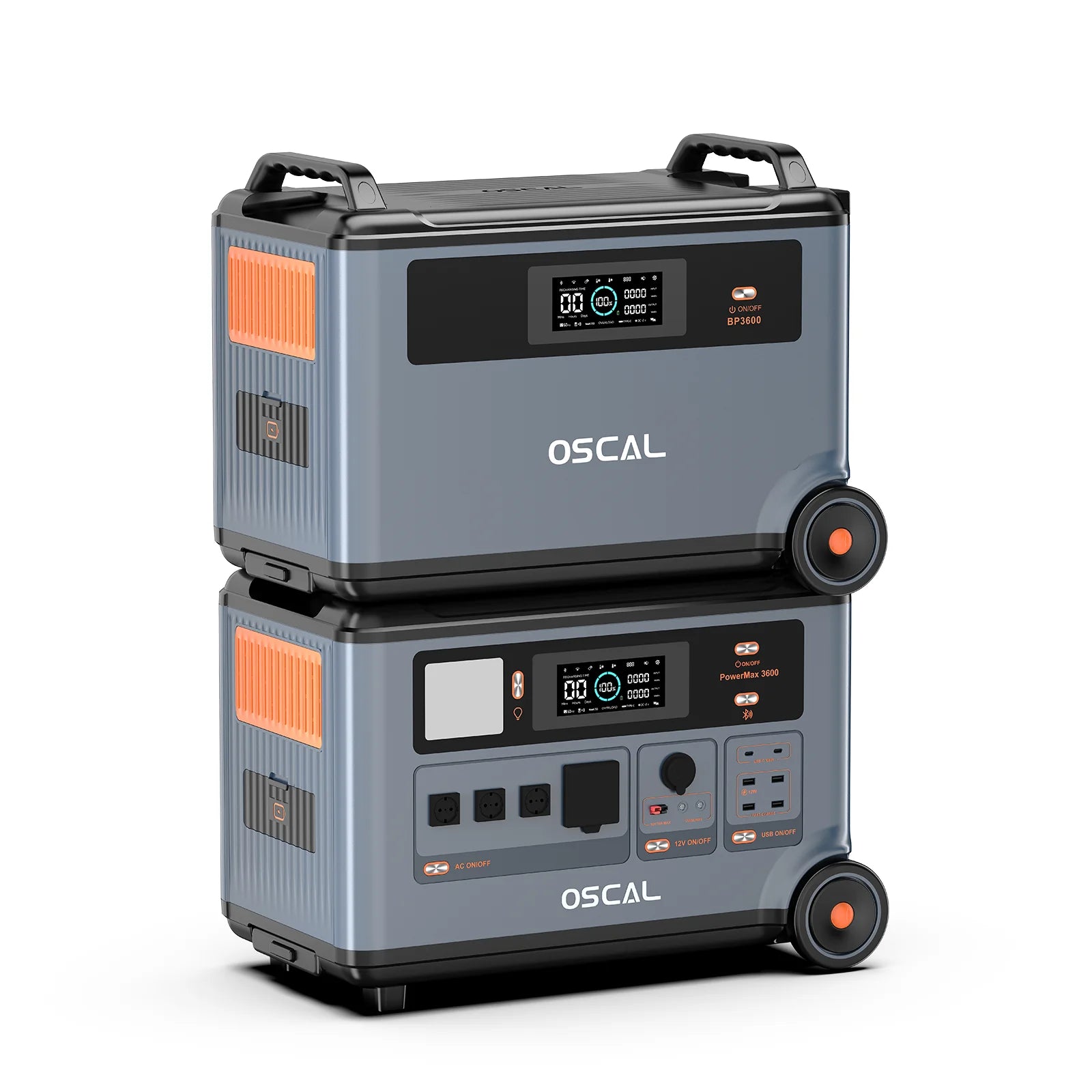

OSCAL PowerMax 3600 is a Rugged Power Station designed for reliable solar power storage and off-grid backup. It integrates a 3600 Wh LiFePO4 battery, a 3600W pure sine wave AC inverter with 7200W surge, and 14 versatile output ports. The system supports modular expansion up to 57.6 kWh (up to 15 x 3600 Wh battery packs) and provides app control via Wi‑Fi and Bluetooth. A built-in display screen simplifies monitoring. Certified to CE and FCC.
Key Features
14 Versatile Outlets
High-quality 3600W rated pure sine wave AC inverter with diverse AC, DC, USB-C, USB-A, Anderson, DC5521, and cigarette lighter outputs for home backup, parties, and camping.

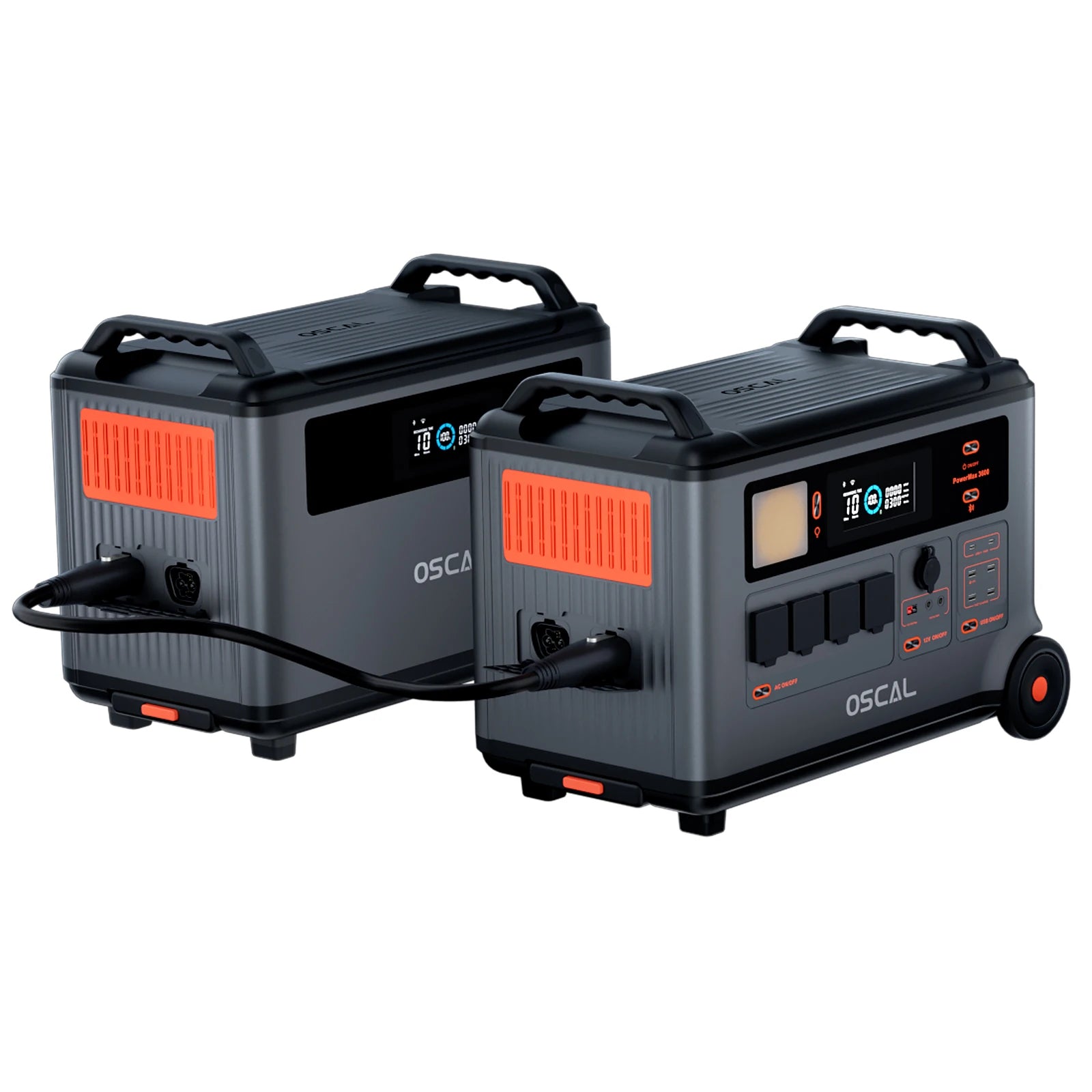

57600Wh Max Battery (Modular Design)
Capacity tailorable from 3.6 kWh to 57.6 kWh with up to 15 battery packs (3600 Wh per pack).
LED Light Modes & Morse Code Signal
Five LED modes plus signaling capability via adjustable brightness and flashing patterns for night or low-visibility situations.
Anti-UV & UL94V-0 Flame-Retardant Case
Resists sun-induced fading/aging; flame-retardant enclosure helps mitigate fire risks associated with heat.
0.8 m Vertically Drop-Proof
Engineered to withstand vertical drops up to 0.8 m.
Splash-Proof & Dust-Proof Body
Shields against vertical water droplets and certain solid particles.
App Control
Yes, via WiFi and Bluetooth.
Additional noted features
Oscal Blackview Battery; external battery; Car camping; solar generator 3600w; trust bank 3600W; ups BMS; Display screen: Yes.
Specifications
| Brand | OSCAL / Oscal |
| Model | PowerMax 3600; Model Number: powermax 3600+BP3600 |
| Type (category) | Rugged Power Station |
| Application | Solar Power Storage |
| Battery Type | LiFePO4 |
| Battery Capacity (Nominal) | 3600 Wh / 3600wh |
| Battery Life Cycles | 3500+ cycles to 80% of original capacity |
| Expandable Capacity | Up to 57.6 kWh (up to 15 battery packs, 3600 Wh per pack) |
| AC Output | 4 x 3600W Output (Max) |
| Inverter Type | Pure Sine Wave |
| Surge Power | 7200W |
| USB-C Ports | USB-C 100W x2 |
| USB-A Ports | USB-A 12W x1; USB-A 18W x3 |
| DC Output | Anderson 378W x1; DC 5521 36W x2 |
| Cigarette Lighter Port | 120W x1 |
| AC Adapter Input | 2200W (Max); Recharging time: 1.96 h |
| Solar Input | 1600 W (Max); Recharging time: 2.25 h (with prime sunshine, ideal orientation, and low temperature) |
| Car Input | 120W (Max); Recharging time: 30 h |
| Dual Charging | AC + DC (Solar): 1.2 h; AC + DC (Car): 1.86 h |
| AC Charging Input | > 3000W |
| Solar Charging Input | 1500W – 2000W |
| Charging Temperature | 0–50°C (32°F–122°F); Best under conditions from 0°C to 45°C (32°F–113°F) |
| Discharging Temperature | -20–55° (-4°F–131°F); Best under conditions from -10°C to 45°C (14°F–113°F) |
| Storage Temperature | -10°C–45°C (14°F–113°F) |
| App Control | Yes, via WiFi and Bluetooth |
| Display screen | Yes |
| Certification | CE, FCC |
| Color | Grey + Red |
| Product Size | L590 × W350 × H441 mm (59 × 35 × 44.1 cm) |
| Package Size | 66 × 40.5 × 52.5 cm |
| Product Weight | 44.5 kg |
| Package Weight | 47.6 kg |
| Net Weight | > 50Kg |
| Set Type | Charger Sets |
| Battery Number | 1 |
| Connection | Other |
| Battery Core manufacturer | Other |
| Replacement Battery | No |
| Origin | Mainland China |
| Bundle | Bundle 1 |
| Hign-concerned Chemical | None |
Applications
Home backup and emergency power, solar power storage, car camping, outdoor events, and mobile work sites requiring multiple AC/DC/USB outputs.
Details
OSCAL PowerMax 3600 offers 3600Wh capacity, 1800W output, 14 ports, LiFePO4 battery with 3500+ cycles, 5ms UPS, app control, three-proof design, and expandability up to 57600Wh—ideal for reliable, long-term power needs.

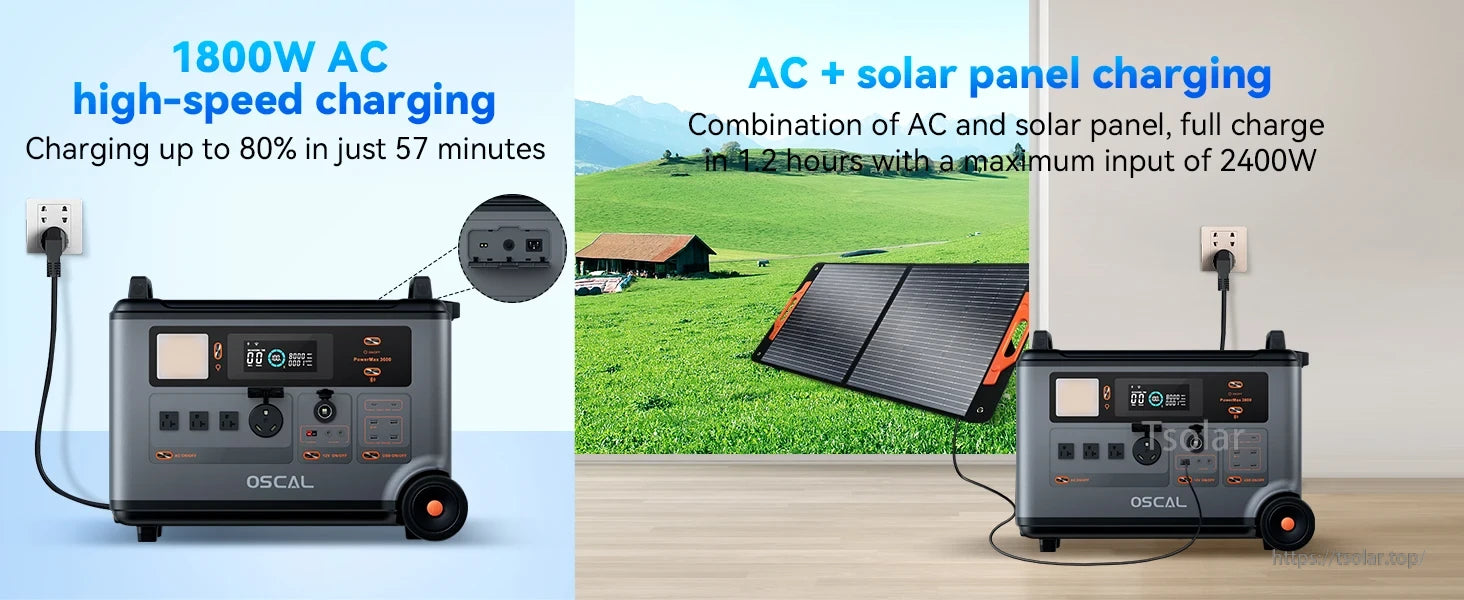

1800W AC fast charging, 80% in 57 mins; AC + solar charging, full in 12 hours with 2400W input.
OSCAL PowerMax 3600 charges up to 99% of essential devices, portable and reliable for on-the-go power needs.

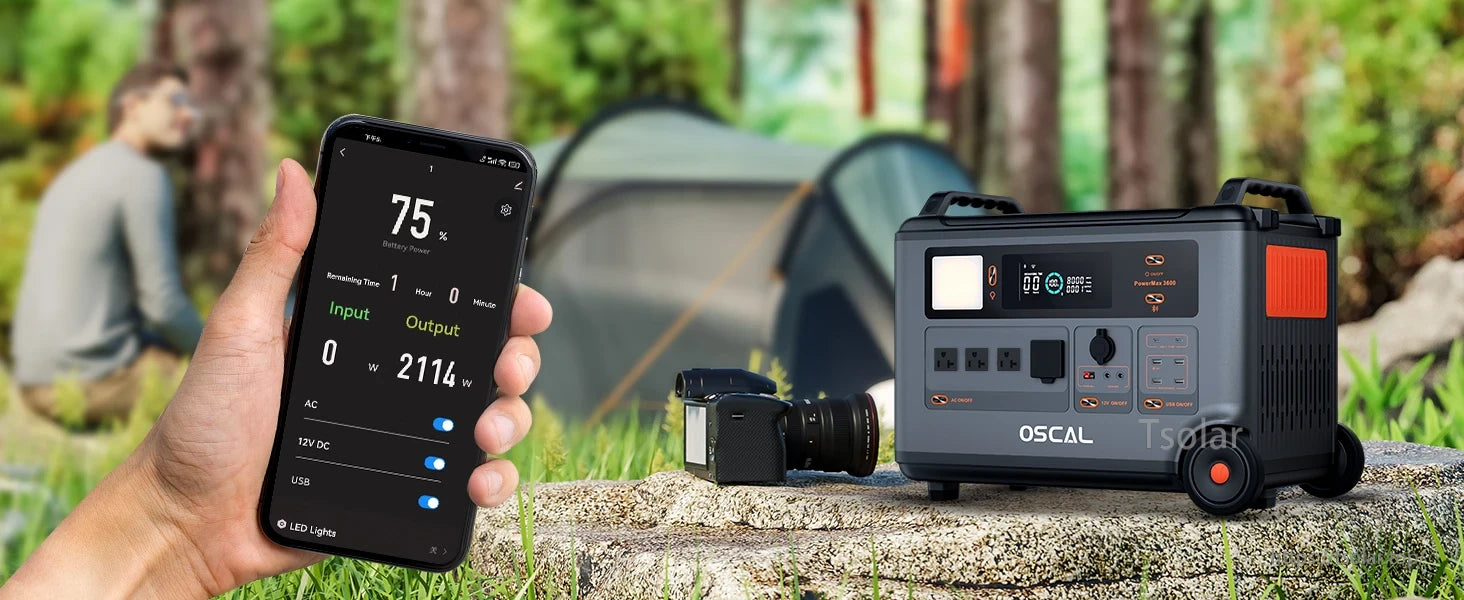

OSCAL PowerMax 3600: portable power station with app control for camping.

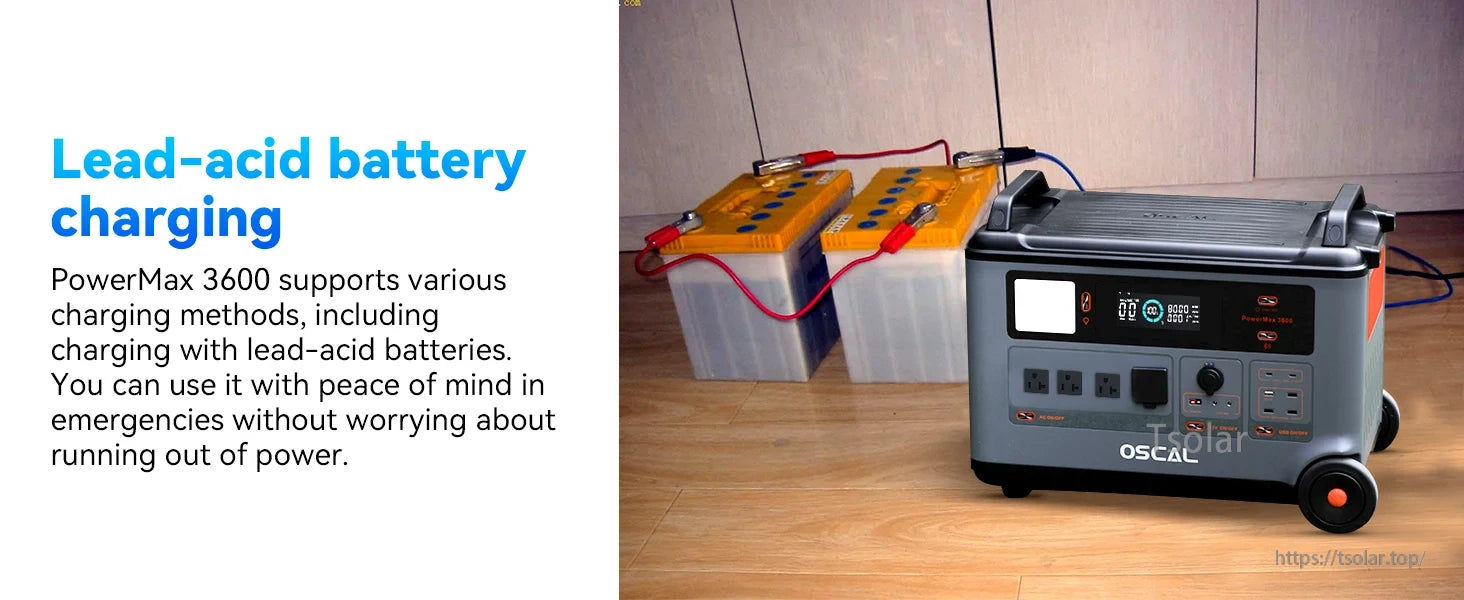

OSCAL PowerMax 3600 supports lead-acid battery charging, offering reliable power in emergencies.

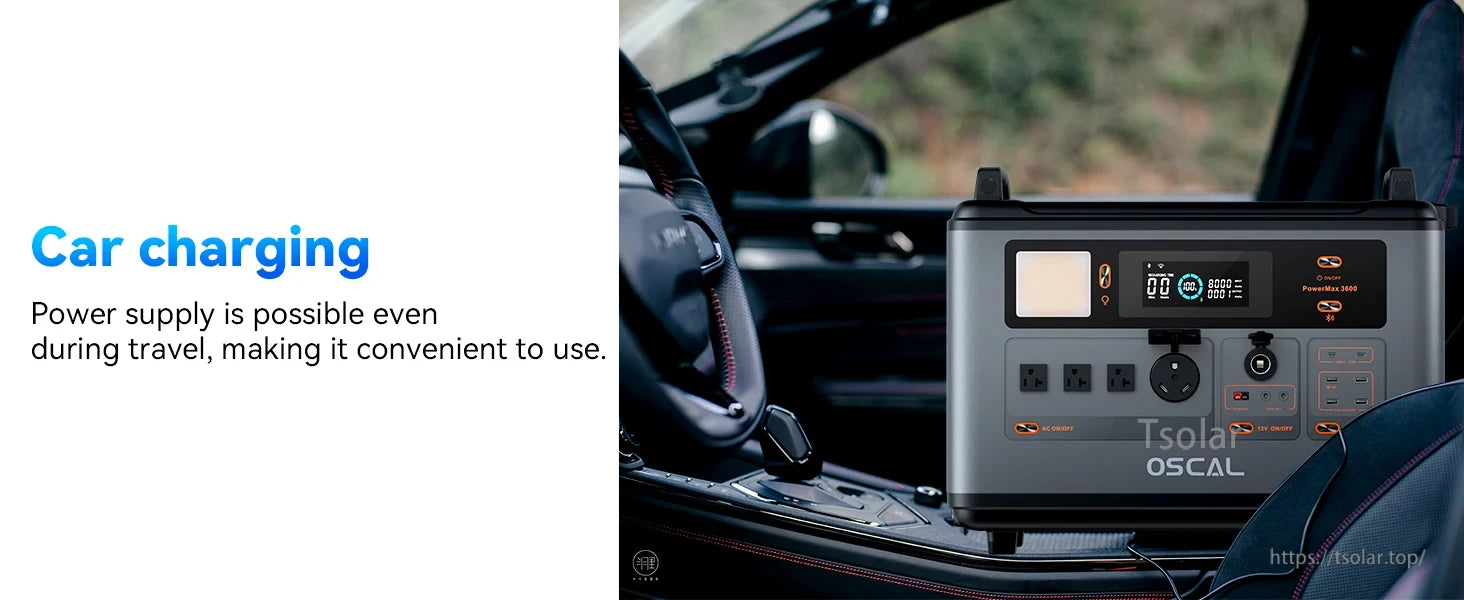

Car charging enables power supply during travel, convenient for use. OSCAL PowerMax 3600.

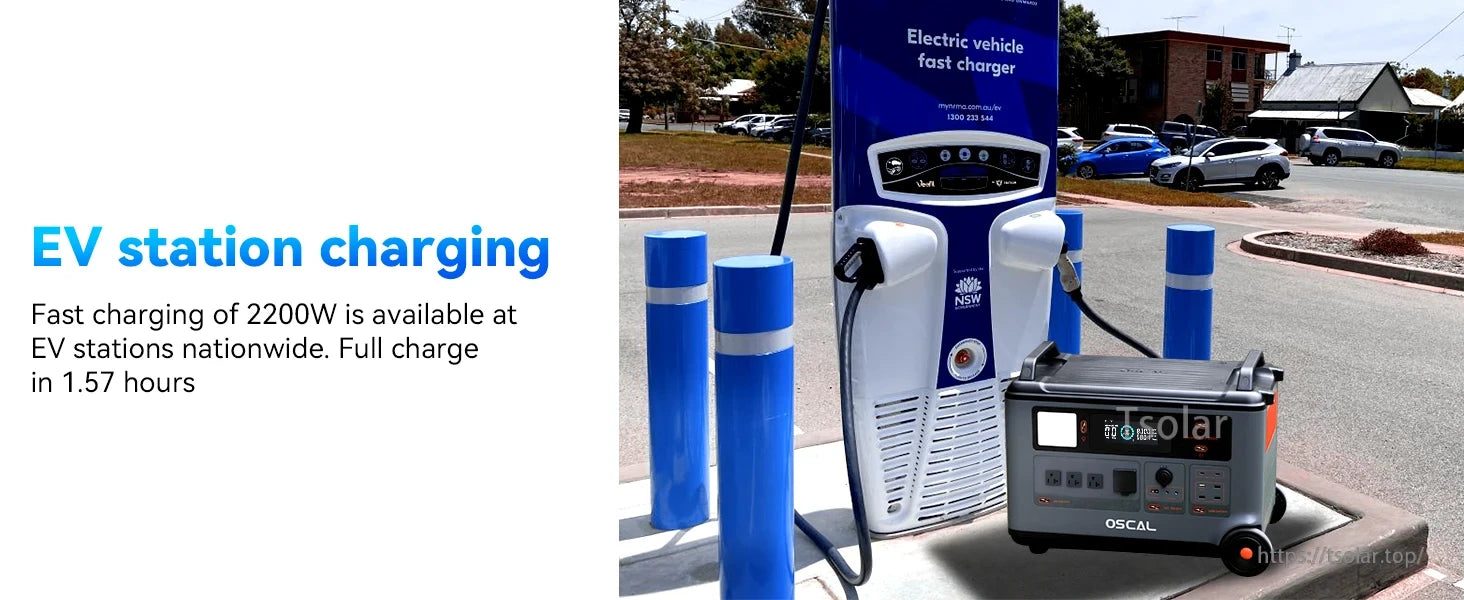

OSCAL PowerMax 3600 charging at EV station, 2200W fast charge, full in 1.57 hours.

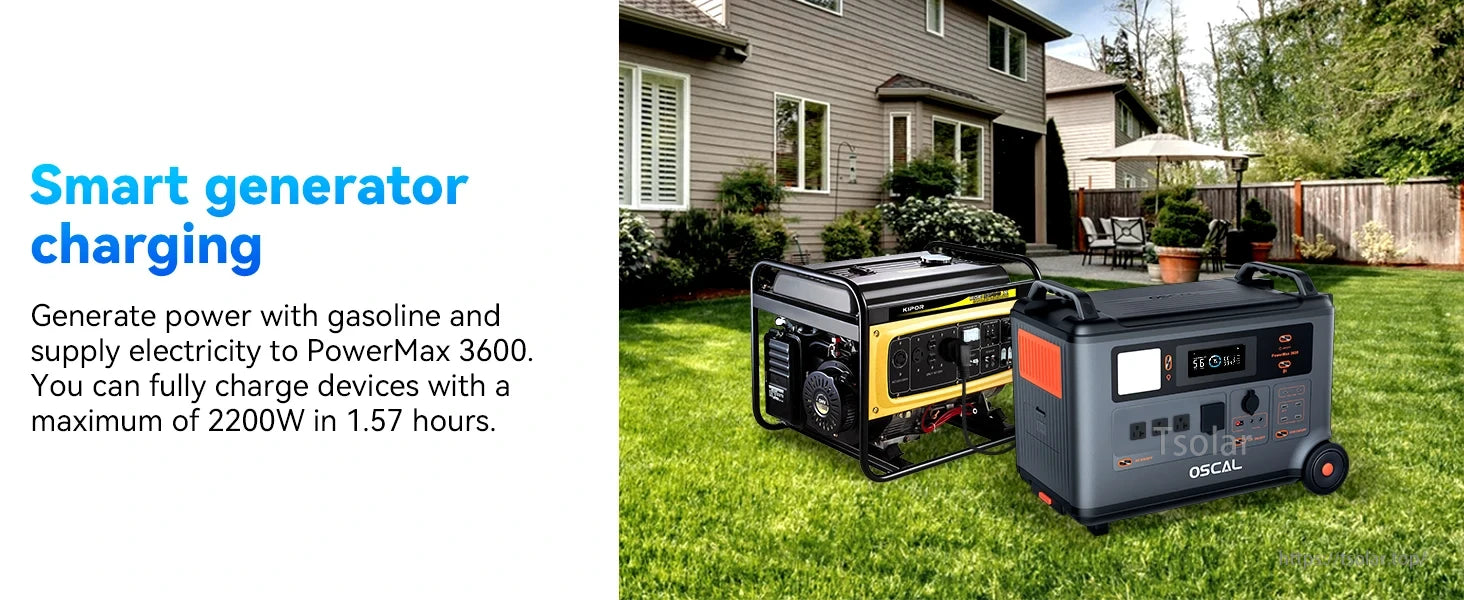

Smart generator charges PowerMax 3600 with gasoline, fully powers 2200W devices in 1.57 hours.
3.6kWh power station; 36-108km for e-scooters; up to 3 days for RV and camping.
28.8kWh power station supports 256–640km e-motorcycle range and up to 7 days professional work.
OSCAL PowerMax 3600 power station supports various devices: CPAP, washer, microwave, coffee maker, cutting machine, and electric grill, with AC outlets of 3×2400W and 1×3000W output.

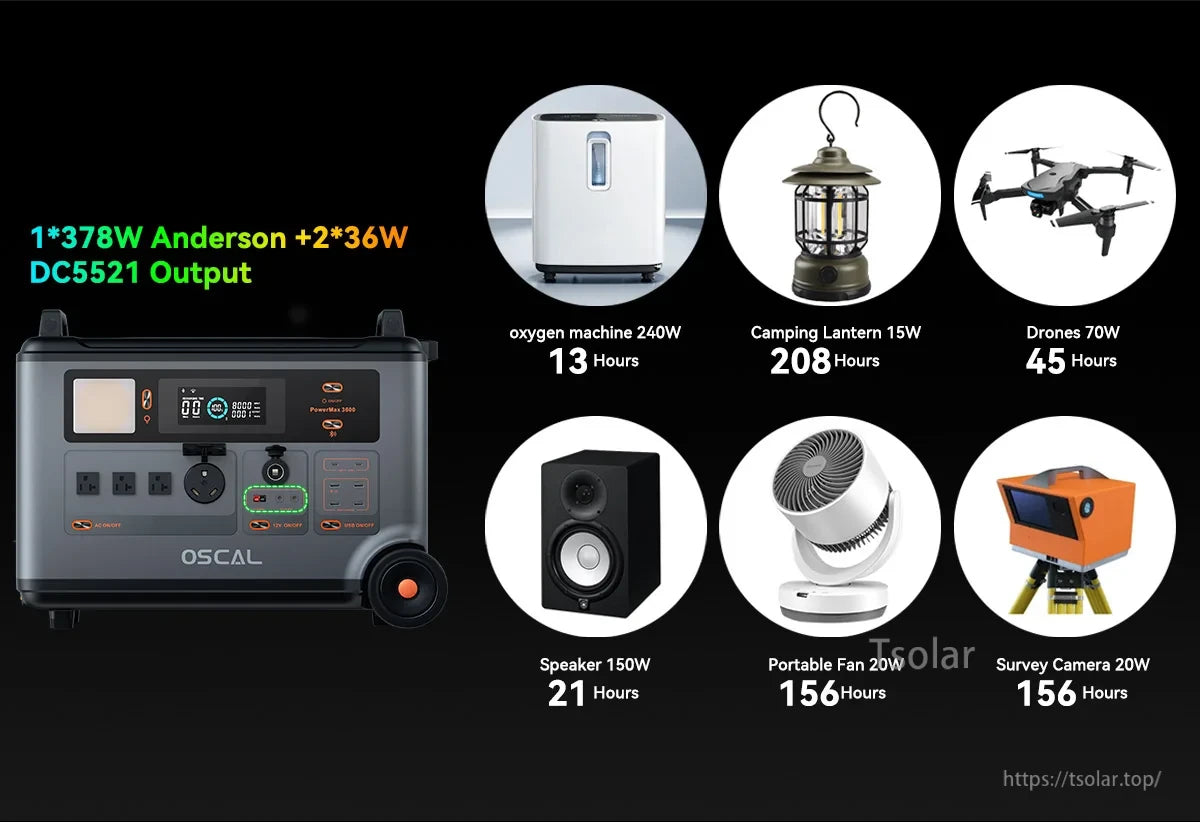

OSCAL PowerMax 3600 power station offers 378W Anderson and 2×36W DC5521 outputs. Supports oxygen machine, lantern, drones, speaker, fan, and survey camera with runtime up to 208 hours.
OSCAL PowerMax 3600 power station offers 160 phone, 52 laptop, 195 camera, 622 smartwatch charges, 12.5 hours projector runtime, and 62 TV charges. Features 2×100W USB-C, 1×12W USB-A, and 3×18W USB-A outputs.

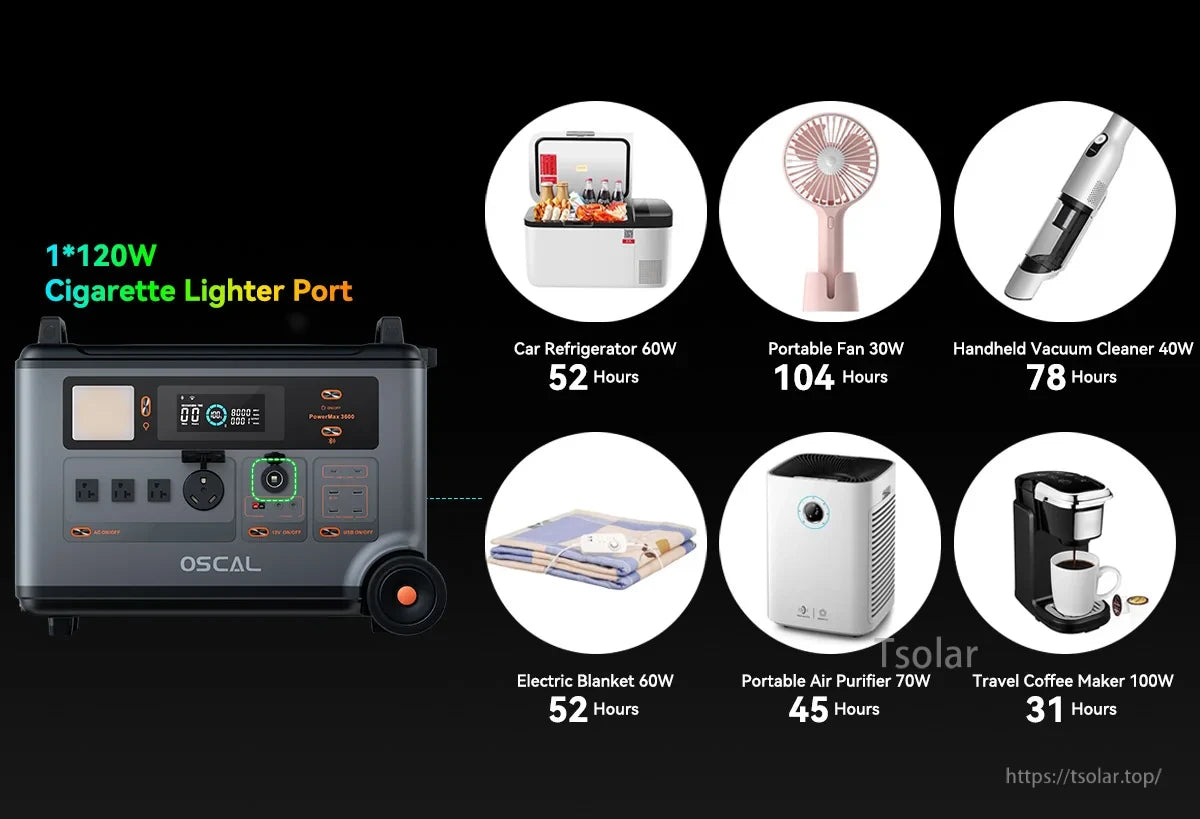

OSCAL PowerMax 3600 has a 120W cigarette lighter port, powering car fridge (52h), fan (104h), vacuum (78h), blanket (52h), purifier (45h), and coffee maker (31h).

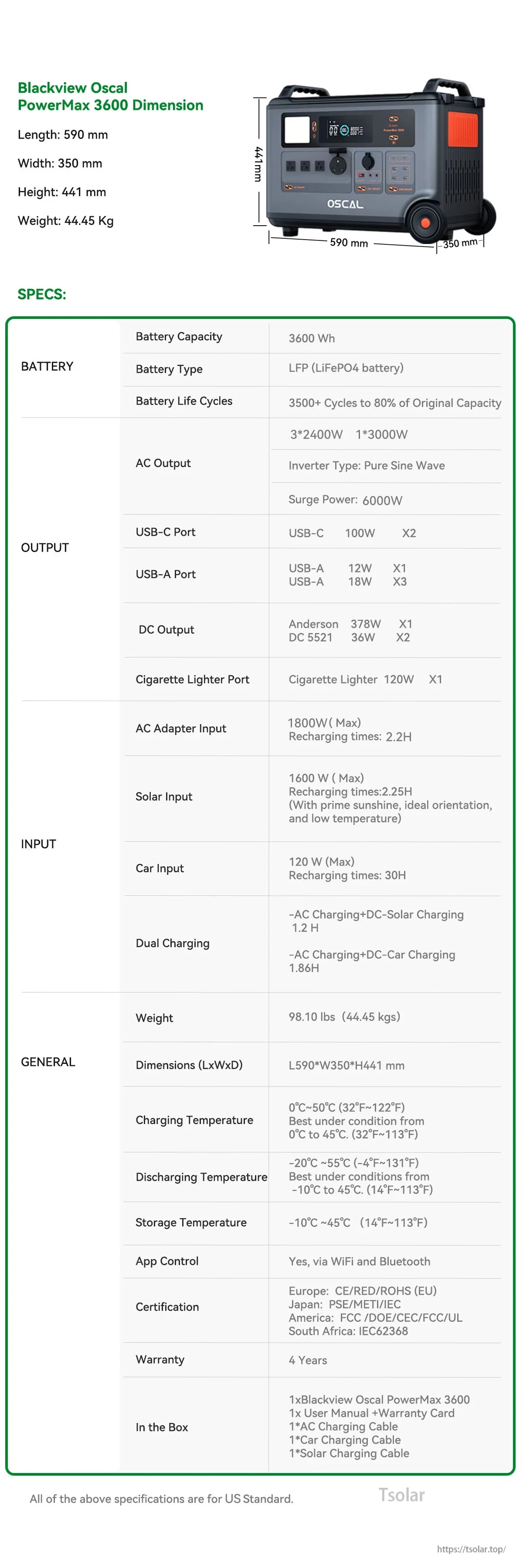

3600Wh LFP battery, 6000W surge, multiple AC/DC/USB outputs, solar and car charging, WiFi/Bluetooth app control, 4-year warranty. 590x350x441mm, 44.45kg.

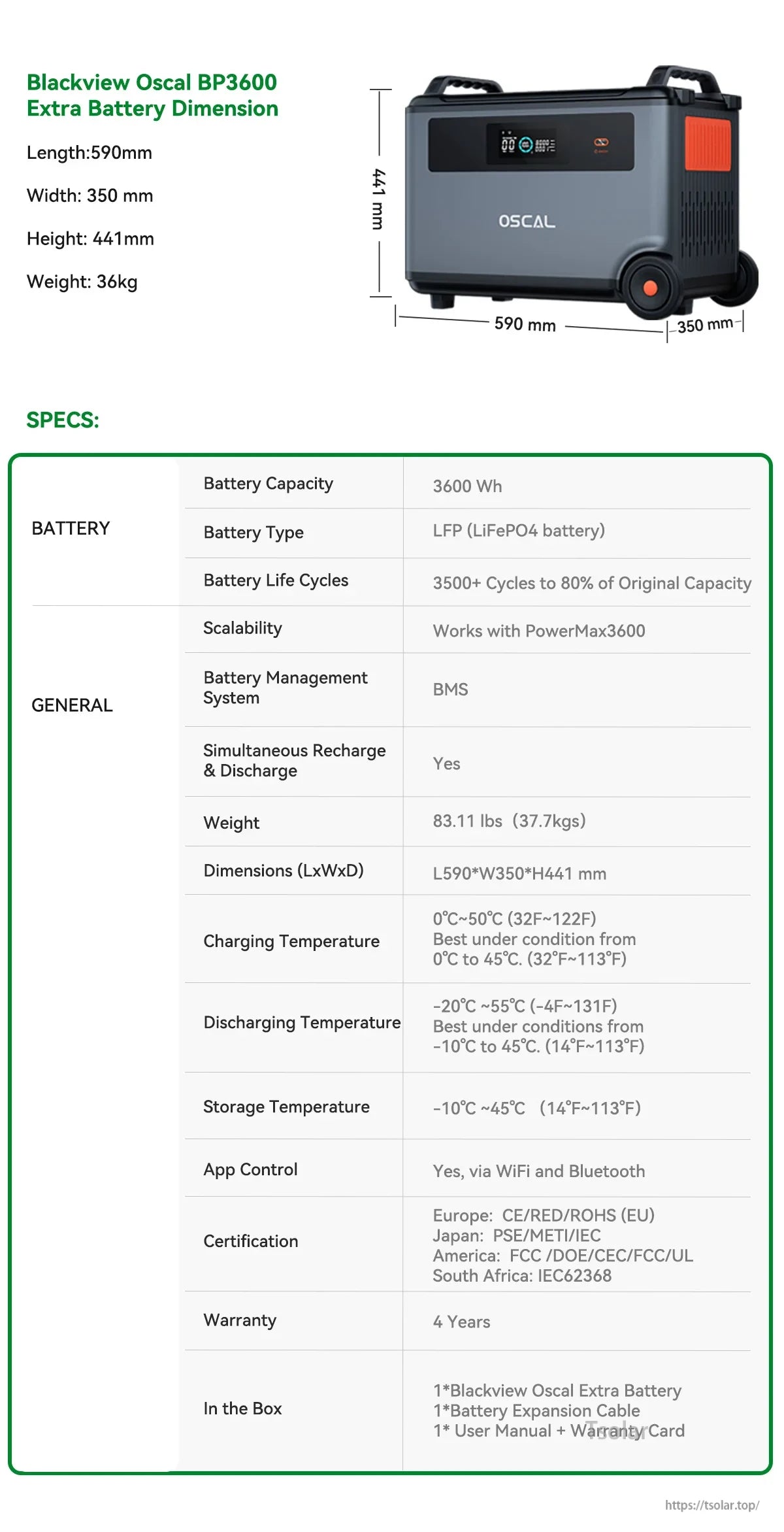

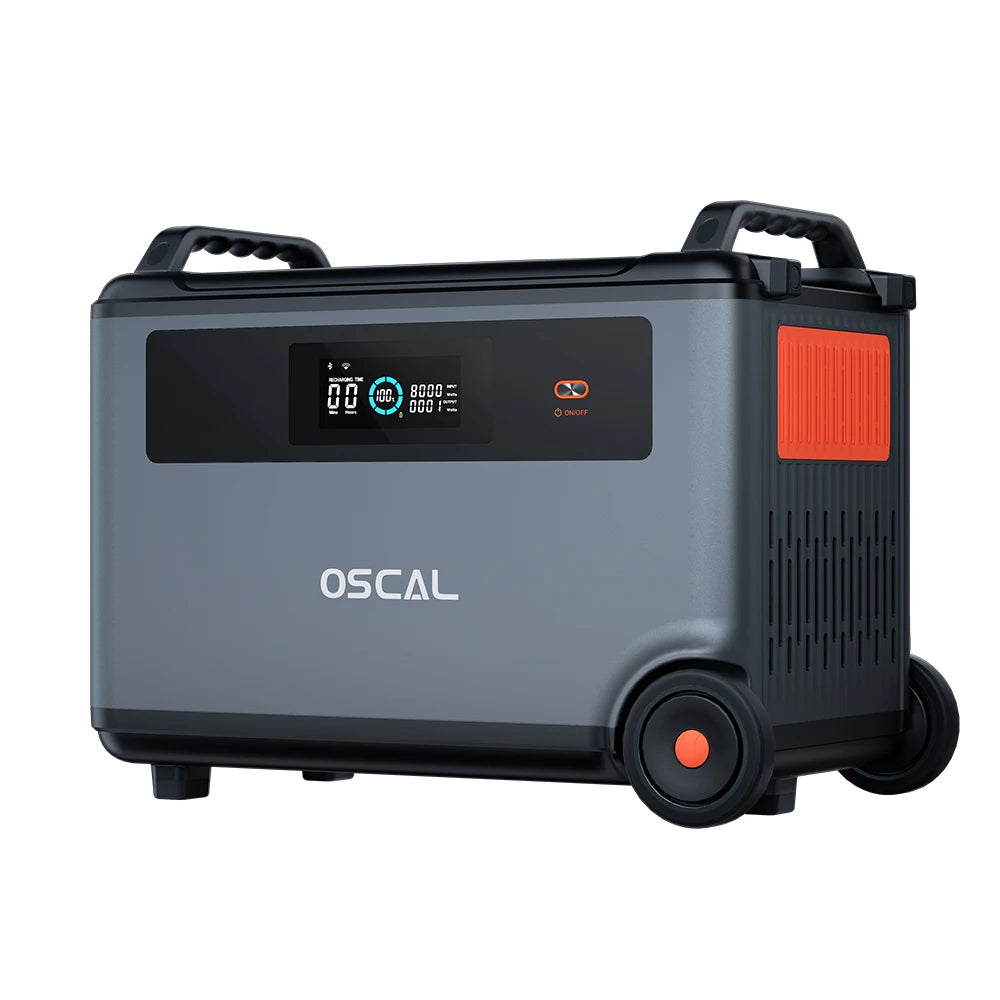

Blackview Oscal BP3600 extra battery, 3600Wh LFP battery, 3500+ cycles, BMS system, supports simultaneous charge/discharge. Dimensions: 590×350×441mm, weight 36kg. Features WiFi/Bluetooth app control, 4-year warranty. Includes expansion cable, manual, and warranty card.
