Overview

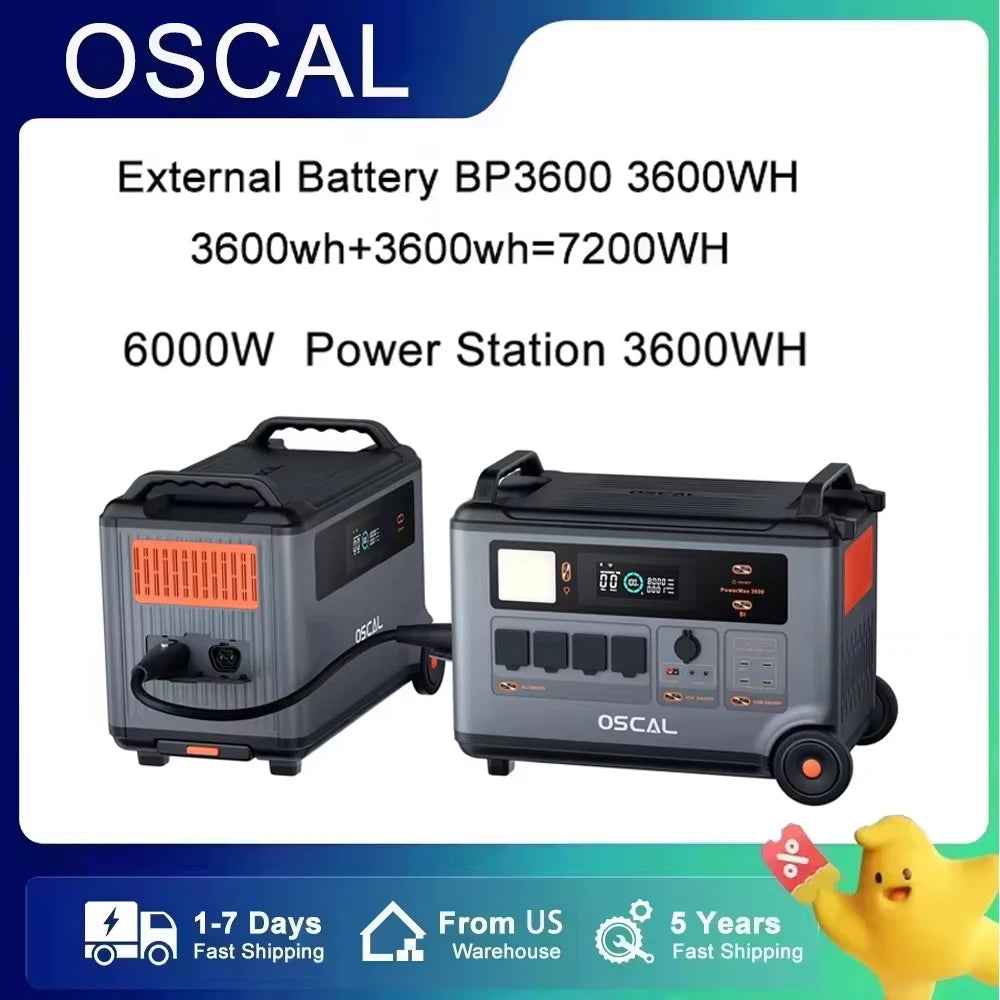

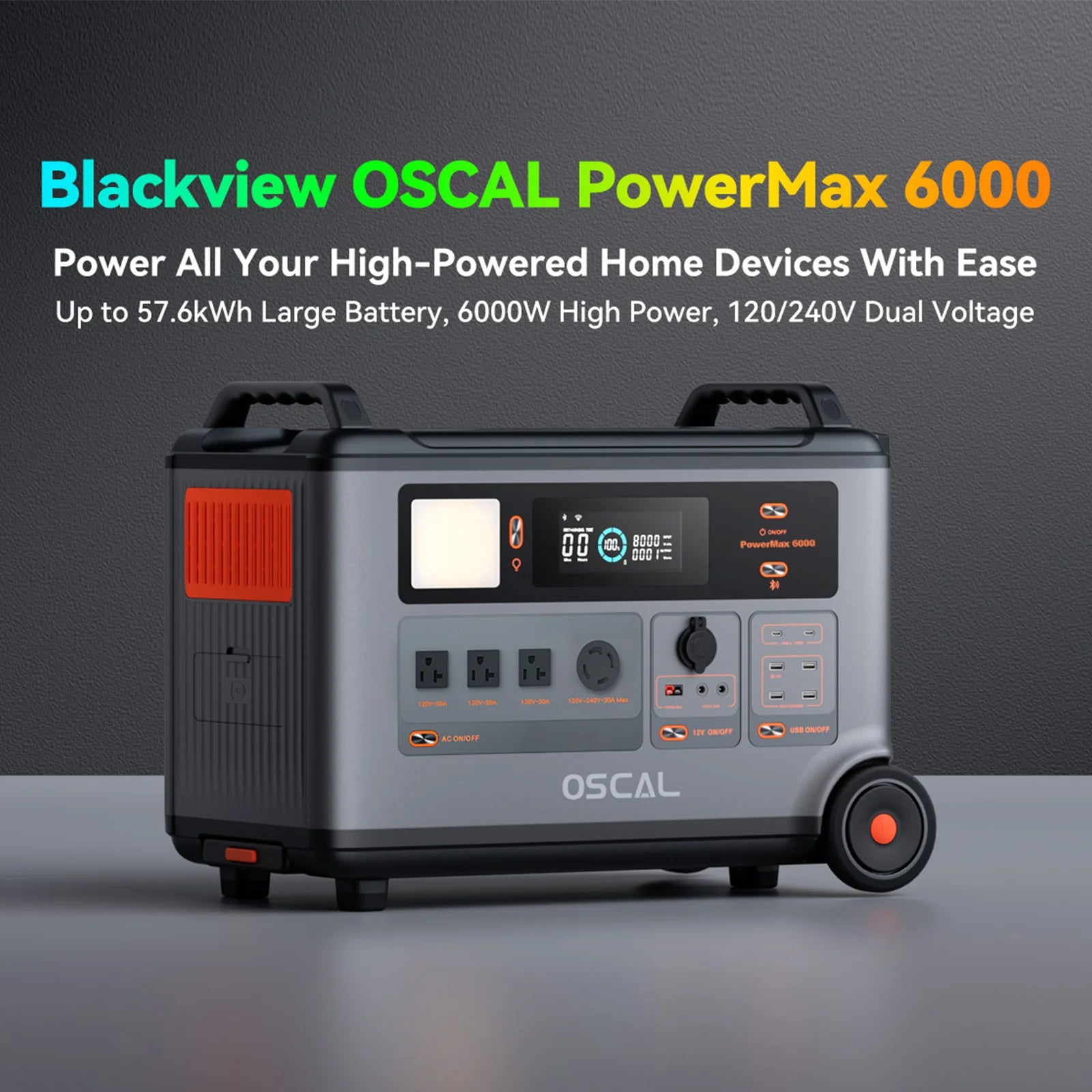

Oscal PowerMax 6000 Power Station + External Battery is a high-capacity LiFePO4 system designed for solar power storage and home/field backup. The core unit (PowerMax 6000+) provides 3,600Wh with pure sine wave output up to 6,000W (9,000W surge), supports 120V/240V operation, and offers Wi‑Fi connectivity for app control. The optional BP3600 external battery adds an extra 3,600Wh capacity. Mobility is enhanced by industrial wheels and an extendable handle, while an integrated T1 chip with BMS provides load, voltage, charging, and temperature monitoring.
Key Features
- LiFePO4 battery: 3,600Wh nominal capacity; 3,500+ cycles to 80% capacity
- High output: 6,000W total, 9,000W surge; pure sine wave inverter
- Fast charging: AC input up to 2,200W; solar input up to 2,400W; car input up to 240W
- Rapid charge times: 1.96h (AC), 1.5h (solar, prime sunshine), 1.44h (AC+solar, max 3,000W), 15h (car)
- Versatile ports: 4× AC outlets; 2× PD 100W USB‑C; 3× PD 18W USB‑A; 1× PD 12W USB‑A; 120W cigarette lighter; 12V/25A Anderson (378W); 2× 12V/3A DC5521 (5.5mm)
- Connectivity and control: Wi‑Fi connection; app control; T1 chip integrated with BMS

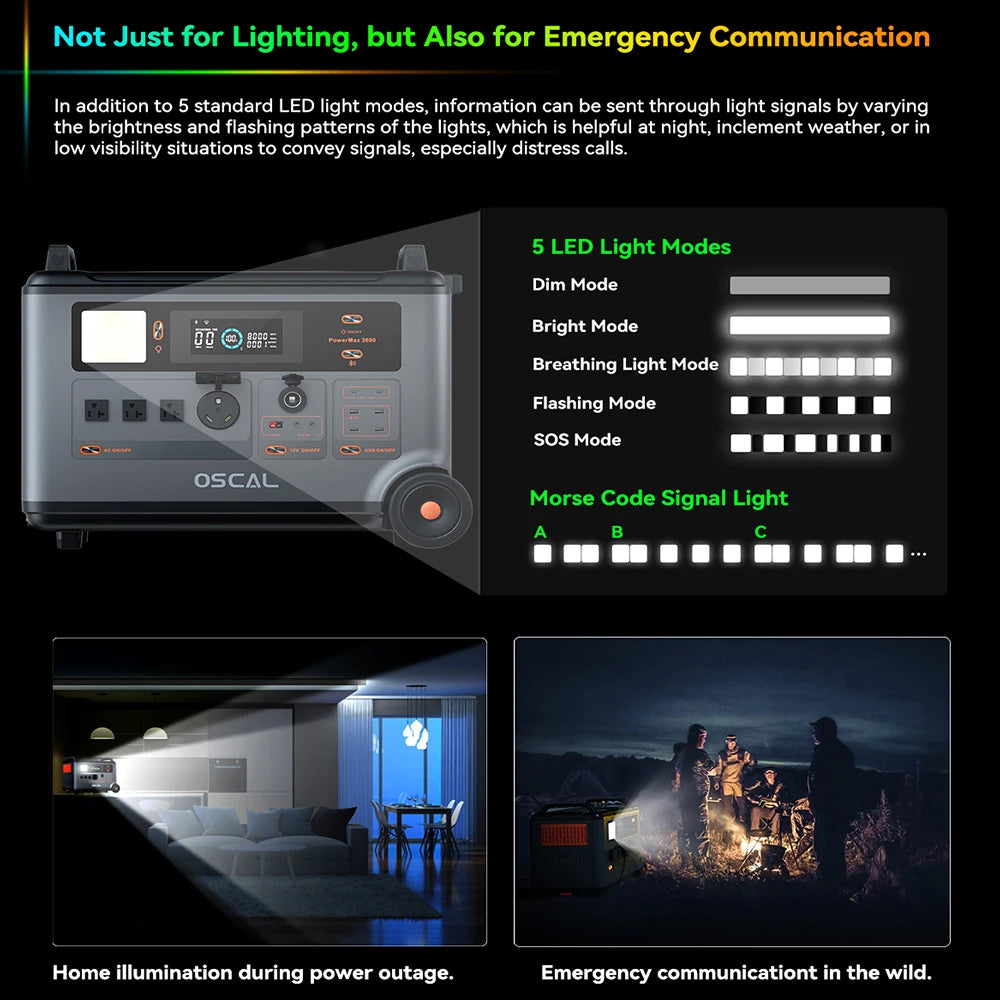

- Mobility and lighting: industrial wheels, extendable handle, 5‑level LED lamp
- Robust build: splash and dust‑proof protection
Specifications
| Brand Name | OSCAL |
| Model Number | PowerMax 6000+ |
| Product Type | Power Station + External Battery |
| Application | Solar Power Storage |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity | 3,600Wh |
| Nominal Capacity | 3600WH |
| Battery Number | 1 |
| Battery packs | 3600WH |
| Lifecycle | 3500+ Cycles to 80% of Original Capacity |
| Shelf‑Life | Recharge to above 50% Every 3 Months |
| Management System | T1 Chip integrated with BMS |
| Monitoring | Load / Voltage Monitoring, Charging Monitoring, Temperature monitoring |
| Connection | Wi‑Fi |
| Display screen | No |
| Inverter Type | Pure Sine Wave |
| Total Output Power | 6,000W |
| Surge Power | 9,000W |
| AC Outlets | 4 × AC Outlets (Total 6000W) |
| USB Ports | 2 × PD 100W (USB Type‑C); 3 × PD 18W (USB Type‑A); 1 × PD 12W (USB Type‑A) |
| Cigarette Lighter Sockets | 1 × 120W (Car Outlet) |
| DC Outlets | 1 × 12V/25A (Anderson 378W); 2 × 12V/3A DC5521 (5.5mm) |
| AC Charging Input | 2000W ‑ 2500W |
| AC Input | up 2200W |
| Solar Charging Input | 1500W ‑ 2000W |
| Solar Input | up 2400W Max. |
| Car Input | up 240W from Cigarette Lighter Port |
| AC Charging Time | 1.96 hours |
| Solar Charging Time | 1.5 hours (Prime sunshine) |
| AC + Solar Charging Time | Max 3000W Supported; 1.44 hours |
| Car Charging Time | 15 hours |
| LED light | 5 level LED lamp |
| Storage Temperature | -10℃ to 45℃ (14°F to 113°F) |
| Charging Temperature | 0℃ to 50℃ (32°F to 122°F) |
| Discharging Temperature | -20℃ to 55℃ (-4°F to 131°F) |
| Product Size (L × W × H) | 59 × 35 × 44.1 cm |
| Package Size (L × W × H) | 66 × 40.5 × 52.5 cm |
| Size | 66*40.5*52.5cm |
| Product Weight | 46kg |
| Package Weight | 51kg |
| Net Weight | > 50Kg |
| Certification | CE, UL |
| Origin | Mainland China |
| Set Type | Charger Sets |
| Bundle | Bundle 2 |
| Replacement Battery | No |
| Hign‑concerned Chemical | None |
What’s Included
PowerMax6000
- 1 × Oscal PowerMax 6000
- 1 × AC Charge Cable
- 1 × Solar Charging Cable
- 1 × Car charging cable
- 1 × User Manual

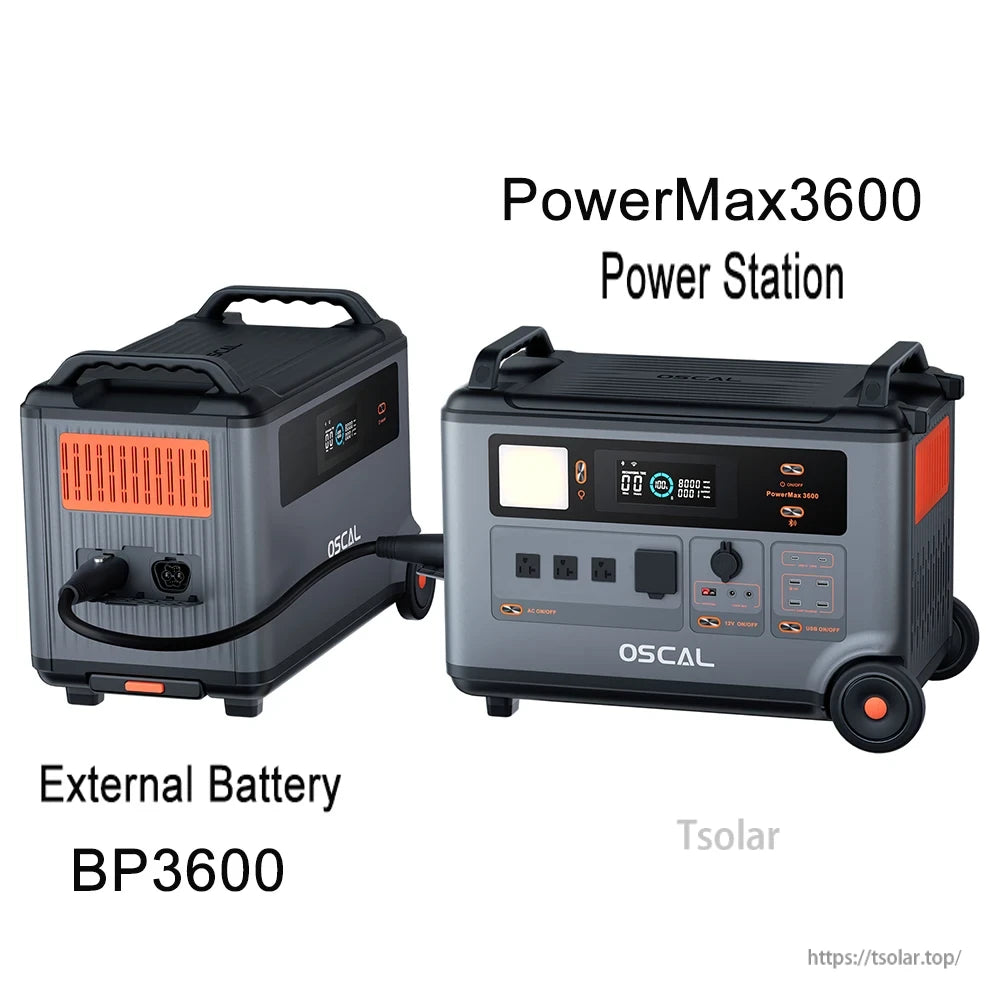

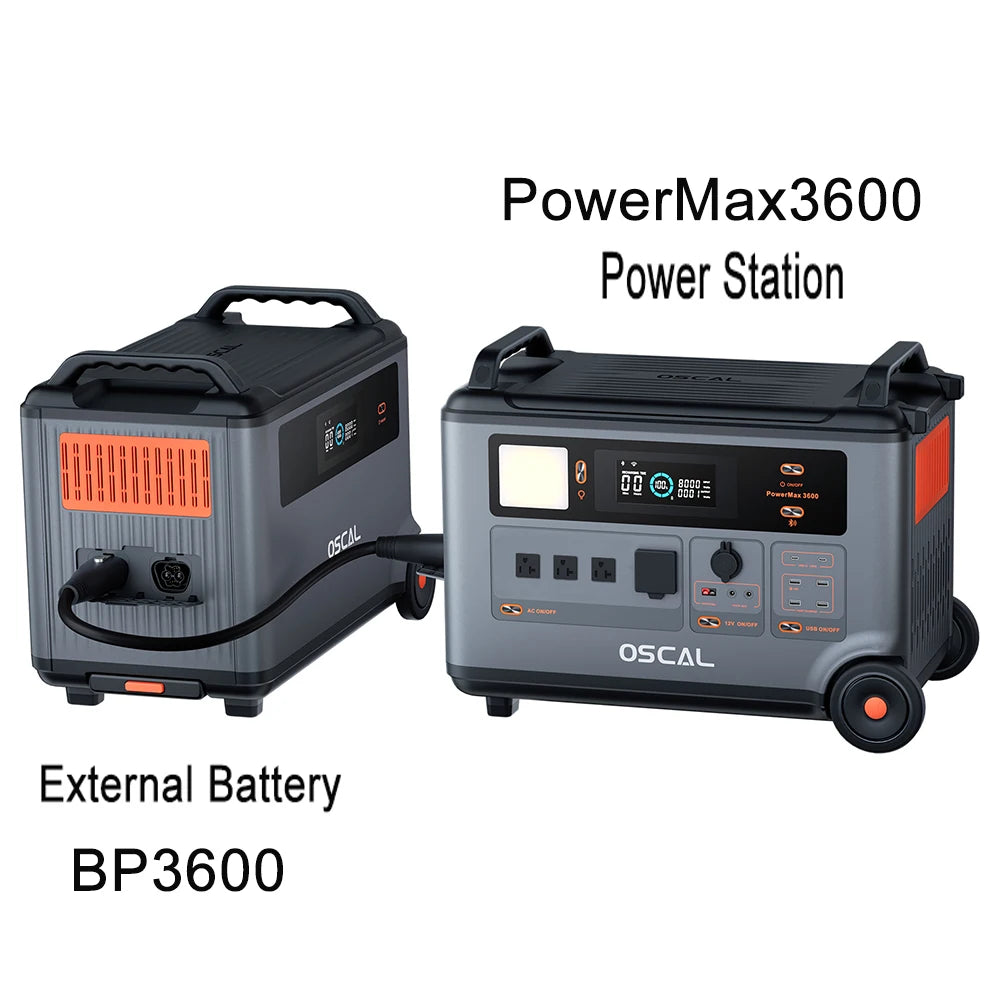

PowerMax6000+BP3600
- 1 × Oscal PowerMax 6000
- 1 × Battery pack BP3600
- 1 × AC Charge Cable
- 1 × Solar Charging Cable
- 1 × Car charging cable
- 1 × User Manual
Applications
- Solar Power Storage
Details

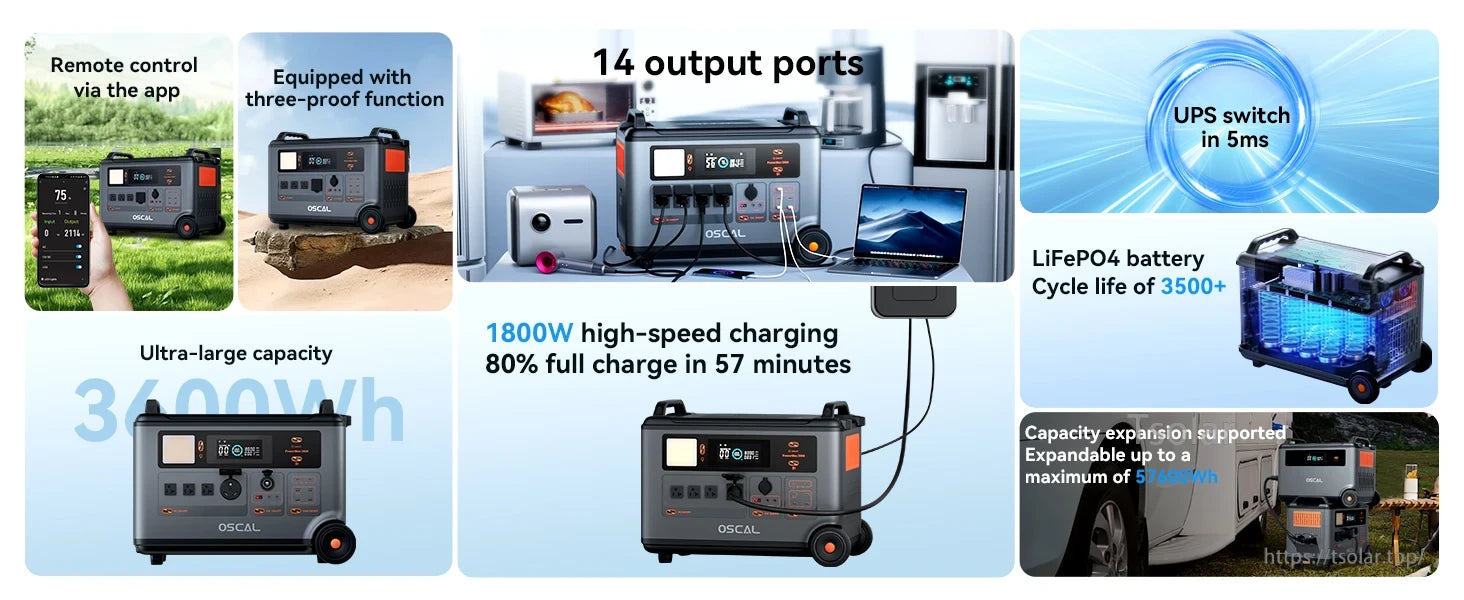

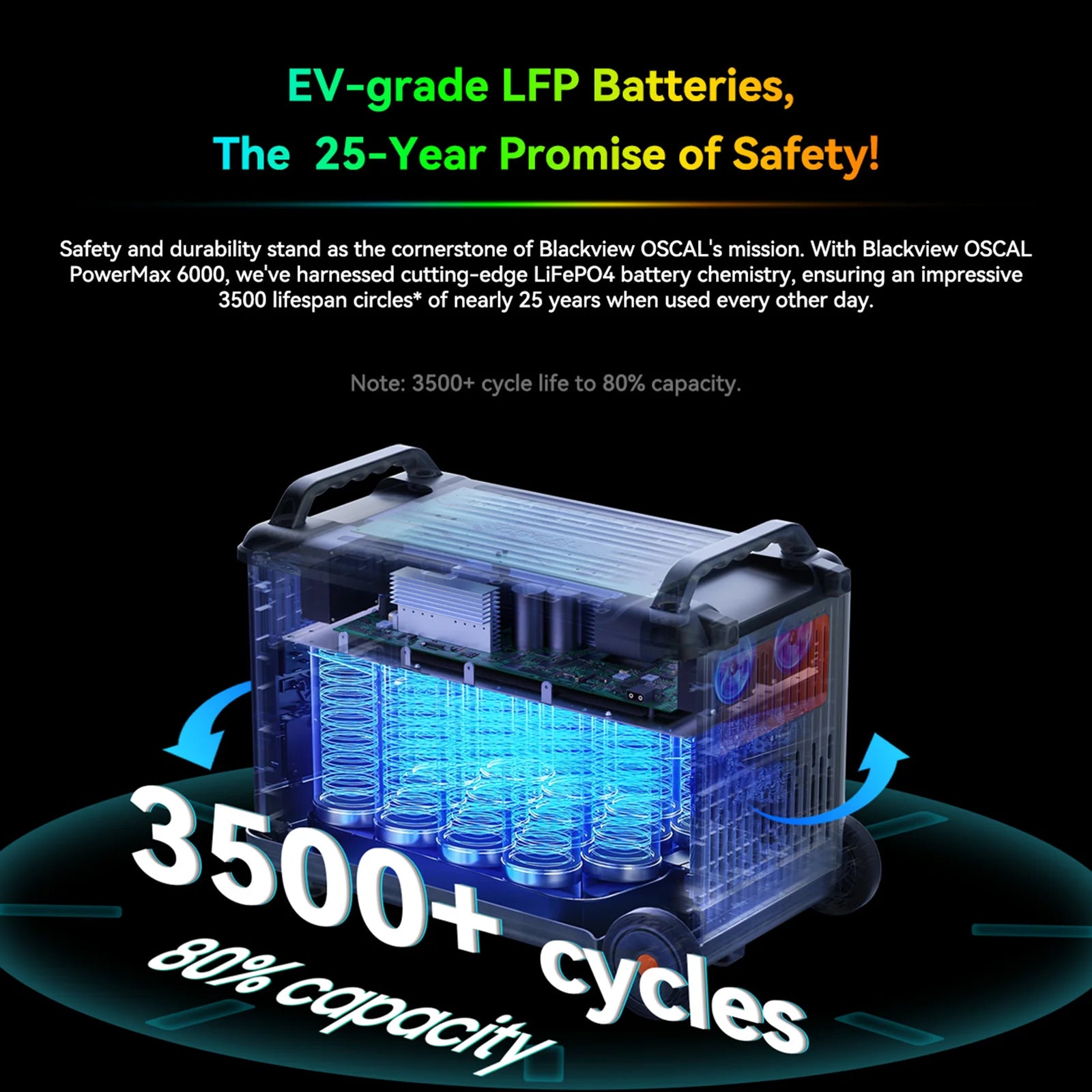

Oscal PowerMax 6000 offers 3600Wh capacity, 1800W output, 14 ports, app control, LiFePO4 battery with 3500+ cycles, 5ms UPS, three-proof design, and expandable storage up to 57600Wh for reliable, long-lasting power performance.
1800W AC fast charging, 80% in 57 mins; AC + solar charging, full in 12 hours with 2400W input.

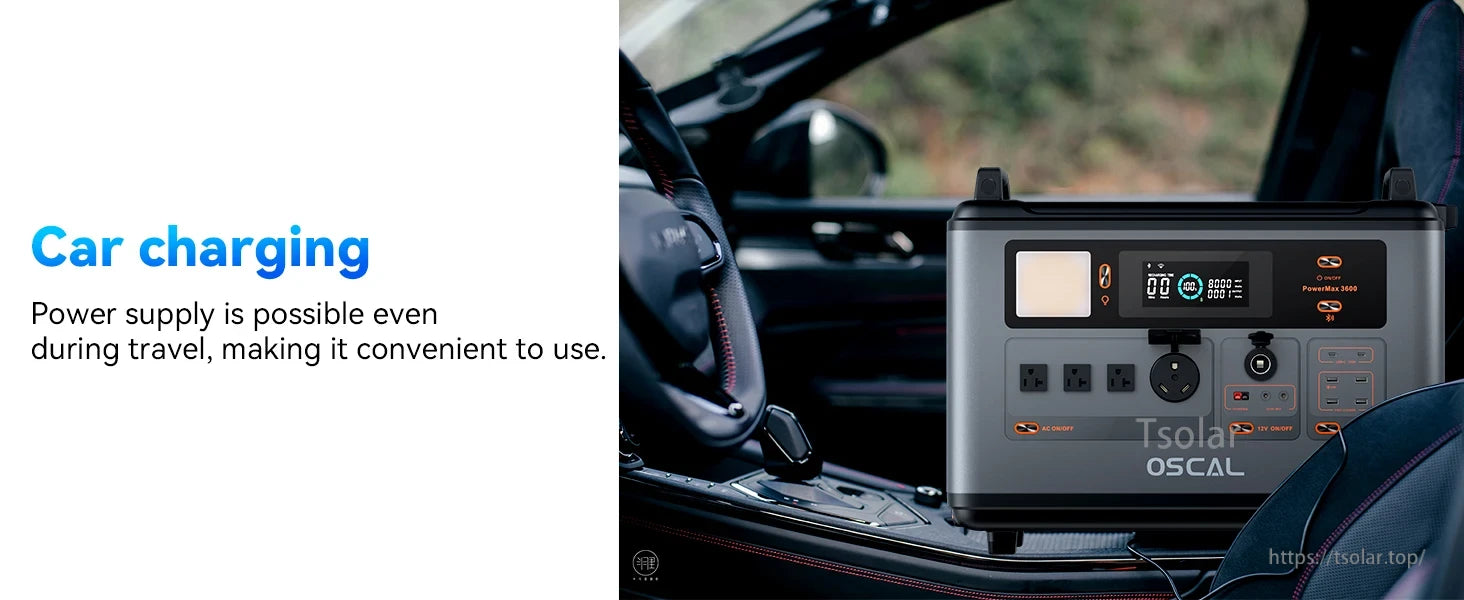

Oscal PowerMax 6000 enables portable car charging on the go.

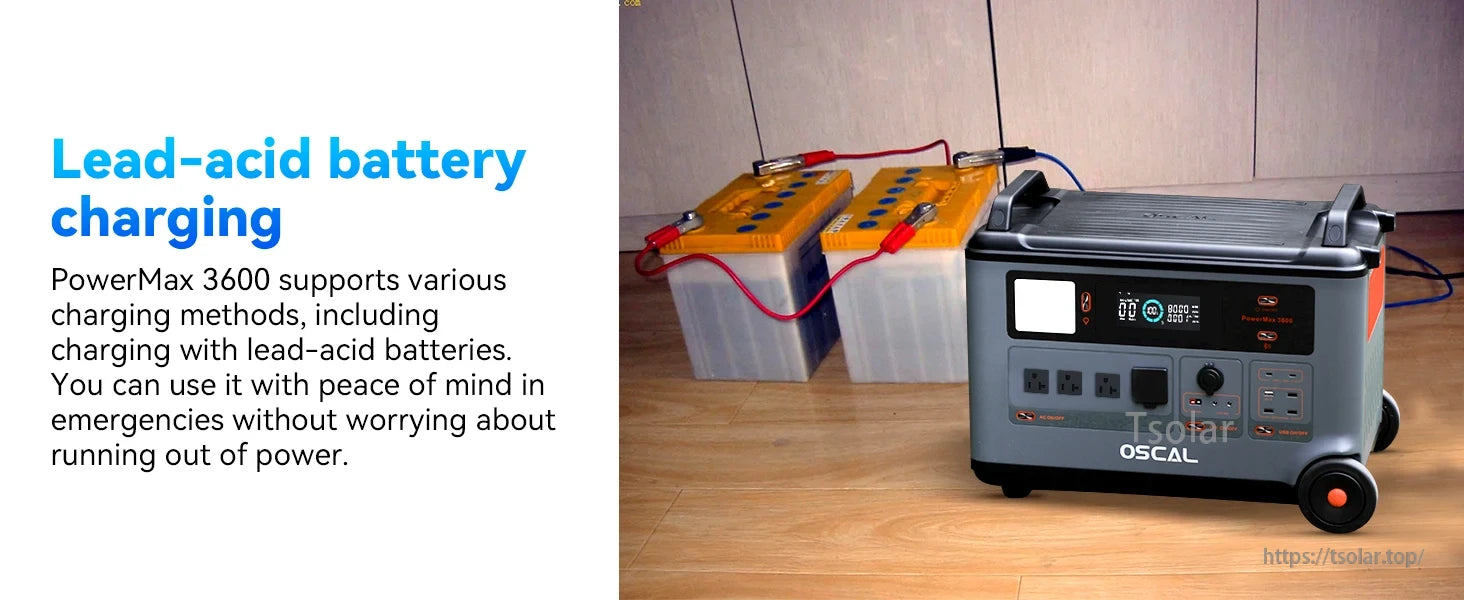

Oscal PowerMax 3600 supports lead-acid battery charging, offering reliable power in emergencies.

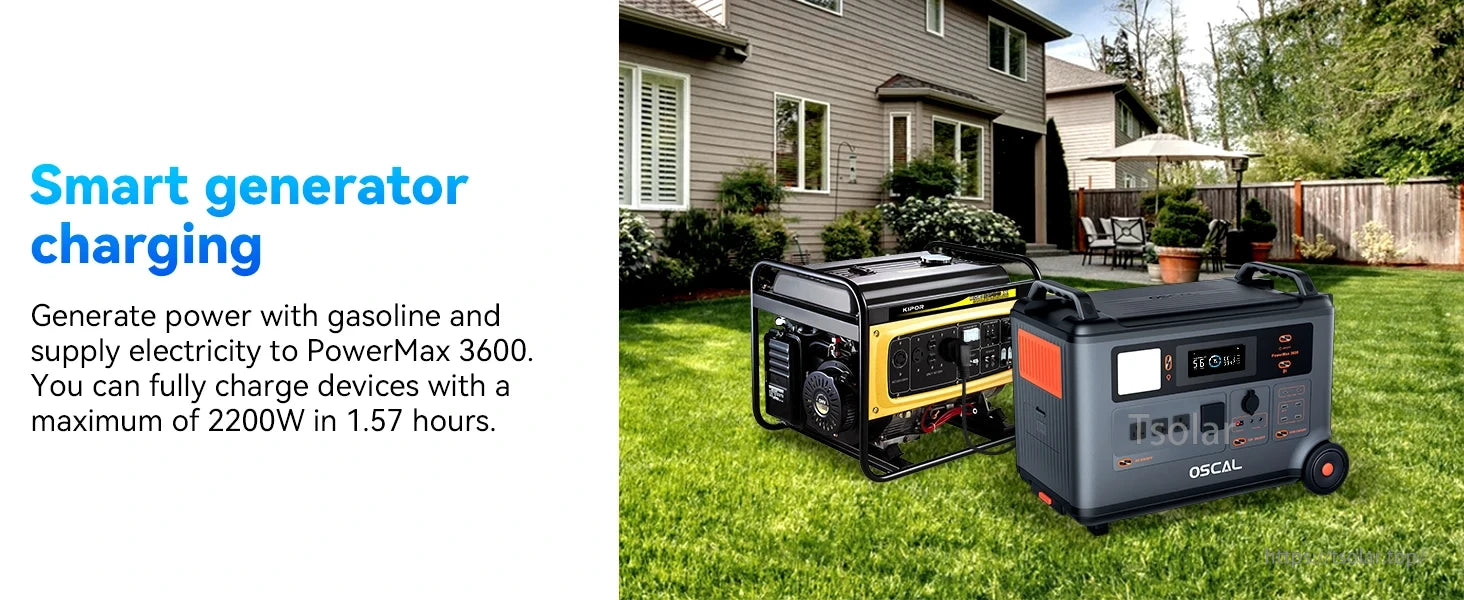

Smart generator charges PowerMax 3600 with gasoline, powers 2200W devices in 1.57 hours.

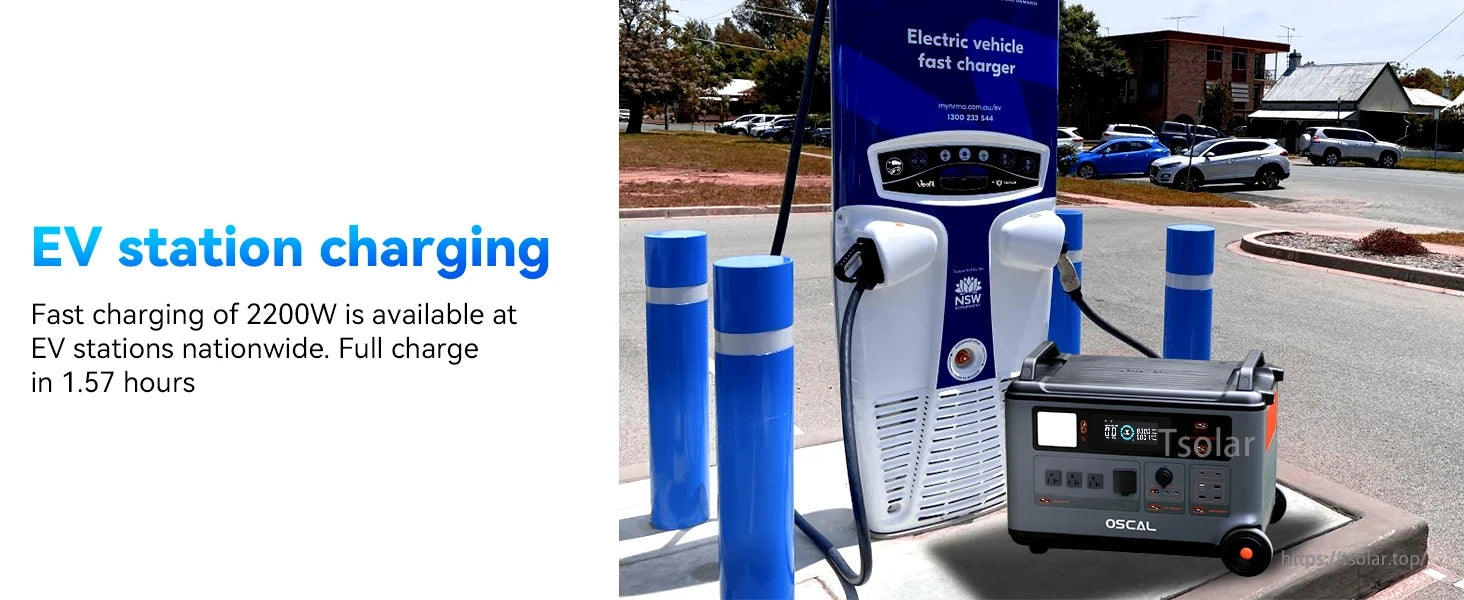

Oscal PowerMax 6000 power station connected to EV fast charger, providing 2200W charging.
3.6kWh power station; 36-108km for e-scooters; up to 3 days for RV camping.
28.8kWh power station supports 256–640km for e-motorcycles and up to 7 days for professional work.
Oscal PowerMax 6000 has a 120W cigarette lighter port, powering fridge, fan, vacuum, blanket, purifier, and coffee maker for up to 104 hours.

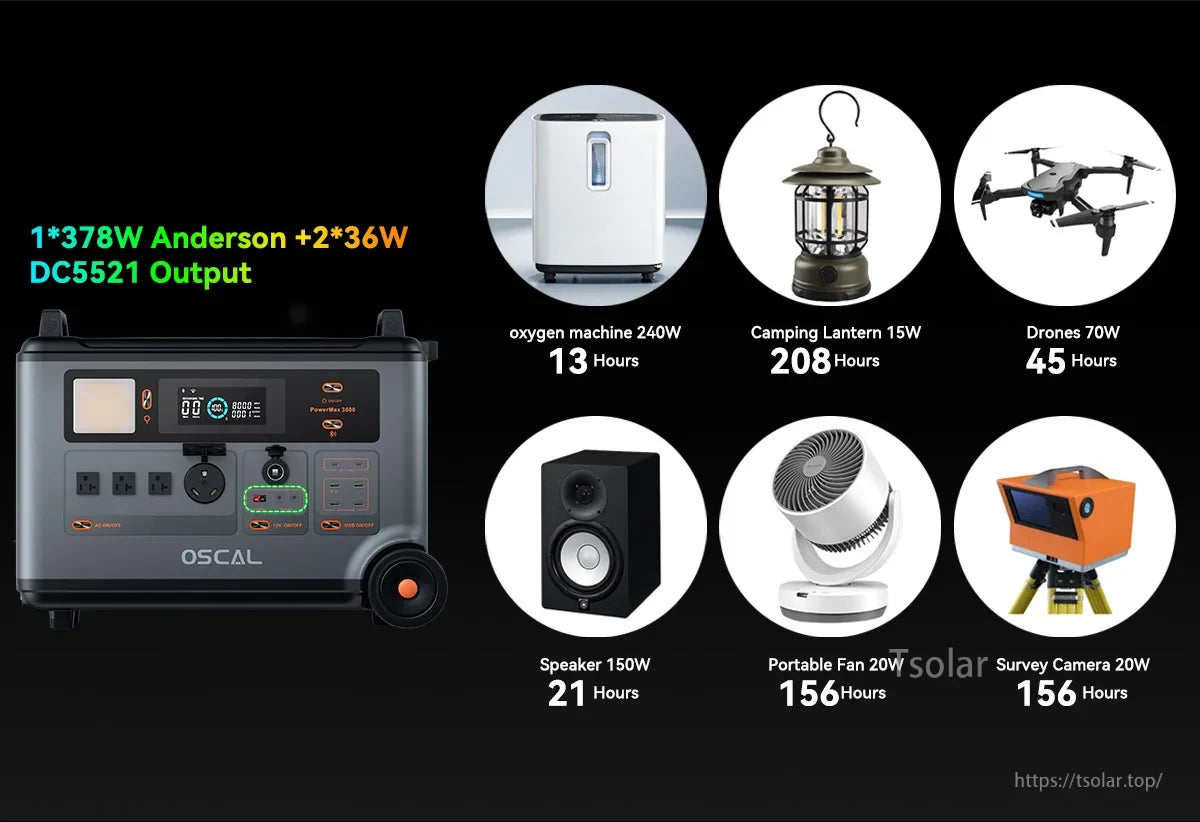

Oscal PowerMax 6000 power station with 378W Anderson and 2×36W DC5521 outputs. Supports oxygen machine, lantern, drones, speaker, fan, and survey camera with runtime from 13 to 208 hours.

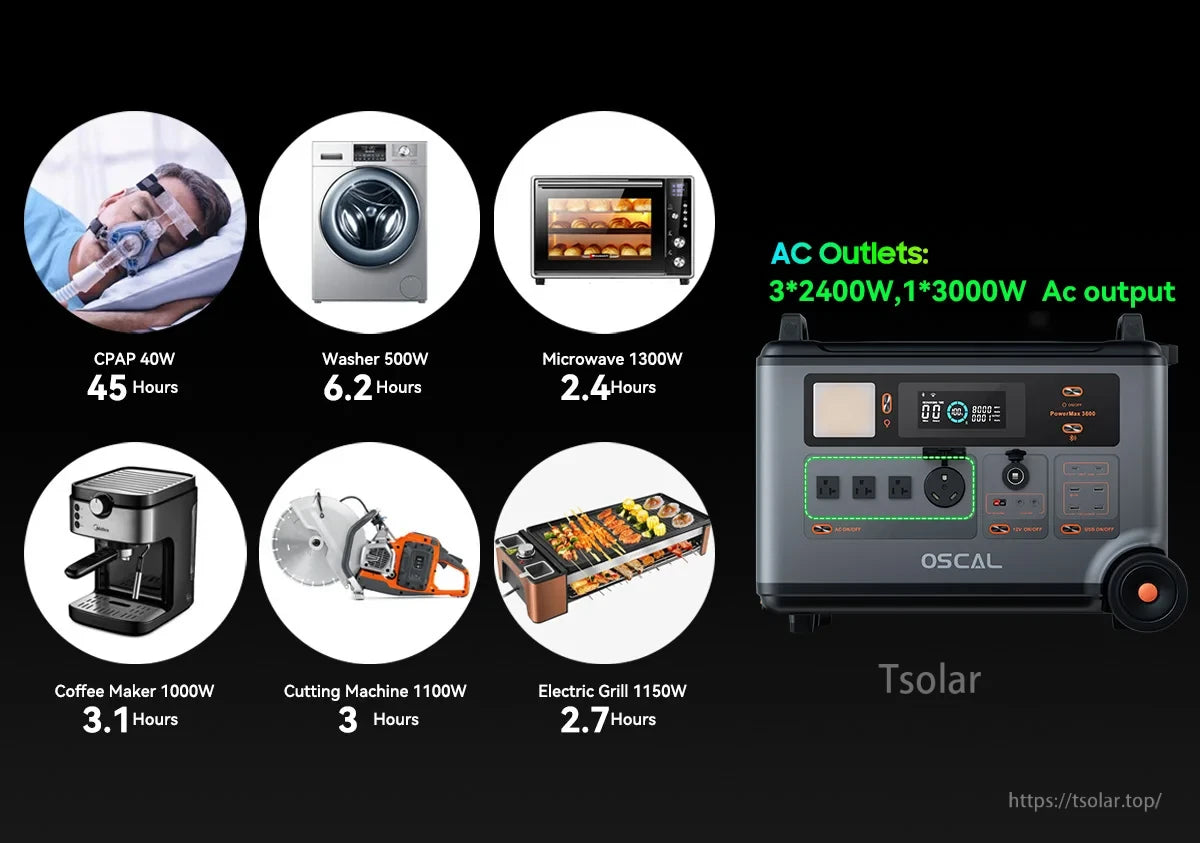

Oscal PowerMax 6000 offers 3×2400W and 1×3000W AC outlets, powering CPAP, microwave, coffee maker, washer, cutting machine, and electric grill, with detailed runtime for each.
Charge up to 99% of essential devices with Oscal PowerMax 6000 power station.

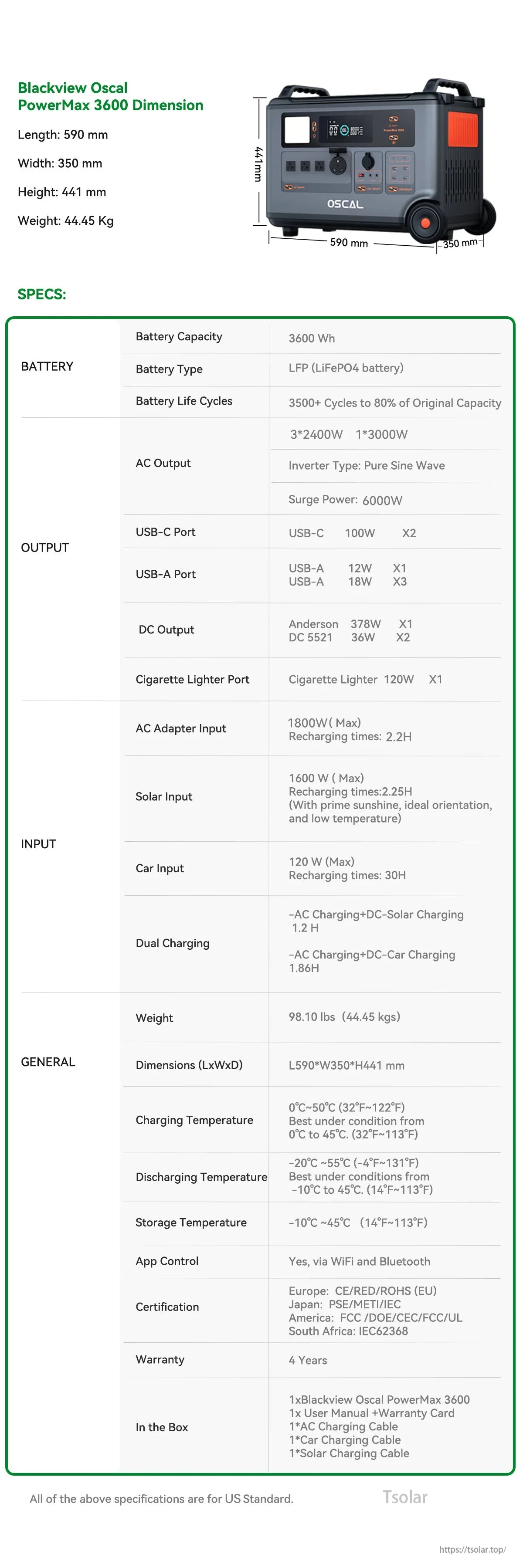

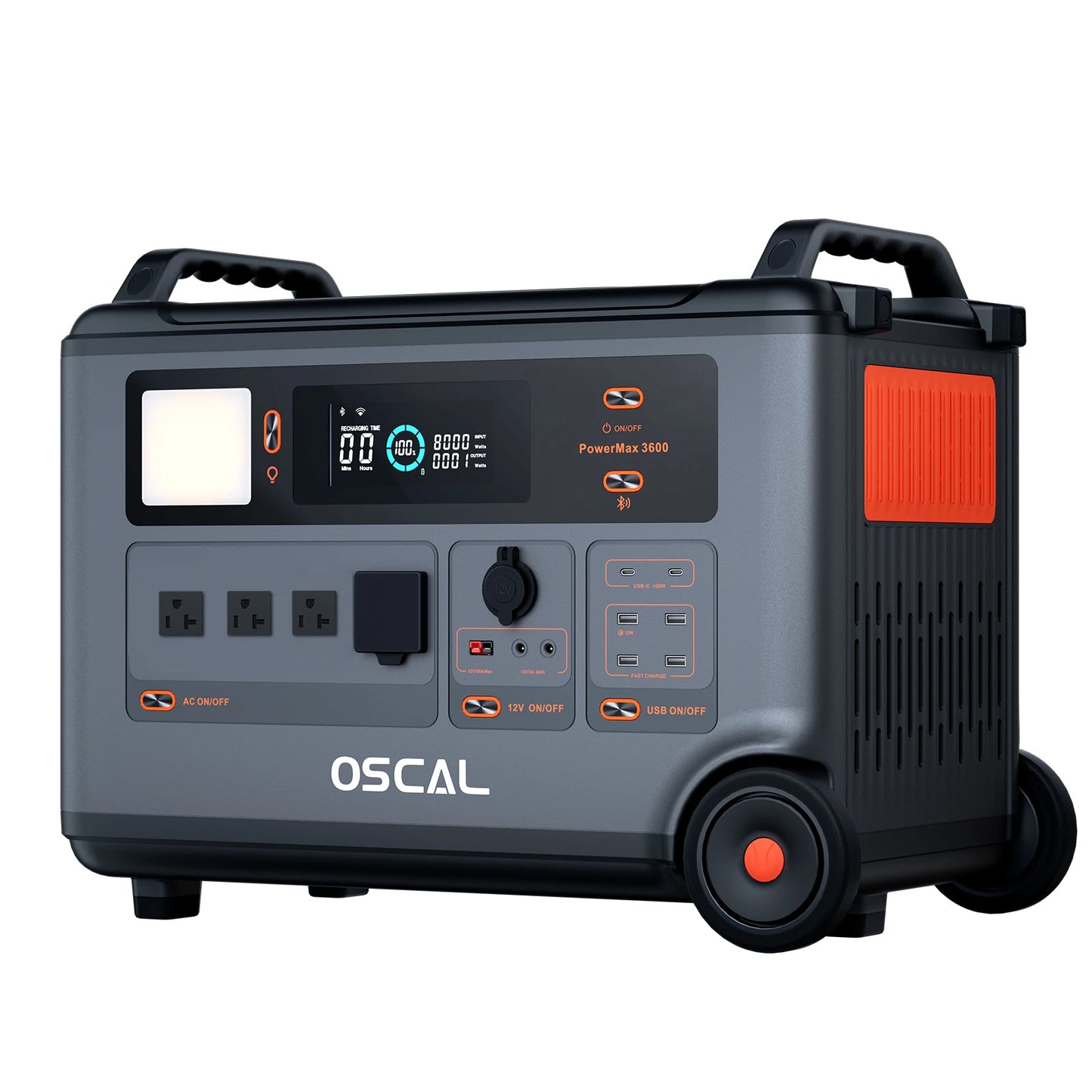

Blackview Oscal PowerMax 3600: 3600Wh LFP battery, 6000W surge, AC/DC/USB outputs, solar/car charging, WiFi/Bluetooth app control, 4-year warranty. 590×350×441mm, 44.45kg.
