Overview

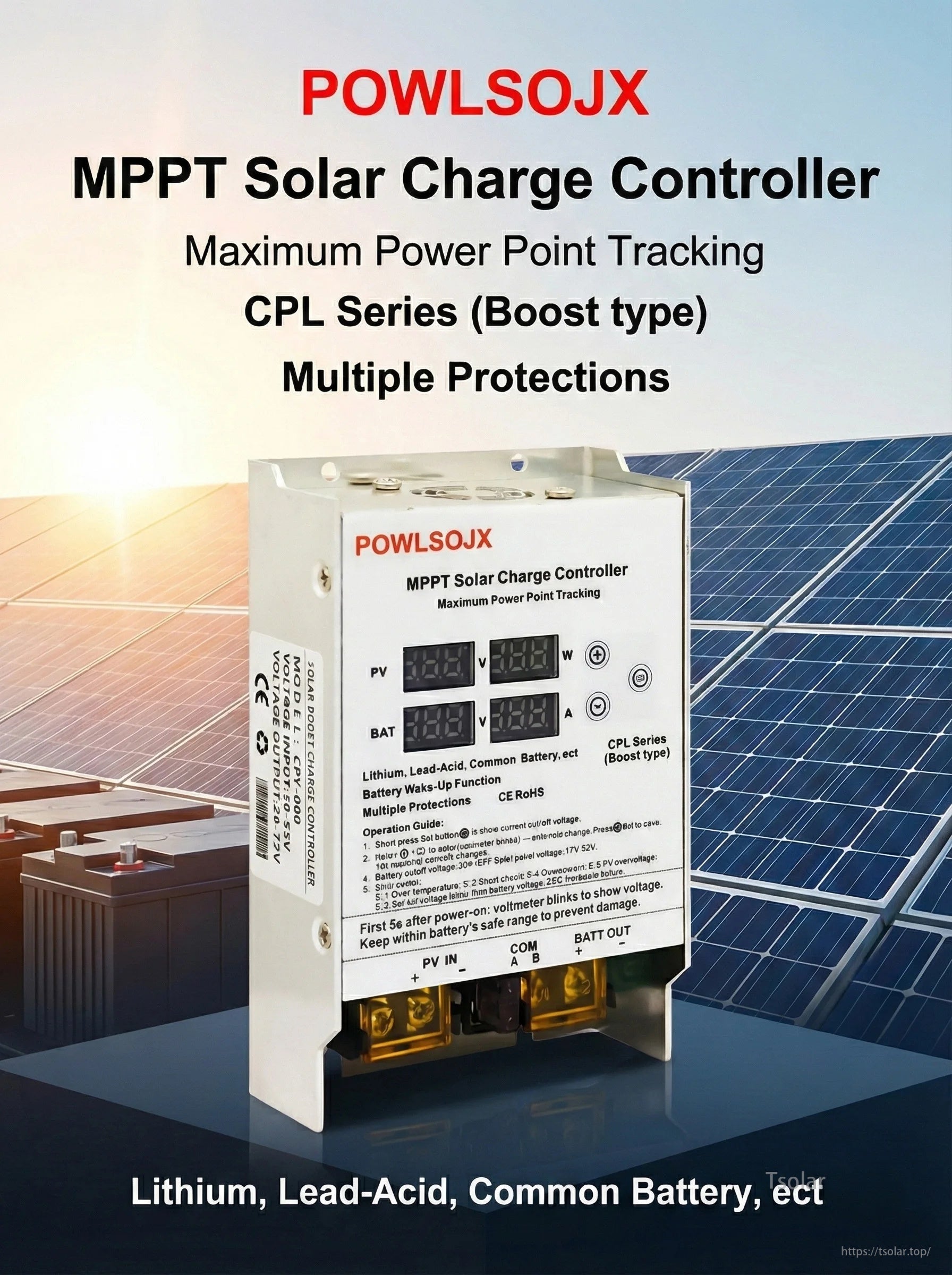

The POWLSOJX CPL series MPPT boost solar charge controller is designed to charge higher-voltage battery systems from lower-voltage PV panels using step-up (boost) charging. It supports 24V/36V/48V/60V/72V battery systems and is intended for applications such as golf carts, e-bikes, e-scooters, and other off-grid charging setups where PV voltage is lower than battery voltage.
Key Features
- MPPT boost (step-up) charging: PV input 17V-55V, intended for charging higher-voltage batteries (PV voltage must be lower than battery voltage).
- Adjustable battery/charge voltage: user-defined mode supports 24V-85V (adjustable).
- 0V battery activation: battery wake-up function; activation efficiency stated as 30% higher / 30% more efficient activation of 0 V Li-ion battery.
- Battery compatibility (as stated): lithium-ion / LiFePO4 (customizable voltage), lead-acid / gel / AGM, and “common battery”.
- MPPT tracking efficiency: ≥ 99%.
- Cooling/installation: aluminum alloy housing with open-air cooling architecture; non-waterproof design for dry, ventilated installation.

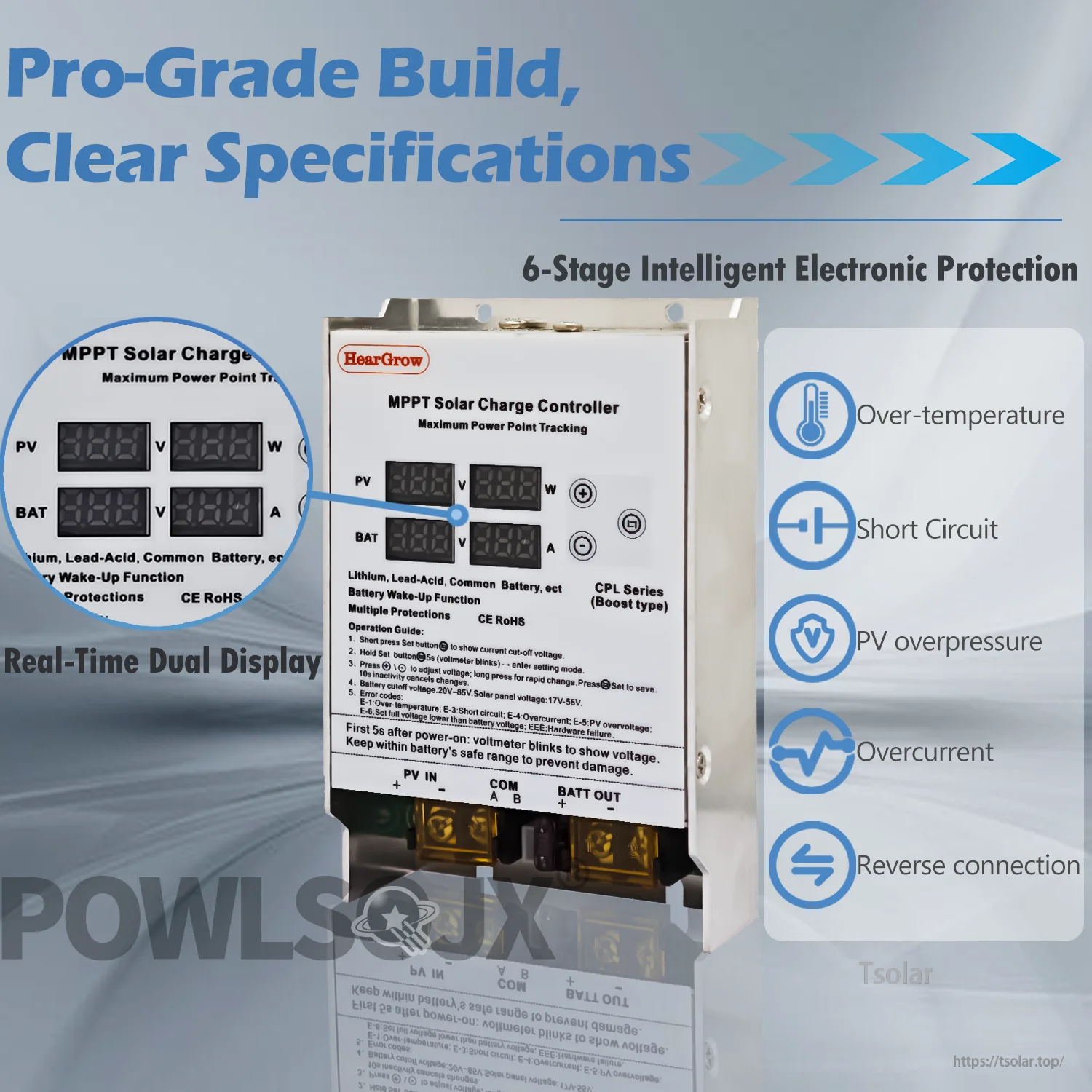

- Real-time dual display (as described in product materials).
- Protection functions (as stated): over-temperature, short circuit, PV over-voltage (also described as PV overpressure), overcurrent, reverse connection protection.

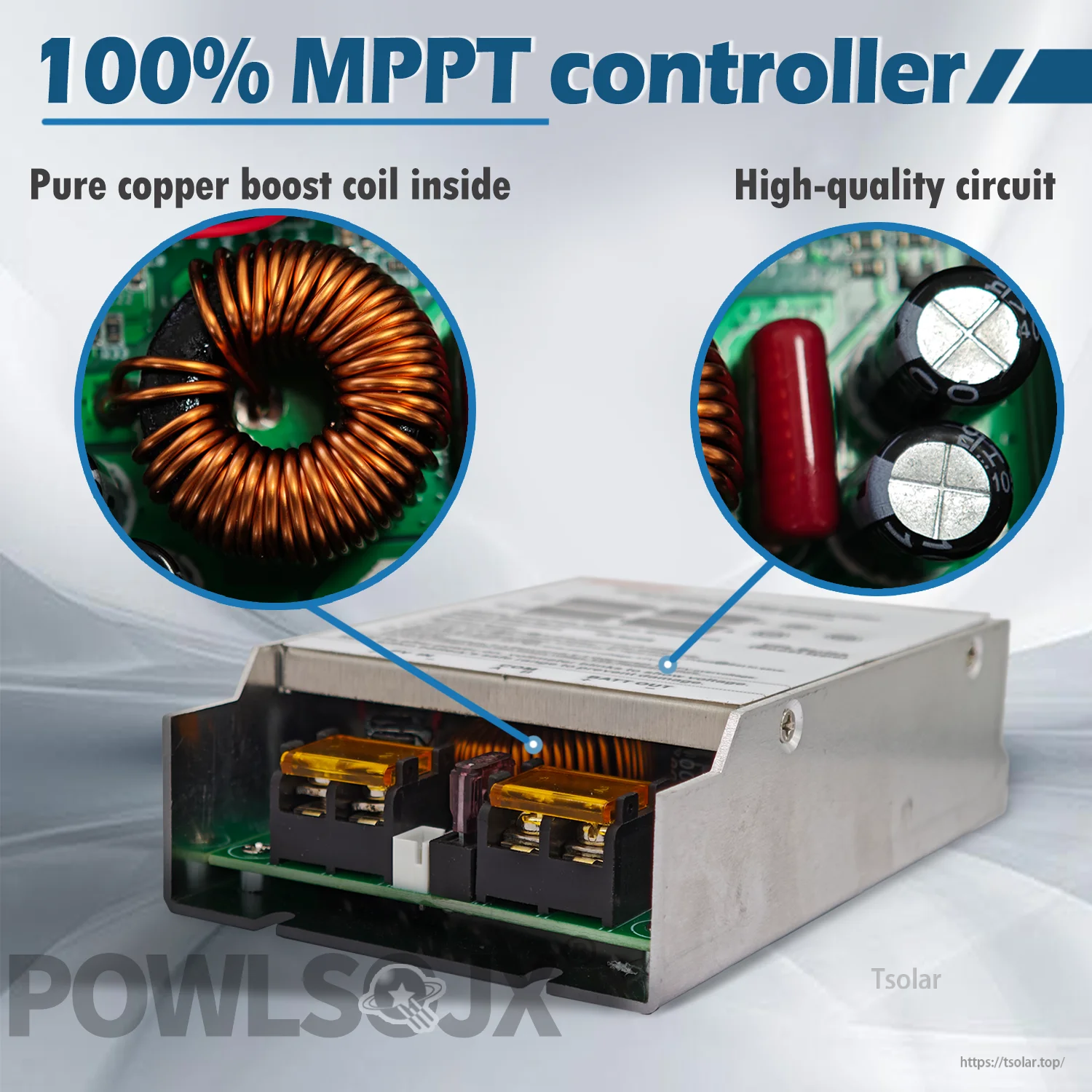

- Internal build highlights (as described): pure copper boost coil and high-quality circuit components.
For wiring/selection questions and after-sales support, contact https://tsolar.top/ or service@tsolar.top.
Specifications
| Brand | POWLSOJX |
| Series | CPL Series (Boost type) |

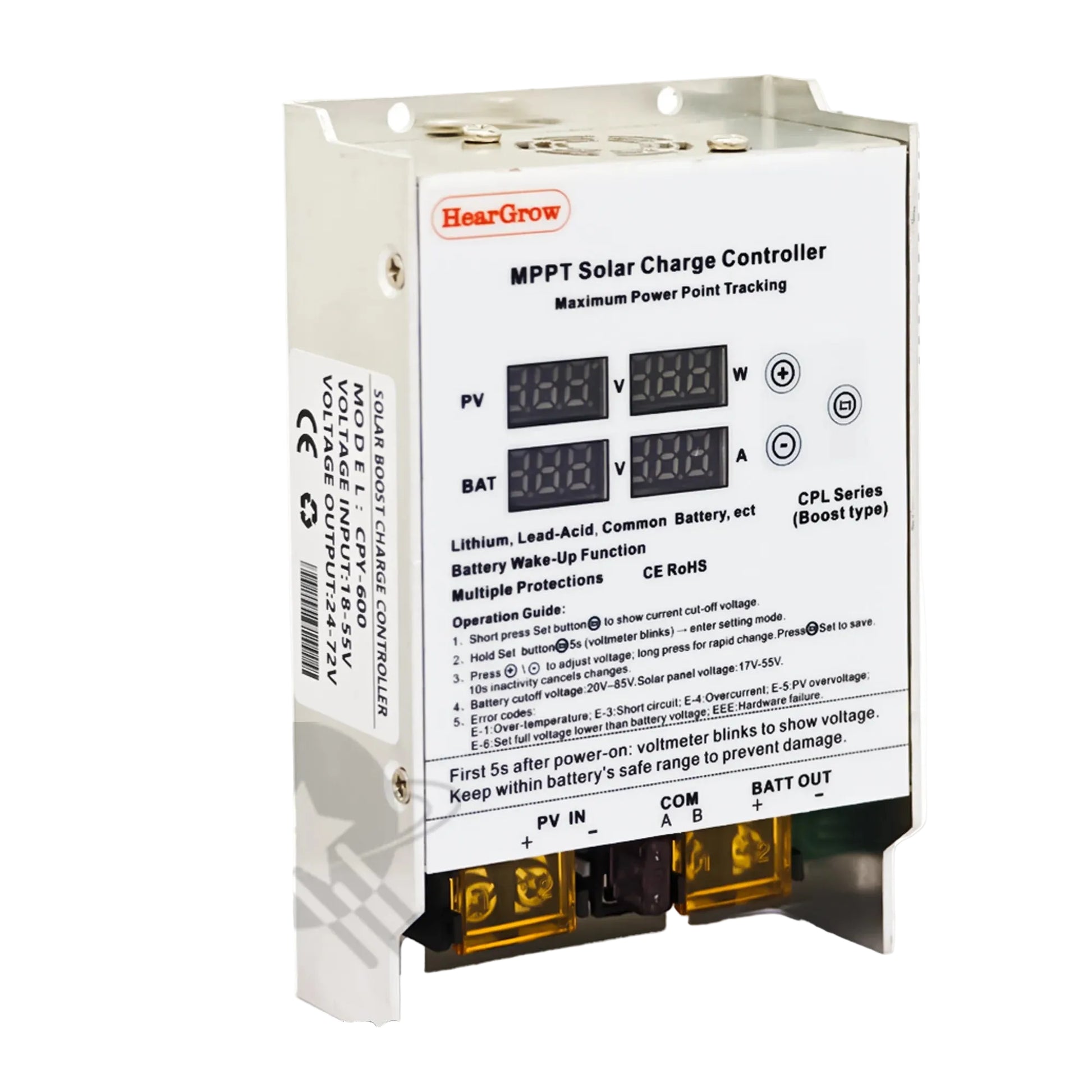

| Model series | CPL-601 |
| Product type | MPPT boost solar charge controller |
| Power rating (as titled) | 300W / 600W |
| Max output power | 600W (select model) |
| Charging type | MPPT Boost (Step-Up) |
| PV input voltage | 17V-55V (must be lower than battery voltage) |
| Battery voltage range | 24V-85V (adjustable) |
| Supported battery systems (as stated) | 24V / 36V / 48V / 60V / 72V |
| Tracking efficiency | ≥ 99% |
| Protection functions | Over-temperature; short circuit; PV over-voltage; reverse connection protection (also described: PV overpressure, overcurrent) |
| Dimensions | 104 x 132 x 28.4mm (for <400W models) |
| Application (as provided) | Thermal Controller; Charger Controller; Voltage Controller; Solar System Controller; Solar Working Station |
| High-concerned chemical | None |
| Origin | Mainland China |
| Choice | Yes |
Applications
- E-mobility charging: golf carts, electric tricycles, e-scooters, electric wheelchairs.
- Caravan & marine (LiFePO4 battery system).
- Home energy storage: charging 48V batteries using smaller/repurposed solar panels.
- Agricultural irrigation (high pressure water pump).
- Off-grid power supply (lighting, monitoring).
Important Installation Notes

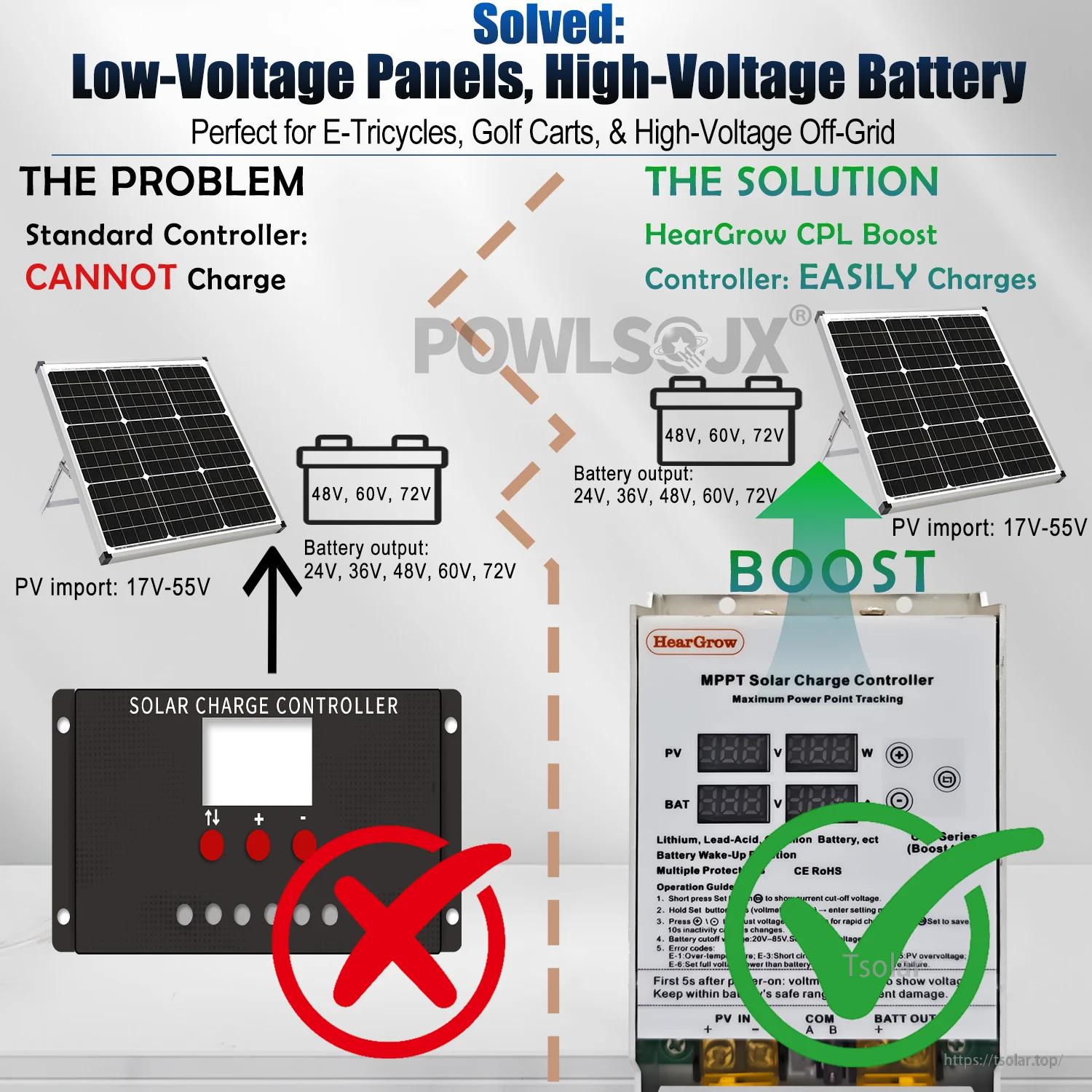

- Voltage rule (boost only): PV input voltage must be lower than battery voltage for boost charging to work.
- Example stated: 18V panel → 48V battery (works). 36V panel → 12V battery (does not work; not a step-down controller).
- Non-waterproof: install in a dry, ventilated area (open-air cooling design). Avoid rain exposure.
- Setting mode: long-press the SET button for 5 seconds until the display flashes, then use the +/- keys to set the target voltage.
What’s Included
- 1 x POWLSOJX MPPT Boost Solar Charge Controller
- 1 x User Manual (English)
Details
Use a lower-voltage PV panel to charge higher-voltage battery systems for e-mobility, RV/marine LiFePO4 setups, irrigation, and off-grid loads.

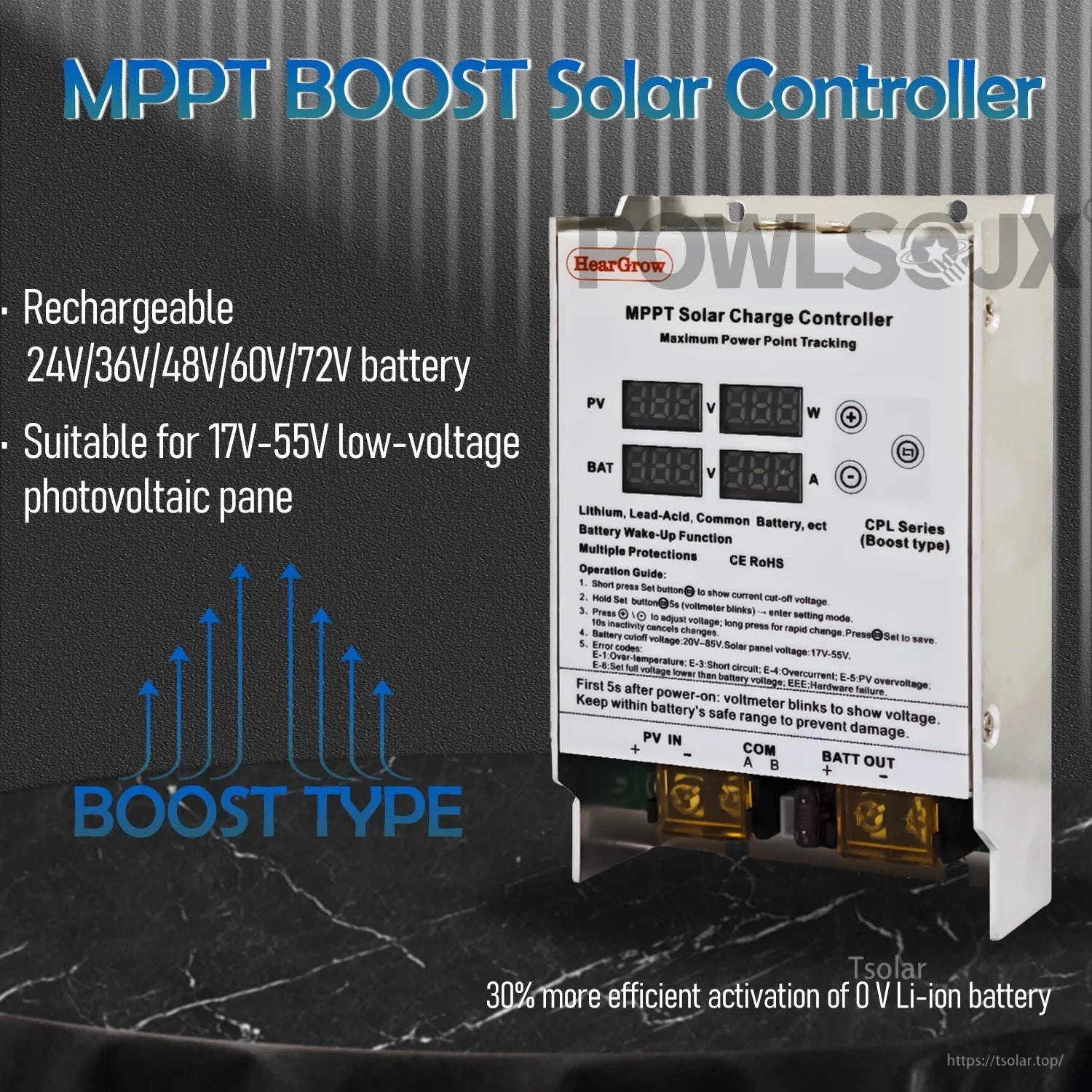

Boost MPPT charging helps when panel voltage is lower than the battery pack, such as 17–55V solar input charging 24–72V systems.
A pure copper boost coil and quality components support stable step-up charging and MPPT performance.
Supports 24V/36V/48V/60V/72V battery systems with step-up charging from 17–55V photovoltaic input.
Built-in electronic protections include over-temperature, short circuit, PV over-voltage, overcurrent, and reverse connection safeguards.
