Overview
The PowMr hybrid solar inverter (inverter charger) integrates a pure sine wave inverter, an MPPT solar charge controller, and AC battery charging in one unit. It supports 230Vac input (utility or generator), 230Vac output regulation, and MPPT solar charging up to 80A with a PV MPPT voltage range of 30~400Vdc and max PV open-circuit voltage of 400Vdc.
Key Features
- Pure sine wave inverter output
- Built-in MPPT solar charge controller: MPPT 80A
- AC input waveform: Sinusoidal (utility or generator)
- Nominal input voltage: 230Vac; maximum AC input voltage: 300Vac
- Nominal input frequency: 50Hz/60Hz (Auto detection)
- Surge capacity: 2* rated power for 5 seconds
- Transfer time: 10ms typical (UPS); 20ms typical (Appliances)
- Charging algorithm: 3-Step; AC charging current (Max): 60Amp

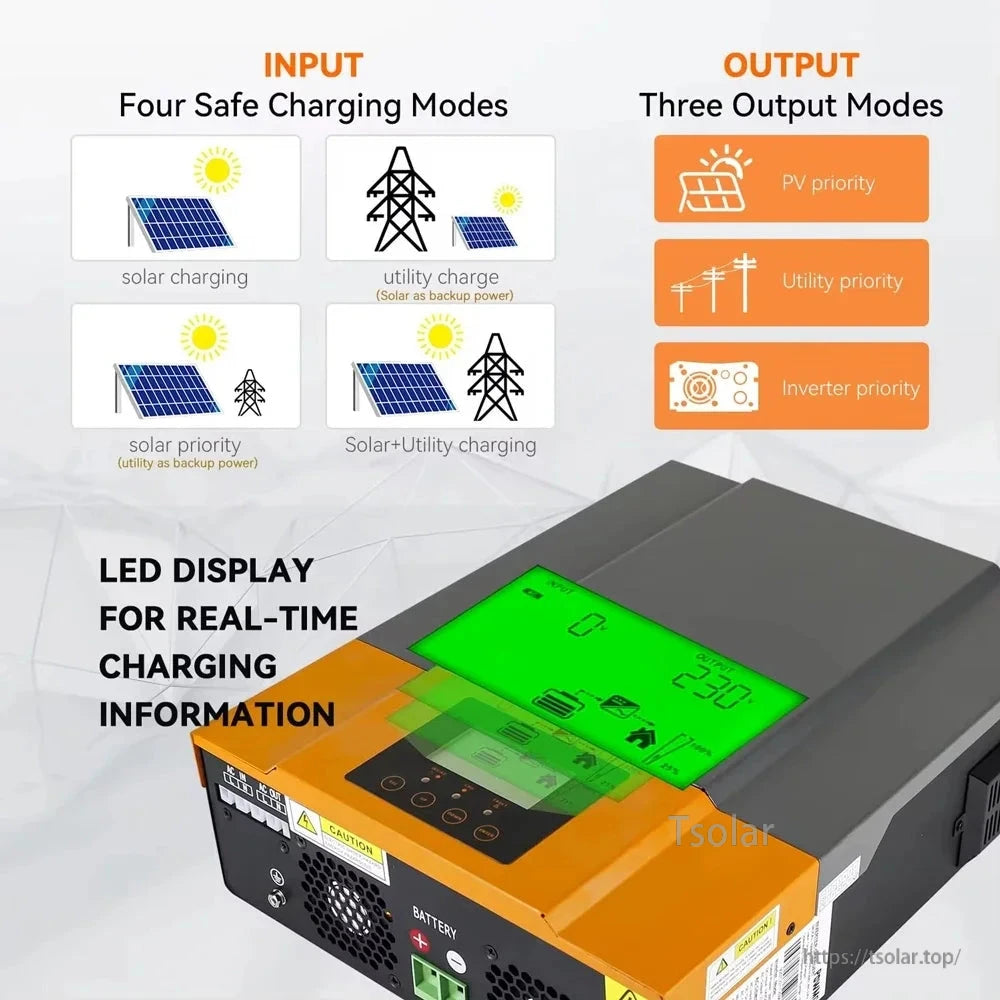

- Charging modes (text provided): Only Solar, Mains First, Solar First, Mains&Solar
- Output modes (text provided): Solar First, Utility First
- Protections (image text): Overload, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Battery Reverse Polarity Protection
- Cold start function (text provided)
Specifications
| Brand |
PowMr |
| Model Number |

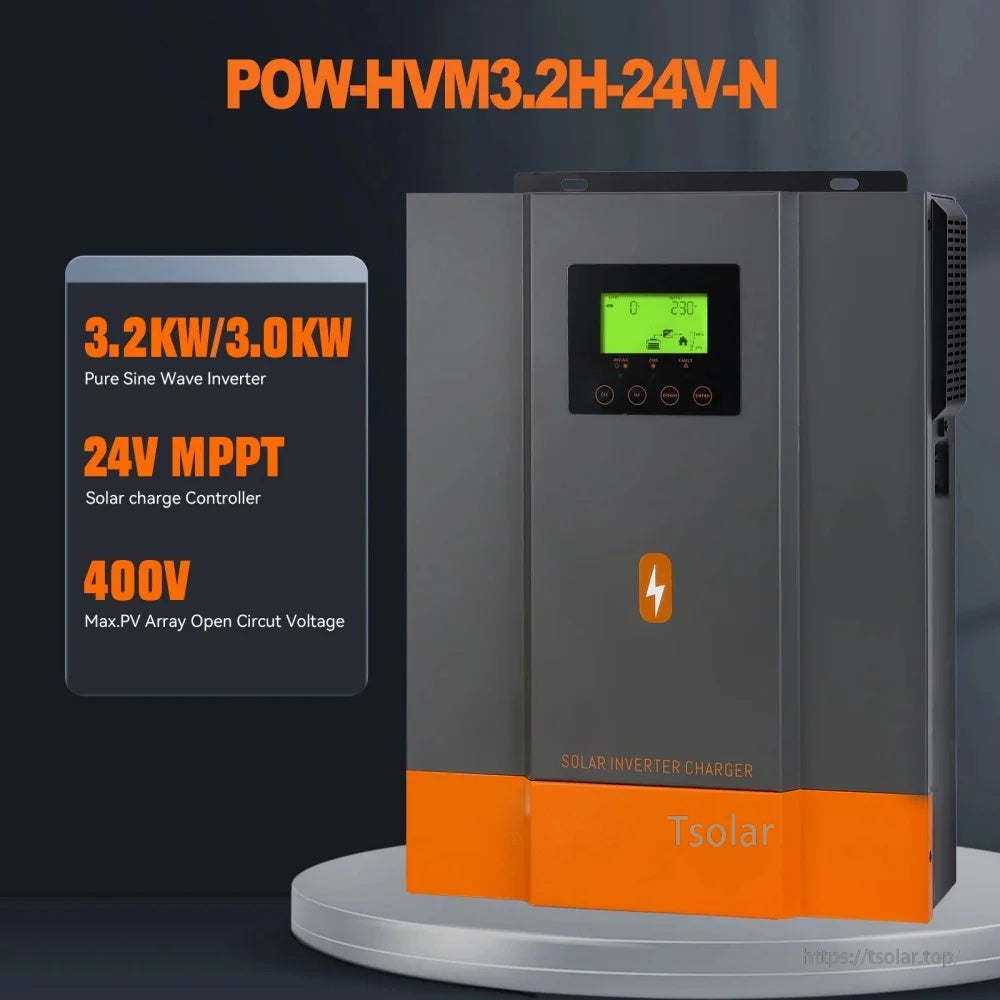

POW-HVM2H-12V-N / POW-HVM3.2H-24V-N |
| Certification |
CE |
| Efficiency (Line Mode) |
>95% (Rated R load, battery full charged) |
| Output Type |
Single |
| Is Smart Device |
Yes |
| High-concerned chemical |
None |
| Origin |
Mainland China |
| Size |
348*270*95mm |
| Weight |
6kg |
| Customized |
Yes |
AC Input (Utility/Generator)
| Input Voltage Waveform |
Sinusoidal (utility or generator) |
| Nominal Input Voltage |
230Vac |
| Low Loss Voltage |
170Vac +/-7V (UPS); 90Vac +/-7V (Appliances) |
| Low Loss Return Voltage |
180Vac +/-7V (UPS); 100Vac +/-7V (Appliances) |
| High Loss Voltage |
280Vac +/-7V |
| High Loss Return Voltage |
270Vac +/-7V |
| Max AC Input Voltage |
300Vac |
| Nominal Input Frequency |
50Hz/60Hz (Auto detection) |
Inverter Mode
| Output Voltage Waveform |
Pure Sine Wave |
| Output Voltage Regulation |
230Vac +/-5% |
| Output Frequency |
50Hz |
| Surge Capacity |
2* rated power for 5 seconds |
| Output Short Circuit Protection |
Circuit Breaker |
| Transfer Time |
10ms typical (UPS); 20ms typical (Appliances) |
Model Variants (Rated Output / Battery System)
| 1600W-12V (2.0KVA) |
2000VA/1600W; Nominal DC input: 12Vdc; Battery voltage: 12V; No-load consumption: <25W |
| 3000W-24V (3.2KVA) |
3200VA/3000W; Nominal DC input: 24Vdc; Battery voltage: 24V; No-load consumption: <35W |
Charge Mode (AC Charging)
| Charging Algorithm |
3-Step |
| AC Charging Current (Max) |
60Amp |
| Floating Charging Voltage (12V model) |
13.5Vdc |
| Floating Charging Voltage (24V model) |
27Vdc |
MPPT Solar Charging Mode
| MPPT Output Current |
80A |
| PV Array MPPT Voltage Range |
30~400Vdc |
| Max PV Array Open Circuit Voltage |
400Vdc |
| Nominal PV Voltage |
240Vdc |
| Max Charging Current (AC charger + solar charger) |
80Amp |
| Max PV Array Power (1600W-12V model) |
2000W |
| Max PV Array Power (3000W-24V model) |
3000W |
| Maximum PV Input Current (image text) |
13A |
Environmental
| Operating Temperature Range |
-10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
Compliance

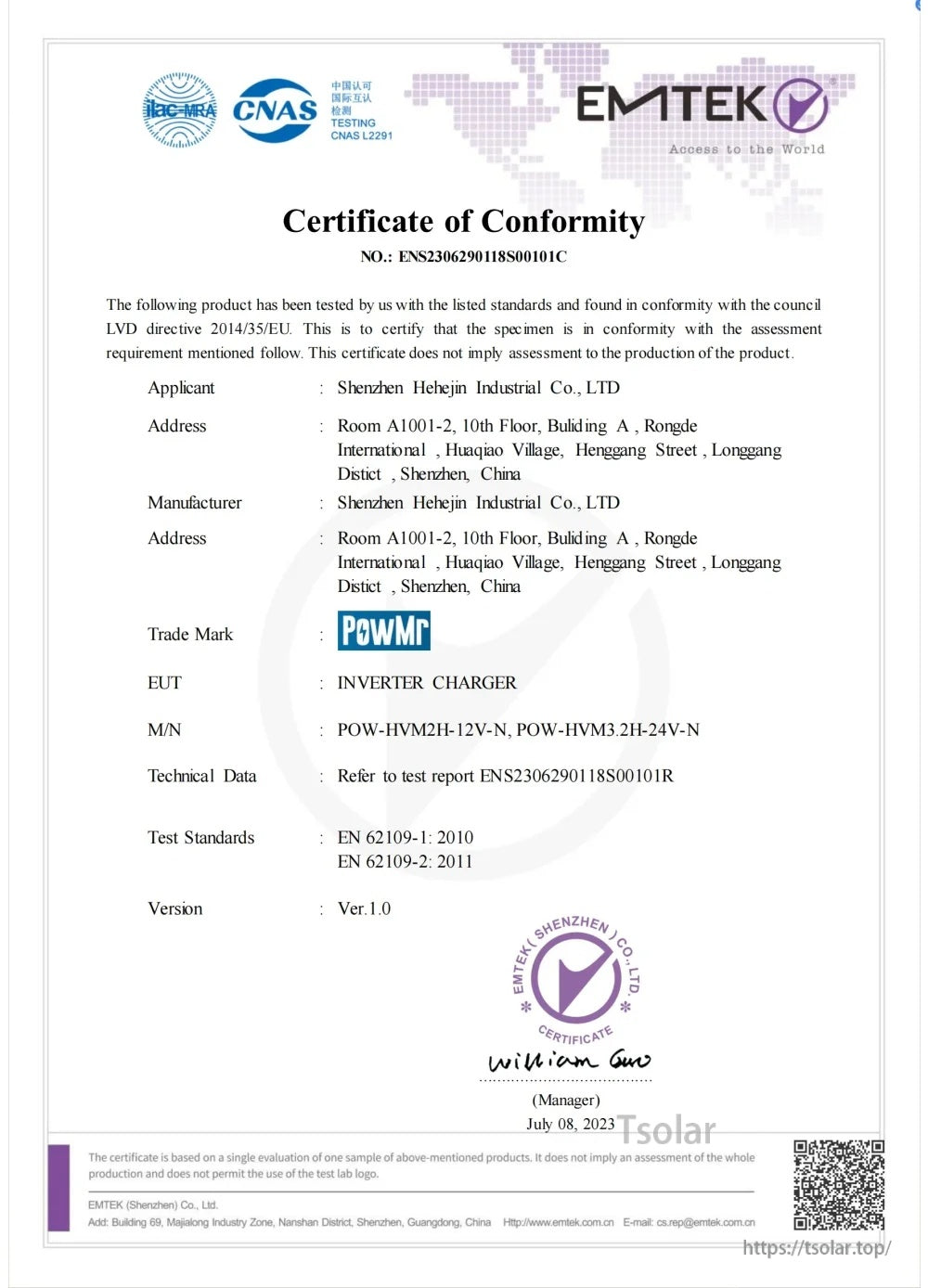

- Certificate of Conformity (EMTEK): Certificate No. ENS2306290118S00101C
- LVD directive: 2014/35/EU
- Test standards: EN 62109-1:2010; EN 62109-2:2011
- Certificate version: Ver.1.0; Date: July 08, 2023
Applications
- Off-grid solar inverter charger systems with 12V or 24V battery banks
- Hybrid power setups accepting solar panels plus utility or generator AC input
For pre-sales and technical support (model selection, PV voltage planning, and wiring questions), contact https://tsolar.top/ or email service@tsolar.top.
