Overview

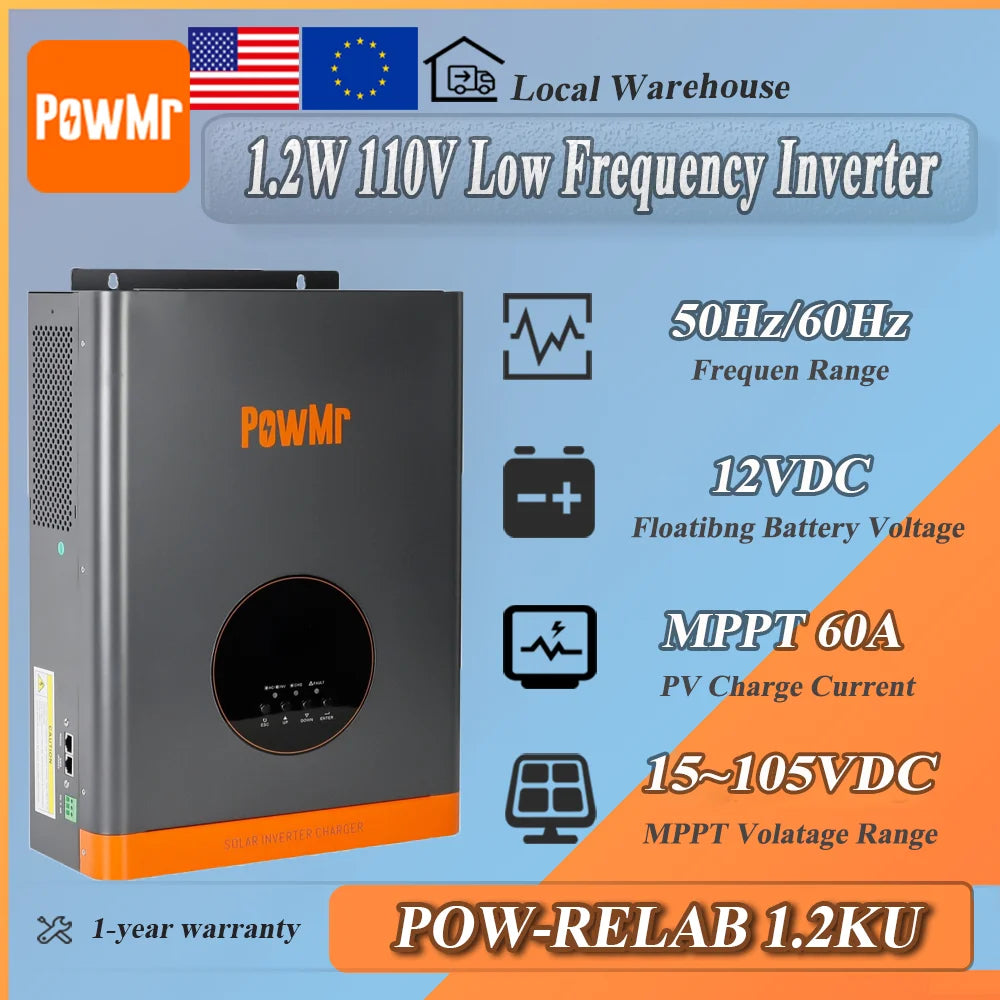

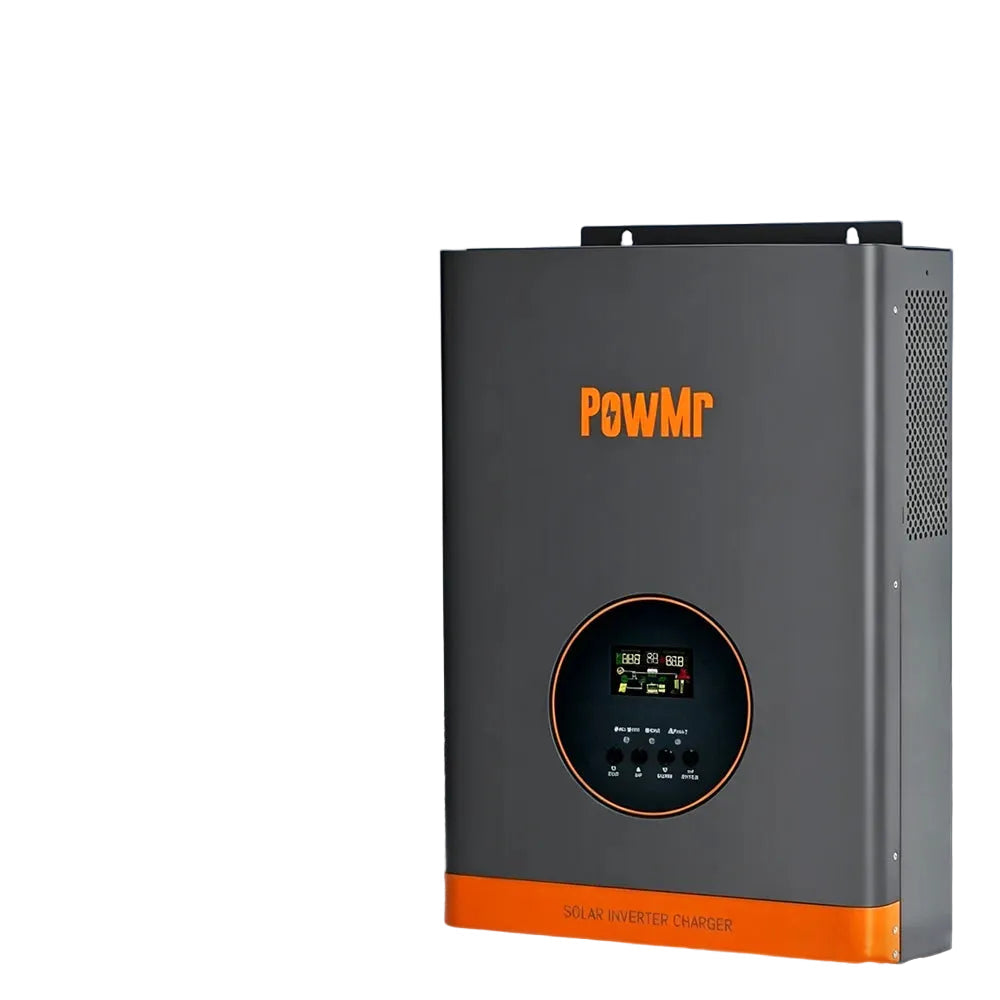

PowMr POW-RELAB 1.2KU is a hybrid solar inverter (low-frequency / power-frequency inverter) designed for residential and commercial energy storage systems. It converts 12Vdc battery power to 110Vac single-phase pure sine wave output, and includes a built-in 60A MPPT solar controller with a 15~105Vdc MPPT input voltage range.
Key Features
- Low-frequency inverter technology for stable pure sine wave output and support for motor-driven loads (e.g., air conditioners, refrigerators).
- Built-in MPPT solar charge controller: MPPT 60A; MPPT input voltage range 15~105Vdc.
-

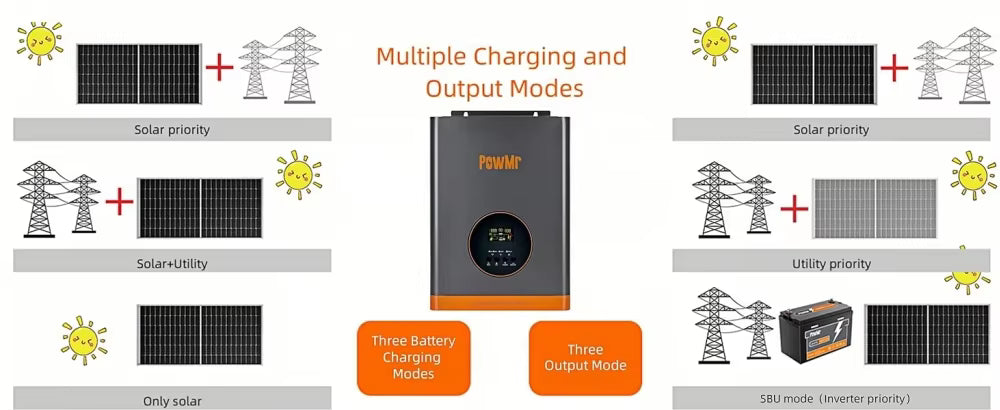

Three operating modes for energy management:
- Grid priority (solar and battery as supplements)
- Solar priority (battery supplements; switches to grid when battery voltage is low)
- Solar + battery priority (battery powers load when no solar; switches to grid when battery voltage is low)
- ECO mode: shuts off inverter output when load is below 15W; checks load every 25 seconds.

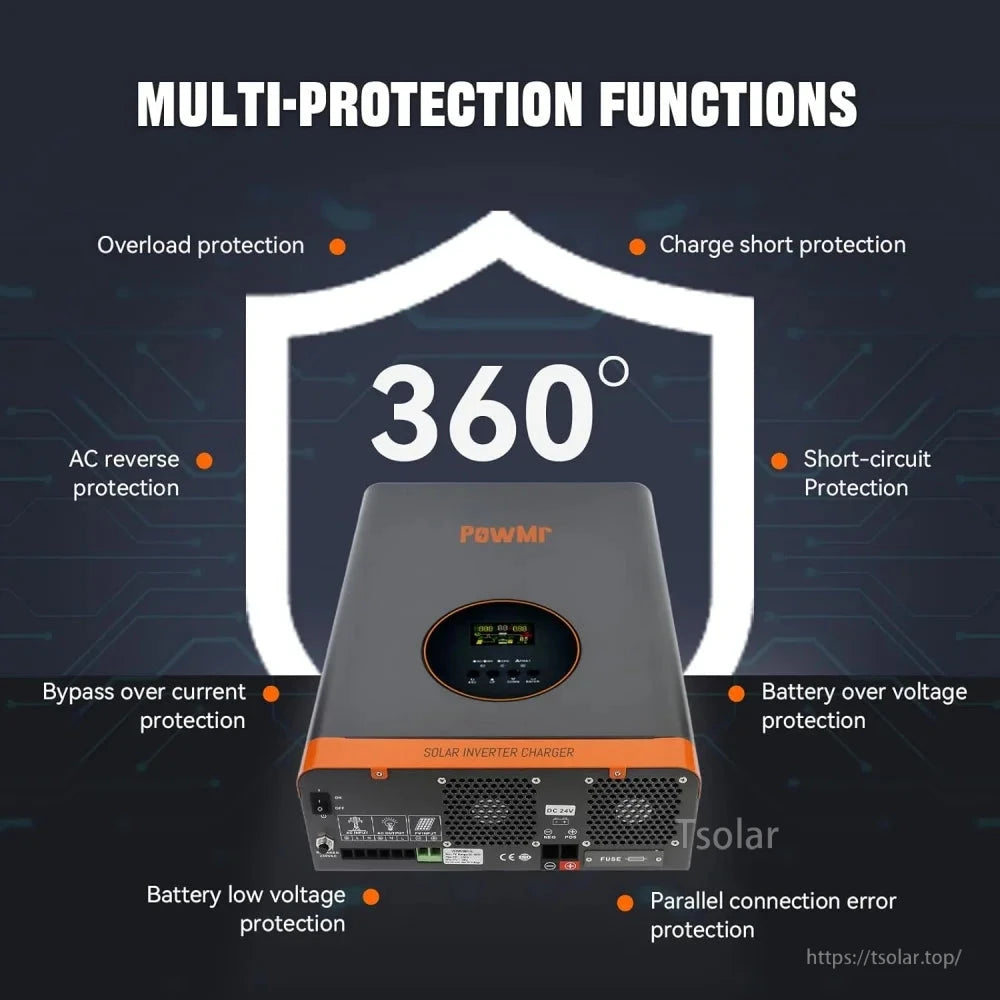

- Safety protections: built-in AC output circuit breaker and battery circuit fuse; alarms and protections for overload, over-temperature, battery overvoltage/undervoltage, short circuit, and reverse connection protection; fault codes, buzzer alarms, and red LED fault indicator.

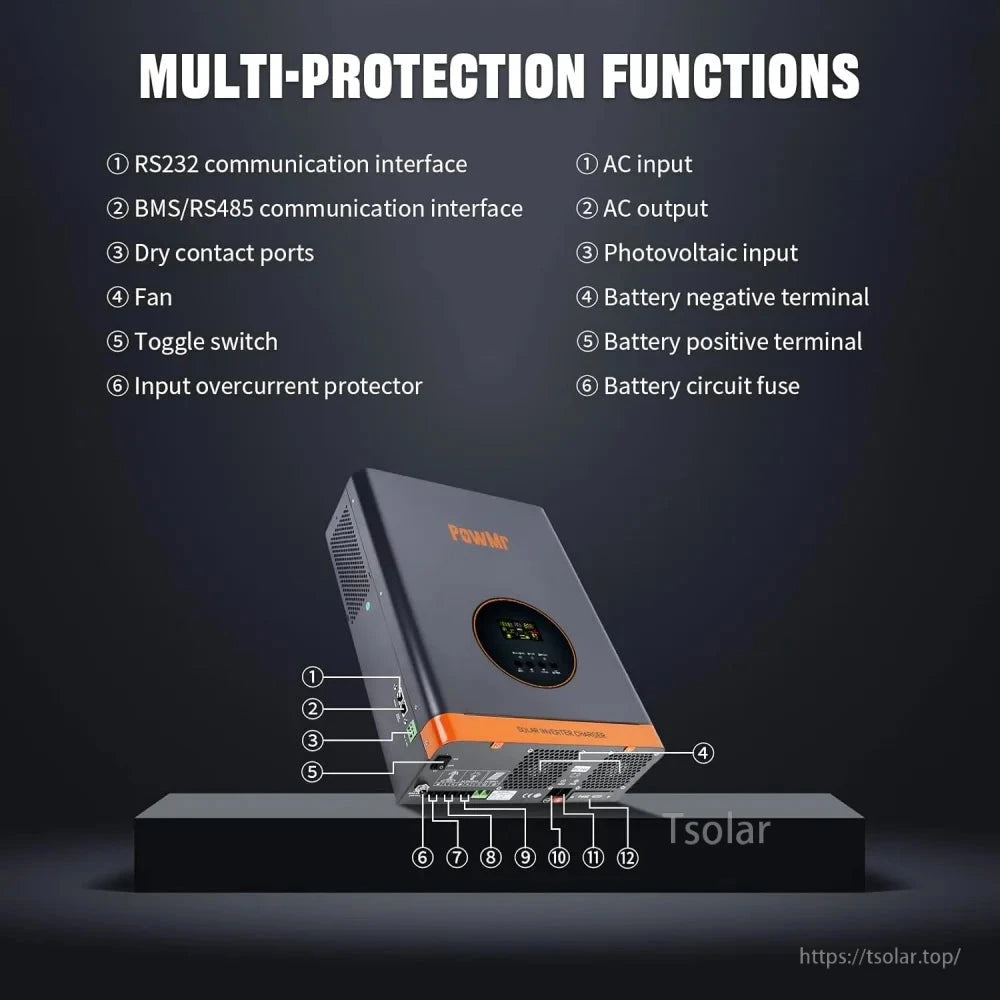

- BMS communication & dry contact: supports RS485/BMS communication for SOC protection and charge/discharge management; dry contact can control mains input switch based on battery voltage or solar status.
- High efficiency & low noise: inverter efficiency >98%; switching time <8 ms; operating noise <45 dB.
- Overload handling information provided: 105%–150% load (11 seconds); 150%–200% load (2 seconds); >200% load (400 ms).
- Protection list also provided: short circuit protection, over-load protection, over current protection, backfill protection, over voltage protection, over-temperature protection, under voltage protection, over charge protection.

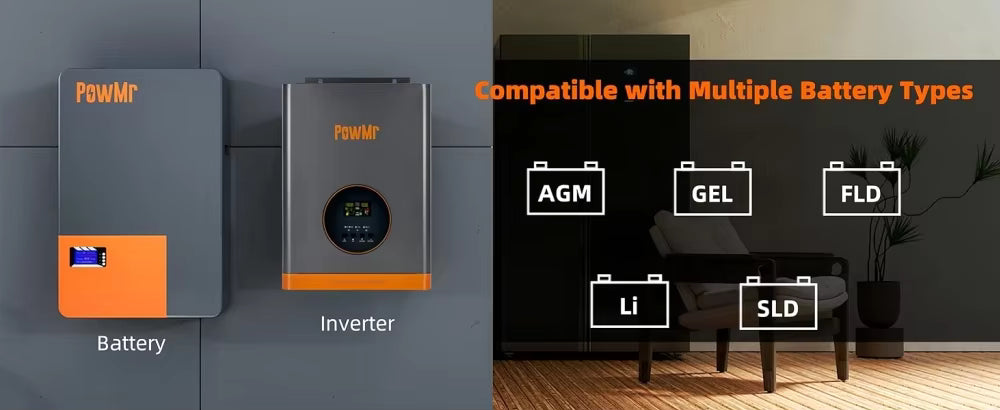

- Compatible battery chemistries listed: SEL, GEL, FLD, AGM, LiCoMnNiO2, LiFePO4.
Specifications
| Brand | PowMr |
| Model Number | POW-RELAB 1.2KU |
| Type / Feature | Solar Inverter; Power-frequency inverter; Low-power inverter |
| Rated Output Power | 1200W |
| Battery Input Voltage | 12Vdc |
| Nominal Output Voltage | 110Vac |
| Output Type | SINGLE |
| Output Frequency | 50Hz/60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| MPPT Output Current | 60A |
| MPPT Input Voltage Range | 15~105Vdc |
| Max. PV Array Power | 800W |
| Battery Type | SEL, GEL, FLD, AGM, LiCoMnNiO2, LiFePO4 |
| Is Smart Device | Yes |
| Certification | CE |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Operating Temperature | -10°C to 50°C |
| Relative Humidity | 0% to 95% |
| Operating Noise | <45 dB |
| Inverter Efficiency | >98% |
| Switching Time | <8 ms |
| Size | 52x38.5x.19.5cm |
| Weight | 14KG |
| Origin | Mainland China |
| High-concerned chemical | None |
| is_customized | Yes |
Additional Technical Information Provided

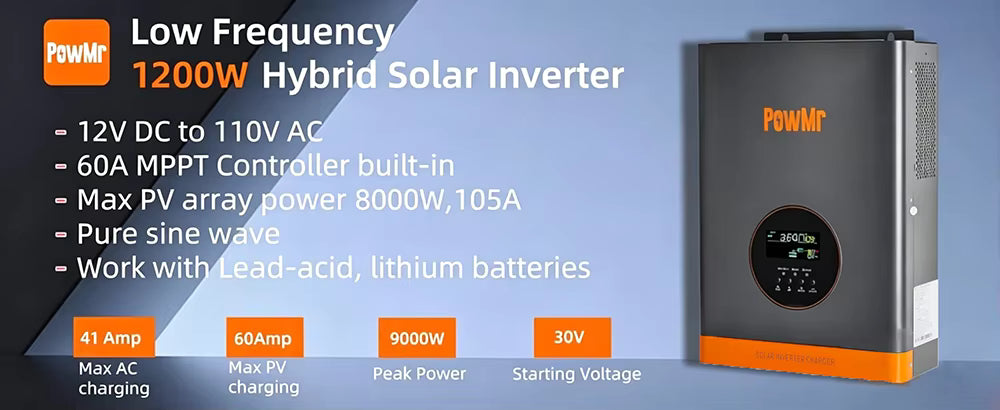

- Also stated: 12V DC to 110V AC; 60A MPPT controller built-in; pure sine wave; works with lead-acid and lithium batteries.

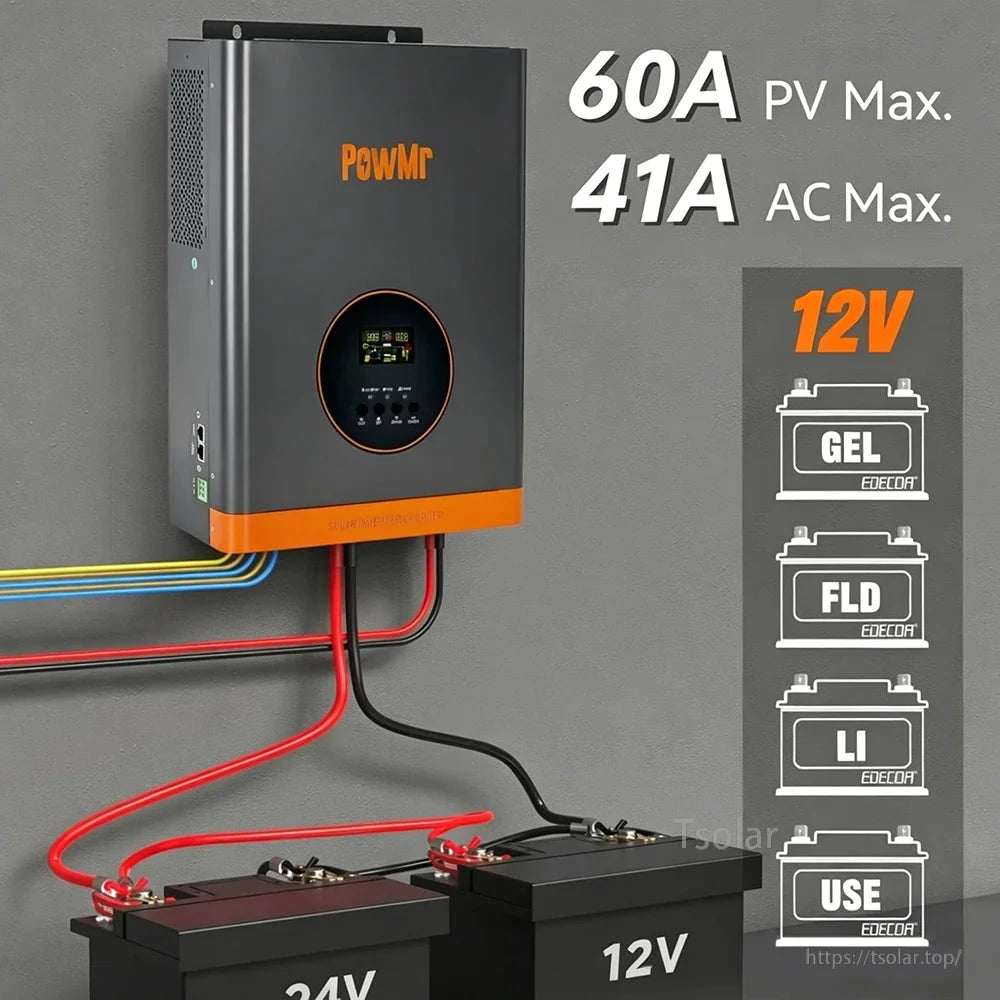

- Also stated: 41 Amp max AC charging; 60 Amp max PV charging; 9000W peak power; 30V starting voltage.

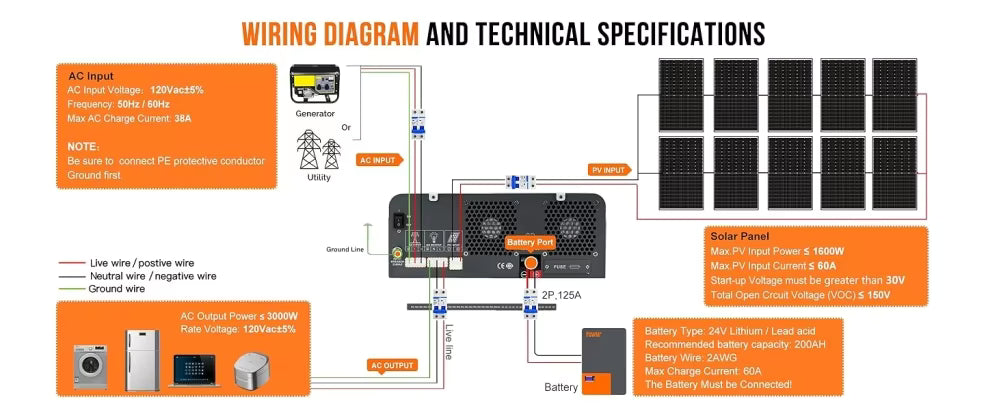

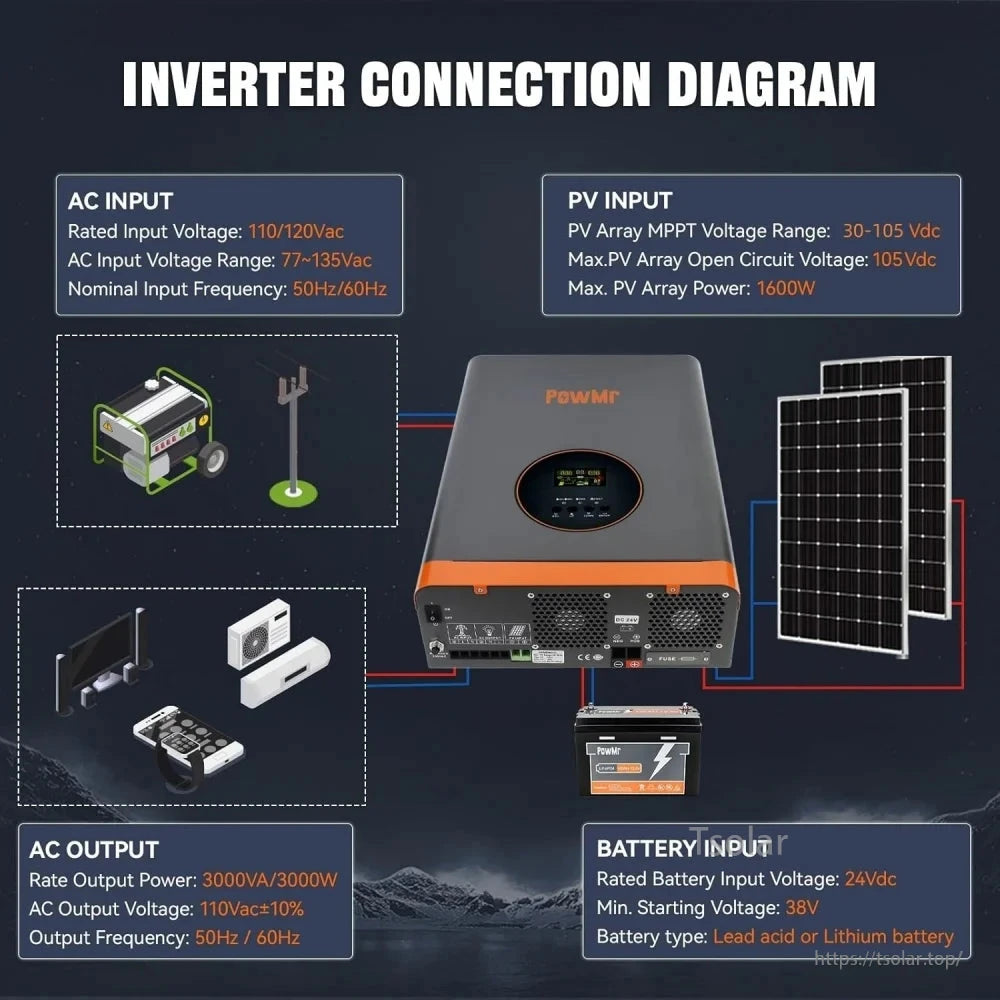

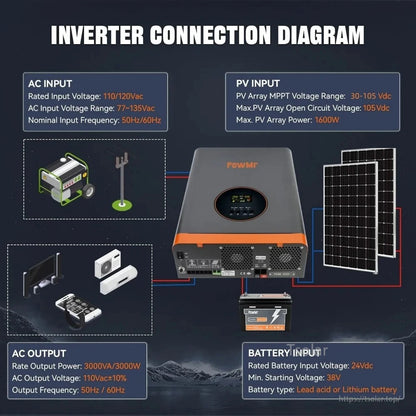

- Wiring/technical panel also lists the following values:
- AC input: 120Vac±5%; frequency 50Hz/60Hz; max AC charge current 38A.
- Solar panel (PV input): max PV input power ≤1600W; max PV input current ≤60A; start-up voltage must be greater than 30V; total open circuit voltage (VOC) ≤150V.
- AC output: AC output power ≤3000W; rate voltage 120Vac±5%.
- Battery notes: battery type 24V lithium/lead acid; recommended battery capacity 200Ah; battery wire 2AWG; max charge current 60A; “The Battery Must be Connected”.
Applications
- Residential and commercial energy storage systems
- Home and office loads including lamps, fans, refrigerators, air conditioners, coffee machine, and computers
For product selection and pre-sales compatibility checks, contact support at https://tsolar.top/ or service@tsolar.top.
Details
A 1200W low-frequency hybrid inverter that delivers pure sine wave AC power and includes a built-in 60A MPPT solar charger.
Supports multiple battery types, including common lead-acid options and lithium, for flexible system design.
Low-frequency design helps handle short power surges, with overload timing guidance for different load ranges.
RS485/BMS communication enables state-of-charge awareness and smarter charge/discharge management.
Built-in protection features help safeguard the inverter and connected equipment during abnormal operating conditions.
Designed to power a wide range of everyday household and office loads, from lighting to small appliances.
Choose charging and output priorities to balance solar, battery, and utility power based on your energy needs.
Clear wiring guidance for connecting solar panels, battery bank, and AC input/output to build a complete hybrid power system.
