Overview

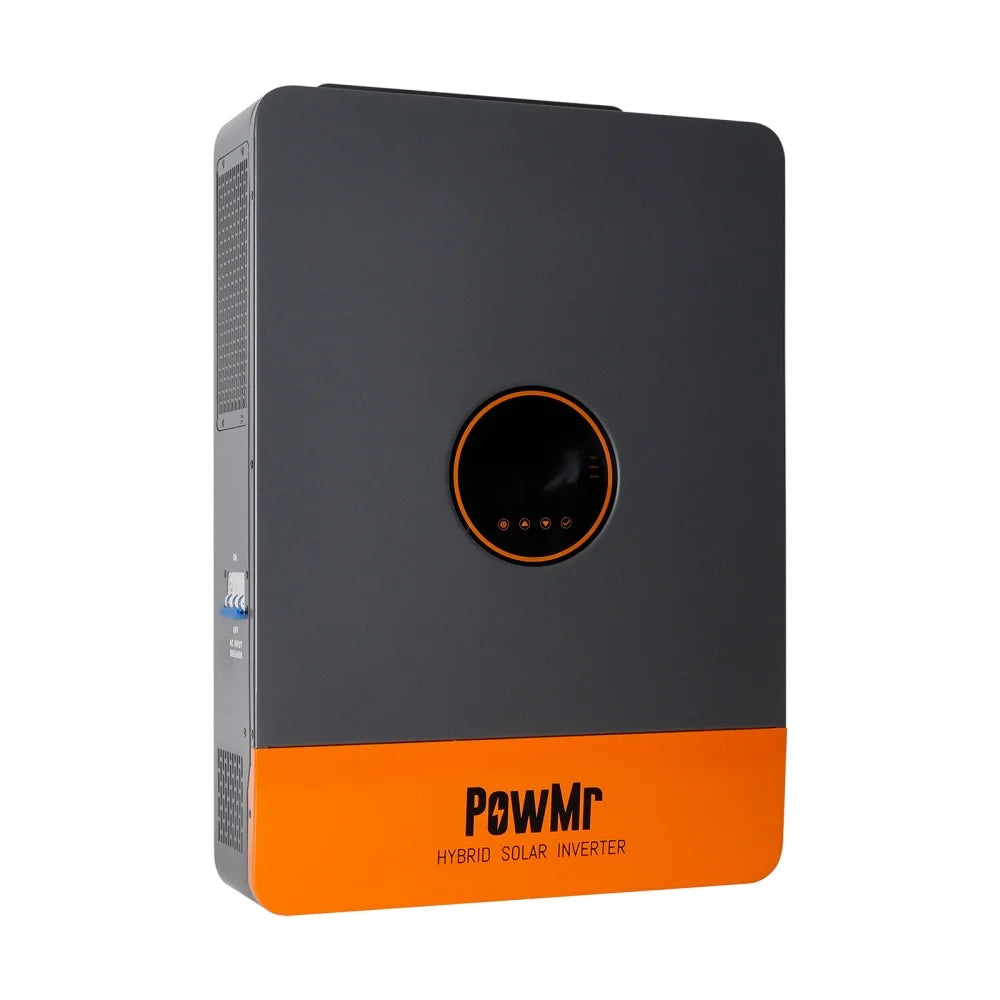

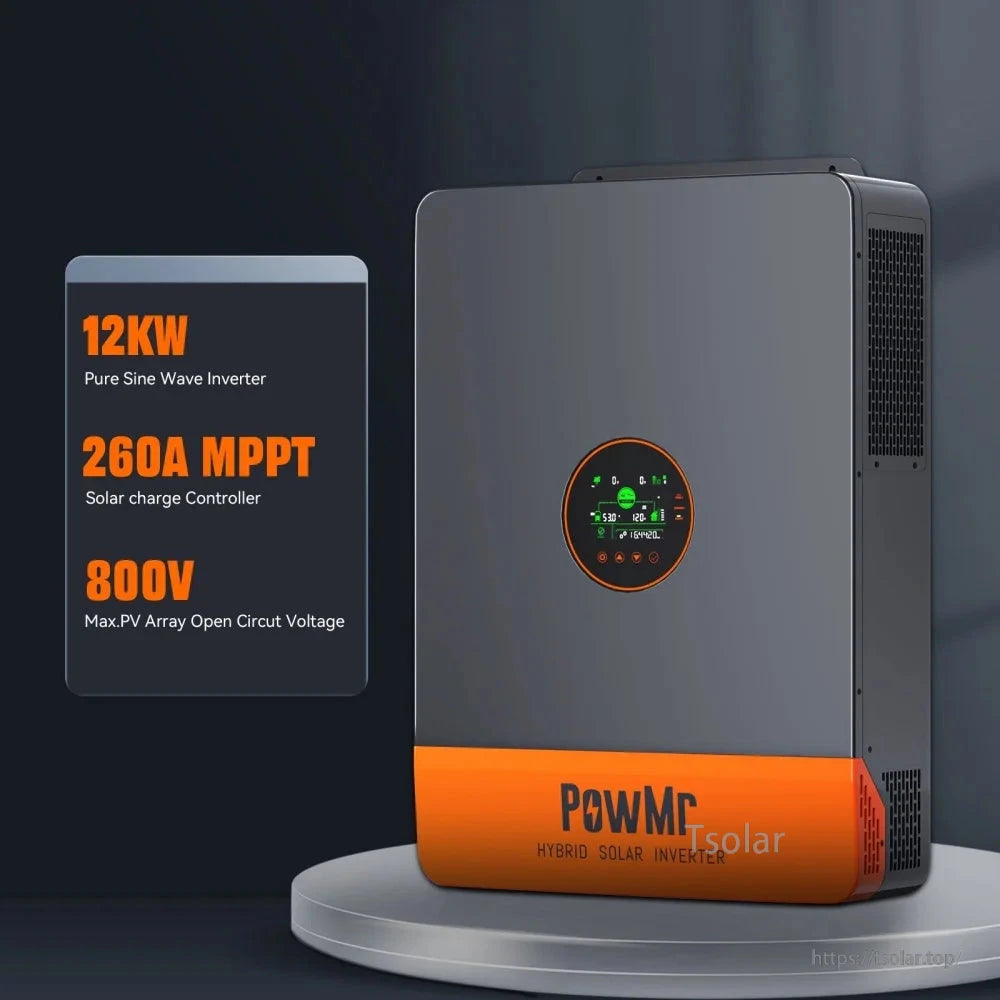

The PowMr POW-SunSmart 12KPL3 is a 12,000W 48V solar hybrid inverter designed for three-phase pure sine wave output at 230/400Vac (350~415V). It supports dual MPPT PV inputs (max open-circuit voltage 800Vdc/800Vdc) and parallel operation up to 6 units.
Key Features
- Three-phase pure sine wave output: 230/400Vac three-phase; supports phase voltage adjustment at 200/208/220/230/240Vac; output frequency 50/60Hz.
- Dual MPPT solar charging: 2 MPPT, MPPT tracking efficiency 99.9%, max input current 22/22A, and max hybrid charging current 260A. Dual MPPT manages each 9000W input.
- Battery compatibility: 48Vdc battery system supporting Li-ion, Lead-Acid, and User Defined battery types; includes dual activation for dormant Li-ion (mains or PV can trigger activation).
- Charging modes & scheduling: Solar only, mains priority, solar priority, and mixed mains + PV charging; time-slot charging/discharging for Time-of-Use (TOU) peak/valley tariffs; battery discharge time can be set to zero for UPS power supply use.

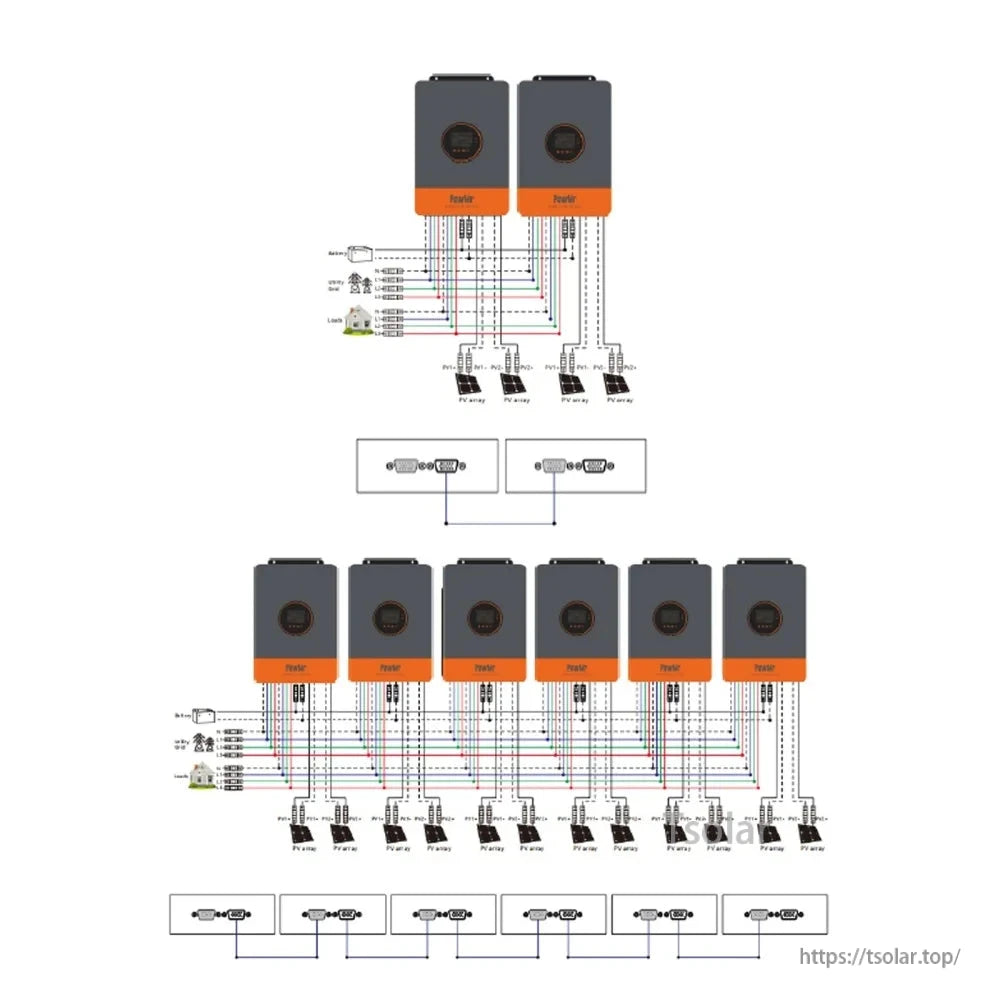

- Parallel scalability: Up to 6 units in parallel (up to 72kW stated) for home, commercial, or industrial systems.
- LCD monitoring: Large LCD with real-time photovoltaic system operating data and dynamic flow diagram.
- Interfaces: RS485, CAN, USB, and Dry contact; supports inverter and battery BMS communication with SOC/SOH visibility.
- Protection: 360° protection including short circuit, over current, over voltage, under voltage, over-load, backfill, over-temperature, and over charge protection.
For installation guidance and compatibility checks (PV string design, battery communications, and parallel setup), contact service@tsolar.top or https://tsolar.top/.
Specifications
| Brand | PowMr |
| Model Number | POW-SunSmart 12KPL3 |
| Type / Feature | Three Phase Inverter; 12000W Solar Inverter; Solar Hybrid Inverter |
| Rated Output Power | 12000W |
| Max. Peak Power | 24000W |
| Rated Output Voltage | 230/400Vac three-phase |
| Supported Phase Voltages | 200/208/220/230/240Vac |
| Three-phase Output Range | 350~415V |
| Output Frequency | 50/60Hz |
| Output Waveform | Pure sine wave |
| Output Type | DUAL |
| Rated Battery Voltage | 48Vdc |
| Battery Types | Li-ion; Lead-Acid; User Defined |
| No. of MPPT | 2 |
| MPPT Tracking Efficiency | 99.9% |
| Max. Input Current | 22/22A |
| Max. Open-circuit Voltage | 800Vdc/800Vdc |
| Max. Hybrid Charging Current | 260A |
| Parallel Capability | Up to 6 Units |
| Internal Interface | RS485; CAN; USB; Dry contact |
| Is Smart Device | Yes |
| Noise | <60dB |
| Protection Degree | IP20 (indoor only) |
| Certification | CE |
| RoHS | Yes |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| High-concerned chemical | None |
| Size | 79 x 57 x 25.2 |
| Weight | 29KG |
| Origin | Mainland China |
| is_customized | Yes |

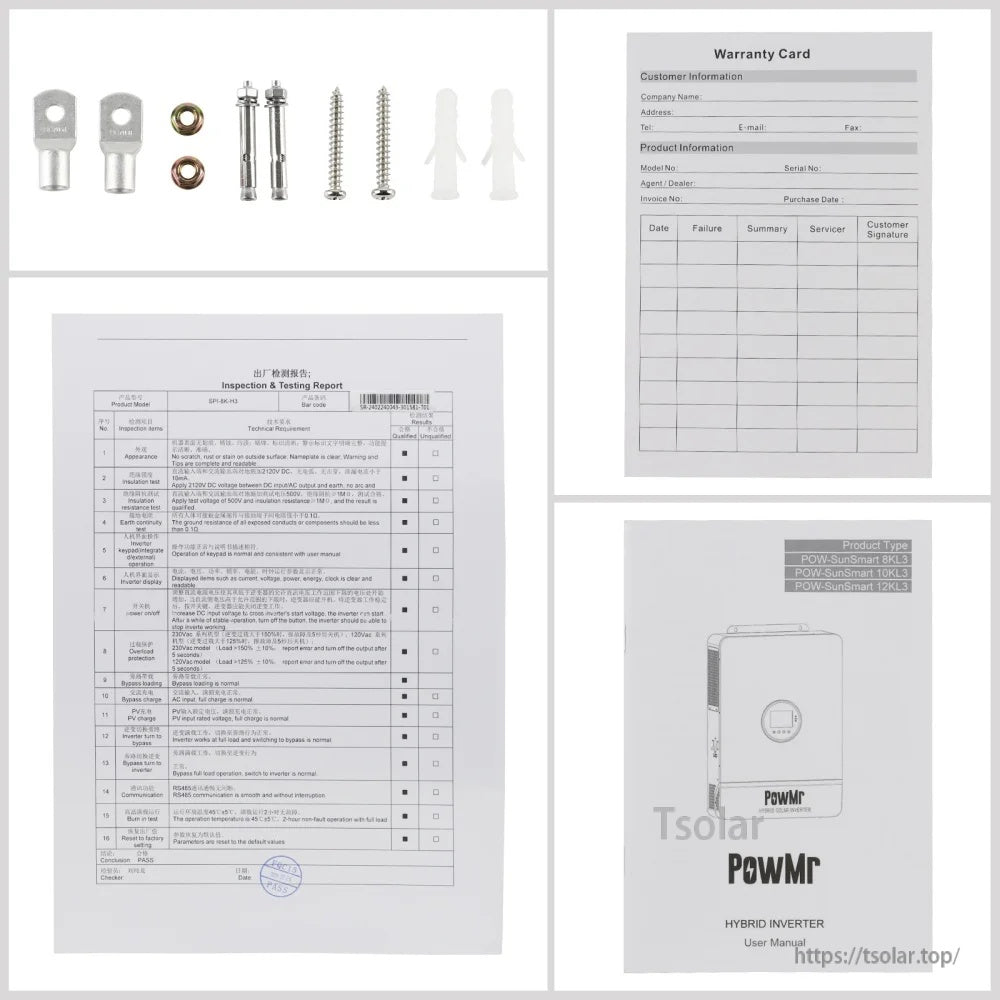

What’s Included
- PowMr Hybrid Inverter user manual (covers POW-SunSmart 8KL3 / 10KL3 / 12KL3)
- Warranty card
- Inspection & testing report
- Mounting/accessory hardware (as shown in included materials)
Applications
- Solar power systems
- Home energy storage
- RV power systems
- Marine power systems
- Off-grid systems
- Home / Commercial / Industrial scenarios
Details

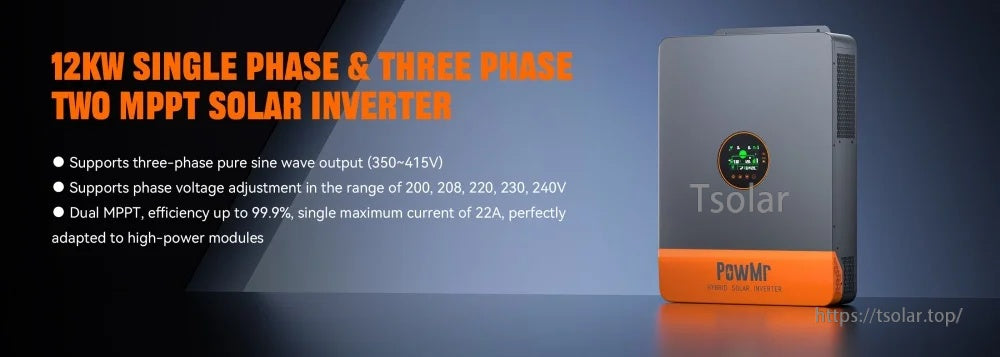

Built for 230/400Vac three‑phase systems, the POW‑SunSmart 12KPL3 supports dual MPPT PV inputs up to 800V for flexible string design.

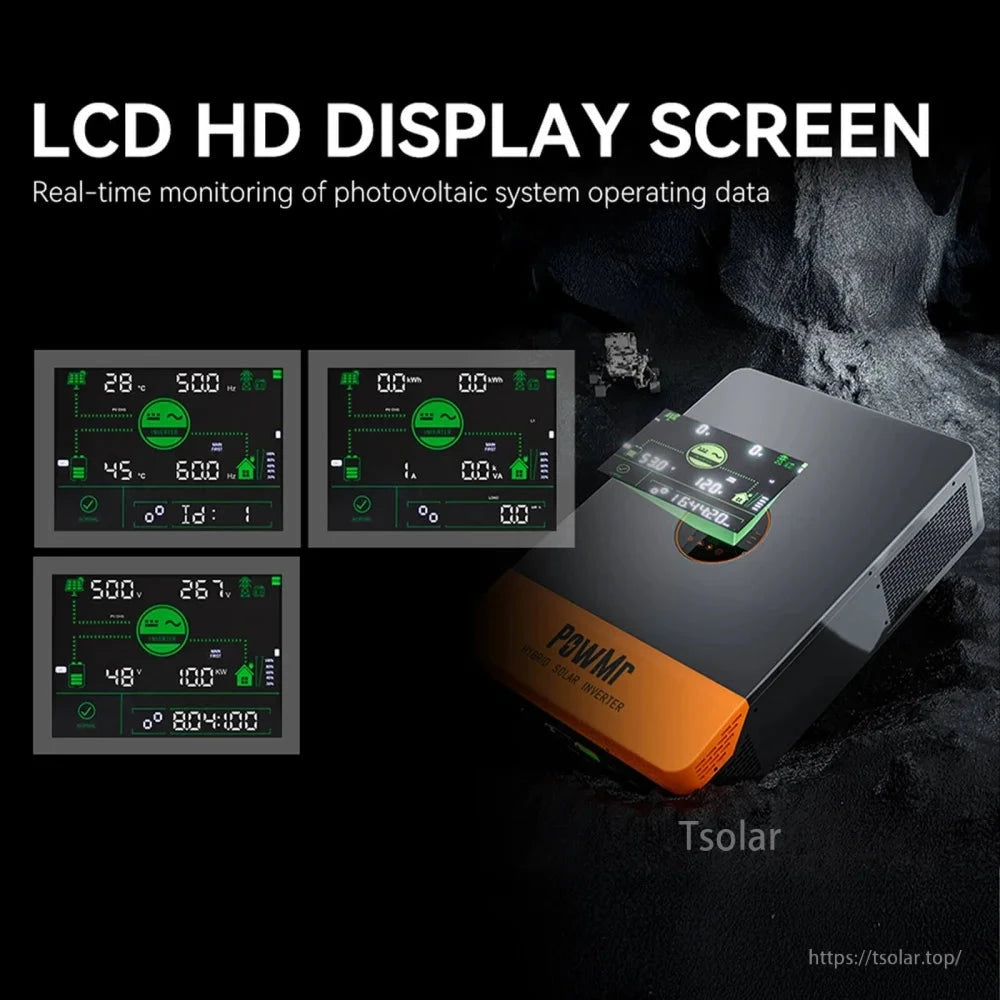

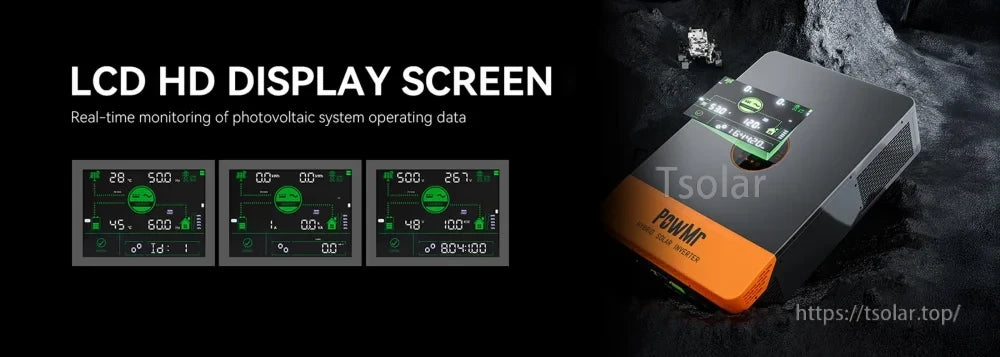

The large HD LCD presents real‑time operating data and an easy flow display for faster setup and day‑to‑day checks.

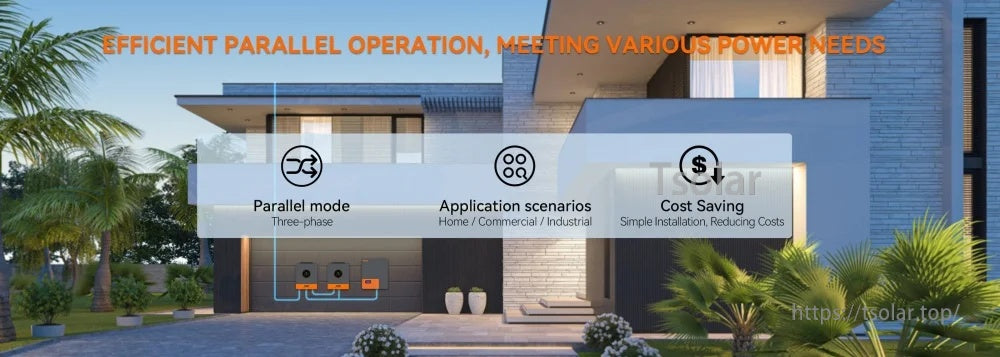

Parallel operation scales system capacity for higher-demand home, commercial, or industrial installations.

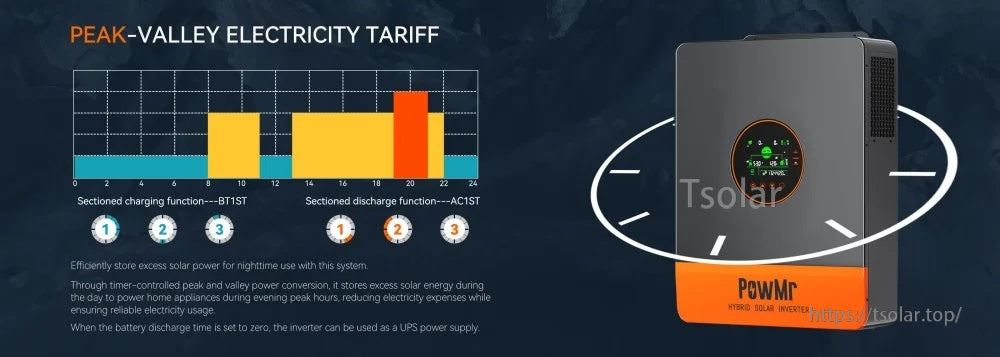

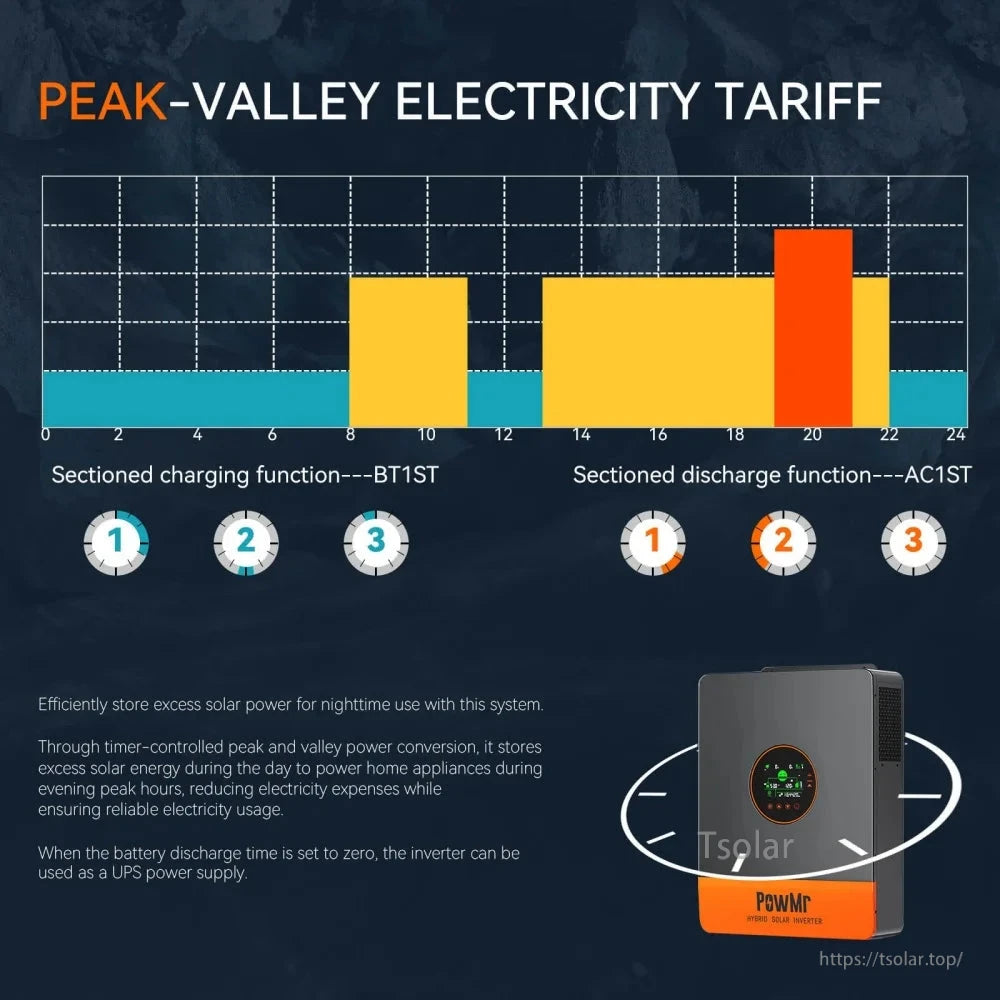

Time‑of‑Use scheduling helps prioritize charging and discharging to match peak/valley electricity tariffs or UPS-style backup needs.
Included paperwork and mounting hardware support installation and product registration.
