Overview
The PowMr PS-3K-110V hybrid solar inverter is a single-phase solar inverter/charger designed for 24VDC battery systems and 110V/120V AC output. It is rated at 3000VA/2400W with pure sine wave output, and includes a built-in 50A PWM solar charge controller with PV voltage input range 30-80V DC (max PV array open-circuit voltage 80V) and max PV power input 1200W. It supports utility or generator AC input (sinusoidal).
Key Features
- Pure sine wave output
- Hybrid power input options: solar + utility or generator
- Built-in PWM solar charge controller: 50A
- PV input range: 30-80V DC; max PV array open-circuit voltage (VOC): 80V DC
- Rated power: 3000VA/2400W; surge power: 6000VA
- Auto sensing frequency: 50Hz/60Hz
Specifications
| Brand name | PowMr (also listed: NONE) |
| Model number | PS-3K-110V |
| Model name (label) | PS 3KVA |
| Usage | Hybrid Inverter |
| Output type | SINGLE |
| Waveform | Pure Sine Wave |
| Rated power | 3000VA/2400W |
| Surge power | 6000VA |
| Output voltage | 110V/120V AC |
| AC voltage regulation | 120VAC |
| Output frequency | 50/60HZ |
| Frequency range | 50HZ/60HZ (Auto Sensing) |
| Output current (listed) | 50A |
| Standby power consumption | 2W |
| Input voltage waveform | Sinusoidal (utility or generator) |
| AC input voltage | 120VAC |
| Inverter mode (label): DC input | 24VDC, 100A |
| Inverter mode (label): AC output | 120VAC, 60Hz, 25A, 1Φ |
| AC charger mode (label): AC input | 120VAC, 60Hz, 33.5A, 1Φ |
| AC charger mode (label): DC output | 27VDC, 30A/20A |
| AC charging current | 20A |
| Battery voltage | 24V DC / 24VDC |
| Float voltage | 27VDC |
| Overcharge protection | 30VDC |
| PV voltage input range | 30-80V DC |
| Max PV array open-circuit voltage | 80V / 80VDC |
| Max PV power input | 1200W |
| Charging current (PWM) | 50A |
| Solar charger mode (label): system voltage | 24VDC |
| Operating temperature range (label) | 0-55°C |
| Color (label) | Silver and Black |
| Size | 100x272x355mm |
| Weight | 6.9KG |
| Certification | CE |
| Compliance (label) | RoHS Compliant |
| Origin | Mainland China (Made in China) |
| Is smart device | No |
| Customized | Yes |
| High-concerned chemical | None |
For pre-sales questions and technical support, contact https://tsolar.top/ or email service@tsolar.top.
Applications
- Home solar power systems using a 24V battery bank
- Hybrid setups combining solar with utility power or generator input
- Powering common household AC loads from a 110V output system
Details
A 3KVA/2400W hybrid inverter designed to run 110V/120V household loads from a 24V battery system.

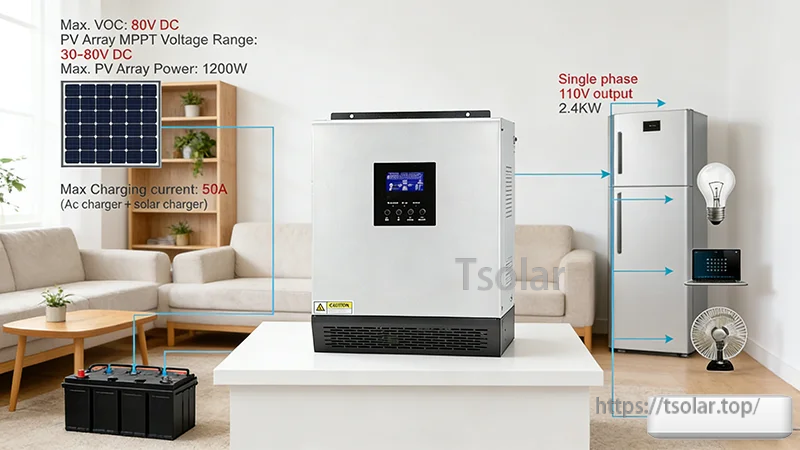

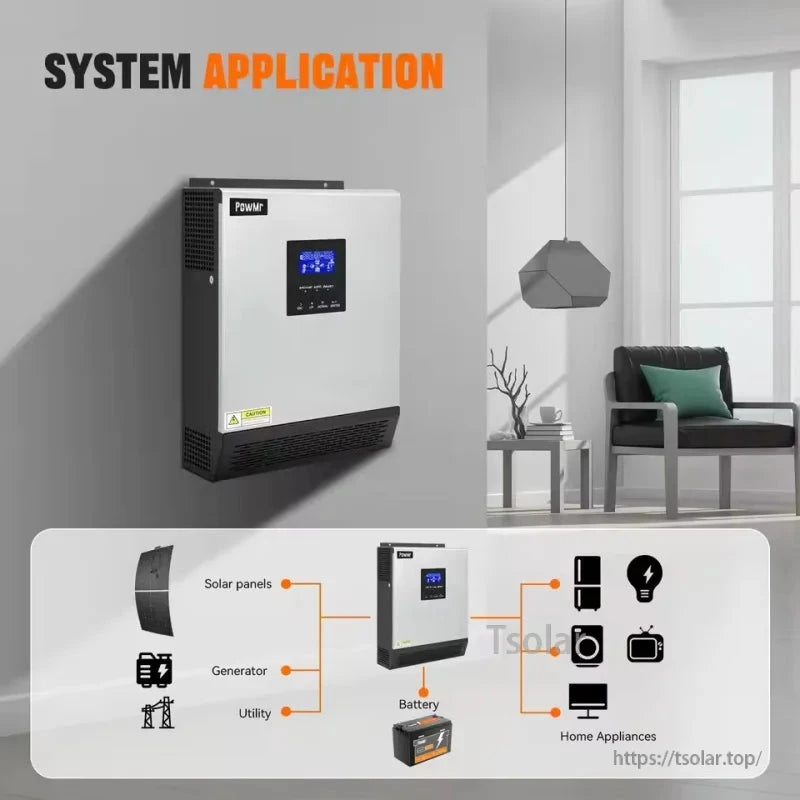

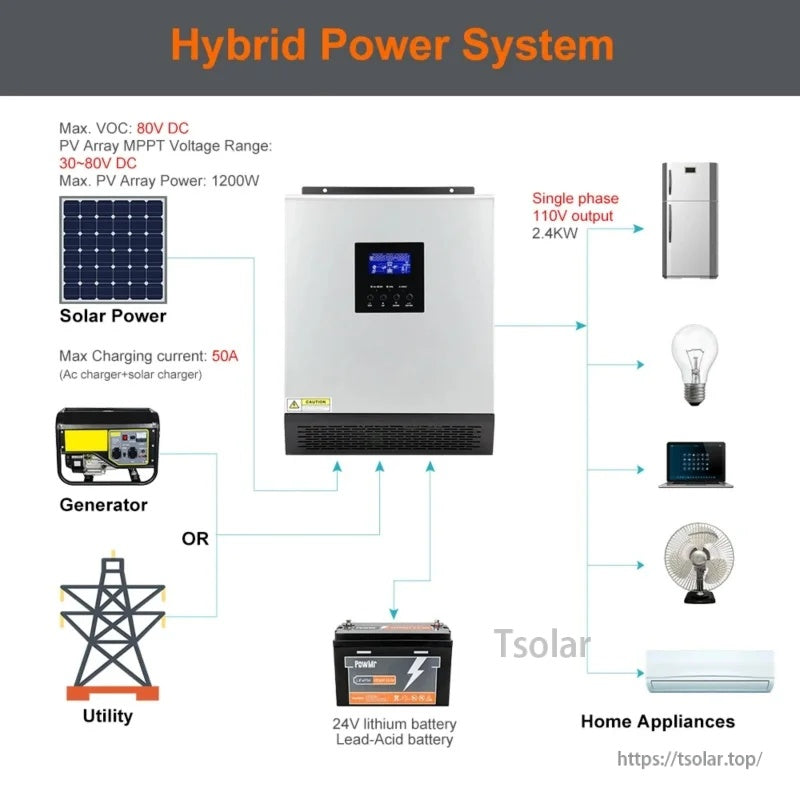

Hybrid operation supports solar plus utility or generator input to power appliances while charging a 24V battery bank.
Built-in 50A PWM solar charge controller accepts PV input in the 30–80V DC range (max VOC 80V).

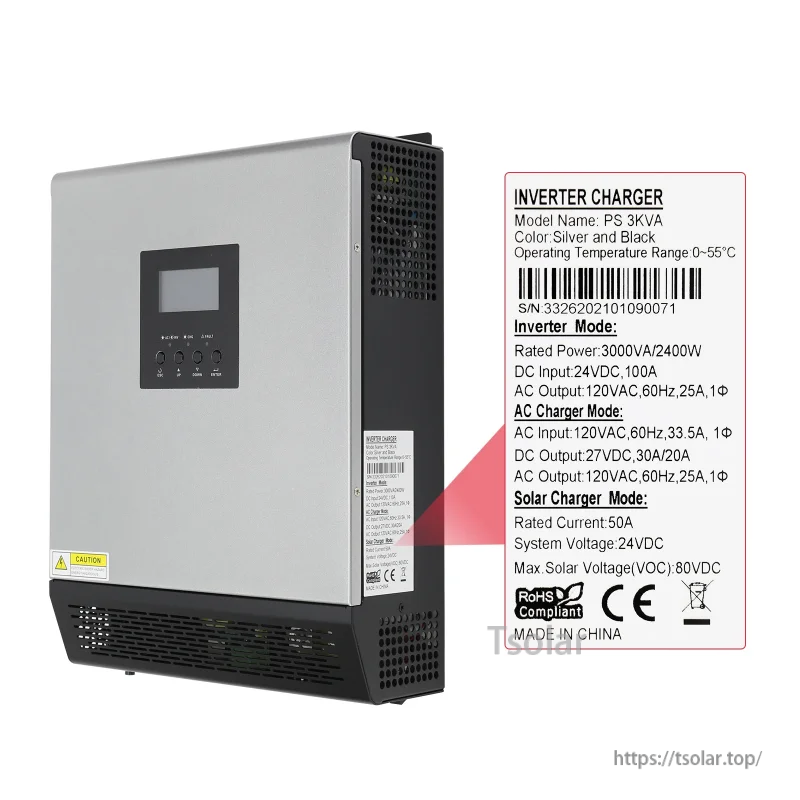

Nameplate details list 3000VA/2400W output, 24VDC battery input, and 120VAC single‑phase output.

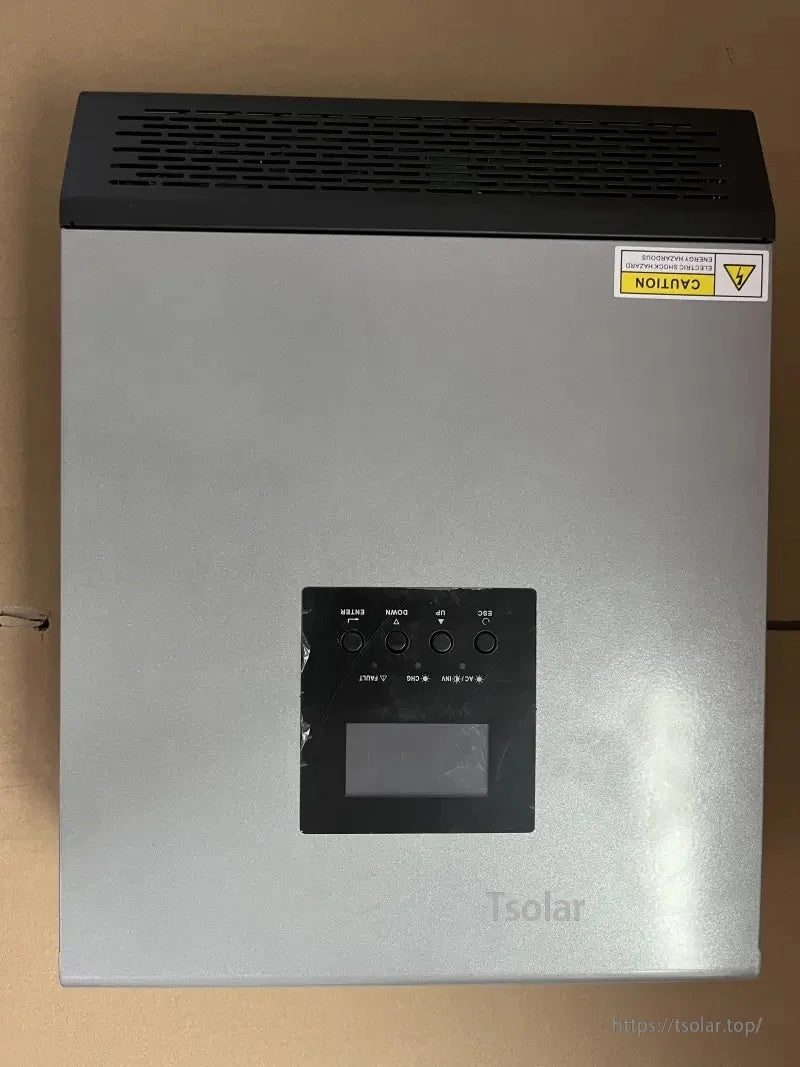

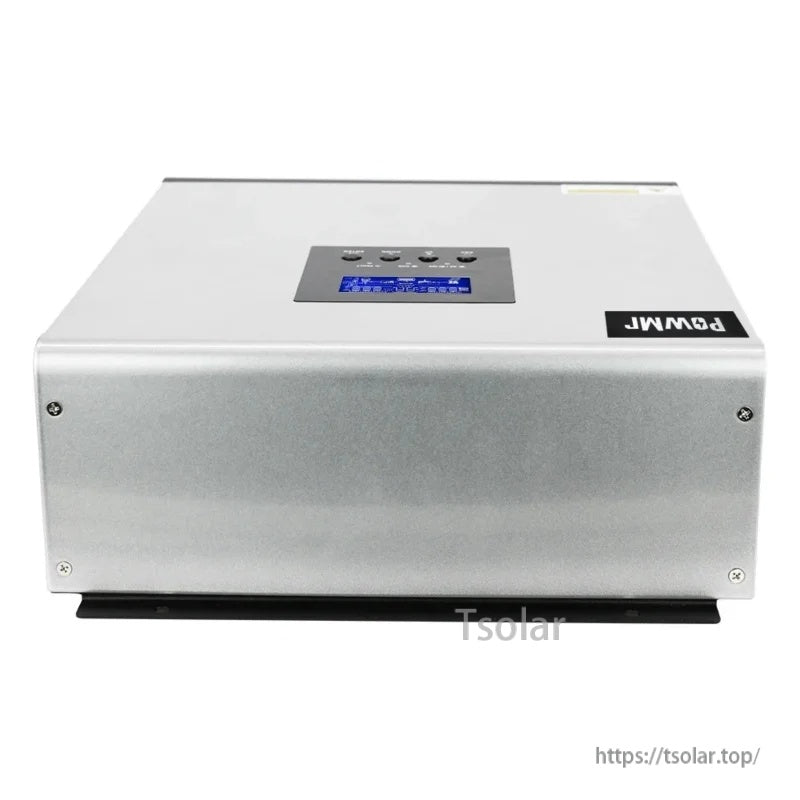

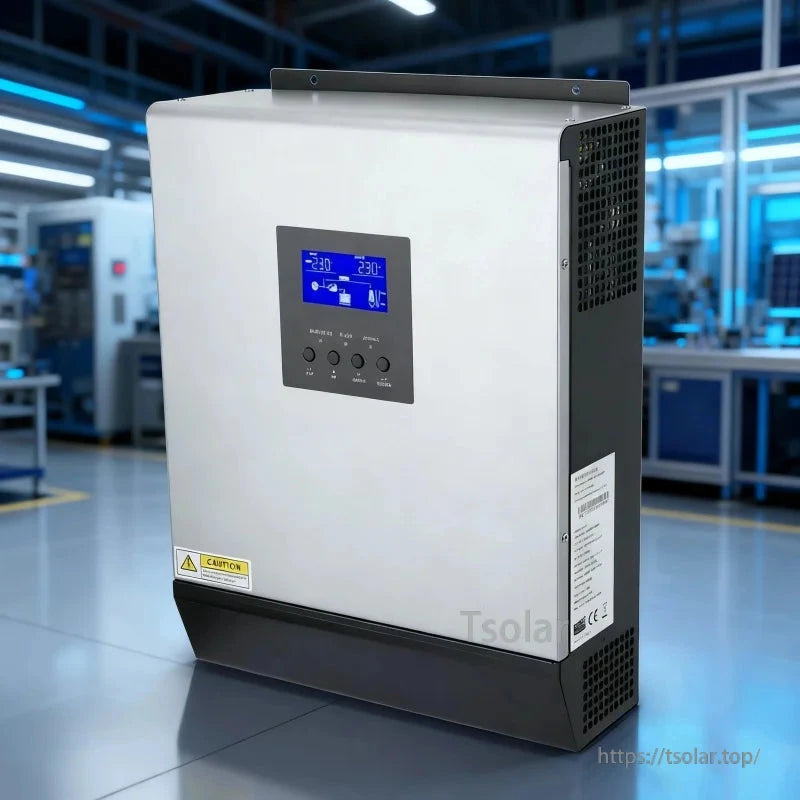

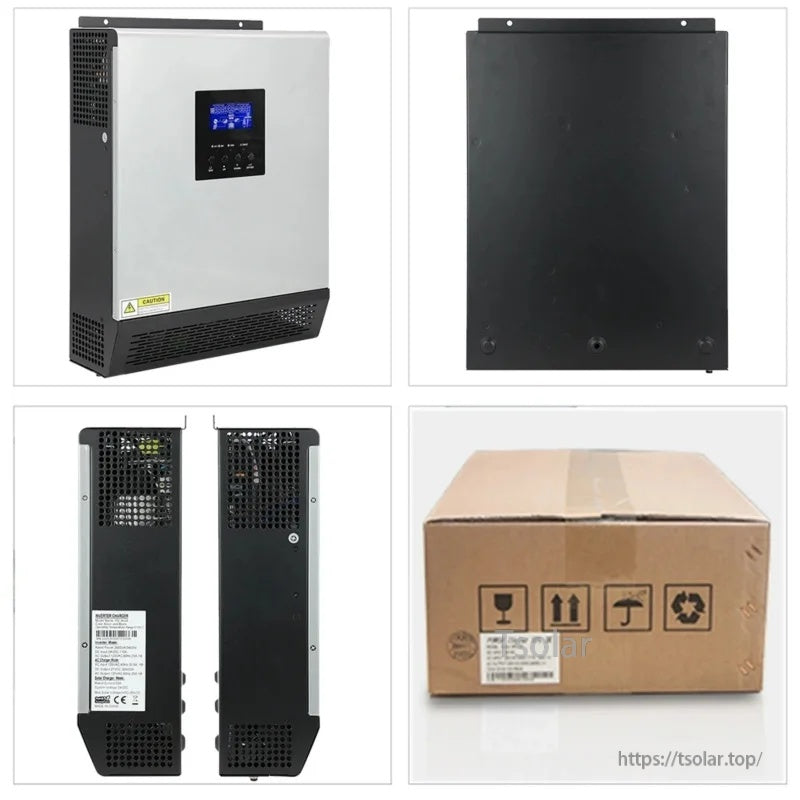

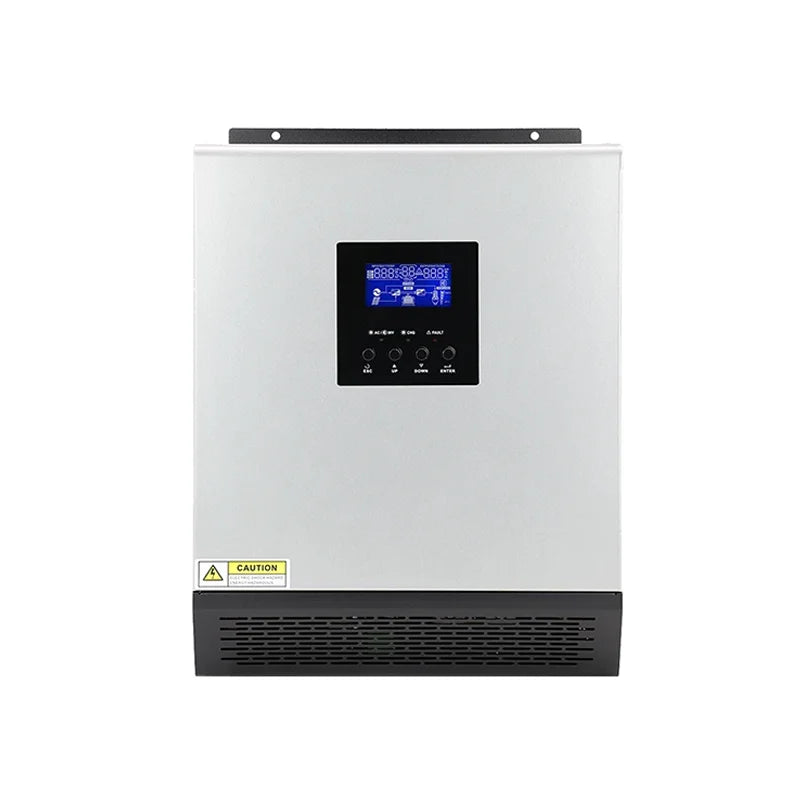

Multiple housing views highlight the compact metal case, ventilation, and wall-mount form factor.

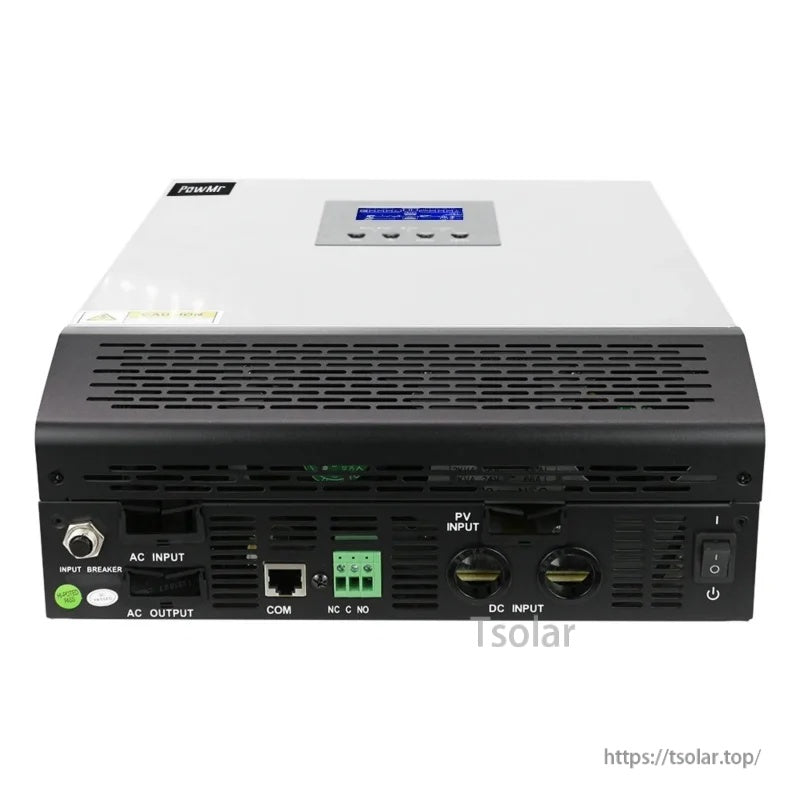

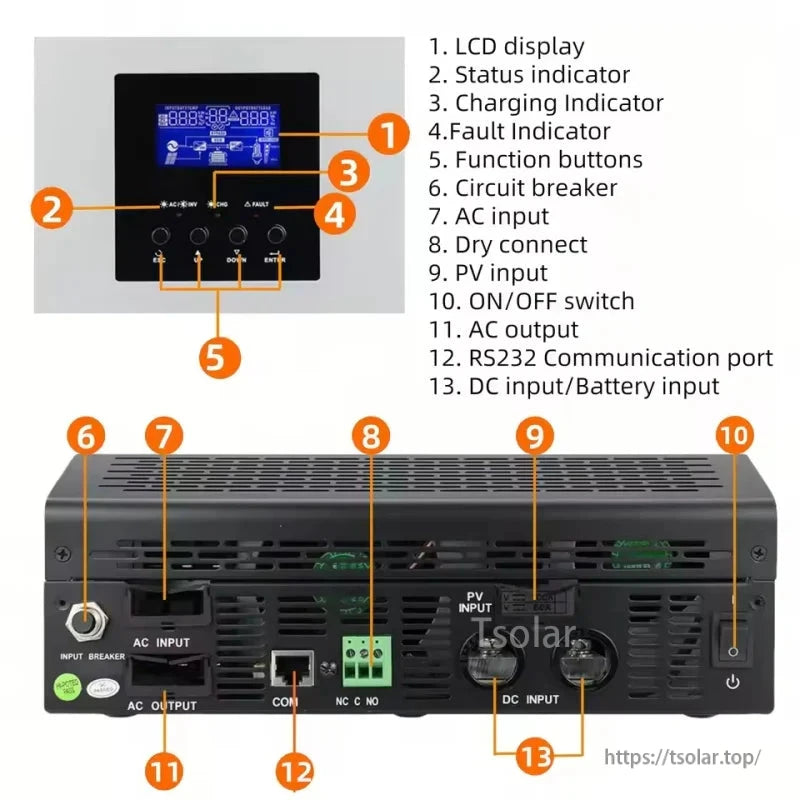

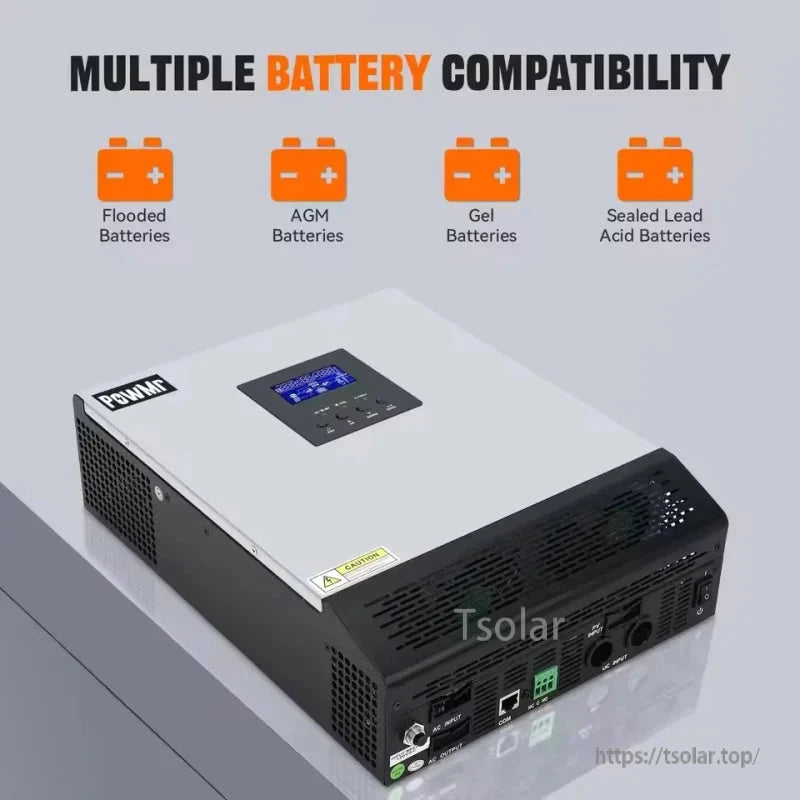

Clearly labeled terminals make it easy to connect PV input, battery DC input, and AC input/output wiring.
