Overview

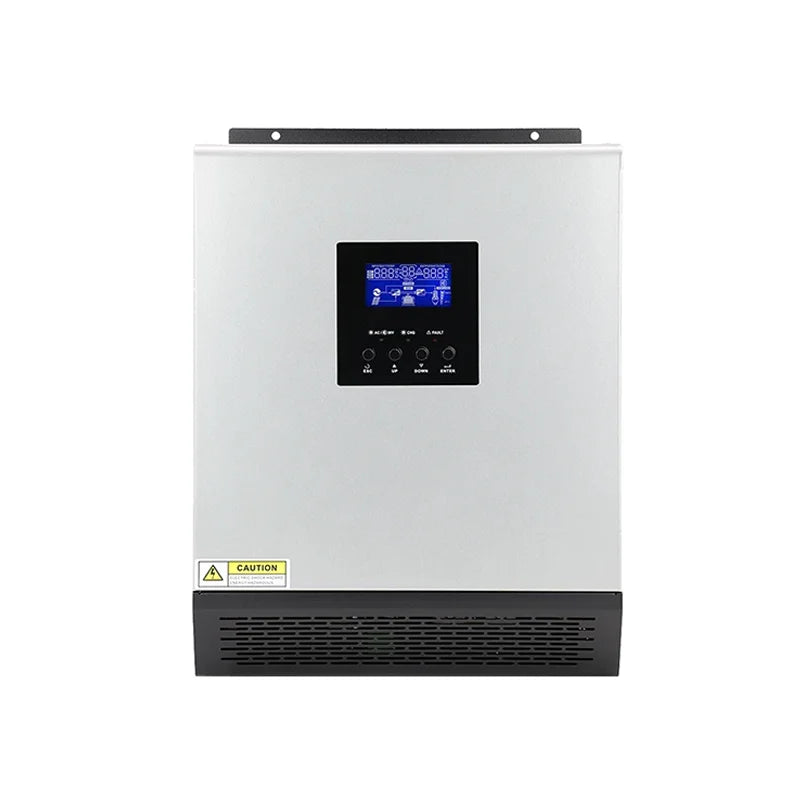

The PowMr PS-3K-110V hybrid solar inverter is a 24V DC inverter/charger with a built-in 50A PWM solar charge controller, designed to supply single-phase 110V/120V AC power with a pure sine wave output. It supports solar, utility (grid), or generator input and is suitable for solar home power systems using a 24V battery bank.
Key Features
- Pure sine wave output for stable AC power delivery.
- Hybrid input support: sinusoidal utility or generator input.
- Built-in solar charge controller: 50A PWM charging current.
- PV input range: 30 to 80V DC; max PV array open-circuit voltage (VOC) 80V DC.
- Rated power: 3000VA / 2400W; surge power: 6000VA.
- Auto-sensing frequency: 50Hz/60Hz.
- Low standby consumption: 2W.
- Certifications/markings: CE (also marked RoHS compliant).
Specifications
| Brand | PowMr |
| Model Number | PS-3K-110V |
| Usage | Hybrid Inverter |
| Waveform | Pure Sine Wave |
| Output Type | Single |
| Output Voltage | 110V/120V AC |
| AC Voltage Regulation | 120VAC |
| Output Frequency | 50/60Hz |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| AC Input | 120VAC |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| Rated Power | 3000VA/2400W |
| Surge Power | 6000VA |
| Battery Voltage | 24V DC |
| Float Voltage | 27VDC |
| Overcharge Protection | 30VDC |
| Output Current | 50A |
| AC Charging Current | 20A |
| PV Voltage Input Range | 30 to 80V DC |
| Charging Current (PWM) | 50A |
| Max PV Array Open Circuit Voltage | 80V |
| Max PV Power Input | 1200W |
| Standby Power Consumption | 2W |
| Size | 100 x 272 x 355mm |
| Weight | 6.9KG |
| Certification | CE |
| High-concerned chemical | None |
| Is Smart Device | No |
| Origin | Mainland China |
| Customized | Yes |
Applications
- Hybrid solar home power systems (solar + battery + utility/generator backup)
- 24V battery-based AC power systems requiring 110V/120V single-phase output
For installation guidance or product support, contact the store customer service at https://tsolar.top/ or service@tsolar.top.
Details

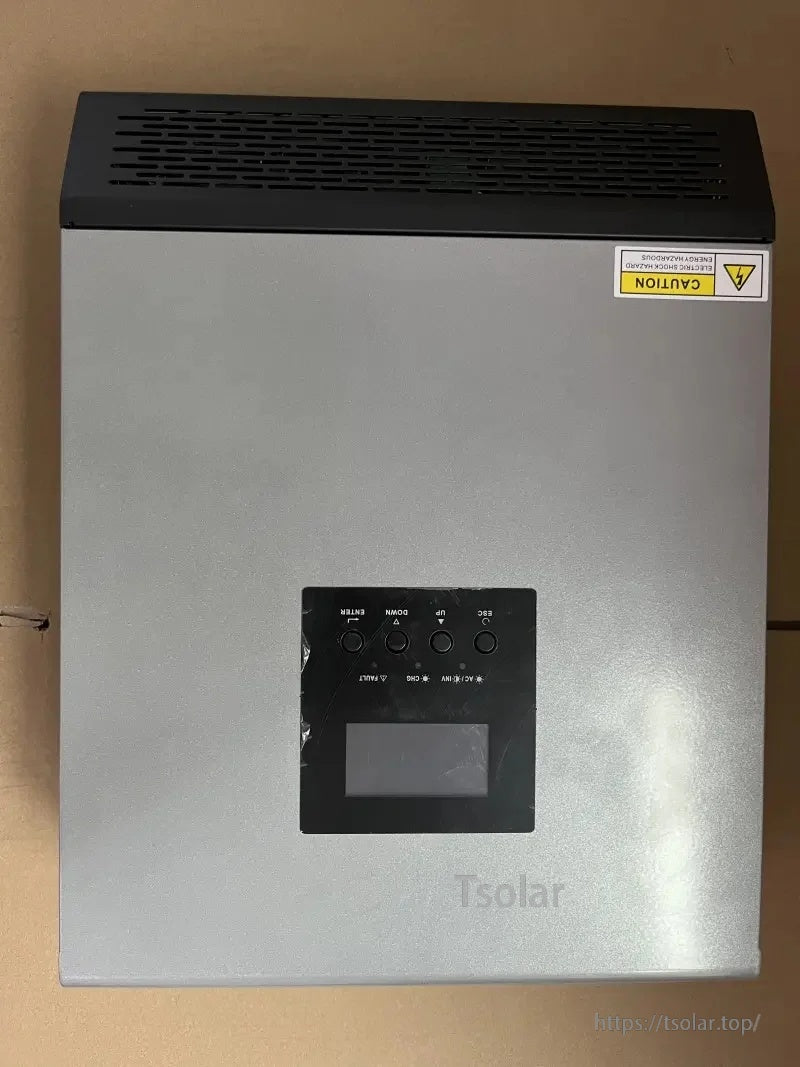

Build a compact 24V solar power setup that delivers stable 110V/120V AC for everyday household loads.
Designed for 24V battery banks and single‑phase 110V AC output, with a PV input range of 30–80V DC.

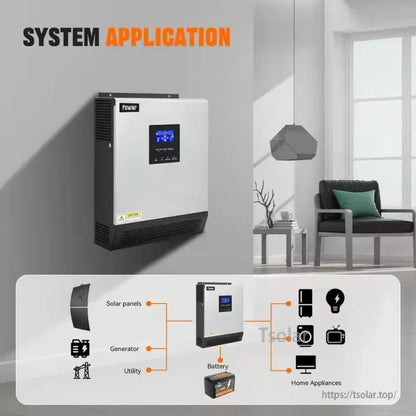

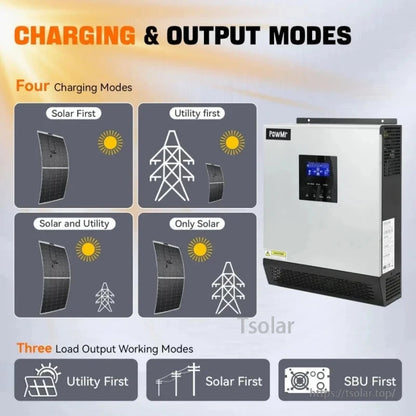

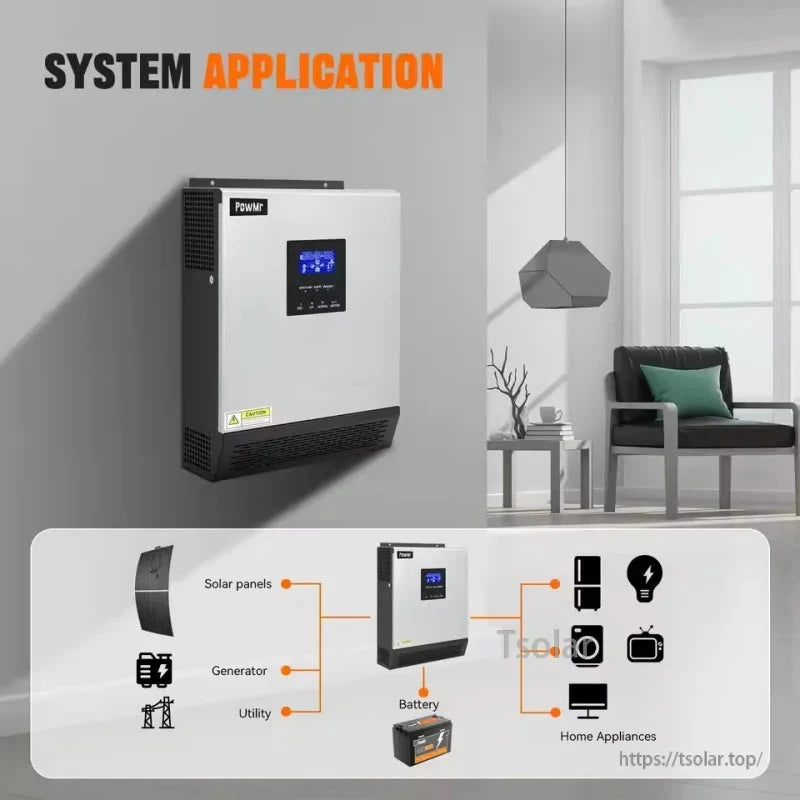

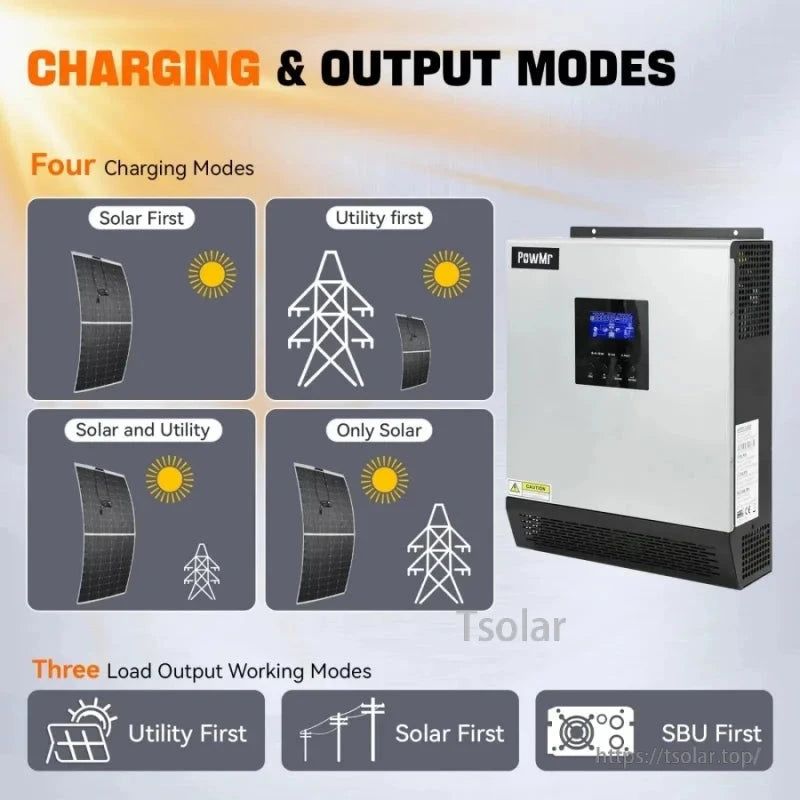

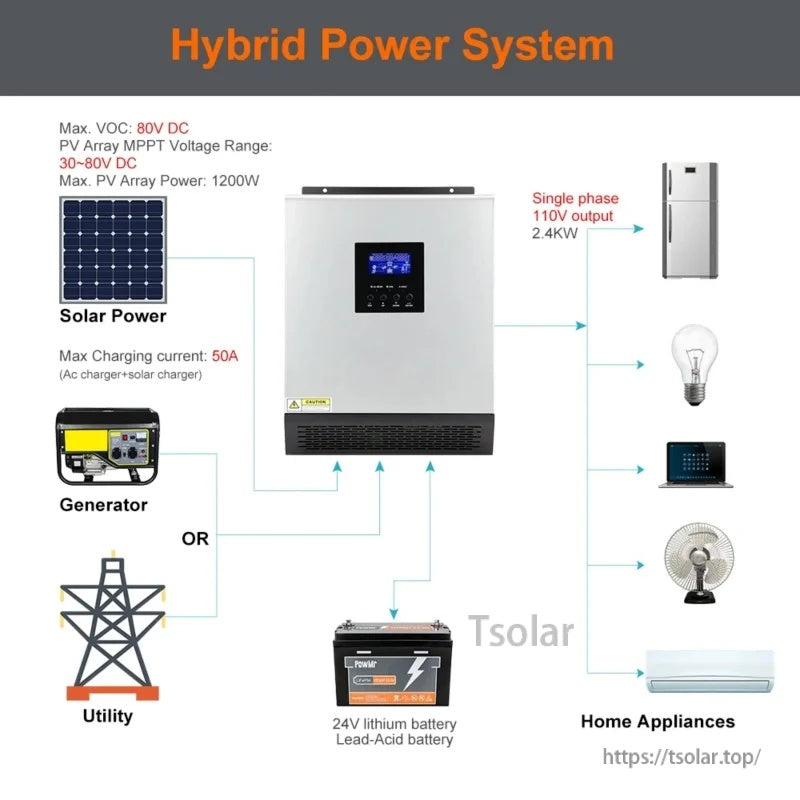

Solar, utility, or generator sources can work together to keep a 24V battery system powering essential loads.

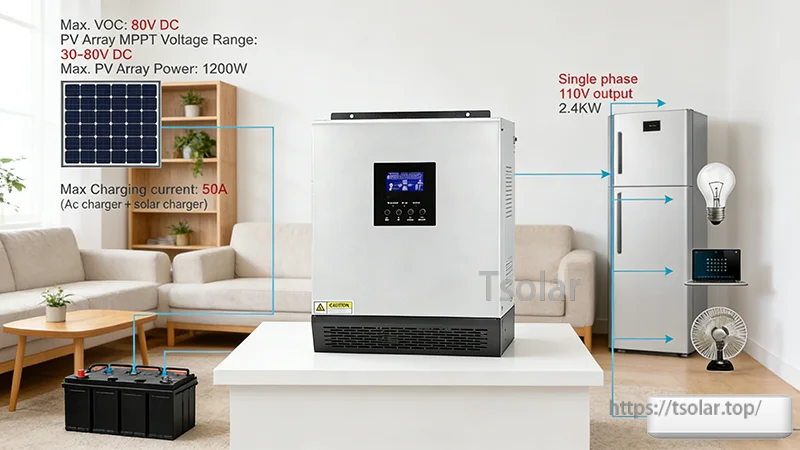

Suitable for hybrid home systems combining PV charging, battery storage, and 110V AC output for appliances.

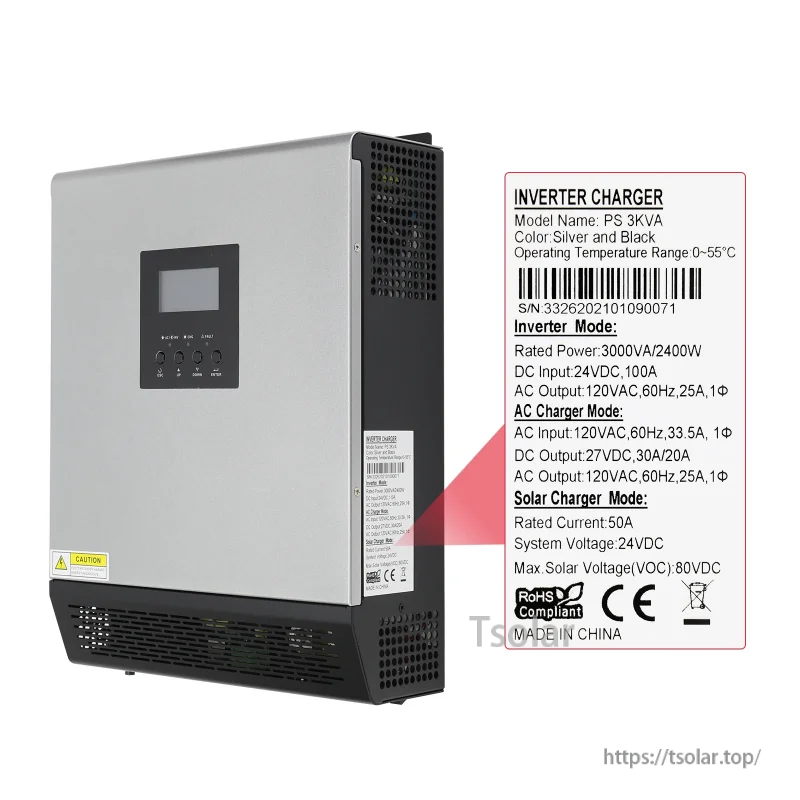

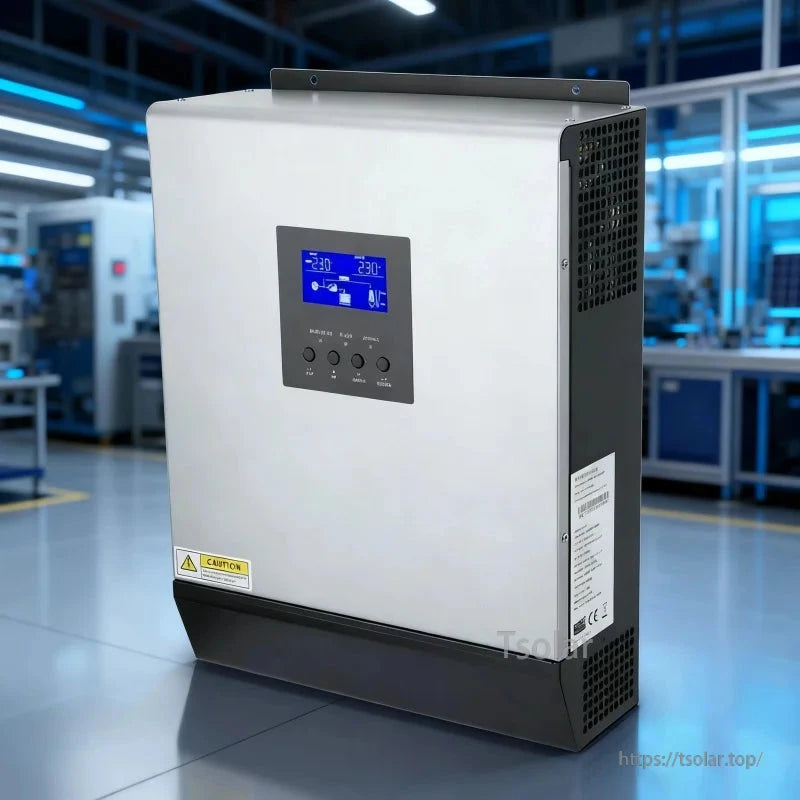

Model and rating information is printed on the side label for quick verification during installation.

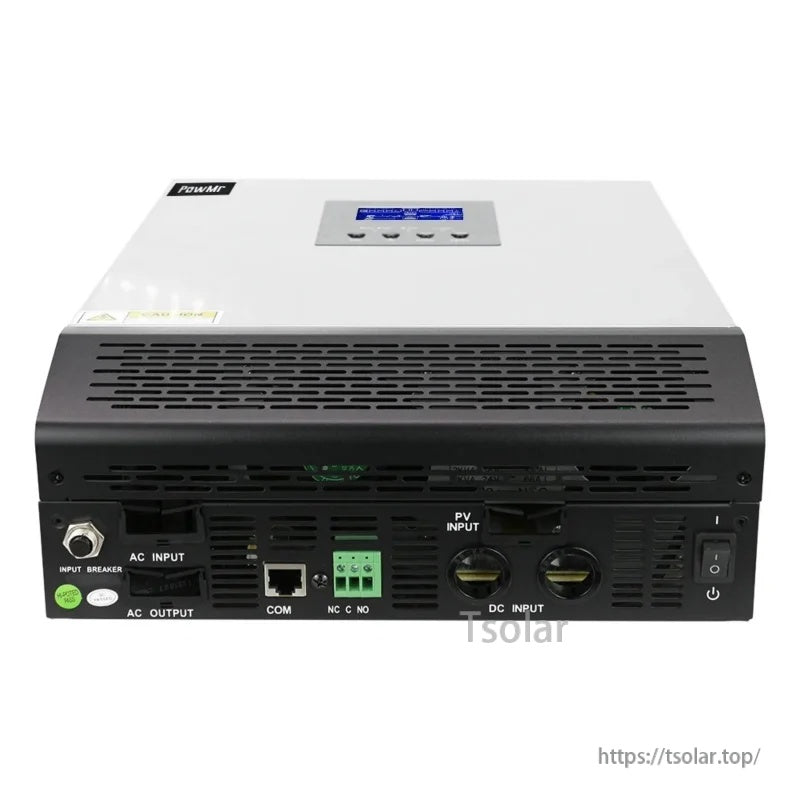

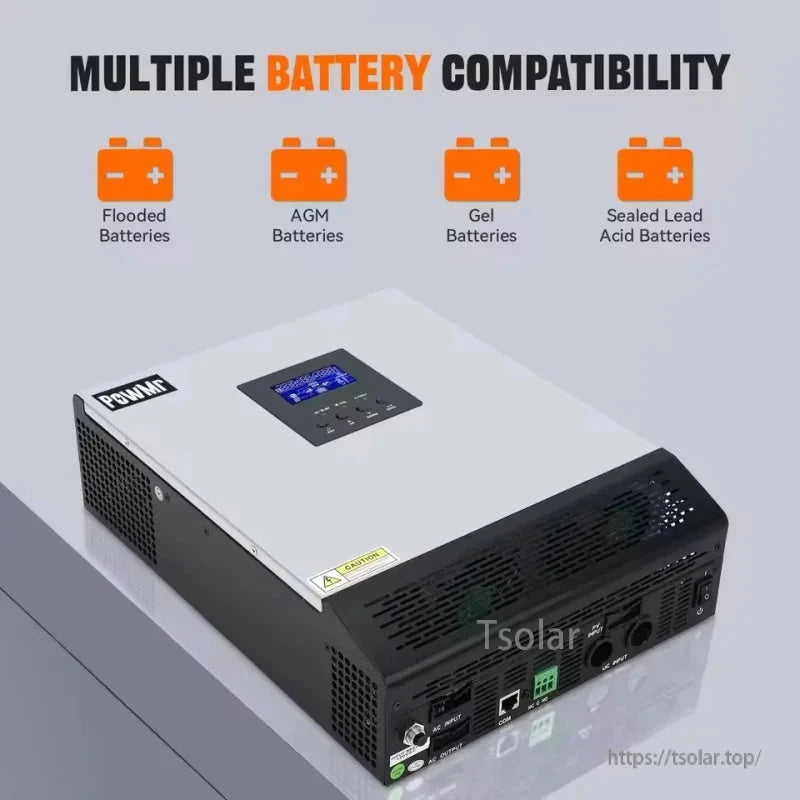

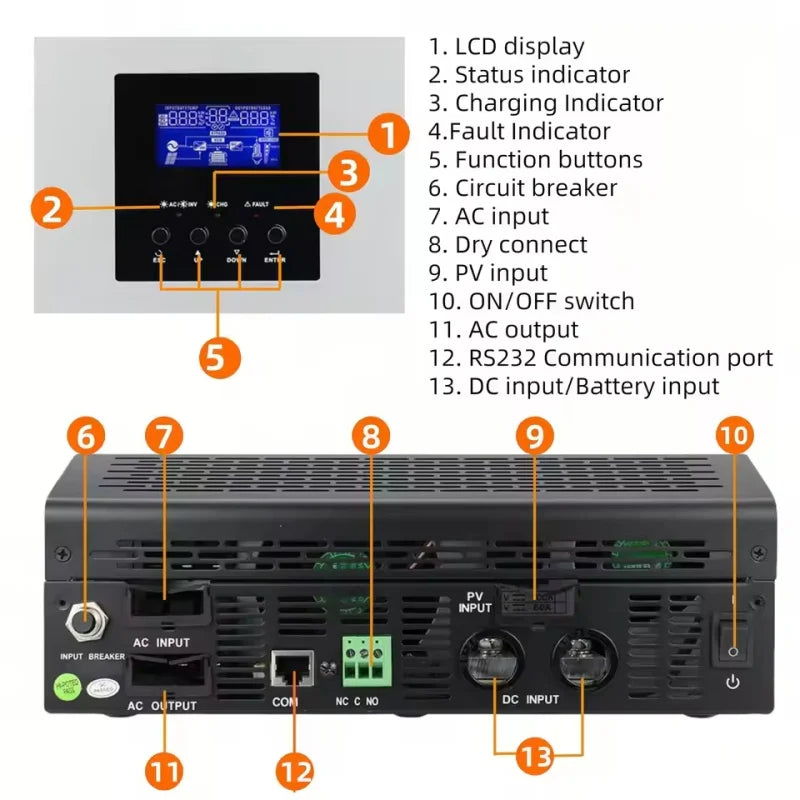

Clearly labeled ports make it easier to route AC in/out, PV input, and the 24V battery connection.
