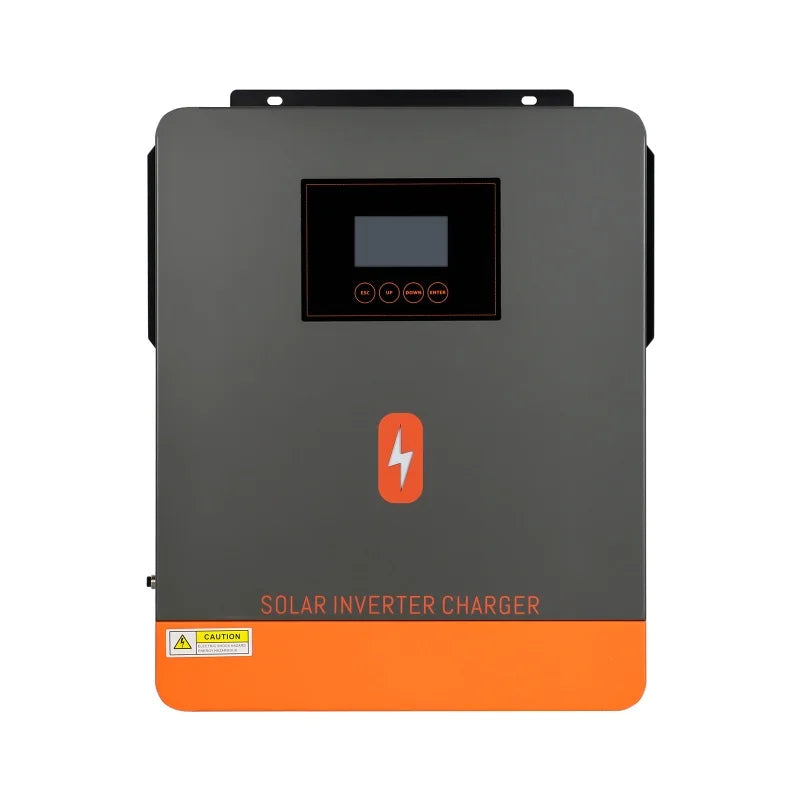

Overview

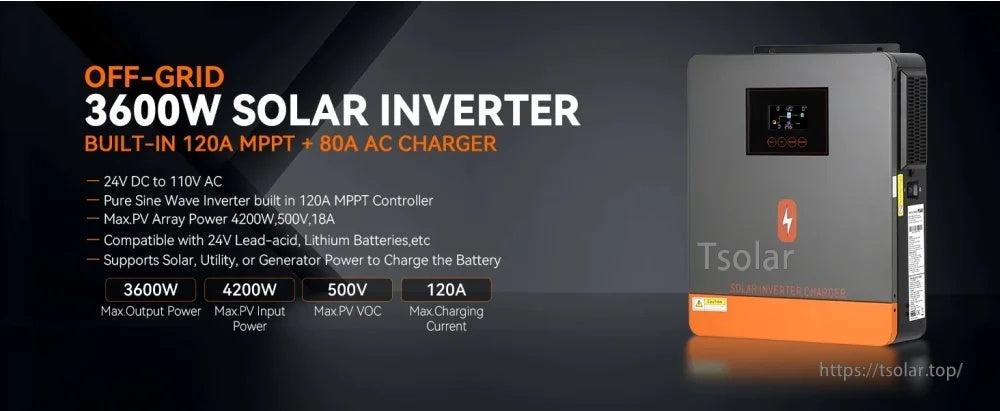

The PowMr POW-LVM3.6M-24V solar hybrid inverter combines a 3.6KW pure sine wave inverter with built-in MPPT solar charging and AC charging for 24V battery systems and 110VAC output. It supports multiple charging priorities (Solar First, Solar and Utility, Only Solar Charging) and can operate in batteryless mode to power loads from PV/AC without a battery connected.
For pre-sales checks, system matching, and setup support, contact https://tsolar.top/ or email service@tsolar.top.
Key Features
- Pure sine wave output
- Built-in MPPT solar charge controller (MPPT solar charging mode)
- Charging sources: supports Solar, Utility, or Generator power to charge the battery

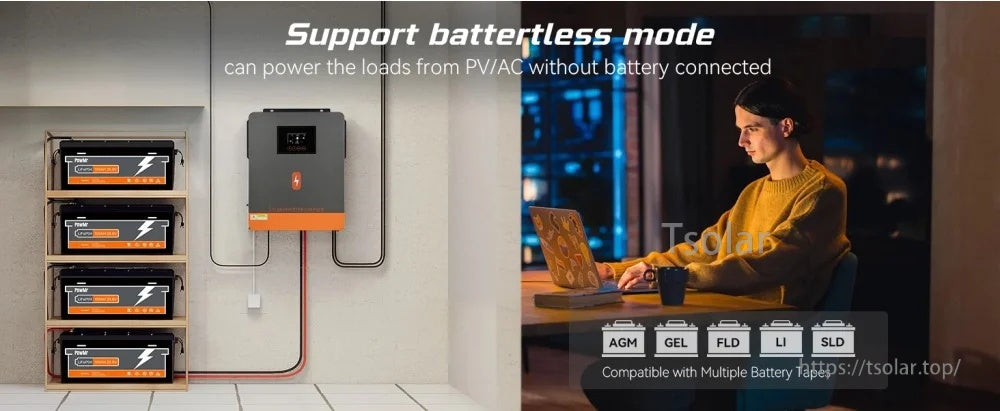

- Batteryless mode: can power loads from PV/AC without battery connected
- Two-load output support (main load + second load in battery mode)
- Output short circuit protection: Circuit Breaker
- Battery compatibility (24V): Lead-acid and Lithium (incl. LiFePO4); icons shown: AGM / GEL / FLD / LI / SLD

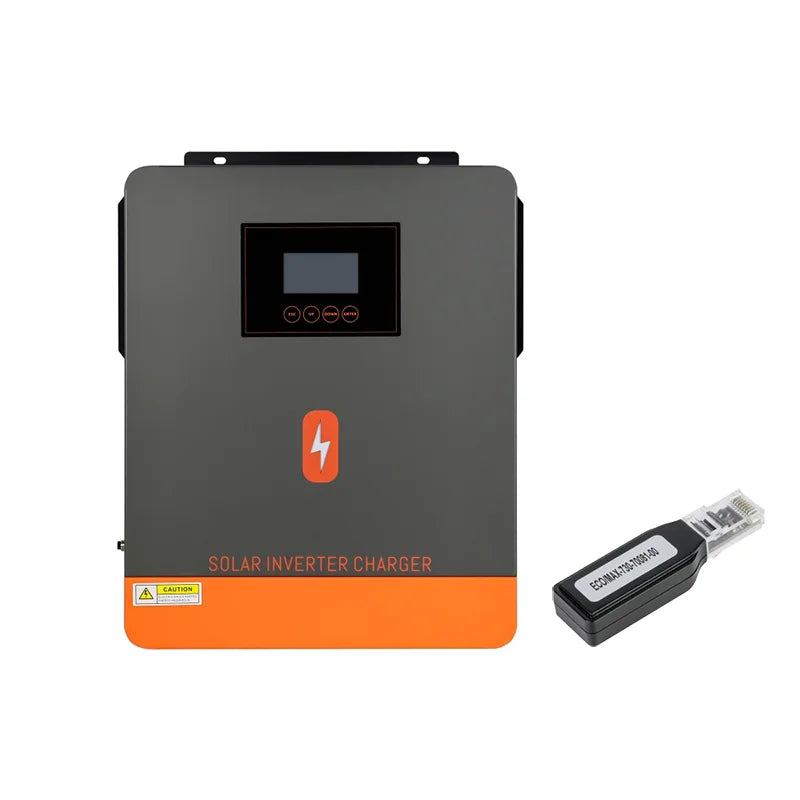

- Communication interface: RS232
- Certification: CE
Specifications
| Model Number | POW-LVM3.6M-24V |
| Type / Feature | Hybrid inverter |
| Continuous / Rated Output Power | 3.6KW (3600W) |
| Waveform | Pure Sine Wave |
| AC Output Voltage | 110VAC (output voltage regulation listed: 100/105/110/115/120Vac; AC output voltage in wiring diagram: 120V ±5%) |
| Output Frequency | 50Hz / 60Hz |
| Nominal Input Voltage | 100Vac |
| Max AC Input Voltage | 150Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Battery Voltage (Nominal DC Input) | 24VDC / 24Vdc |
| No Load Power Consumption | 45W |
| Peak Efficiency | 93% |
| Maximum Conversion Efficiency (DC/AC) | 97% |
| Two Load Output Power (Full Load) | 3600W |
| Maximum Main Load | 3600W |
| Maximum Second Load (battery model) | 1200W |
| Main Load Cut Off Voltage | 26VDC |
| Main Load Return Voltage | 27VDC |
| Surge Capacity | 7200W |
| Output Short Circuit Protection | Circuit Breaker |

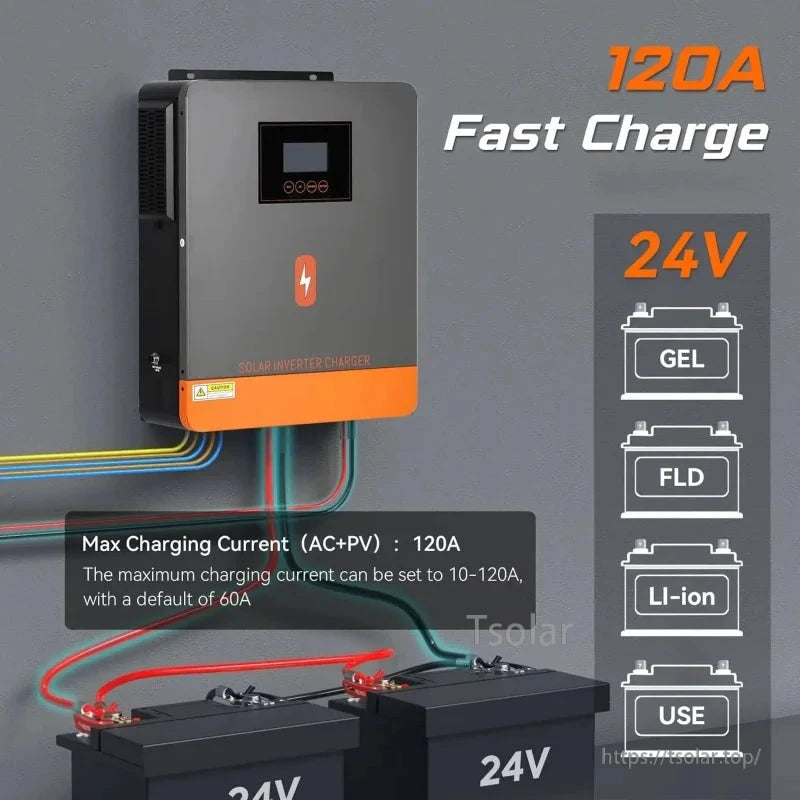

| MPPT (AC charger plus solar charger) Max Charging Current | 120A / 120Amp |
| Max charge current for solar | MPPT 80A |
| Max. PV Array Power | 4200W |
| Nominal PV | 240VDC 4200W |
| Nominal PV Voltage | 240Vdc |
| PV Array MPPT Voltage Range | 60Vdc~500Vdc (also shown as 60~450VDC) |
| Max. PV Array Open Circuit Voltage (Max PV VOC) | 500Vdc / 500VDC |
| Max PV Input / Charge Current | 18A (Max PV input current: 18A) |
| PV Wire Size | 12AWG |
| Battery Wire Size | 2AWG |
| AC Wire | 2AWG |
| Grid-Tie Operation: Nominal Output Voltage | 100/105/110/115/120VAC |
| Grid-Tie Operation: Feed-in Grid Voltage Range | 90~150VAC |
| Grid-Tie Operation: Power Factor Range | >0.99 |
| Communication Interface | RS232 |
| Is Smart Device | Yes |
| Certification / Safety Certification | CE |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Weight | 9.8 |
| Support Battery Type | Lithium battery, LiFePo4 |
| Origin | Mainland China |
| High-concerned chemical | None |
| is_customized | Yes |
| Brand Name (listed) | NONE, PowMr |
Applications
- Off-grid solar inverter systems
- Home use
- RV/Van
- Boat/Marine
- Solar station system
- Hybrid energy system
Details

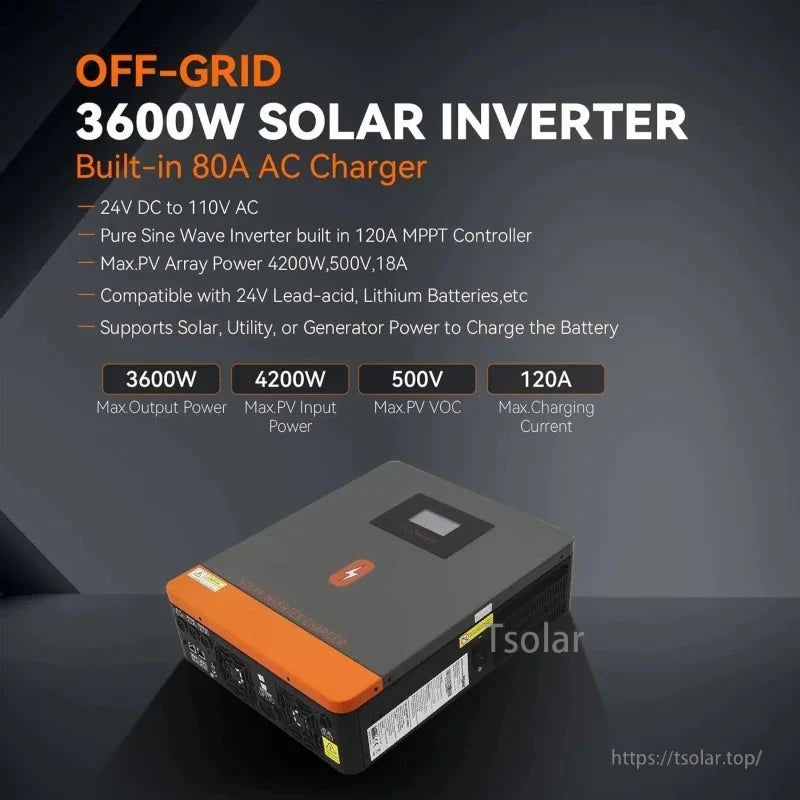

A 3.6kW off-grid hybrid inverter combining pure sine wave power with built-in MPPT solar charging for 24V battery systems.

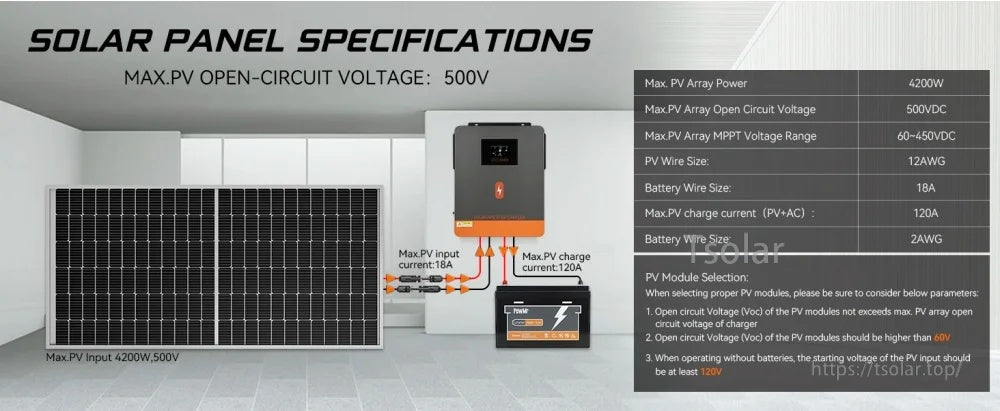

Designed for high-voltage PV strings, supporting up to 500V open-circuit voltage and up to 4200W of solar input.

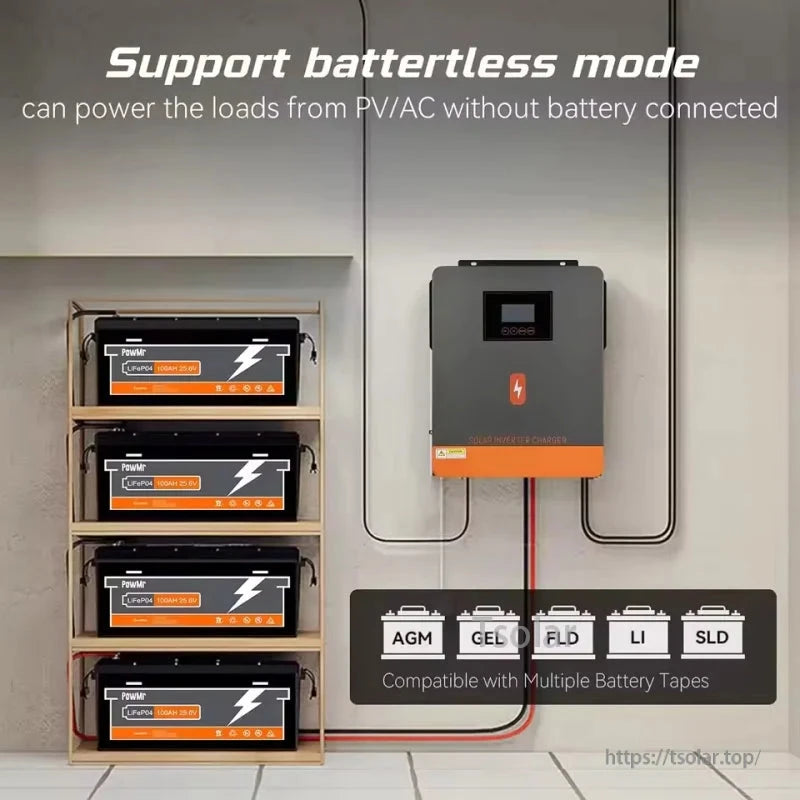

Batteryless operation can run loads from PV/AC, with support for common 24V lead-acid and lithium battery types when storage is used.
Flexible charging priorities help balance solar and utility power based on how you want the battery charged.

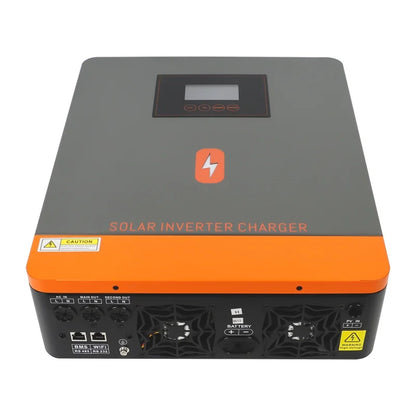

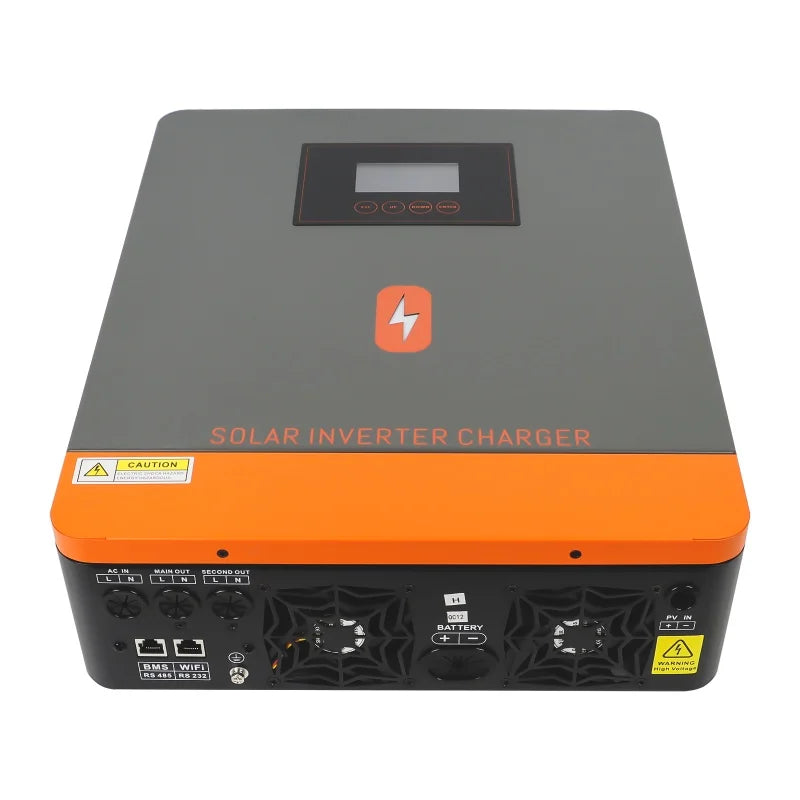

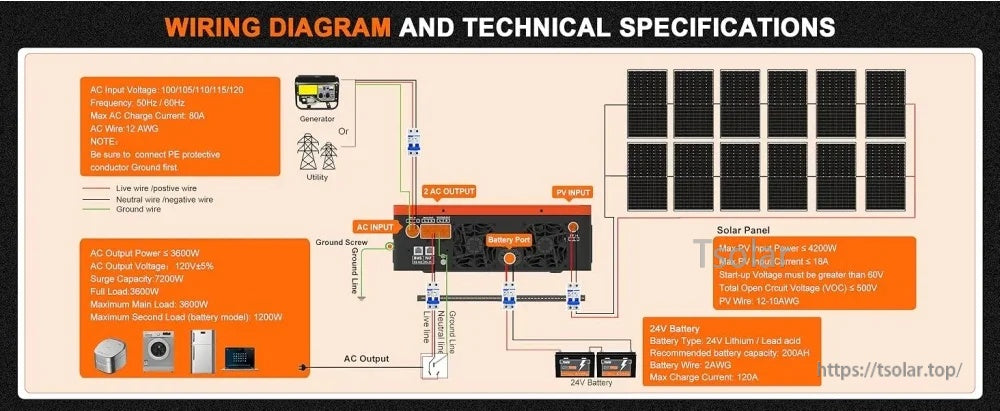

Clear connection layout for PV, battery, and AC input/output wiring, including generator or utility charging options.
