Overview

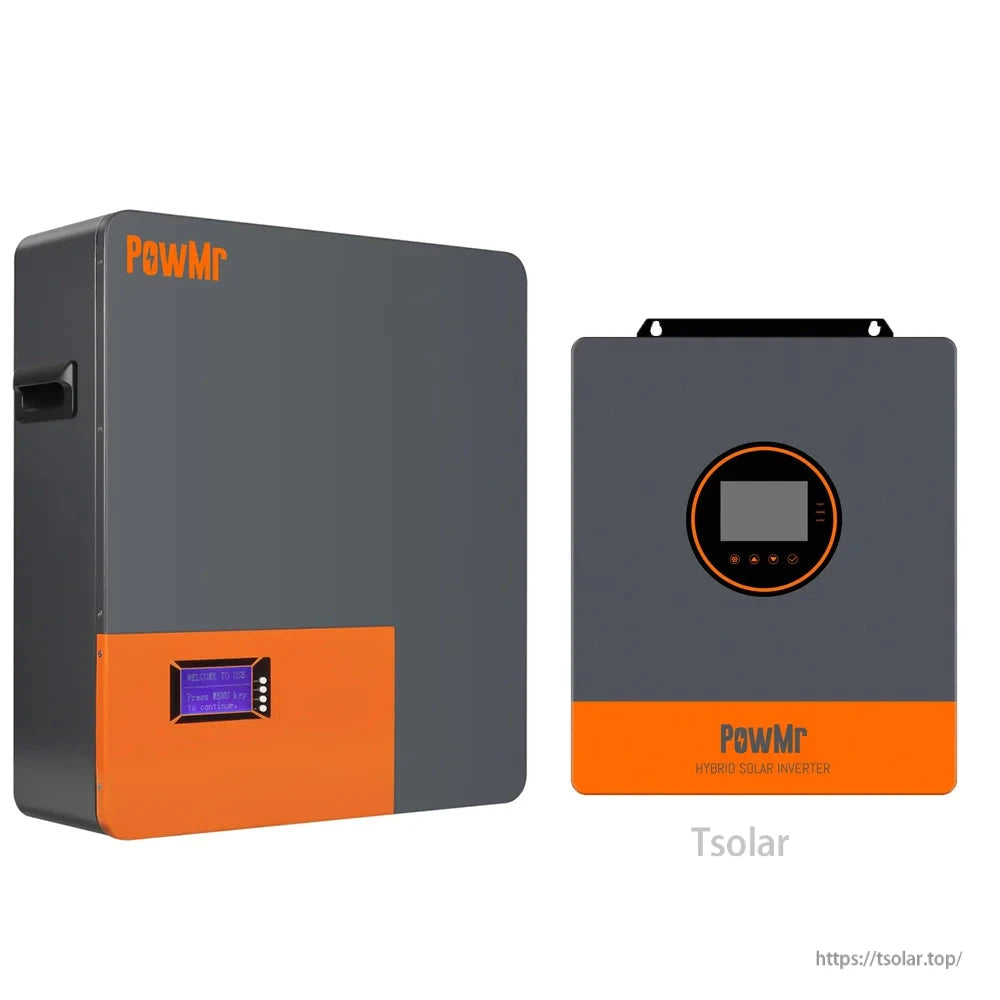

The PowMr hybrid solar inverter and LiFePO4 battery system combines the POW-SunSmart SP5.2K 48V pure sine wave inverter with the POW-LIO48100-16S 51.2V 100Ah LiFePO4 wall-mounted battery for scalable home energy storage. It supports hybrid power supply from solar, mains/grid, and batteries, and can also run in batteryless mode to power loads from PV array or AC grid.
Key Features
Hybrid inverter with multiple operating and charging options
- Rated output power: 5200W; labeled as 5000W/48V pure sine wave inverter (pure sine wave output).
- Maximum PV input power: 6000W; maximum PV open-circuit voltage: 500Vdc.
- MPPT solar charge controller: 100A (MPPT 100A); MPPT efficiency: 99.9%.
- Hybrid power supply from solar, mains, and batteries with auto switching between four charging modes.
- Batteryless operation supported (direct PV/AC supply to loads without a battery connected).
- Time control function: three charging periods can be set to work with peak/off-peak tariffs; sectional charge/discharge schedules can be set from 00:00 to 23:59 (3 definable periods).
- Parallel expansion: up to 6 inverter units in parallel (single-phase/split-phase/three-phase), expanding power to 31.2kW.
- Comprehensive protection: over 20 mechanisms including overvoltage, undervoltage, overtemperature, overload, short circuit, and reverse connection (also listed: reverse protection, overload protection, short circuit protection, over voltage protection, under voltage protection).
- Smart LCD screen with backlight plus 3 LED indicators for system data and operating status display.
- Battery type support shown: lead-acid and lithium; icons: FLD, SLD, AGM, GEL, LI.
LiFePO4 battery with BMS communication and scalable capacity
- LiFePO4 (lithium iron phosphate) chemistry; high safety performance and long service life.
- Nominal energy: 5.12KWh; capacity: 100Ah; voltage: 48V system (battery labeled 51.2V 100Ah).
- Cycle life: 6000 times; also stated as 6000 cycles @ 80% DOD, 25C.
- BMS real-time monitoring of voltage, temperature, and current; supports passive balancing (maximum 300mA).
- Communication: RS232/RS485/CAN/Dry Contact; battery communication function noted as RS485/CAN; BMS can communicate with the inverter in real time via CAN/RS485.
- Parallel scalability: supports up to 16 independent modules/units in parallel; supports automatic master-slave identification.
- Wall-mounted design for indoor installation; IP21 protection rating.
- M15S series battery note: intelligent air cooling for heat dissipation to improve reliability.
- External weak current switch reduces power consumption and improves transportation/storage safety.
- Battery described as equipped with foot pads and wall mounting brackets.
Deep compatibility between inverter and battery
- Same-brand integration described as plug and play.
- One-click protocol matching: inverter supports mainstream protocols such as Pylontech; battery defaults to Pylontech CAN/RS485.
- Intelligent charging management: inverter adjusts charging current/voltage based on SOC and temperature reported by the BMS.
- Seamless power outage switching: inverter switching time 10ms.
For product selection and technical support, contact https://tsolar.top/ or service@tsolar.top.
Specifications
| Brand | PowMr |
| Model Number | POW-SunSmart SP5.2K / POW-LIO48100-16S |
| Product Type | Inverter, Battery |
| Rated Output Power | 5200W |
| Waveform | Pure sine wave |
| Maximum PV Input Power | 6000W |
| Maximum PV Open Circuit Voltage | 500Vdc |
| Output Current | MPPT 100A |
| Charging Current | 100A |
| Rated Input Voltage | 110/120Vac |
| Output Frequency | 50Hz/60Hz |
| Output Type | SINGLE |
| Parallel (Inverter) | Up to 6 |
| System Voltage | 48V |
| Battery Chemistry | LiFePO4 |
| Battery Capacity | 100Ah |
| Nominal Energy | 5.12KWh |
| Cycle Life | 6000 times |
| Communication Interface | RS232 / RS485 / CAN / Dry Contact |
| IP Rating (Battery) | IP21 |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Certification | CE |
| Is Smart Device | Yes |
| Weight | 15KG / 44KG |
| Origin | Mainland China |
| High-concerned chemical | None |
| Customized | Yes |
Applications
- 48V solar home energy storage systems using PV + mains/grid + battery hybrid supply
- Off-grid living and backup power setups requiring pure sine wave AC output
- Scalable installations that may expand inverter capacity (parallel up to 6 units) and battery storage (parallel up to 16 units)
Details

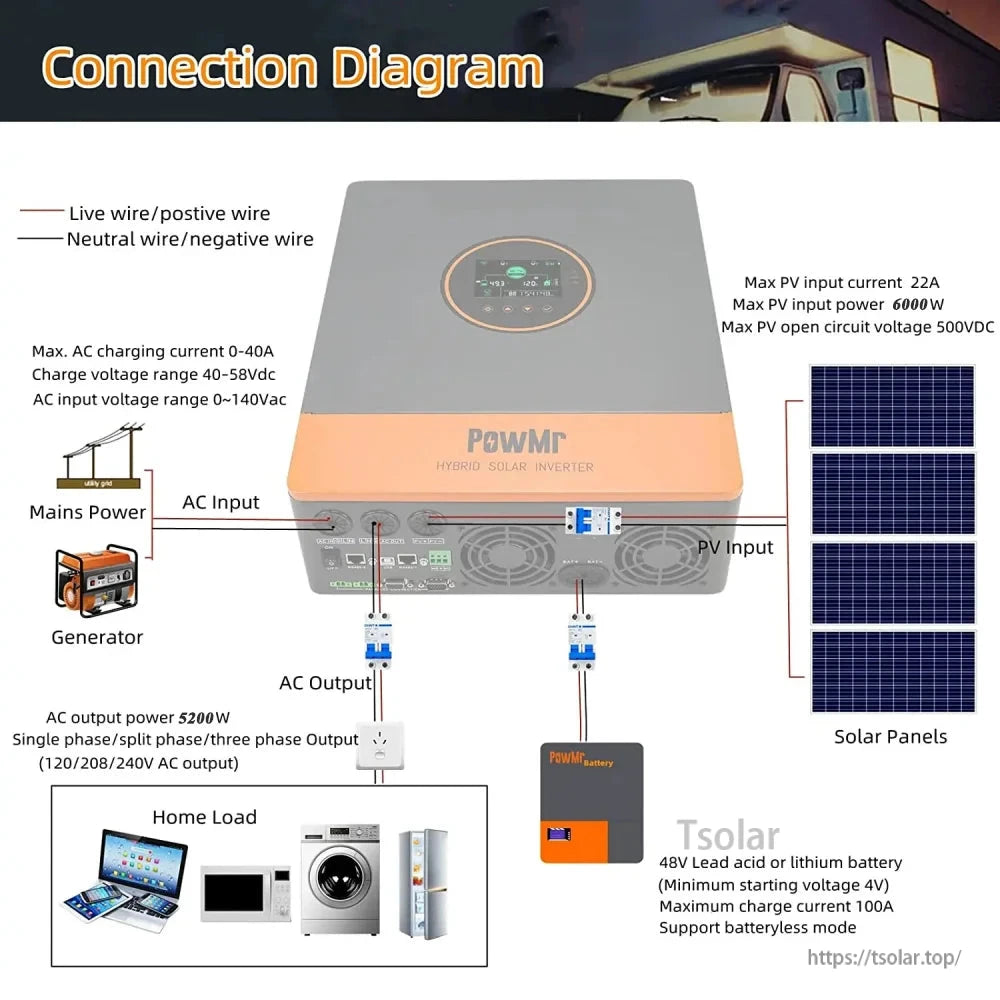

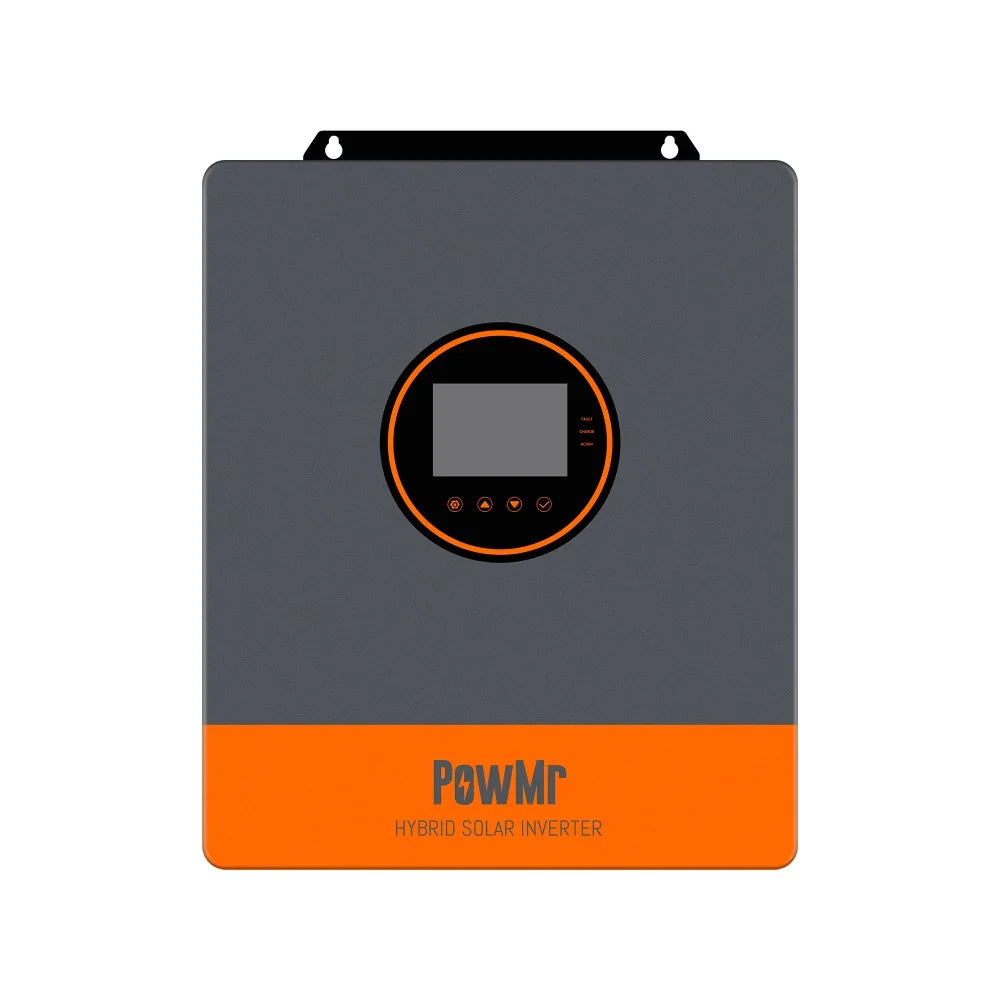

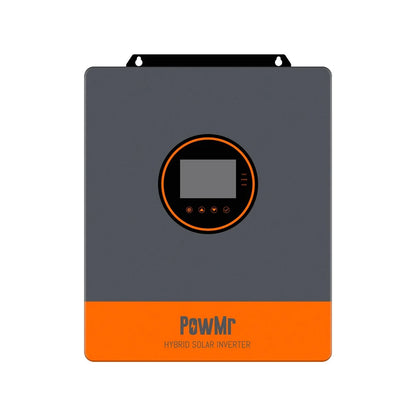

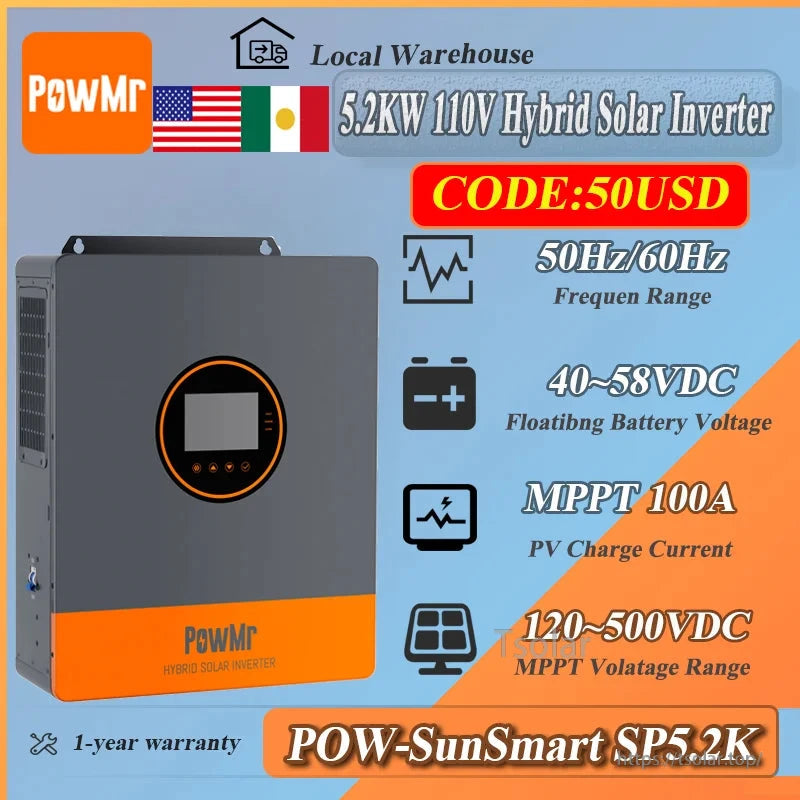

The PowMr SP5.2K hybrid inverter delivers 5200W pure sine wave power with a 100A MPPT charge controller and up to 6000W PV input.

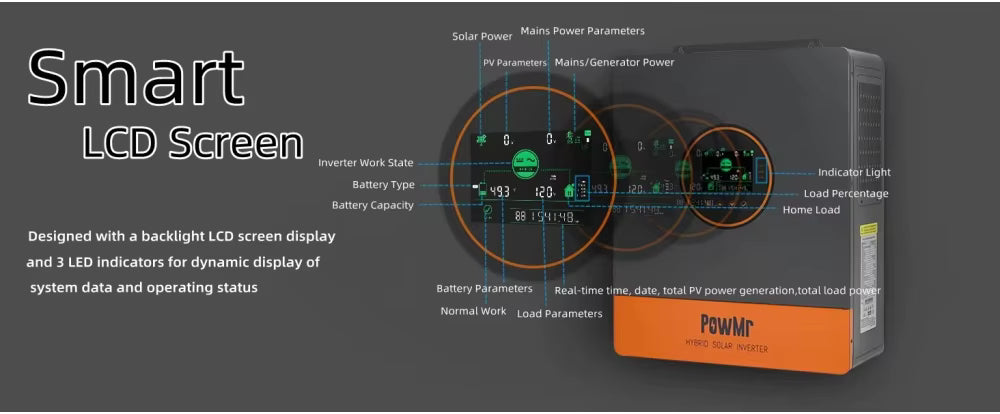

A backlit smart LCD and three status LEDs provide quick visibility into solar, mains/generator, battery, and load conditions.

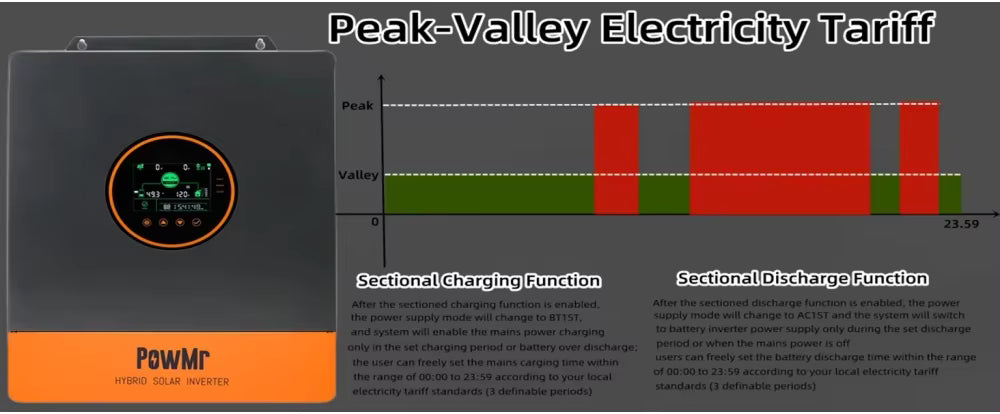

Time-control scheduling helps align charging and discharging with peak and off-peak electricity rates using definable time periods.
Flexible battery support covers common lead-acid types and lithium batteries, and the system can also power loads without a battery connected.

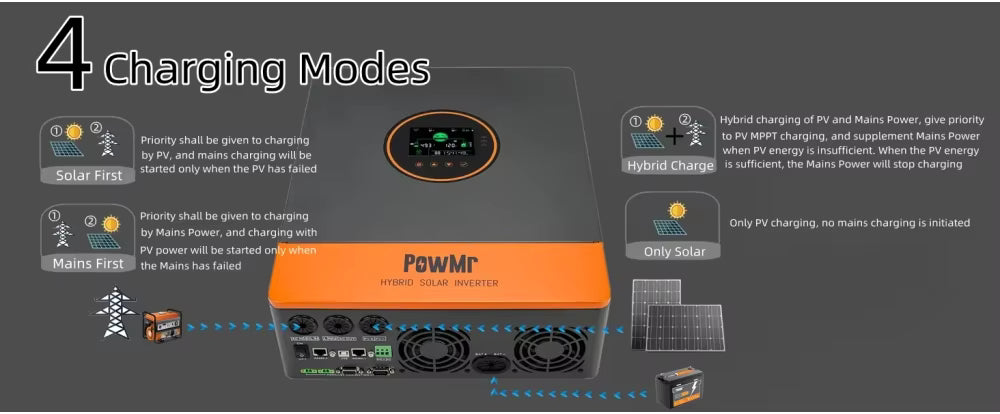

Four selectable charging modes make it easy to prioritize solar, grid power, or a mix of both to match your setup.
Built-in electrical protections help safeguard the inverter and connected loads during abnormal conditions.
The 51.2V 100Ah LiFePO4 battery supports up to 100A charging, with a recommended lower charge current for long-term service life.
LiFePO4 storage offers higher energy density and long cycle life compared with lead-acid batteries at similar capacity.

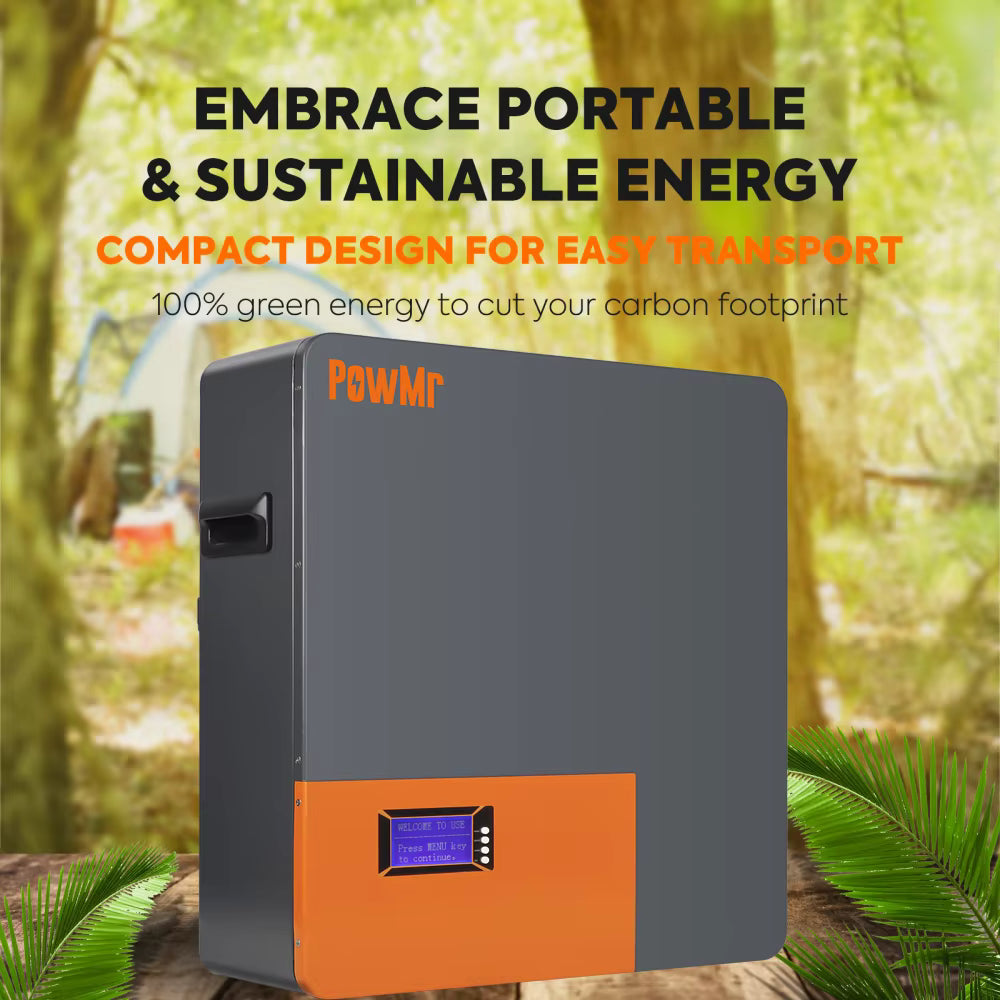

RS485/CAN communication and a wall-mount design support clean installation and real-time integration with compatible inverters.
Details
PowMr SP5.2K hybrid inverter charging info lists a 100A maximum charge current and a recommended 0.4C (40A) for optimal battery life.

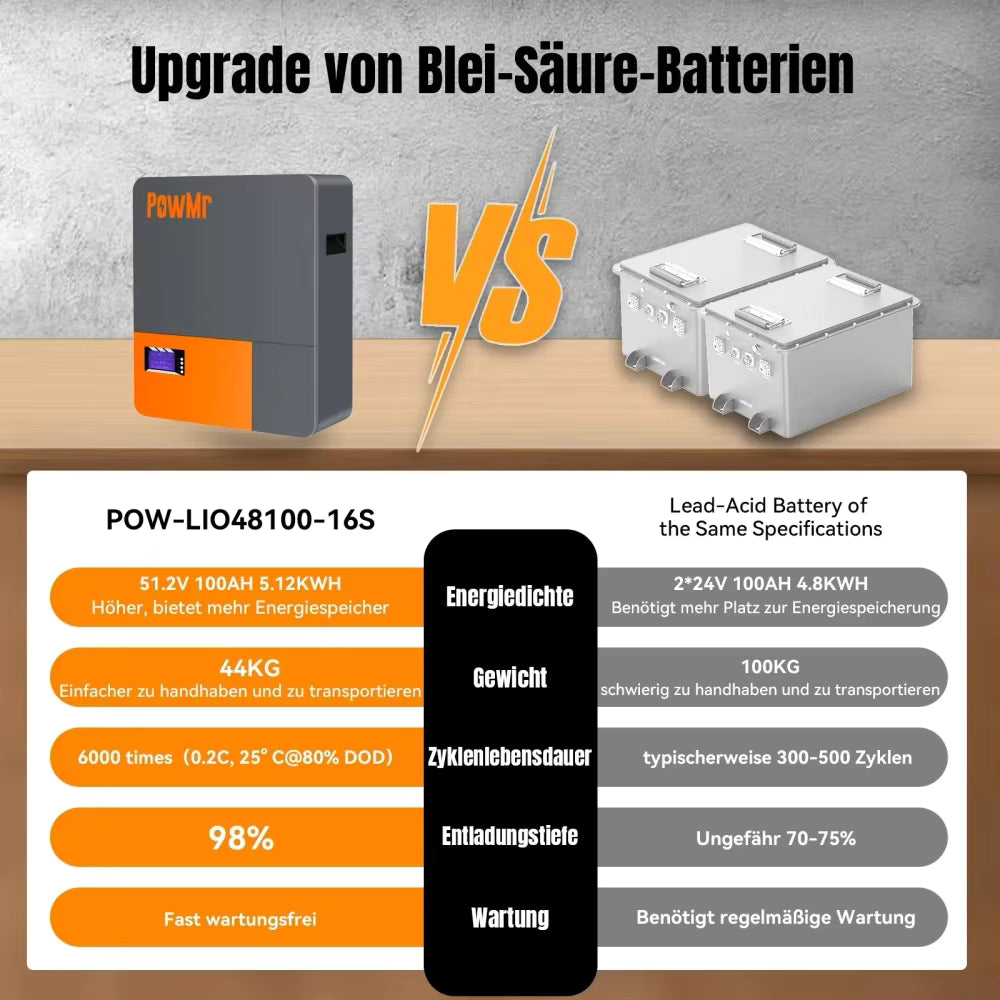

PowMr POW-LIO48100-16S is compared with a similarly rated lead-acid setup, listing 51.2V 100Ah 5.12kWh, 44kg weight, up to 6000 cycles, and fast-maintenance-free use versus higher weight and lower cycle life.

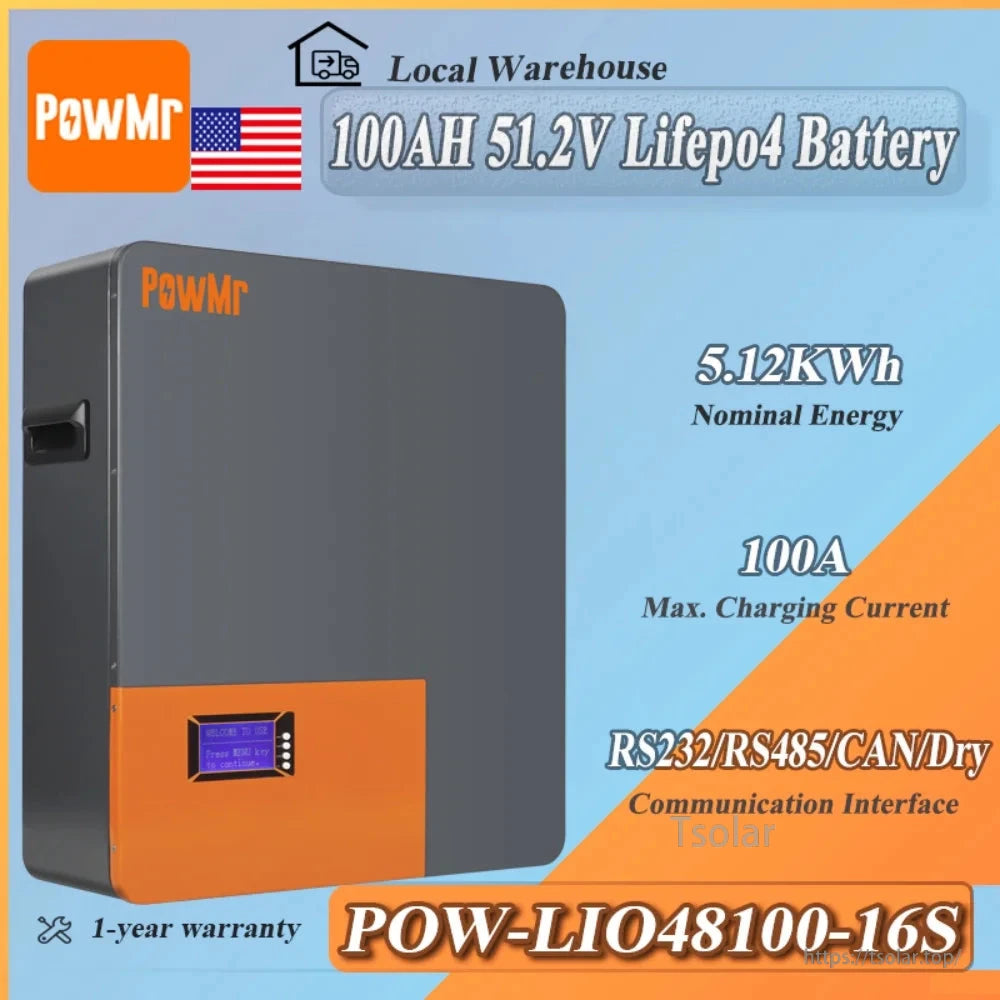

PowMr’s 51.2V 100Ah LiFePO4 lithium battery is shown with listed features including RS485/CAN communication and support for parallel modules.

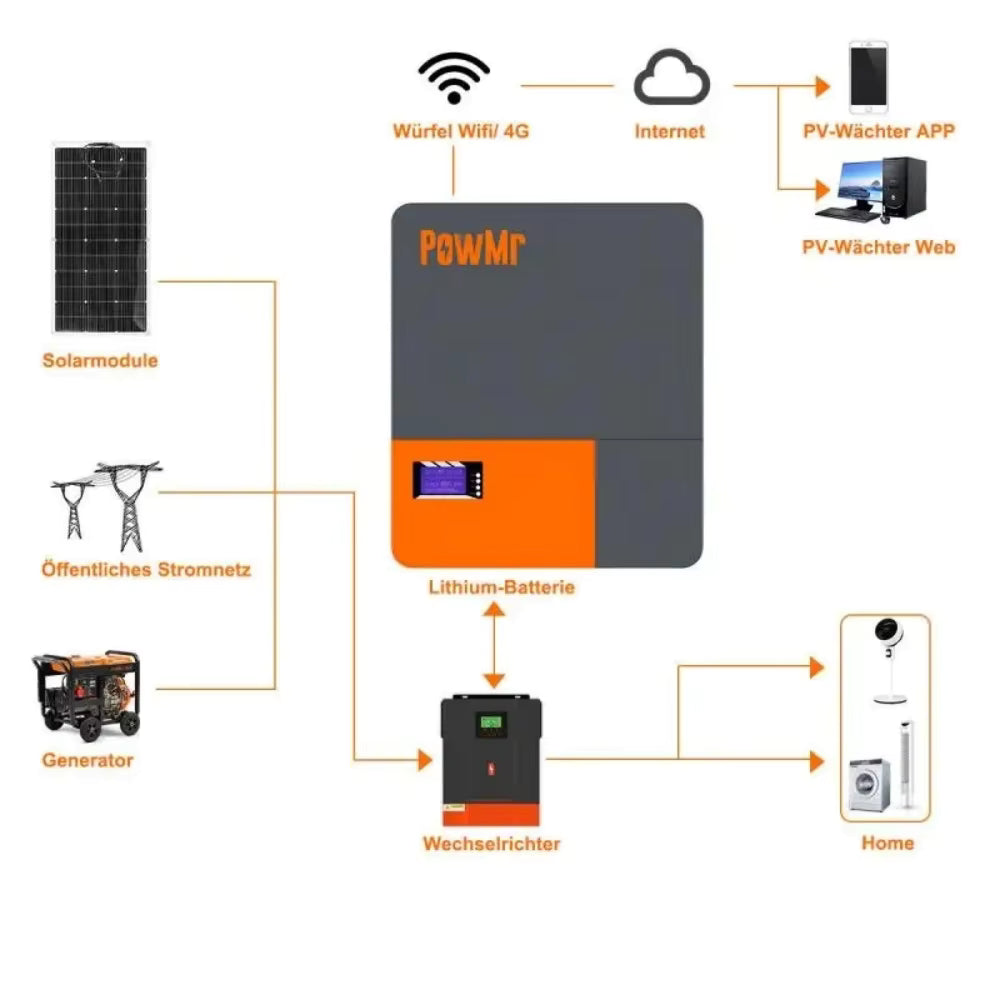

PowMr SP5.2K hybrid inverter supports connections for solar modules, utility grid, generator input, and a lithium battery, with optional WiFi/4G monitoring via PV-Wächter app or web.
