Overview

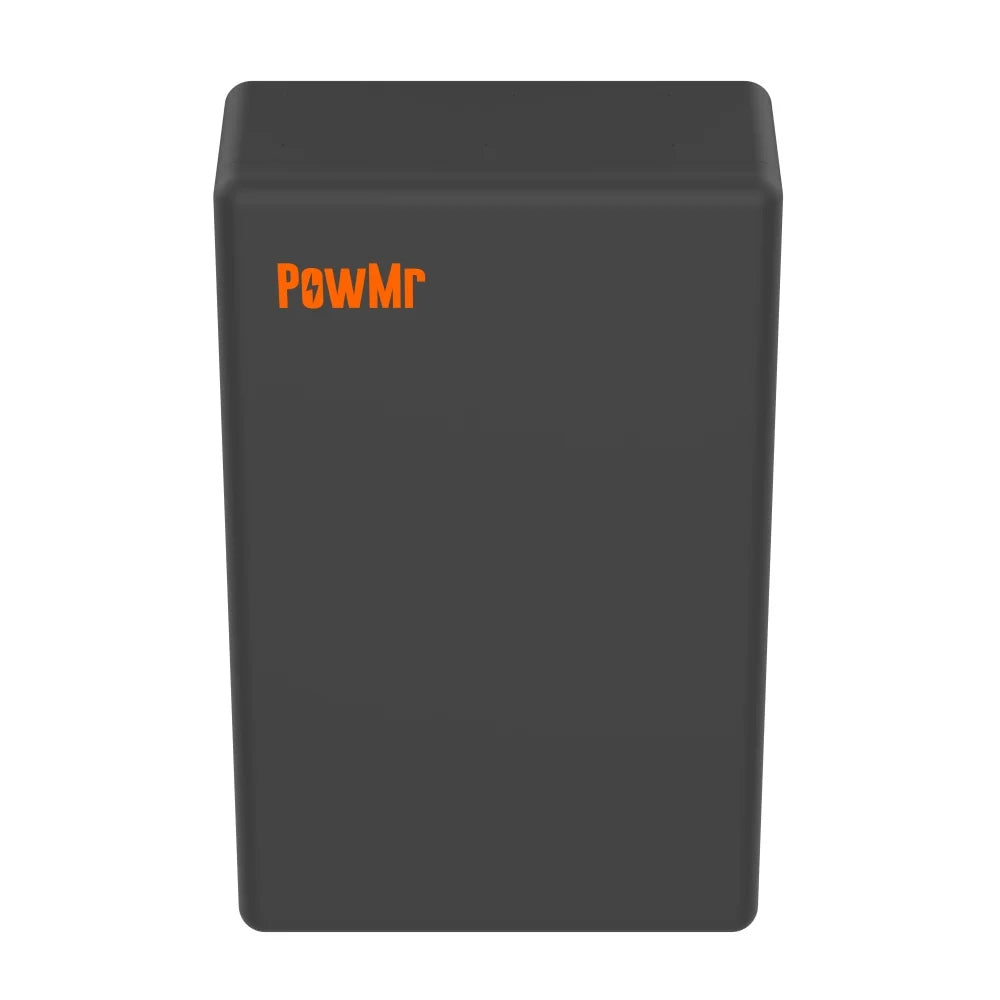

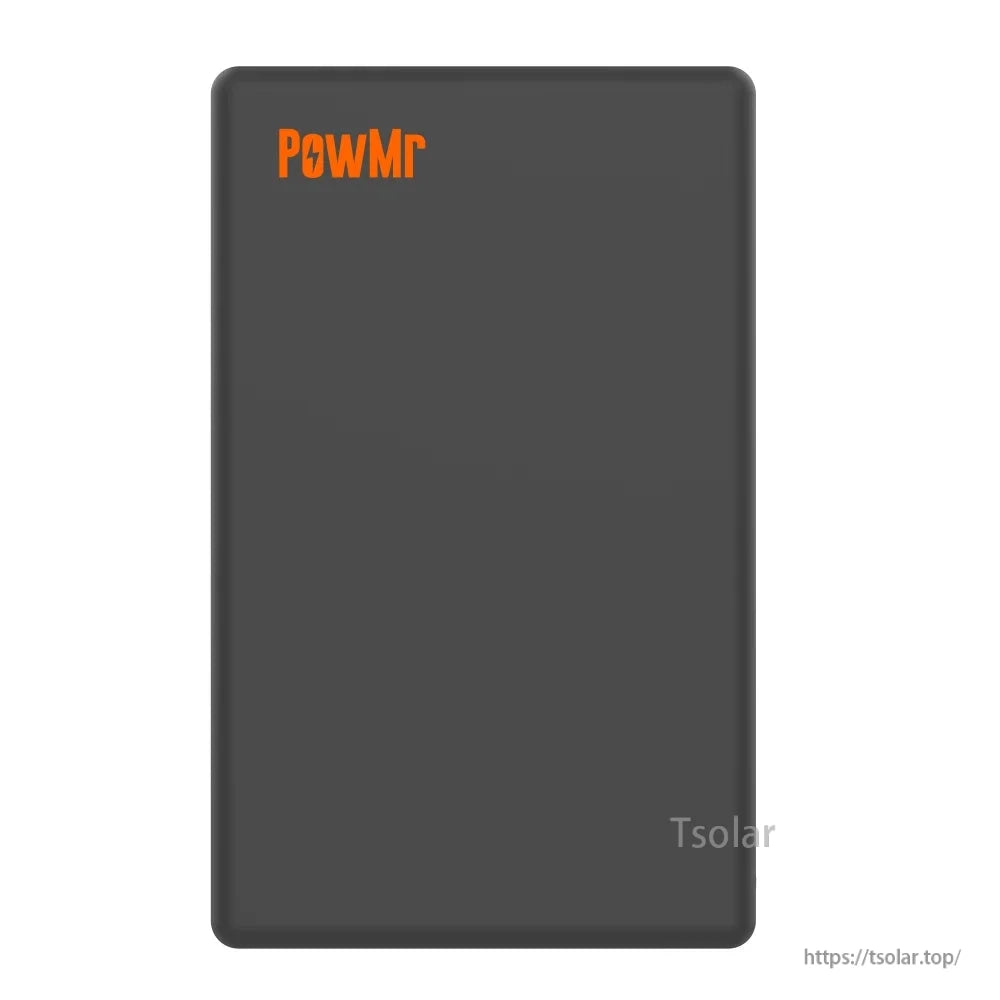

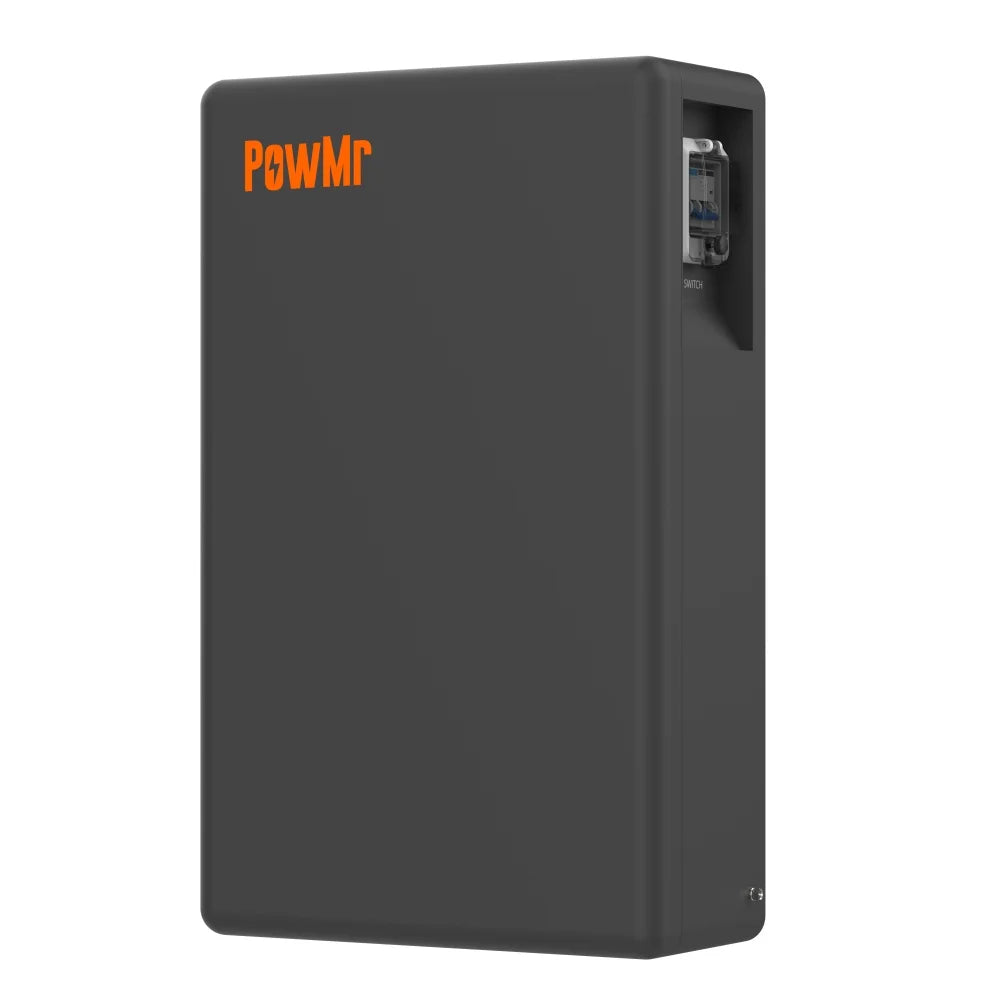

The PowMr POW-LIO48100-IP65 is a wall-mount LiFePO4 energy storage battery module designed for indoor/outdoor residential solar home use. It provides 51.2V, 100Ah nominal capacity and 5.12kWh nominal energy in an IP65-rated enclosure, with 100A charge/discharge capability and support for up to 16 batteries in parallel.
Key Features

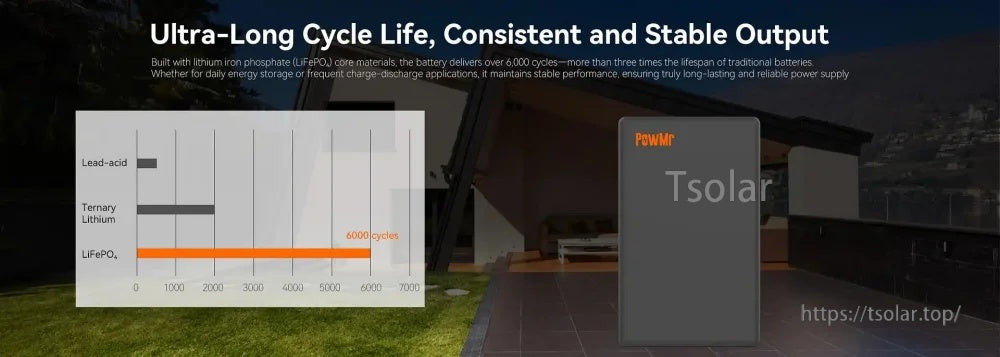

- LiFePO4 chemistry for long service life: ≥6000 cycles.
- IP65 enclosure: waterproof and dustproof protection against dust intrusion and water jets for reliable performance in harsh environments.

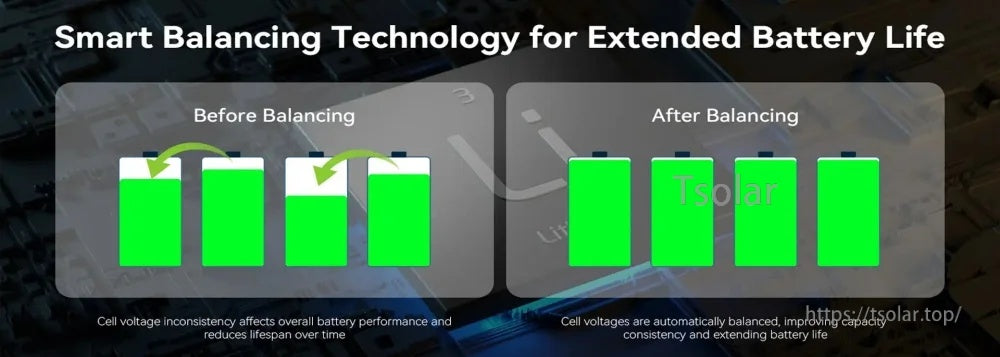

- Smart balancing technology: intelligent voltage equalization to improve cell consistency and help extend battery life.
- Built-in BMS with comprehensive protection and monitoring. Protection items shown: overvoltage, undervoltage, overcurrent, short circuit, overtemperature.
- Communication interfaces: RS232, RS485 (RS485A/RS485B), CAN, and Dry Contact.
- Parallel expansion: maximum 16 batteries in parallel.
- External weak current switch (as described) to reduce power consumption and improve transportation/storage safety.
- Weather-resistant materials (as shown): high-strength engineering plastics and sealing rings; resistant to high temperatures and UV exposure.
Specifications
| Brand | PowMr |
| Model Number | POW-LIO48100-IP65 |
| Type | LiFePO4 |
| System Voltage | 51.2V |
| Capacity | 100Ah |
| Nominal Capacity | 100AH |
| Nominal Energy | 5.12KWh |
| Max Discharge Current | 100A |
| IP Grade | IP65 |
| Max Parallel Connection of Batteries | 16 |
| Communication Interface | RS232, RS485, CAN, Dry Contact |
| Battery Dimensions / Size | 700 x 450 x 180mm |
| Net Weight | 53.5kg |
| Battery Number | 1 |
| Set Type | Batteries Only |
| Recommended Operation Environment | Indoor outdoor |
| Certification | CE |
| High-concerned chemical | None |
| Origin | Mainland China |
| Application | TV |
| Replacement Battery | No |
| Connection | Others |

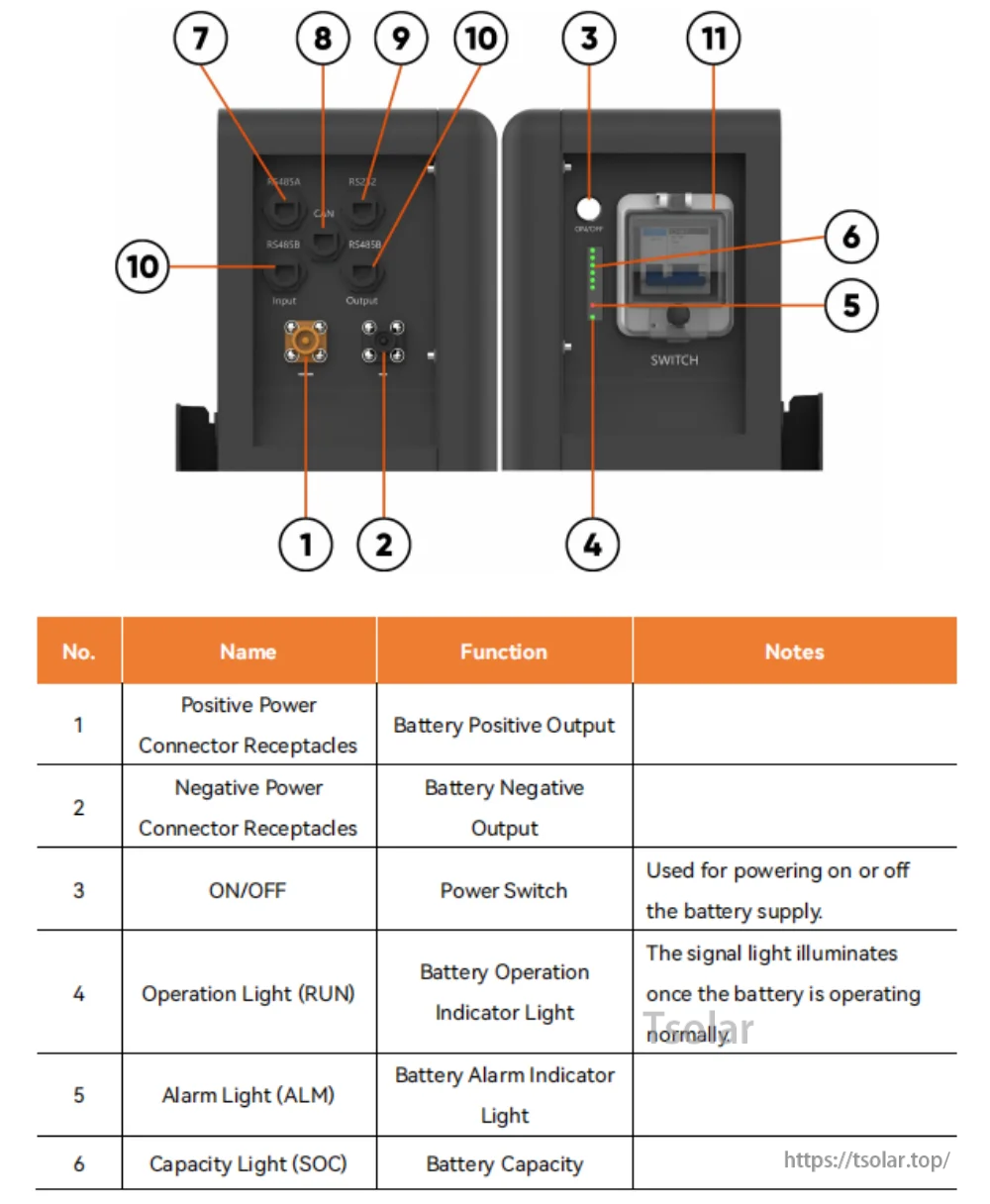

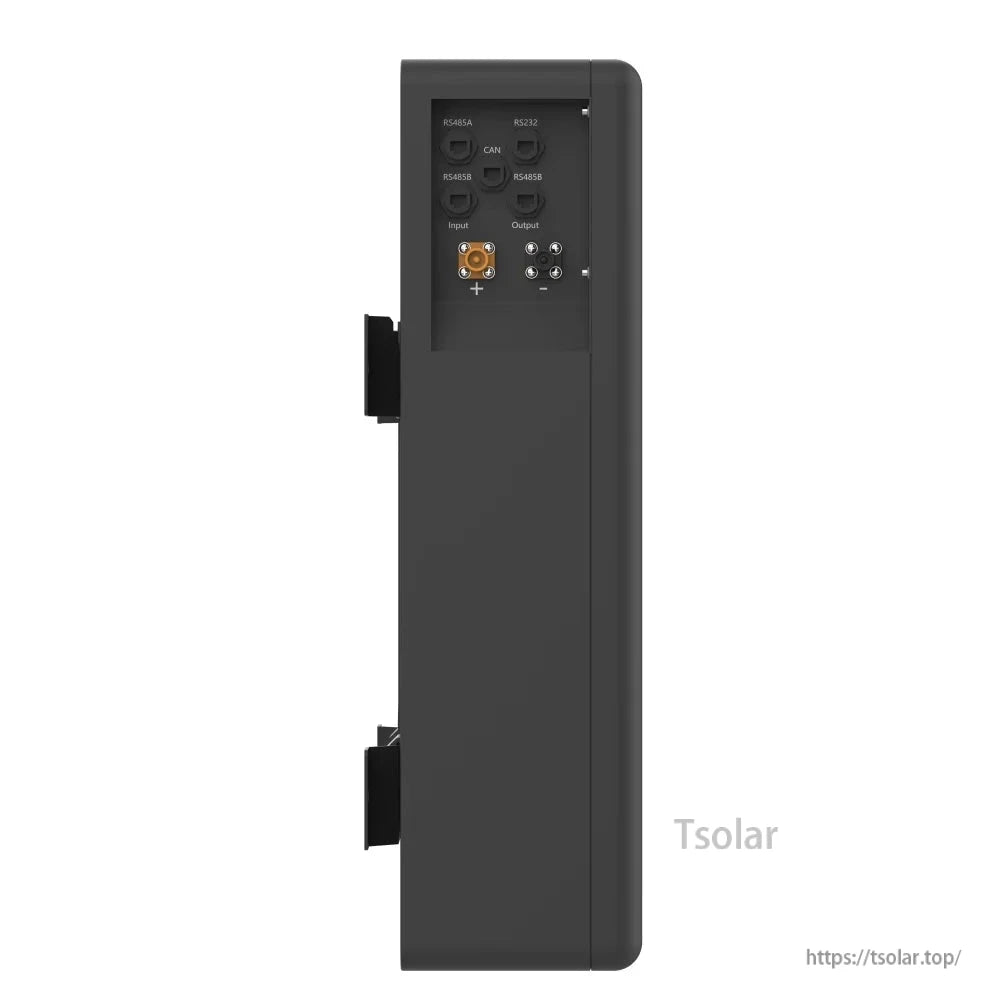

Ports & Indicators (as labeled)
- Positive Power Connector Receptacles: Battery positive output
- Negative Power Connector Receptacles: Battery negative output

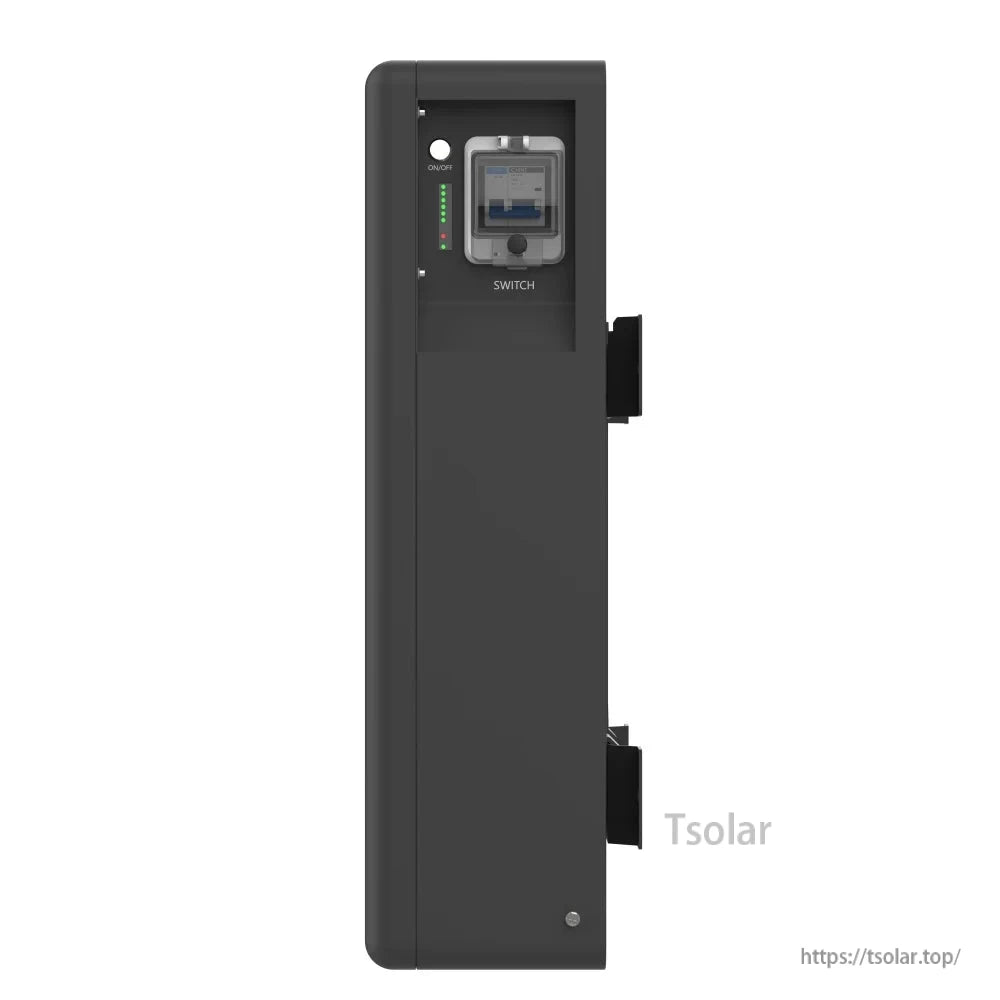

- ON/OFF: Power switch (used for powering on or off the battery supply)
- Operation Light (RUN): Battery operation indicator light (illuminates once the battery is operating normally)
- Alarm Light (ALM): Battery alarm indicator light
- Capacity Light (SOC): Battery capacity indicator light

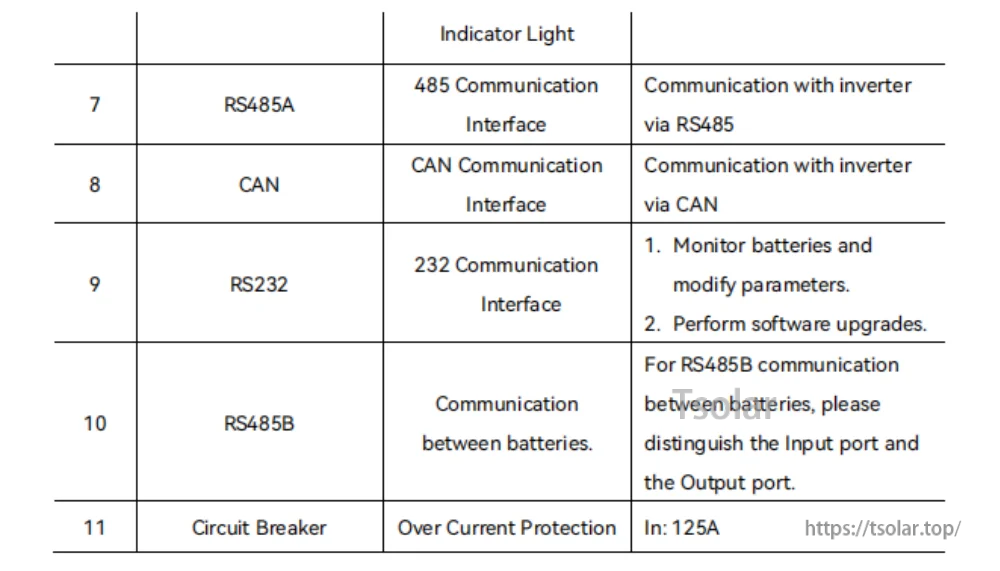

- RS485A: 485 communication interface (communication with inverter via RS485)
- CAN: CAN communication interface (communication with inverter via CAN)
- RS232: 232 communication interface (monitor batteries and modify parameters; perform software upgrades)
- RS485B: Communication between batteries (distinguish the input port and the output port)
- Circuit Breaker: Over current protection (In: 125A)

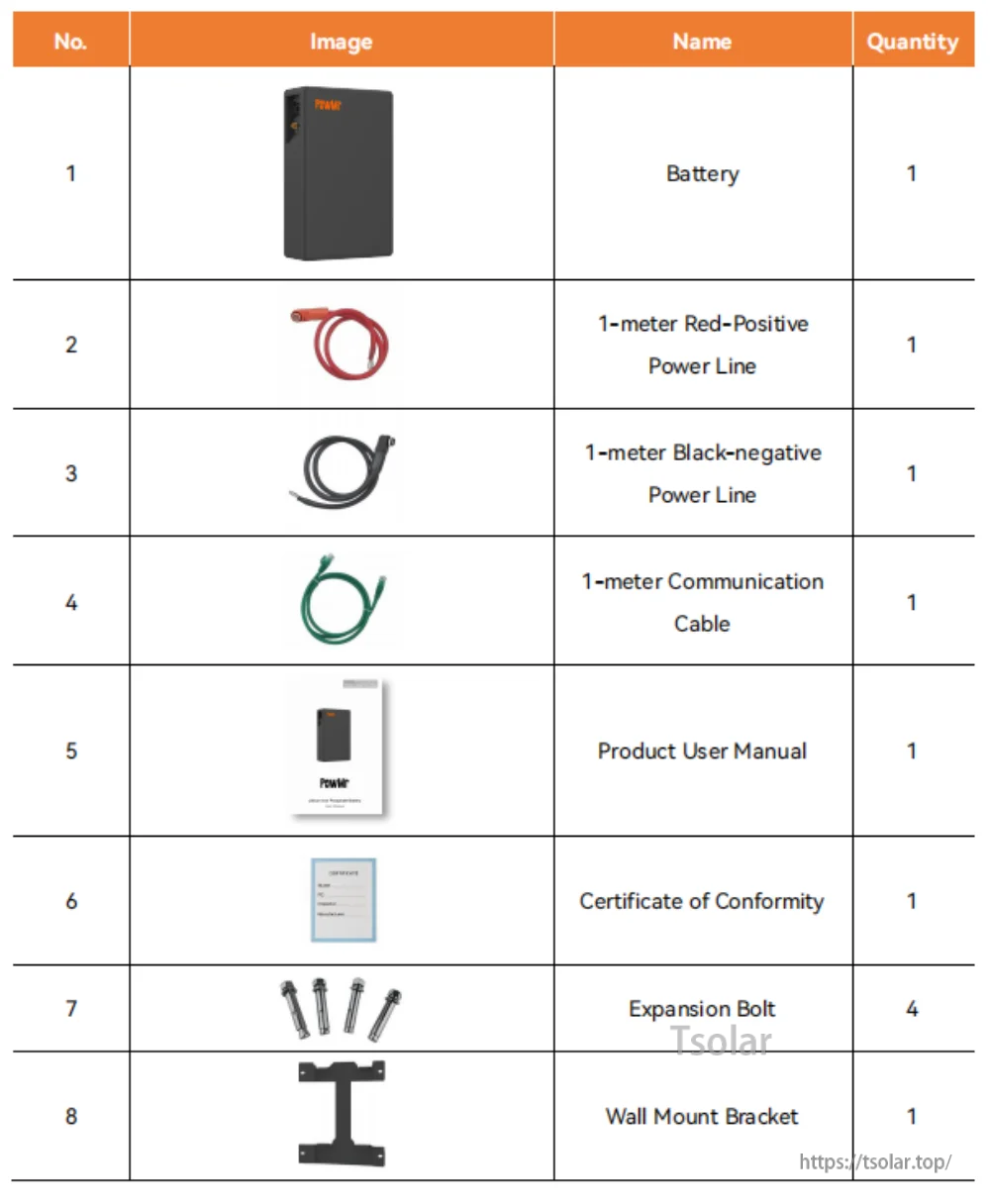

What’s Included
- Battery: 1
- 1-meter Red-Positive Power Line: 1
- 1-meter Black-negative Power Line: 1
- 1-meter Communication Cable: 1
- Product User Manual: 1
- Certificate of Conformity: 1
- Expansion Bolt: 4

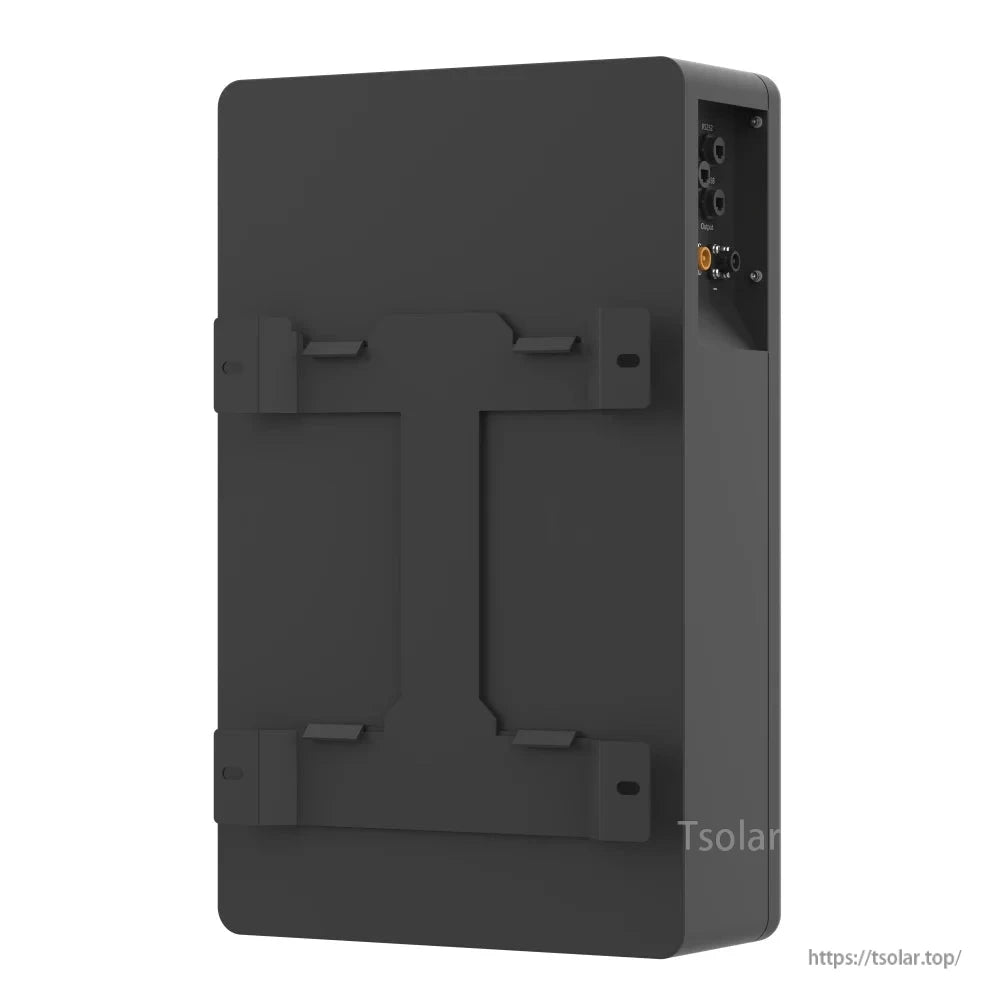

- Wall Mount Bracket: 1
Applications
- PV systems
- Yachts
- RVS
- Power outages (backup energy storage)
For pre-sales and technical support, contact: https://tsolar.top/ or service@tsolar.top.
Details
A compact 51.2V 100Ah (5.12kWh) LiFePO4 module built for wall mounting in residential solar energy storage systems.
The IP65-rated enclosure helps protect against dust and water jets for more reliable indoor or outdoor operation.
Ports and indicators are clearly labeled for straightforward wiring, status checks, and day-to-day operation.
Installation accessories and cables are included, along with a wall-mount bracket and hardware.
Designed for flexible energy storage use cases, from PV systems to mobile power and backup power needs.
