Overview

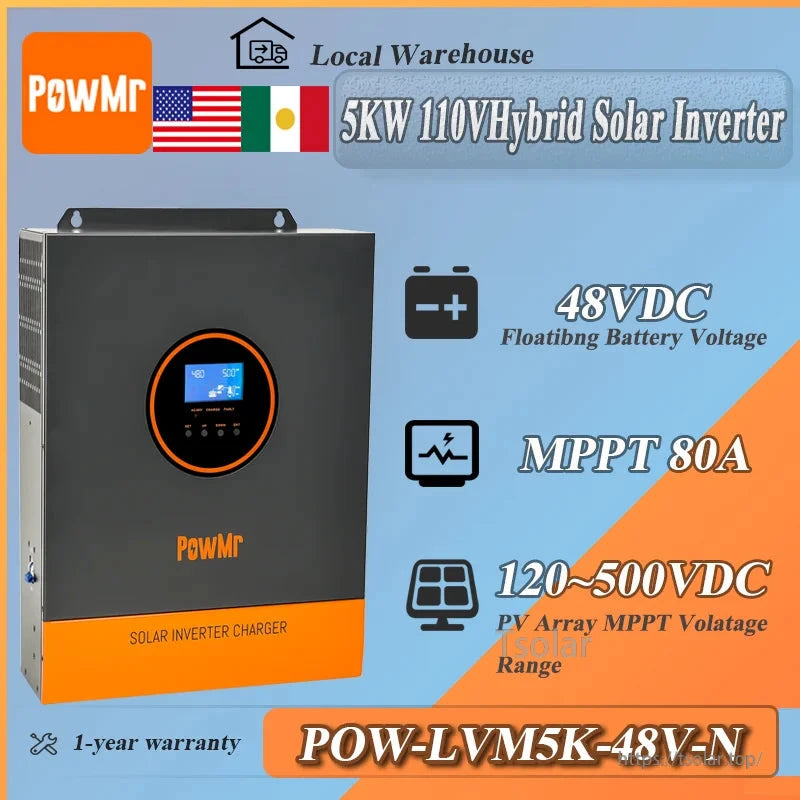

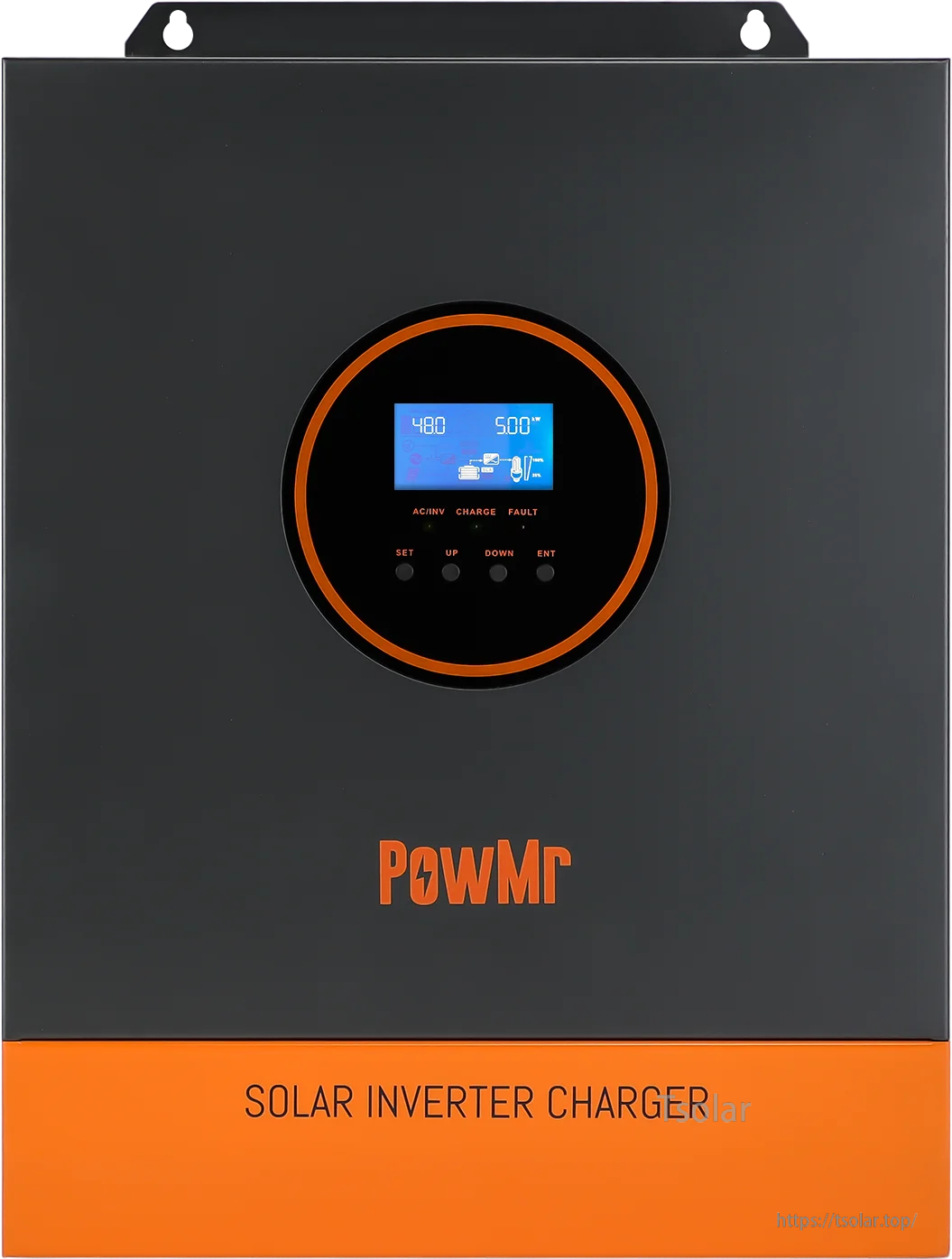

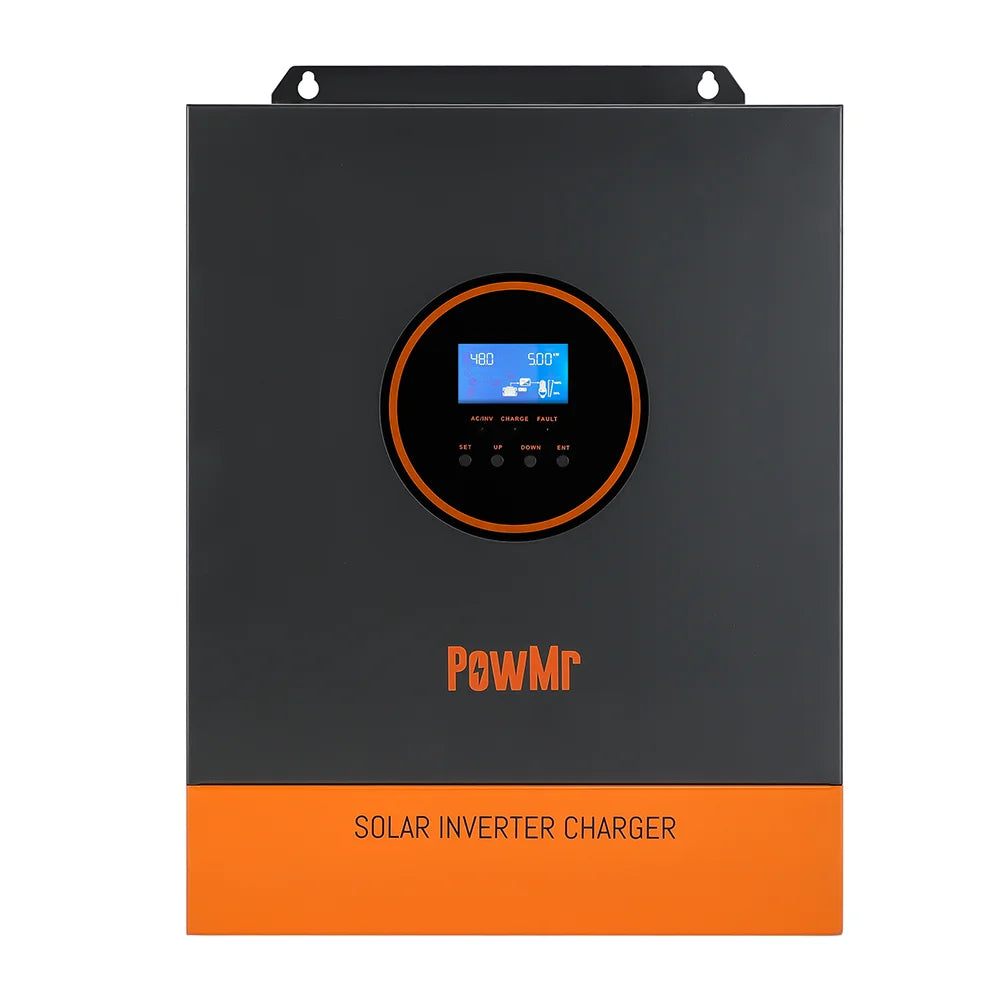

The PowMr POW-LVM5K-48V-N hybrid solar inverter is a 48Vdc system solar inverter charger with built-in 80A MPPT charge controller and 110V/120Vac single-phase pure sine wave output. It supports lead-acid or lithium battery systems and provides multiple charging/output modes for flexible off-grid energy management.
Key Features
- Pure sine wave inverter; rated load power 5000W
- Peak power: 10000VA
- AC output: 110/120Vac (rated output voltage listed as 120Vac; rated input voltage 110/120Vac)
- Output frequency: 50Hz/60Hz (auto-sensing)
- Built-in MPPT solar charge controller: 80A (charge current range settable 0-80A)
- Maximum PV open-circuit voltage: 500Vdc; PV operating voltage range: 120-500Vdc
- Max solar panel input power: 5500W
- AC charging current: 0-40A (settable); charge voltage range: 4060Vdc
- Fast switching time: 10ms
- Power saving mode: Load 50W
- Communication interfaces: USB/RS485 (WiFi/GPRS)/dry node control
- Overload/short-circuit protection: circuit breaker
- Is Smart Device: Yes
- EMC authentication grade: EN61000; certification: CE
- Noise: 60dB
- Loaded motor capability: 4HP
- Durable finish with high anti-corrosion; forced air cooling
Specifications
| Brand | PowMr |
| Model Number | POW-LVM5K-48V-N |
| Model (series shown) | POW-LVM5K-48V- |
| Output Type | SINGLE |
| Waveform | Pure sine wave |
| Rated load power | 5000W |
| Rated output power (VA) | 5000 |
| Rated output power (W) | 5000 |
| Peak power | 10000VA |
| Rated output voltage (Vac) | 120Vac |
| AC voltage (listed) | 110/120V AC output |
| Rated input voltage | 110/120Vac |
| AC input voltage range | 90Vac-140Vac |
| Output frequency | 50Hz/60Hz (auto-sensing) |
| Battery voltage | 48Vdc |
| Rated battery input voltage | 48V (minimum start voltage 44V) |
| Battery voltage range | 40-60Vdc |
| Battery type | Lead acid or lithium battery |
| MPPT charge current / solar charge current range | 80A (settable 0-80A) |
| AC charging current (settable) | 0-40A |
| Charge voltage range | 40-60Vdc |
| Maximum PV open-circuit voltage | 500Vdc |
| PV operating voltage range | 120-500Vdc |
| Maximum solar input power | 5500W |
| Max PV input current (diagram) | 22A |
| PV start-up voltage (diagram) | >150V |
| Efficiency (listed) | >95% |
| Maximum efficiency (inverting mode) | >90% |
| Overload/short-circuit protection | Circuit breaker |
| Breaker specification | 63A |
| Maximum bypass overload current | 40A / 63A |
| Rated output voltage tolerance (diagram) | 120Vac5% |
| Rated current (diagram) | 41.7A |
| Loaded motor capability | 4HP |
| Switching time | 10ms |
| Power saving mode | Load 50W |
| Communication interface | USB/RS485 (WiFi/GPRS)/dry node control |
| Noise | 60dB |
| EMC authentication grade | EN61000 |
| Certification | CE |
| Origin | Mainland China |
| High-concerned chemical | None |
| is_customized | Yes |
| Size (listed) | 420*320*120mm |
| Dimension (L*W*D) | 426mm*322mm*126mm |
| Weight (listed) | 12KG |
| Weight (kg) | 11.5 |
| Output power (listed) | 1 - 200 KW |

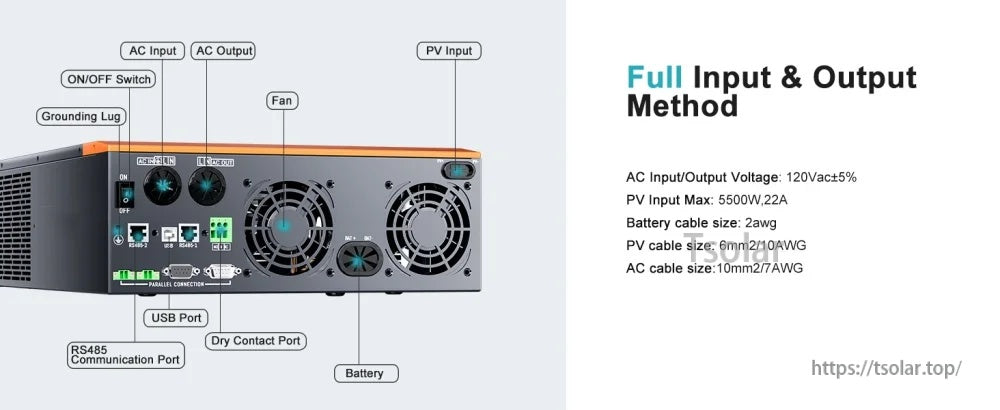

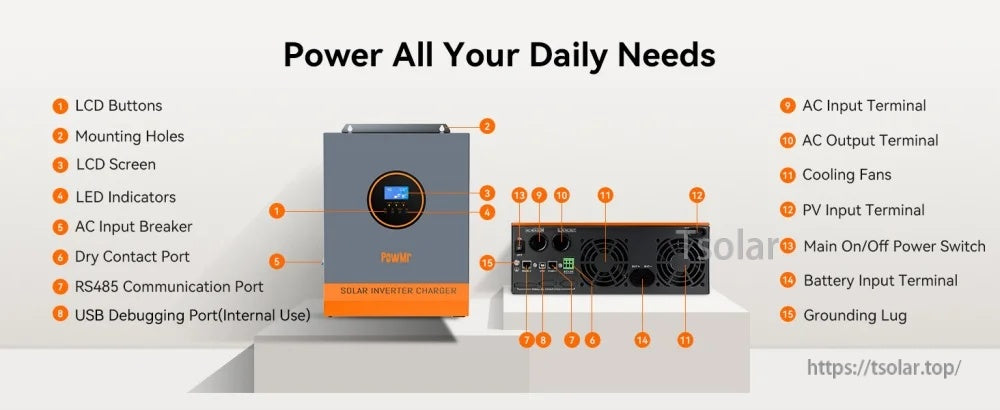

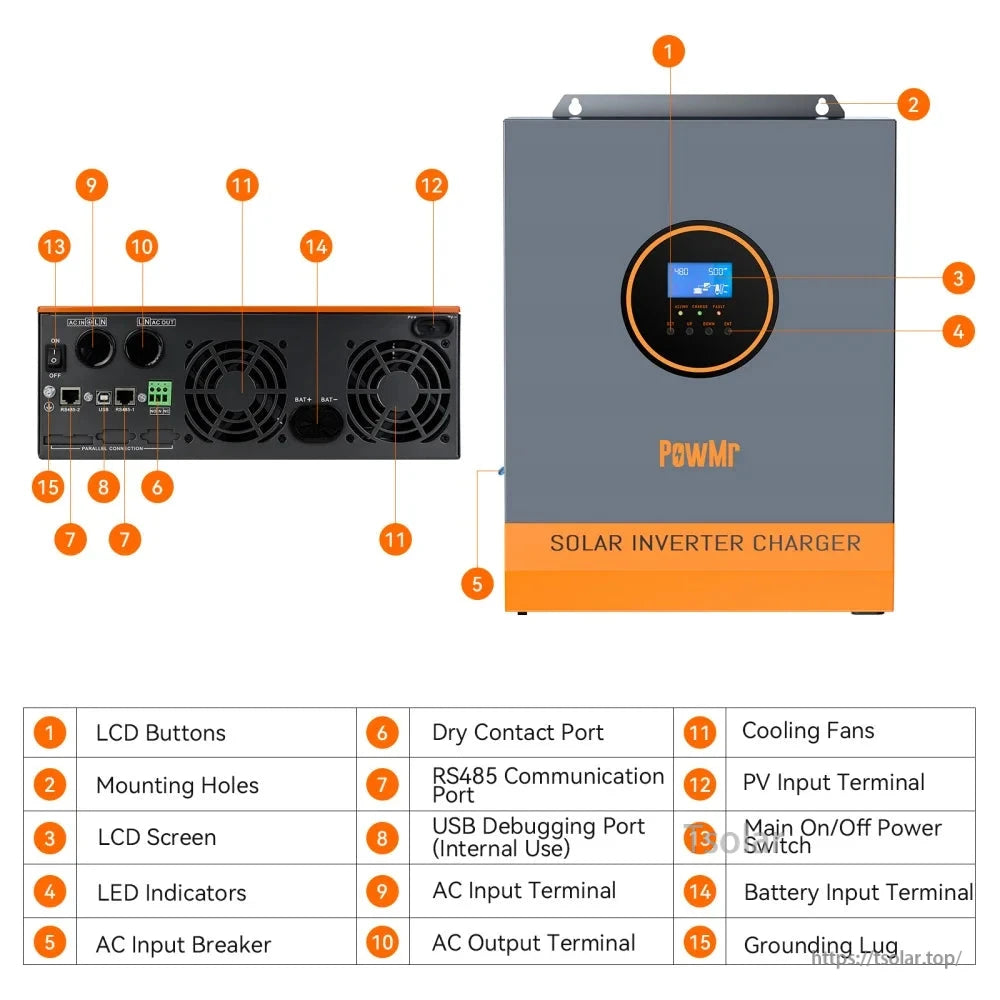

Ports & Controls (as labeled)
- LCD buttons; LCD screen; LED indicators
- AC input breaker
- Main On/Off power switch
- AC input terminal; AC output terminal
- PV input terminal
- Battery input terminal
- RS485 communication port; USB port; dry contact port

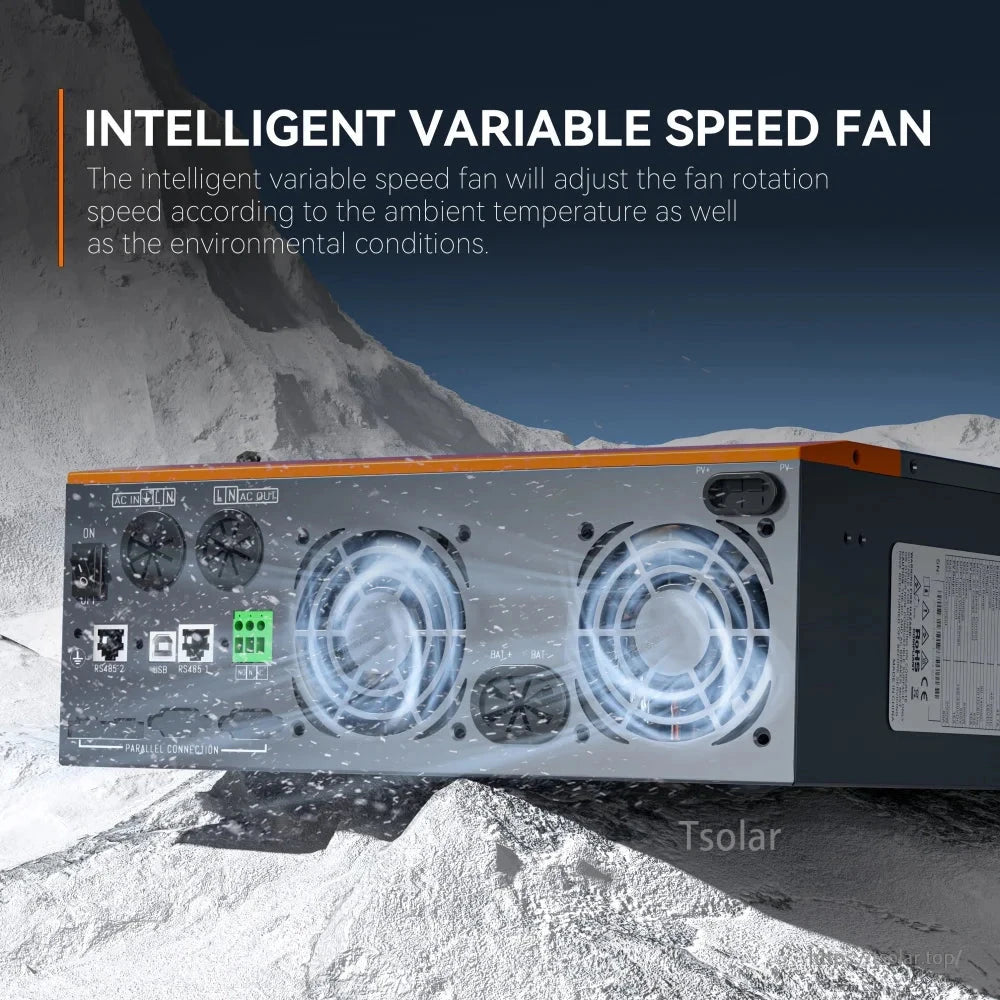

- Cooling fans; grounding lug
Protection (14-layer SmartProtect system text)
- PV input current/power limiting protection
- PV input over-voltage protection
- PV night reverse current protection
- AC input over-voltage protection
- Battery over-voltage protection
- Battery low-voltage protection
- AC input under-voltage protection
- AC reverse flowing protection
- Inverter over-load protection
- AC output reverse protection
- Bypass over current protection
- Heat sink over temperature protection
Applications
- Off-grid solar power systems with 48V lead-acid or lithium batteries
- Single-phase 110V/120V loads in homes, cabins, workshops, and small energy storage setups
Installation Notes
- The battery must be connected; battery connection cables need to be as short as possible.

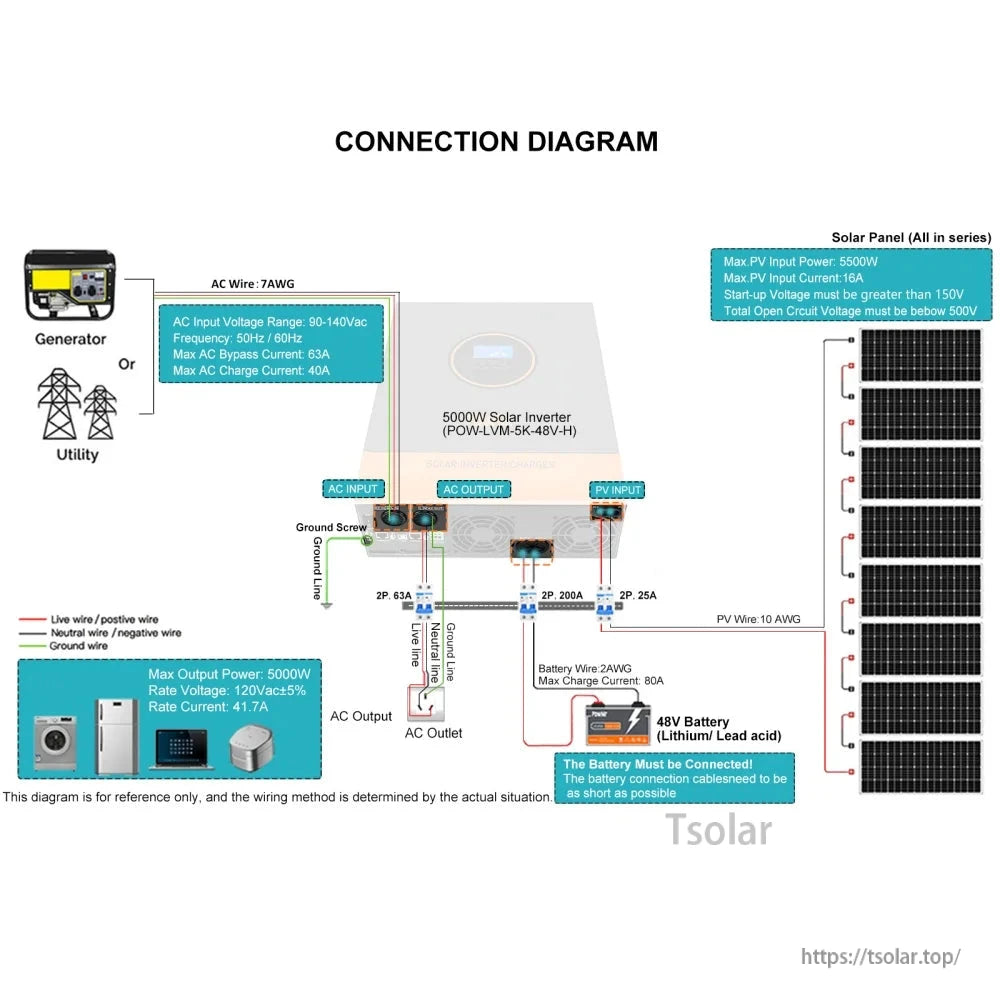

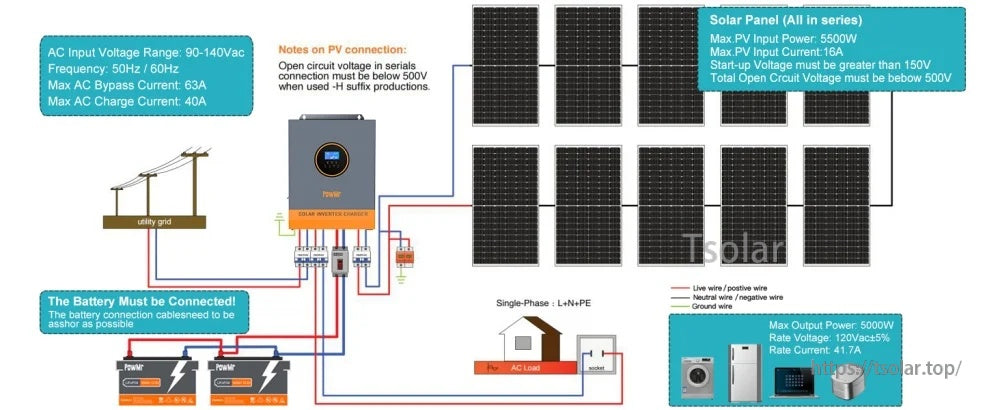

- PV connection note (diagram): open circuit voltage in series connection must be below 500V.
For pre-sales selection and system compatibility questions, contact customer support at https://tsolar.top/ or service@tsolar.top.
Details

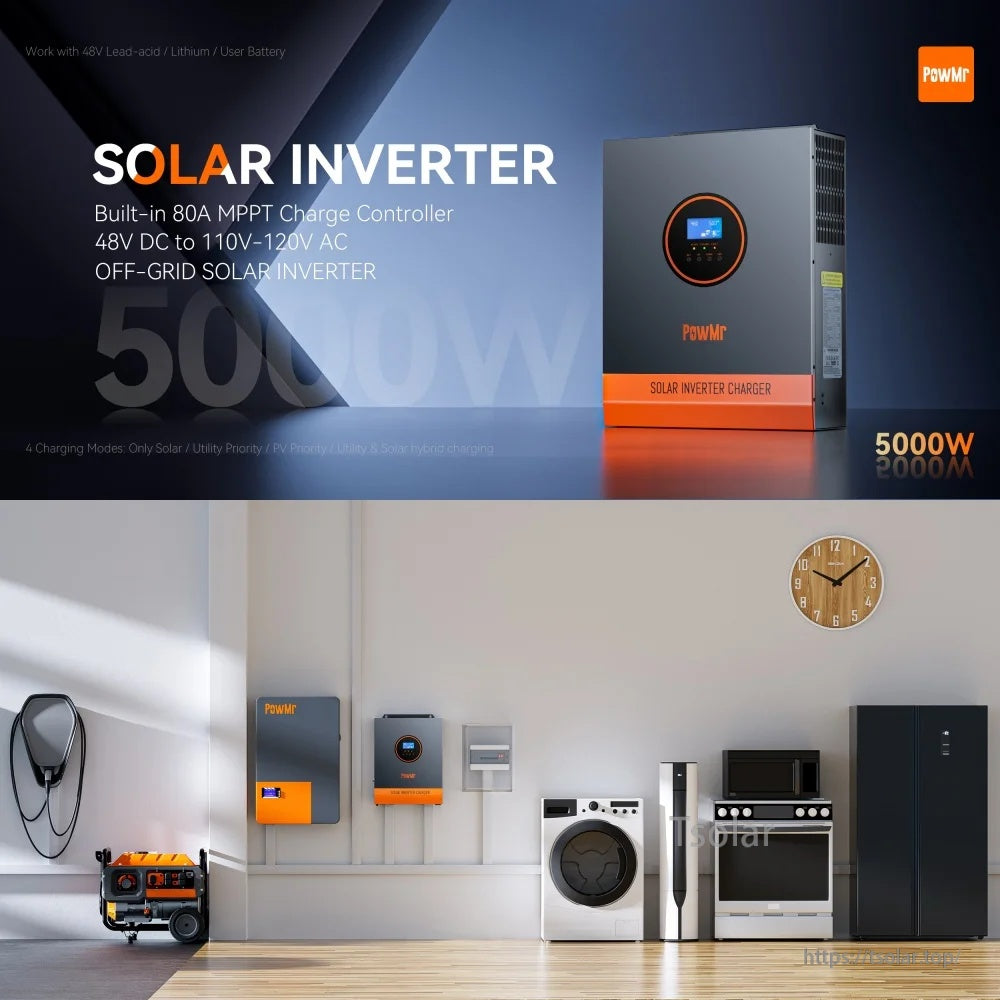

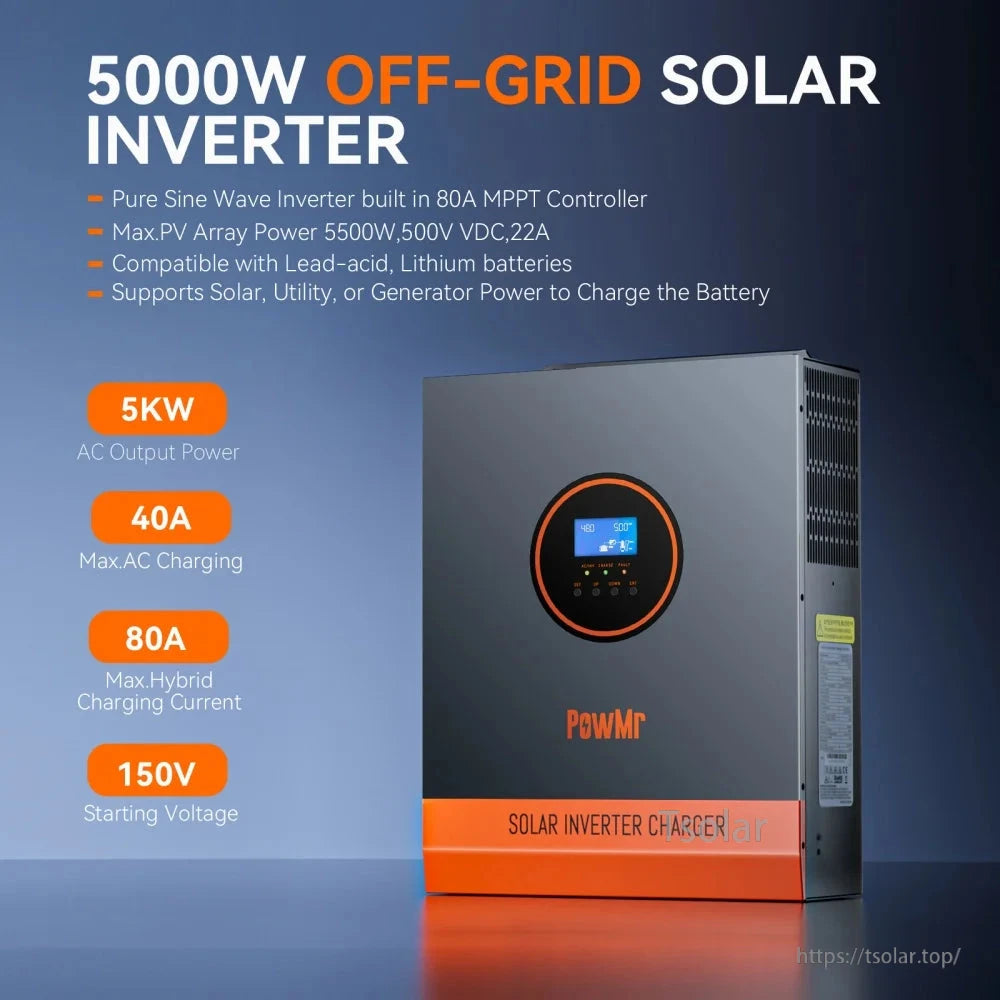

Built for off-grid power management, this 48V hybrid inverter combines a pure sine wave output with an 80A MPPT solar charge controller.

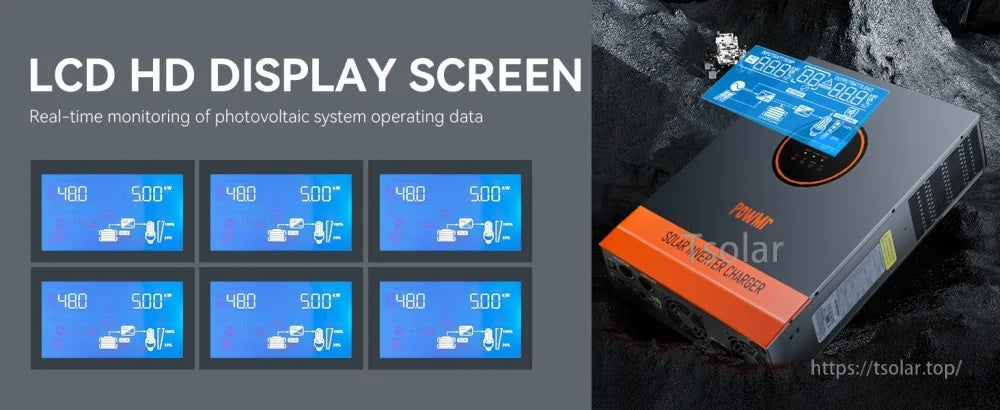

The HD LCD provides real-time system monitoring, helping you check PV input, battery status, and load performance at a glance.
Multiple connection options support solar panels, 48V batteries, and AC input/output for flexible system design.
Added peace of mind comes from the SmartProtect safety design and a 24-month warranty for the inverter charger.
