Overview
The PowMr POW-LVM5K-48V-N hybrid solar inverter integrates a pure sine wave inverter and an MPPT solar charge controller for 48V battery systems, delivering 110/120Vac single-phase output for off-grid power setups. It supports lead-acid or lithium battery types and provides solar, utility, and hybrid charging options to maximize energy usage.
Key Features
- Rated load power: 5000W; peak power: 10000VA
- Pure sine wave output; rated output voltage: 120Vac
- Battery system: 48V (minimum start voltage 44V); battery voltage range: 40-60Vdc
- Built-in MPPT solar charge controller: 80A (solar charge current range settable 0-80A)
- Maximum PV open-circuit voltage: 500Vdc
- Maximum solar panel input power / PV input max: 5500W
- PV voltage ranges (listed): 120-500Vdc; PV access wide voltage range: 120-450Vdc
- AC input voltage range: 90-140Vac; rated input voltage: 110/120Vac
- AC charging current (settable): 0-40A; max AC charge current: 40A
- Fast switching time: 10ms
- Power saving mode: Load ≤ 50W
- 1 MPP tracker; 99.9% efficiency (listed)
- Communication interfaces: USB / RS485 (WiFi/GPRS) / dry node control; dry contact port
- Protection (listed): overload, short-circuit, over/under-voltage, and related electronic protections; overload/short-circuit protection via circuit breaker
- 14-layer SmartProtect system protections (listed), including PV input current/power limiting, PV input over-current, PV night reverse current, AC input over/under-voltage, AC reverse flowing, battery over/low-voltage, inverter overload, bypass over-current, heat sink over-temperature
- Noise: ≤ 60dB
- 24 months warranty (listed)
For pre-sales selection and technical support, contact https://tsolar.top/.
Specifications
| Model number | POW-LVM5K-48V-N |
| Series/model (listed) | POW-LVM5K-48V- |
| Output type | Single (single-phase devices) |
| Waveform | Pure sine wave |
| Rated load power | 5000W |
| Rated output power (VA) | 5000 |
| Rated output power (W) | 5000 |
| Peak power | 10000VA |
| Rated output voltage | 120Vac |
| AC voltage (listed) | 110/120V AC output |
| Rated input voltage | 110/120Vac |
| AC input voltage range | 90-140Vac |
| Output frequency | 50Hz / 60Hz (auto-sensing) |
| Efficiency (listed) | >95% |
| Maximum efficiency (listed) | >90% |
| Loaded motor capability | 4HP |
| Battery voltage (listed) | 48Vdc |
| Rated battery input voltage | 48V (minimum start voltage 44V) |
| Battery type | Lead acid or lithium battery |
| Charge voltage range | 40-60Vdc |
| Battery voltage range | 40-60Vdc |
| MPPT / solar charging current | 80A (settable 0-80A) |
| Maximum PV open-circuit voltage | 500Vdc |
| PV operating voltage range | 120-500Vdc |
| PV access wide voltage range (listed) | 120-450Vdc |
| Max solar panel input power | 5500W |
| Max PV input current (listed) | 16A |
| PV input max (listed) | 5500W, 22A |
| PV start-up voltage (listed) | >150V |
| Maximum charge current (AC charging) | 0-40A (can be set) |
| Max AC bypass current / maximum bypass overload current (listed) | 63A; 40A / 63A |
| Breaker specification | 63A |
| Overload/short-circuit protection | Circuit breaker |
| Noise | ≤ 60dB |
| Communication interface | USB / RS485 (WiFi/GPRS) / dry node control |
| Power saving mode | Load ≤ 50W |
| Switching time | 10ms |
| EMC authentication grade | EN61000 |
| Certification | CE |
| Is smart device | Yes |
| Origin | Mainland China |
| High-concerned chemical | None |
| Size (listed) | 420*320*120mm |
| Dimension (L*W*D) | 426mm*322mm*126mm |
| Weight (listed) | 12KG |
| Weight (kg) | 11.5 |
| Cable size (listed) | Battery cable: 2awg; PV cable: 6mm2 / 10AWG; AC cable: 10mm2 / 7AWG |
| Output power (listed) | 1 - 200 KW |
Applications
- Off-grid solar power systems with 48V battery banks
- Single-phase 110/120Vac household loads and small workshops
- Hybrid solar + utility charging setups requiring MPPT charging and pure sine AC output
Details

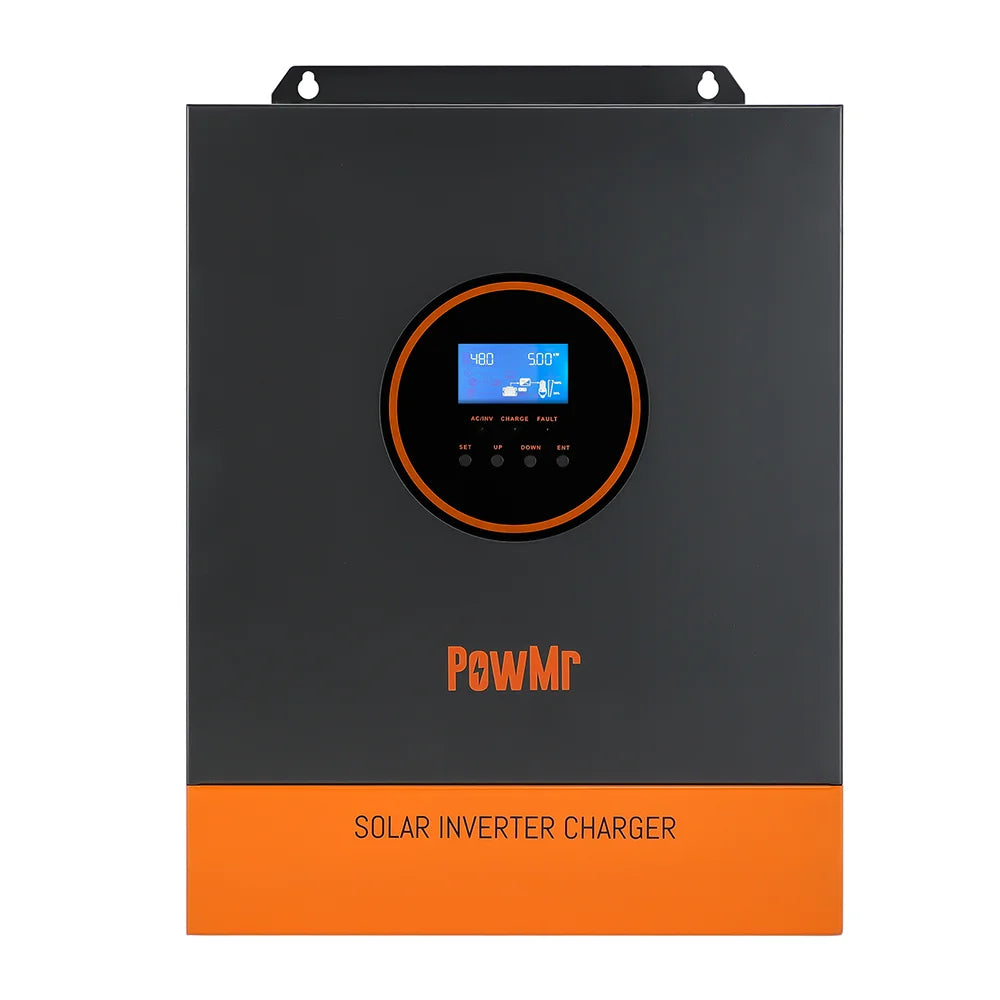

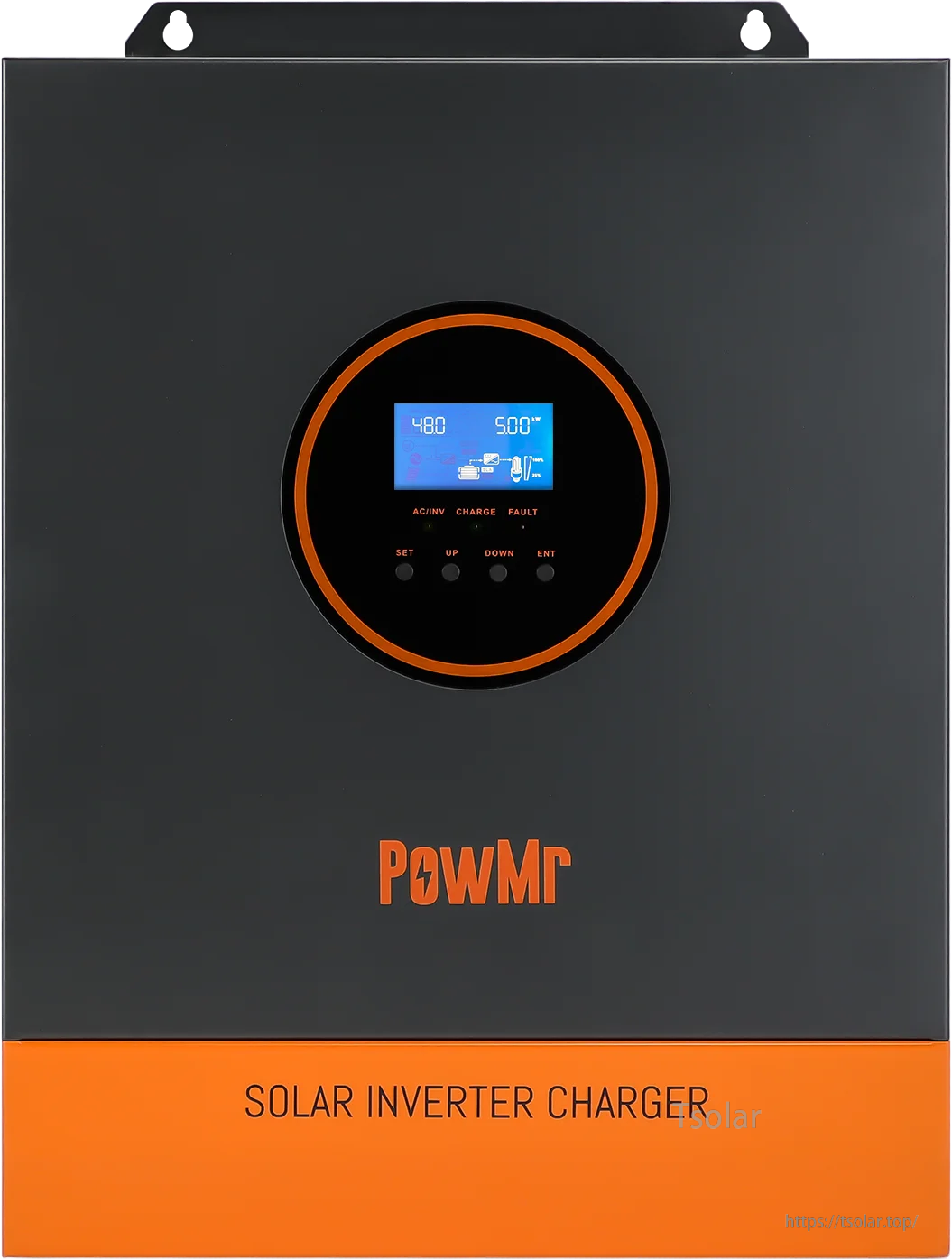

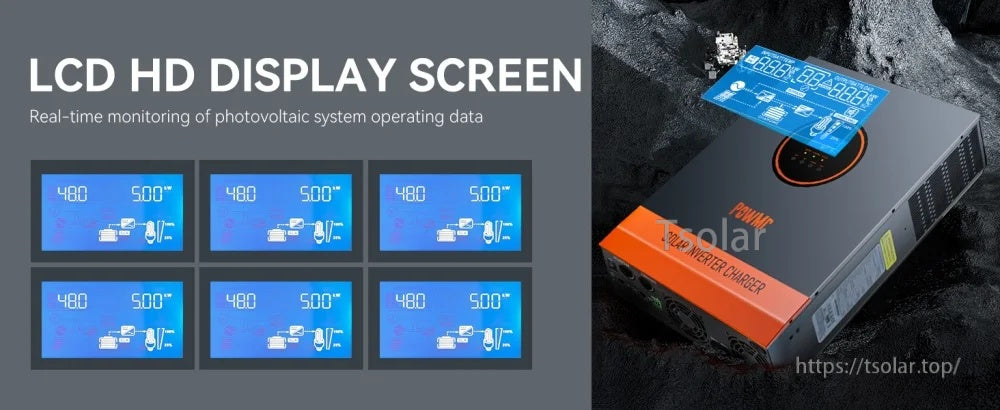

The HD LCD provides at-a-glance monitoring for PV input, battery status, and inverter operating mode.

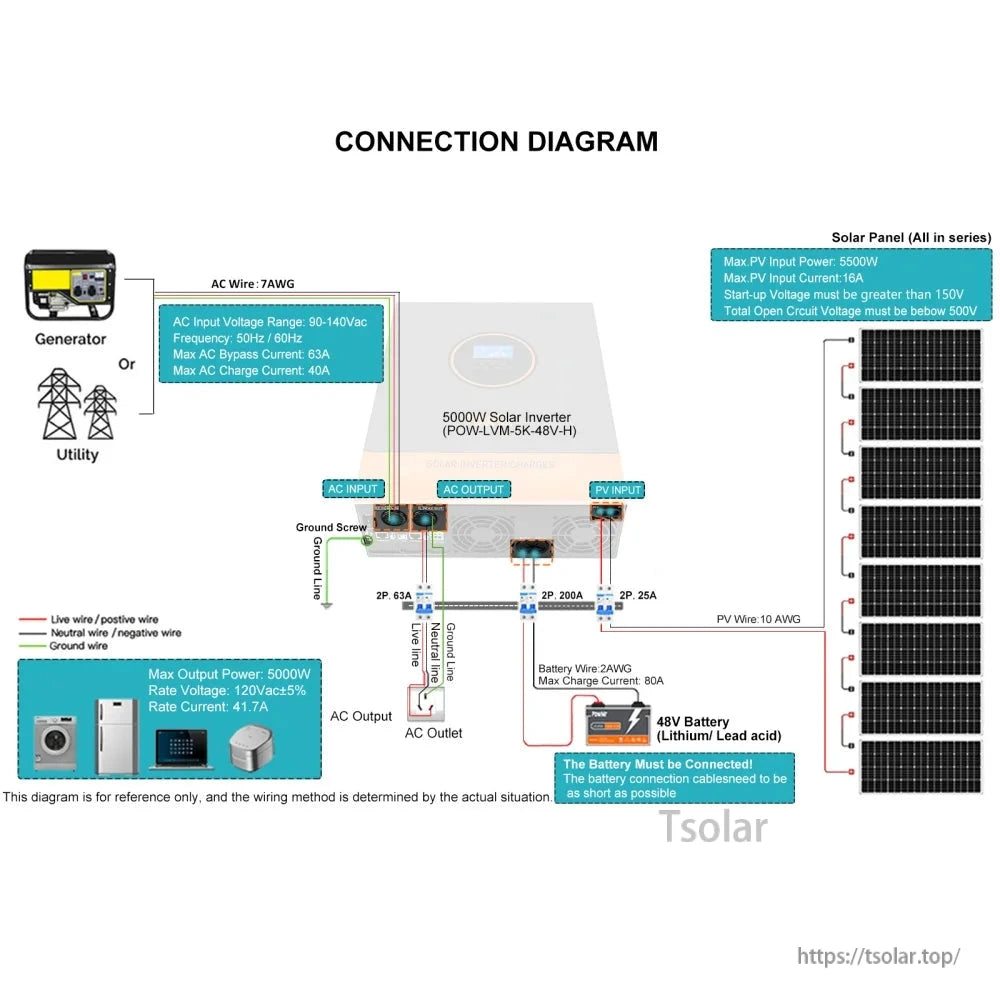

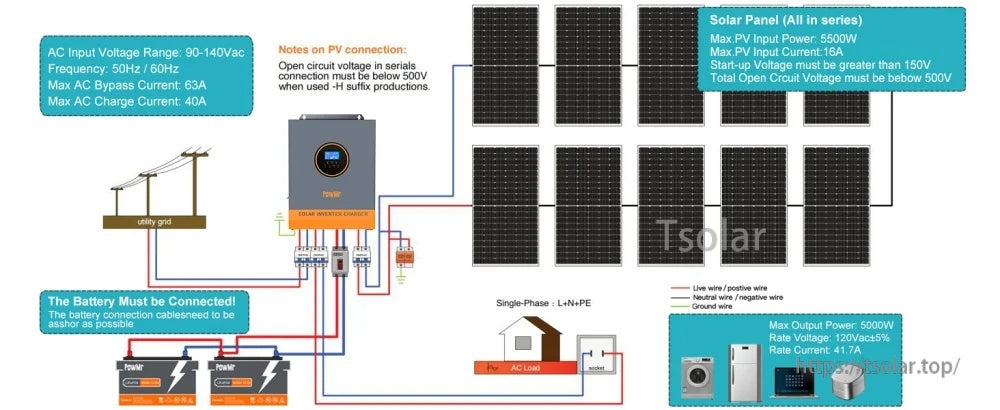

Clear connection guidance supports typical off-grid setups with PV strings, 48V battery bank, and 110/120Vac input/output.
A 14-layer SmartProtect protection suite and 24-month warranty help support dependable everyday operation.

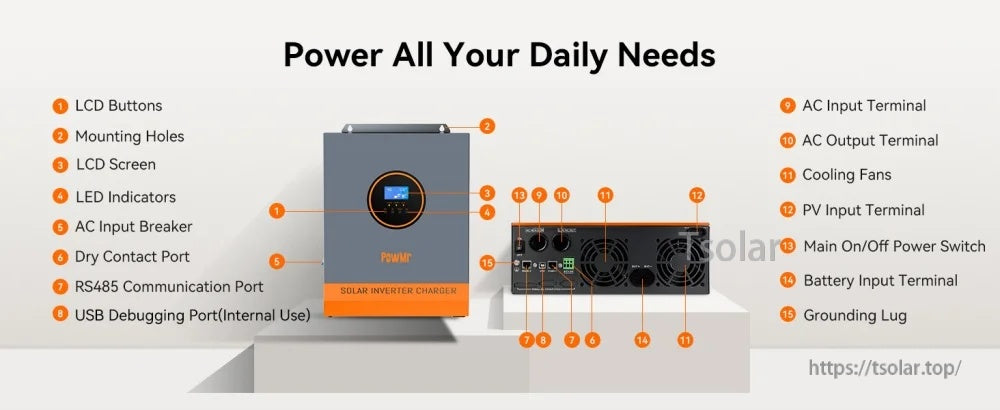

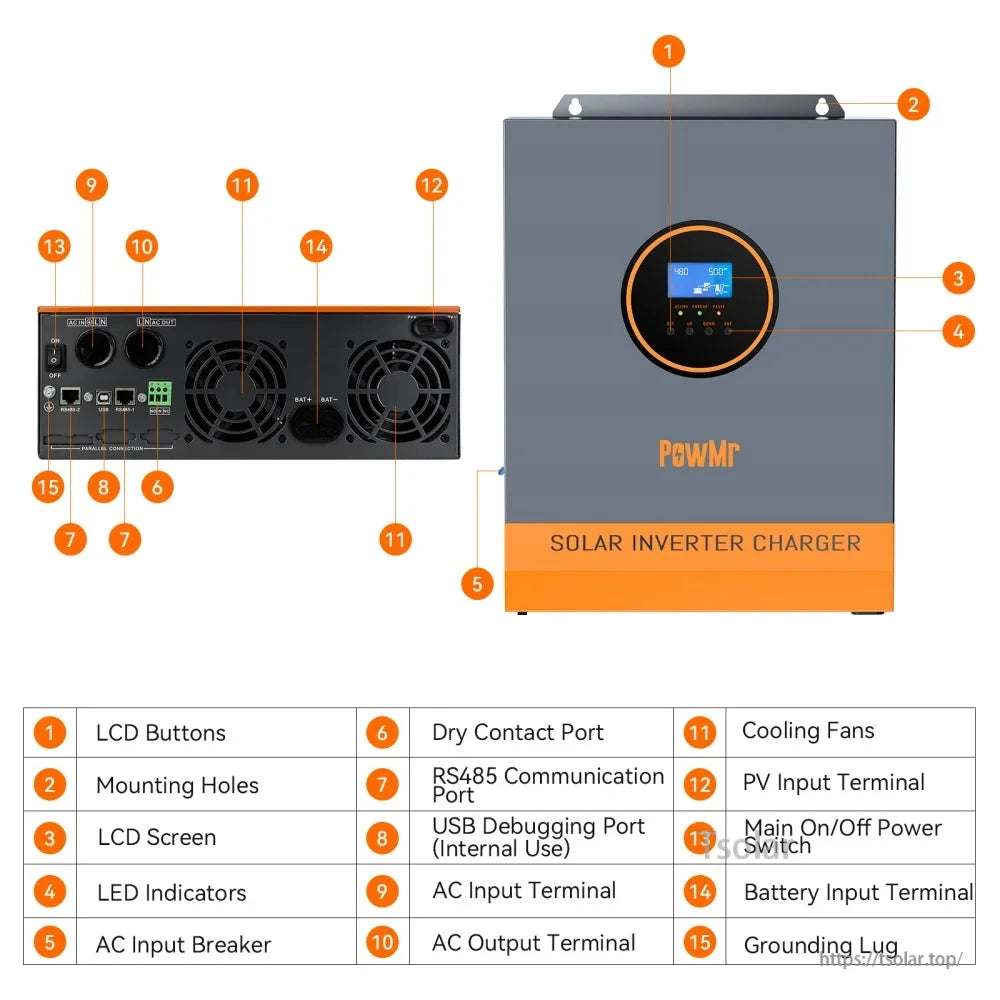

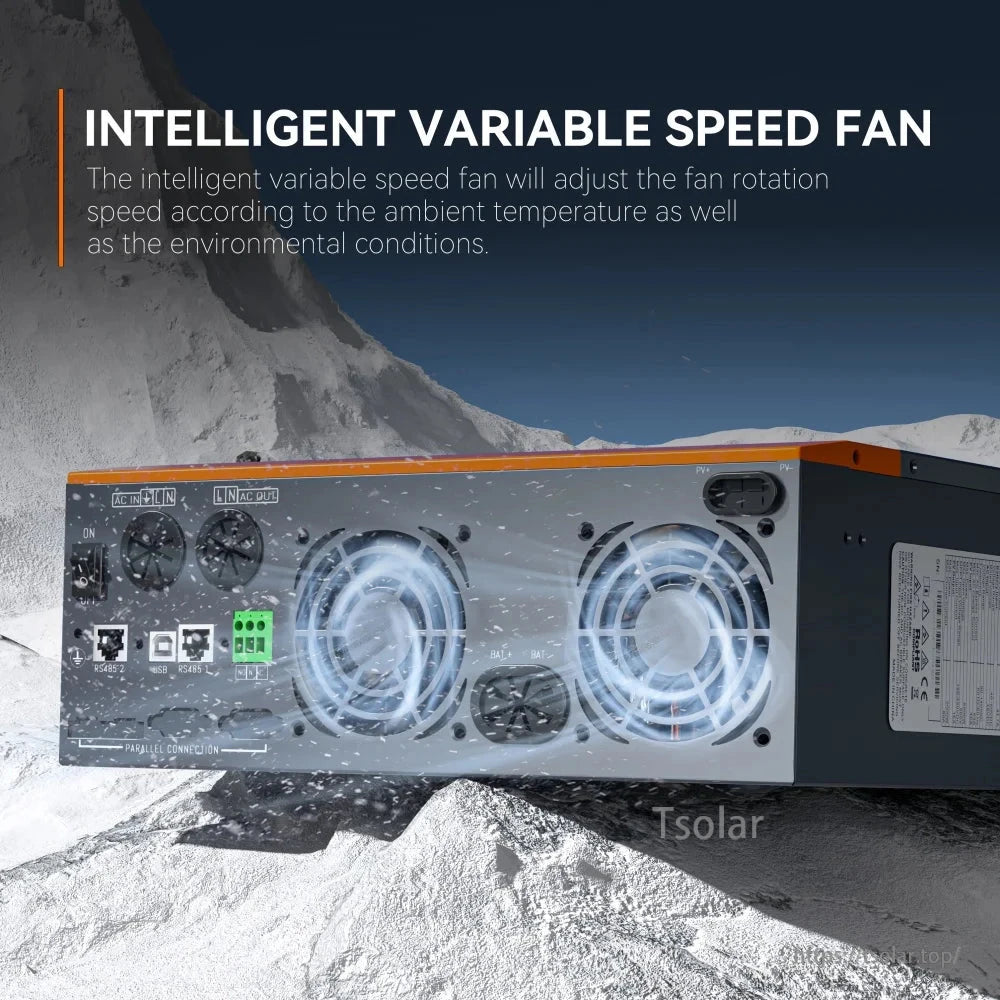

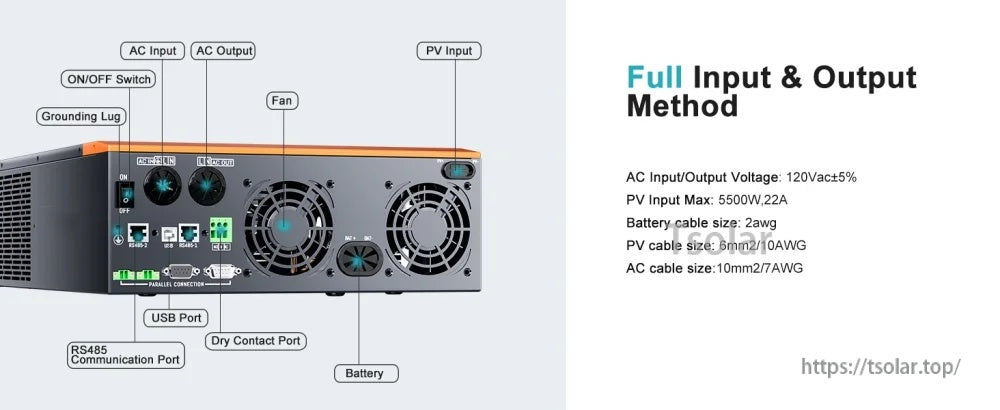

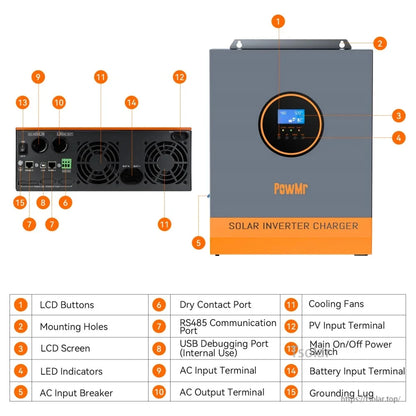

Multiple ports and clearly labeled terminals simplify installation, including USB/RS485 communications and dedicated PV, AC, and battery connections.
