Overview

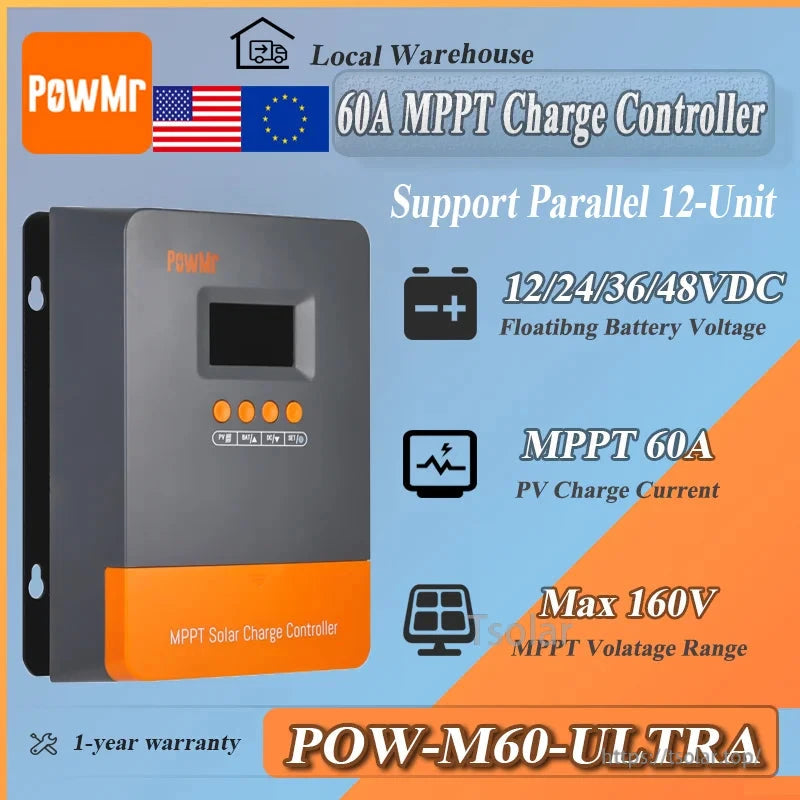

The PowMr POW-M60-ULTRA is an MPPT solar charge controller designed for solar home system setups with automatic 12V/24V/36V/48V nominal system voltage selection. It supports PV input up to 160VDC, a rated charging current of 60A (adjustable 2A to 60A), and parallel operation up to 12 units.
Key Features
- MPPT charging technology with 3-stage charging algorithm
- Adaptive boost charging to help fully charge while avoiding overcharging during the boost stage
- Customizable charging current limit: 2A to 60A
- Up to 12 units in parallel (supports a parallel communication cable)
- Built-in dedicated wiring terminals for plug-and-play connection

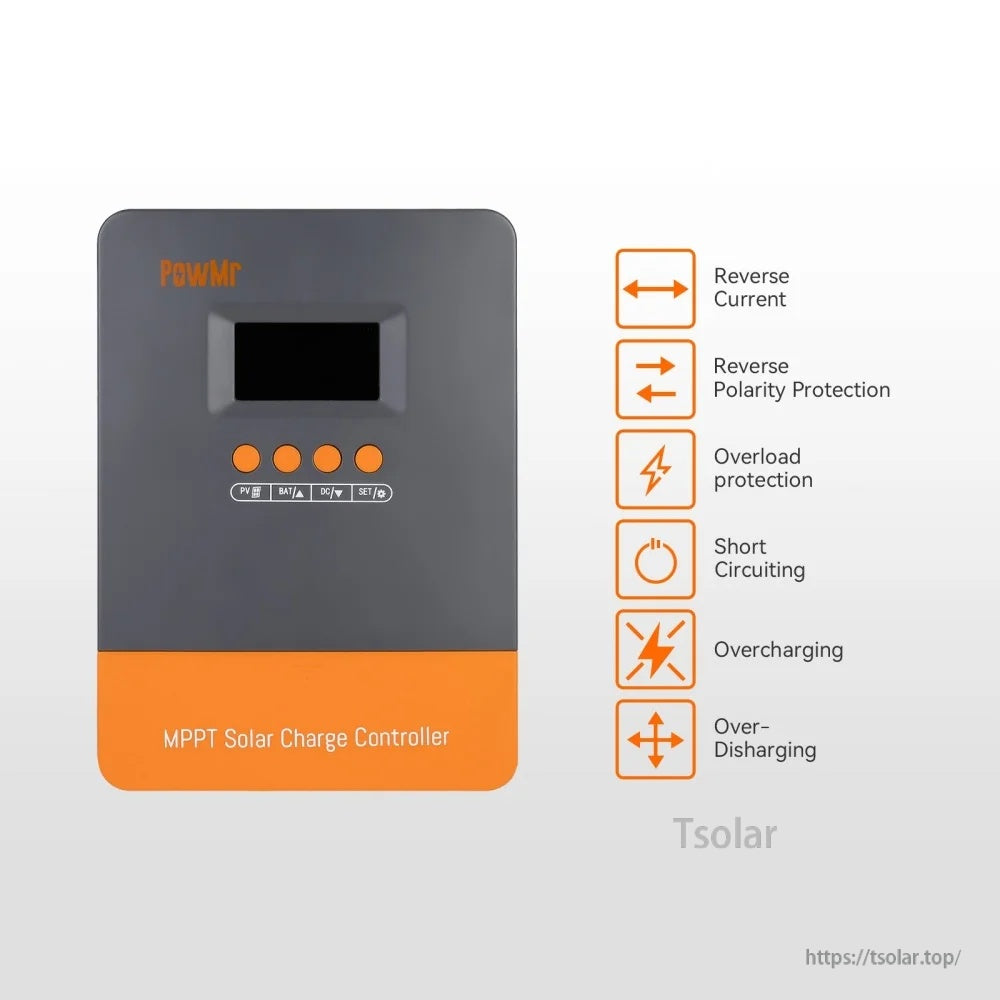

- Protection functions: reverse current, reverse polarity protection, overload protection, short circuiting, overcharging, over-discharging, over-temperature; includes internal cooling fan and external heat dissipation plate
- 1-year warranty
Specifications
| Brand | PowMr |
| Model | POW-M60-ULTRA |
| Controller Type | MPPT solar charge controller |
| Nominal System Voltage | 12V / 24V / 36V / 48V (AUTO) |
| Battery Voltage Range | 9V to 60V (9~60V) |
| Rated Charging Current | 60A |
| Charging Current Range (Configurable) | 2A to 60A |
| Max PV Voltage | 160VDC |
| PV Input Voltage Range (12V system) | 20V~80V |
| PV Input Voltage Range (24V system) | 37V~105V |
| PV Input Voltage Range (36V system) | 50V~160V |
| PV Input Voltage Range (48V system) | 72V~160V |
| Max Input Power (12V system) | 720W |
| Max Input Power (24V system) | 1440W |
| Max Input Power (36V system) | 2100W |
| Max Input Power (48V system) | 2800W |
| Conversion Efficiency | >= 98.1% |

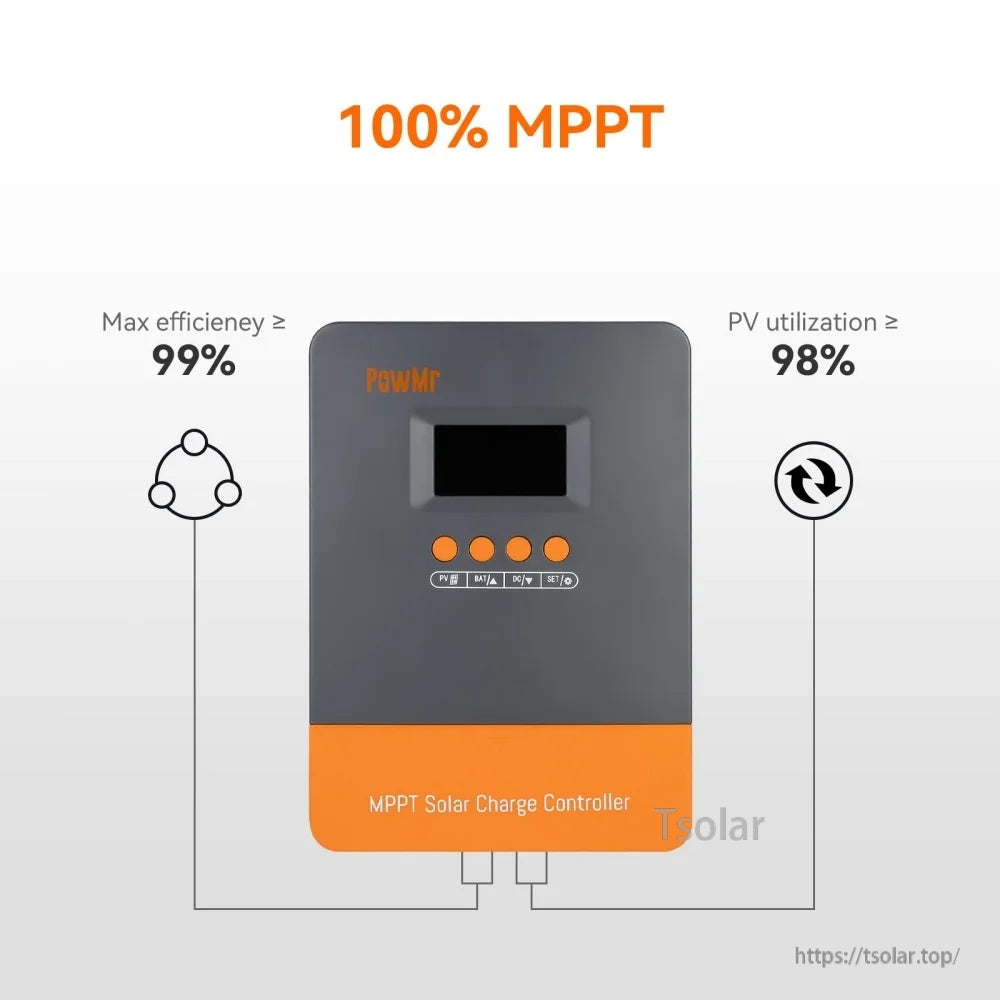

| Max Power Point Tracking Efficiency | > 99% (tracking efficiency up to 99.9% stated) |
| Self-Consumption | 0.7W to 1.2W |
| Rated DC Output Current | 25A |
| IP Class | IP32 |
| Operating Temperature Range | -35°C to +45°C |
| Humidity Range | <= 95% (non-condensing) |
| Altitude | < 3000m |
| Dimensions | 221 x 163 x 77mm (8.7 x 6.42 x 3.03in) |
| Net Weight | 1442g (3.18lb) |
| Certifications | CE, FCC, RoHS |
| Smart Device | No |
| High-concerned chemical | None |
| Origin | Mainland China |
| Customized | Yes |
| Parallel Operation | Up to 12 units in parallel |
Applications
- Solar home systems
- Solar RV systems
- Household systems
- Field monitoring
- Charger controller / voltage controller / lighting controller
- Solar system controller / solar working station
For wiring, parallel expansion, and PV array sizing questions, contact https://tsolar.top/ or service@tsolar.top.
Details
The PowMr POW-M60-ULTRA MPPT controller automatically detects 12V/24V/36V/48V battery systems and supports up to 160V PV input.

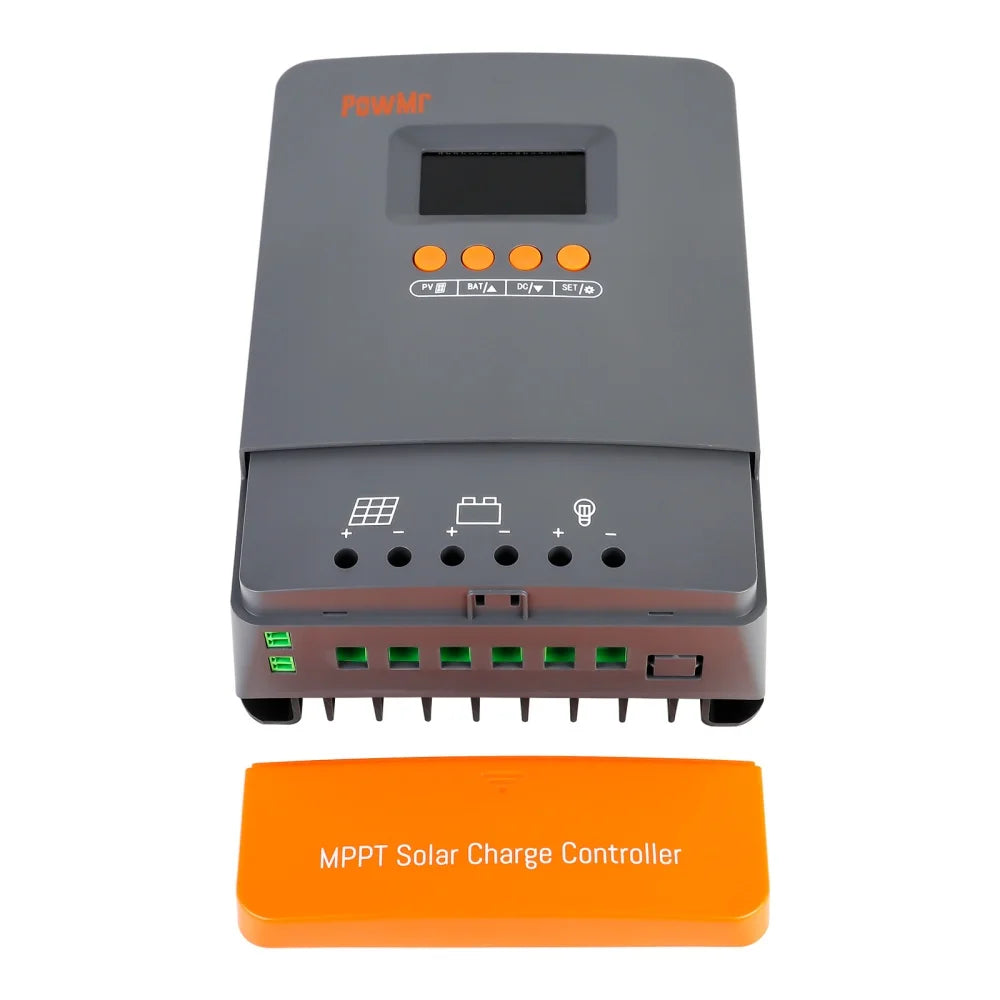

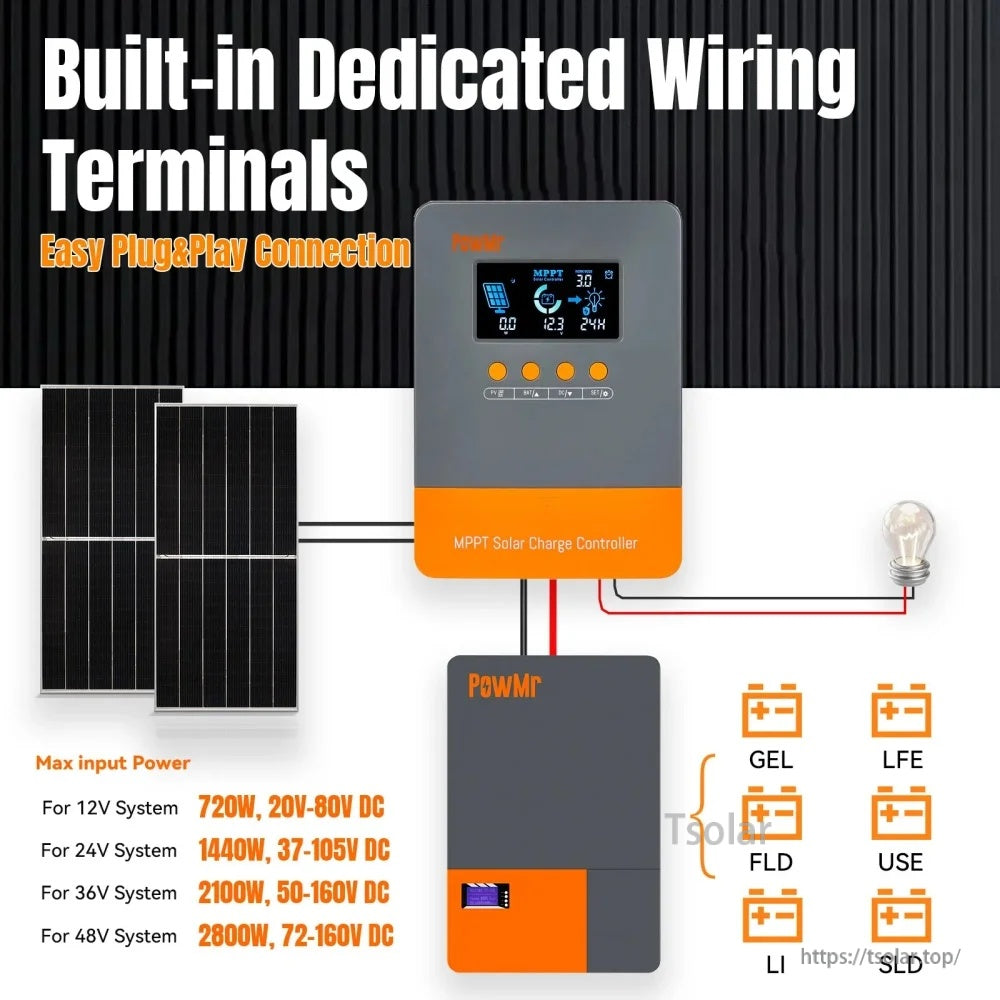

Built-in dedicated wiring terminals make PV, battery, and load connections straightforward for solar home and RV setups.

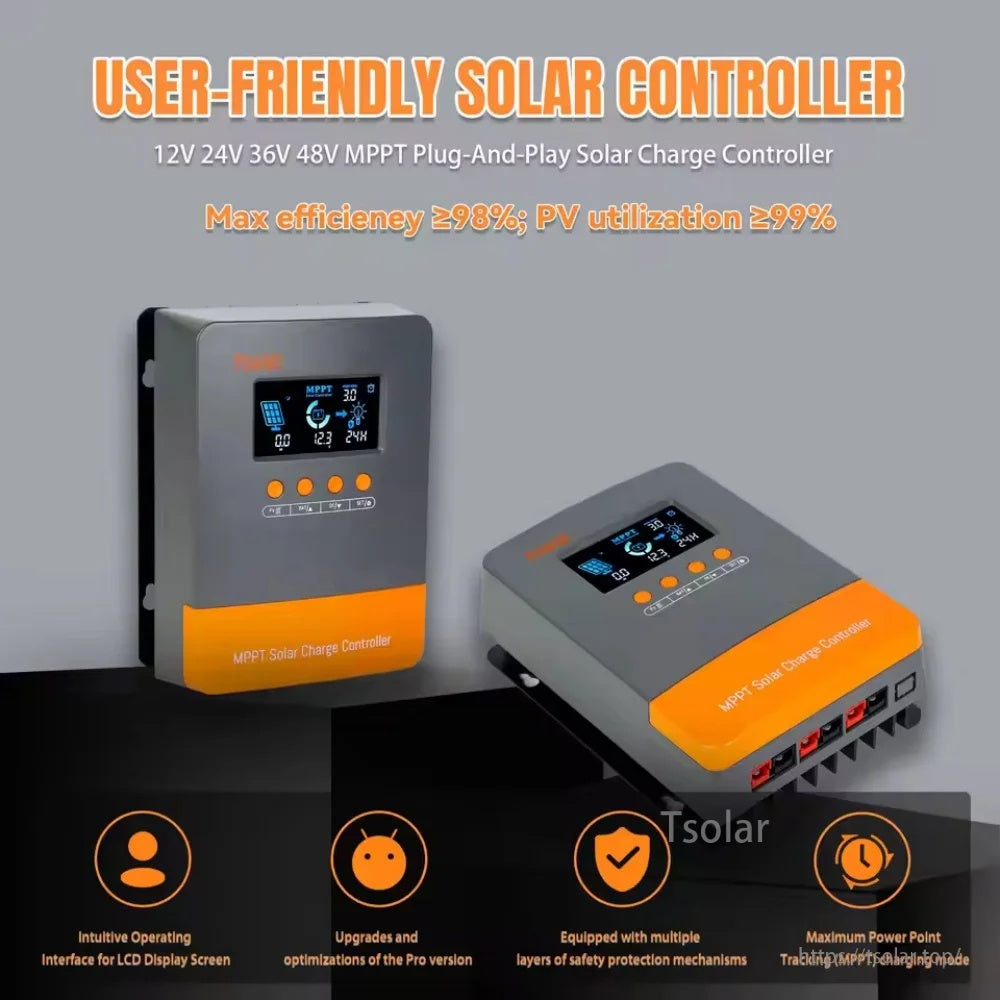

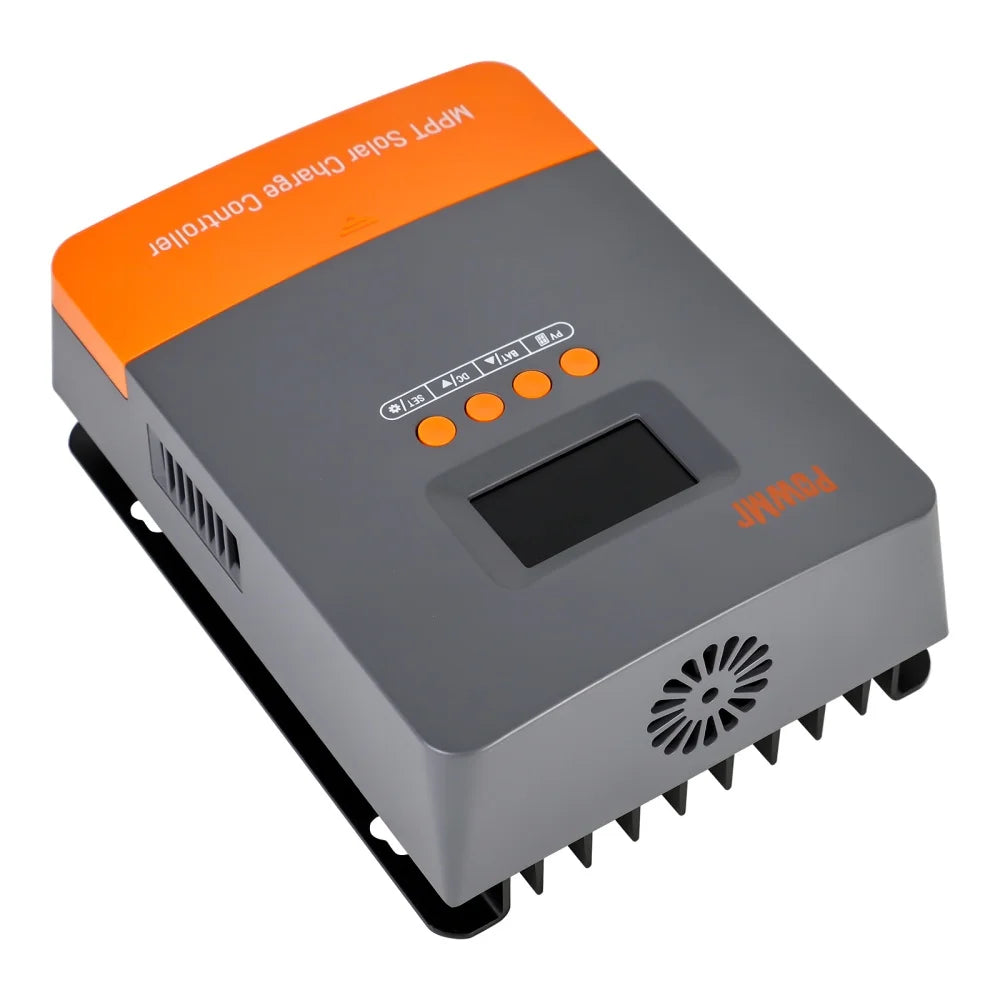

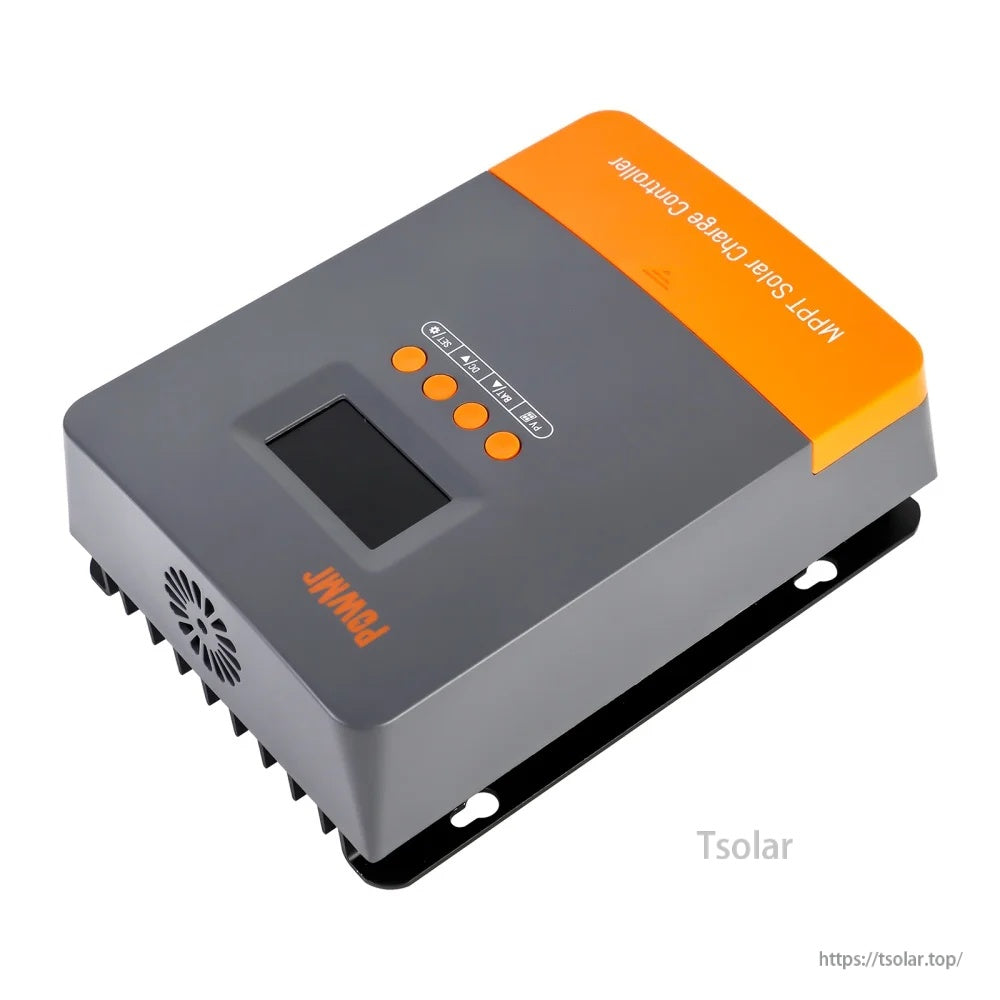

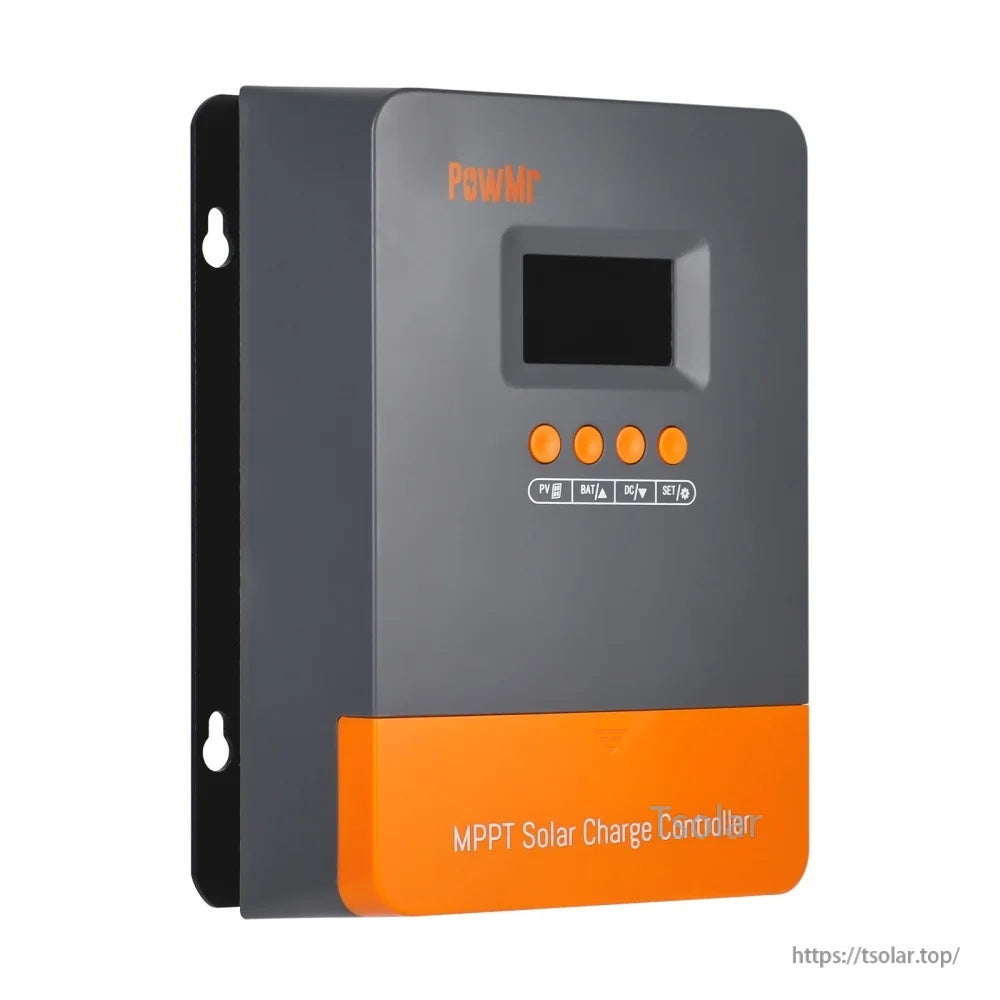

An LCD screen with simple button controls helps you review status and adjust charging settings quickly.

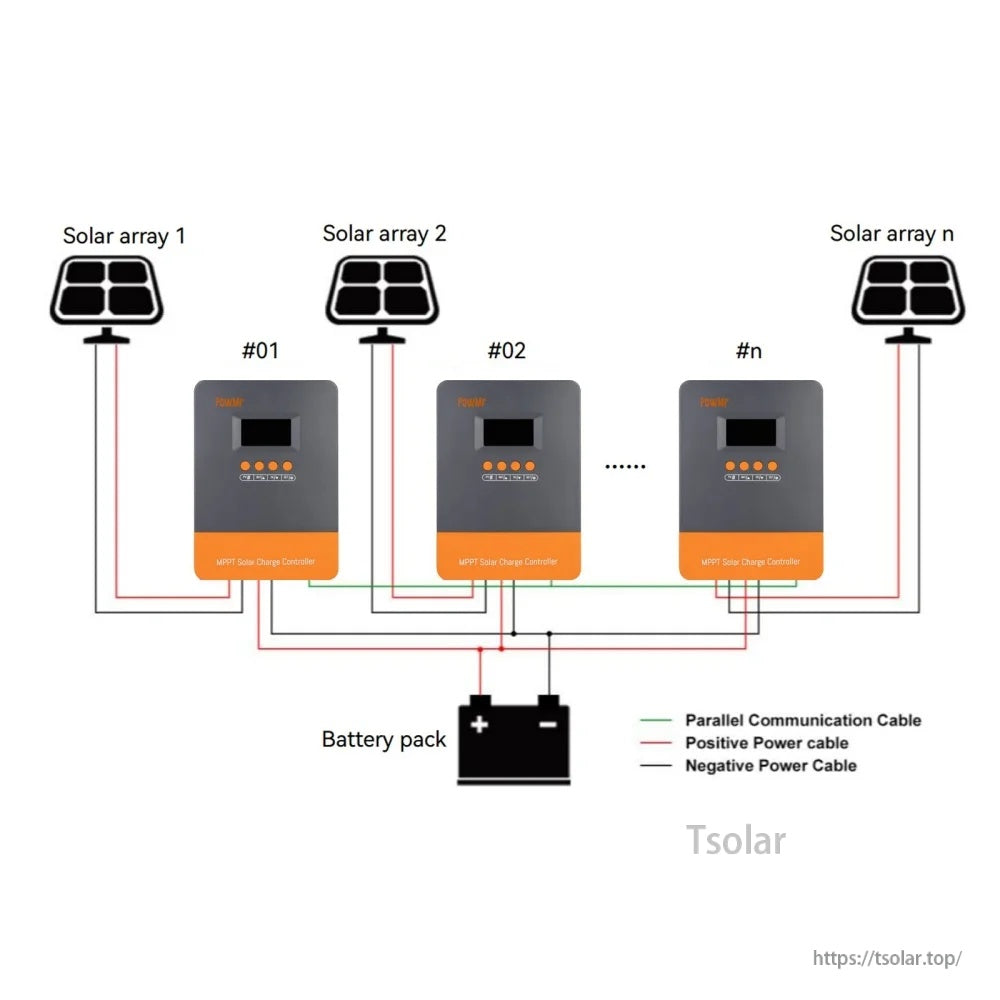

Parallel capability supports system expansion by linking multiple controllers to a shared battery bank (communication cable required).

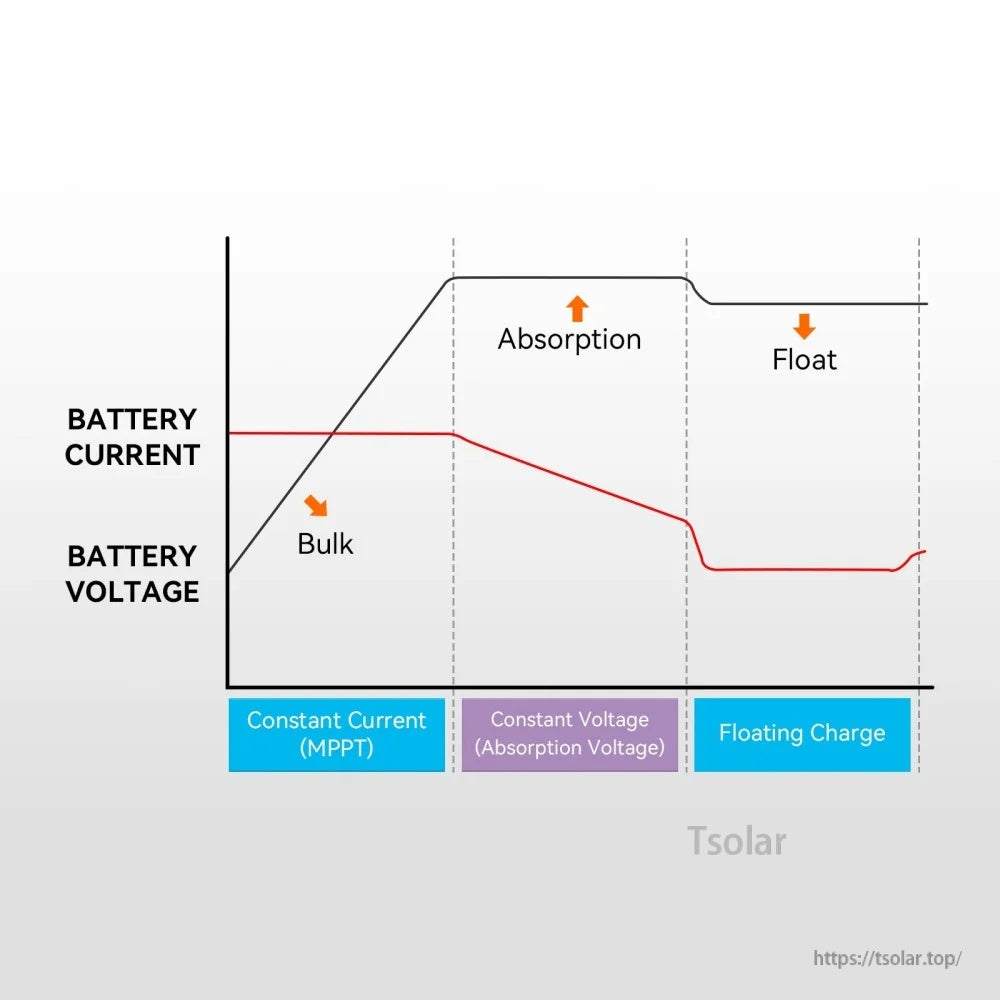

Three-stage charging (bulk, absorption, float) is designed to charge efficiently while supporting long-term battery maintenance.

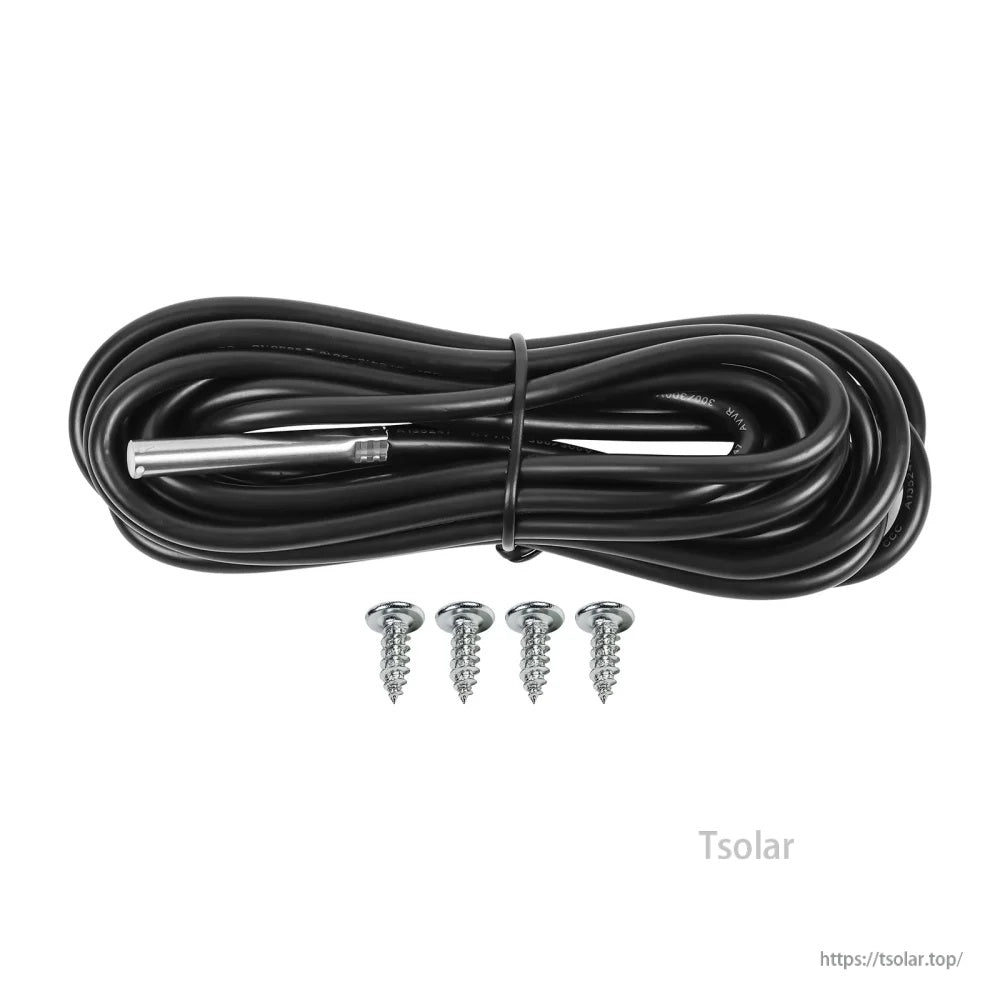

Included accessories support installation and temperature-based charging compensation.

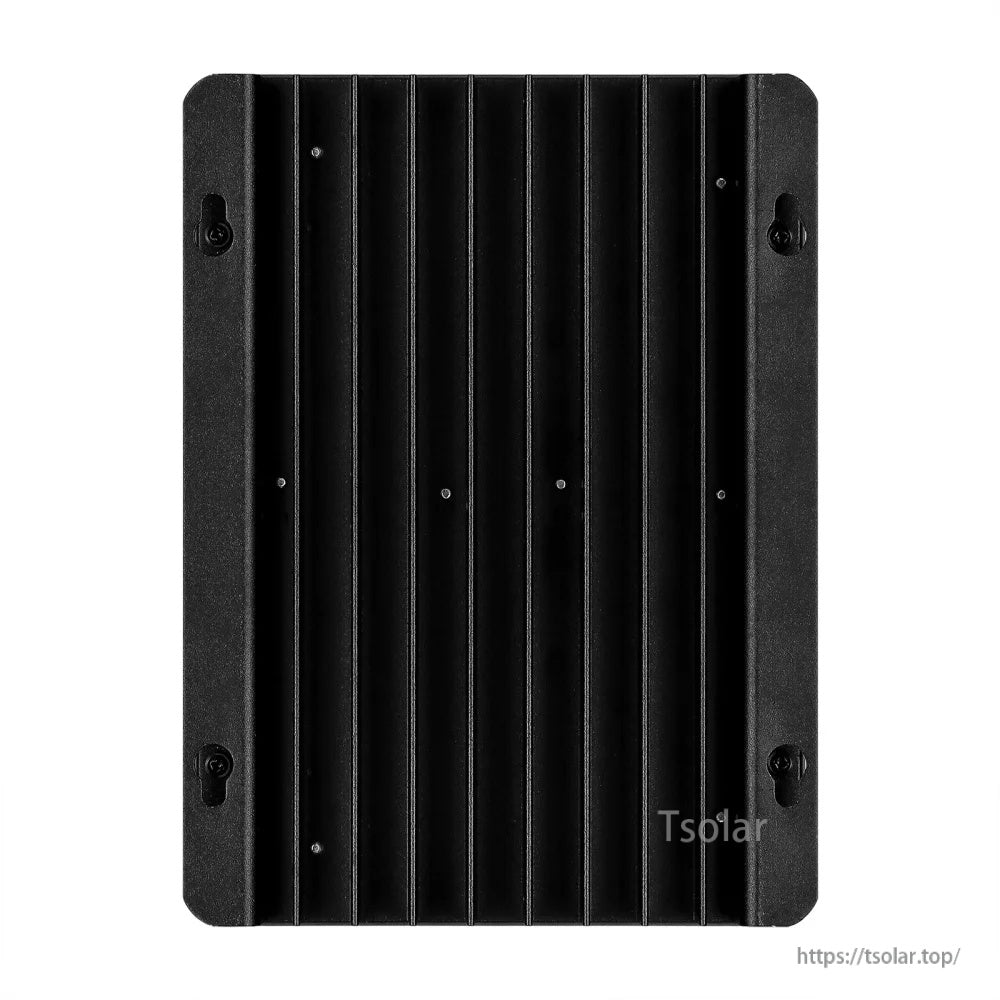

A rear heat dissipation plate helps manage heat under higher charging loads.
