Overview

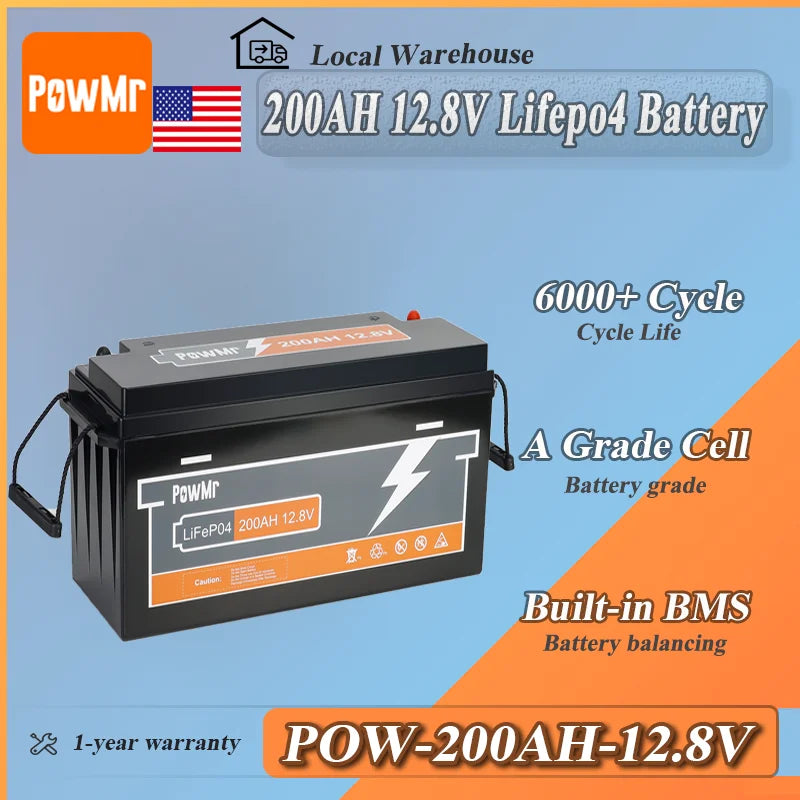

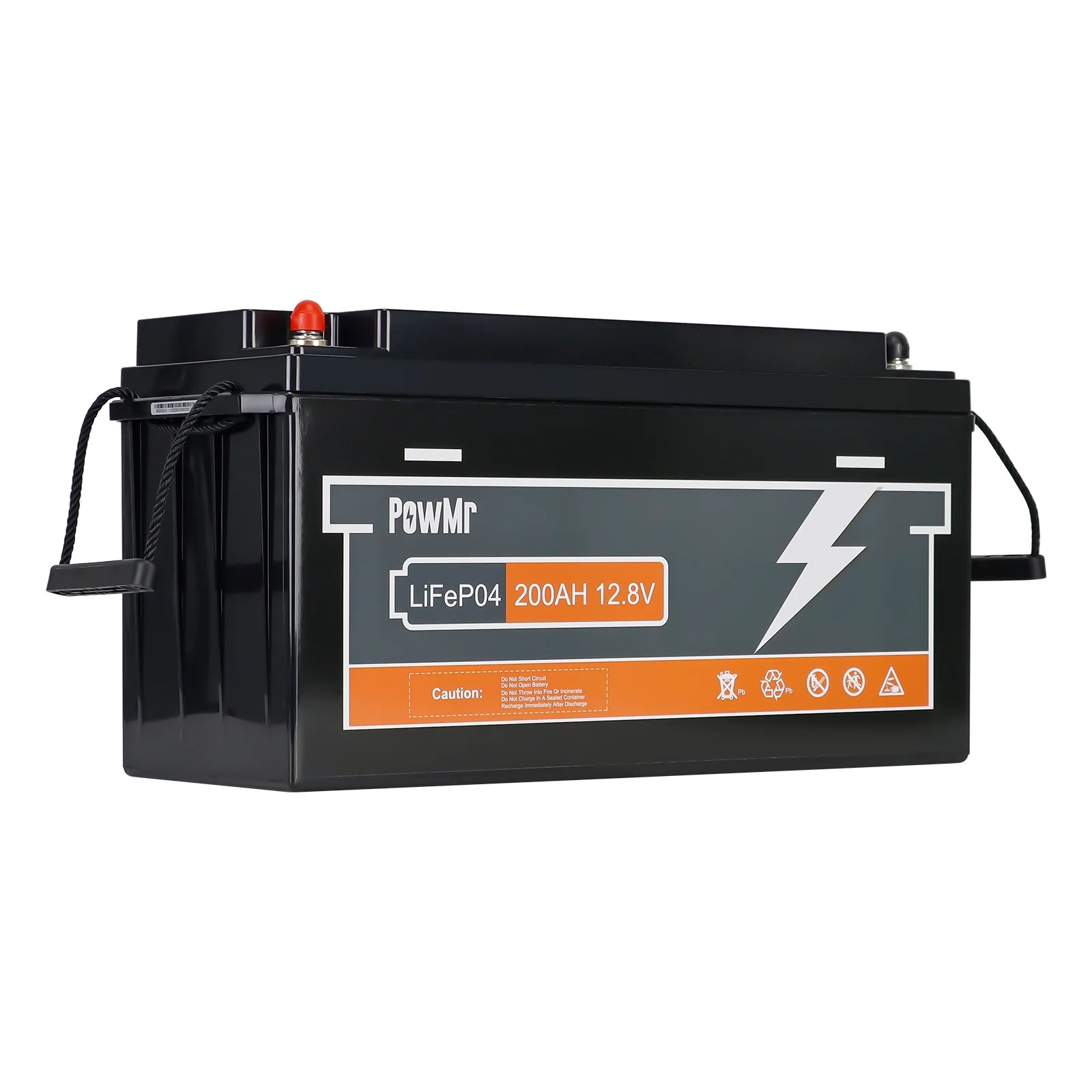

The PowMr POW-200AH-12.8V is a sealed LiFePO4 (lithium iron phosphate) battery rated at 12.8V 200Ah (2.56kWh). It uses Grade A cells and includes a built-in BMS for battery protection, making it suitable for lead-acid replacement and energy storage in RVs/vans, golf carts, UPS use, and photovoltaic/off-grid systems.
Key Features
- Long cycle life: 6000 cycles (0.2C, 25C @ 80% DOD); also shown as 6000+ cycle life.
- Fast charging support: max charging current 200A; recommended charging current 0.5C (100A) for optimal lifespan; fully charged in about 1 hour (at max charging current).

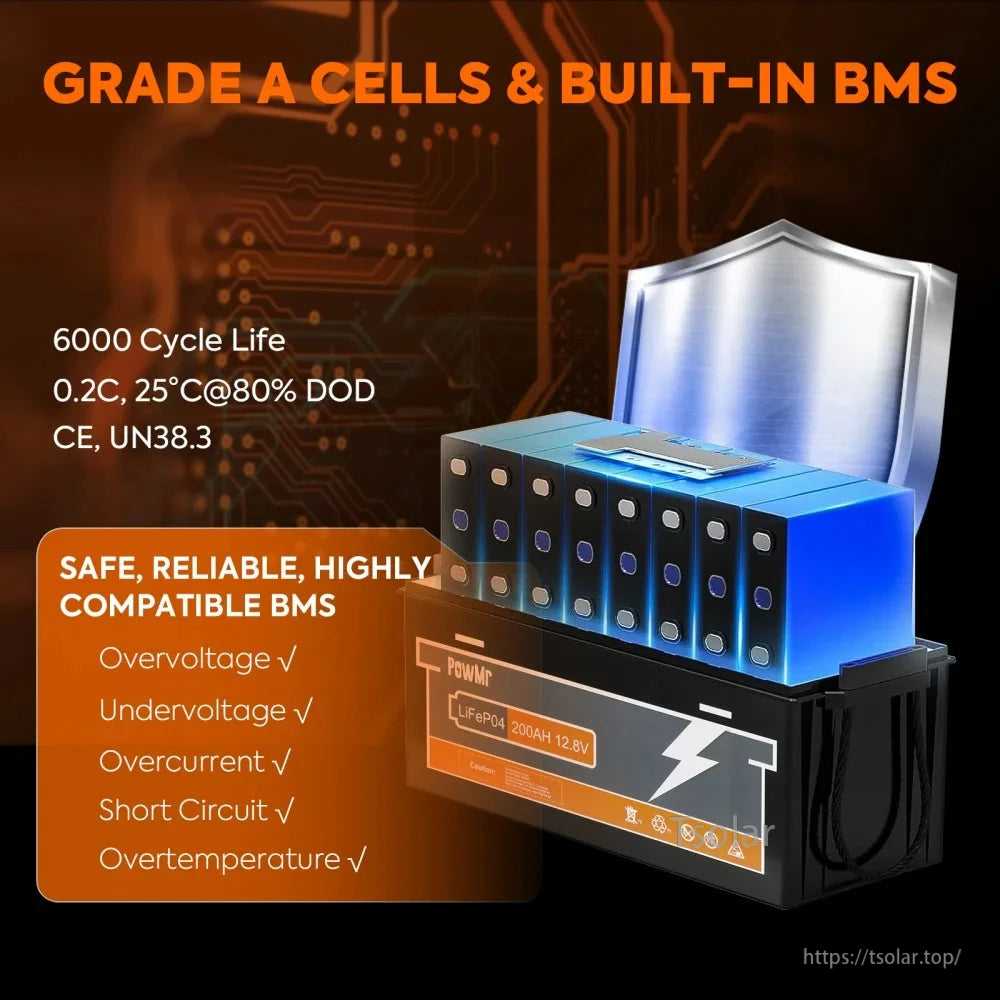

- Built-in BMS protection: overvoltage, undervoltage, overcurrent, short circuit, overtemperature.
- High output capability: max continuous current 200A.
- Expandable system configuration: up to 4 in series and 4 in parallel (up to 51.2V, 800Ah, 40.96kWh shown).
- Operating temperature: charge 0 to 55C; discharge -20 to 55C.
- Design/lifecycle info shown: 10-year design life; 5-year warranty.
For system compatibility and installation questions, contact https://tsolar.top/ or email service@tsolar.top.

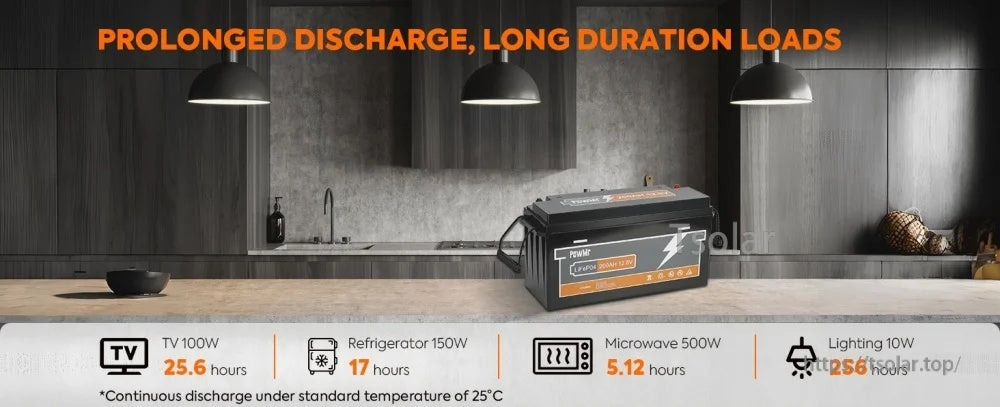

Runtime Examples (Continuous Discharge at 25C)
- TV 100W: 25.6 hours
- Refrigerator 150W: 17 hours
- Microwave 500W: 5.12 hours
- Lighting 10W: 256 hours
Specifications
| Brand | PowMr |
| Model Number | POW-200AH-12.8V |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah (2.56kWh) |
| Cycle Life | 6000 (0.2C, 25C @ 80% DOD) |
| BMS Built-in | Yes |
| Recommend Charge Voltage | 14V |
| Max Continuous Current | 200A |
| Max Charging Current (shown) | 200A |
| Recommended Charging Current (shown) | 0.5C (100A) |
| Max in Series / Parallel | 4 / 4 |
| Charge Temperature | 0 to 55C |
| Discharge Temperature | -20 to 55C |
| Case Material | ABS |
| Sealed Type | Sealed |
| Size | 48.4 x 17.1 x 24.1 cm |
| Weight | 20 kg |
| Terminal Torque | 8.5 Nm |
| Certification | CE |
| High-concerned Chemical | None |
| Use | UPS |
| Customized | Yes |
| Origin | Mainland China |
Applications
- RV and van house battery systems
- Golf carts (12V battery upgrade)
- UPS backup power
- Solar/photovoltaic energy storage and off-grid living systems
Details

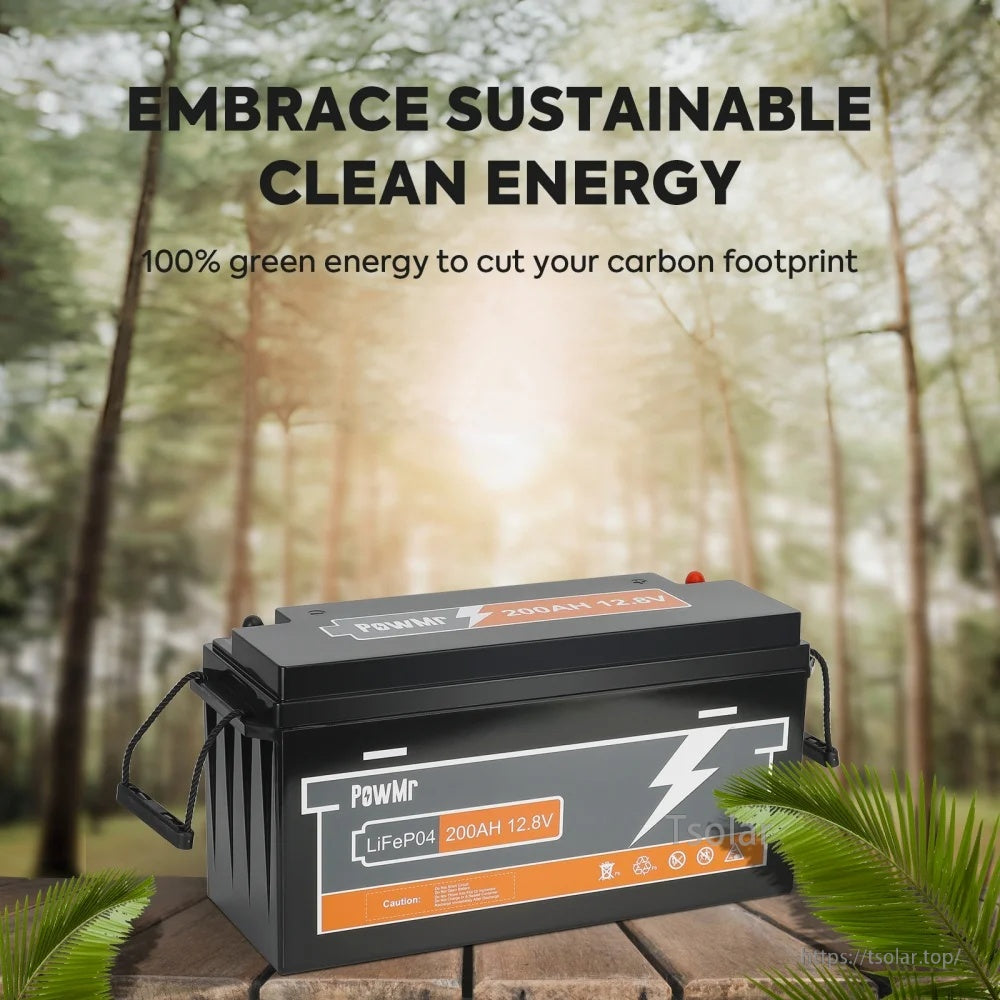

Built for reliable clean-energy storage, this 12.8V 200Ah LiFePO4 battery suits RVs, vans, golf carts, UPS systems, and solar setups.

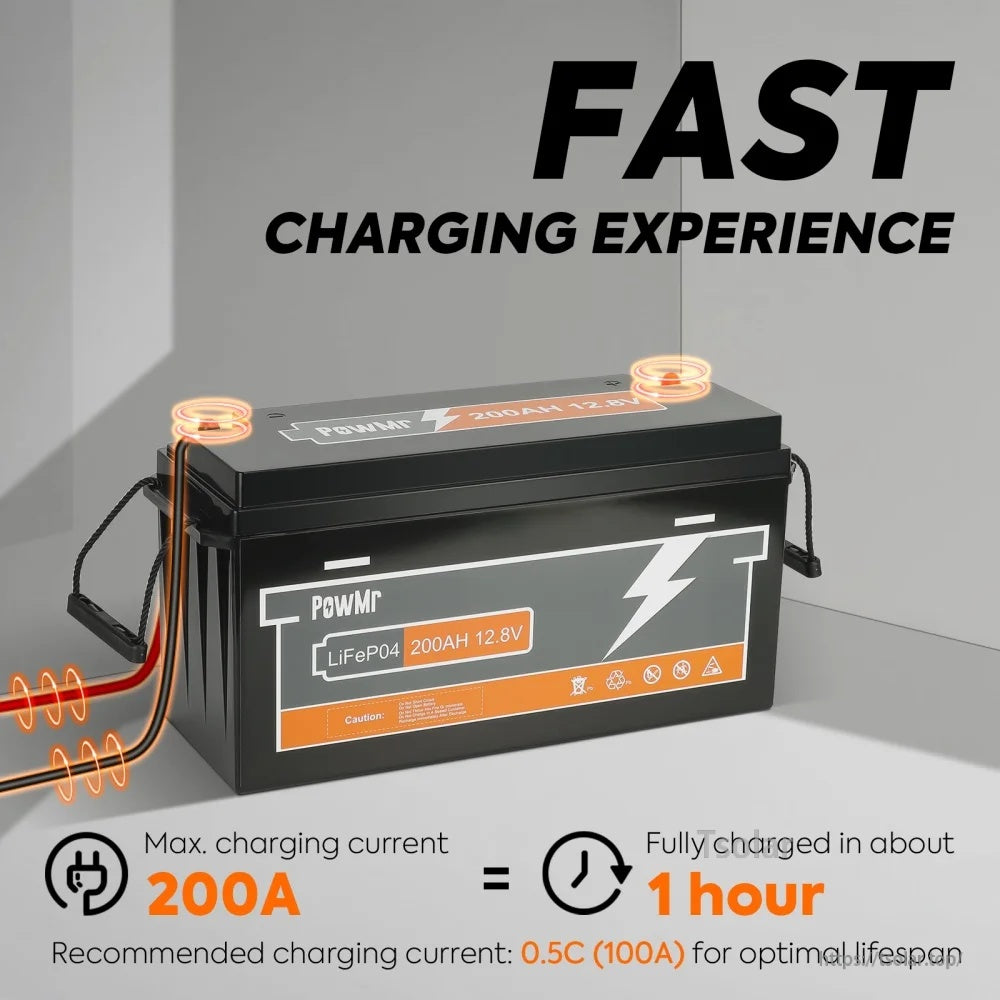

Fast-charging support helps reduce downtime, with up to 200A charging current and a recommended 0.5C (100A) rate for longevity.
An integrated BMS provides comprehensive protection against common electrical and thermal faults.

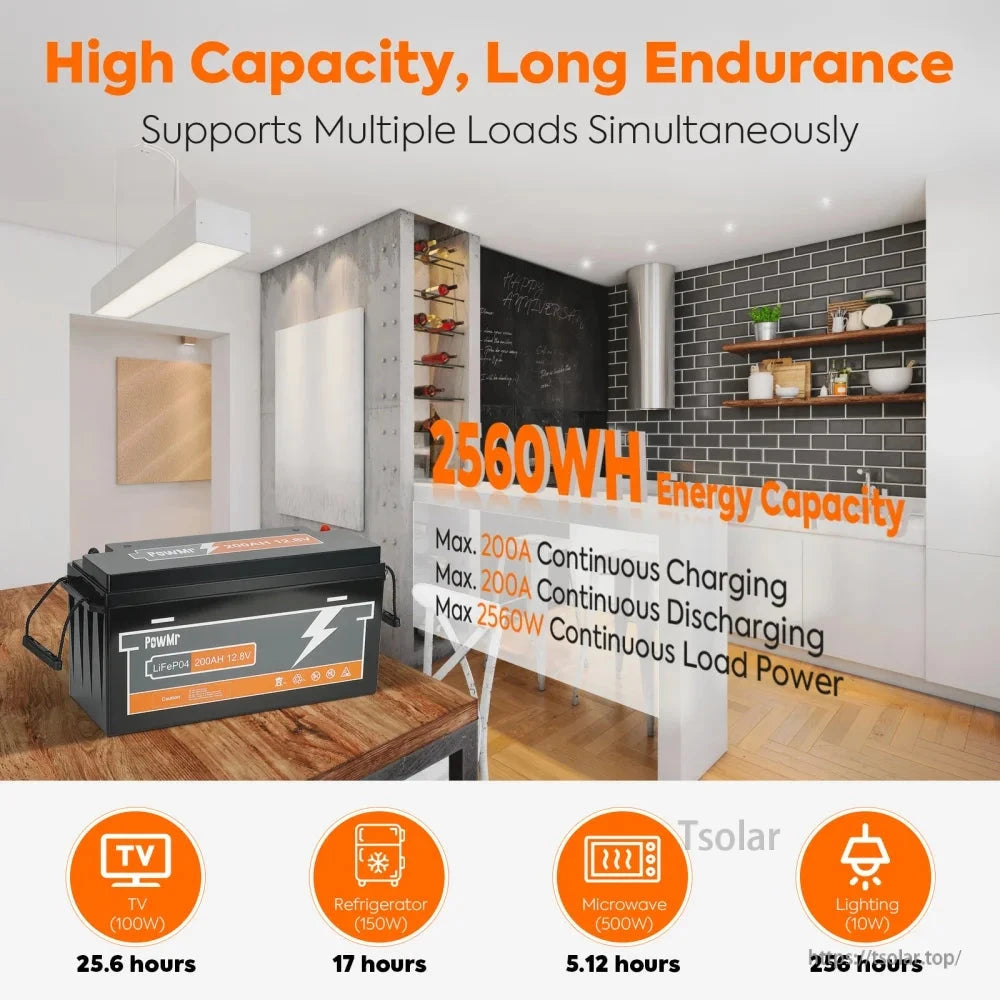

Typical runtime examples help estimate usage for everyday loads like TVs, refrigerators, microwaves, and lighting.

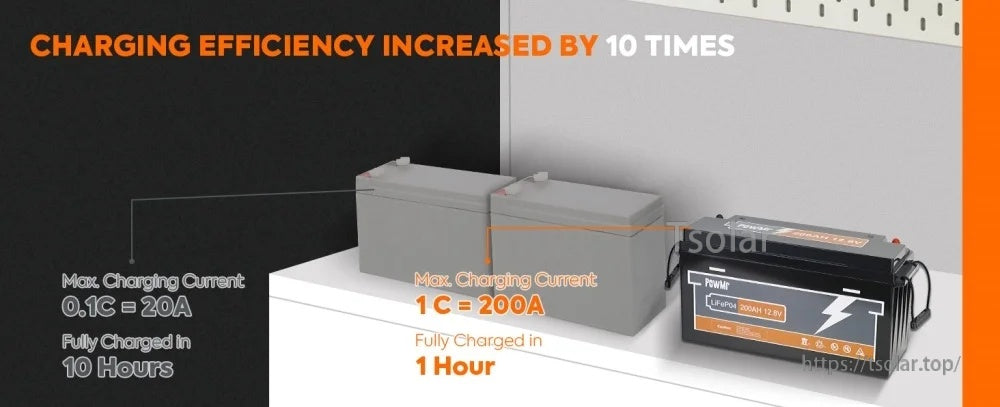

Higher charging current can significantly shorten recharge time when your charger and system are sized accordingly.
Long service life is supported by 6000+ cycle capability, a 10-year design life, and a 5-year warranty.

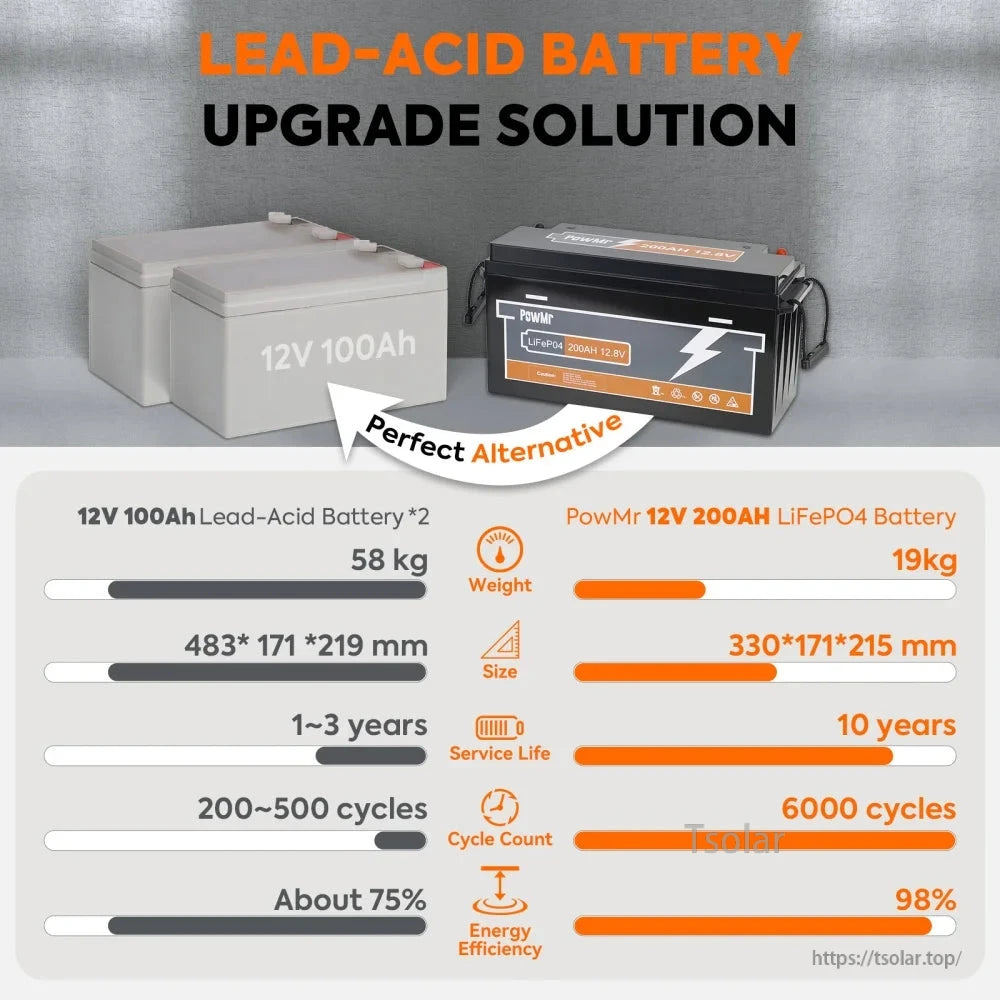

A practical drop-in alternative for upgrading 12V lead-acid battery banks in mobile and off-grid power systems.
Well-suited for 12V golf cart upgrades where lighter weight, faster charging, and built-in protection are priorities.

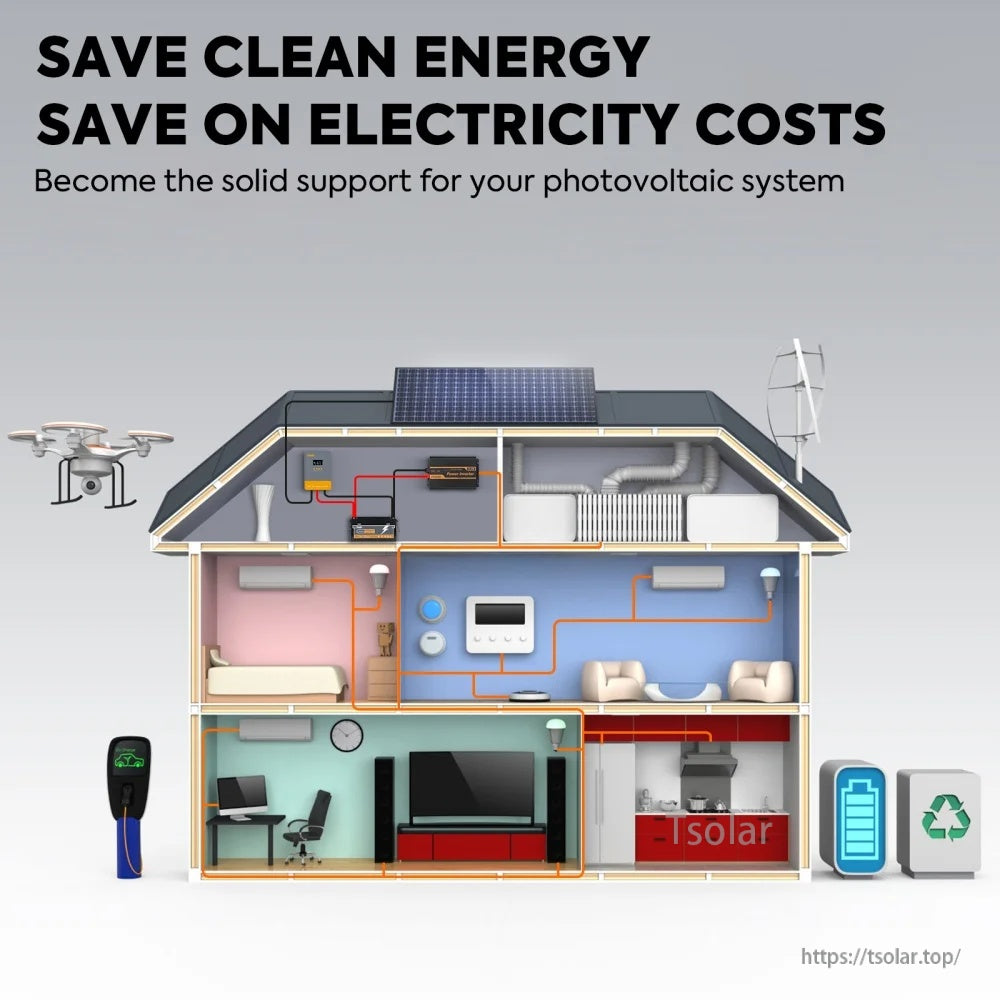

Ideal for photovoltaic energy storage to help increase self-consumption and reduce reliance on grid power.

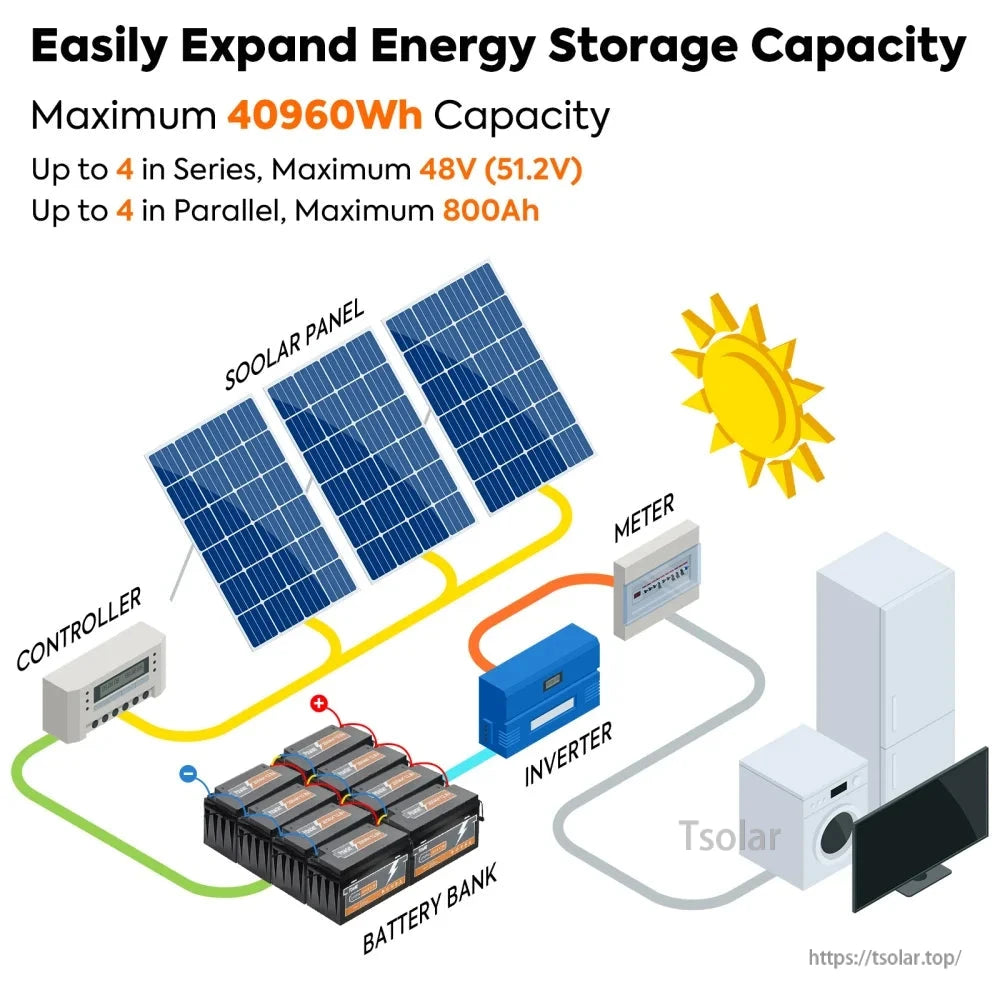

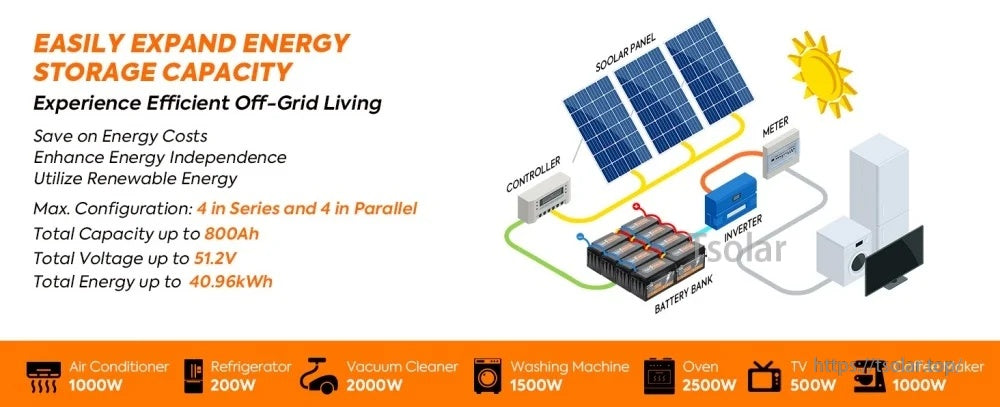

System expansion supports up to 4 in series and 4 in parallel for higher-voltage, higher-capacity battery banks.
