The PowMr POW-Boost 10A is an advanced MPPT solar charge controller designed for high-voltage battery systems (24V to 72V). It features boost charging capability, allowing it to increase the voltage from a low PV source (15–60V) to match higher system voltages. With up to 99.9% MPPT tracking efficiency, a three-stage charging algorithm, and wide compatibility with lithium, gel, and lead-acid batteries, it ensures safe, efficient, and intelligent battery charging in off-grid solar systems.
Key Features
-
Boost Voltage Charging: Perfect for systems where the PV input voltage is lower than the battery voltage. Supports boost charging across 24V/36V/48V/60V/72V systems.
-
High MPPT Efficiency: Up to 99.9% tracking and 98% peak conversion efficiency for maximum solar energy utilization.
-
Three-Stage Charging: Bulk, Boost, and Float charging modes to maximize battery life and performance.
-
Battery Compatibility: Works with LiFePO4, Gel, Flooded, and Lithium-ion batteries. Built-in adaptive logic tailors charging to battery type and state.
-
Protection Mechanisms: Reverse polarity protection, short circuit shutdown, over-temperature charging stop (≥85°C), and current limiting for safe operation.
-
Lithium Battery Activation: Can activate protected Li-ion batteries using solar input.
-
Low Self-Consumption: Less than 2W power usage during operation.
-
Rugged Build: IP32-rated protection, durable design, and fanless silent operation.
Technical Specifications
| Model | POW-Boost 10A |
|---|---|
| PV Input Voltage | 15–25V / 25–48V / 48–60V |
| PV Input Power | ≤150W / ≤250W / ≤400W |
| System Voltage | 24V/36V/48V/60V/72V |
| Charging Current | 10A |
| Battery Voltage Range | 20V – 88V |
| Charging Technology | MPPT (Maximum Power Point Tracking) |
| Charge Algorithm | 3-Stage: Bulk, Boost, Float |
| Self-Consumption | <2W |
| Operating Temp. | -35°C to +65°C |
| Humidity Tolerance | ≤95% RH |
| Protection Rating | IP32 |
| Dimensions | 140 x 85 x 50 mm |
| Weight | 305 g |
Built-in Protections
| Protection Type | Description |
|---|---|
| Reverse Polarity | No damage, safe reconnection allowed |
| Max Charging Current Limit | Prevents battery damage from overcurrent |
| Short Circuit | Output shutdown for 1 minute |
| Overheating | Charging halts at 85°C, resumes at 75°C |
Fault Code Troubleshooting
| Code | Cause | Solution |
|---|---|---|
| 60 | Temperature Too High | Wait until temperature drops to resume operation |
| 63 | High Battery Voltage | Recheck battery voltage; consider disconnecting PV |
| 71 | High PV Voltage | Reconfigure PV wiring or reduce input voltage |
| 73 | Excessive Charging Current | Reduce number of PV panels connected |
Applications
Ideal for off-grid solar setups in cabins, RVs, boats, and remote communication systems where PV voltage is limited but battery systems require high-voltage charging. Especially useful for 24V to 72V systems where panel configuration flexibility is limited.
Details

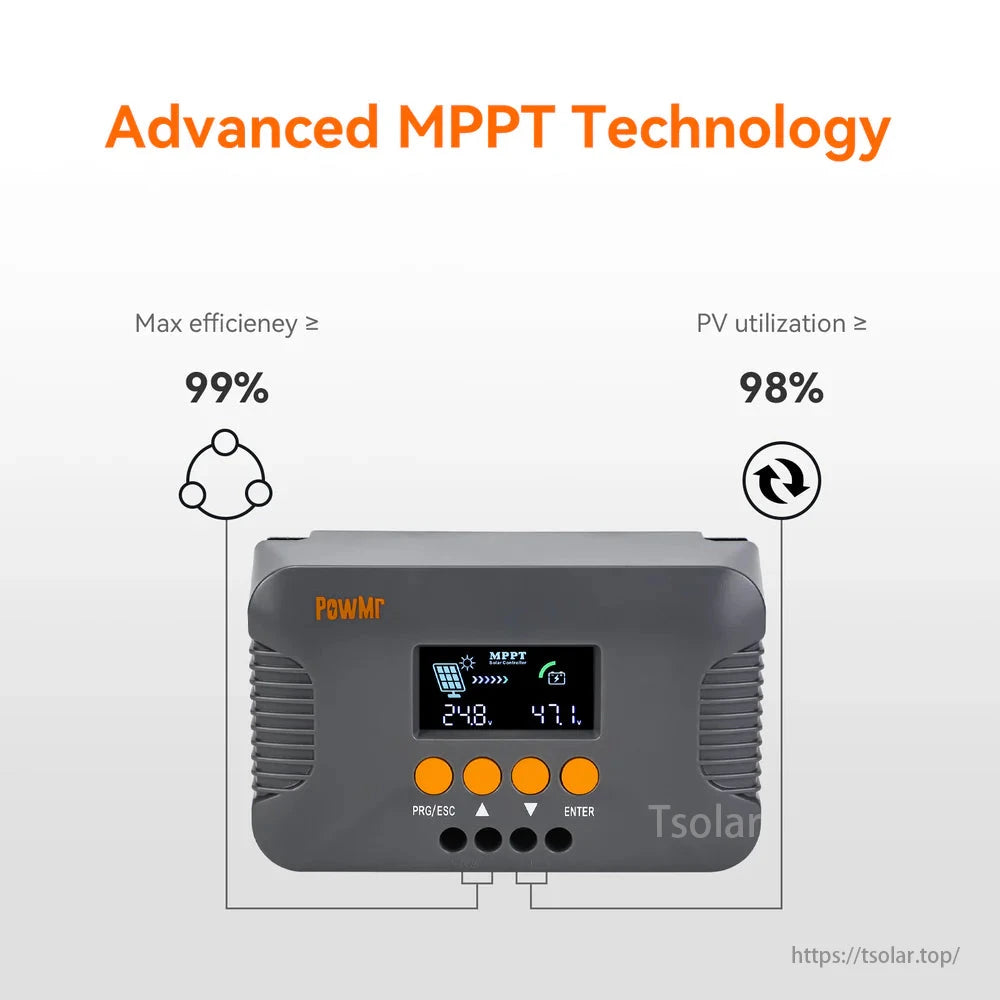

PowMr MPPT Solar Charge Controller: 99% max efficiency, 98% PV utilization.
Battery charging stages: Bulk, Absorption, Float. Current and voltage behavior during each phase illustrated.
PowMr POW-Boost 10A MPPT Solar Charge Controller, compatible with 24V/36V/48V/60V/72V systems, featuring GEL, FLD, SLD, LFE, USE, LI modes.
PowMr POW-Boost 10A MPPT Solar Charge Controller offers short circuiting, reverse current, overcharging, over-discharging, reverse polarity protection, and overload features.
POW-Boost 10A MPPT solar charge controller. PV input: 15-60V, power ≤400W. System voltage: 24-72V. Charging technology: MPPT, 3-stage algorithm. Operating temp: -35°C to +65°C. Dimensions: 140x85x50mm, weight: 305g.

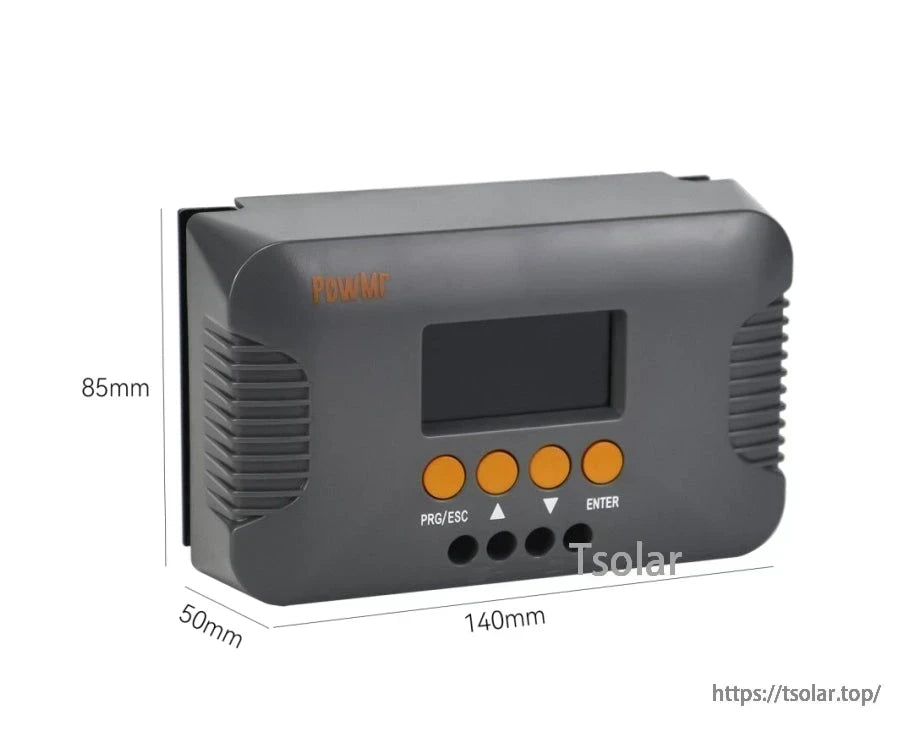

PowMr POW-Boost 10A MPPT Solar Charge Controller with LCD display.
