Overview

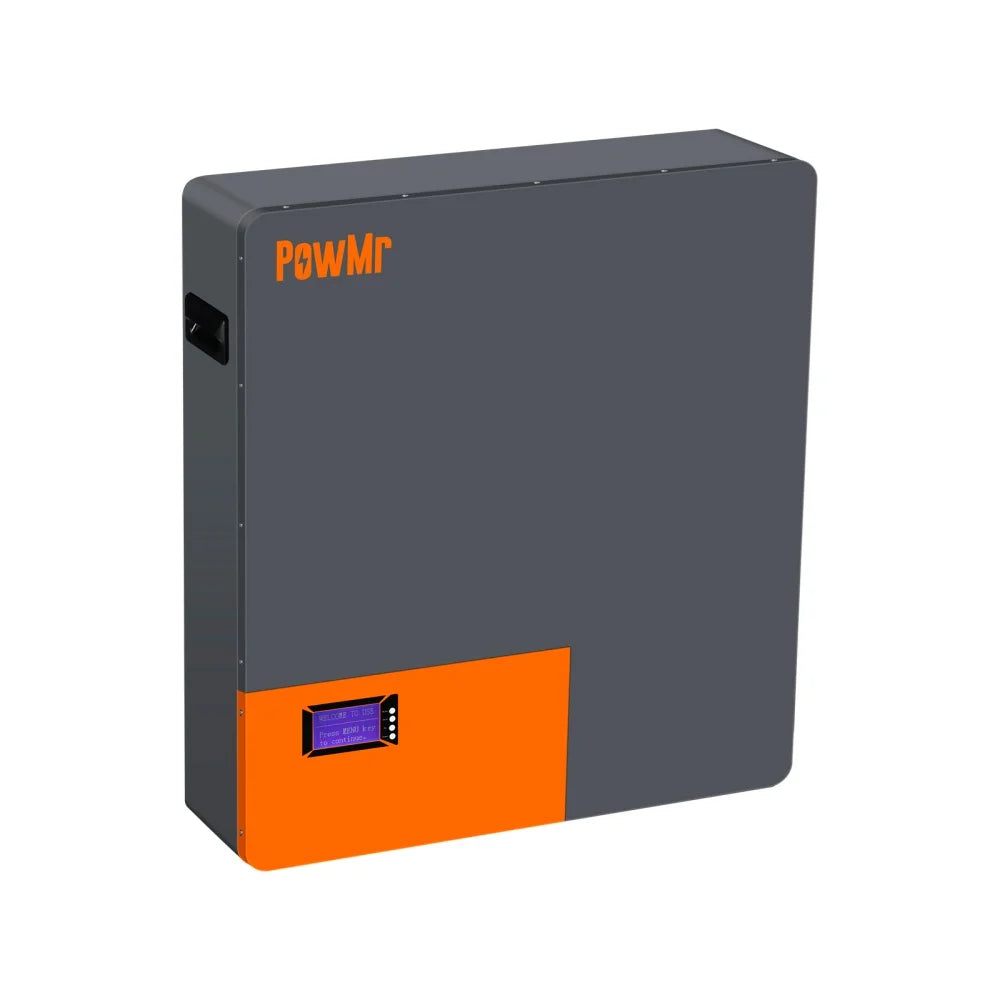

The PowMr POW-LIO48200-16S is a wall-mounted 51.2V 200Ah LiFePO4 battery with 10.24Kwh nominal capacity for energy storage applications, including powering loads such as a fridge. It features an LCD display and supports parallel expansion up to 16 units, with RS232/RS485/CAN and dry contact ports for communication.
Key Features
- LiFePO4 (Lithium Iron) battery chemistry
- Battery charging current: 150A fast charging (max. charge current stated as 150A)
- Cycle life: 6000+ (more than 6000 life cycles stated at 80% depth of discharge (DOD))
- Parallel capability: up to 16 units; real-time monitoring is stated
- LCD display with menu navigation (welcome screen text displayed: “WELCOME TO USE --- PRESS MENU KEY TO CONTINUE.”)

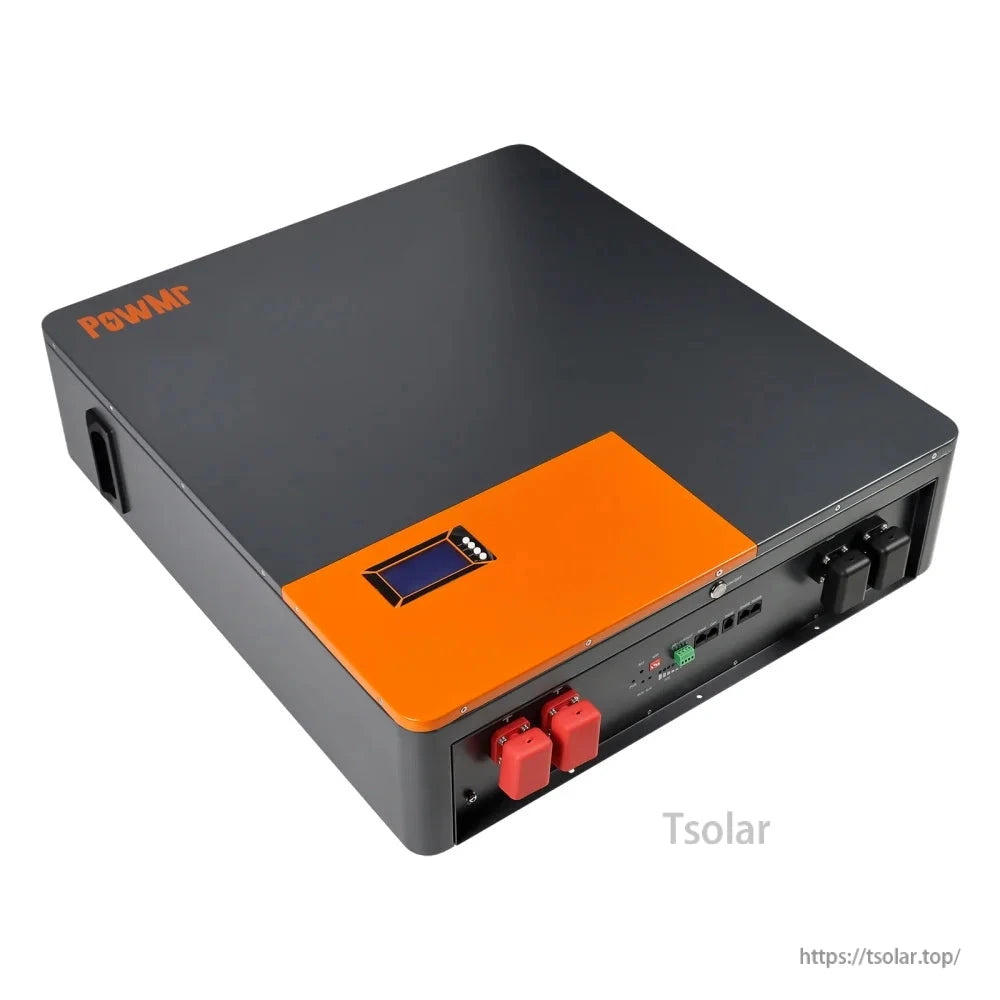

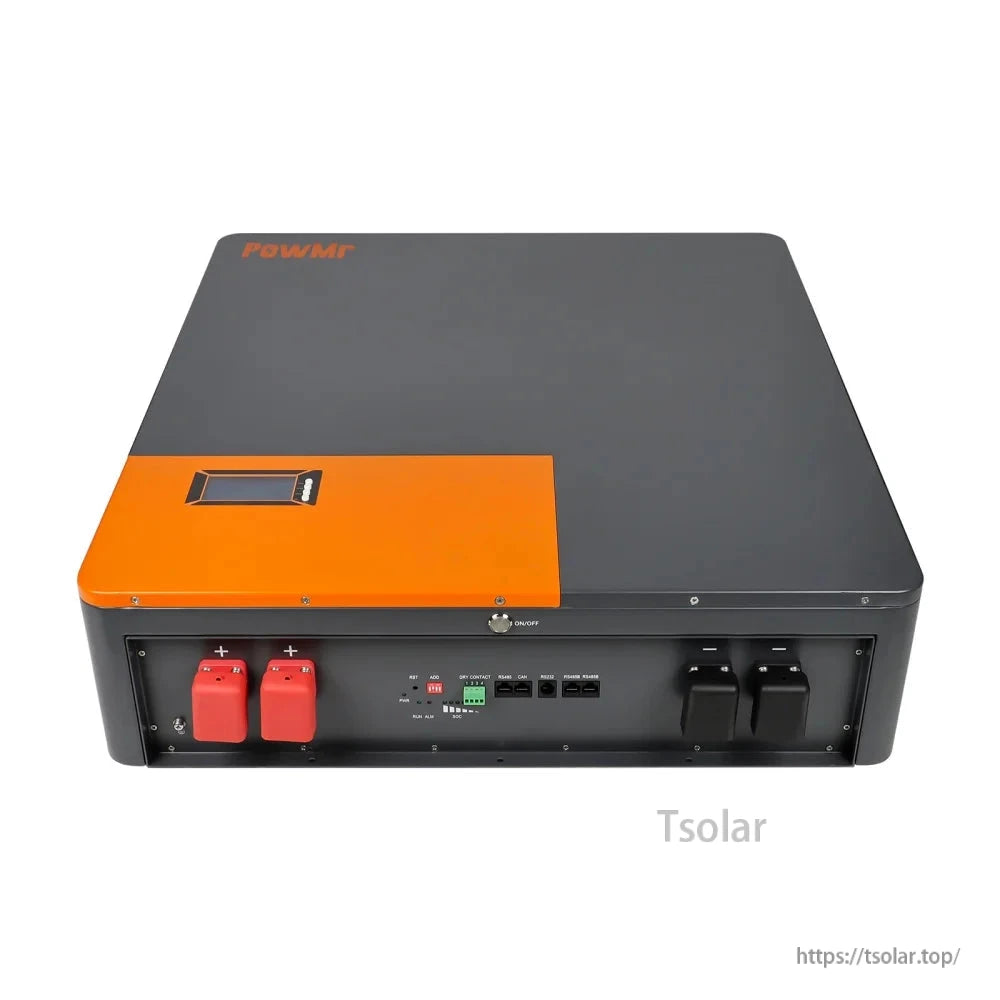

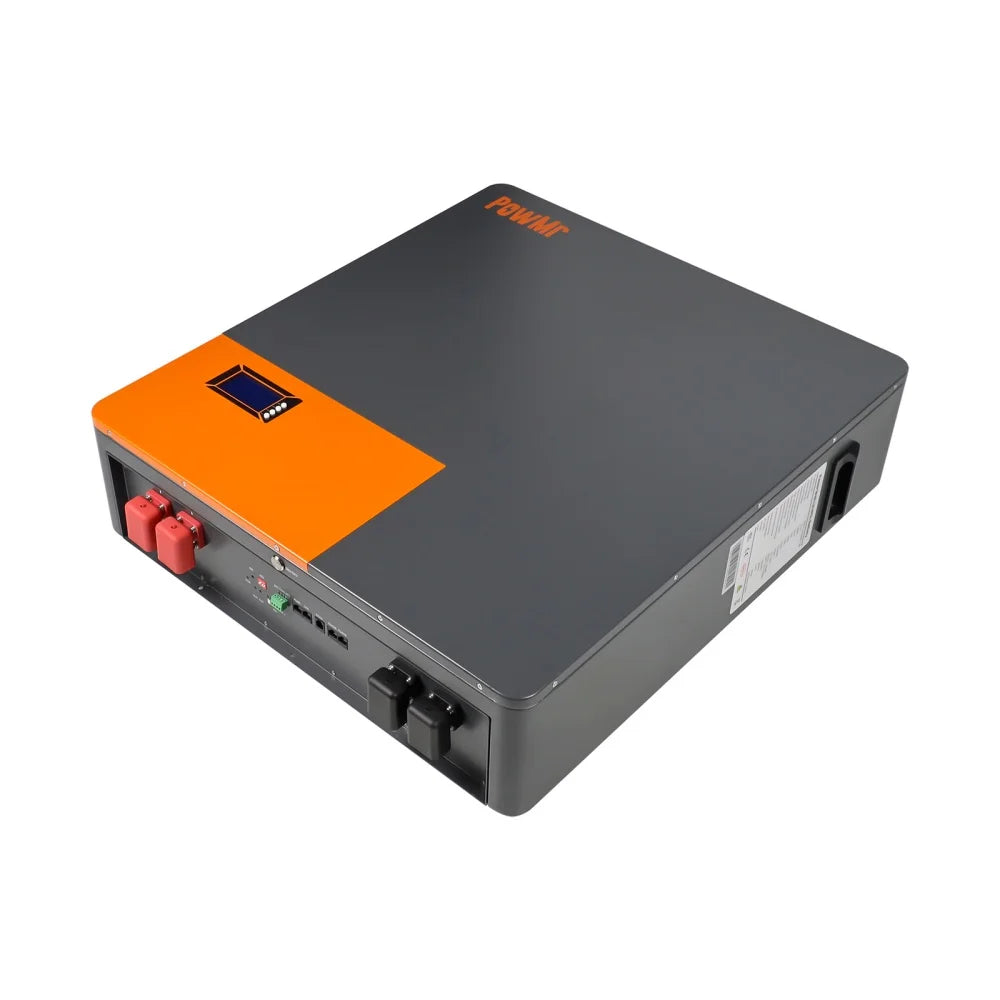

- Communication interfaces: RS232 / RS485 / CAN / dry contact ports

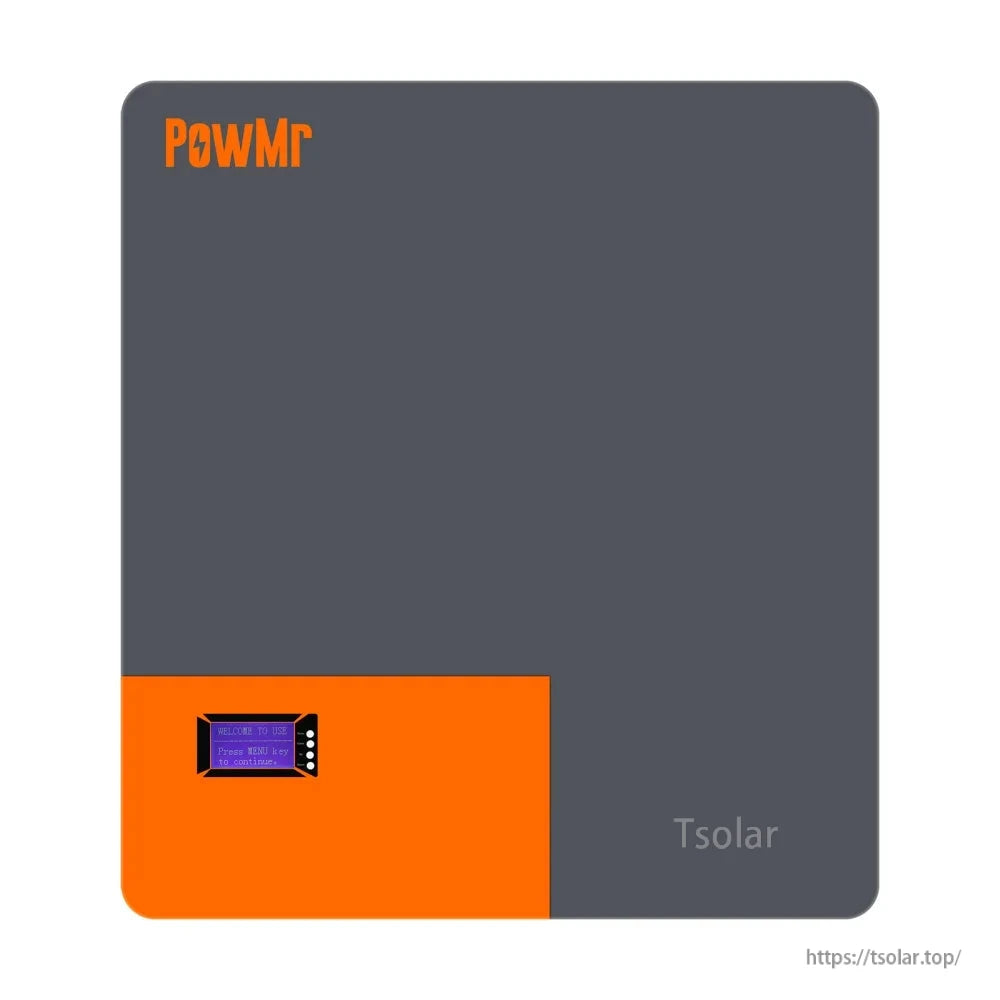

- Wall mounted design
For installation, integration, and inverter compatibility questions, contact customer support at service@tsolar.top or https://tsolar.top/.

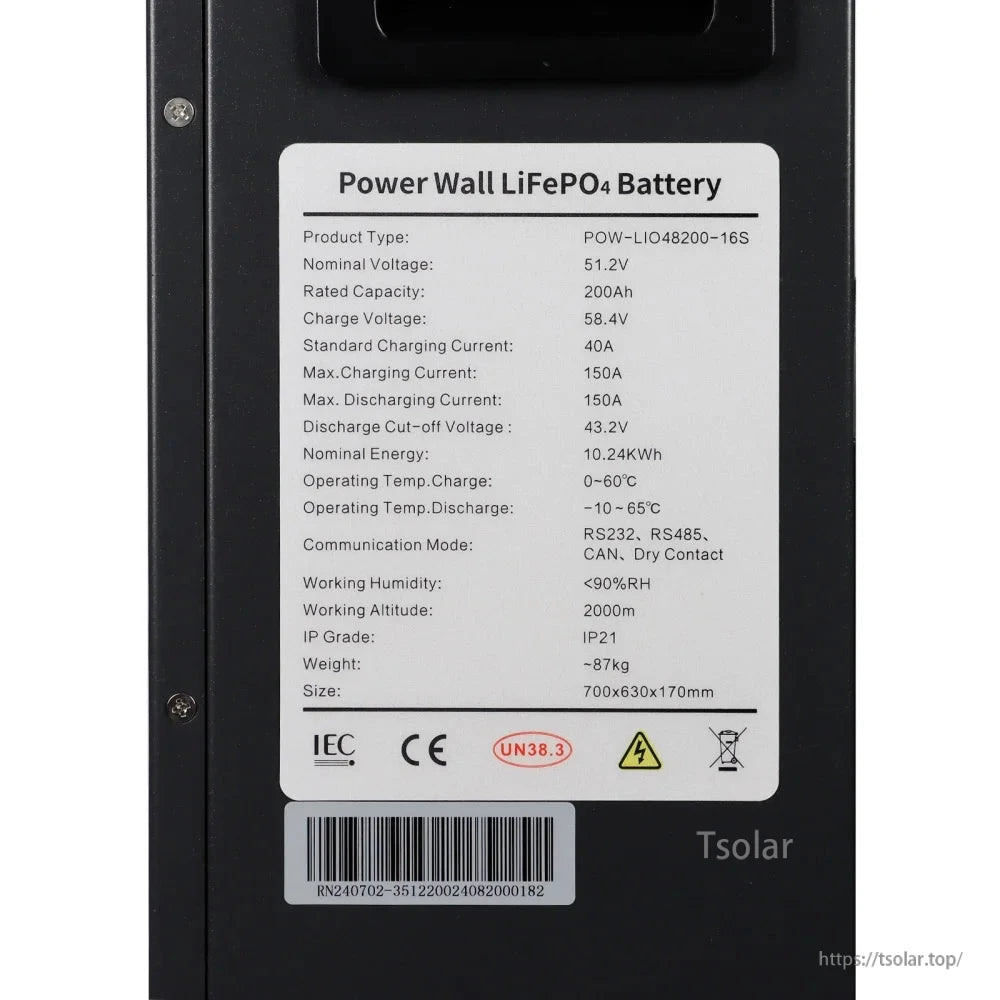

Specifications
| Brand | PowMr |
| Model Number | POW-LIO48200-16S |
| Battery Type | Lithium Iron |
| Chemistry / Type | LiFePO4 |
| Battery Voltage | 51.2V |
| Capacity | 200Ah |
| Battery Capacity | 10.24Kwh |
| Nominal Capacity | 10.24Kwh |
| Battery Cell Grade | Grade A |
| Cycle Life | 6000+ |

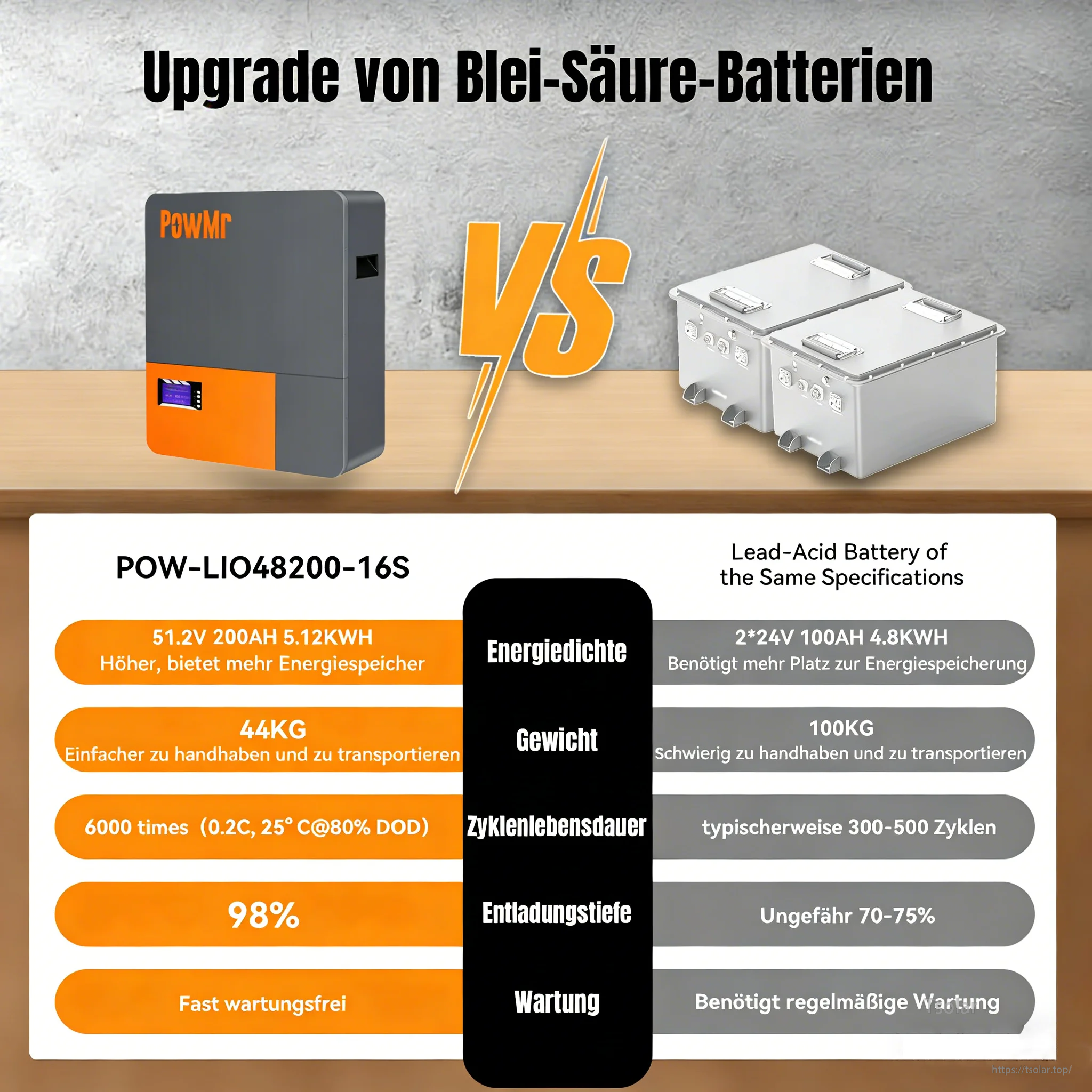

| Depth of Discharge (DOD) | 80% DOD referenced for cycle-life statement; 98% is also stated |
| Battery Charging Current | 150A fast charging |
| Recommended Charge Current | 0.4C (40A) for optimal lifespan (stated) |
| Full Charging Time | 1.0 hours (stated) |
| Parallel | Up to 16 units |
| Communication | RS232/RS485/CAN/dry contact ports |
| Feature | LCD Display |
| Mounting | Wall mounted |
| Weight | 115kg |
| Size | 700x630x170mm |
| Certification | CE |
| High-concerned Chemical | None |
| Application | Fridge |
| Replacement Battery | Yes |
| Set Type | Batteries Only |
| Battery Number | 1 |
| Connection | Others |
| Origin | Mainland China |

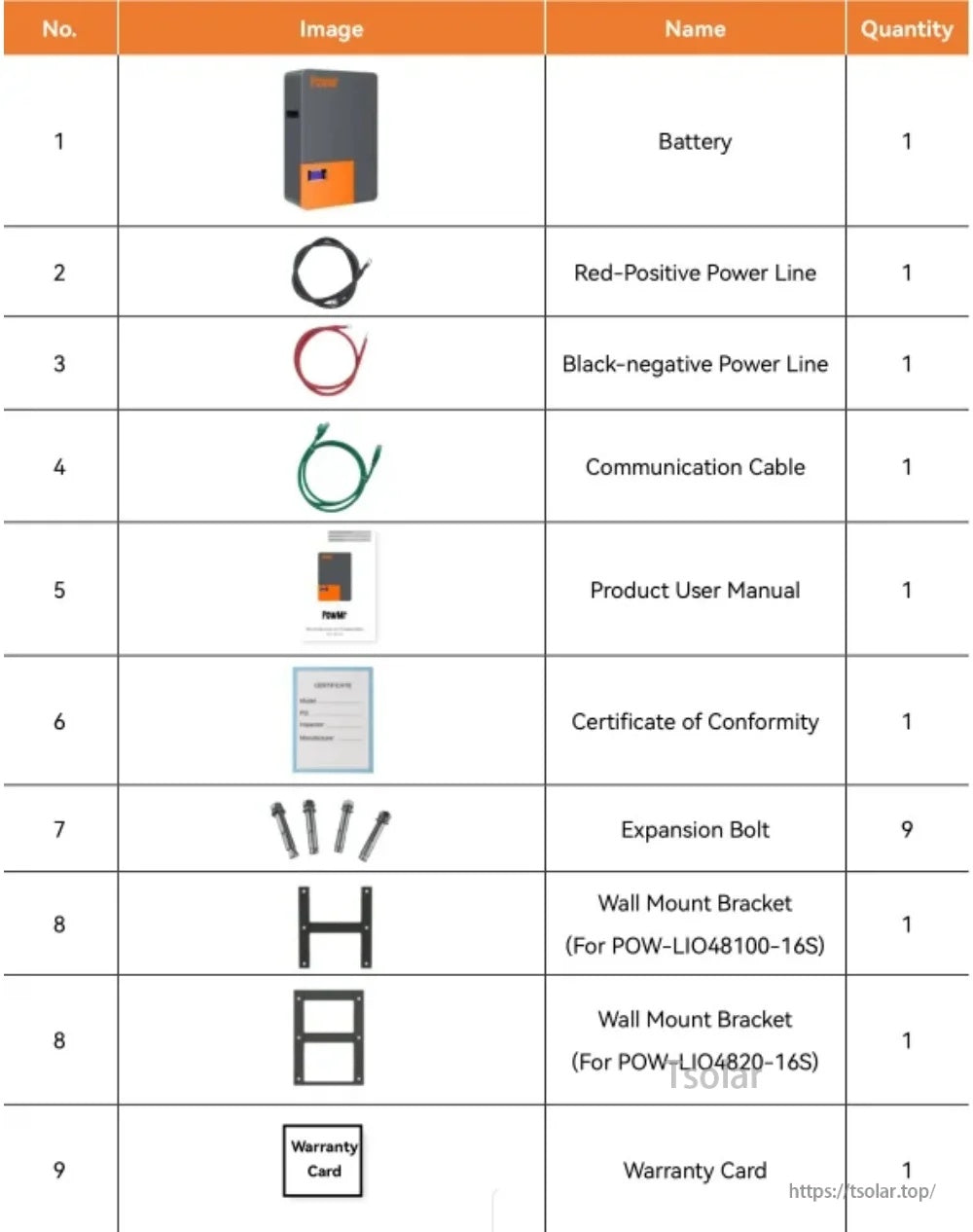

What’s Included
- Battery x 1
- Red-Positive Power Line x 1
- Black-negative Power Line x 1
- Communication Cable x 1
- Product User Manual x 1
- Certificate of Conformity x 1
- Expansion Bolt x 9
- Wall Mount Bracket (For POW-LIO48100-16S) x 1
- Wall Mount Bracket (For POW-LIO4820-16S) x 1
- Warranty Card x 1
Applications
- Home energy storage and backup during power outages
- PV systems (solar energy storage)
- RVs
- Yachts
- Running essential loads such as a fridge
Details
Add reliable home or off-grid backup with a wall-mounted 51.2V 200Ah LiFePO4 battery built for compact energy storage.

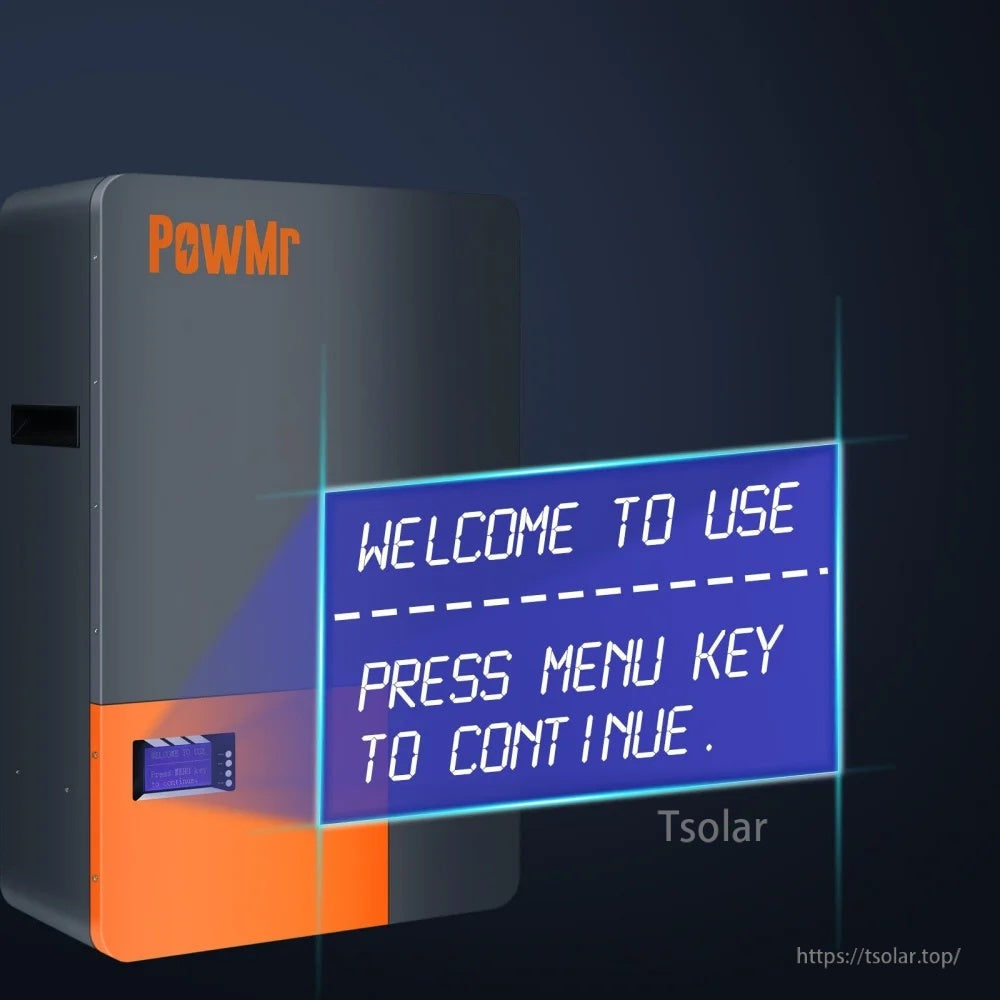

The built-in LCD menu provides quick access to operating status and basic settings during installation and use.
Support fast charging up to 150A, with a recommended 0.4C (40A) charge rate for optimal long-term lifespan.

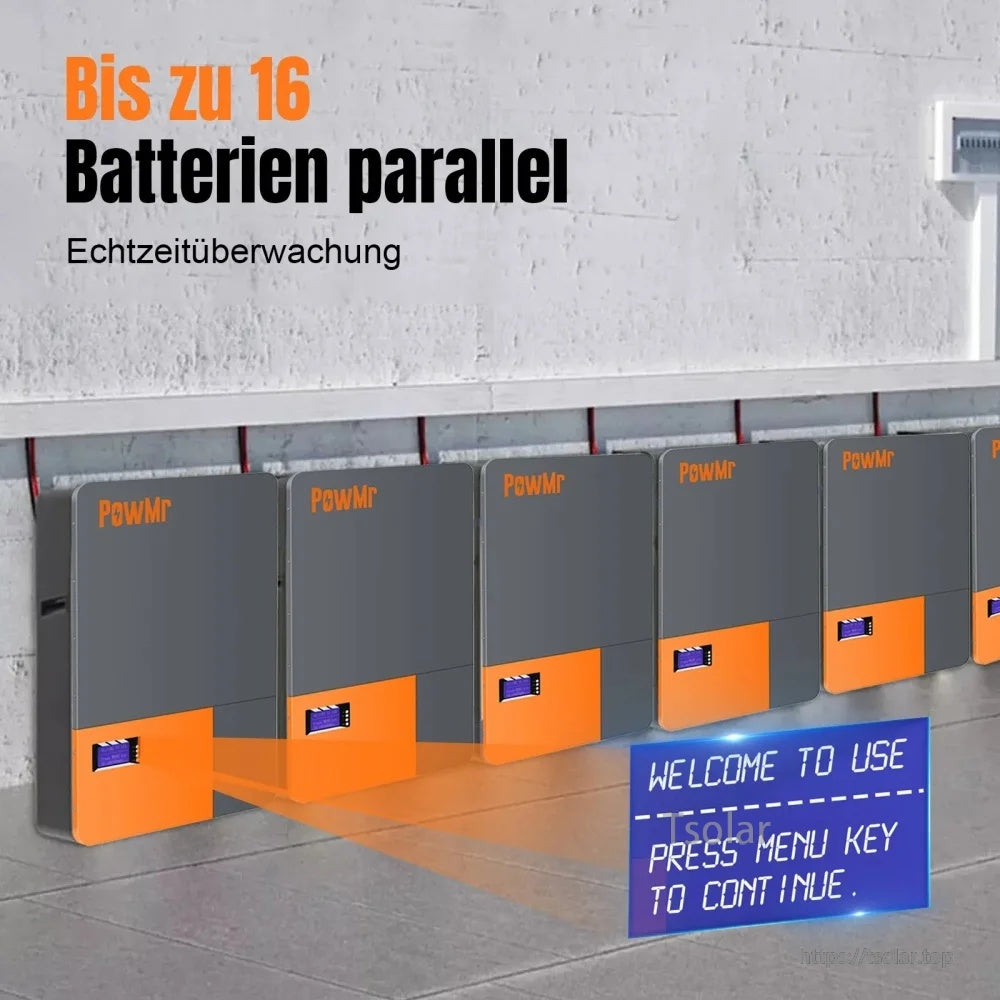

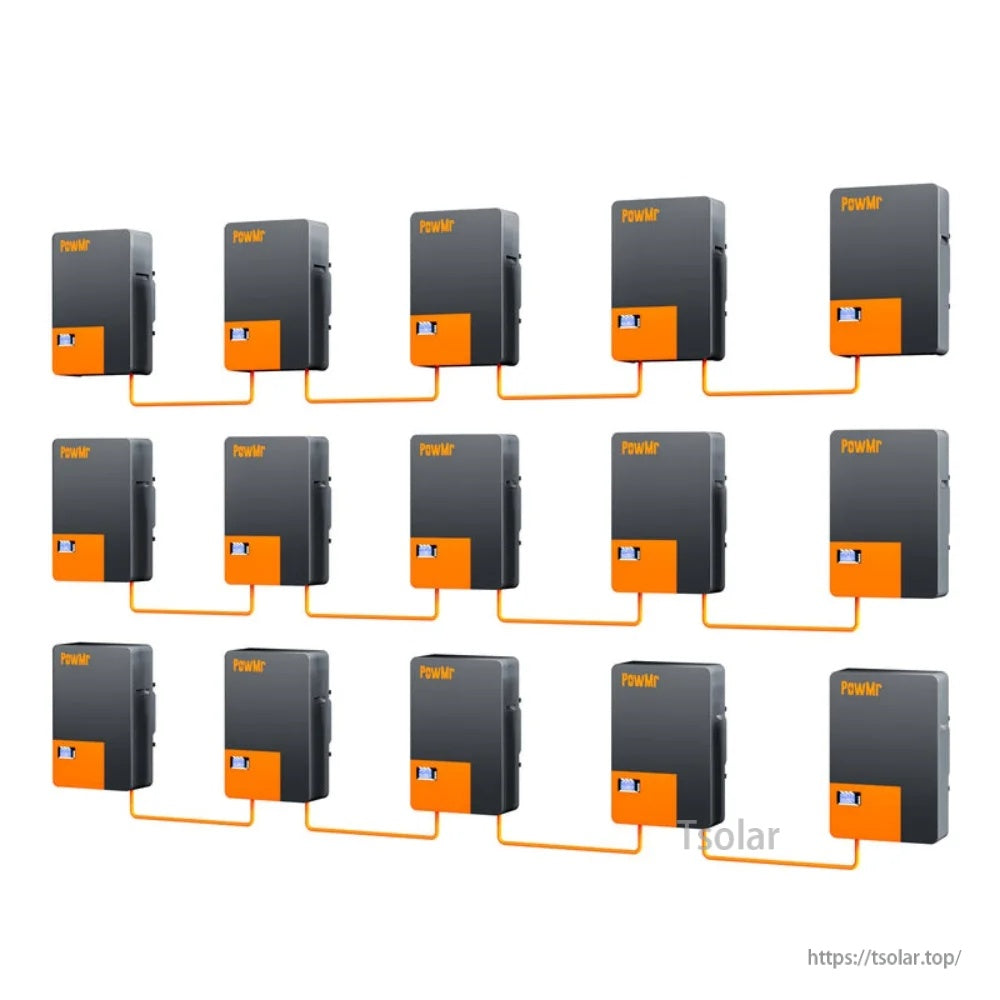

Scale capacity as needs grow by connecting up to 16 batteries in parallel for larger energy storage banks.
Everything needed for setup is included, including power cables, a communication lead, mounting hardware, and documentation.

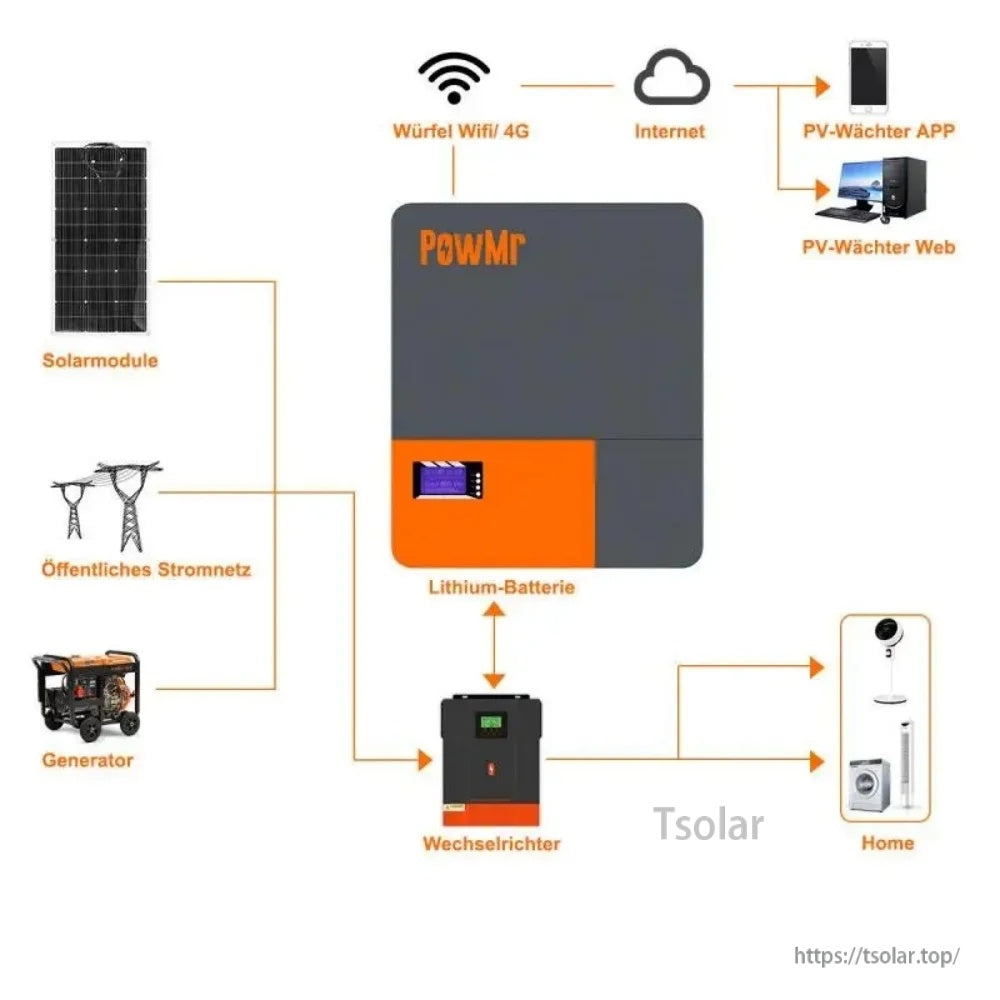

Integrate the battery into solar, grid, or generator systems and monitor performance through supported connectivity options.
A practical fit for PV energy storage, RVs, boats, and backup power during outages.
