Overview

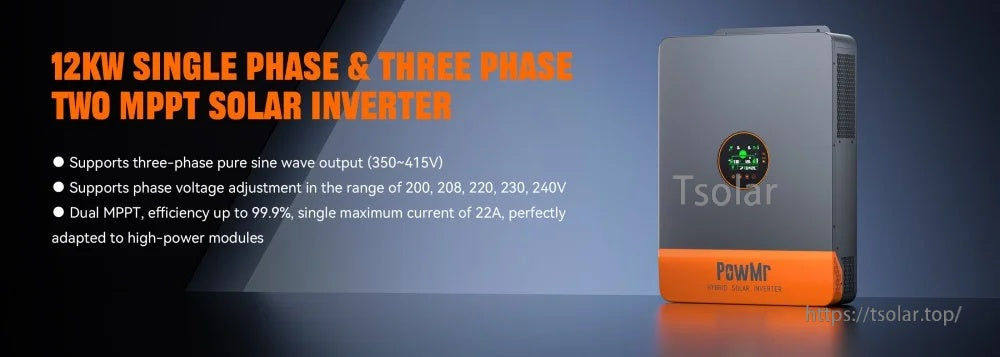

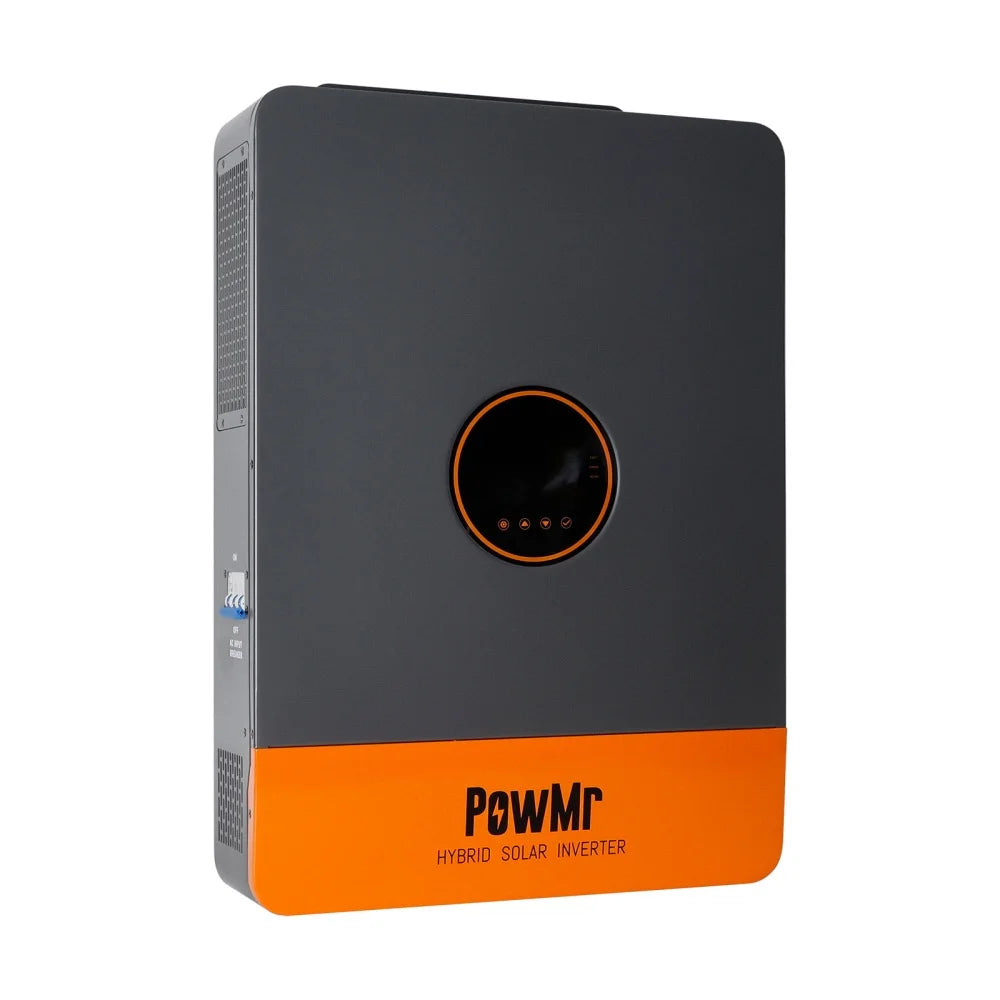

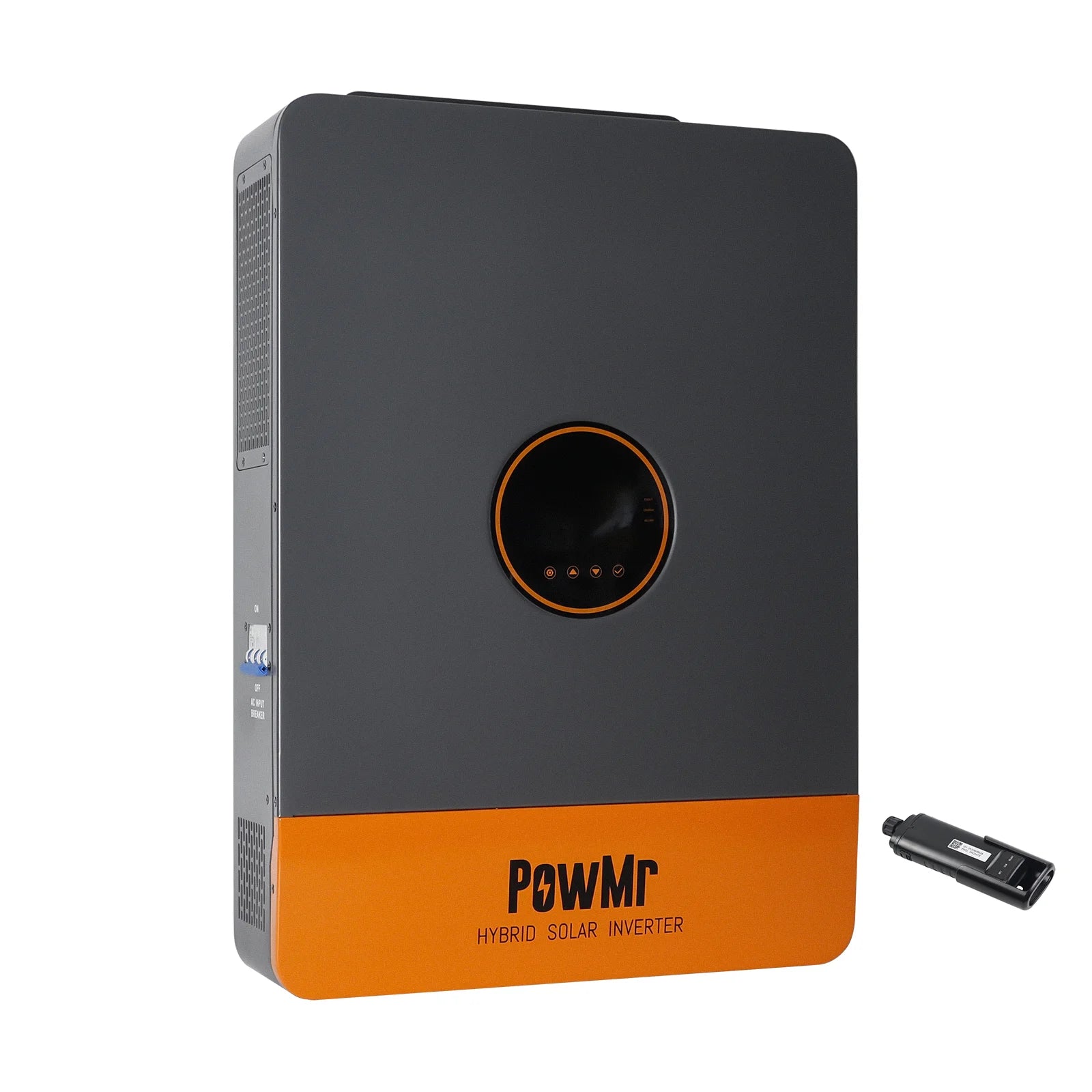

The PowMr POW-SunSmart 12KPL3 is a 48Vdc 12,000W three-phase solar inverter with pure sine wave output and dual MPPT solar charge controllers. It supports 230/400Vac three-phase output, adjustable phase voltage settings (200/208/220/230/240Vac), and PV input up to 800Vdc (800Vdc/800Vdc).
Key Features
- Three-phase pure sine wave output: supports three-phase output (350~415V) with selectable phase voltages of 200/208/220/230/240Vac.
- Dual MPPT: 2 MPPT with MPPT tracking efficiency up to 99.9%; max input current 22/22A; supports two PV inputs and simultaneous MPPT tracking.
- High charging capability: max hybrid charging current 260A; total 260A charging; each PV input described as 9000W input.
- 48V battery support: compatible with lead-acid and lithium-ion batteries; supports dormant Li-ion activation triggered by either mains or PV access.
- Parallel expansion: up to 6 units in parallel (described as scalable to 72kW).
- Time-based energy control: time-slot charging/discharging for Time-of-Use (TOU) peak/valley tariffs; sectioned charging function (BT1ST) and sectioned discharge function (AC1ST); battery discharge time can be set to zero for UPS power supply use.

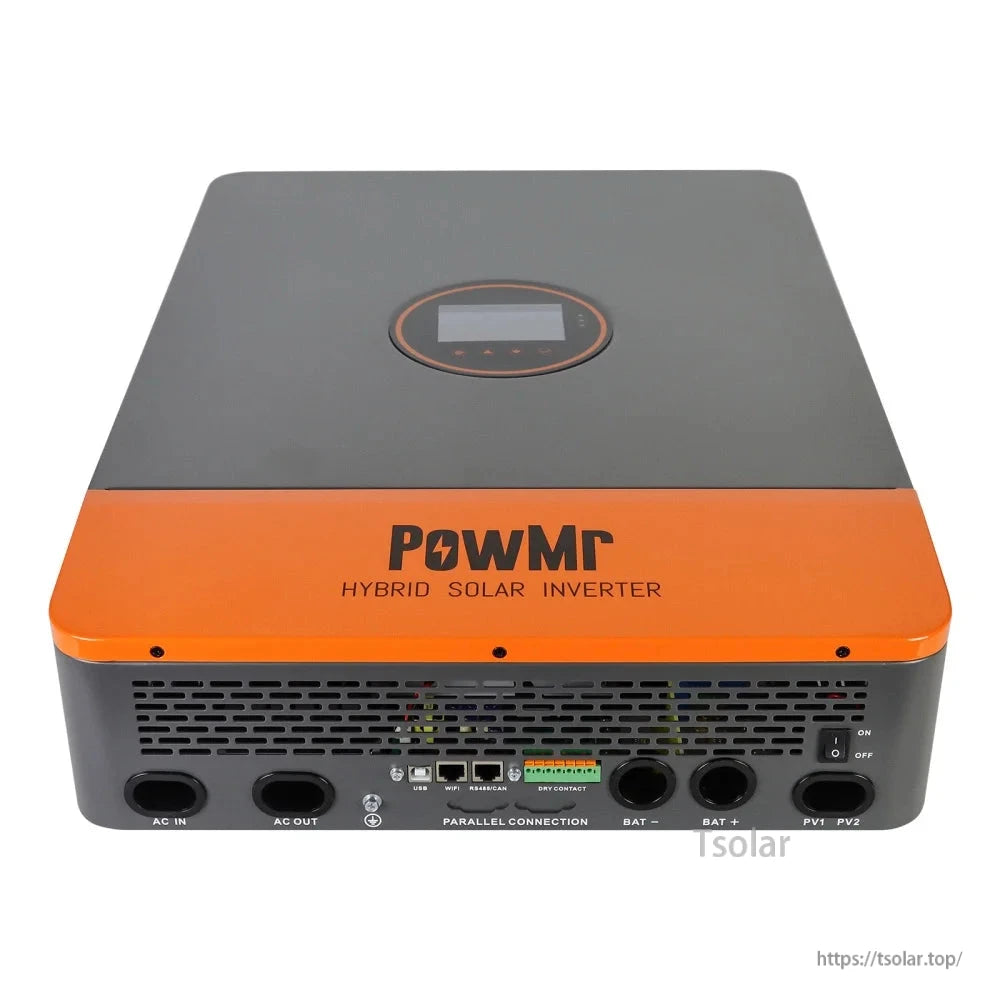

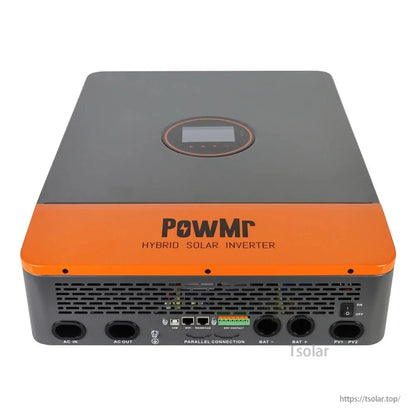

- Monitoring & communication: LCD HD display screen for real-time PV system operating data; interfaces include RS485, CAN, USB, and dry contact; supports inverter and battery BMS communication with SOC and SOH display.

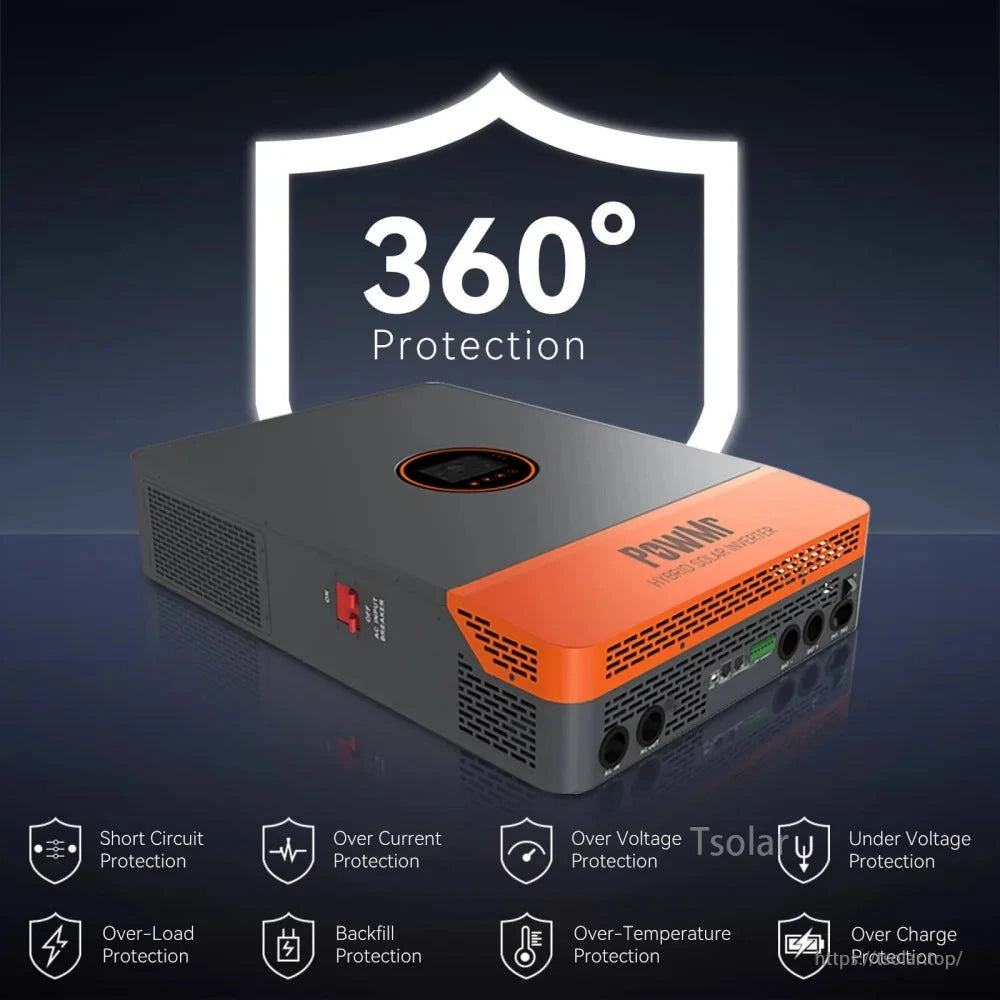

- Protection functions (360° protection): short circuit protection, over current protection, over voltage protection, under voltage protection, over-load protection, backfill protection, over-temperature protection, over charge protection.
For installation guidance and pre-sale compatibility checks, contact https://tsolar.top/ or service@tsolar.top.
Specifications
| Brand Name | PowMr |
| Model Number | POW-SunSmart 12KPL3 |
| Feature | Three Phase Inverter |
| Feature 1 | 12000W Solar Inverter |
| Feature 2 | Solar Hybrid Inverter |
| Rated Output Power | 12000W |
| Max. Peak Power | 24000W |
| Rated Battery Voltage | 48Vdc |
| Battery Types | Li-ion; Lead-Acid; User Defined |
| Rated Output Voltage | 230/400Vac three-phase |
| Output Frequency | 50/60Hz |
| Output Waveform | pure sine wave |
| Output Type | DUAL |
| No. of MPPT | 2 |
| MPPT Tracking Efficiency | 99.9% |
| Max. Input Current | 22/22A |
| Max. Open-circuit Voltage | 800Vdc/800Vdc |
| Max. Hybrid Charging Current | 260A |
| Output Current | MPPT260A |
| Parallel | Up to 6 Units |
| Internal Interface | RS485; CAN; USB; Dry contact |
| Is Smart Device | Yes |
| Protection Degree | IP20 indoor only |
| Noise | <60dB |
| Certification | CE |
| RoHS | Yes |
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
| High-concerned chemical | None |
| Origin | Mainland China |
| Size | 79x57x25.2 |
| Weight | 29KG |
| is_customized | Yes |

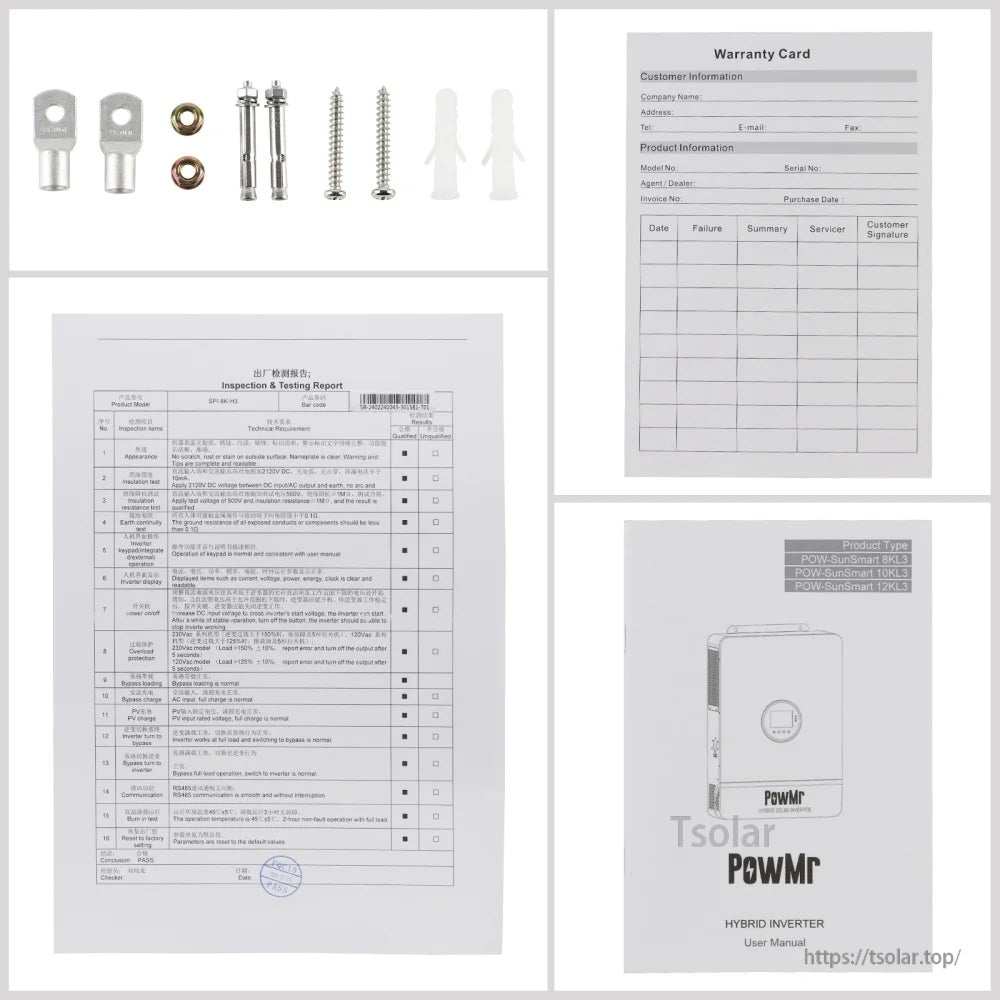

What’s Included
- PowMr hybrid inverter (POW-SunSmart series; model listed as POW-SunSmart 12KPL3)
- User manual
- Warranty card
- Inspection & testing report
- Mounting hardware (as provided)
Applications
- Solar
- Marine
- Home energy storage
- RV
- Off-grid power systems
- Parallel mode (three-phase) for home / commercial / industrial application scenarios
Details
Pure sine wave three-phase output with dual MPPT solar charging supports high-voltage PV strings up to 800V.

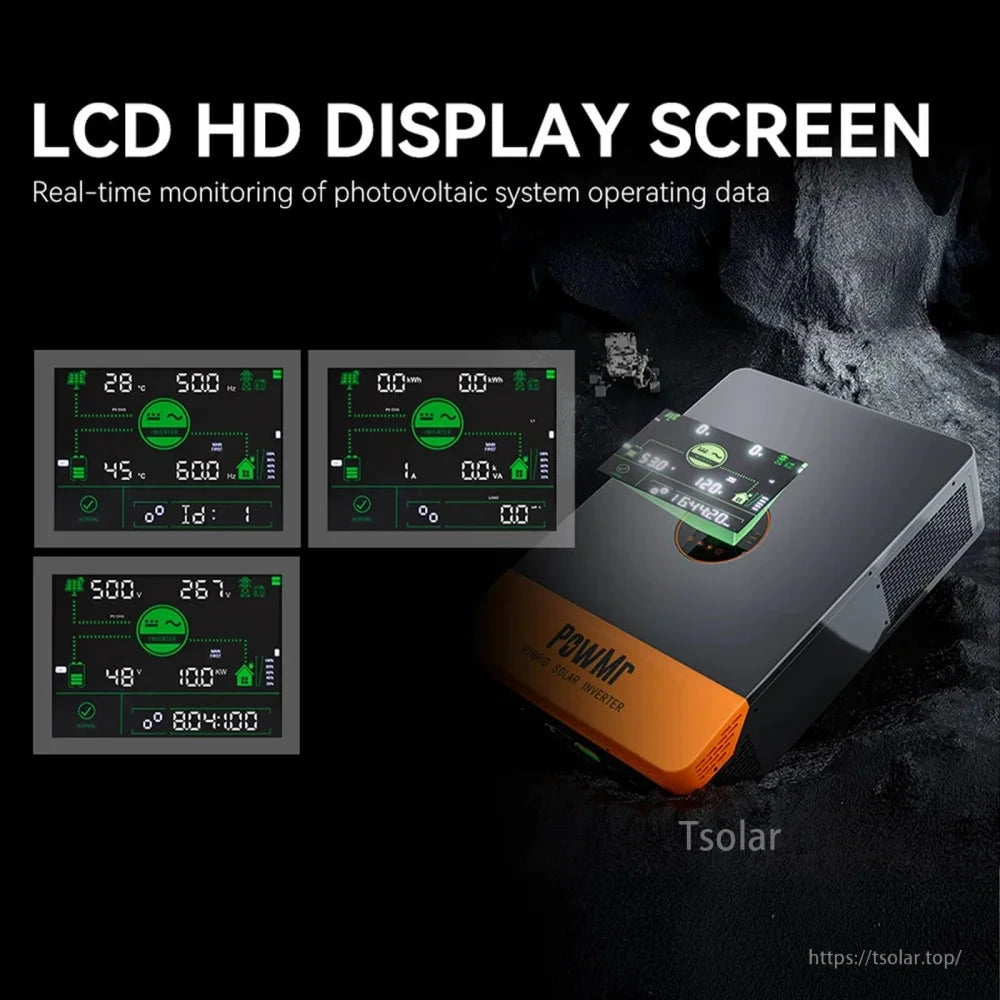

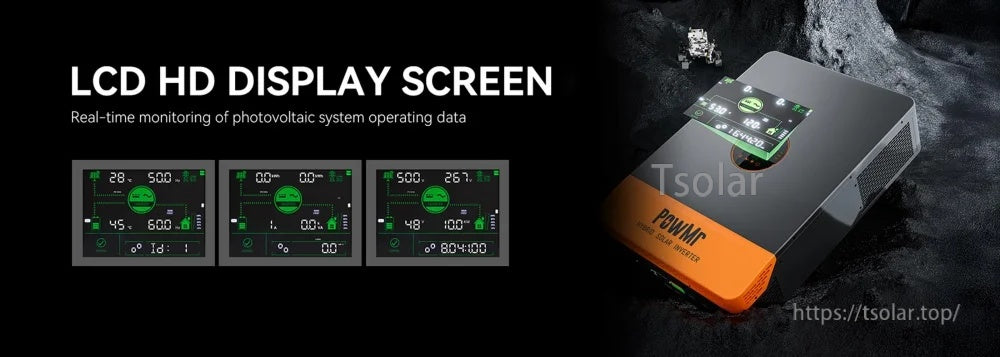

An HD LCD screen makes it easy to check PV generation, battery status, and system performance at a glance.

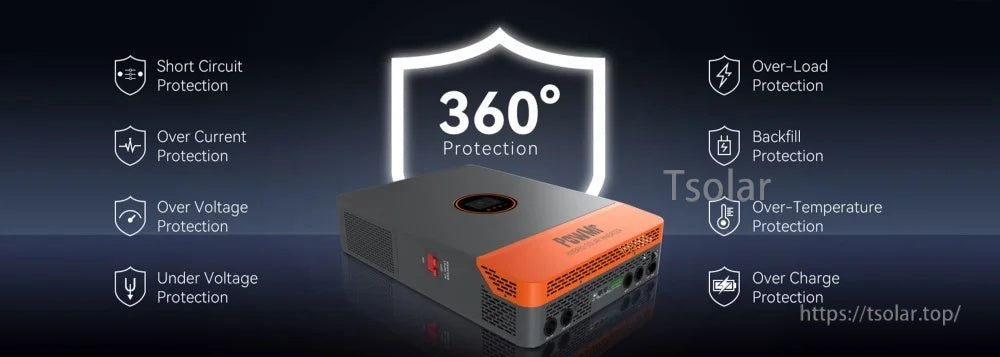

Built-in protection functions help safeguard the inverter and connected loads across common fault conditions.

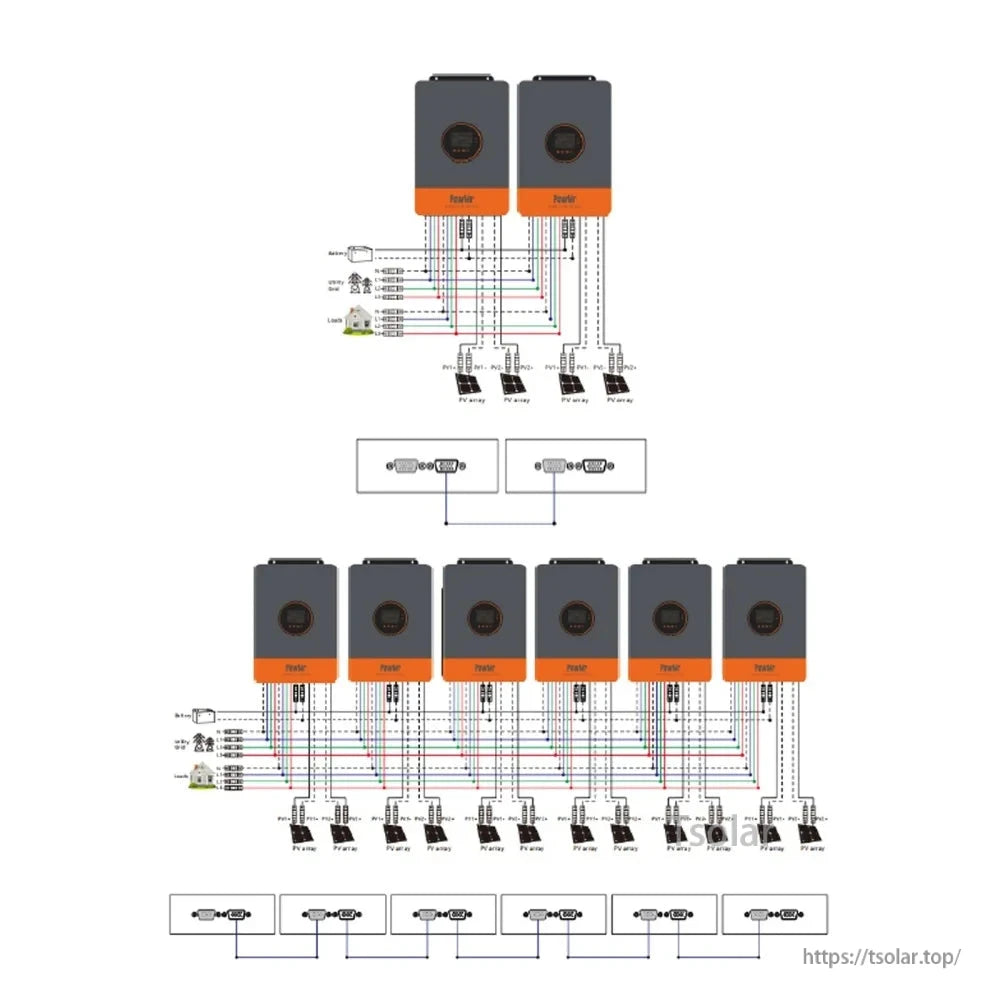

Parallel capability supports scalable three-phase setups for larger power demands.

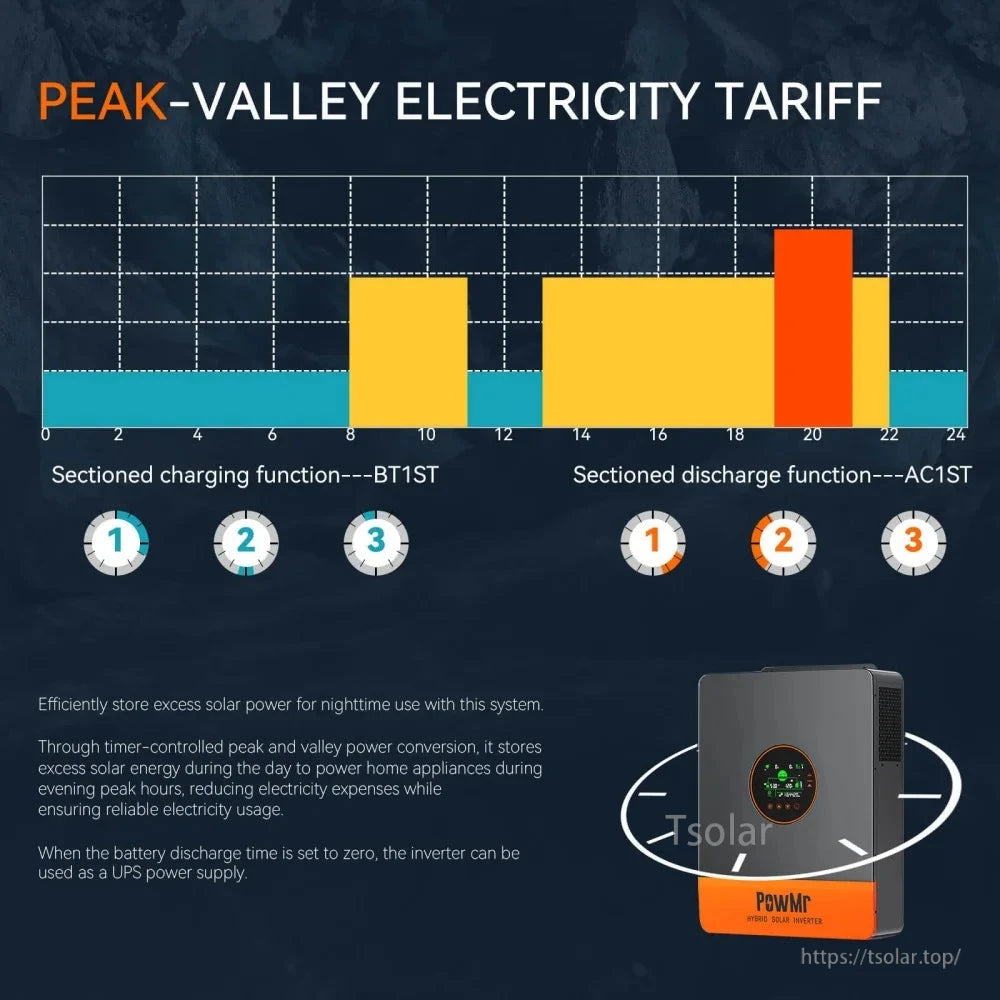

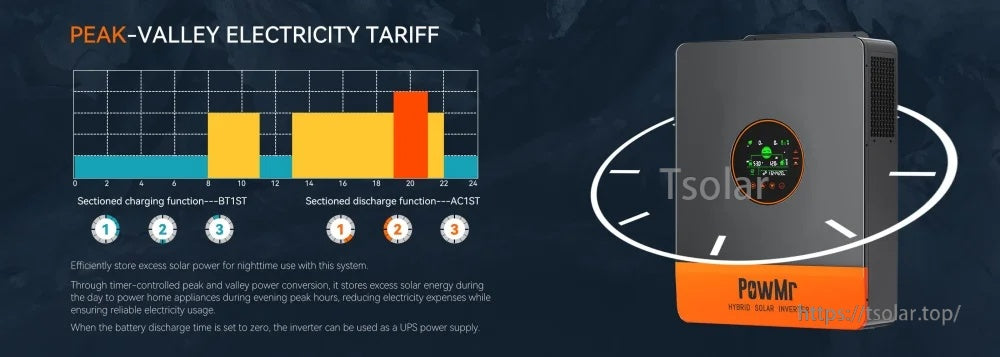

Time-slot charging and discharging helps optimize energy use for peak/valley electricity tariffs or UPS-style operation.
BMS communication supports more accurate battery information, including SOC and SOH readouts when compatible.
