Overview
The Solarplay Q2402M Portable Power Station with S200 Solar Panel combines high-capacity off‑grid energy storage with fast solar/AC charging. With 2304Wh and a 2500W pure sine wave AC inverter, the Solarplay Q2402M is built for camping, field work, RV travel, and home backup, providing reliable power wherever it is needed.
Key Features
- 2304Wh capacity and 2500W AC output for powering appliances and tools.
- Maximum output power 4000W (as shown) and pure sine wave AC for sensitive electronics.
- Fast charging: 1.5 hours fast charging (as shown); AC input power up to 1100 Watt.

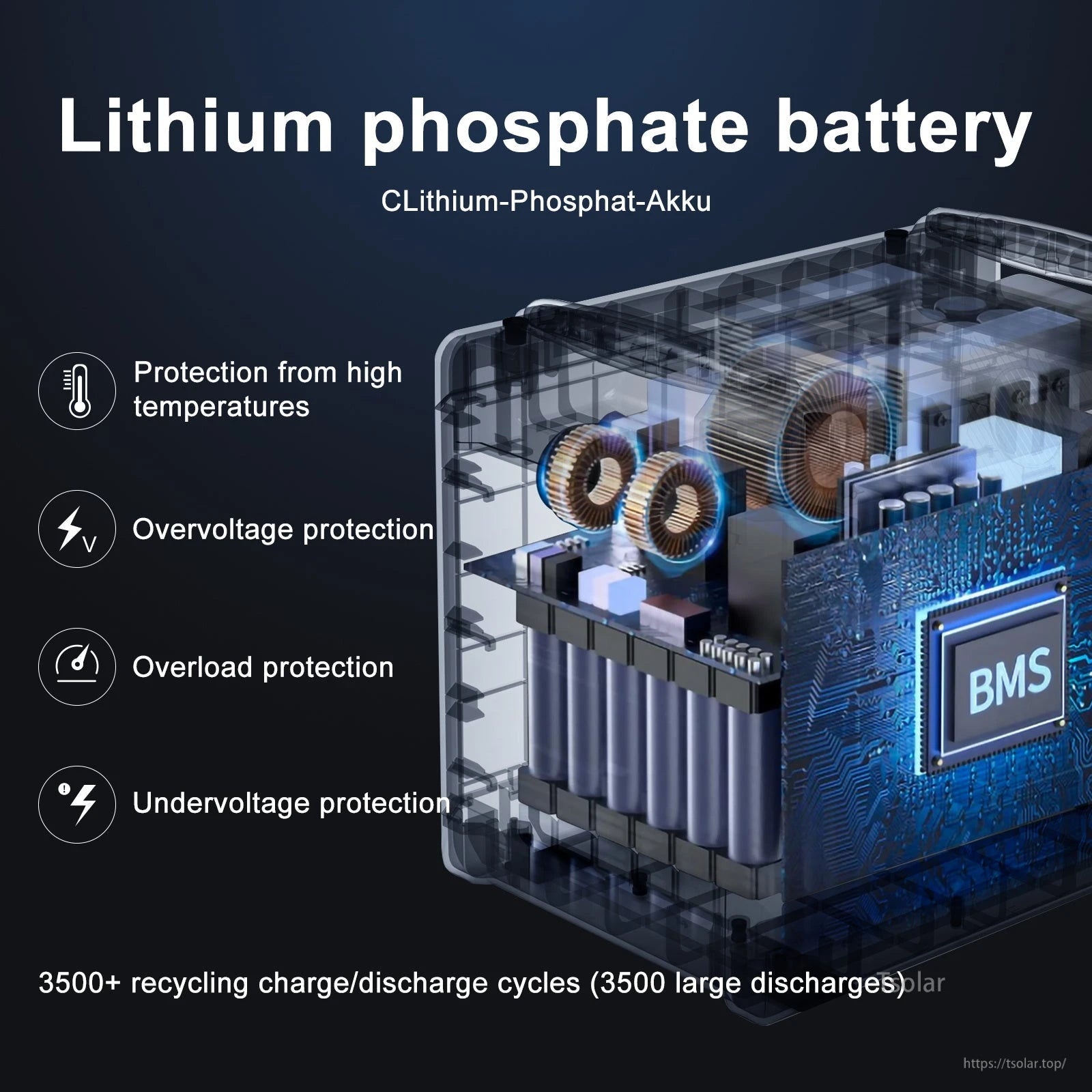

- Featuring LiFePO4 battery cells rated for over 3500 charge/discharge cycles (10 years).
- Comprehensive BMS protection: overcharge, over‑discharge, high/low temperature, overcurrent, and short circuit protection.
- UPS function with approximately 0.08 s switchover to battery during outages.

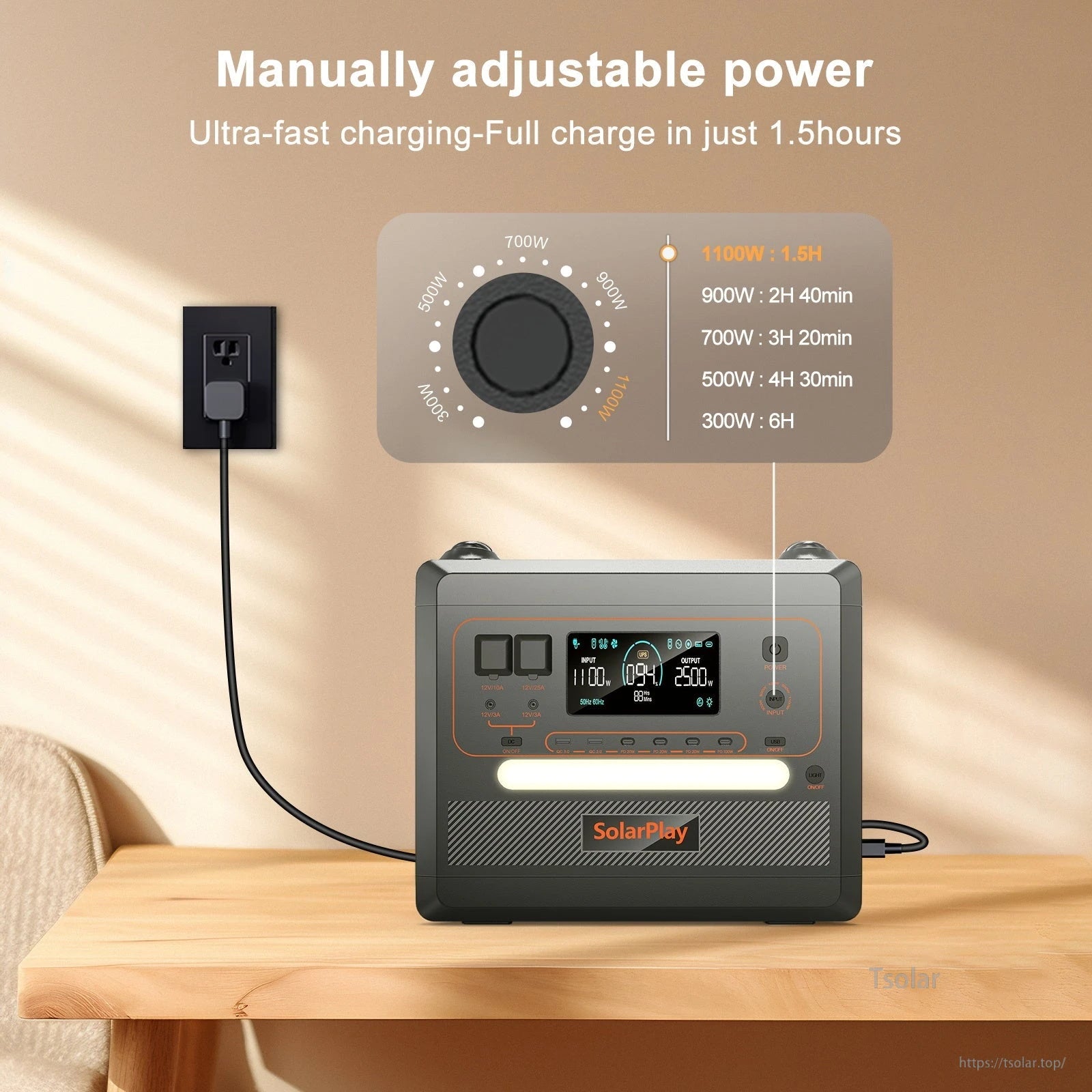

- Manual charge power adjustment for unstable voltage scenarios: 300W / 500W / 700W / 900W / 1000W.
- 12 output ports: 2×AC, 2×DC5521, 1×XT60, 1×vehicle ignition, and 6×USB (QC/PD mix) to charge multiple devices at once.
- Four charging methods: AC with solar panel charging, AC charging, solar panel charging, and cigarette lighter charging.
- High device compatibility (up to 99% as shown) for everyday electronics and appliances.
Specifications
| Model | Solarplay Q2402M Portable Power Station |
| Battery Capacity | 2304Wh |
| AC Output | 2500W pure sine wave |
| Maximum Output Power | 4000W (as shown) |
| AC Input Power | 1100 Watt (as shown) |
| Battery Chemistry | LiFePO4 |
| Cycle Life | >3500 cycles (10 years) |
| UPS Transfer Time | ~0.08 s |
| Charge Power Steps | 300W / 500W / 700W / 900W / 1000W (manual adjustment) |
| Charging Methods | AC with solar panel charging; AC charging; solar panel charging; cigarette lighter charging |
| Number of Outputs | 12 |
| AC Outputs | 2 ports; 50/60Hz switchable |
| USB Outputs | USB‑A QC 3.0 ×2; USB‑C PD 20W ×3; USB‑C PD 100W ×1 |
| DC Outputs | DC5521 12V/3A ×2; XT60 12V/25A ×1; vehicle ignition 12V/10A ×1 |
| Other Interfaces | AC input; XT90 interface |
| Waveform | Pure sine wave |
| Runtime Estimate Notes | Calculator uses 82% efficiency and 18W idle draw; device wattage input up to 4400W |

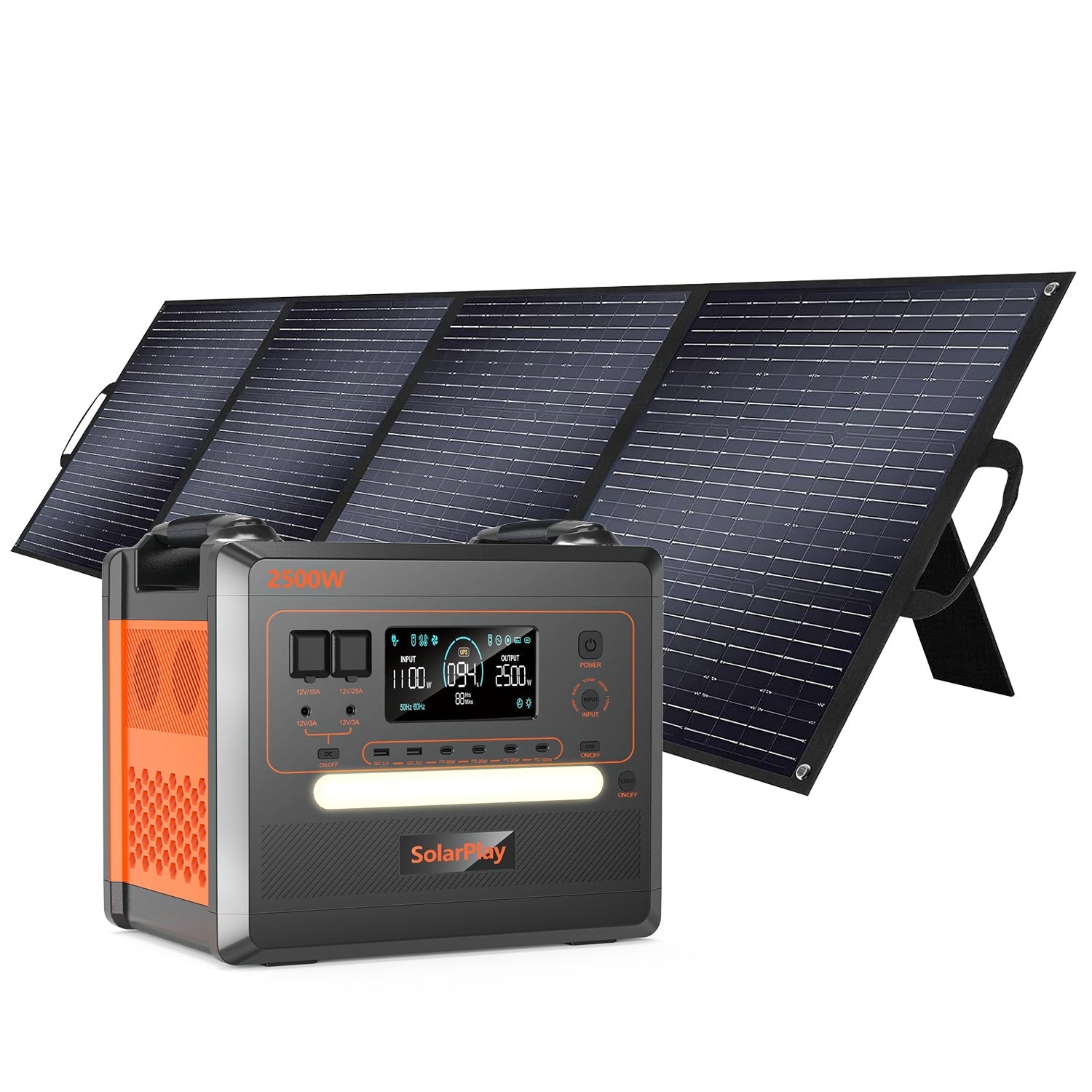

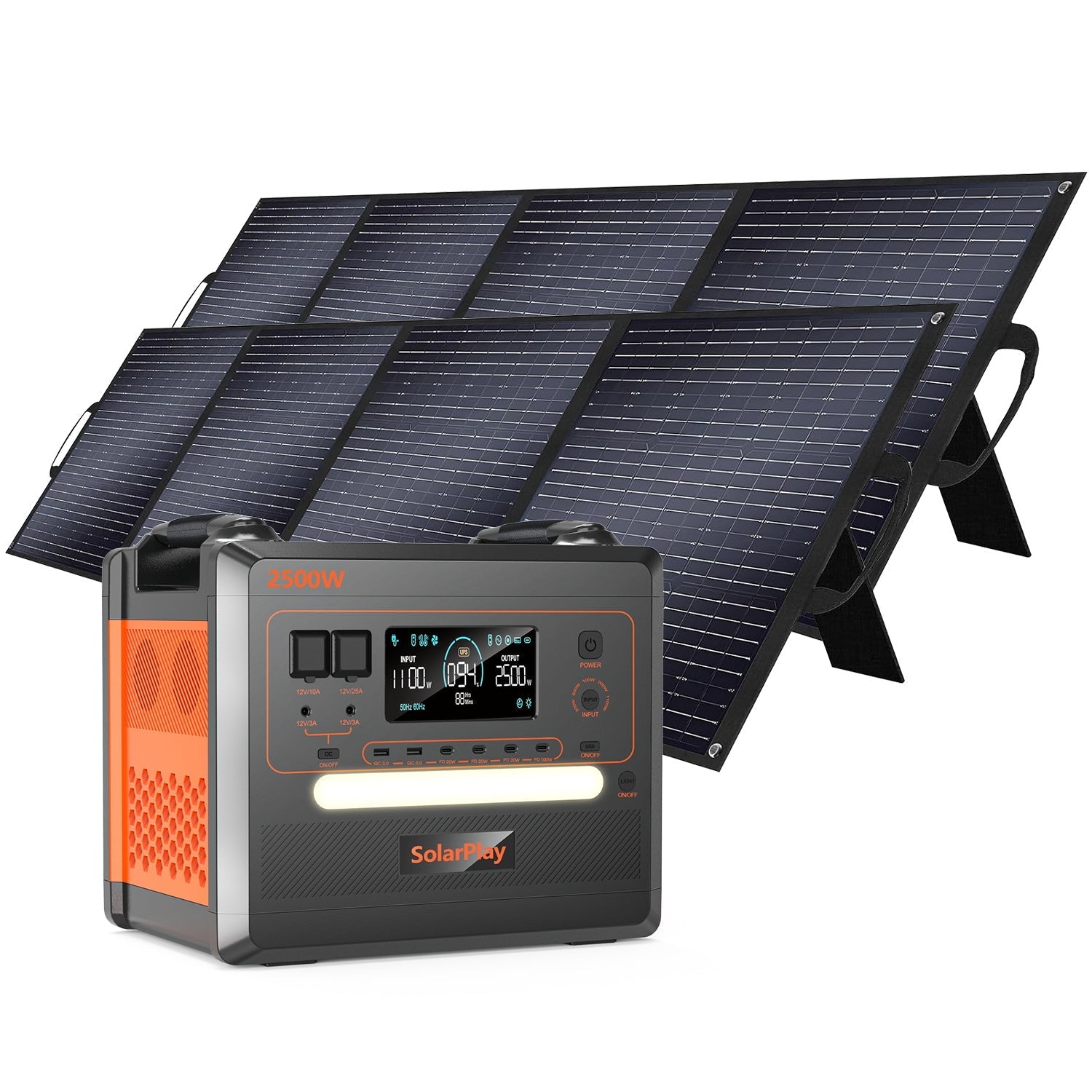

| Solar Panel | S200 Solar Panel: 200W; 400W dual‑panel option (as shown) |
What’s Included
- Solarplay Q2402M Portable Power Station
- S200 Solar Panel: 200W (or 400W dual‑panel option as configured)
Applications
- Camping and picnics; consecutive nights in camp
- External/outdoor work and mobile office
- Daily energy saving with solar charging
- Home backup during extended power outages
Details

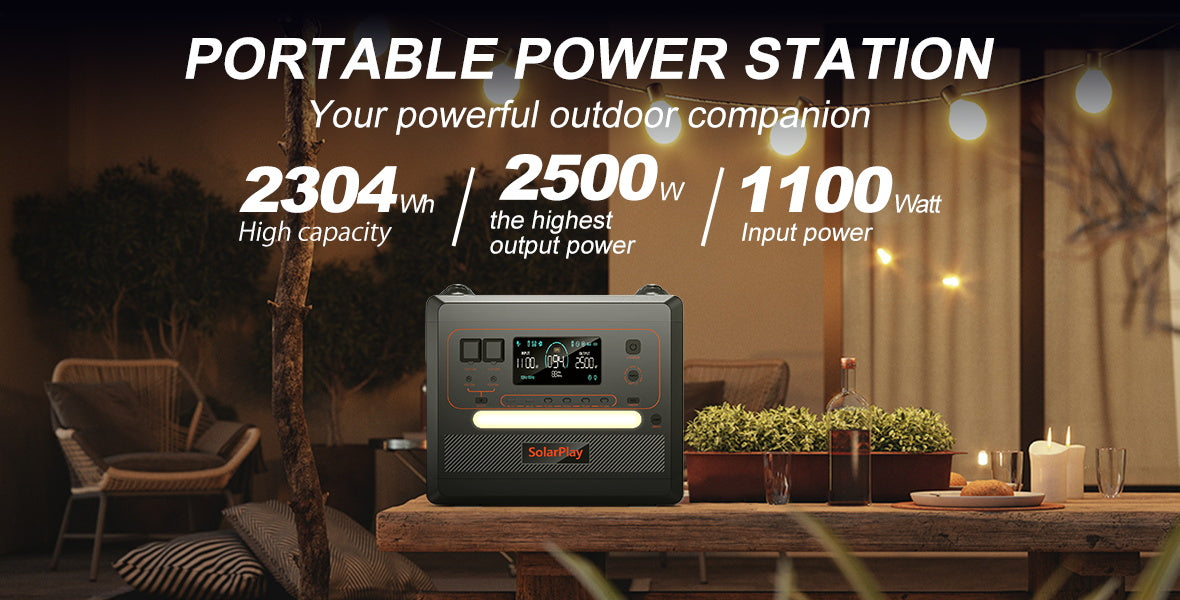

2304Wh portable power station, 2500W output, 1100W input, perfect for outdoor use.

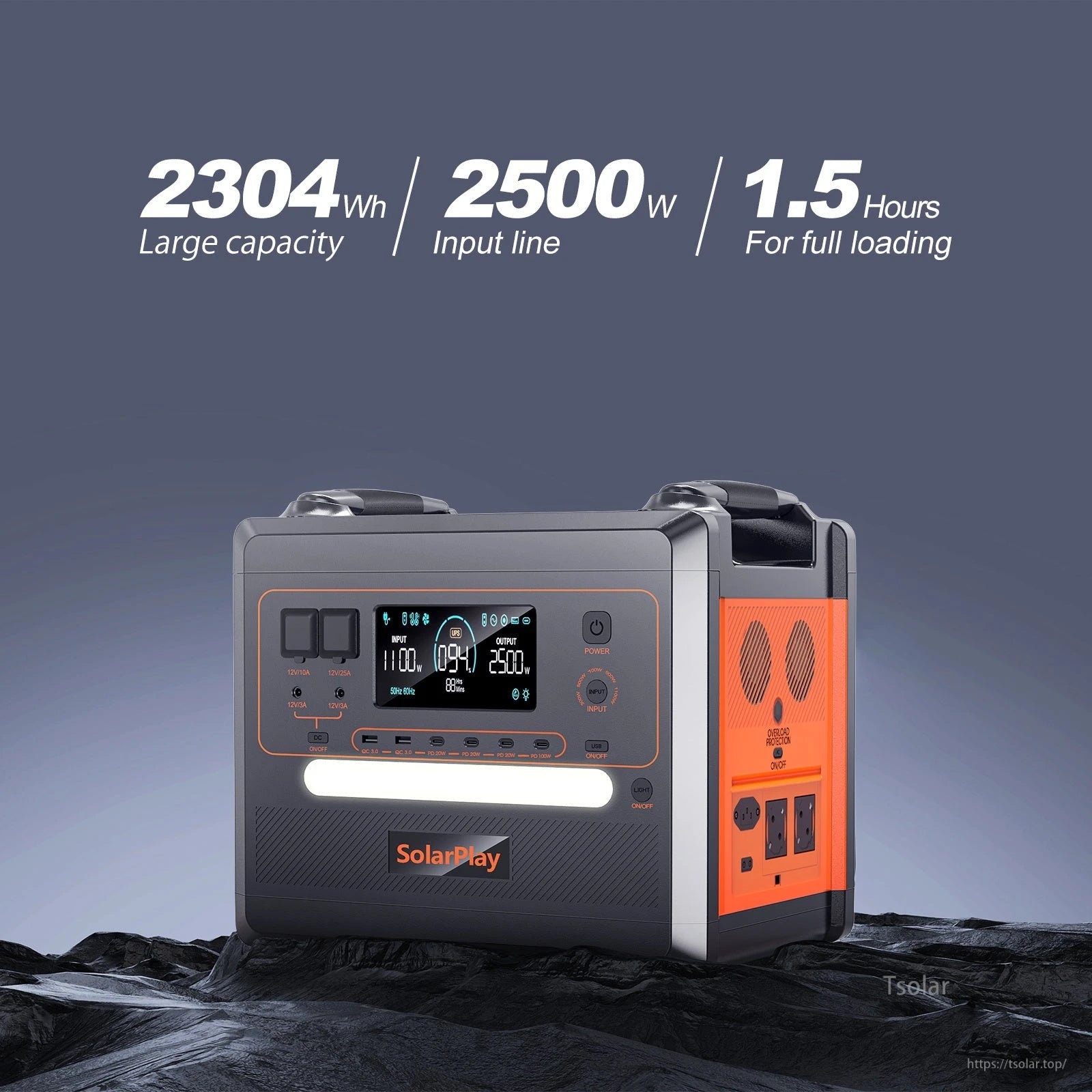

SolarPlay Q2402M Portable Power Station: 2500W/2304Wh, 1.5 hour maximum output capacity, charges up to 12 devices at once with BMS system, featuring fast charging and simultaneous protection, includes four easy charging methods, sine wave protection system, and multiple disaster prevention measures.

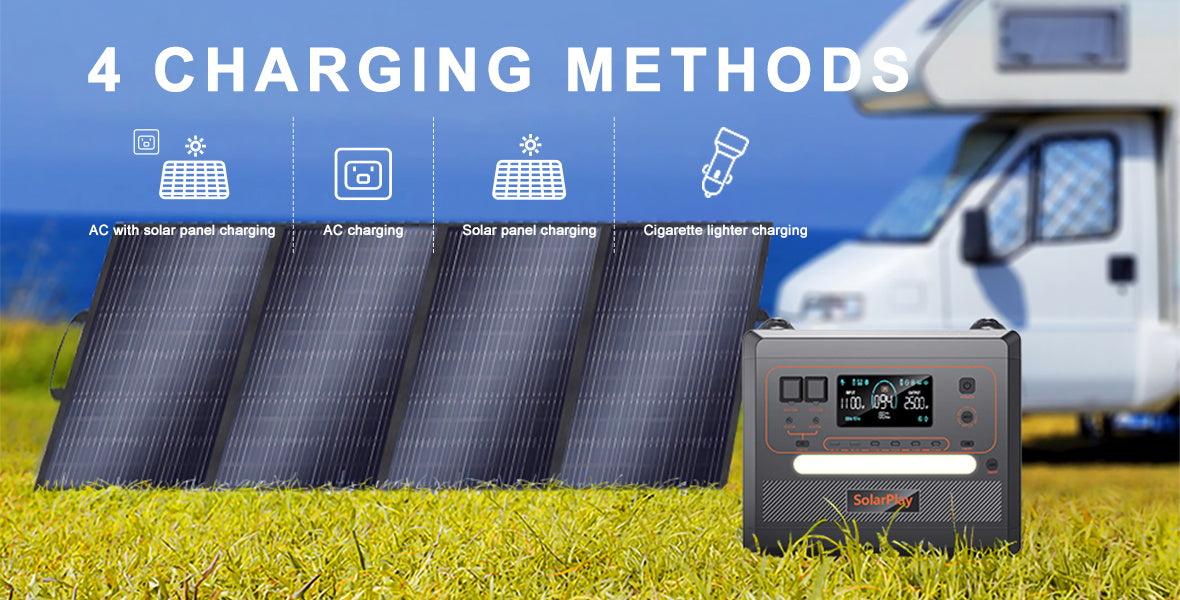

Portable power station offering four charging methods.

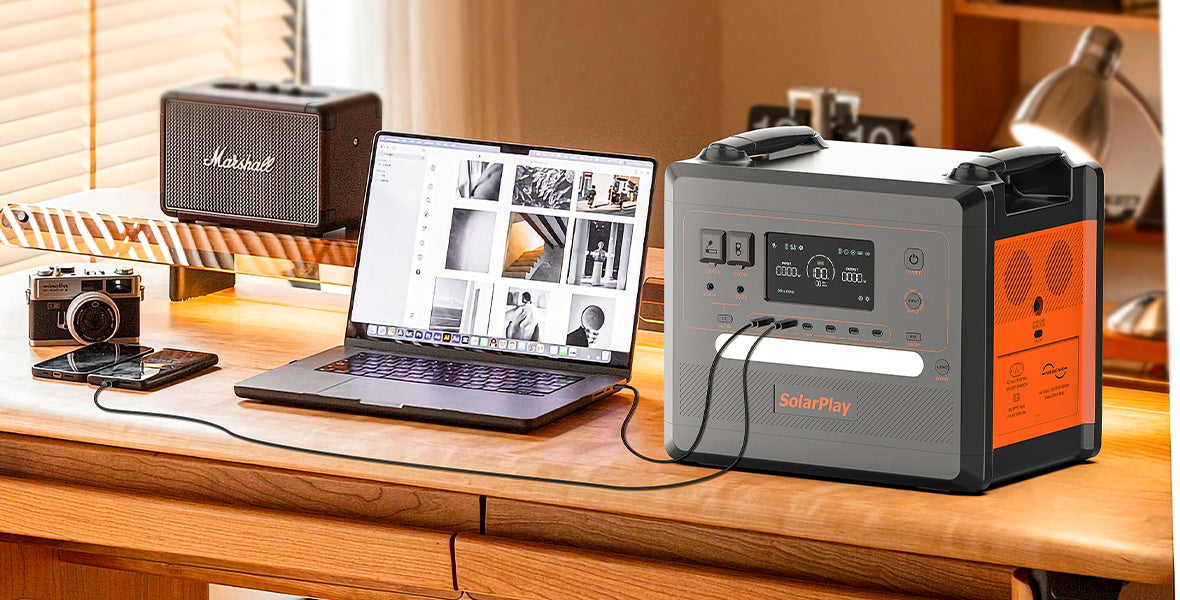

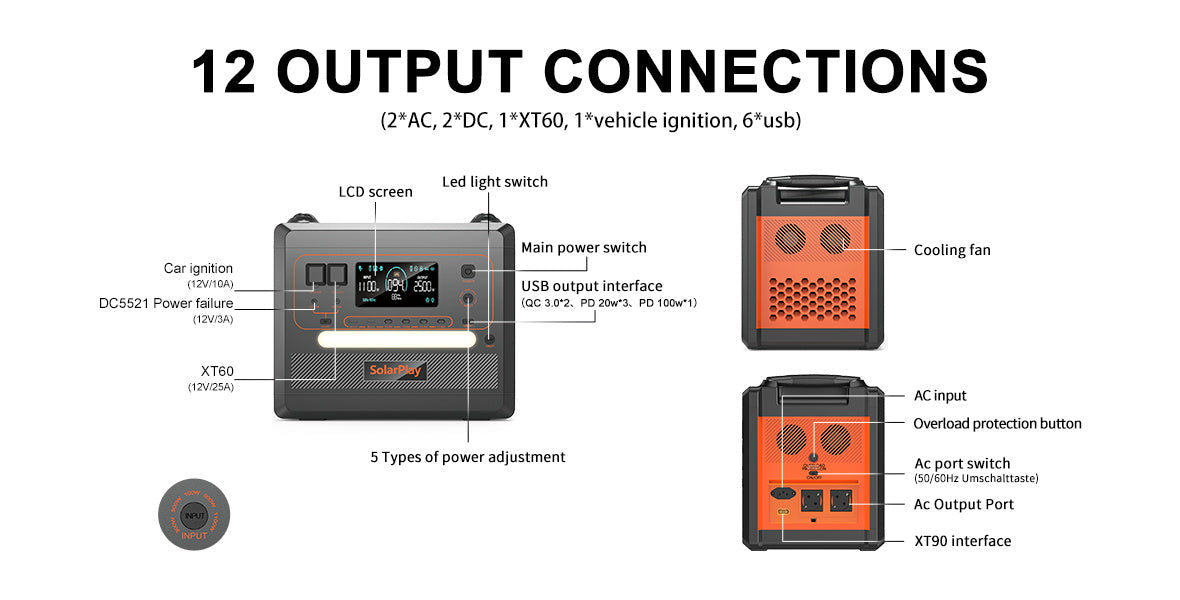

12 OUTPUT CONNECTIONS: 2x AC, 2x DC, 1x XT60, 1x vehicle ignition, 6x USB. Led light switch with LCD screen, main power switch, cooling fan, and car ignition. USB output interface supports DC-5521. Power failure backup (20W, 3 hours). Includes overload protection button, 5 types of power adjustment switches, AC input port, and XT90 interface port.
A versatile power source for camping, work, energy efficiency, and disaster preparedness.
