Overview

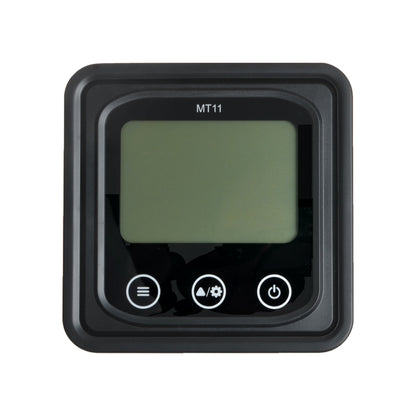

The Epever MT11 remote meter (remote meter monitor) is an accessory compatible with the DuoRacer series charge controller (DRN series). It monitors running data and working status, browses controller parameters, allows setting battery type and temperature unit, and can clear generated energy data. It is suitable for RV, camper, boat, and similar applications.
Key Features
- Automatically identifies and displays the type, model, and relevant parameter data of controllers.
- Real-time display of operational data and working status (digital, graphic, and text) on a large-screen multifunction LCD.
- Three touch buttons for quick operation (two function buttons and one switch button).
- No external power supply required; the charge controller powers the MT11.
- Browse controller parameters; set battery type and temperature unit; clear generated energy data.
- Real-time display of failure information of connected devices.
- Longer communication distance based on RS485.
Specifications
| Model | MT11 |
| Applicable controller model | DRN series |
| Self-consumption (Power on) | 13mA/5Vdc |
| Self-consumption (Power off) | 4mA |
| Communication | RS485 |
| Communication port | 3.81-4P |
| RS485 cable |
CC-RS485-RS485-3.81-4P-150 (1.5m) CC-RS485-RS485-3.81-4P-500 (5m) CC-RS485-RS485-3.81-4P-1000 (10m) |
| Environment temperature | -20°C to +70°C |
| Storage temperature range | -20°C to +70°C |
| Enclosure | IP20 |
| Dimension | 98.4 x 98.4mm |
| Base cover dimension | 114 x 114mm |
| Weight | 0.11kg |
Compatibility & Recommendations
- The MT11 is only allowed to connect with DRN series charge controller. Confirm before purchase and installation.
- Avoid installation in strong electromagnetic environments.
For installation and compatibility support, contact customer service at service@tsolar.top or visit https://tsolar.top/.

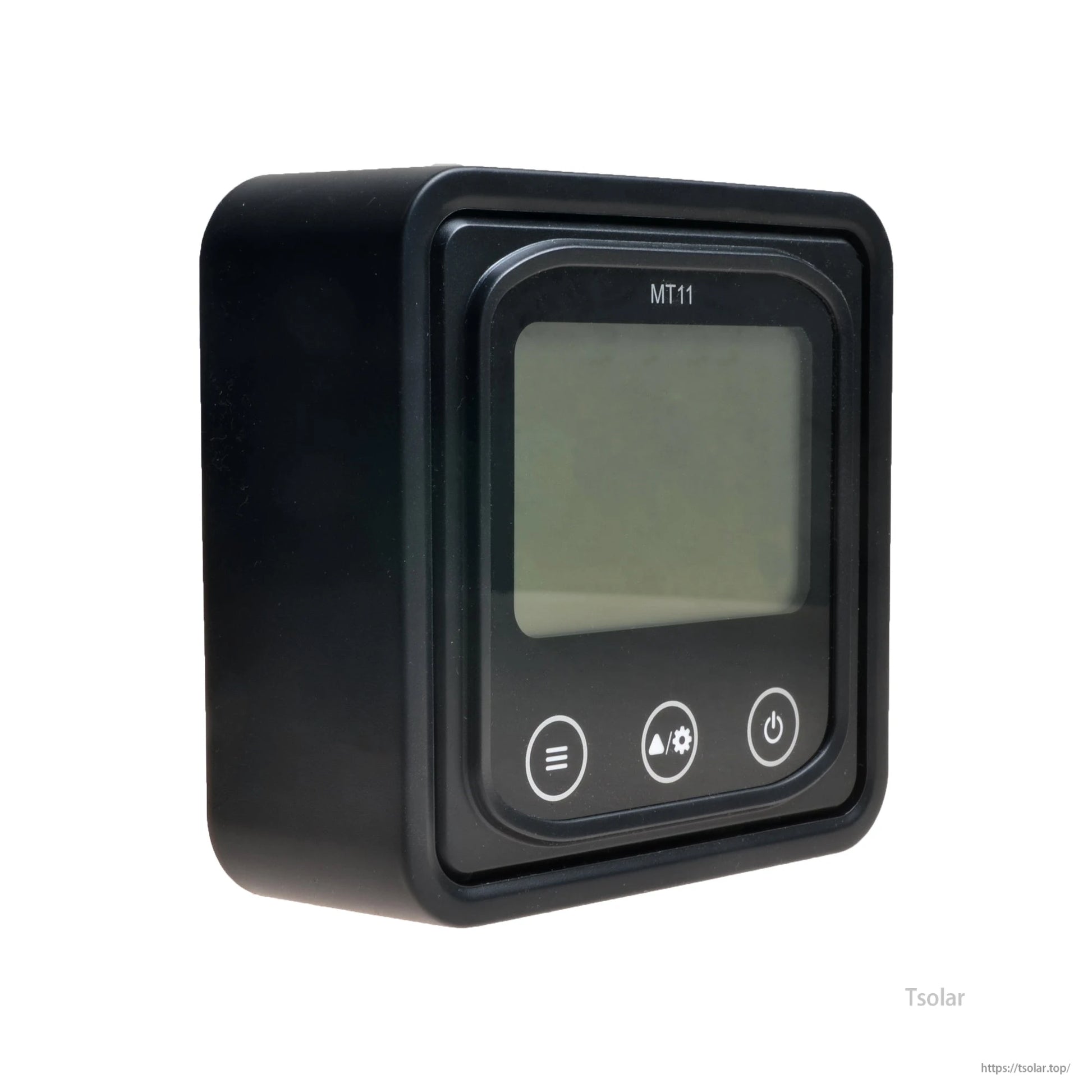

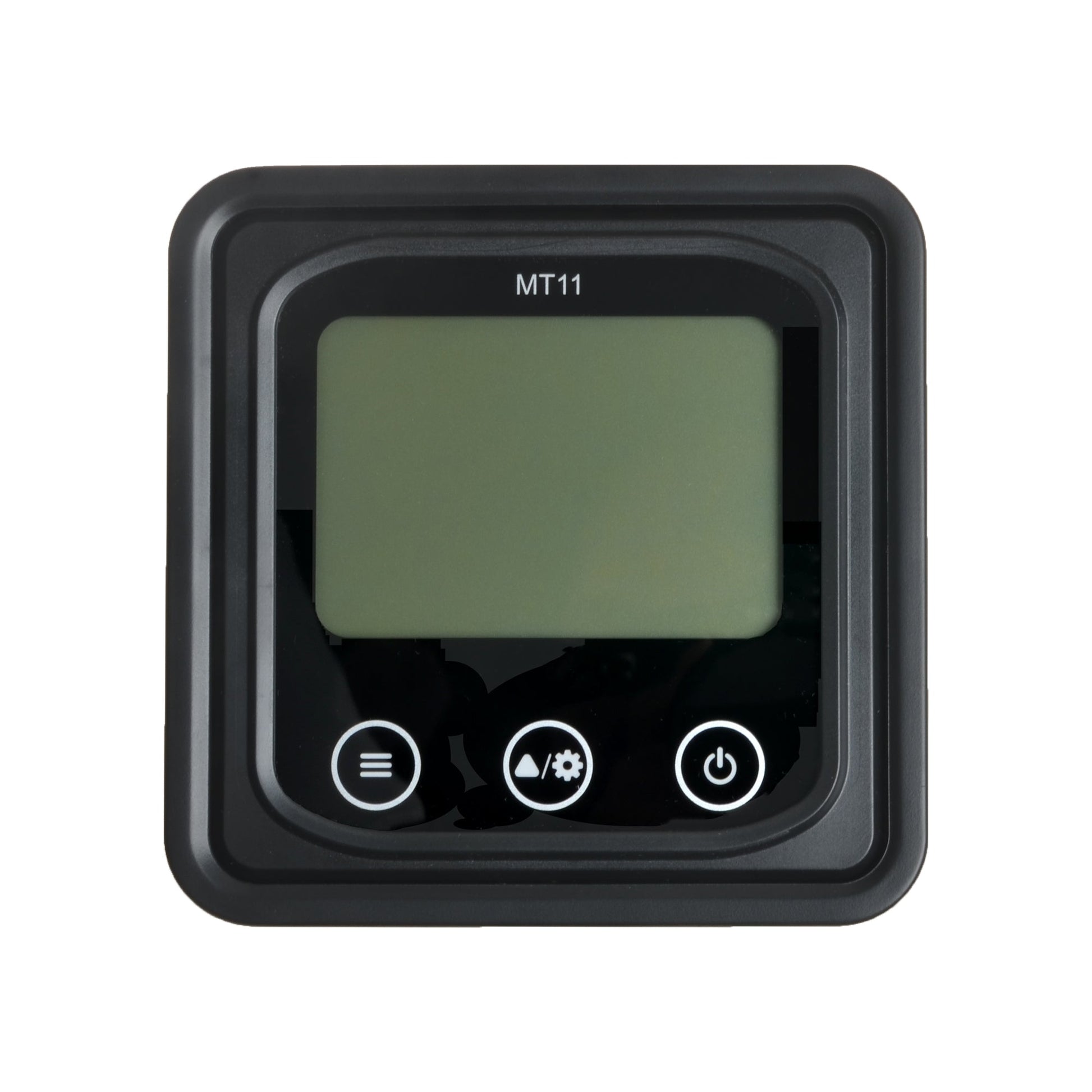

Button Operations
- Function buttons: Press to view PV array parameters, storage battery parameters, and browse the start battery parameters automatically.
- Function button: Press to browse PV array parameters / storage battery parameters / start battery parameters.
- Function button: Press and hold for 5s to set temperature units and battery type.
- Switch button: Press to power ON the meter.
- Switch button: Press and hold for 5s to power OFF the meter.

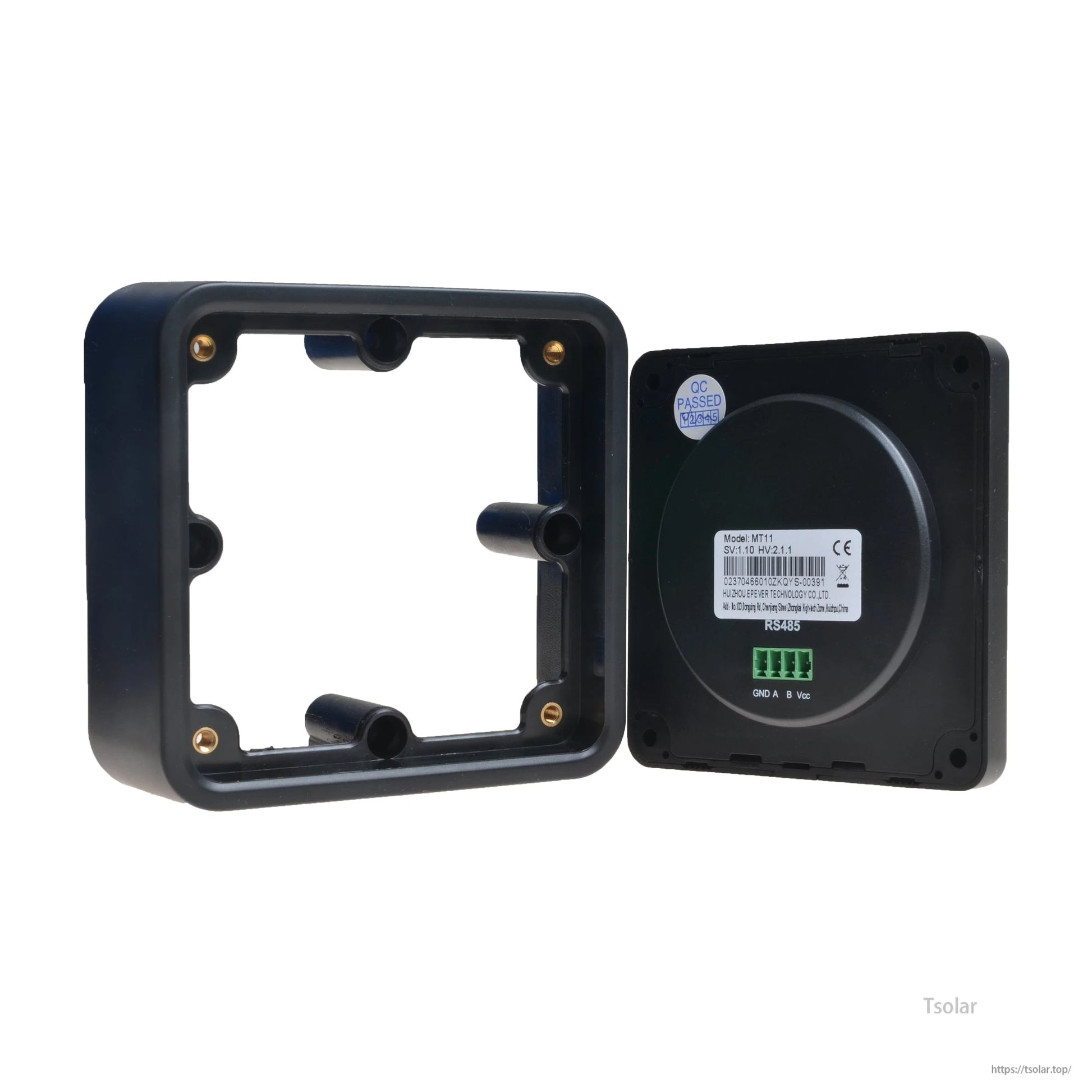

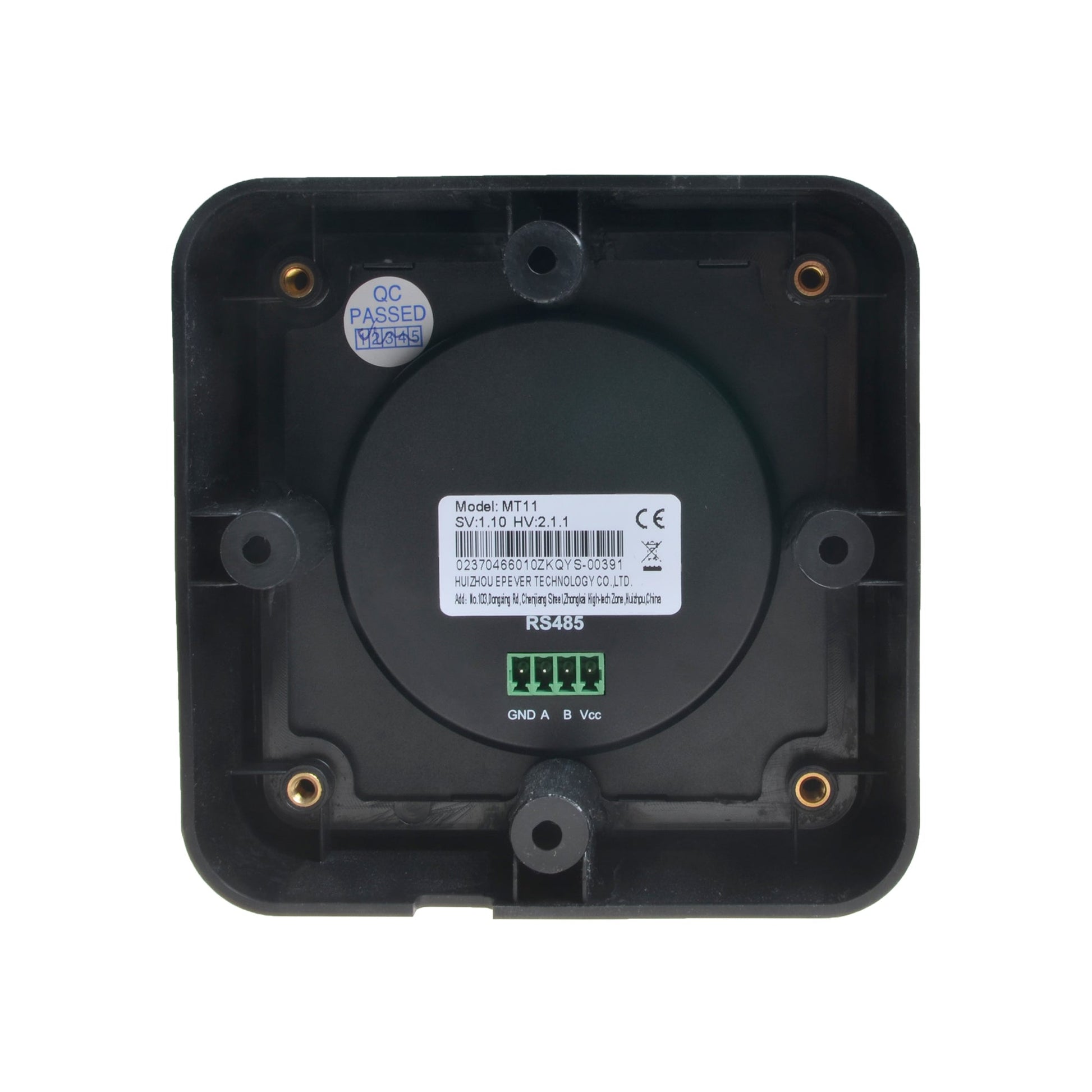

RS485 Port Pin Definition (3.81-4P)
| PIN | Definition |
| 1 | DC5V |
| 2 | RS-485-B |
| 3 | RS-485-A |
| 4 | GND |
Communication Cable Models
- CC-RS485-RS485-3.81-4P-150 (Included)
- CC-RS485-RS485-3.81-4P-1000 (Optional)
- CC-RS485-RS485-3.81-4P-2000 (Optional)
LCD Display Icons (Instruction)
| Item | Instruction |
| BATT1 battery capacity level ① | 0%～12% |
| BATT2 battery capacity level ① | 0%～12% |
| BATT1 battery capacity level ① | 13%～35% |
| BATT2 battery capacity level ① | 13%～35% |
| BATT1 battery capacity level ① | 36%～61% |
| BATT2 battery capacity level ① | 36%～61% |
| BATT1 battery capacity level ① | 62%～86% |
| BATT2 battery capacity level ① | 62%～86% |
| BATT1 battery capacity level ① | 87%～100% |
| BATT2 battery capacity level ① | 87%～100% |
| Day | Day |
| Night | Night |
| PV array | PV array |
| Display the parameters of PV | Display the parameters of PV |
| Display the parameters of BATT1 | Display the parameters of BATT1 |
| Display the parameters of BATT2 | Display the parameters of BATT2 |
| BATT1 charging icon | BATT1 charging icon |
| BATT2 charging icon | BATT2 charging icon |
| BATT1 temperature parameters | BATT1 temperature parameters |
| AES signal icon | AES signal icon |
| Setting icon | Setting icon |
| Battery type icon | Battery type icon |
| Auto global view sign | Auto global view sign |
| Minimum voltage icon | Minimum voltage icon |
| Fault icon | Fault icon |
| Maximum voltage icon | Maximum voltage icon |
① Battery power capacity is calculated by the linear relationship between the disconnect voltage of low voltage and float charging voltage.

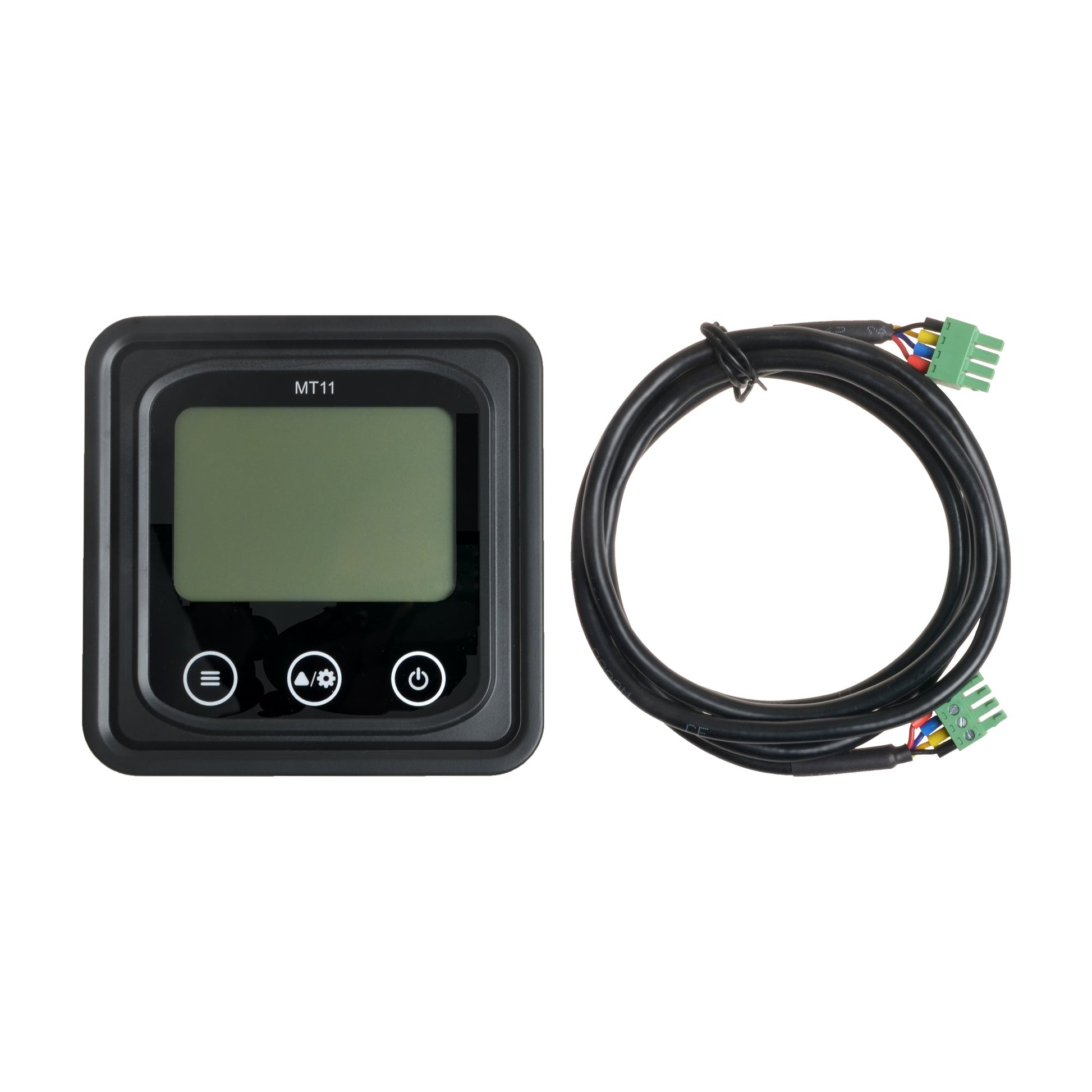

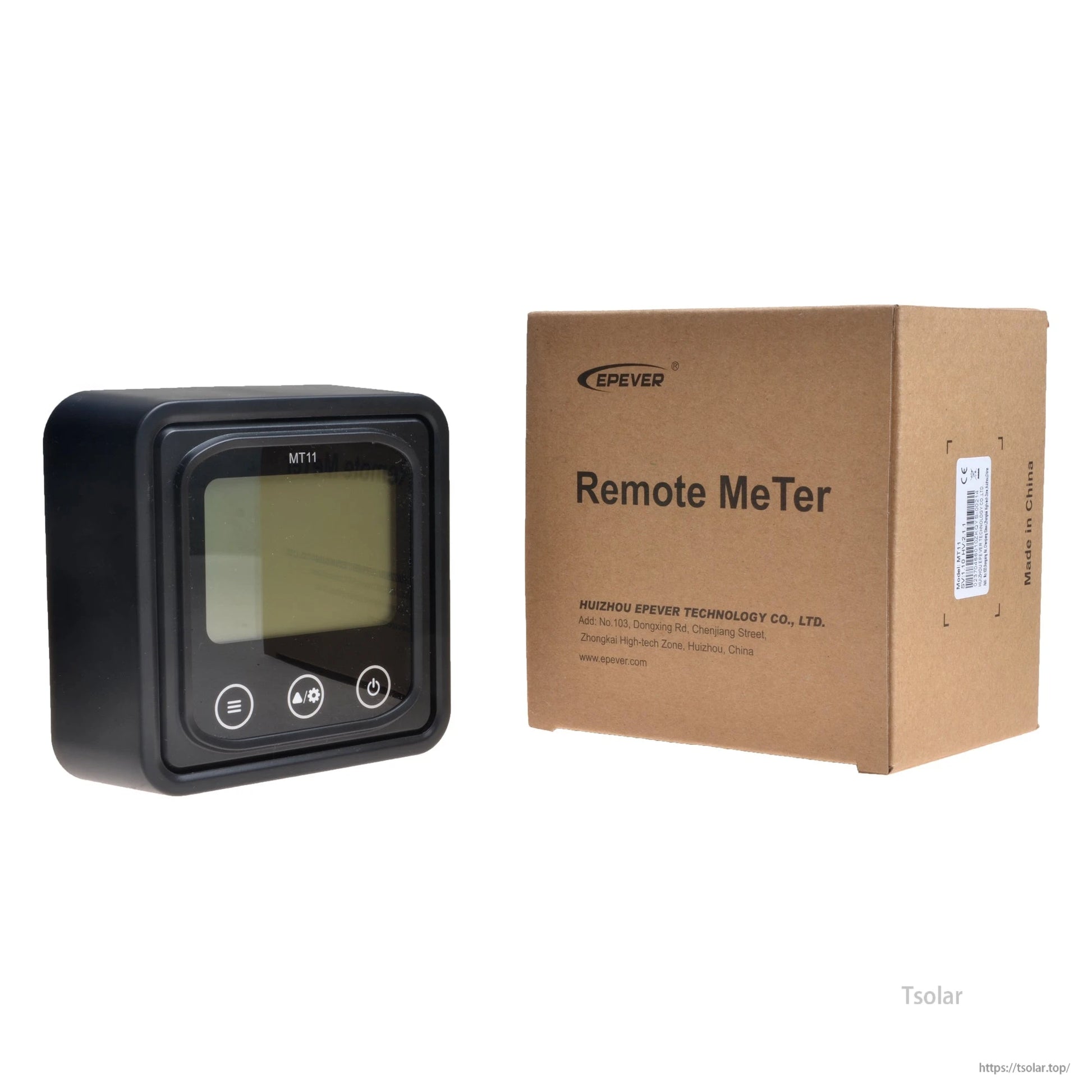

What’s Included
- MT11 remote meter
- CC-RS485-RS485-3.81-4P-150 (Included)
Applications
- RV
- Camper
- Boat
