Renogy 100w 12v solar panel Overview
The Renogy 100W 12V Solar Panel is a versatile and reliable power solution for various applications, including RVs, boats, and off-grid setups. Built with high-efficiency monocrystalline cells, this panel delivers a 15.7% module efficiency, producing up to 100 watts of power under standard test conditions (STC). The panel features 36 cells arranged in a 3x12 configuration, and its rugged construction includes an anodized aluminum frame and LC tempered glass for enhanced durability. It’s designed to operate in extreme temperatures ranging from -40°F to 176°F (-40ºC to +80ºC) and withstand harsh weather conditions with an IP67-rated junction box and solar connectors. With a compact size of 43.0 x 22.9 x 0.1 inches and a lightweight design at just 5.3 lbs, the Renogy 100W solar panel is easy to install and maintain, making it an ideal choice for both stationary and portable energy needs.
Output Leads (Pair): 12 AWG (27.6 in)
Cell Type: Monocrystalline
Number of Cells: 36 (3x12)
Junction Box: IP67
Solar Connectors: IP67
Renogy 100W Solar Panel Specs
Maximum Power at STC: 100W
Module Efficiency: 15.7%
Optimum Operating Voltage (Vmp): 20.7V
Open-Circuit Voltage (Voc): 24.4V
Optimum Operating Current (Imp): 4.84A
Short-Circuit Current (Isc): 5.16A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
Maximum Series Fuse Rating: 15A
Maximum System Voltage: 600V DC (UL)
Certifications: CE, ISO
Weight: 5.3 lbs (2.4 kg)
Dimensions: 43.0 x 22.9 x 0.1 in (1093 x 582 x 3 mm)
Panel Leads (Pair): 12 AWG (27.6 ft)
Material and workmanship warranty: 5 years
Renogy Solar Panel 100W
Renogy 100W Monocrystalline Solar Panel with Grade A Solar Cells, pre-drilled for easy installation. Generates an average of 500 Wh of electricity per day (dependent on sunlight).
What makes a great solar panel? Renogy 100W Grade A Solar Panel stands out with its high-grade solar cells and exceptional performance. With a dimension of 166mm x 156mm, this panel boasts an average power output above industry standards. Our rigorous EL testing ensures zero microcracks, guaranteeing optimal energy production. Each cell is carefully inspected to ensure a tolerance level of 0-2%.
What Makes A Great Solar Panel - Grade A+ Solar Cells
* Solar cells are the most fundamental yet crucial component of a solar panel. They can determine whether a solar panel is highly efficient or not.
* All of Renogy's solar panels use flawless Grade A+ solar cells.
The advantages of Grade A+ solar cells:
1. No visible defects.
2. All the electrical data are in spec.
3. Passes the strict EL test without any microcracks.
* Grade B and C solar cells are inferior to Grade A+.
1. They have visible defects, such as color deviation, paste leakage, large bend, chipped cell, corner breakage, busbar missing, missing print, and watermark. All of these defects can lead to lower conversion efficiency and even a broken solar panel.
2. Lots of microcracks would appear after the EL test.
|
High Efficiency Grade A+ Monocrystalline Solar Panel with 22% Conversion Rate |
Rugged black aluminum frame enhances durability and aesthetic appeal. Anti-reflective coating reduces glare, while corrosion-resistant impact protection ensures a long lifespan. Perfect for rugged outdoor use or everyday applications. |
Reliable construction features a rugged aluminum frame and LC tempered class durable TPT backsheet, ensuring long-lasting performance and protection for your Renogy 100W solar panel. |
|---|---|---|
Higher EfficiencyRenogy uses an anti-reflective, low iron-tempered glass on top, with a high transparency of up to 91.5%. Compared with conventional solar panels, it allows more direct sunlight to be converted to electrical power. |
Rugged Black Aluminum FrameCorrosion-resistant aluminum frame design with sturdy corner supports ensures that it endures the outdoors for an extended period of time without damage or loss of performance. The unique dazzling black frame makes its appearance more advanced, which can meet your needs for aesthetics. |
Reliable & DurableThis Renogy solar panel is made of advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing lasting solar panel durability. |
|
|
|
The Renogy 100W Solar Panel includes weather-resistant IP67 rated connectors, a durable design for outdoor use with both female and male connection options. |
|---|---|---|
Pre-Drilled Holes for Easy InstallationComes with pre-drilled holes, including ground mounting holes for fast and convenient installation. Compatible with Renogy Z Brackets, Corner Brackets, Pole Mounts and Tilt Mounts. |
IP65 Junction BoxComplete protection against environmental particles and low-pressure water jets. |
IP67 Solar ConnectorsNo need to worry about bad weather. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in. Perfect for your yacht and marine applications. |

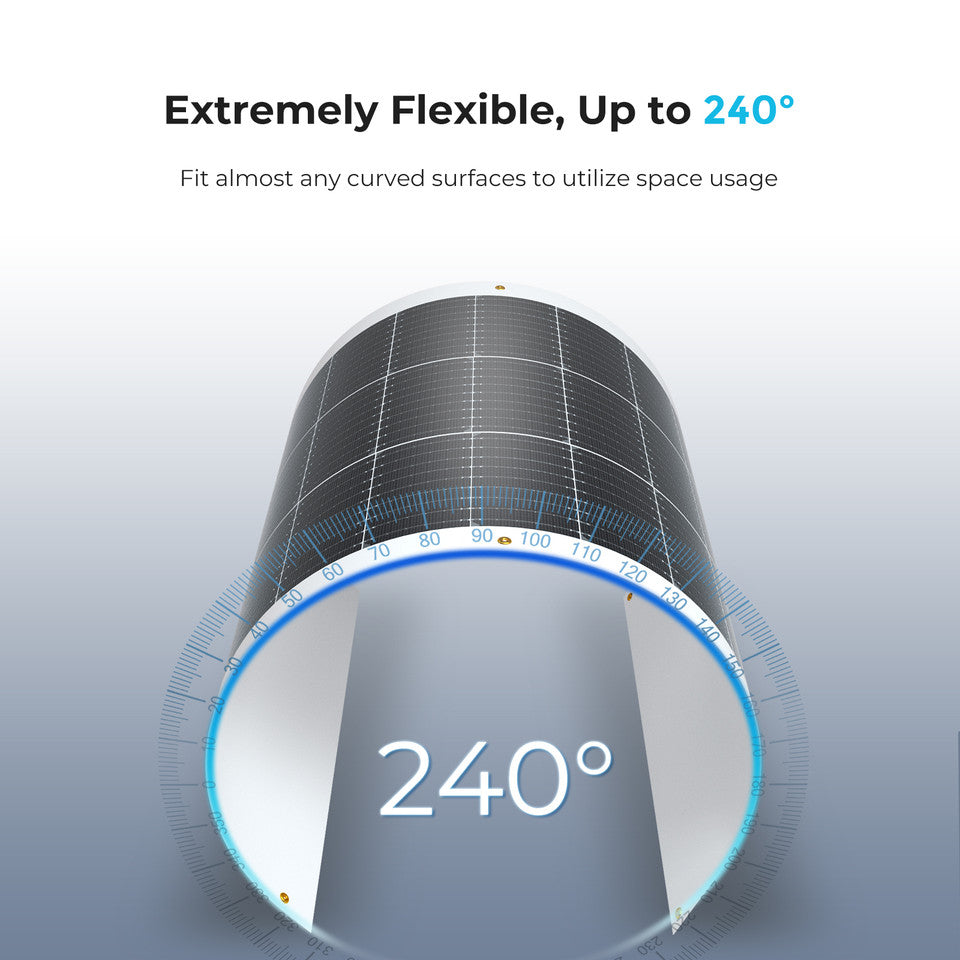

Extremely Flexible Solar Panel, Fits Curved Surfaces, Ideal for Space-Saving Usage

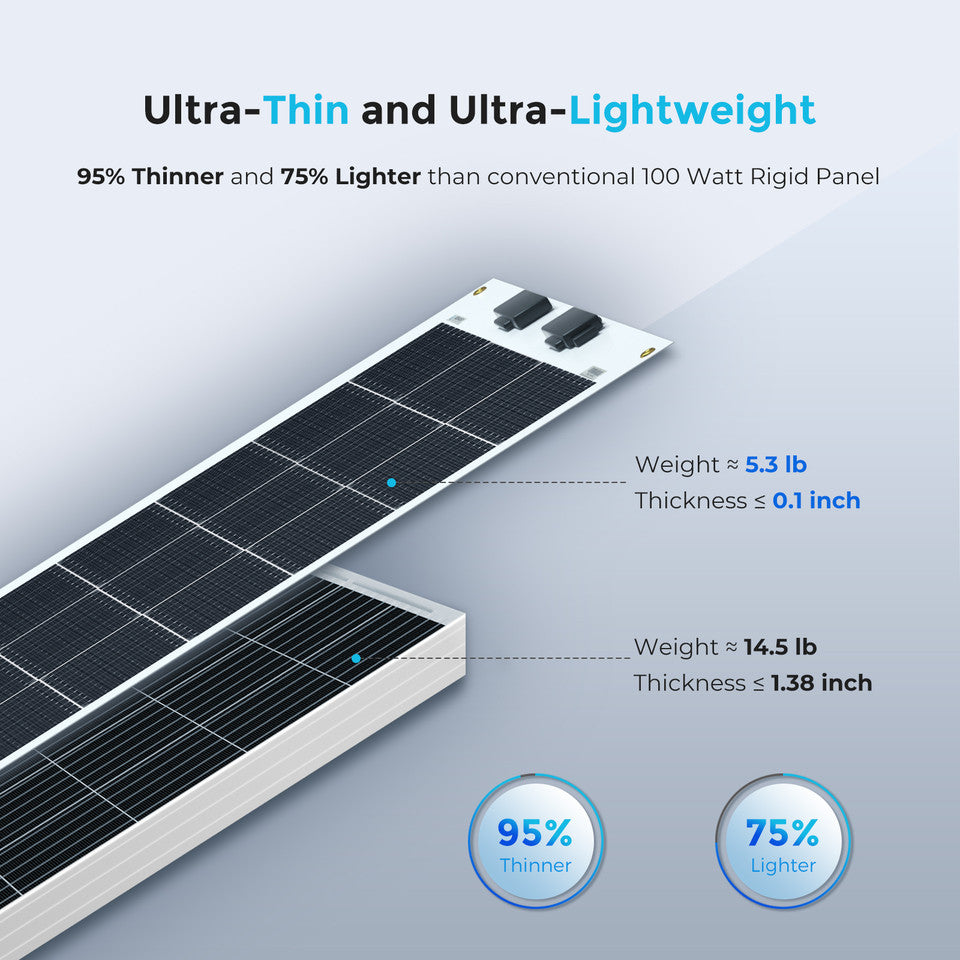

Ultra-thin and ultra-lightweight, this 100W solar panel is 95% thinner and 75% lighter than conventional rigid panels. Weighing around 5.3 lbs with a thickness of under 0.1 inch, it an ideal choice for various applications.

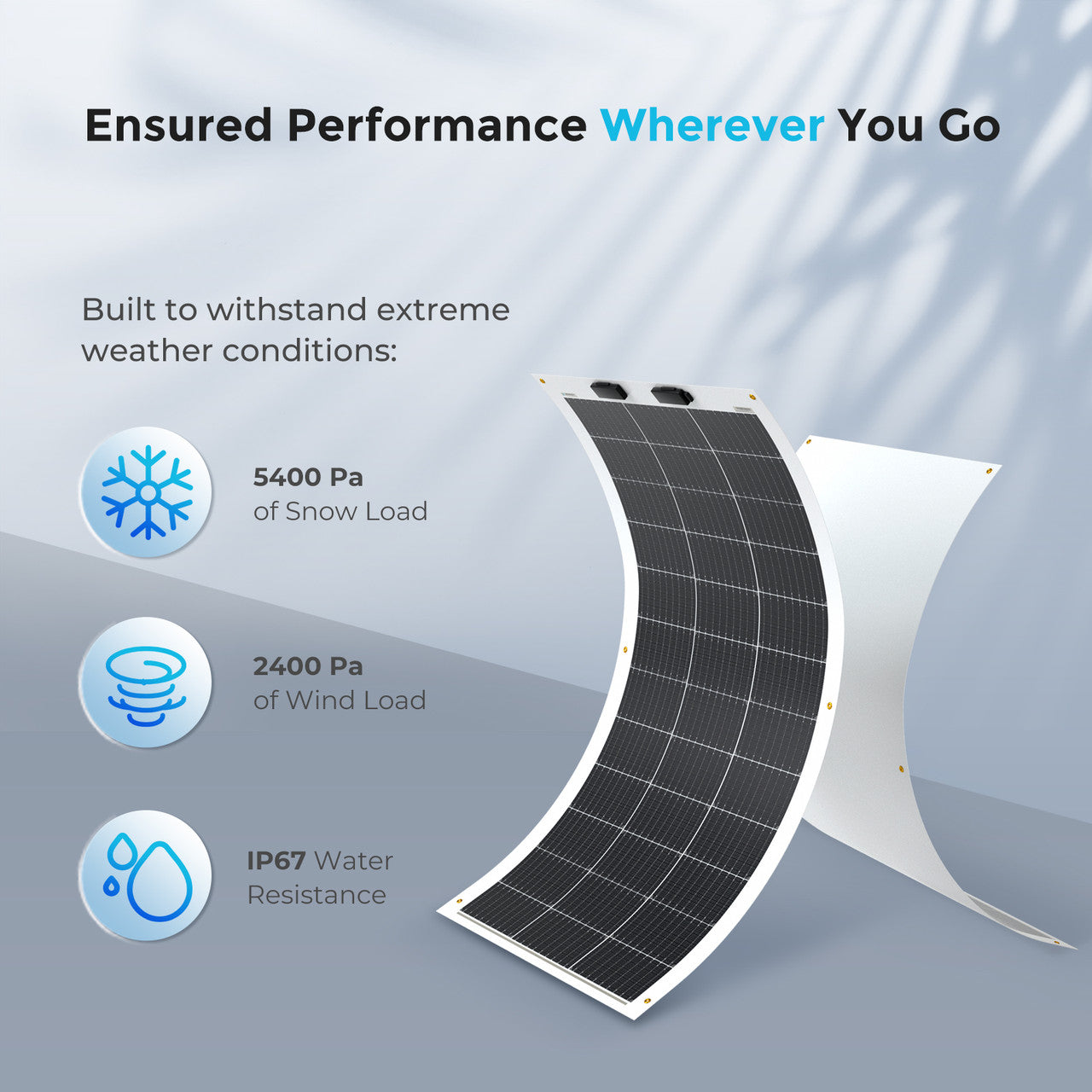

Ensured performance wherever you go, built to withstand extreme weather conditions. Withstands 5400Pa snow load and 2400Pa wind load. Features IP67 water resistance for reliable performance.

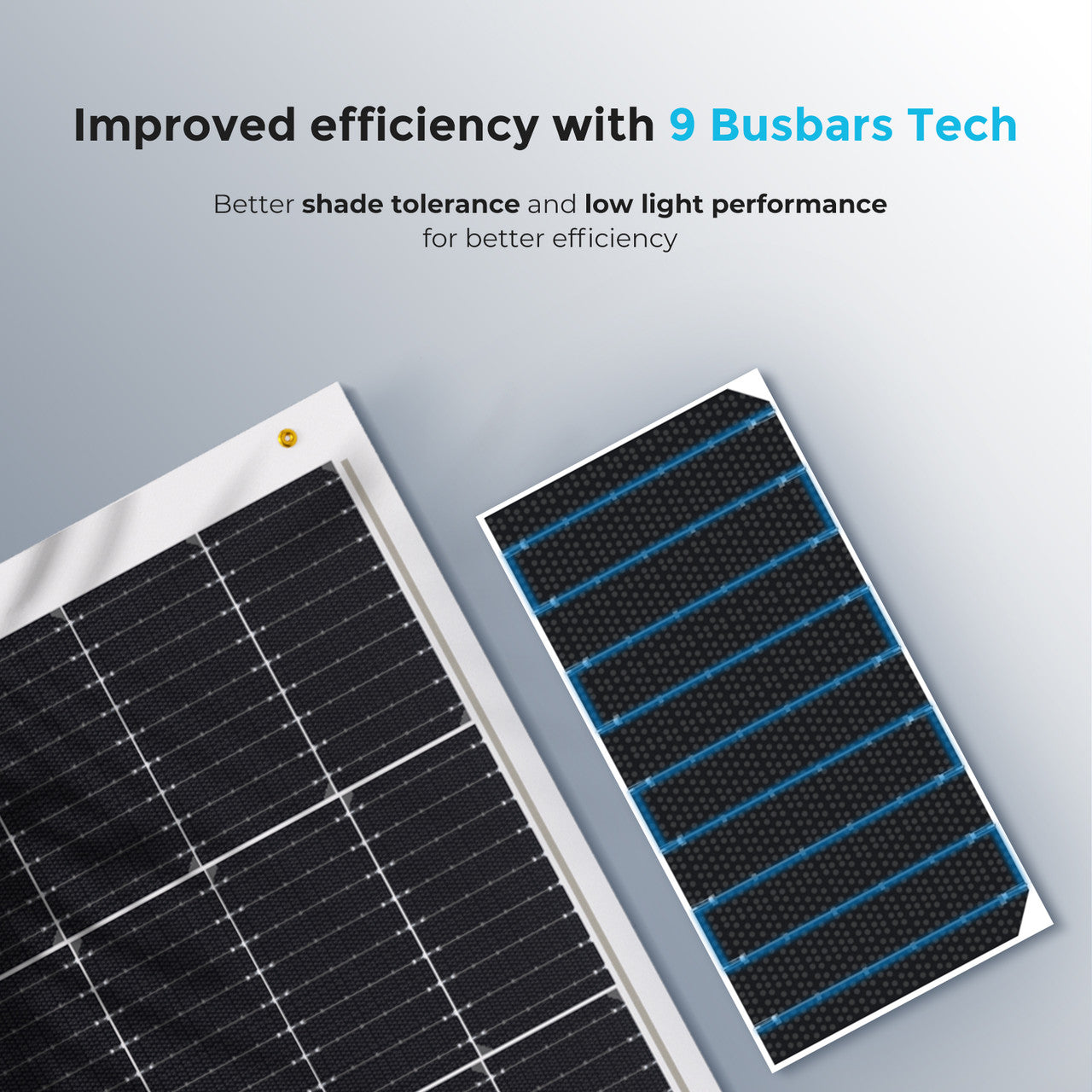

Improved efficiency with advanced technology, enhanced shade tolerance, and optimized low-light performance for maximum power generation

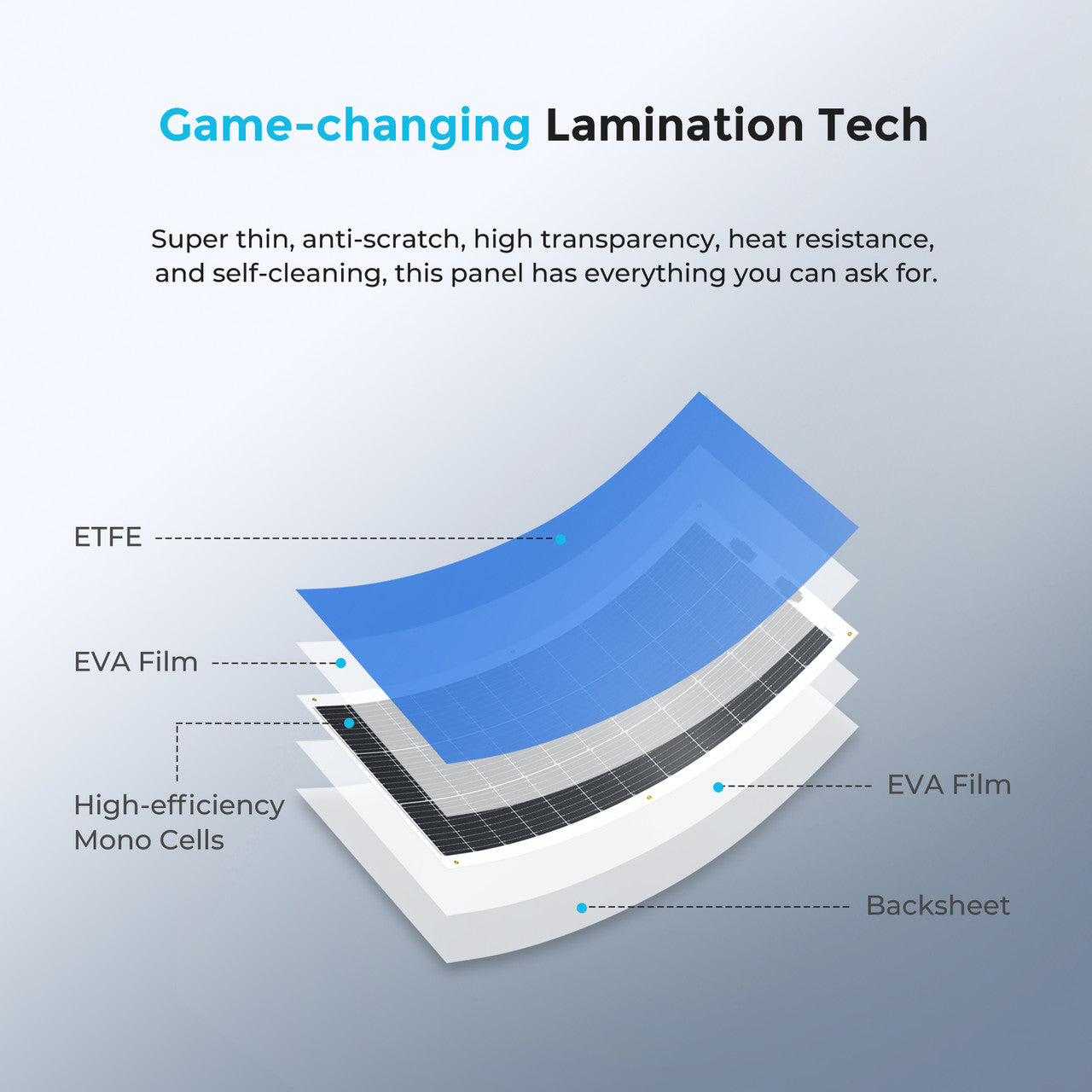

Renogy 100W Solar Panel features a game-changing lamination technology with super thin, anti-scratch, high transparency, heat resistance, and self-cleaning properties. This panel boasts ETFE EVA film, EVA film, and high-efficiency mono cells for maximum energy output.

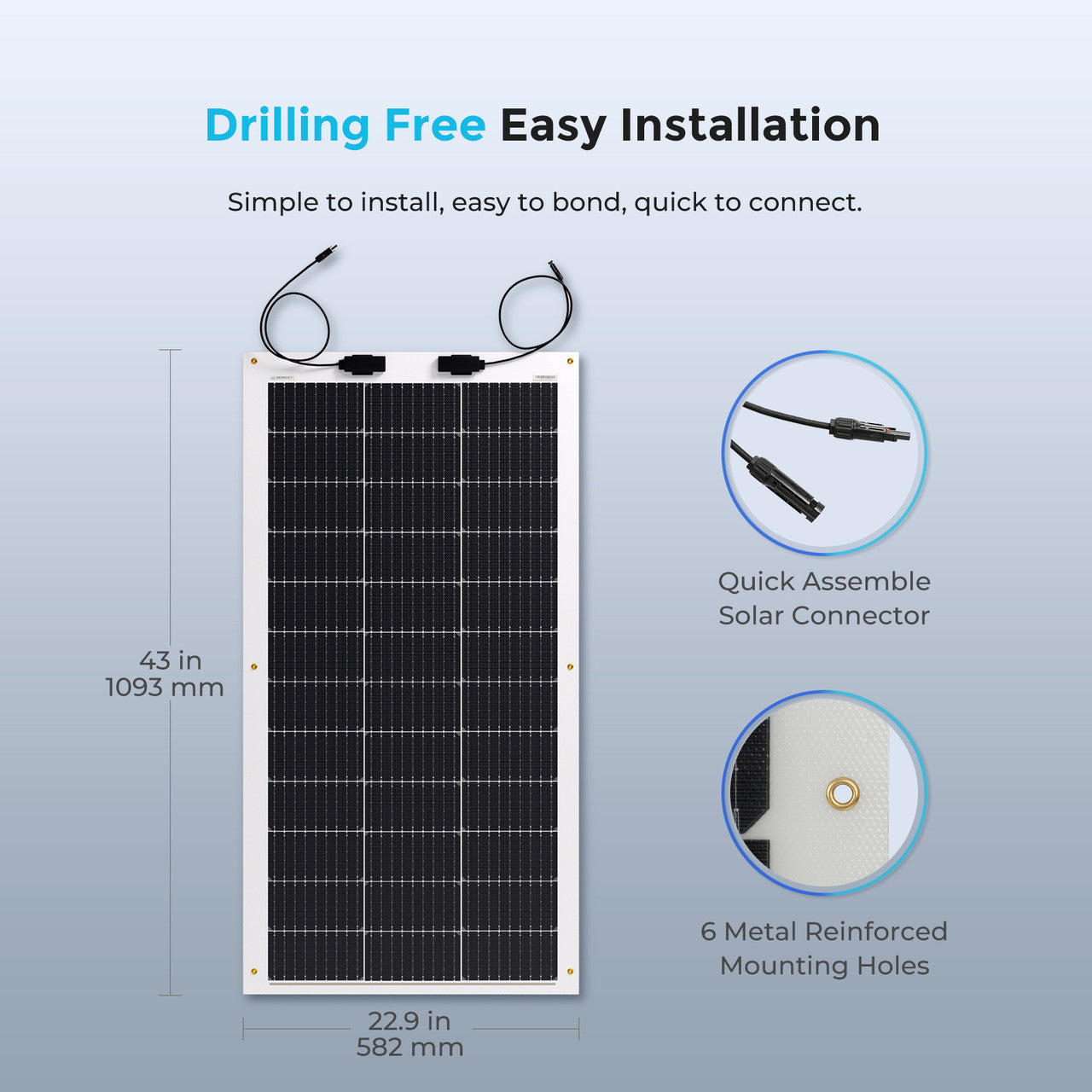

Drill-free, easy installation, simple to install and bond, quick to connect. Features a 43-inch (1093mm) metal-reinforced mounting hole and a 22.9-inch (582mm) connector.
Best-in-class ultra-flexible up to 248 degrees flexible solar panel

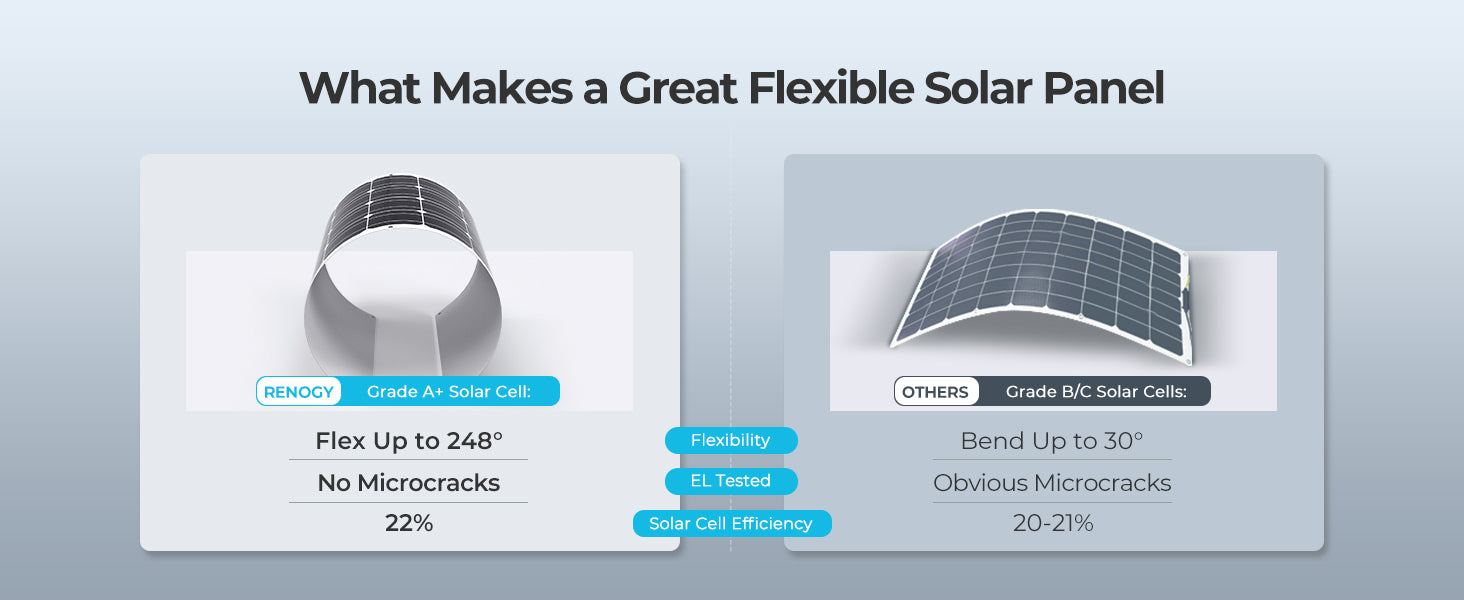

What Makes a Great Flexible Solar Panel? Renogy Grade A Solar Cell: Other Grade B Solar Cells; Flexible Up to 2480 Flexibility, Bendable Up to 30.9 Degrees No Microcracks; EL Tested; Obvious Microcracks; 22% Solar Cell Efficiency (20-21%).

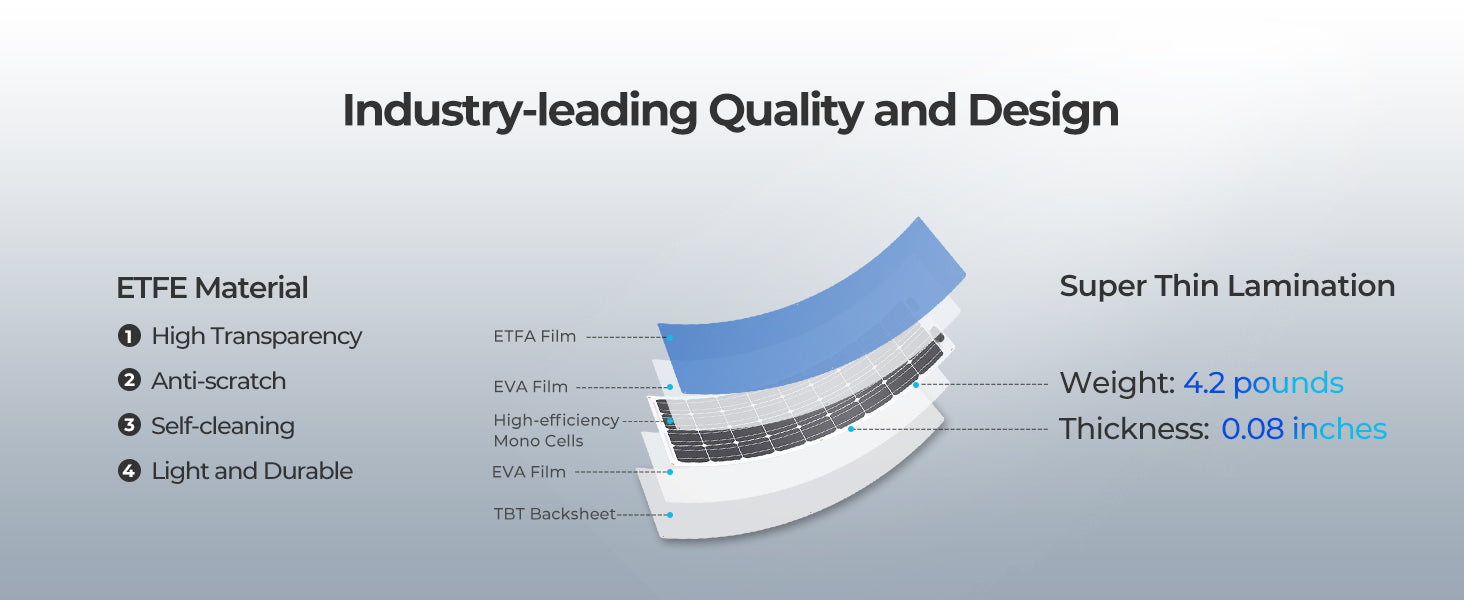

Renogy 100W Solar Panel features industry-leading quality and design, ETFE material with super thin lamination, high transparency ETFA film, anti-scratch EVA film, and a self-cleaning surface. Weighing 4.2 pounds, this panel has a thickness of 0.08 inches and uses mono cells for added durability.
Designed to withstand harsh environments, our solar panel is built with marine-grade waterproof materials for maximum protection against water and dust. Take on any adventure knowing your equipment is safe and secure.
Renogy 100W Polycrystalline Solar Panel Kit - IP68 Waterproof Junction Box, IP67 Solar Connectors, 2400Pa Submersible Water Pressure, S400Pa Seismic Load, JL High Wind Resistance, Heavy Snow Loads

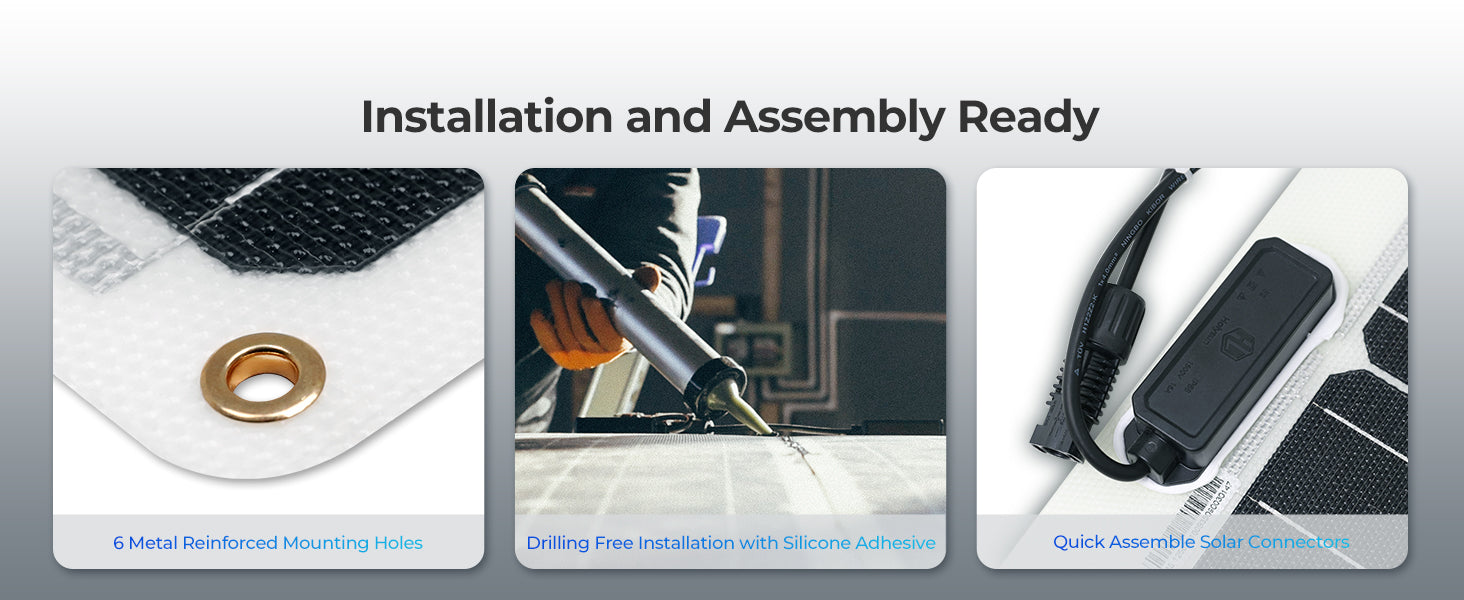

This Renogy 100W solar panel features installation-ready metal-reinforced mounting holes, eliminating the need for drilling. A silicone adhesive ensures a secure fit. Quick-assemble solar connectors simplify installation.
