Renogy 550 Watt Solar Panel

Renogy 550 Watt Solar Panel Overview

The Renogy 550 Watt Solar Panel is a high-performance bifacial solar module designed to maximize energy production in various conditions. With a peak power output of 550W and an impressive module efficiency of 21.3%, this panel captures sunlight from both sides, yielding up to 30% more energy compared to traditional solar panels. Key electrical specifications include an open circuit voltage of 49.95V, a short circuit current of 14.05A, and an optimum operating voltage of 41.97V. Built to last, the Renogy 550W panel is rigorously tested to withstand harsh weather conditions, including snow loads up to 5400 Pa. It features PERC, half-cut cell, bypass diodes, and 10 busbar technologies, ensuring enhanced performance even in shaded conditions. The panel's robust construction, along with a 10-year material and workmanship warranty and a 25-year performance warranty, makes it a reliable choice for residential, commercial, and off-grid installations. With versatile mounting options and certifications from ETL and TUV, the Renogy 550W Solar Panel is an ideal solution for sustainable energy generation.

Renogy 550W Solar Panel Specifications

Max Power at STC: 550W

Open Circuit Voltage: 49.95V

Short Circuit Current: 14.05A

Optimum Operating Voltage: 41.97V

Optimum Operating Current: 13.11A

Maximum System Voltage: 1500VDC

Maximum Series Fuse Rating: 30A

Module Efficiency: 21.3%

Operating Temperature: -40°F~185°F / -40℃~85℃

Dimensions: 2279x1134x35mm/89.72x44.65x1.38in

Weight: 58.4lbs

opc:

Material and workmanship warranty: 10 Years

Performance Warranty: 5 year 95% output warranty; 10 year 90% output warranty; 25 year 80% output warranty

ETL Listed [UL61730]: YES

Manufactured in a Certified ISO 9001 Facility: YES

TUV [IEC61215 IEC61730]: YES

opc:

Renogy 550 Watt Solar Panel Details

Renogy's 550W solar panel boasts a 13-year off-grid lifespan, up to 30% more energy yield, and a pioneering energy performance. With over 10 million panels sold, it has earned a 4.8/5 user rating and features IP68 half-cell waterproofing.

Bifacial Energy Yield up to 30%

With the ability to capture sunlight from both sides, this panel can provide up to 30% more energy compared to traditional solar panels.

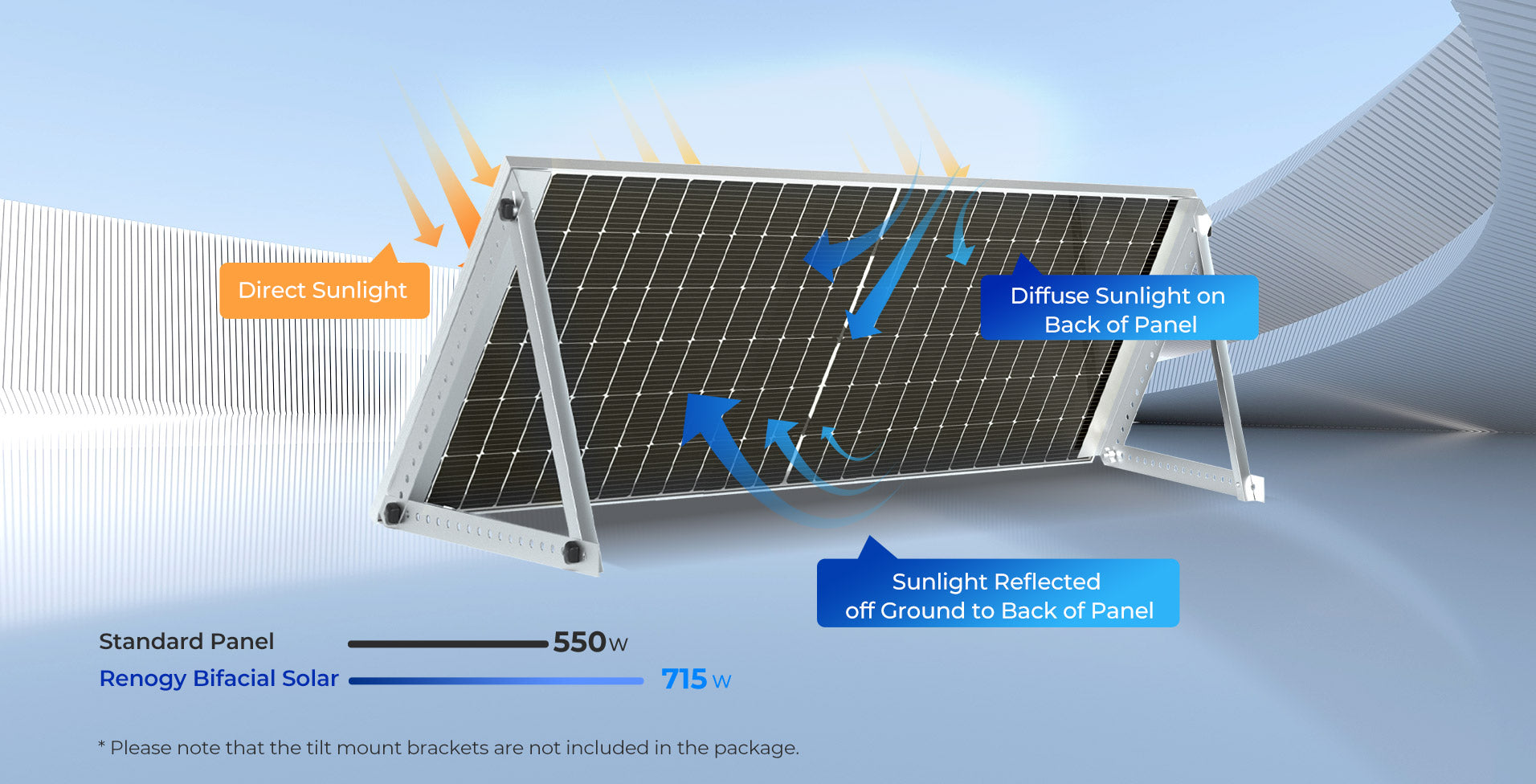

Compatible with direct and diffuse sunlight. Also suitable for bifacial solar applications. Renogy's Bifacial Solar Panel (715W) is designed to maximize energy harvesting. Note: Tilt mount brackets are not included.

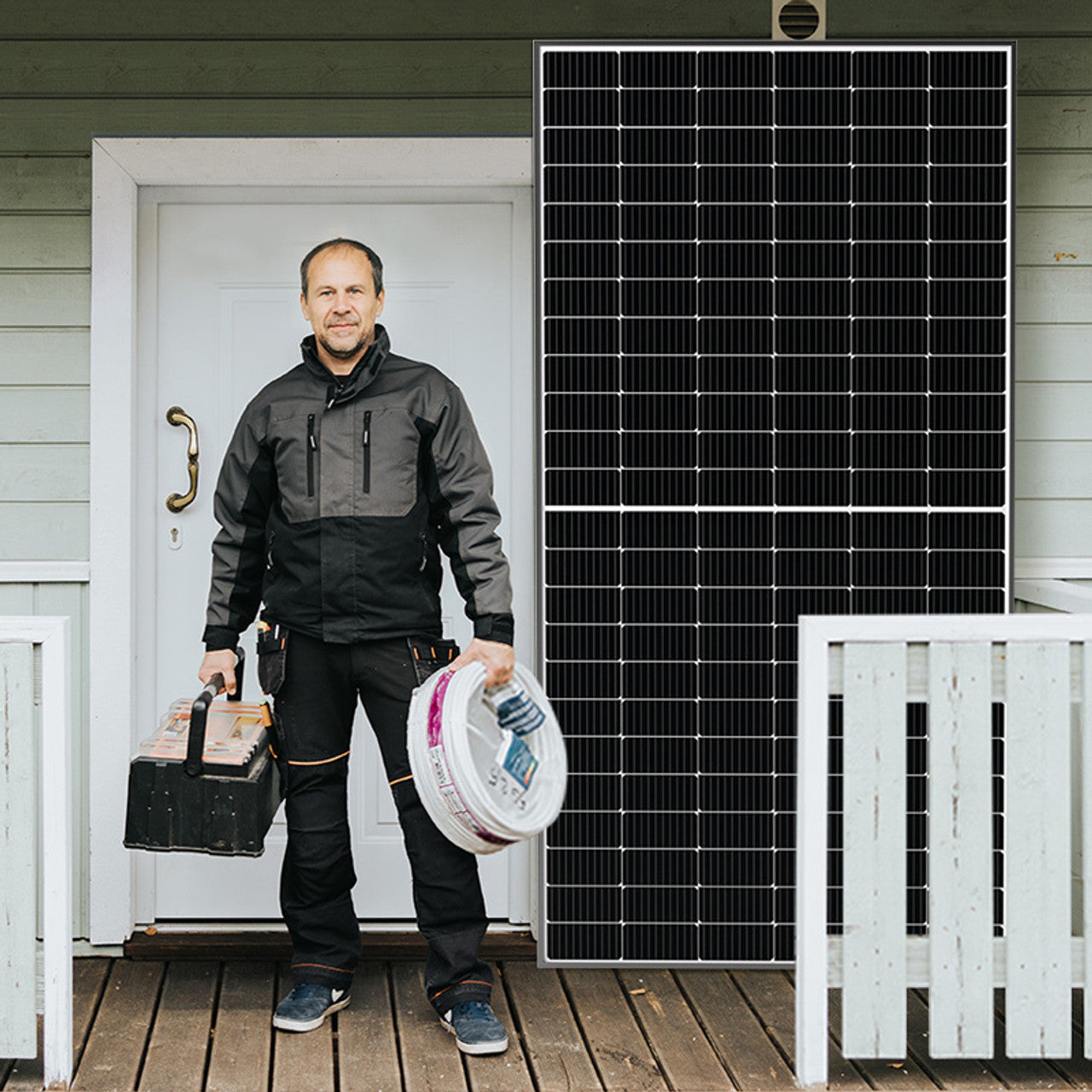

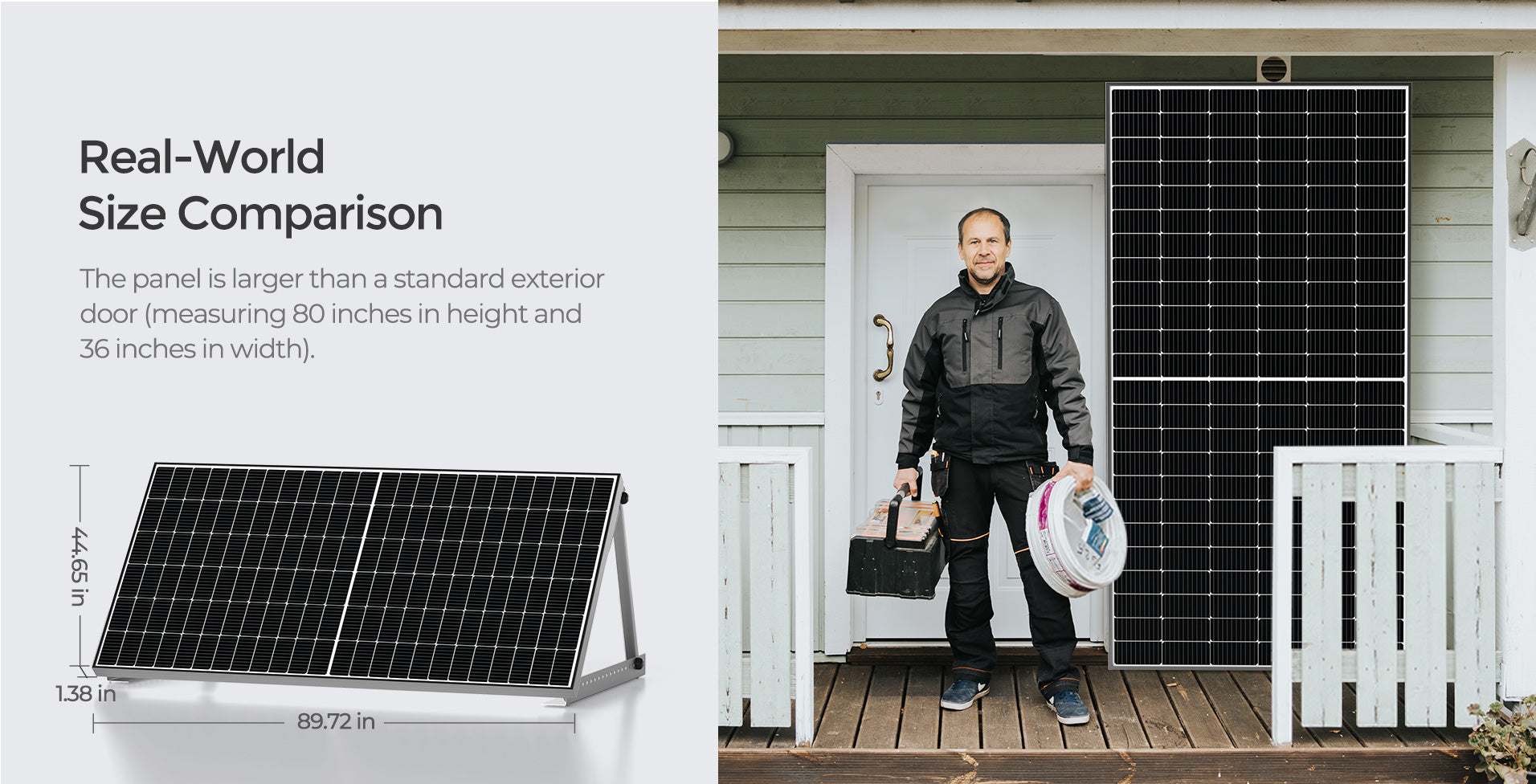

Measuring 80 inches tall and 36 inches wide, this solar panel is equivalent to the size of a standard exterior door, making it a significant addition to your rooftop or ground installation.

Ground Mount Installation

Residential Roof Installation

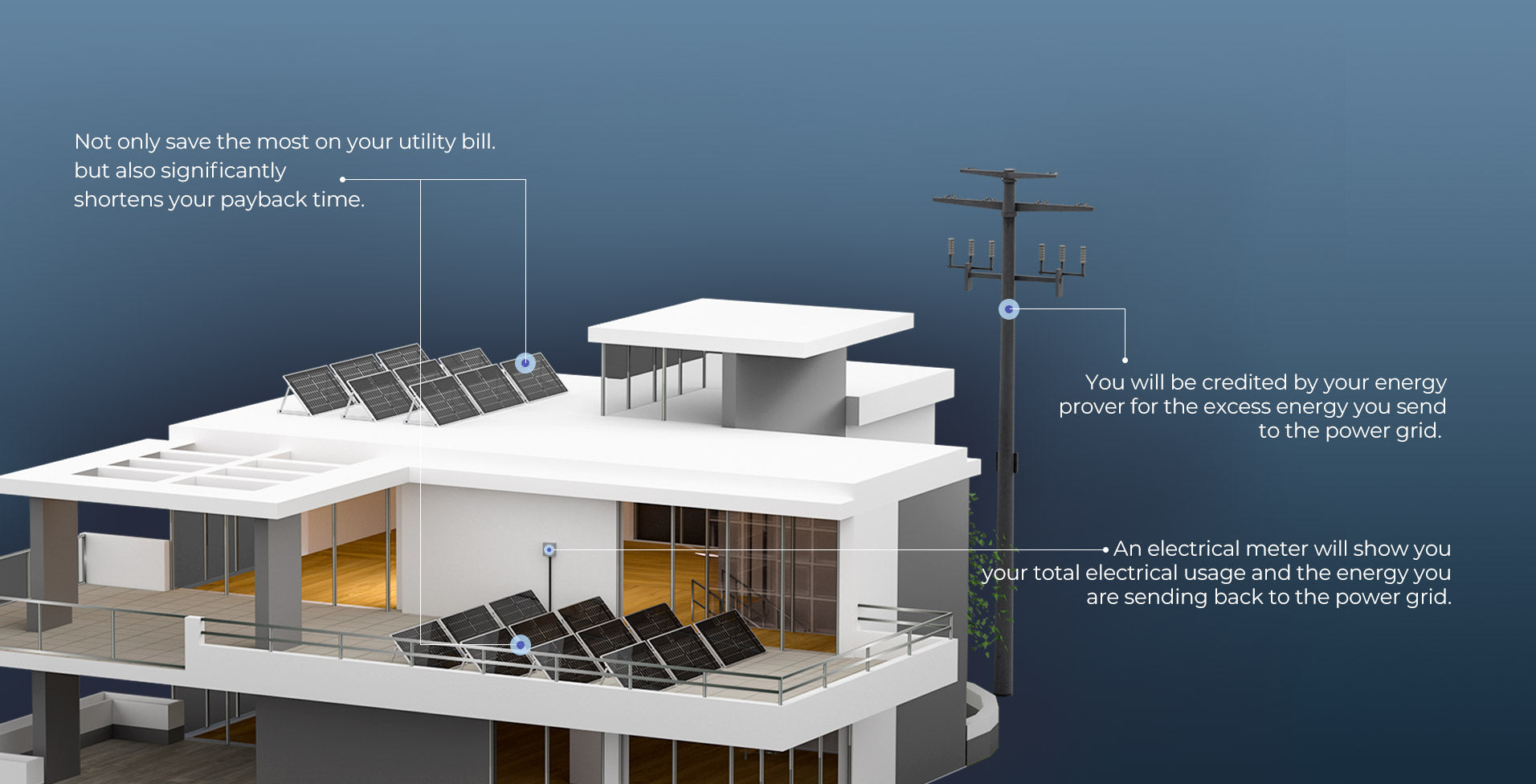

Rest assured, you won't waste a single watt. Thanks to the high efficiency of bifacial panels, any excess energy generated by your solar panels can be stored in batteries for future use or sold back to the main power grid. Installing a solar roof is a wise financial decision that enhances the value of your home.

Save on utility bills and shorten payback time. Receive credits from your energy provider for excess energy sent back to the grid, tracked by an electrical meter showing total usage and energy sent back.

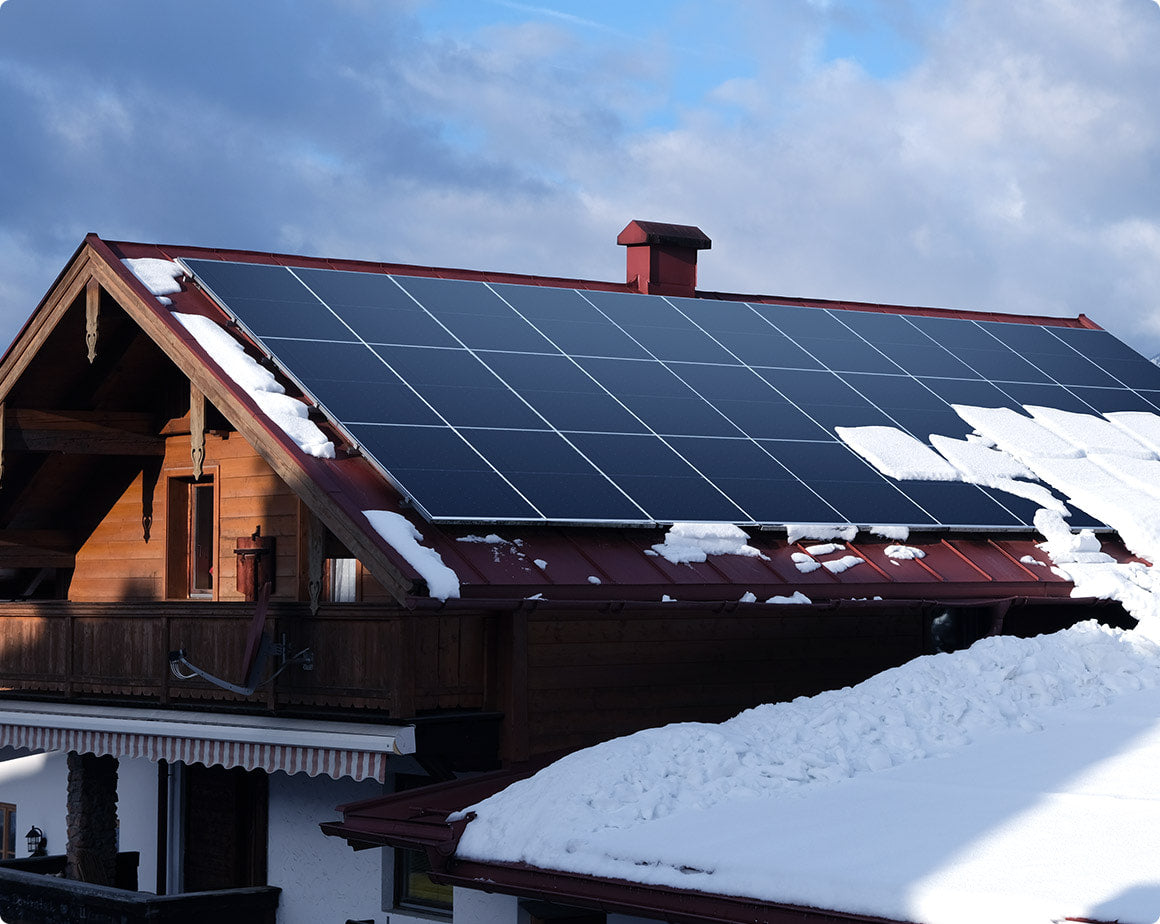

Built to Last in Any Weather

Renogy solar panels are meticulously designed and third-party validated to withstand strong snow loads. Tested with a static load of 113 psf (5400 Pa).

Designed to withstand harsh weather conditions, this solar panel features high snow load and wind resistance up to 2400 PALSOP SF and 540 PAH 13 PSF in both directions.

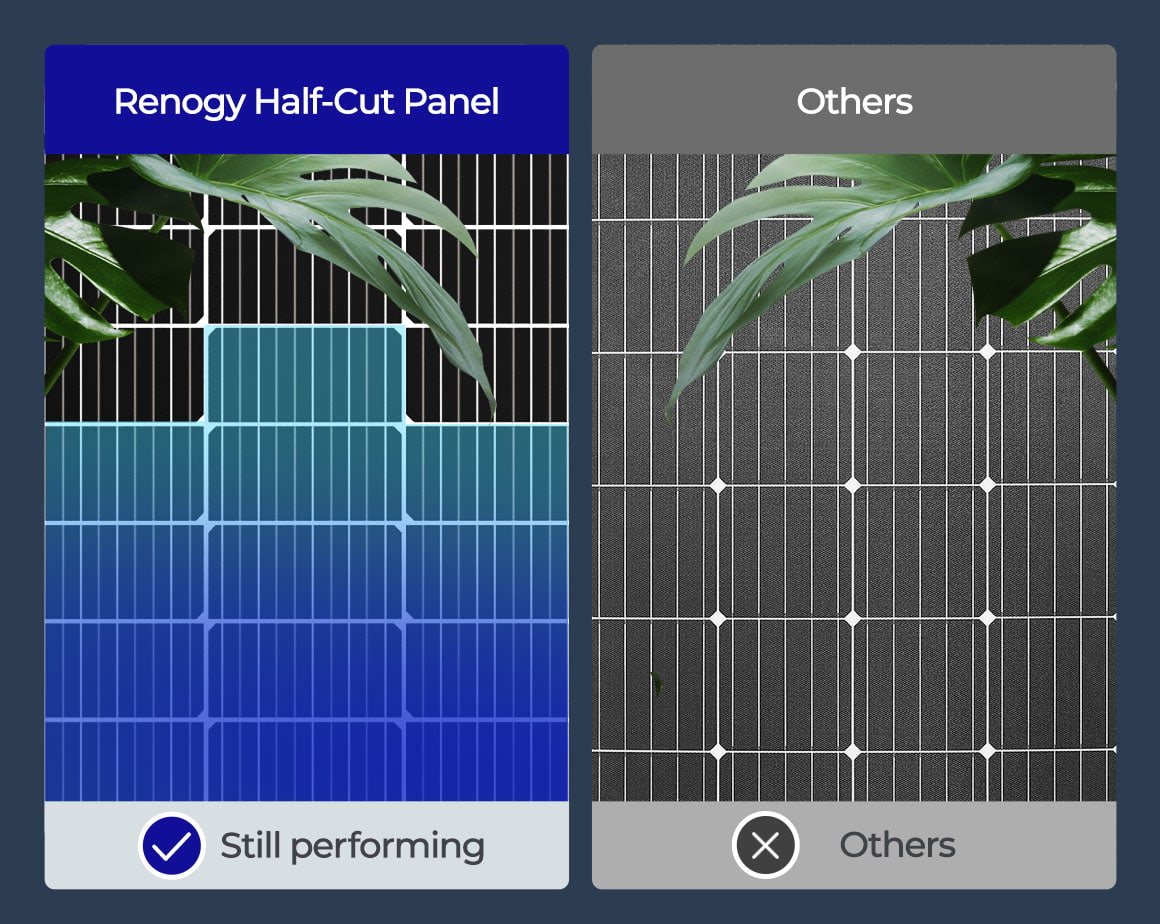

Improved Performance in Shaded Conditions

With its innovative design that incorporates PERC, half-cut cell, bypass diodes, and 10 busbar technologies, this panel can maximize energy output even when partially shaded.

More Generation on a Snowy Day

The bifacial design of our solar panel helps to accelerate snow shedding and warm up the panel more quickly. Additionally, with the back side always available, our panel can continue to provide unstoppable solar power for your off-grid life.

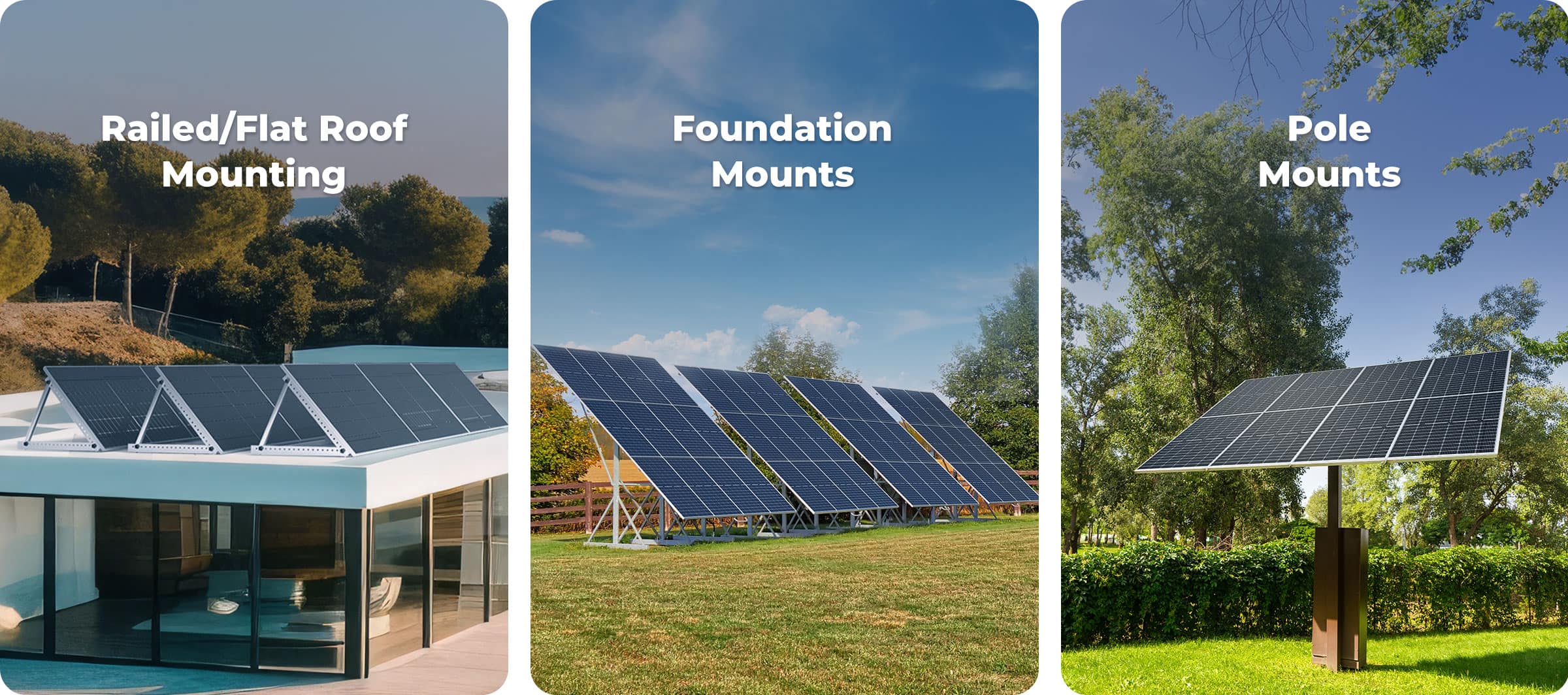

Versatile Mounting Method

Embrace a variety of installation methods and strategically plan your energy solution now!

Renogy 550W Solar Panel features a railed or flat roof foundation with pole mounting options for secure and adjustable installation.

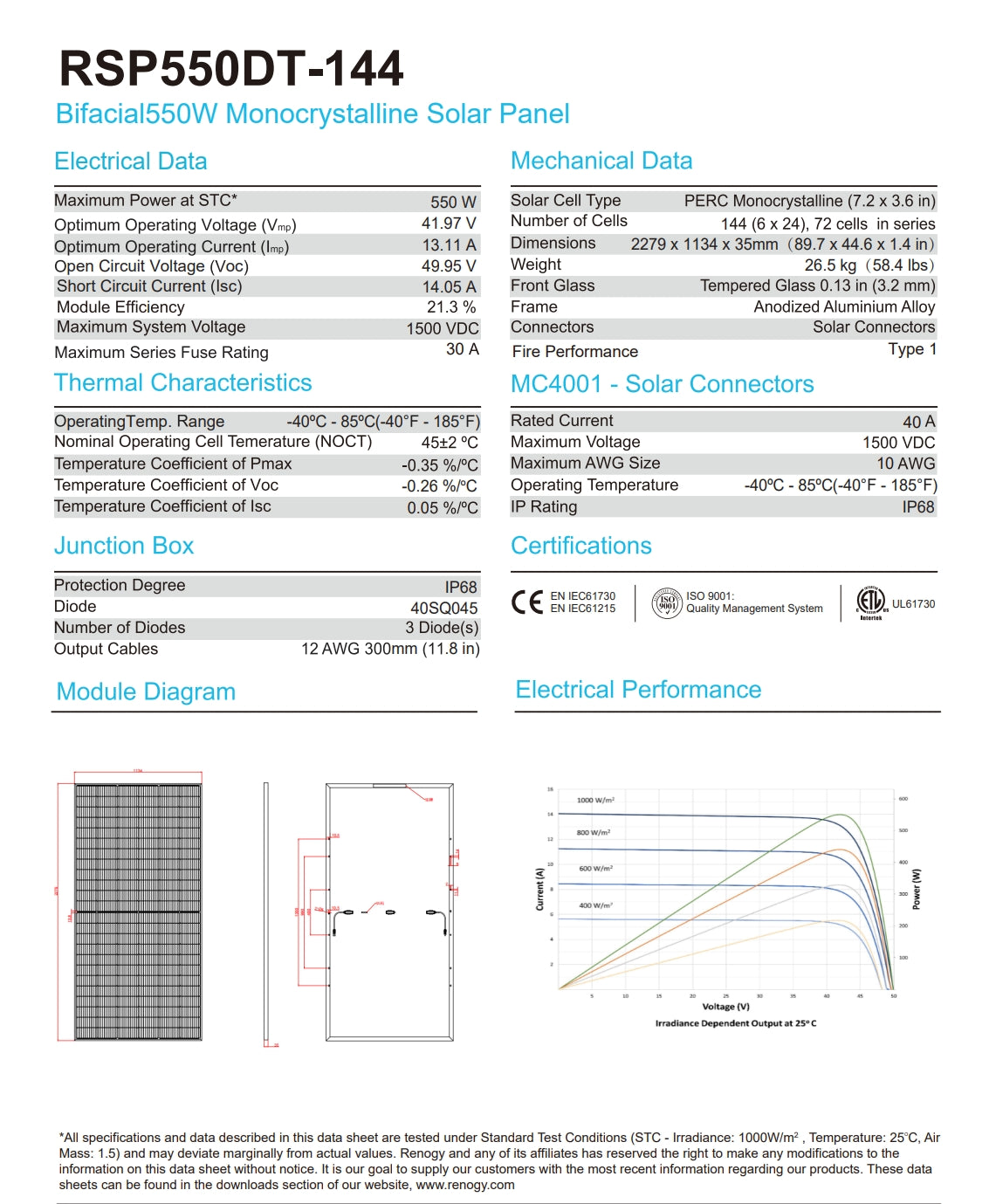

Renogy 550 Watt Datasheet

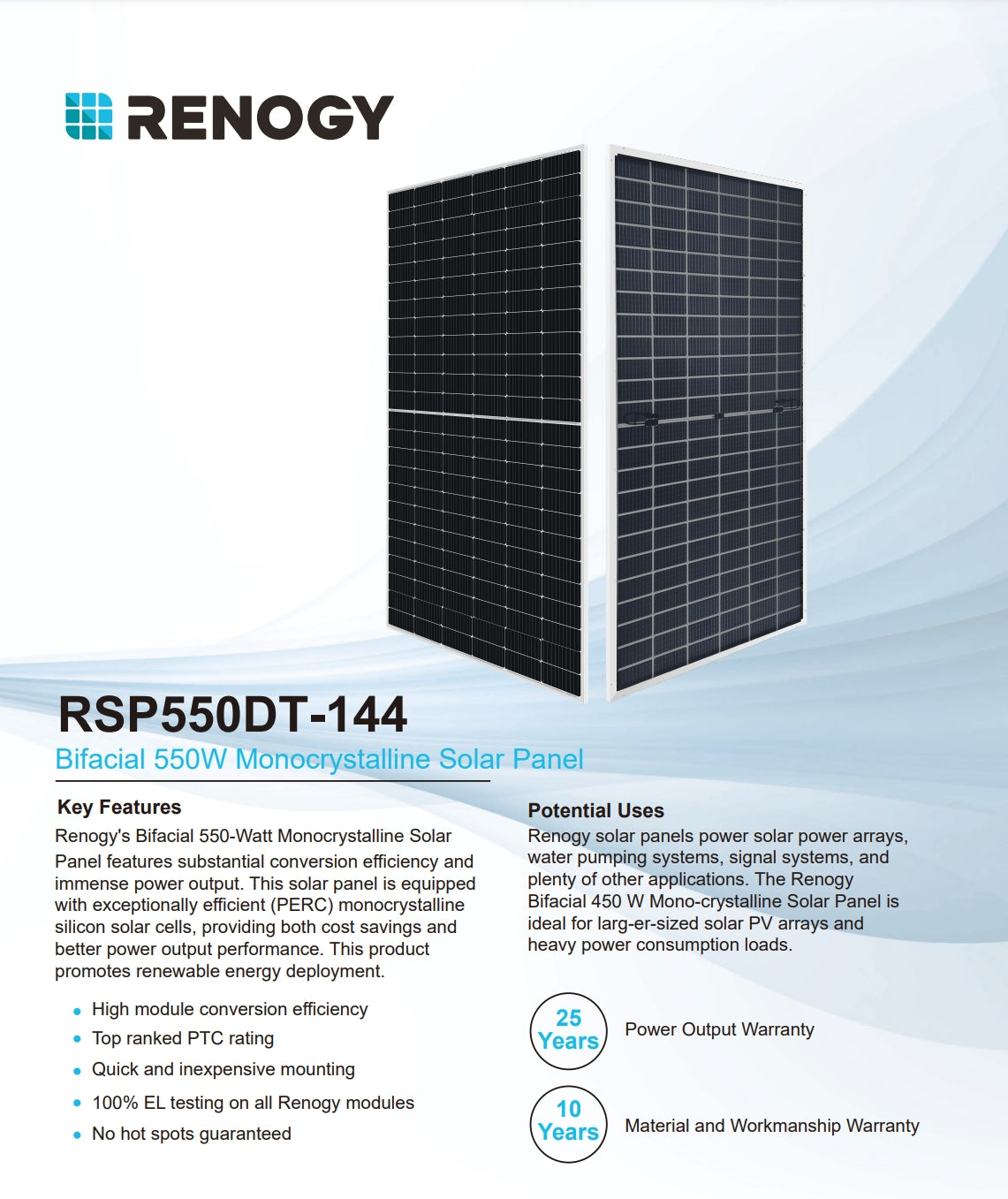

Renogy's RSPSSODT-144 Bifacial 550-Watt Monocrystalline Solar Panel features high conversion efficiency, ideal for large solar arrays, water pumping systems, signal systems, and other applications. It promotes renewable energy deployment with a 25% PTC rating, power output warranty, and guaranteed no hot spots.

Renogy's Renogy 550W Solar Panel features a maximum power output at STC of 550 watts, with a solar cell type of PERC monocrystalline and an optimum operating voltage of 41.97V.
