Reolink TrackMix LTE Overview
The REOLINK TrackMix LTE 4G Battery Camera is a robust outdoor security solution, perfect for off-grid areas like farms, construction sites, and vacation homes. Featuring dual lenses with 6X hybrid zoom, it provides both wide-angle and close-up views on a single screen. The camera offers 360° coverage with PTZ auto-zoom tracking, ensuring no detail is missed. It captures crisp 2K 4MP video day and night, with smart detection capabilities to differentiate between people, vehicles, and pets, sending real-time alerts via email, app push, or siren. Powered by a solar panel and 4G LTE connectivity, it operates reliably without the need for power sockets or WiFi networks. Compatible with carriers like T-Mobile, AT&T, and Freedompop, it ensures continuous, hassle-free security monitoring.
Reolink TrackMix LTE Features

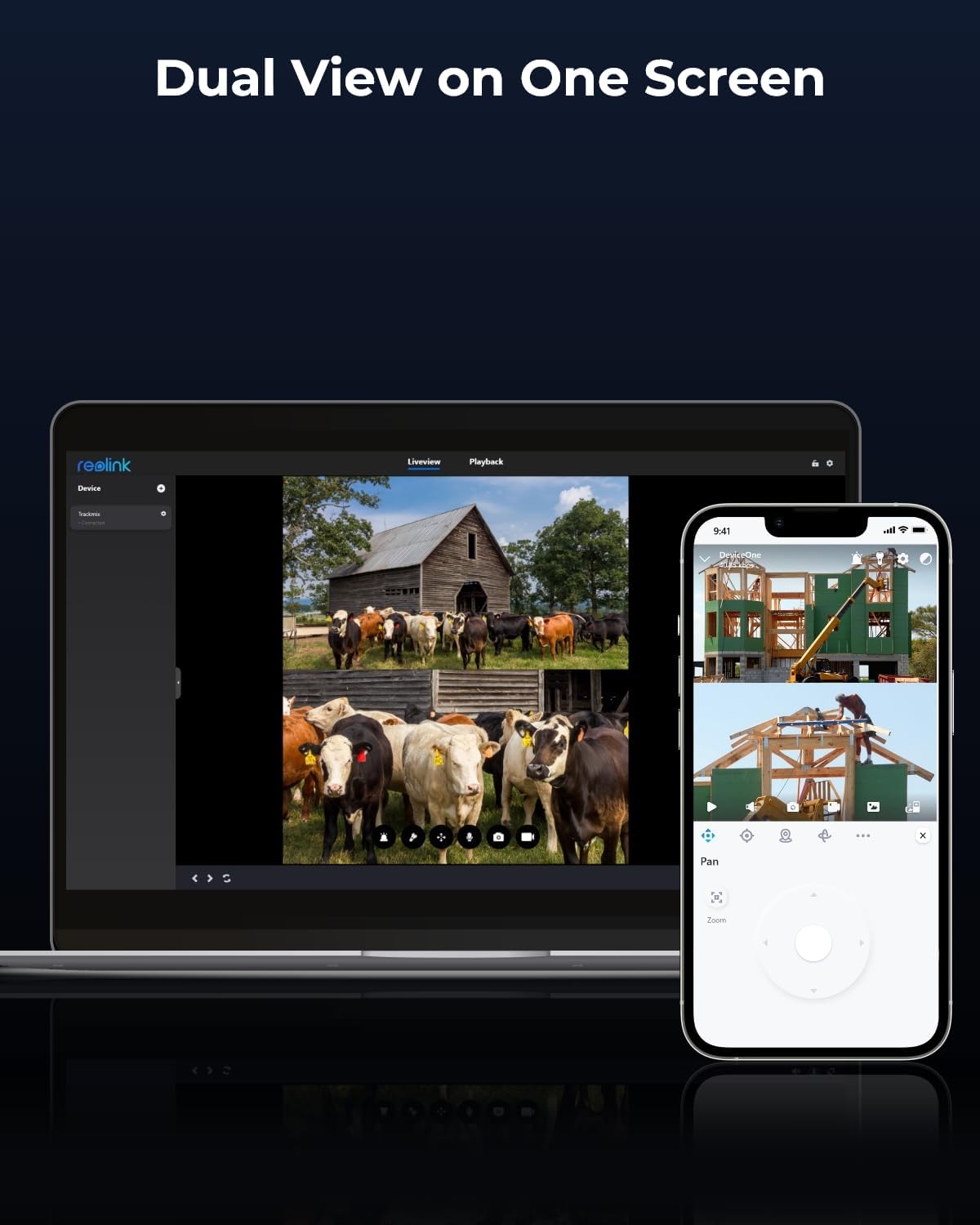

Dual View on One Screen: Enjoy a comprehensive view with the 6X hybrid zoom, enabled by the camera’s wide-angle and telephoto lenses. This feature provides both a full view and a closeup of key details on one screen, ensuring you never miss anything important.
Complete Coverage with PTZ Auto-Zoom Tracking: Control the camera remotely to pan 355° and tilt 90°, covering every corner of your property. The camera can automatically track and zoom in on moving objects, providing clear details and a complete overview of any event.
Real-Time Alerts for Important Events: The camera’s smart detection capabilities distinguish between people, vehicles, and pets, sending you relevant alerts. Receive instant notifications via email, app push, or a built-in siren, ensuring you’re always informed about what matters.
Crisp 2K Video Day & Night: Capture fine details with 2K 4MP high-resolution video. The camera provides both infrared black-and-white night vision and spotlight color night vision, ensuring clear footage even in low-light conditions.

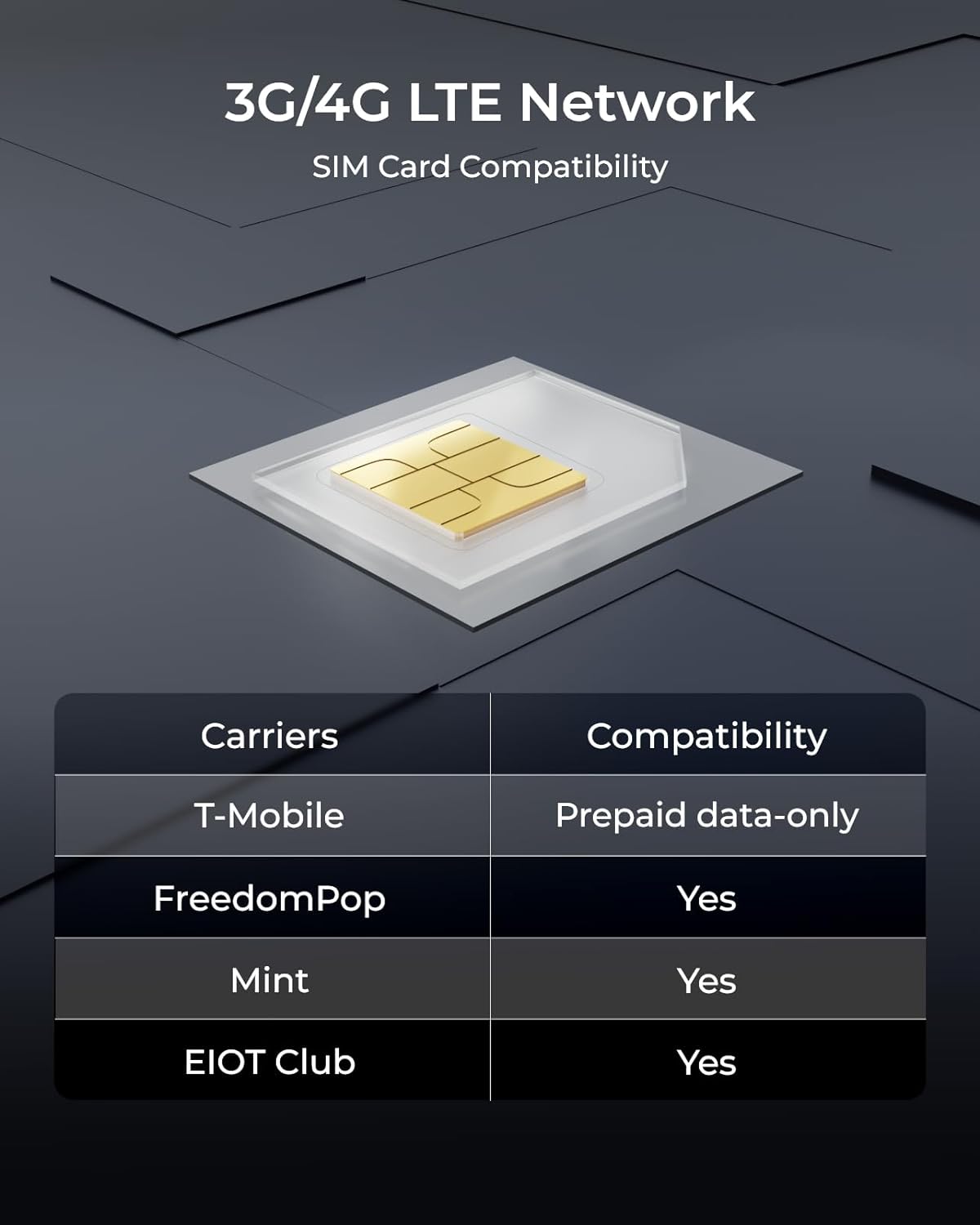

Reliable 3G/4G LTE Connectivity & Solar Power: This cellular camera combines solar power with 4G LTE connectivity, eliminating the need for power sockets or WiFi networks. Ideal for off-grid areas such as country houses and construction sites. Compatible with SIM card carriers like EIOT Club, T-Mobile (prepaid data card only), Freedompop, and AT&T.
Recommended Uses: Perfect for outdoor security, construction sites, farms, ranches, vacation homes, country houses, campers, RVs, trailers, and off-grid areas.
The REOLINK TrackMix LTE+SP is a versatile and reliable security solution, providing advanced features and continuous operation with its solar-powered, cellular design.
Reolink TrackMix LTE Specifications
Category | Specification |
---|---|
Video & Audio | |
Image Sensor | 1/3" CMOS Sensor |
Video Resolution | Up to 2560 x 1440 (4.0 Megapixels) at 15 frames/sec |
Lens | f=2.8mm@F=1.6,f=8mm@F=1.6 |
Video Format | H.264, H.265 |
Field of View | Horizontal: 96°-38°; Vertical: 55°-21° |
Zoom Mode | 6X hybrid zoom |
Day & Night | IR-cut filter with auto-switching |
Infrared Night Vision | Up to 30 Meters (100ft) (LED: 2pcs/850nm) |
Color Night Vision | Spotlight: 1pcs/6500K/450 Lumens |
Audio | Two-way audio |
Power | |
Battery | 7.2V 5100mAh rechargeable battery (36.72Wh power capacity, battery life varies based on settings, usage, & temperature) |
Solar | Reolink Solar Panel 2 |
DC Power | 5V/2A |
Interface | |
Power | USB Type-C port |
System | Reset button |
Storage | Micro SD card slot (max. 128GB) |
Audio | Built-in microphone and speaker |
Pan & Tilt | |
Pan & Tilt | Pan: 355°, Tilt: 0°~90° (Speed can be set) |
Preset | 32 |
Auto Tracking | Support |
3G/4G | |
Frequency Bands | Europe version: LTE FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8; USA version: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71; Australia version: LTE FDD: B1/B3/B5/B7/B8/B28, WCDMA: B1/B5/B8 |
Transmission Data | LTE FDD: Max 10Mbps (DL), Max 5Mbps (UL); LTE TDD: Max 8.96Mbps (DL), Max 3.1Mbps (UL); HSPA+: Max 42Mbps (DL), Max 5.76Mbps (UL); UMTS: Max 384Kbps (DL), Max 384Kbps (UL) |
Software Features | |
Frame Rate | Mainstream: 10fps - 15fps; Substream: 10fps - 15fps |
Code Rate | Mainstream: 1024Kbps - 4096Kbps; Substream: 64Kbps - 512Kbps |
OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
Smart Alarm | PIR detection/person detection/vehicle detection/pet detection |
Record Mode | Motion-triggered recording |
Protocols & Standards | SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P |
Maximum User Access | Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
Work with | Google Assistant, Reolink Cloud |
Working Environment | |
Operating Temperature | -10°C~+55°C (14°F~131°F) |
Operating Humidity | 20% ~ 85% |
Waterproof | IP65 |
Size & Weight | |
Dimension | 228.2 x 147 x 129mm |
Weight | 1.4KG |
Reolink TrackMix LTE 4G Battery Camera Descriptions

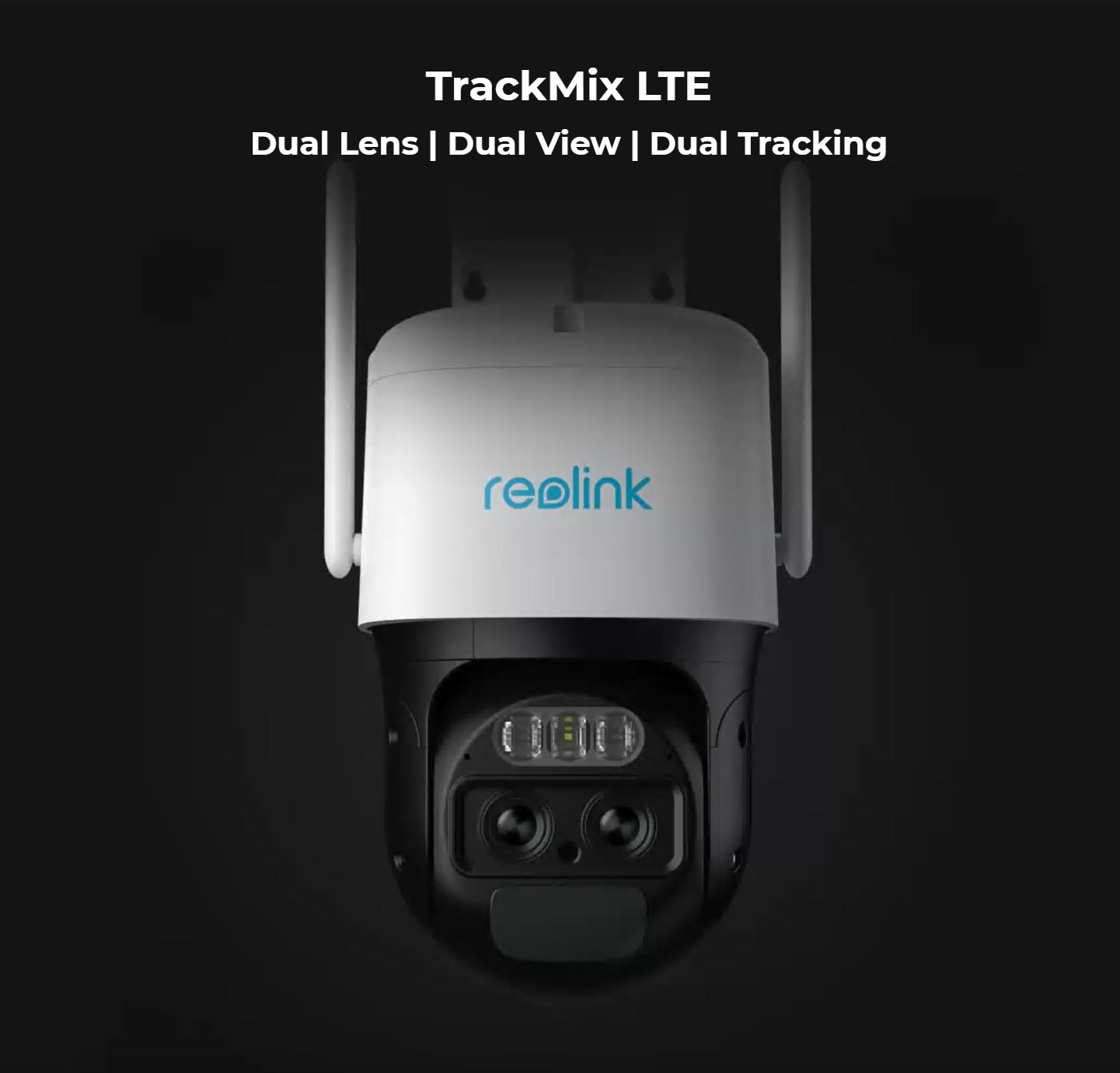

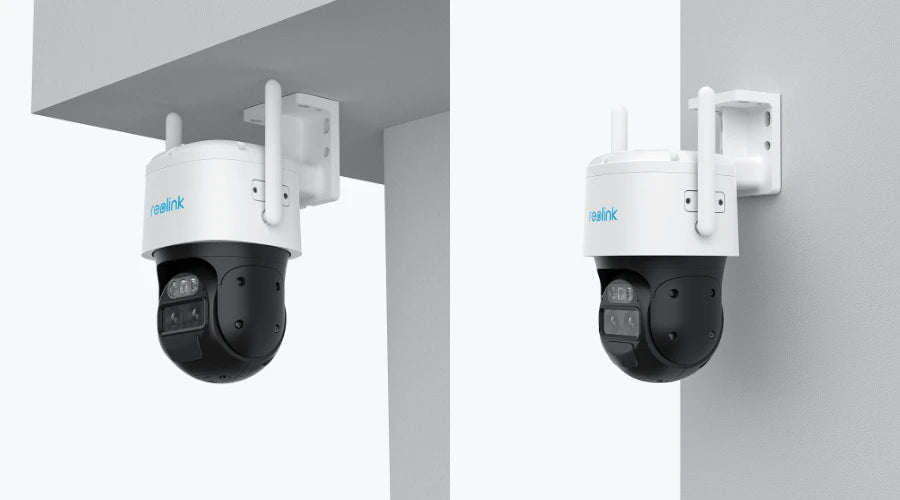

Reolink TrackMix LTE features a dual-lens design with dual view and tracking capabilities for enhanced security monitoring.

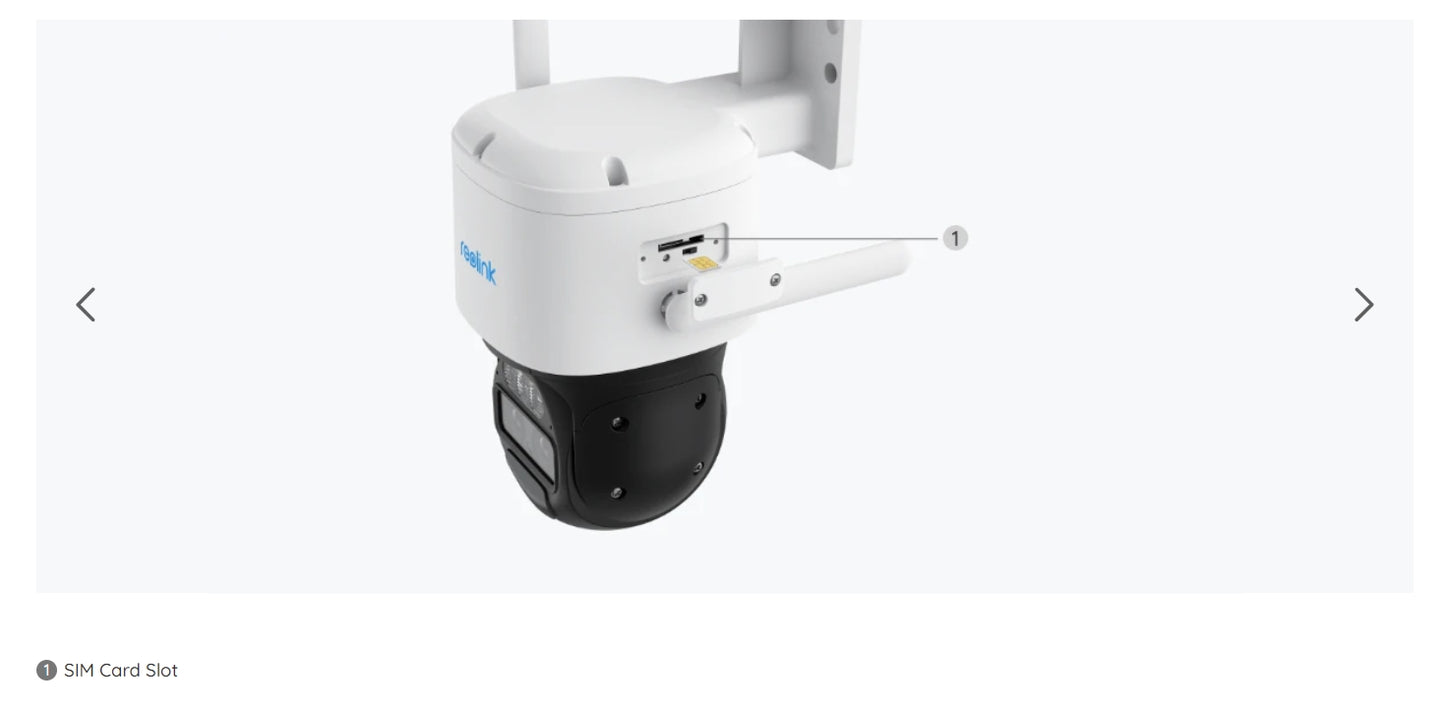

Wire-free convenience with Reolink TrackMix LTE - a dual-lens camera that runs on 4G LTE network or battery power. This portable camera features smart detection, auto-tracking, two-way audio and more. Requires a Nano SIM card and cellular data plan (T-Mobile, Vodafone supported) for use in the US, Germany, UK, Italy and other countries.

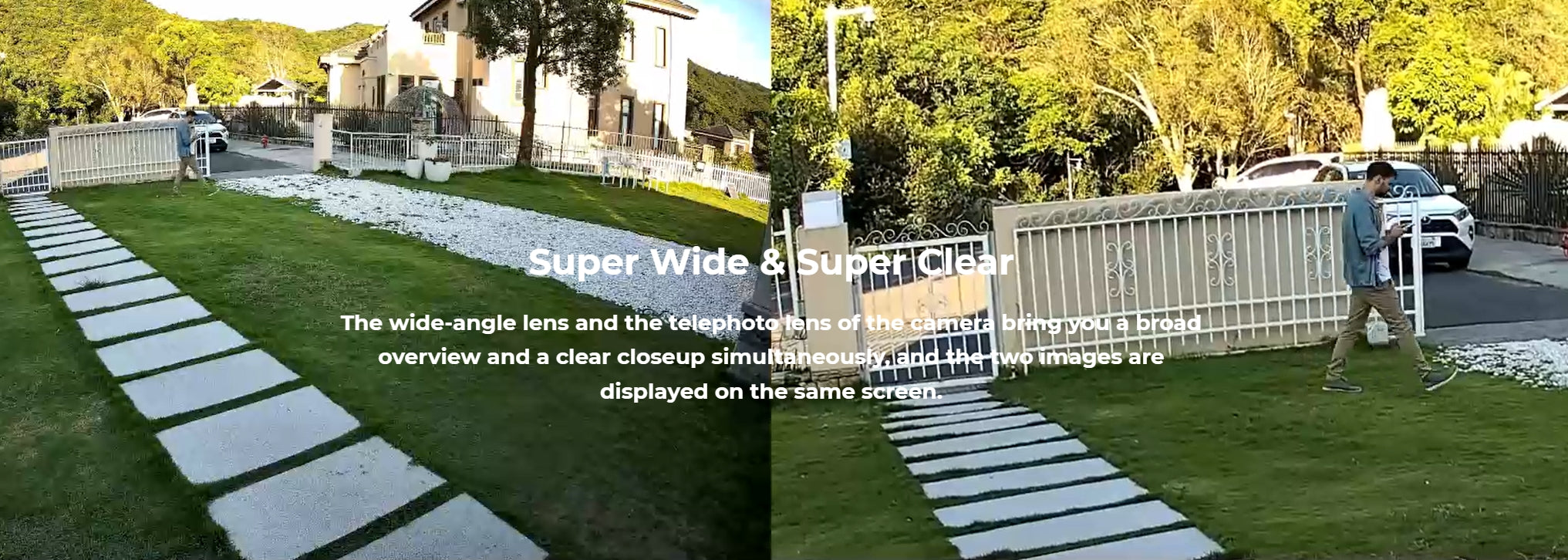

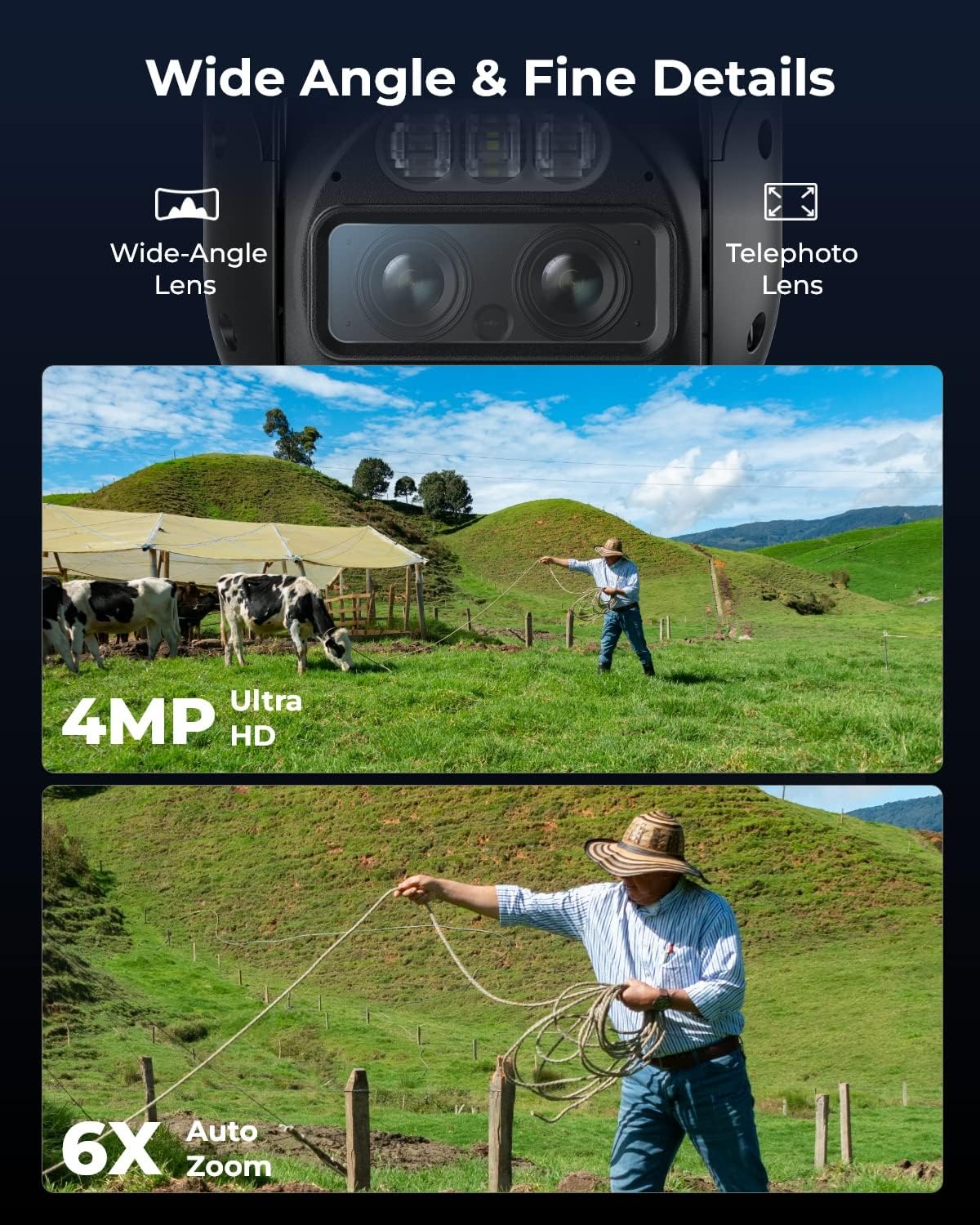

Captures a broad view with simultaneous close-up, displaying both images on one screen.

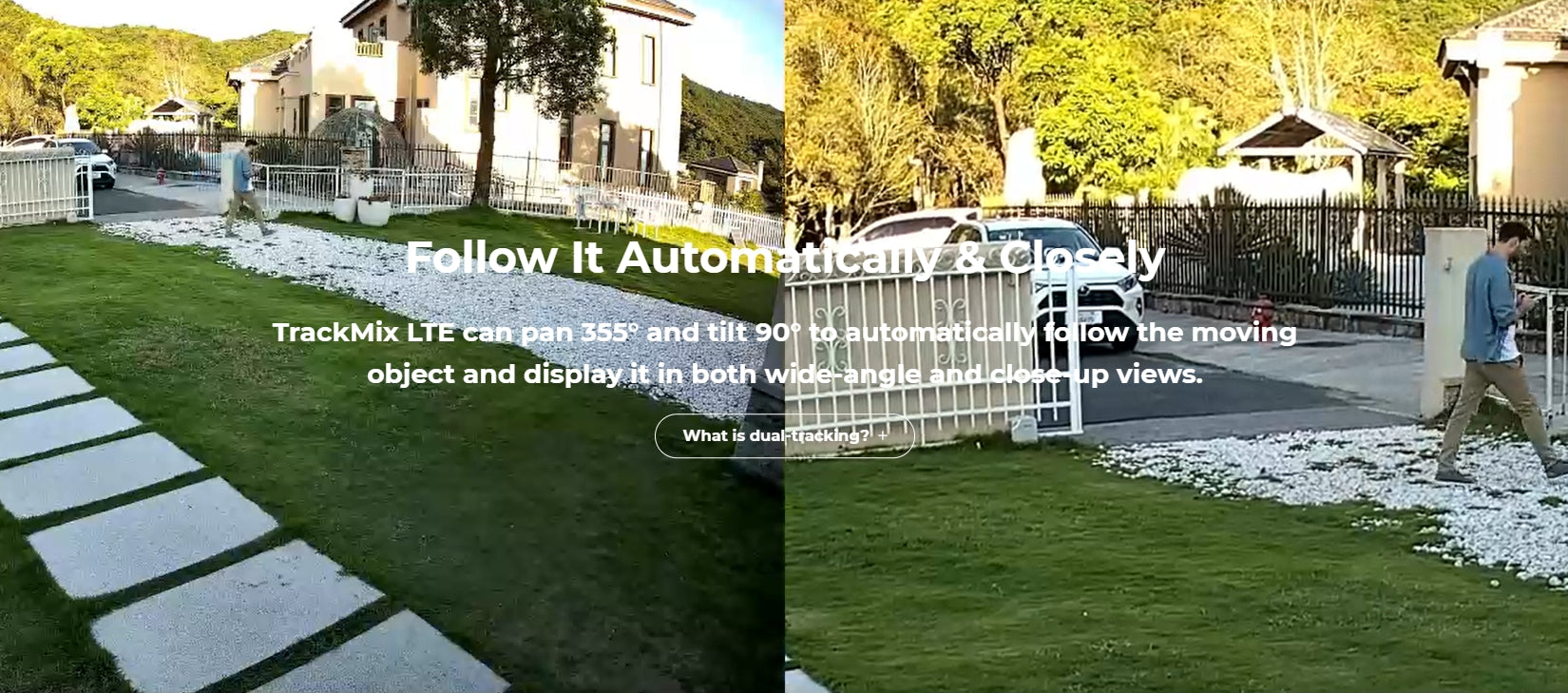

Automatically track and follow moving objects with ClearTrack, featuring 35.52° pan and 90.08° tilt capabilities, providing clear views in both wide-angle and narrow-field modes.

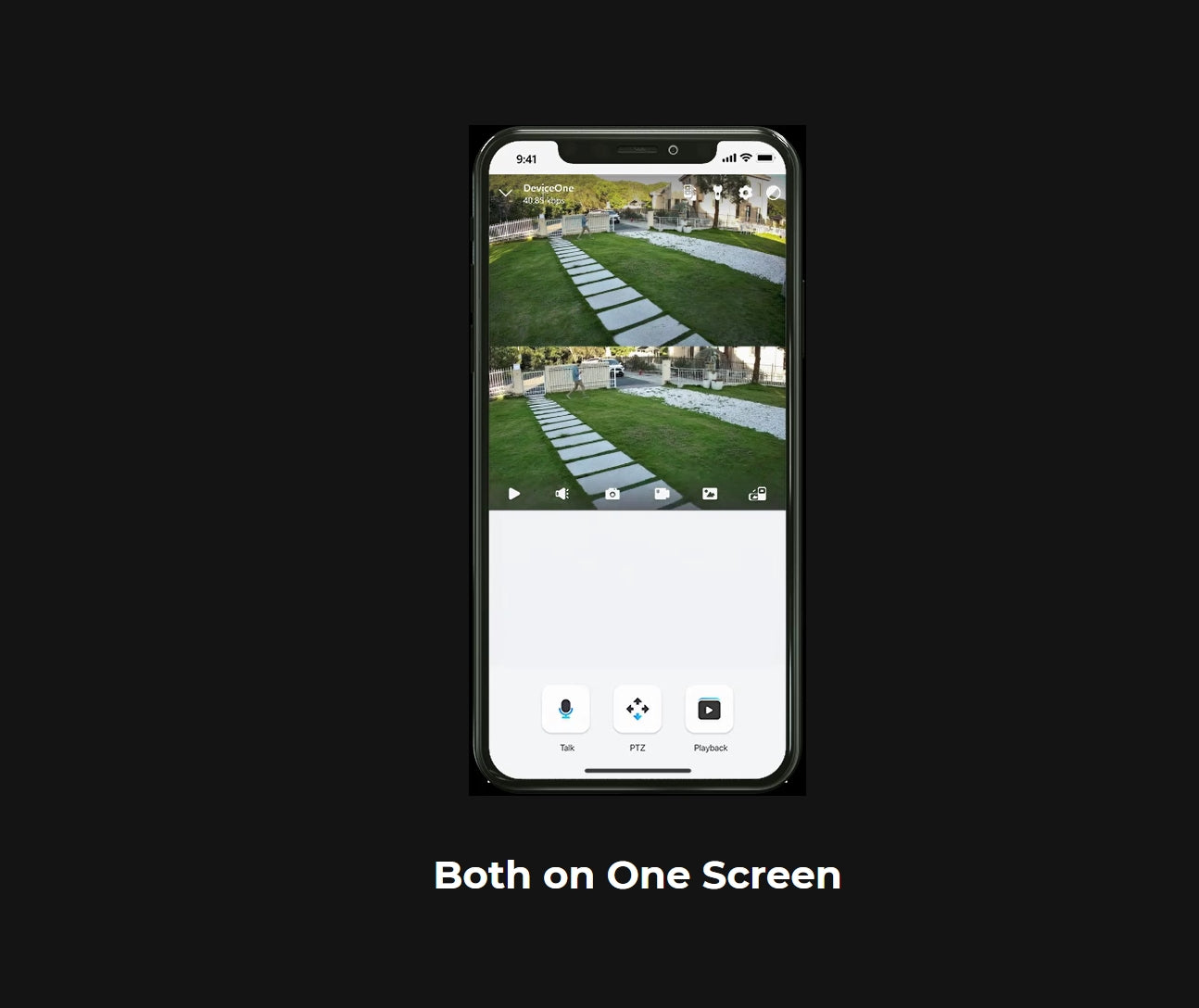

Monitor up to two devices at once with one screen, featuring a 9.41-inch display and seamless device connectivity.

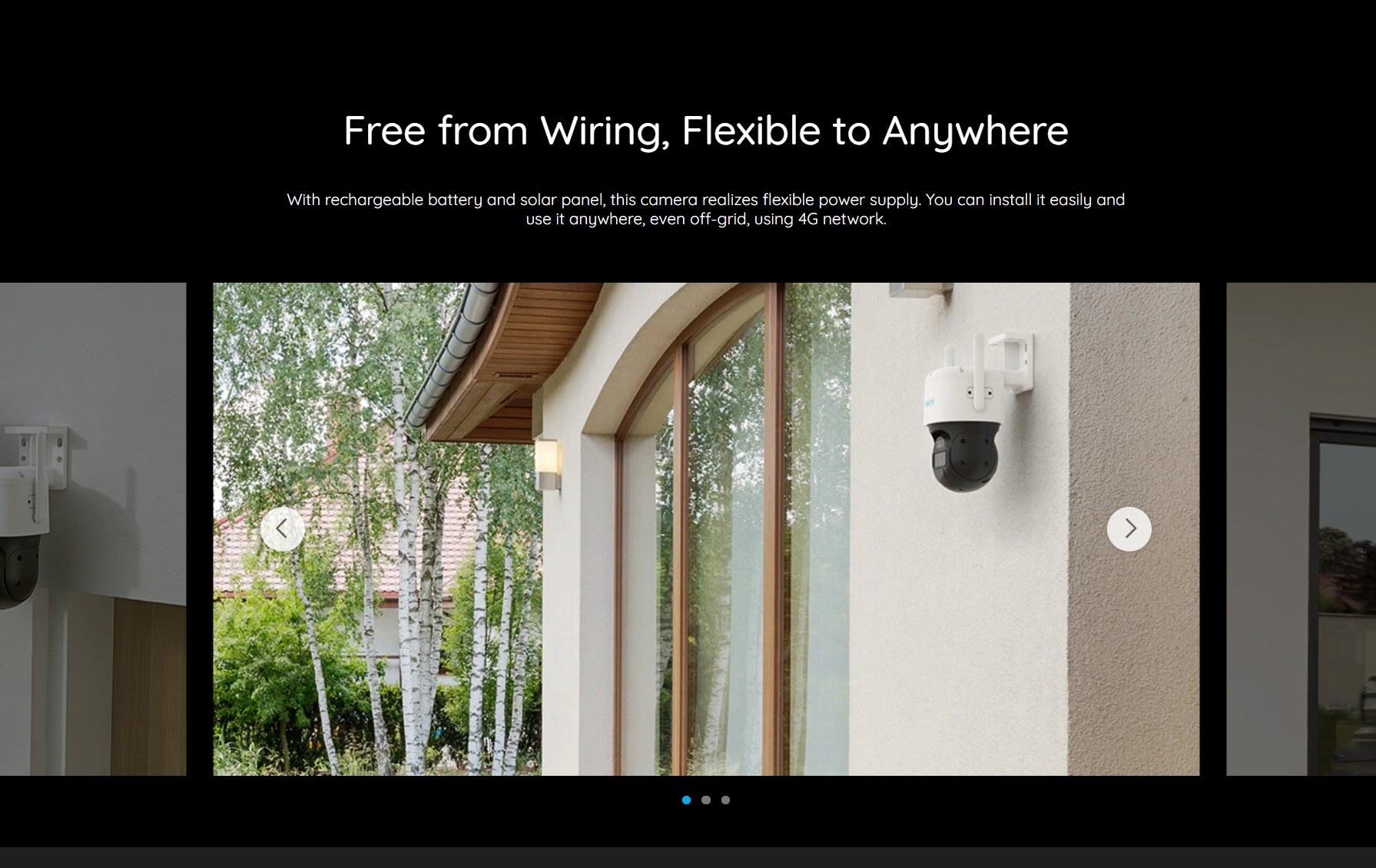

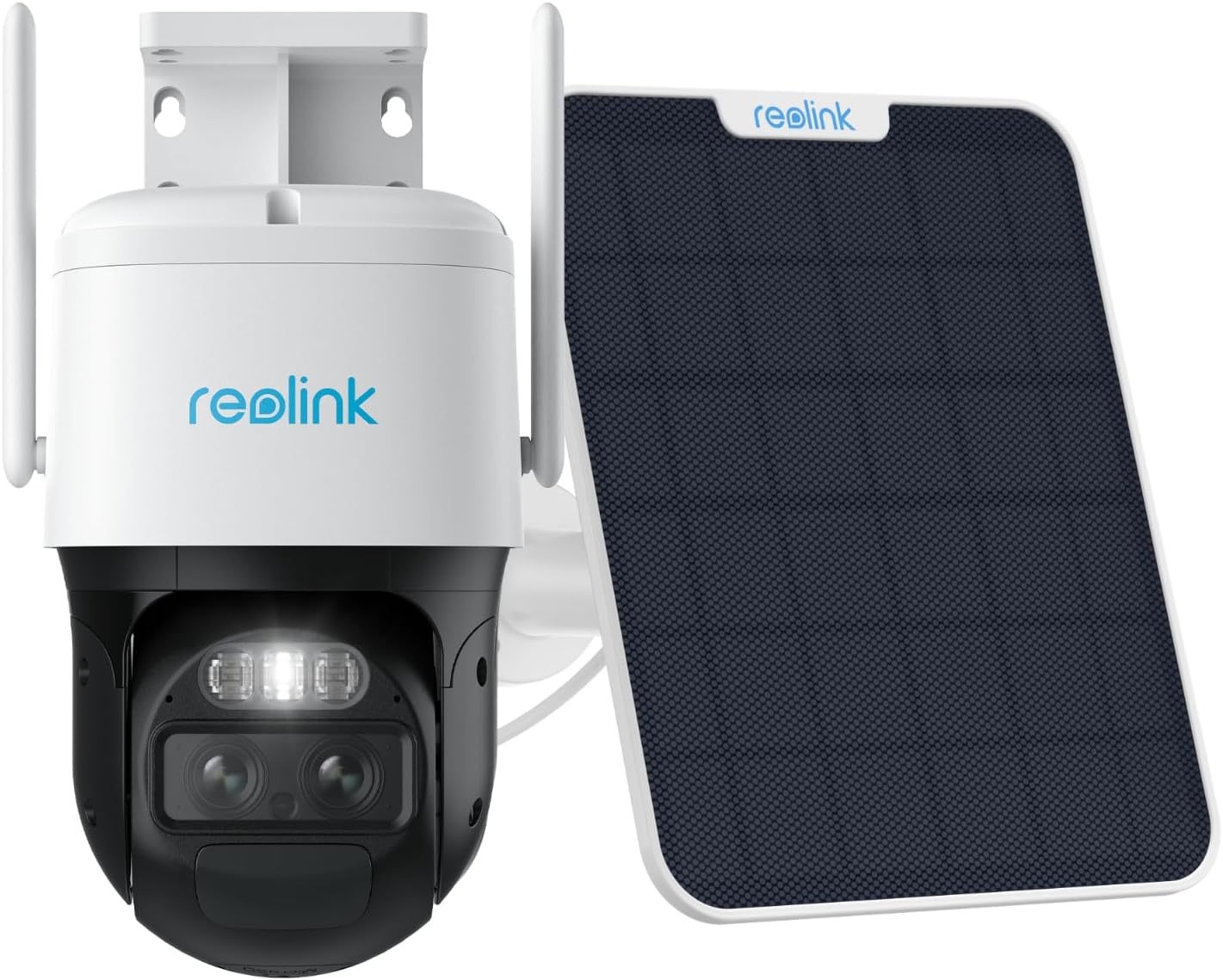

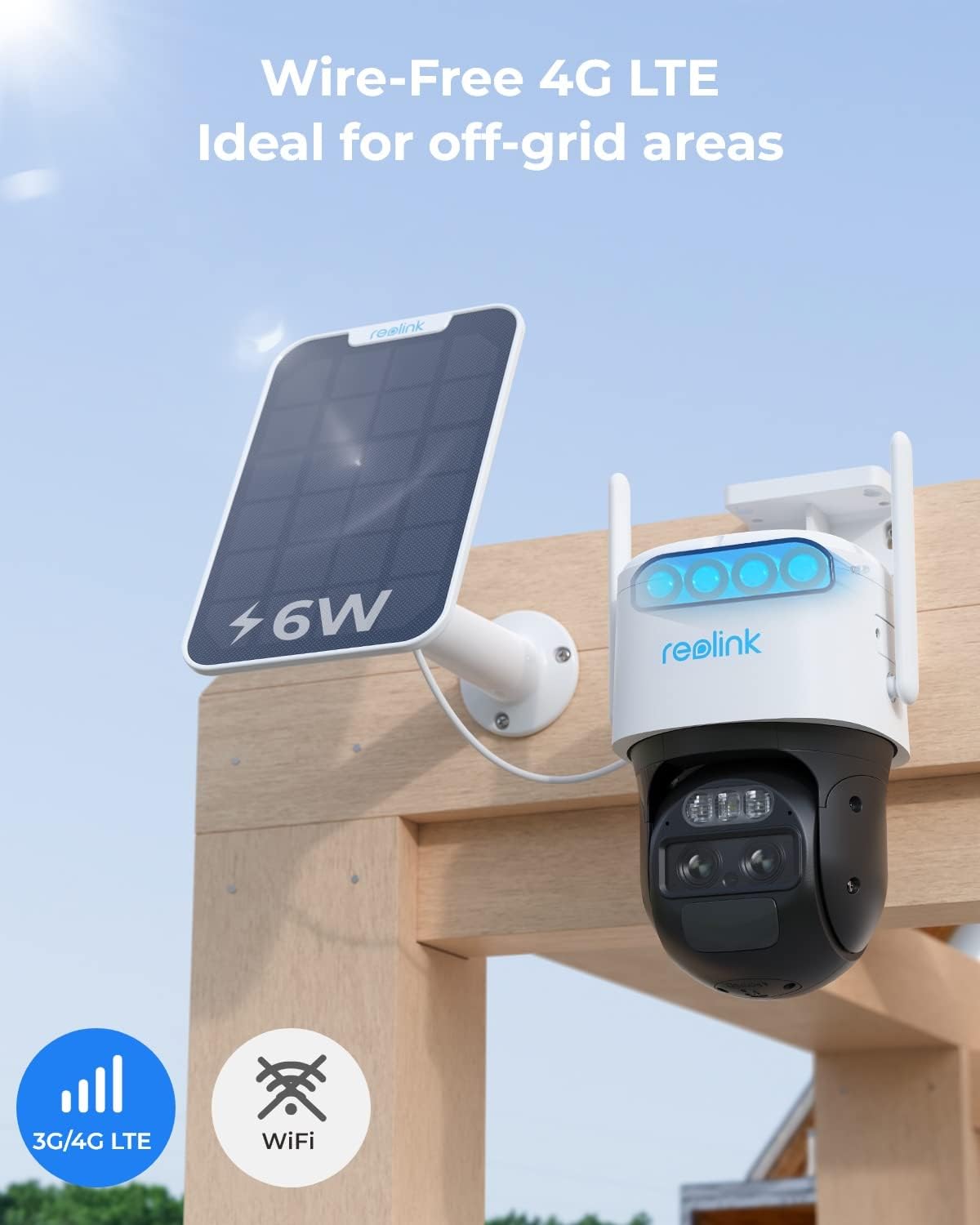

Wire-free and adaptable, this camera features a rechargeable battery and solar panel for flexible power supply, allowing easy installation and use anywhere, including off-grid areas, with 4G network connectivity.

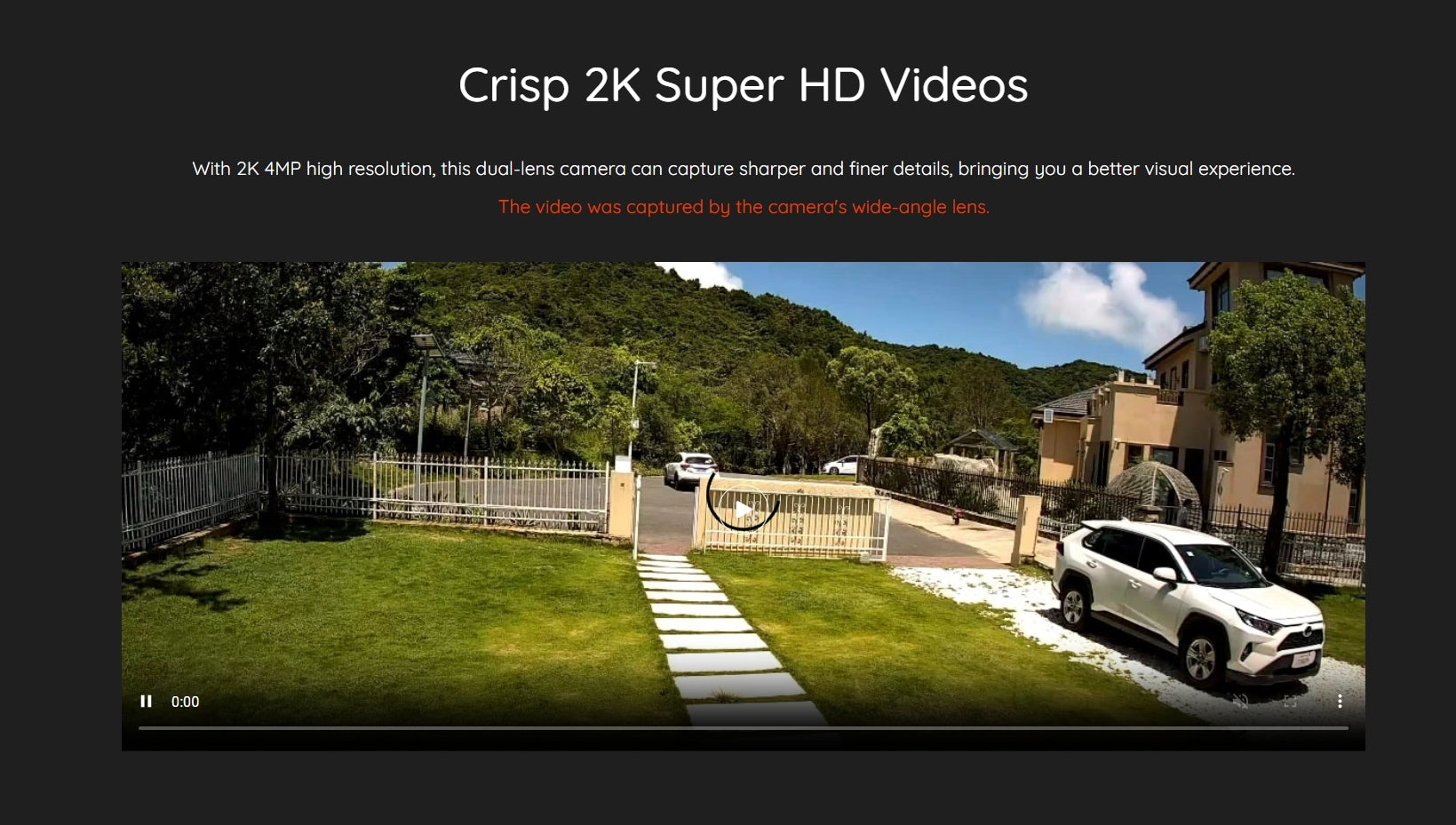

Capture crisp, high-resolution 2K videos with sharp detail and fine texture, offering a superior visual experience.

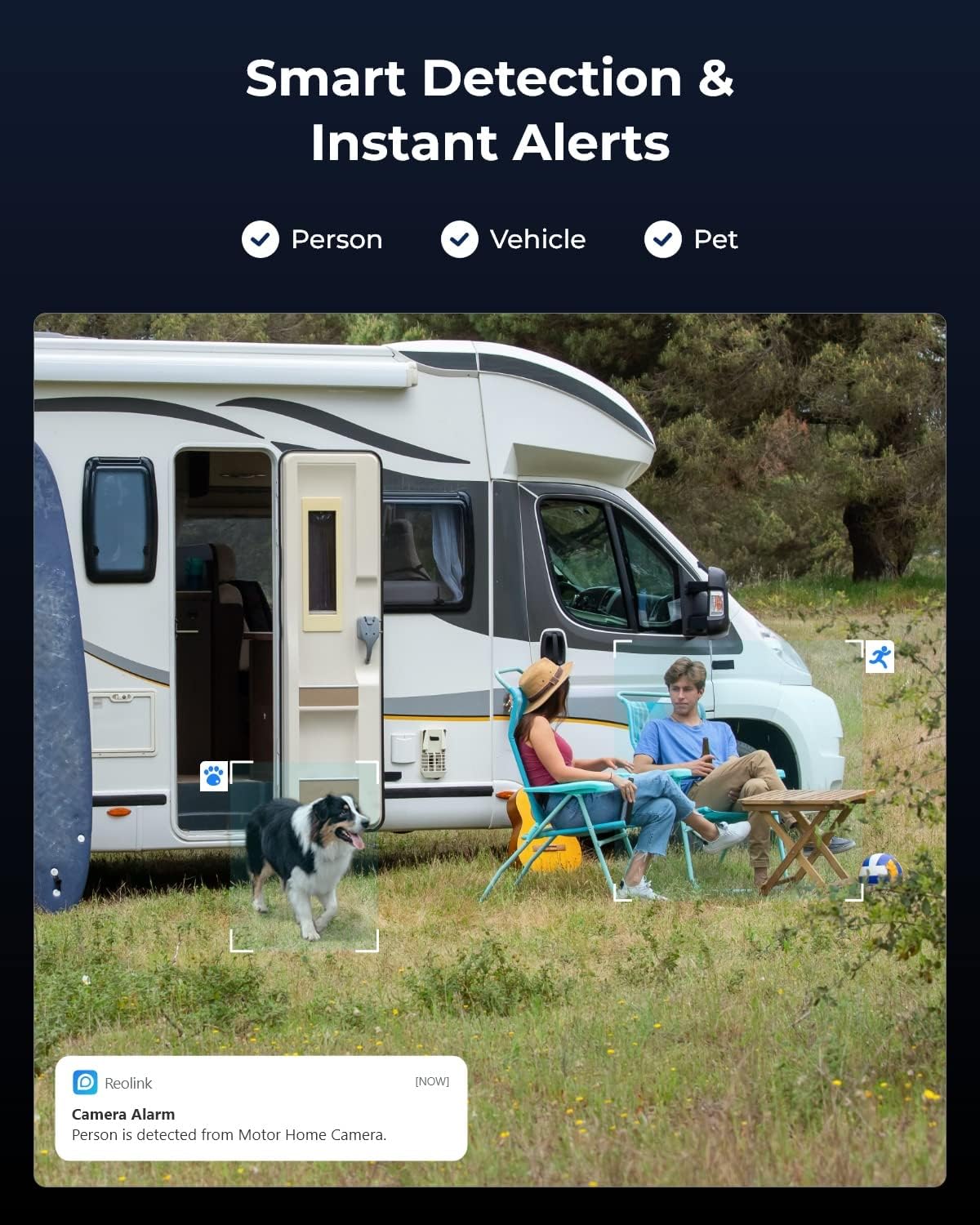

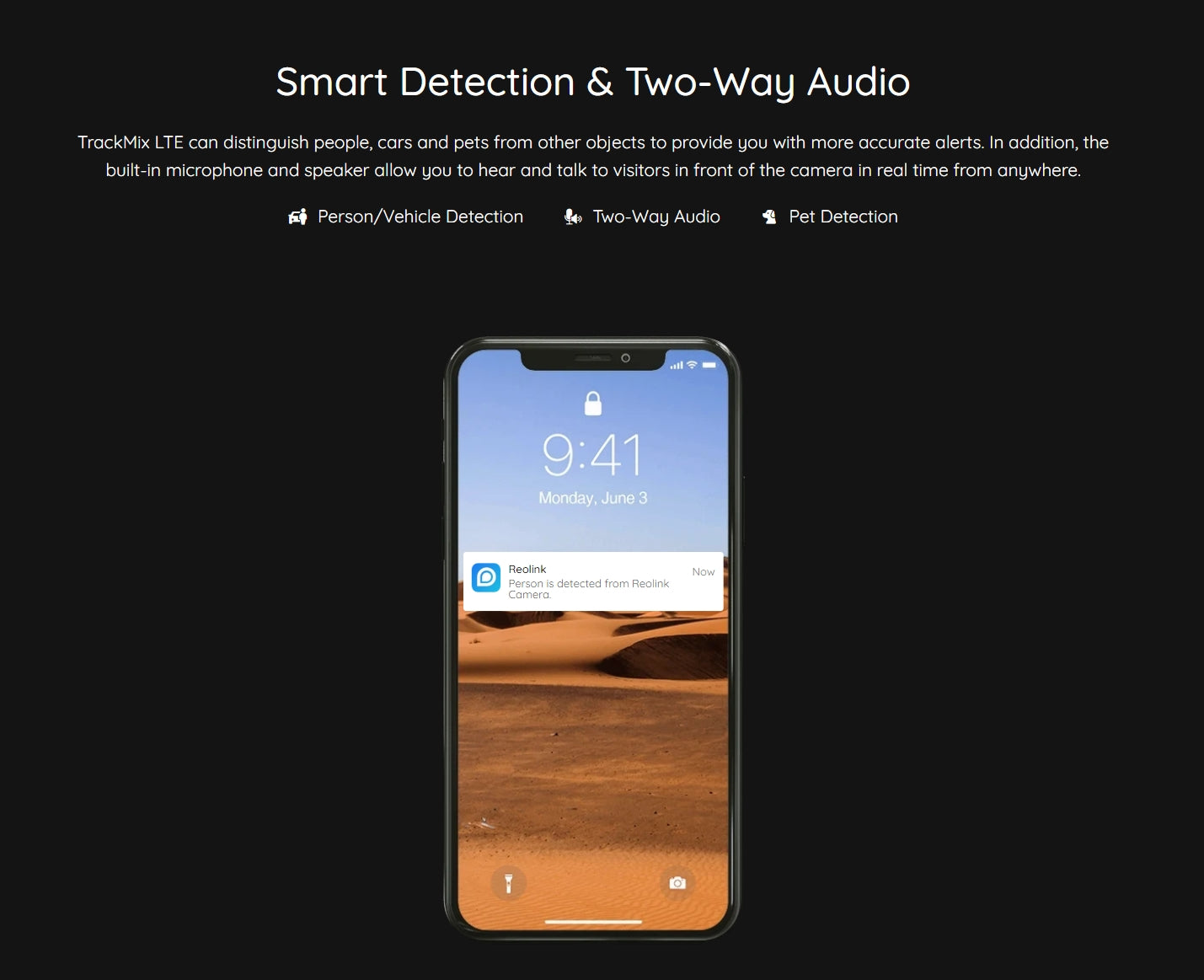

TrackMix LTE detects people, cars, and pets with accuracy, alerting you to relevant motion. It also features two-way audio, allowing real-time conversations with visitors through its built-in microphone and speaker.

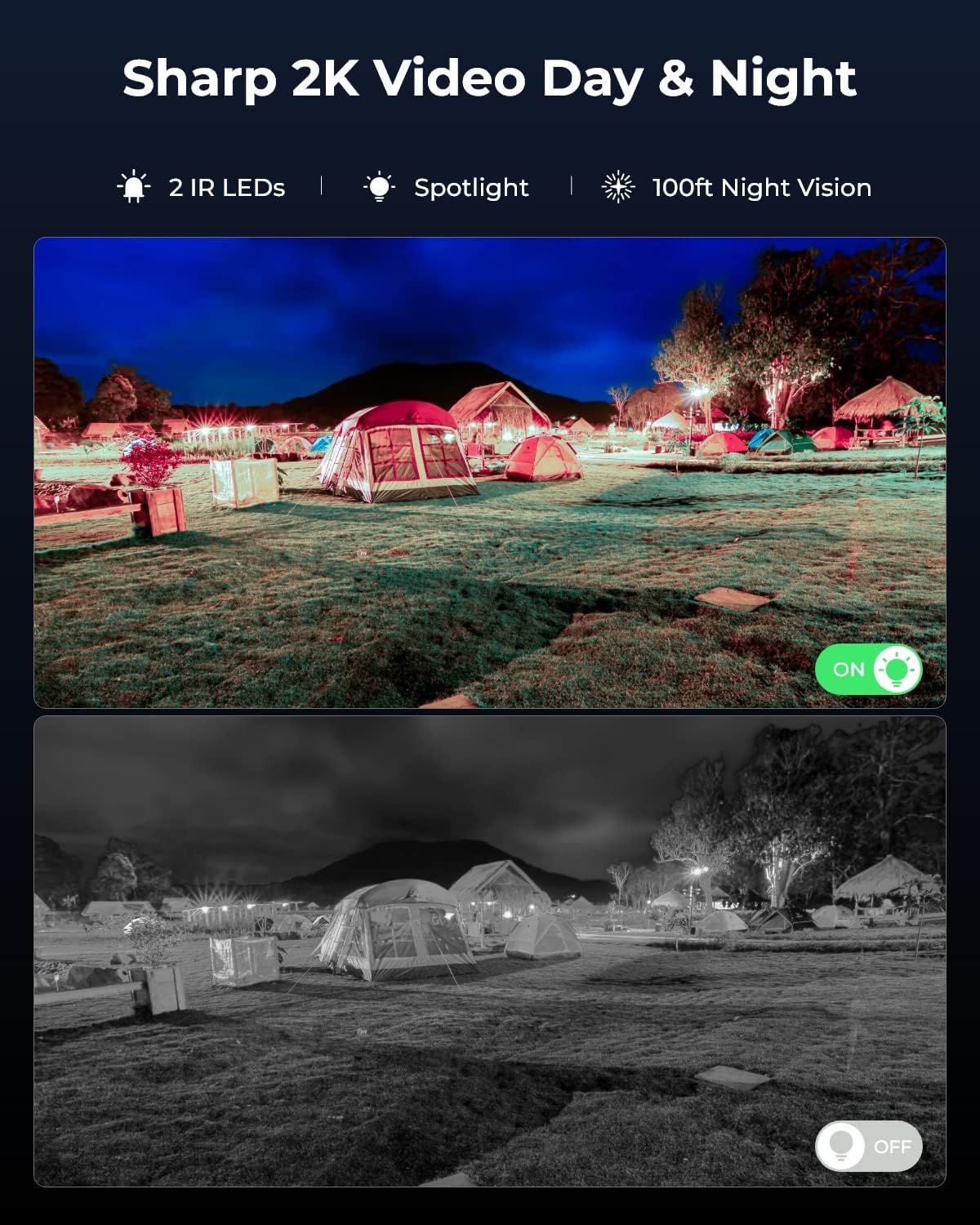

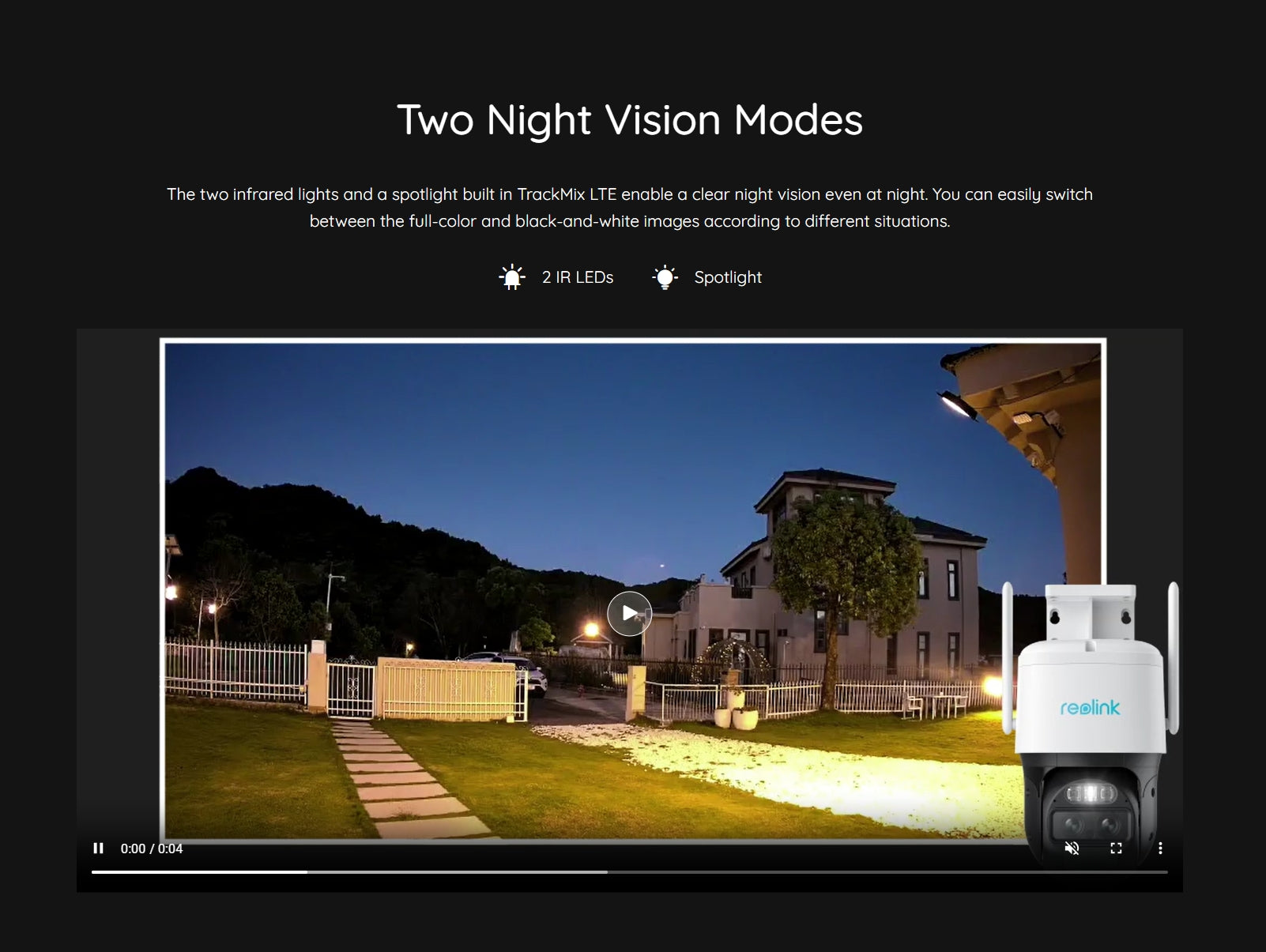

Enjoy crystal-clear night vision with two modes: full-color or black-and-white, using built-in infrared lights and a spotlight for enhanced visibility.

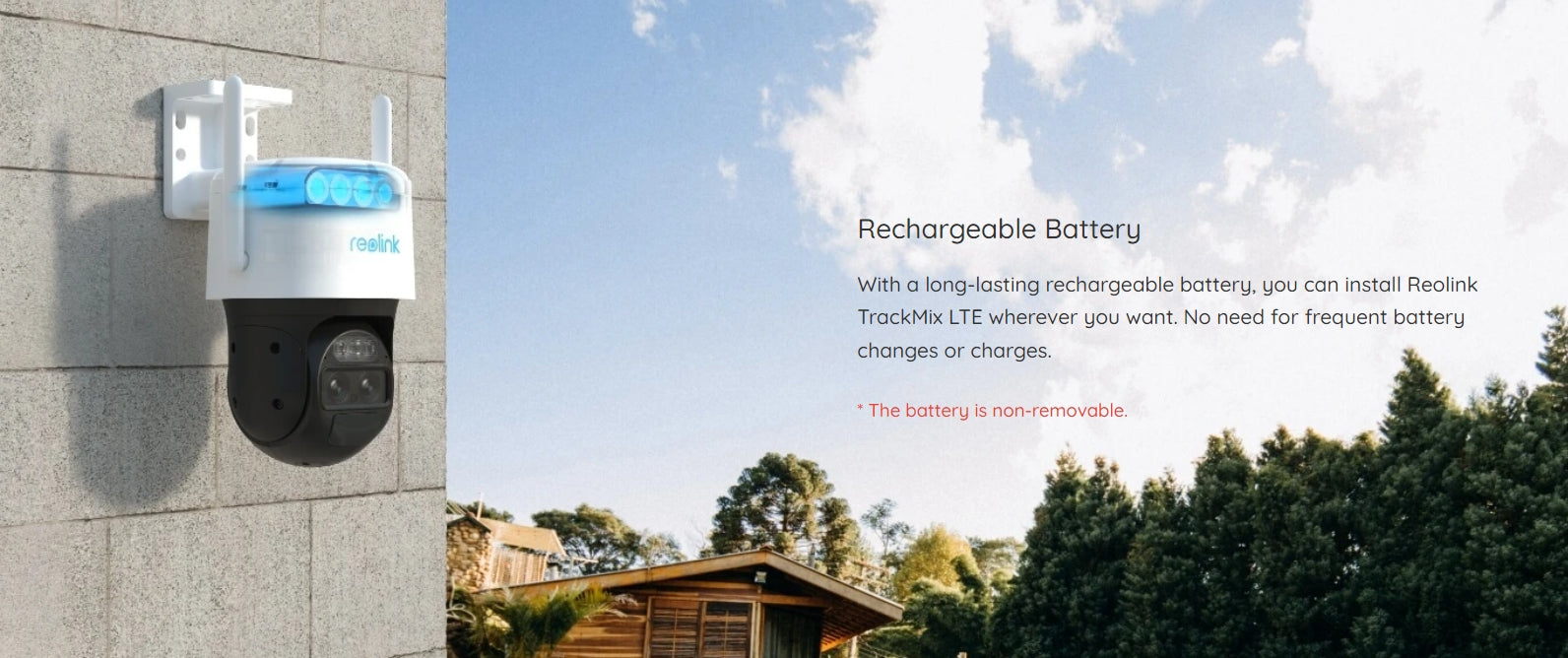

Enjoy long-lasting power with the rechargeable battery, no need to frequently change or charge it. Install the Reolink TrackMix LTE anywhere, as the battery is non-removable and designed for continuous use.
This security camera can also be connected to Reolink's Solar Panel, providing non-stop power through solar energy. The panel is sold separately and designed exclusively for Reolink's battery-powered cameras.
Enjoy stunning time-lapse videos, accelerating dynamic scenes like sunrise and sunset into minutes. Note: Wide-angle views only support time lapse. Durable construction withstands harsh weather conditions, including rain or heat.

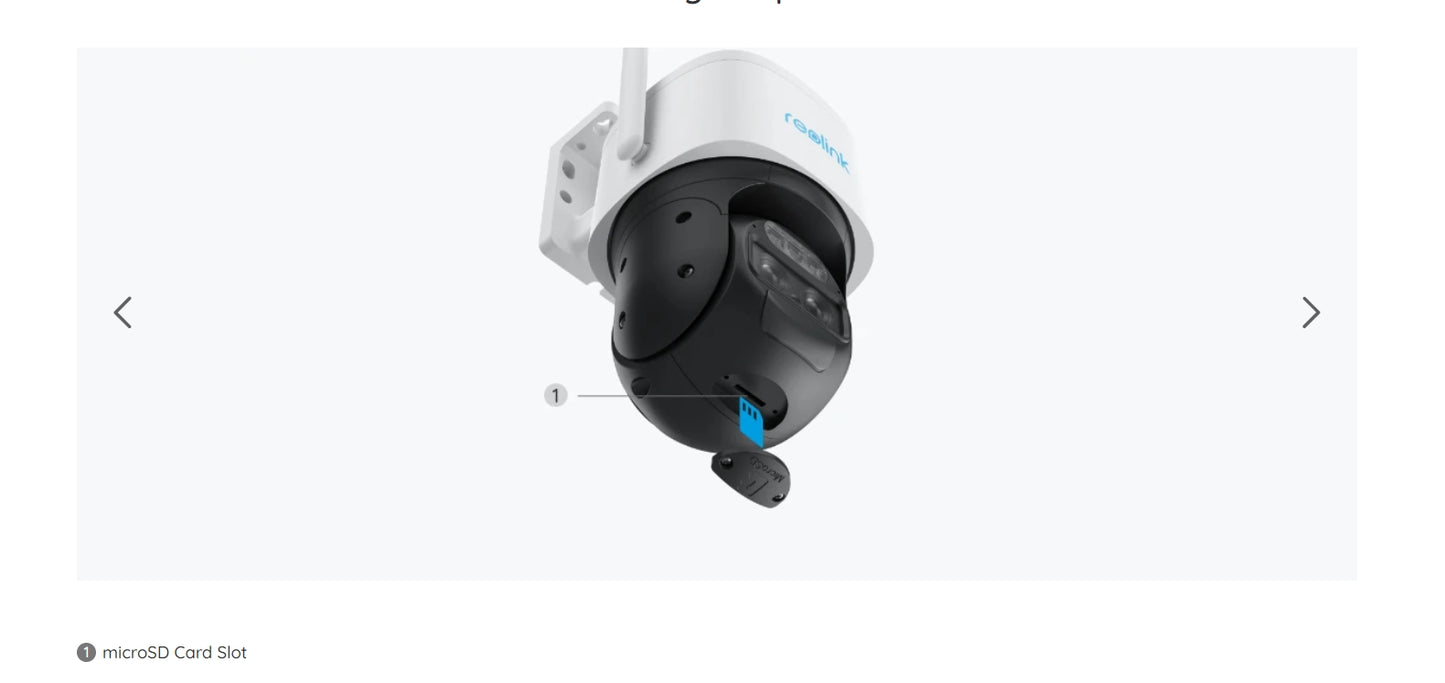

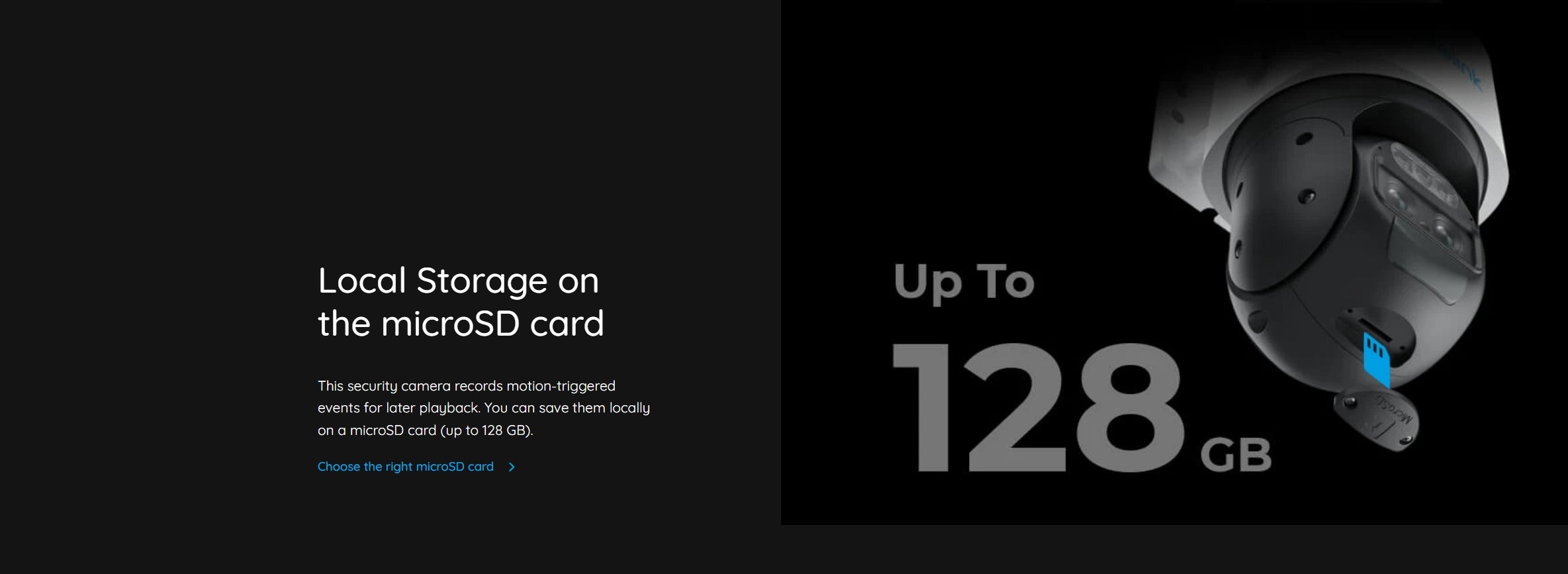

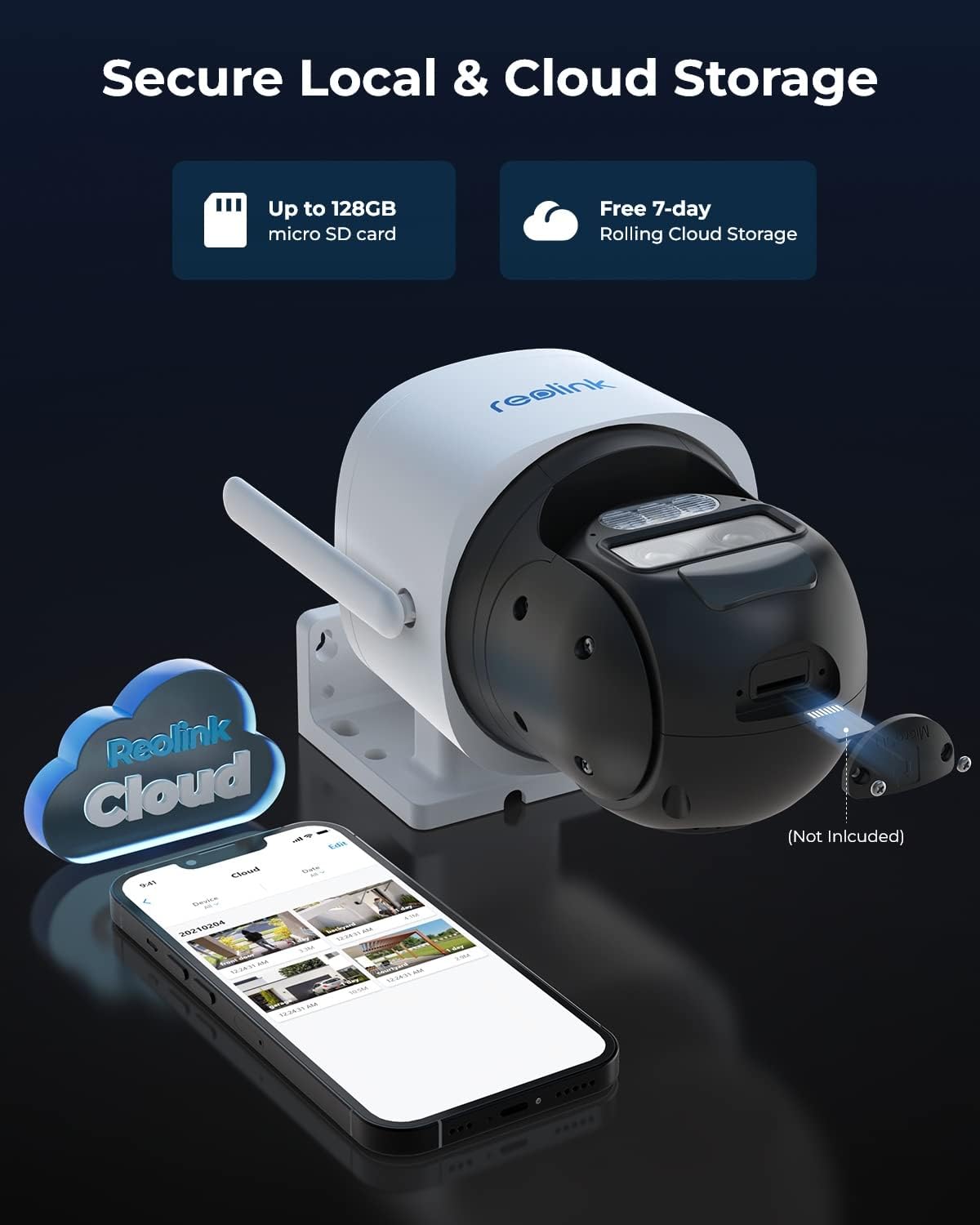

Record and store motion-triggered events locally on a microSD card (up to 128GB), with options for playback.
Stores event videos on Reolink Cloud's encrypted storage, allowing uploads and playback from anywhere. Choose your cloud plan for secure off-site backup and 24/7 access to important moments.

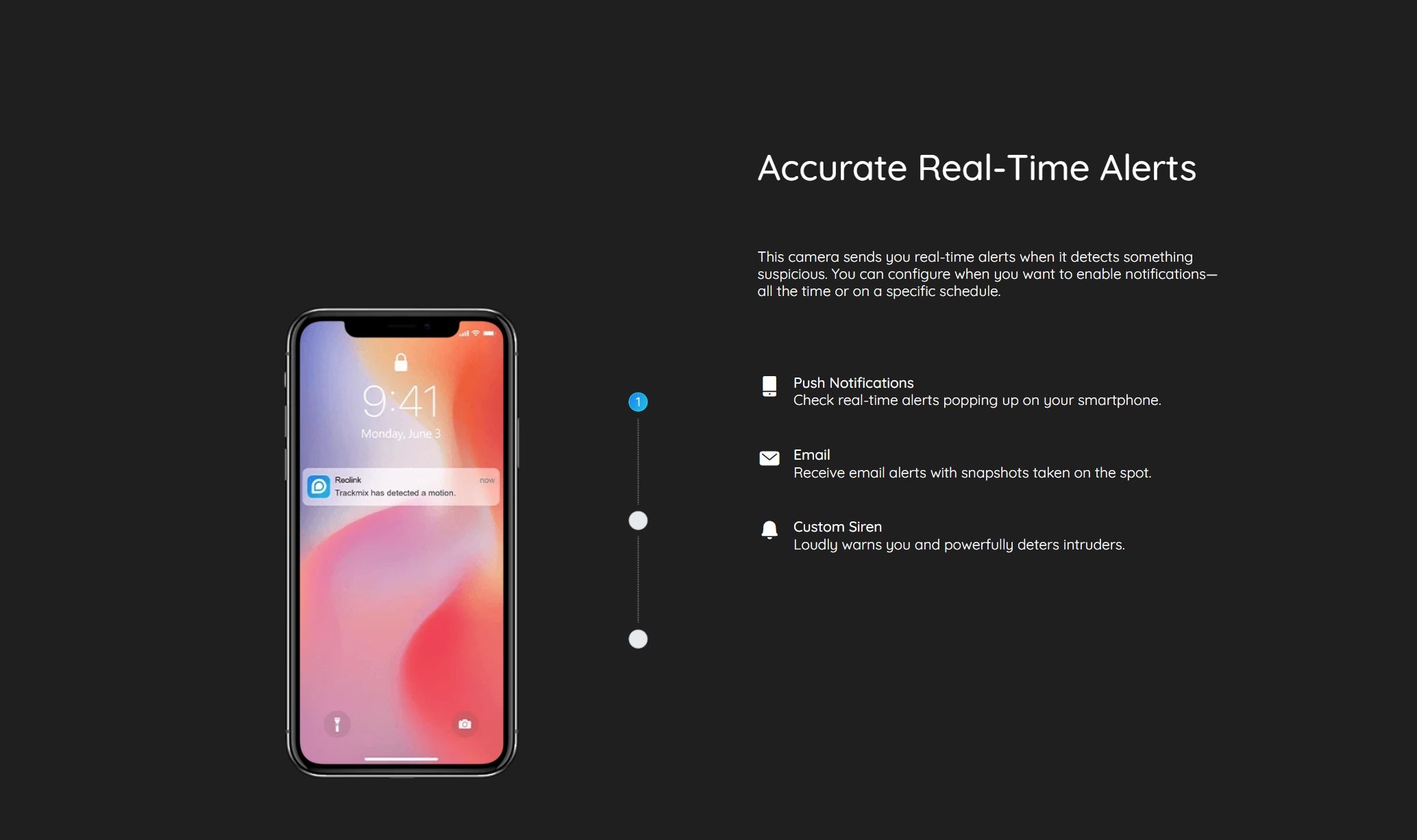

Stay informed with real-time notifications, configure alert settings to suit your needs, receive email updates with snapshot attachments, or opt for loud custom sirens to deter potential intrusions.

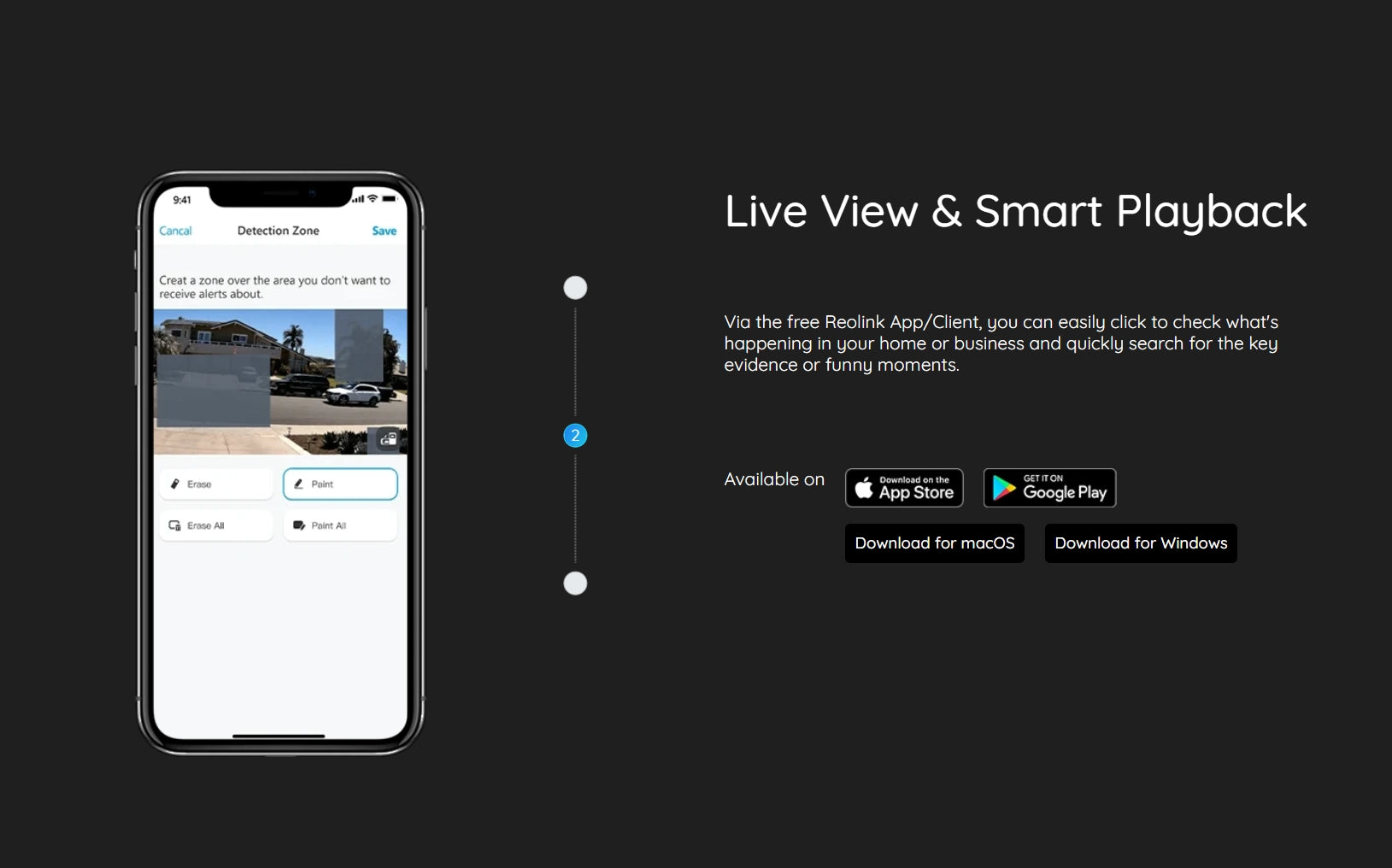

Live view and smart playback features allow you to monitor your area, cancel detection zones for areas you don't want alerts about, and save moments via the Reolink App/Client. Easily search for evidence or specific moments with quick access.
Control your camera hands-free with Google Assistant - say 'Hey Google, show me the backyard' and check what's happening on your Google Nest Hub or Chromecast-enabled TVs. Note: Wide-angle views only support Google Assistant.
Control your Reolink TrackMix LTE 4G battery camera hands-free with voice commands: ask Alexa to display video footage on Echo Spot, Show, or Fire TVs - coming soon!
Meet your needs with four versions of Reolink's TrackMix series: TrackMix PoE for indoors/outdoors; TrackMix WiFi for simplified wiring and smooth networking; TrackMix LTE for 4G connectivity; or choose eco-friendly and economical TrackMix, battery- or solar-powered options available.
Reolink camera features a 229mm lens, spotlight with infrared LEDs for night vision, and includes a daylight sensor and PIR motion detection.

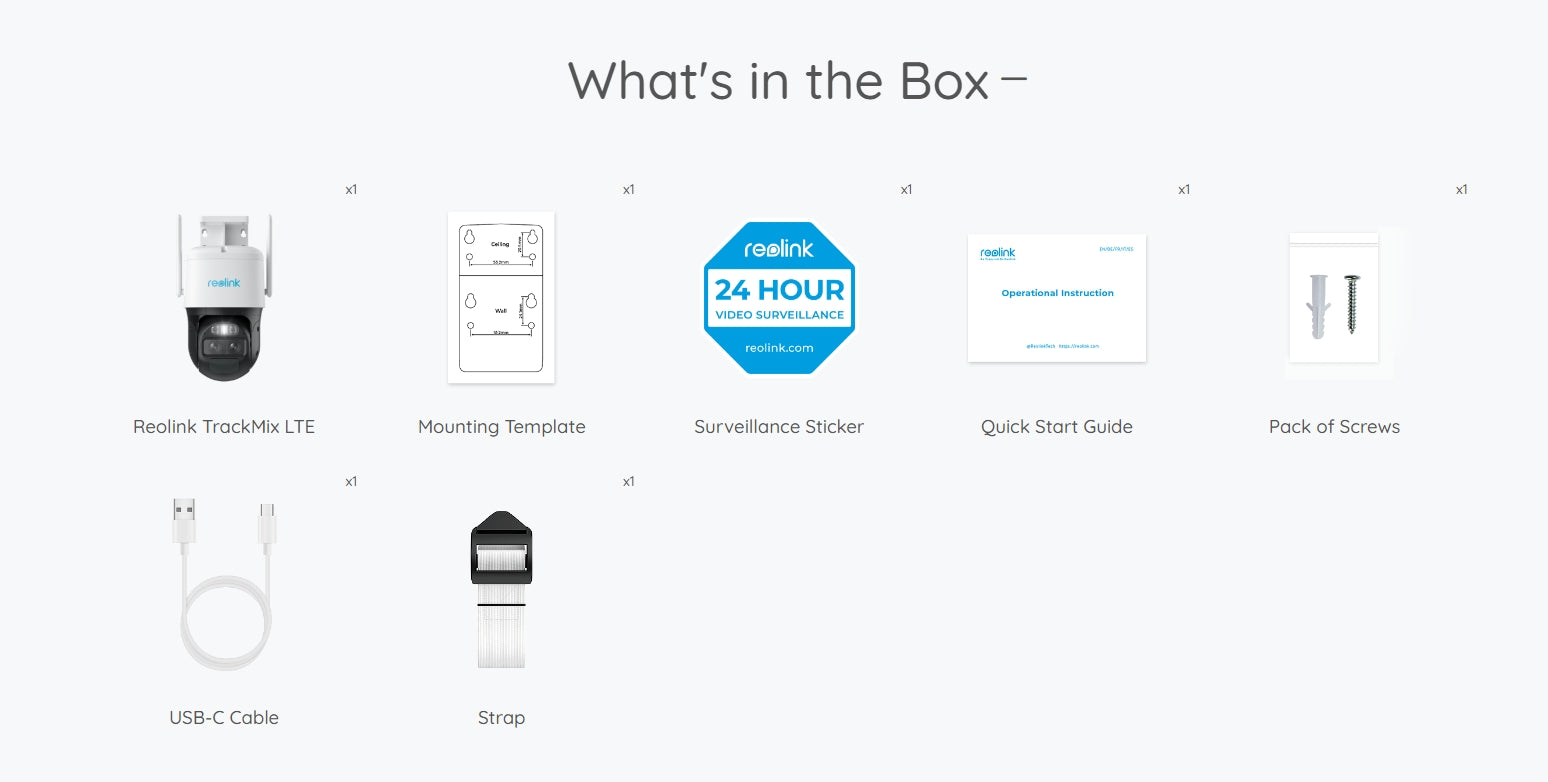

Contents include: quick start guide, mounting template, surveillance sticker, pack of screws, USB-C cable strap, and 24-hour operational instructional video from tsolar.top.
